CYP PUV-1602TXWP User manual

PUV-1602TXWP
HDMI/VGA over Single CAT5e/6/7 HDBaseT™ Wallplate
Transmitter (Full 5Play™ & Single LAN up to 100m, PoH)
OPERATION MANUAL

3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer file, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 20/06/2018 First release

5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................7
5. Features..................................................7
6. Operation Controls and Functions .......8
6.1 Front Panel................................................... 8
6.2 Rear Panel..................................................... 9
6.3 RS-232 Protocol........................................10
6.4 RS-232 Commands..................................11
7. Connection Diagram .......................... 14
8. Specifications...................................... 15
8.1 Technical Specifications ........................15
8.2 Video Specifications................................16
8.3 Cable Specifications ...............................18
9. Acronyms............................................. 19

6
1. INTRODUCTION
This Transmitter is an HDMI/VGA switch with audio embedding and
HDBaseT output. The wall plate is designed for use with UK two-gang
sized enclosures. This Transmitter can send high definition uncompressed
audio/video along with Ethernet over a single cable up to a distance of
100 metres at 1080p@60Hz.
The HDMI input supports resolutions up to 4K@60Hz (4:4:4, 8-bit). The
VGA input supports resolutions up to WUXGA (RB) and with the use of the
associated 3.5mm audio input, stereo audio may be embedded as well.
To provide maximum compatibility with a wide range of display types,
all sources will be automatically scaled to match the preferred resolution
and timing of the connected display (as reported by the display's
EDID). Despite HDBaseT’s 10.2Gbps bandwidth limitation, even 4K UHD
HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit), can be
supported by converting the signal to 4K@30Hz when necessary.
This unit also supports automatic input selection between the HDMI
and VGA inputs, with hot plug detection, enabling hands-free operation.
Additionally, the unit may be powered locally or via 48V PoH (Power over
HDBaseT) from a compatible HDBaseT Receiver, which allows for greater
flexibility in installations.
2. APPLICATIONS
Household entertainment sharing and control
Lecture room display and control
Showroom display and control
Meeting room presentation and control
Classroom display and control
3. PACKAGE CONTENTS
1×HDMI/VGA over HDBaseT Transmitter (with LAN support)
1×Operation Manual

7
4. SYSTEM REQUIREMENTS
HDMI source equipment such as a media player, video game console
or set-top box.
HDMI receiving equipment such as an HDTV, monitor or audio
amplifier.
The use of industry standard Cat.6, Cat.6a or Cat.7 cable is highly
recommended.
The use of “Premium High Speed HDMI”cables is highly
recommended.
5. FEATURES
HDMI 2.0 and DVI 1.0 compatible
HDCP 2.2 and HDCP 1.x compliant
1 HDMI input
1 VGA input with 3.5mm mini-jack audio input
Supports HDMI input resolutions up to 4K@60Hz (4:4:4, 8-bit)
Supports VGA input resolutions up to WUXGA (RB)
Automatic conversion of 4K@50/60Hz HDMI sources to 4K@30Hz
(4:4:4, 8-bit) for transmission over HDBaseT
Automatic scaling of sources to match the native resolution of the
HDMI display based on EDID
HDBaseT feature support: HD Video and Audio, 48V PoH, and Control
(Ethernet bypass)
Simultaneous transmission of uncompressed video, audio and data
over a single 100m Cat.5e/6/7 cable at 1080p and 70m at 4K
Automatic input selection with hot plug detection enabling handsfree
operation
Unit may be powered locally or via 48V PoH (PD) from a compatible
HDBaseT Receiver (PSE)
Wall plate is designed for UK two-gang sized enclosures
Controllable via front panel buttons and RS-232 (remote only)
Front panel LEDs indicate input selection, power and link status

8
6. OPERATION CONTROLS AND FUNCTIONS

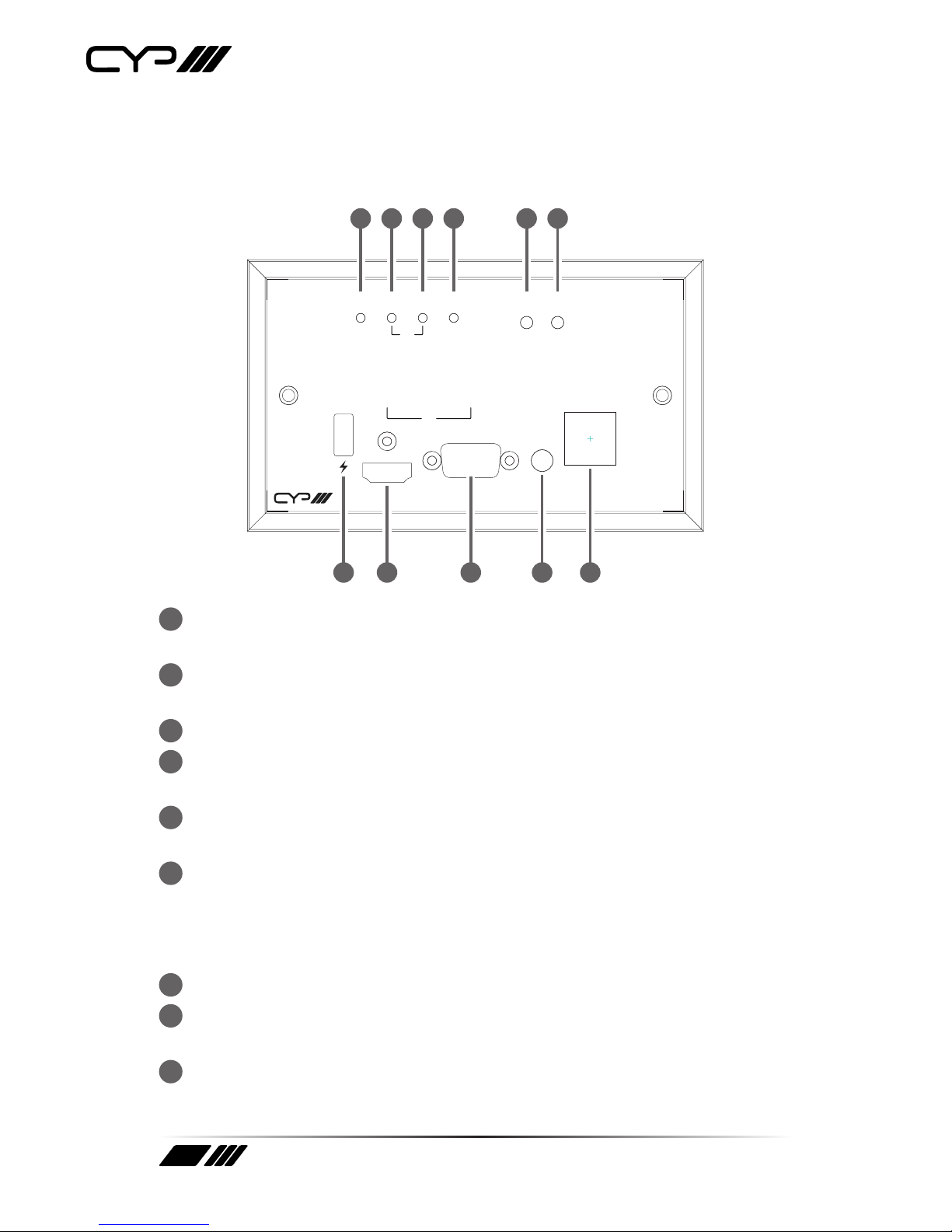

6.1 Front Panel
HDMI VGA
LINKVGAHDMIPOWER
SERVICE
IN
IN
AUTO
ADJUST
IN
SEL
LAN
PUV-1602TXWP
AUDIO
IN
7
1 2 3 4 5 6
8 9 10 11
1POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
2HDMI IN LED: This LED will illuminate when HDMI is the selected
source.
3VGA IN LED: This LED will illuminate when VGA is the selected source.
4LINK LED: This LED will illuminate solid when both Transmitter and
Receiver are connected and communicating with each other properly.
5IN SEL: Press this button to switch between the available inputs. The
LED will illuminate to indicate which source is currently selected.
6AUTO ADJUST: Press this button to optimise the positioning of the
picture (VGA sources only).
Note: Pressing and holding the Auto Adjust button for 5 seconds while the
HDMI input is selected will reset the unit to its factory defaults.
7SERVICE: This slot is reserved for firmware update use only.
8HDMI IN: Connect to HDMI source equipment such as a media player,
game console or set-top box.
9VGA IN: Connect to VGA source equipment such as a PC or laptop.

9
10 AUDIO IN: Connect to the stereo analogue output of a device such as
a CD player or PC for embedding into the HDBaseT output.
11 LAN: Connect directly, or through a network switch, to your PC/laptop
to control the unit.
6.2 Rear Panel
DC 12V
+
−
CAT5e/6/7 OUT
2
1
1DC 12V: Plug a 12V DC power adapter into this port and connect it to
an AC wall outlet for power (optional, not required when powered by
PoH).
2CAT5e/6/7 OUT: Connect to a compatible HDBaseT Receiver with a
single Cat.5e/6/7 cable for transmission of all data signals.

10
6.3 RS-232 Protocol
TX RX
Pin Pinout Pin Pinout
1 1
2TxD 2 RxD
3 RxD 3 TxD
4 4
5 GND 5 GND
6 6
7 7
8 8
9 9
