1
DPH-70L Modem IP Phone
User’s Guide
Rev 1.00
Rev. 01 (Jan 2003)
DPH-70L Rev.01
Printed In Taiwan
RECYCLABLE

DPH-70L User’s Guide
2
Trademarks
Copyright 2002 D-Link Corporation.
Contents subject to change without prior notice.
D-Link is a registered trademark of D-Link Corporation/D-Link Systems, Inc.
All other trademarks belong to their respective proprietors.
Copyright Statement
No part of this publication may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from D-Link
Corporation/D-Link Systems Inc., as stipulated by the United States Copyright Act of 1976.
Limited Warranty
Hardware:
D-Link warrants its hardware products to be free from defects in workmanship and materials,
under normal use and service, for the following periods measured from date of purchase from
D-Link or its Authorized Reseller:
Product Type Warranty Period
Complete products 90 days
Additional Parts like Power Adaptor etc, if any Do not carry
any warranty
The ninety day period of warranty on complete products applies on condition that the product's
Registration Card is filled out and returned to a D-Link office within thirty (30) days of purchase.
A list of D-Link offices is provided at the back of this manual, together with a copy of the
Registration Card. Failing such timely registration of purchase, the warranty period shall be
limited to 30 days.
If the product proves defective within the applicable warranty period, D-Link will provide repair or
replacement of the product. D-Link shall have the sole discretion whether to repair or replace,
and replacement product may be new or reconditioned. Replacement product shall be of
equivalent or better specifications, relative to the defective product, but need not be identical.
Any product or part repaired by D-Link pursuant to this warranty shall have a warranty period of
not less than 90 days, from date of such repair, irrespective of any earlier expiration of original
warranty period. When D-Link provides replacement, then the defective product becomes the
property of D-Link.
Warranty service may be obtained by contacting a D-Link office within the applicable warranty
period, and requesting a Return Material Authorization (RMA) number. If a Registration Card for
the product in question has not been returned to D-Link, then a proof of purchase (such as a
copy of the dated purchase invoice) must be provided. If Purchaser's circumstances require
special handling of warranty correction, then at the time of requesting RMA number, Purchaser
may also propose special procedure as may be suitable to the case.
After an RMA number is issued, the defective product must be packaged securely in the original
or other suitable shipping package to ensure that it will not be damaged in transit, and the RMA
number must be prominently marked on the outside of the package. The package must be
mailed or otherwise shipped to D-Link with all costs of mailing/shipping/insurance prepaid;
D-Link will ordinarily reimburse Purchaser for mailing/shipping/insurance expenses incurred for
return of defective product in accordance with this warranty. D-Link shall never be responsible

DPH-70L User’s Guide
3
for any software, firmware, information, or memory data of Purchaser contained in, stored on, or
integrated with any product returned to D-Link pursuant to this warranty.
Any package returned to D-Link without an RMA number will be rejected and shipped back to
Purchaser at Purchaser's expense, and D-Link reserves the right in such a case to levy a
reasonable handling charge in addition mailing or shipping costs.
Software:
Warranty service for software products may be obtained by contacting a D-Link office within the
applicable warranty period. A list of D-Link offices is provided at the back of this manual,
together with a copy of the Registration Card. If a Registration Card for the product in question
has not been returned to a D-Link office, then a proof of purchase (such as a copy of the dated
purchase invoice) must be provided when requesting warranty service. The term "purchase" in
this software warranty refers to the purchase transaction and resulting license to use such
software.
D-Link warrants that its software products will perform in substantial conformance with the
applicable product documentation provided by D-Link with such software product, for a period of
ninety (90) days from the date of purchase from D-Link or its Authorized Reseller. D-Link
warrants the magnetic media, on which D-Link provides its software product, against failure
during the same warranty period. This warranty applies to purchased software, and to
replacement software provided by D-Link pursuant to this warranty, but shall not apply to any
update or replacement which may be provided for download via the Internet, or to any update
which may otherwise be provided free of charge.
D-Link's sole obligation under this software warranty shall be to replace any defective software
product with product which substantially conforms to D-Link's applicable product
documentation. Purchaser assumes responsibility for the selection of appropriate application
and system/platform software and associated reference materials. D-Link makes no warranty
that its software products will work in combination with any hardware, or any application or
system/platform software product provided by any third party, excepting only such products as
are expressly represented, in D-Link's applicable product documentation as being compatible.
D-Link's obligation under this warranty shall be a reasonable effort to provide compatibility, but
D-Link shall have no obligation to provide compatibility when there is fault in the third-party
hardware or software. D-Link makes no warranty that operation of its software products will be
uninterrupted or absolutely error-free, and no warranty that all defects in the software product,
within or without the scope of D-Link's applicable product documentation, will be corrected.
Warranty Period
FOR WARRANTY IN YOUR REGION, PLEASE CHECK WITH YOUR LOCAL D-LINK OFFICE AND
AUTHORIZED AGENTS AS WARRANTY PERIODS MAY VARY FROM REGION TO REGION.
LIMITATION OF WARRANTIES
IF THE D-LINK PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, THE CUSTOMER'S
SOLE REMEDY SHALL BE, AT D-LINK'S OPTION, REPAIR OR REPLACEMENT. THE FOREGOING
WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER
WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW,
STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. D-LINK NEITHER ASSUMES NOR AUTHORIZES ANY OTHER
PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE,
INSTALLATION MAINTENANCE OR USE OF D-LINK'S PRODUCTS.
D-LINK SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION
DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS
CAUSED BY THE CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT, IMPROPER
INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE
BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING OR
OTHER HAZARD.
LIMITATION OF LIABILITY

DPH-70L User’s Guide
4
IN NO EVENT WILL D-LINK BE LIABLE FOR ANY DAMAGES, INCLUDING LOSS OF DATA, LOSS
OF PROFITS, COST OF COVER OR OTHER INCIDENTAL, CONSEQUENTIAL OR INDIRECT
DAMAGES ARISING OUT THE INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE
OR INTERRUPTION OF A D- LINK PRODUCT, HOWEVER CAUSED AND ON ANY THEORY OF
LIABILITY. THIS LIMITATION WILL APPLY EVEN IF D-LINK HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
IF YOU PURCHASED A D-LINK PRODUCT IN THE UNITED STATES, SOME STATES DO NOT
ALLOW THE LIMITATION OR EXCLUSION OF LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
D-Link Offices for Registration and Warranty Service
The product's Registration Card, provided at the back of this manual, must be sent to a D-Link
office. To obtain an RMA number for warranty service as to a hardware product, or to obtain
warranty service as to a software product, contact the D-Link office nearest you. An
addresses/telephone/fax list of D-Link offices is provided in the back of this man

DPH-70L User’s Guide
5
Table of Contents
1OVERVIEW ------------------------------------------------------------------------------------------------------- 6
1.1 ACRONYMS---------------------------------------------------------------------------------------------------- 7
1.2 DEFINITIONS -------------------------------------------------------------------------------------------------- 7
2UNPACKING AND INSTALLATION----------------------------------------------------------------------- 8
2.1 SYSTEM REQUIREMENTS ----------------------------------------------------------------------------------- 9
2.2 INSTALLATION------------------------------------------------------------------------------------------------- 9
3USER INTERFACE---------------------------------------------------------------------------------------------10
4GETTING STARTED ------------------------------------------------------------------------------------------11
5INTERNET PHONE CALLS ---------------------------------------------------------------------------------13
5.1 RECEIVING INTERNET CALL --------------------------------------------------------------------------------13
5.2 MAKING INTERNET CALL------------------------------------------------------------------------------------13
5.3 INTERNET CALL TRANSFER --------------------------------------------------------------------------------14
6PSTN PHONE CALLS ----------------------------------------------------------------------------------------- 15
6.1 MAKING PSTN CALL----------------------------------------------------------------------------------------15
6.2 RECEIVING PSTN CALL ------------------------------------------------------------------------------------15
6.3 TRANSFERRING PSTN CALL ------------------------------------------------------------------------------15
7DPH-70L CONFIGURATION --------------------------------------------------------------------------------16
7.1 ISP PARAMETERS-------------------------------------------------------------------------------------------18
7.2 VOIP PARAMETERS-----------------------------------------------------------------------------------------18
7.3 PHONE SETTINGS -------------------------------------------------------------------------------------------19
7.4 ADVANCED SETTINGS --------------------------------------------------------------------------------------21
7.5 CALL LOG INFORMATION -----------------------------------------------------------------------------------21
7.6 VIEW INFORMATION -----------------------------------------------------------------------------------------22
7.7 SAVE AND EXIT ----------------------------------------------------------------------------------------------22
8ADDITIONAL FEATURES -----------------------------------------------------------------------------------23
8.1 UPGRADING SOFTWARE -----------------------------------------------------------------------------------23
8.2 LOADING FACTORY DEFAULTS-----------------------------------------------------------------------------23
8.3 SPEED DIAL --------------------------------------------------------------------------------------------------23
8.4 CALL LOG ----------------------------------------------------------------------------------------------------23
8.5 CALLER ID ---------------------------------------------------------------------------------------------------23
8.6 LOCK ----------------------------------------------------------------------------------------------------------24
9APPENDIX A: PROCEDURE FOR ENTERING ALPHANUMERIC AND SPECIAL
CHARACTERS --------------------------------------------------------------------------------------------------------25
9.1 ENTERING DIGITS -------------------------------------------------------------------------------------------25
9.2 ENTERING SMALL LETTERS--------------------------------------------------------------------------------25
9.3 ENTERING CAPITAL LETTERS -----------------------------------------------------------------------------25
9.4 ENTERING SPECIAL CHARACTERS------------------------------------------------------------------------25
9.5 DELETING CHARACTER--------------------------------------------------------------------------------------26
10 APPENDIX B: TROUBLESHOOTING -----------------------------------------------------------------27
11 APPENDIX C: DPH-70L PRODUCT SPECIFICATIONS ------------------------------------------29

DPH-70L User’s Guide
6
1 Overview
DPH-70L is a two-in-one phone, allows Internet and PSTN phone calls. It is a dial-up Internet (IP)
telephone, operates using Session Initialization Protocol (SIP) or H.323 protocol. It allows you to
make inexpensive long distance (STD and ISD) calls on dial-up Internet connection.
It works, looks and feels like a normal PSTN phone. A DIAL UP button differentiates between an
Internet phone call and a normal PSTN call.
DPH-70L needs to be configured once and there is no need to configure it again unless there is
change in Internet access or VoIP information.
DPH-70L is a standard based device and works with any Internet Service Provider (ISP) and
VoIP (Internet telephone) service provider. It displays the user friendly status messages.
DPH-70L has a user-friendly dialing option whereby you just dial the number. It will try many
times and ring back when the called party answers the call.
DPH-70L software can be upgraded over the Internet for new features and functions.
Features
¾Two-in-one device supports Internet and PSTN phone calls.
¾Standard based device, works with all Internet Service Provider (ISP), VoIP service
providers and PC based soft phones.

DPH-70L User’s Guide
7
¾Easy to use set-up.
¾Intelligent selection of codec (G.723 or G.729A) based on Internet connection speed.
¾Excellent voice quality and low end-to-end delay using low latency adaptive jitter buffer,
silence suppression, and comfort noise generation techniques.
¾User-friendly hands-free dialing method.
¾Make multiple calls without connecting to the Internet each time.
¾Mute, Call transfer, last number redial and adjustable volume control.
¾Password protection to your valuable configuration information.
¾Remote software updates support.
¾Caller ID, Phone lock, Speed dial
¾4 line LCD Display and speaker phone.
1.1 Acronyms
LED Light Emitting Diode
IP Internet Protocol
ISP Internet Service Provider
PPP Point-to-Point Protocol
PSTN Public Switched Telephone Network
RTP Real Time Protocol
SIP Session Initiation Protocol
TFTP Trivial File Transfer Protocol
VOIP Voice Over Internet Protocol, same as Internet Telephony
LCD Liquid Crystal Display
1.2 Definitions
Idle State: DPH-70L is said to be in idle state when the speaker is off, LEDs are off and handset
is on Hook.
Configuration state: DPH-70L goes to configuration state to edit and verify the configuration
information.
Receive state: DPH-70L goes to this state to receive calls from other phones. In this state,
phone is always connected to Internet.
Speaker Mode: You can dial a phone number in hands free mode and have conversation with
the other party.
Handset Mode: You can lift the handset any time to listen. If the speaker is on while lifting, it is
turned off automatically.
Locked State: In this state you can only receive calls. No other features of DPH-70L can be used
in this state.

DPH-70L User’s Guide
8

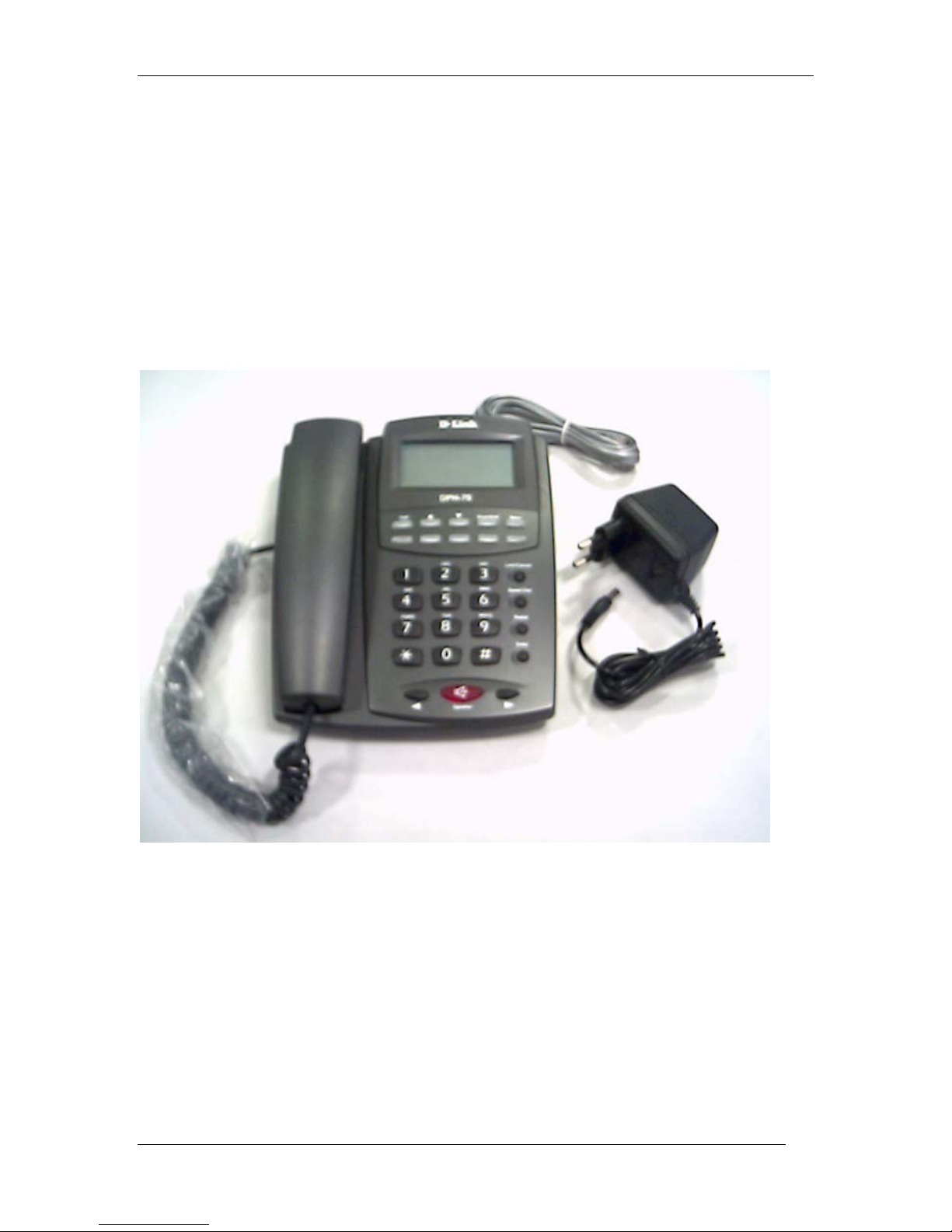

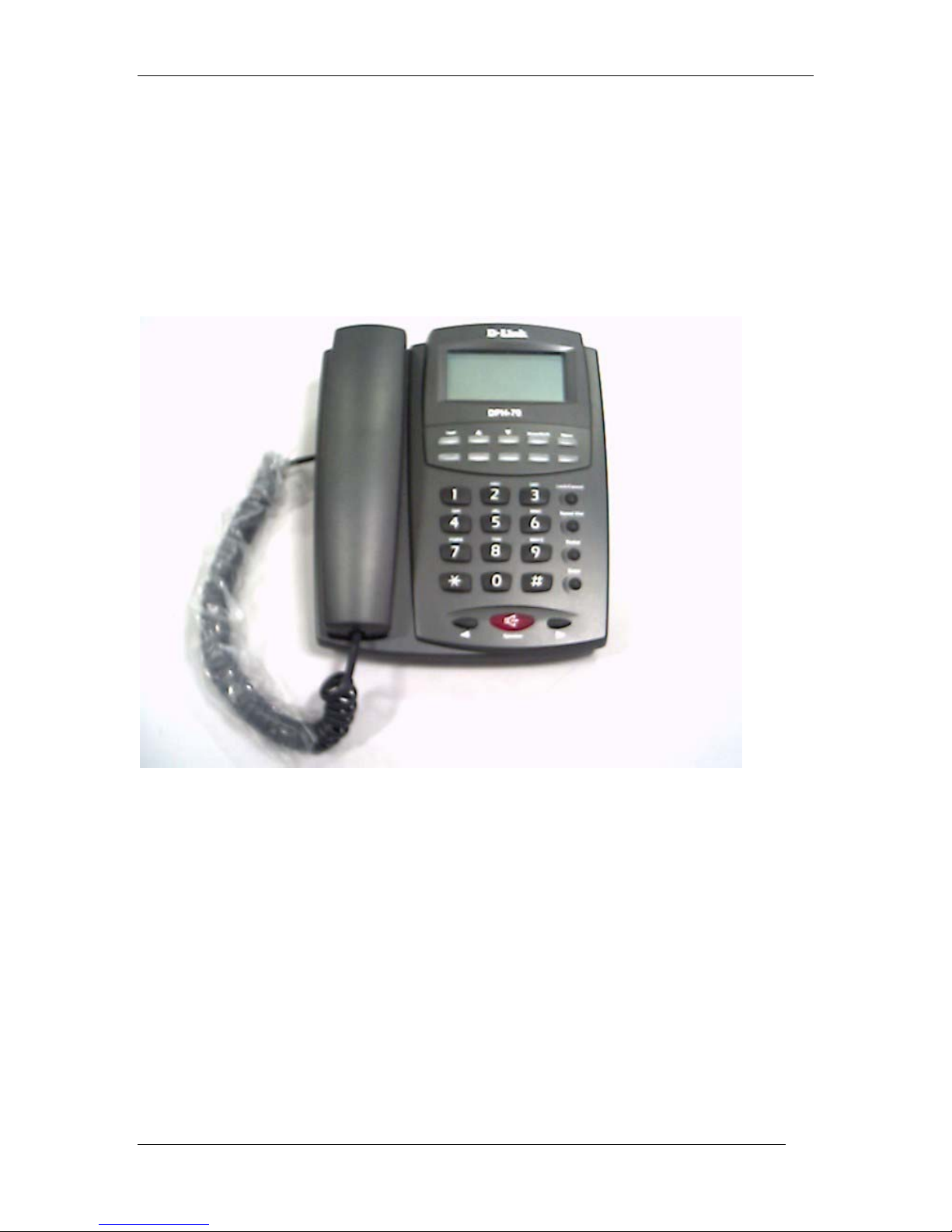

2 Unpacking and Installation
Open the shipping carton and carefully remove all items. In addition to this User’s Guide, make
sure you have received all of the following items:
• Modem IP phone, DPH-70L
• One telephone cable (RJ-11)
• Handset
• Handset cord
• Power adapter
• Warranty card
If any item appears to be missing or damaged, please contact your local reseller.

DPH-70L User’s Guide
9
2.1 System Requirements
You will need the following to use DPH-70L.
• AC power outlet (230V, 50Hz)
• Local telephone line connection
• Access to dial-up Internet connection (via ISP) that is PPP compatible
• Account with a VoIP (Internet Telephone) service provider
2.2 Installation
1. Connect the handset to DPH-70L with handset cord.
2. Plug one end of telephone cable (RJ-11) into the LINE port on the rear panel of DPH-70L
and the other end into a working telephone wall jack.
3. Plug the AC power adaptor provided into an AC outlet and insert the power cord into the
connector marked “AC” on the rear panel of the DPH-70L.
4. Lift the handset and listen for the dial tone that indicates the DPH-70L has been installed
properly. If you do not hear a dial tone, check that the power adaptor is plugged into a
live electrical outlet and that the power cord is pushed securely into the connector.
5. Now DPH-70L is ready for basic configuration as described in the next section.
Warning: DPH-70L needs Internet access and VoIP information to make Internet phone calls.
However, it can make normal PSTN phone calls without any configuration.

DPH-70L User’s Guide
10
3 User Interface

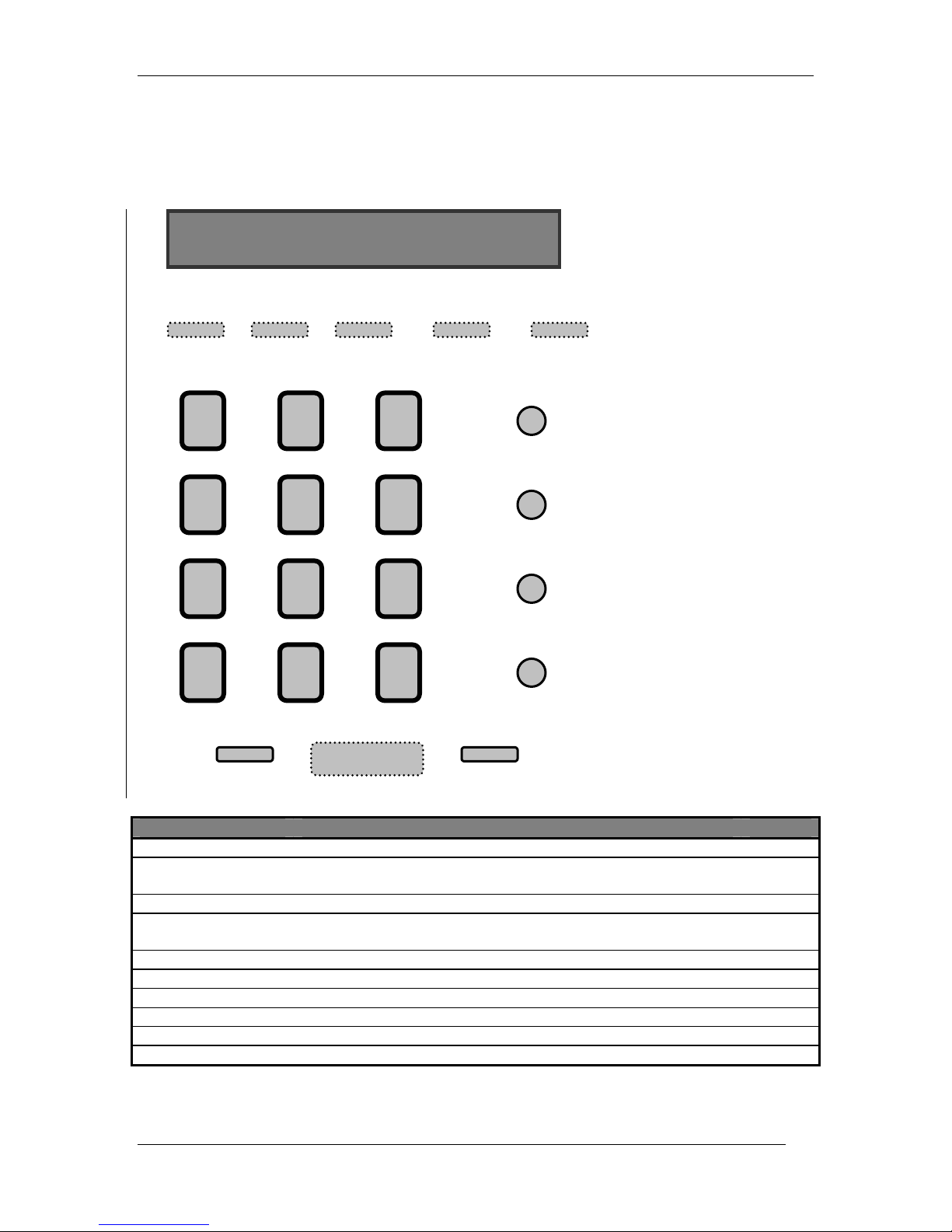

The DPH-70L user interface is as shown below.
Key name Functionality LED
VoIP Used to make VoIP calls Green
Mute/Shift In call it is used for MUTE functionality and in configuration
used to enter capital letters.
Green
Menu Enter or exit configuration state. Green
Lock/Cancel Lock or unlock the phone using this key. In configuration state
used for deleting the last entered character.
None
Speed Dial Dialing the number from address book. None
Redial Redial the last dialed number. None
Enter Used as termination key for any entry to phone. None
Speaker Switch on or off the speakerphone functionality. Red
Arrow Keys Used for volume control and browsing through LCD Green
Numeric Keypad Standard telephone key pad. None
WXYZ PQRS
7 9
TUV
8
MNO GHI
4 6
JKL
5
DEF
1 3
ABC
2
#
½0
VoIP ÏMenuMute/Shift
Ð
SPEAKER
ÍÎ
Lock/Cancel
Speed Dial
Redial
Enter
LCD Display

DPH-70L User’s Guide
11
4 Getting Started
After installation, DPH-70L is ready for configuration. You need to enter Internet Service Provider
(ISP) and VoIP Calling Card information to make and receive Internet phone calls. However, it
can make normal PSTN phone calls without any configuration. Refer to Appendix A to know how
to enter alphanumeric and special characters required for user name and password.
Warning: DPH-70L identifies end of each parameter by ‘ENTER’ key. Please terminate each
parameter entry by pressing ‘ENTER’ key. For example, to enter the password as ‘123’ you
should press ‘123 ENTER’.
4.1.1 ISP Information
Following Internet Service Provider (ISP) account information is required for dial-up Internet
connection. Refer to your Internet Service Provider’s card for this information.
¾Internet Access Telephone Number
¾User Name
¾Password
To enter these parameters, follow the steps below. DPH-70L configuration menu on LCD display
guides you through the configuration process.
1. Press ‘MENU’ key to enter the configuration menu.
2. Enter the configuration password. The default password is ‘12345’.
3. Enter ‘1’ to configure the ISP parameters. It displays ISP menu.
4. Enter ‘1’ to edit ISP Phone number.
5. It displays the current value of Internet access Phone number. Edit the Internet access
phone number and press ‘ENTER’ button.
6. After this it displays the ISP menu. Press ‘2’ for ISP User Name and ‘3’ for ISP Password
to modify their values as in step 5.
7. Press ‘CANCEL’ key to come out of ISP configuration to main menu and enter ‘7’ to save
the parameters.
4.1.2 VoIP Calling Card Information
Following VoIP (Internet Telephone) calling card information is required for Internet phone
connection. The VoIP service provider will provide these parameters. Refer your calling card for
these parameters. After entering the calling card parameters, your Internet phone number will be
same as user ID.
¾VoIP User Name
¾VoIP Password or PIN
¾VoIP Server IP
To enter these parameters, follow the steps below. DPH-70L configuration menu on LCD display guides
you through the configuration process.
1. Press ‘MENU’ key to enter the configuration menu.
2. Enter the configuration password. The default password is ‘12345’.
3. Enter ‘2’ to configure the VoIP parameters. It displays VoIP menu.
4. Enter ‘1’ to edit VoIP User Name.
5. It displays the current value of VoIP User Name. Edit the VoIP User Name and press
‘ENTER’ button.
6. After this it displays the VoIP menu. Press ‘2’ for VoIP Password and ‘3’ for VoIP Server
Address to modify their values as in step 5.

DPH-70L User’s Guide
12
7. Press ‘CANCEL’ key to come out of VoIP configuration to main menu and enter ‘7’ to
save the parameters.
After these basic configurations, DPH-70L is ready to make and receive Internet phone calls as
described in the next section.

DPH-70L User’s Guide
13
5 Internet Phone Calls
After basic configuration, DPH-70L allows you to make and receive Internet phone calls as
described in this section. VoIP button distinguishes the Internet phone call from normal PSTN
phone call. To make Internet phone call press VoIP button followed by destination telephone
number. It supports a user-friendly dialing method as described below.
Warning: You need to have Internet access information and VoIP Calling Card information
configured in DPH-70L to make and receive Internet calls.
5.1 Receiving Internet call
DPH-70L needs to be connected to VoIP server to receive Internet phone calls. This is called
RECEIVE state. VoIP button enables and disables this state and the corresponding VoIP LED
indicate whether the DPH-70L is in receive state.
When you press the VoIP button, DPH-70L connects to Internet and VoIP (Internet Telephone)
Service Provider. During this connection process, DPH-70L will play progress tone and blink the
VoIP LED. After connecting to the VoIP server, it will turn on the VoIP LED and stop progress
tone. It stays connected to Internet for 15 minutes or until you cancel it by pressing the VoIP
button again.
During this connection process if anything fails, DPH-70L will disconnect modem, turn off VoIP
LED, displays an error message, and then goes to idle state. If the Internet access line is busy it
will retry 4 times before giving up.
Warning: In RECEIVE state, DPH-70L is connected to the Internet and you will be charged for
Internet access. Do not leave the phone in RECEIVE mode unless you are expecting an Internet
phone call.
5.2 Making Internet call
5.2.1 Normal dialing
Like conventional phone, lift the handset, press VoIP button and dial the other party phone
number followed by ‘ENTER’ key. For example, you press ‘VoIP 12345 ENTER’ to call 12345
through the Internet. The VoIP button tells the DPH-70L to connect to Internet.
DPH-70L plays progress tone and establishes call with the called party. You will hear ringing tone
if the called phone is free and reachable. When the called party attends the call, you can talk to
him. If anything goes wrong you will see appropriate error messages. Please refer to Appendix B:
Troubleshooting for more information about the error messages.
During the process of establishing Internet call, DPH-70L connects to the Internet and then,
connects to the VoIP service provider. This may take some time unlike normal phone.
Warning: DPH-70L identifies end of phone number by ‘ENTER’ key. Please terminate phone
number entry into DPH-70L by pressing ‘ENTER’ key. If you don’t press any key for more than 5
sec, DPH-70L identifies it as end of phone number.

DPH-70L User’s Guide
14
5.2.2 Multiple Calls
RECEIVE state allows you to make multiple Internet calls without connecting to the Internet each
time. You press VoIP key to go to RECEIVE state, please refer to a section on “Receiving
Internet Calls” for more detail.
In this mode, you just dial the phone number followed by ‘ENTER’ key. Since DPH-70L is already
connected to Internet, you do not press the VoIP button before dialing a number. For example,
you press ‘12345 ENTER’ to dial 12345 through Internet. It remains in call receive state after the
end of each call. Please note that you cannot make or receive normal PSTN call while DPH-70L
is in RECEIVE state.
Warning: In RECEIVE state, DPH-70L is connected to the Internet and you will be charged for
Internet access. Do not leave the phone in RECEIVE mode unless you are expecting an Internet
phone call.
5.2.3 Special Dialing
Dial-up connection sometime takes time to connect to the Internet depending on the Internet
access line availability and network congestion. Your DPH-70L is designed with a user-friendly
dialing method to help you in such situations.
You dial in hands free mode. Press speaker button, the speaker will be turned ON. Then press
VoIP button and dial a number followed by ‘ENTER’ without lifting the handset. DPH-70L will
establish Internet call with the called party and play ring back tone. However, if the Internet
access line is busy, DPH-70L will retry 5 times before giving up.
During the process of establishing the Internet call, DPH-70L will play different call progress tones
(like progress, ring back, or error tone) and blink the speaker LED. Once the other party lifts the
handset, it establishes the Internet call and turns on the speaker LED.
Warning: DPH-70L identifies end of phone number by ‘ENTER’ key. Please terminate phone
number entry into DPH-70L by pressing ‘ENTER’ key. If you don’t press any key for more than 5
sec, DPH-70L identifies it as end of phone number.
5.3 Internet Call Transfer
SIP signaling protocol in DPH-70L supports call transfer feature.
This feature allows the user to transfer an Internet phone call to another phone connected to the
Internet. To transfer the call, you flash the hook for a short period and dial the destination number
followed by ‘ENTER’. The destination number will ring and on off-hook the call transfer will be
complete.

DPH-70L User’s Guide
15
6 PSTN Phone Calls
DPH-70L can make and receive normal PSTN phone calls. When DPH-70L is not connected to
the Internet through the VoIP button (RECEIVE state), it is known to be in idle state. In this state it
works as a normal phone, making and receiving PSTN phone calls. This feature does not need
any configuration.
6.1 Making PSTN call
To make an outgoing call, go off hook and dial the destination number, followed by ‘ENTER’. For
example, you press 12345 ENTER to call 12345 through PSTN network. It plays various call
progress tone as in normal phone and plays ring back tone if the called party is free. DPH-70L
establishes the call on called party attending the call.
The dialing mode of PSTN number depends upon phone settings configuration. If blind dialing
mode is enabled, PSTN number is dialed in blind mode, and if pulse dial is enabled, PSTN
number is dialed in pulse mode. (Please refer section 7.3.7).
DPH-70L has special supports for operation behind an EPABX. For example, you may have to
dial 9 to get external dial tone and then dial the destination number. In this scenario, first dial ‘9
ENTER’ to dial to EPABX and get external dial tone, then dial the destination number.
Warning: DPH-70L identifies end of phone number by ‘ENTER’ key. Please terminate phone
number entry by pressing ‘ENTER’ key. If you don’t press any key for more than 5 sec, DPH-70L
identifies it as end of phone number.
6.2 Receiving PSTN call
DPH-70L can receive any normal PSTN phone call when DPH-70L is not connected to the
Internet through the VoIP button. It rings on incoming call and establishes call on off hook. Either
party can disconnect the call by going on hook.
6.3 Transferring PSTN call
This feature allows the user to transfer a PSTN phone call to any PSTN phone. To transfer the
call, you flash the hook for a short period and dial the destination number followed by ‘ENTER’
key. The destination number will ring and on off-hook the call transfer will be complete.

DPH-70L User’s Guide
16
7 DPH-70L Configuration
DPH-70L configuration menu helps you through the configuration process. You can enter the
configuration menu by pressing the ‘MENU’ key when DPH-70L is in idle state.
DPH-70L will ask for password on entering configuration menu. Since the configuration
information contains valuable information it is password protected. If you don’t remember your
password, you can reset DPH-70L to default password as described in Loading factory defaults.
The default password is ‘12345’.
Warning: DPH-70L identifies end of a parameter by ‘ENTER’ key. Please terminate each
parameter entry into DPH-70L by pressing ‘ENTER’ key.
DPH-70L configuration menu is shown below. Each of the different options in the menu is
described below. DPH-70L displays the current value of each parameter and allows you to edit it.
After password verification, DPH-70L displays the different options in main menu. You can
browse through the menu using the arrow keys on the phone. As you browse through the menu,
the cursor will indicate the currently chosen option. To select the menu option, you can either
press ‘ENTER’ key when cursor is at that option or you can directly press the number written
along with the option (as shown in figure below). You can press ‘CANCEL’ key to come out of any
menu and go to the previous menu.
Note:
¾If power goes off while you are configuring, the phone will work with the previous saved
parameters.
¾If you idle more than 90 seconds, dph-70 will accept the keys entered and go to next
state.
¾If you leave the phone without completing the configuration it will go back to idle state
without saving the parameters.

DPH-70L User’s Guide
17
ISP Phone Number 1
ISP User Name 2
ISP Password 3
1. ISP Setu
p
System Information 1 Î
6. View Information
VoIP User Name 1
VoIP Password 2
VoIP Server IP 3
2. VoIP Setu
p
Set Time 1
Volume Control 2 Î
Country Code 3
Ring Tone 4
Dial Prefix 5
Wait for Dial Tone 6
Blind Dialing Mode 7
Pulse Dial 8
3. Phone Settin
g
s
Speed Dial 1 Î
Upgrade Server IP 2
Change Password 3
4. Advanced Settin
g
s
MAIN MENU
7. Save & Exit
PSTN Speaker 1
PSTN Mike 2
VoIP Speaker 3
VoIP Mike
4
2. Volume Control
Name0 Number0 0
Name1 Number1 1
… … …
Name9 Number9 9
1. Address Book
Hardware Version 1
Software Version 2
IP Address 3
Current Codec 4
Modem S
p
eed 5
1. System Information
5.Call Lo
g
Information.
Missed calls 1
Received calls 2
Dialed numbers 3

DPH-70L User’s Guide
18
7.1 ISP Parameters
DPH-70L needs to connect to the Internet, to make Internet phone calls. The following
information should be configured in DPH-70L to connect to the Internet and make calls. The user
will get this information while subscribing to Internet Service Provider (ISP). Please note that
DPH-70L will not work for Internet phone calls without this information.
ISP Phone Number
This is the phone number to which DPH-70L will dial-up to connect to the Internet. The Internet
access phone number can be maximum 20 digits.
DPH-70L has special supports for operation behind an EPABX. In some scenarios, you may have
to introduce a delay after dialing external access number. A ‘.’ (dot) in phone number will
introduce a delay. For example, 9.6788341 will introduce a small delay after dialing 9, before
dialing other digits.
ISP User Name
The user name identifies the user to Internet Service Provider (ISP). It can have a mix of digits,
lower and upper case letters, and special characters. The user name can have a maximum of 30
characters. Please refer to Appendix A: Procedure for entering alphanumeric and special
characters to enter special characters.
ISP Password
The password used for verifying the user to Internet Service Provider (ISP). It can have a mix of
digits, lower and lower case letters, and special characters. It can have a maximum of 30
characters. Please refer to Appendix A: Procedure for entering alphanumeric and special
characters to enter special characters.
7.2 VoIP Parameters
The following information is required for DPH-70L to make and receive Internet phone calls. The
user will get this information from the VoIP (Internet Telephone) service provider. Please note that
DPH-70L will not work for Internet phone calls before configuring this information.
VoIP User Name
This is the Internet phone number or user name assigned to you. It can have a maximum of 30
characters. This information is required to verify the VoIP user identity to the VoIP (Internet
Telephone) Service Provider.
VoIP Password
This information is required to verify the VoIP user identity to the VoIP (Internet Telephone)
Service Provider. It can have a maximum of 30 characters.
VoIP Server IP
This is the IP address where VoIP (Internet Telephone) Server is running. It can be a valid IP
address like 198.62.73.101 or a valid domain name like sip.dlink.com. The domain name can
have a maximum of 30 characters, including ‘dots’. Default server address is sip.cityonlines.com.

DPH-70L User’s Guide
19
VoIP server IP is of the form xxx.xxx.xxx.xxx where xxx is between 0 and 255. If the entered
number is invalid, phone prompts with a message “Incorrect value”.
.
7.3 Phone Settings
In this section you can set various parameters of phone as explained below.
7.3.1 Set Time
The current system time can be configured here. This time is displayed on the LCD screen and
updated continuously. Please note that this field needs to be configured every time the system is
powered up.
On selecting this option, the LCD displays current system time in HH:MM (hour: minute) format.
You can edit the value using the numeric key pad of phone. It is displayed in 24 hour railway
format. For example, to set the time to 10.30 pm, you have to configure 22:30.
7.3.2 Volume Control
The volume level can vary depending on the VoIP gateway of your VoIP service provider. This
option allows configuration of volume levels of speaker and mike for both Internet (VoIP) and
PSTN calls. DPH-70L has separate volume control for Internet and PSTN calls. To configure the
volume level, the level bar is displayed on the LCD screen. You can increase or decrease the
volume level using the left and right arrow keys or up and down arrow keys.
7.3.3 Country Code
Here list of supported countries is displayed with star suffixed with the currently selected country.
To select a different country, you can move the cursor using the up and down arrow keys to the
country name and press ‘ENTER’ or press the two digit country code. Following is a list of
countries supported with their respective codes
Table 1 Country Codes
Country Code
Brazil 0
China 1
India 2
Korea 3
Malaysia 4
Mexico 5
South Africa 6
Taiwan 7
USA 8
Australia 9
Austria 10
Belgium 11
Denmark 12
Finland 13
France 14
Germany 15
Ireland 16

DPH-70L User’s Guide
20
Italy 17
Japan 18
Netherlands 19
Norway 20
Poland 21
Portugal 22
Singapore 23
Spain 24
Sweden 25
Switzerland 26
UK 27
Others 28
If you enter a value other than the listed, the phone prompts with a message “Incorrect value”.
Choose appropriately.
Based on the country code selection, the various tones and modem software will vary. Default
country code is 2 (India). If you change it to some other country than yours, the phone may not be
able to make calls and you will see some error message. So please be sure to select the correct
country code.
7.3.4 Ring Tone
Here list of supported ring tones is displayed with star suffixed on the currently selected ring tone.
To select a different ring tone from the list, you can move the cursor to the ring tone using the up
and down arrow keys and press ‘ENTER’.
7.3.5 Dial Prefix
This feature enables DPH-70L to add a prefix to all dialed VoIP phone number. For example, if
you configure this field to ‘00’ and dial ‘1 786 926‘ to make VoIP call, the phone will dial ‘001 786
926’. The default value is NULL i.e. no dial prefix. Please consult your service provider before
changing this field. This option is used only for dialing VoIP numbers.
7.3.6 Wait for dial tone
DPH-70L has special supports for operation behind an EPABX. In some scenarios, you may have
to wait for secondary dial tone before dialing the complete number. You can configure the number
of digits after which phone should wait for secondary dial tone before dialing remaining ISP phone
number in this option. Configure ‘0’ to disable this option. For example, if ISP phone number is
96788341 and wait for dial tone is configured as 2 then phone will dial first 2 digits i.e. 96 and
then it will wait for secondary dial tone before dialing other digits (788341). This option is used
only for dialing ISP phone number.
7.3.7 Blind Dialing Mode
DPH-70L supports a mode called blind dialing mode. In this mode, DPH-70L won’t look for dial
tone on line before dialing the ISP number or while making call in normal PSTN mode. User can
enable this feature for dialing ISP number in blind mode. Default mode is ‘DISABLE’.
Warning: In blind dial mode DPH-70L won’t display any error messages related to line conditions.
