Safety Notices
Please read the following safety notices before installing or using this phone. They
are crucial for the safe and reliable operation of the device.
Please use the external power supply that is included in the package. Other
powers supplies may cause damage to the phone, affect the behavior or induce
noise.
Before using the external power supply in the package, please check with
home power voltage. Inaccurate power voltage may cause fire and damage.
Please do not damage the power cord. If power cord or plug is impaired, do
not use it, it may cause fire or electric shock.
The plug-socket combination must be accessible at all times because it serves
as the main disconnecting device.
Do not drop, knock or shake it. Rough handling can break internal circuit
boards.
Do not install the device in places where there is direct sunlight. Also do not
put the device on carpets or cushions. It may cause fire or breakdown.
Avoid exposure the phone to high temperature, below 0℃or high humidity.
Avoid wetting the unit with any liquid.
Do not attempt to open it. Non-expert handling of the device could damage it.
Consult your authorized dealer for help, or else it may cause fire, electric
shock and breakdown.
Do not use harsh chemicals, cleaning solvents, or strong detergents to clean it.
Wipe it with a soft cloth that has been slightly dampened in a mild soap and
water solution.
When lightning, do not touch power plug or phone line, it may cause an
electric shock.
Do not install this phone in an ill-ventilated place.
You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be
familiar with standard practices for preventing accidents.

Table of Content
1INTRODUCING DPH-150S/DPH-150SE VOIPPHONE ................................................................ 6
1.1 THANK YOU FOR YOUR PURCHASING DPH-150S/DPH-150SE....................................................... 6
1.2 DELIVERY CONTENT....................................................................................................................... 6
1.3 KEYPAD.......................................................................................................................................... 7
1.4 PORT FOR CONNECTING .................................................................................................................. 8
1.5 ICON INTRODUCTION ...................................................................................................................... 9
1.6 LED INTRODUCTION....................................................................................................................... 9
2INITIAL CONNECTING AND SETTINGS.....................................................................................11
2.1 CONNECT THE PHONE ....................................................................................................................11
2.1.1 Connect to network...................................................................................................................11
2.1.2 Power adaptor connection........................................................................................................12
2.2 BASIC INITIALIZATION...................................................................................................................12
2.2.1 Network settings .......................................................................................................................12
3BASIC FUNCTION ............................................................................................................................14
3.1 MAKING A CALL ............................................................................................................................14
3.1.1 Call Device ...............................................................................................................................14
3.1.2 Call Methods.............................................................................................................................14
3.2 ANSWERING A CALL ......................................................................................................................14
3.3 DND..............................................................................................................................................15
3.4 CALL FORWARD ............................................................................................................................15
3.5 CALL HOLD ...................................................................................................................................15
3.6 CALL WAITING..............................................................................................................................15
3.7 MUTE ............................................................................................................................................15
3.8 CALL TRANSFER ............................................................................................................................16
3.9 3-WAY CONFERENCE CALL.............................................................................................................16
3.10 MULTIPLE-WAY CALL .....................................................................................................................16
4ADVANCED FUNCTION..................................................................................................................17
4.1 CALL PICKUP .................................................................................................................................17
4.2 JOIN CALL......................................................................................................................................17
4.3 REDIAL /UNREDIAL.......................................................................................................................17
4.4 CLICK TO DIAL...............................................................................................................................18
4.5CALL BACK....................................................................................................................................18
4.6 AUTO ANSWER...............................................................................................................................18
4.7 HOTLINE........................................................................................................................................18
4.8 APPLICATION.................................................................................................................................18
4.8.1 SMS...........................................................................................................................................18
4.8.2 Memo........................................................................................................................................19
4.8.3 Voice Mail ................................................................................................................................19
4.9 PROGRAMMABLE KEY CONFIGURATION........................................................................................19

5OTHER FUNCTIONS........................................................................................................................22
5.1 AUTO HANDDOWN ........................................................................................................................22
5.2 BAN ANONYMOUS CALL................................................................................................................22
5.3 DIAL PLAN.....................................................................................................................................22
5.4 DIAL PEER .....................................................................................................................................22
5.5 AUTO REDIAL................................................................................................................................22
5.6 CALL COMPLETION ........................................................................................................................23
5.7 RING FROM HEADSET....................................................................................................................23
5.8 POWER LIGHT................................................................................................................................23
5.9 HIDE DTMF..................................................................................................................................23
5.10 PASSWORD DIAL............................................................................................................................23
5.11 ACTION URL&ACTIVE URI.........................................................................................................24
5.12 PUSH XML....................................................................................................................................24
6BASIC SETTINGS..............................................................................................................................25
6.1 KEYBOARD....................................................................................................................................25
6.2 SCREEN SETTINGS .........................................................................................................................25
6.3 RING SETTINGS..............................................................................................................................25
6.4 VOICE VOLUME.............................................................................................................................25
6.5 TIME &DATE ................................................................................................................................25
6.6 GREETING WORDS.........................................................................................................................26
6.7 LANGUAGE ....................................................................................................................................26
7ADVANCED SETTINGS...................................................................................................................27
7.1 ACCOUNTS.....................................................................................................................................27
7.2 NETWORK......................................................................................................................................27
7.3 SECURITY ......................................................................................................................................27
7.4 MAINTENANCE ..............................................................................................................................27
7.5 FACTORY RESET.............................................................................................................................27
8WEB CONFIGURATION..................................................................................................................28
8.1 INTRODUCTION OF CONFIGURATION ..............................................................................................28
8.1.1 Ways to configure.....................................................................................................................28
8.1.2 Password Configuration...........................................................................................................28
8.2 SETTING VIA WEB BROWSER..........................................................................................................28
8.3 CONFIGURATION VIA WEB............................................................................................................29
8.3.1 BASIC.......................................................................................................................................29
8.3.1.1STATUS......................................................................................................................................... 29
8.3.1.2 WIZARD........................................................................................................................................ 30
8.3.1.3 CALL LOG .................................................................................................................................... 32
8.3.1.4 LANGUAGE.................................................................................................................................. 32
8.3.2 NETWORK ...............................................................................................................................33
8.3.2.1 WAN .............................................................................................................................................. 33
8.3.2.2 LAN................................................................................................................................................ 35
8.3.2.3 QoS&VLAN................................................................................................................................... 36

8.3.2.4 SERVICE PORT ............................................................................................................................ 38
8.3.2.5 DHCP SERVICE............................................................................................................................ 39
8.3.2.6 TIME&DATE................................................................................................................................. 40
8.3.3 VOIP.........................................................................................................................................42
8.3.3.1 SIP .................................................................................................................................................. 42
8.3.3.2 STUN.............................................................................................................................................. 50
8.3.3.3 DIAL PEER.................................................................................................................................... 52
8.3.4 PHONE.....................................................................................................................................55
8.3.4.1 AUDIO ........................................................................................................................................... 55
8.3.4.2 FEATURE...................................................................................................................................... 57
8.3.4.3 DIAL PLAN................................................................................................................................... 61
8.3.4.4 CONTACT...................................................................................................................................... 63
8.3.4.5 REMOTE CONTACT .................................................................................................................... 65
8.3.4.6 WEB DIAL..................................................................................................................................... 66
8.3.5 FUNCTION KEY ......................................................................................................................67
8.3.5.1 FUNCTION KEY........................................................................................................................... 67
8.3.5.2 SOFTKEY...................................................................................................................................... 69
8.3.6 Maintenance.............................................................................................................................69
8.3.6.1 Auto Provision................................................................................................................................ 69
8.3.6.2 SYSLOG ........................................................................................................................................ 72
8.3.6.3 CONFIG......................................................................................................................................... 73
8.3.6.4 UPDATE ........................................................................................................................................ 74
8.3.6.5 ACCESS......................................................................................................................................... 75
8.3.6.6 REBOOT........................................................................................................................................ 77
8.3.7 SECURITY................................................................................................................................77
8.3.7.1 WEB FILTER................................................................................................................................. 77
8.3.7.2 FIREWALL.................................................................................................................................... 78
8.3.7.3 NAT................................................................................................................................................ 79
8.3.7.4 VPN................................................................................................................................................ 82
8.3.7.5 SECURITY..................................................................................................................................... 83
8.3.8 LOGOUT..................................................................................................................................84
9APPENDIX..........................................................................................................................................85
9.1 SPECIFICATION ..............................................................................................................................85
9.1.1 Hardware..................................................................................................................................85
9.1.2 Voice features...........................................................................................................................85
9.1.3 Network features.......................................................................................................................86
9.1.4 Maintenance and management.................................................................................................87
9.2 DIGIT-CHARACTER MAP TABLE......................................................................................................87

1Introducing DPH-150S/DPH-150SE VoIP
Phone
1.1 Thank you for your purchasing
DPH-150S/DPH-150SE
Thank you for your purchasing DPH-150S/DPH-150SE. DPH-150S/DPH-150SE
is a full-feature telephone that provides voice communication over the same data
network that your computer uses. This phone’s functions not only much like a
traditional phone, allowing to place and receive calls, and enjoy other features that
traditional phone has, but it also own many data services features which you could
not expect from a traditional telephone.
This guide will help you easily use the various features and services available on
your phone.
1.2 Delivery Content
Please check whether the delivery contains the following parts:

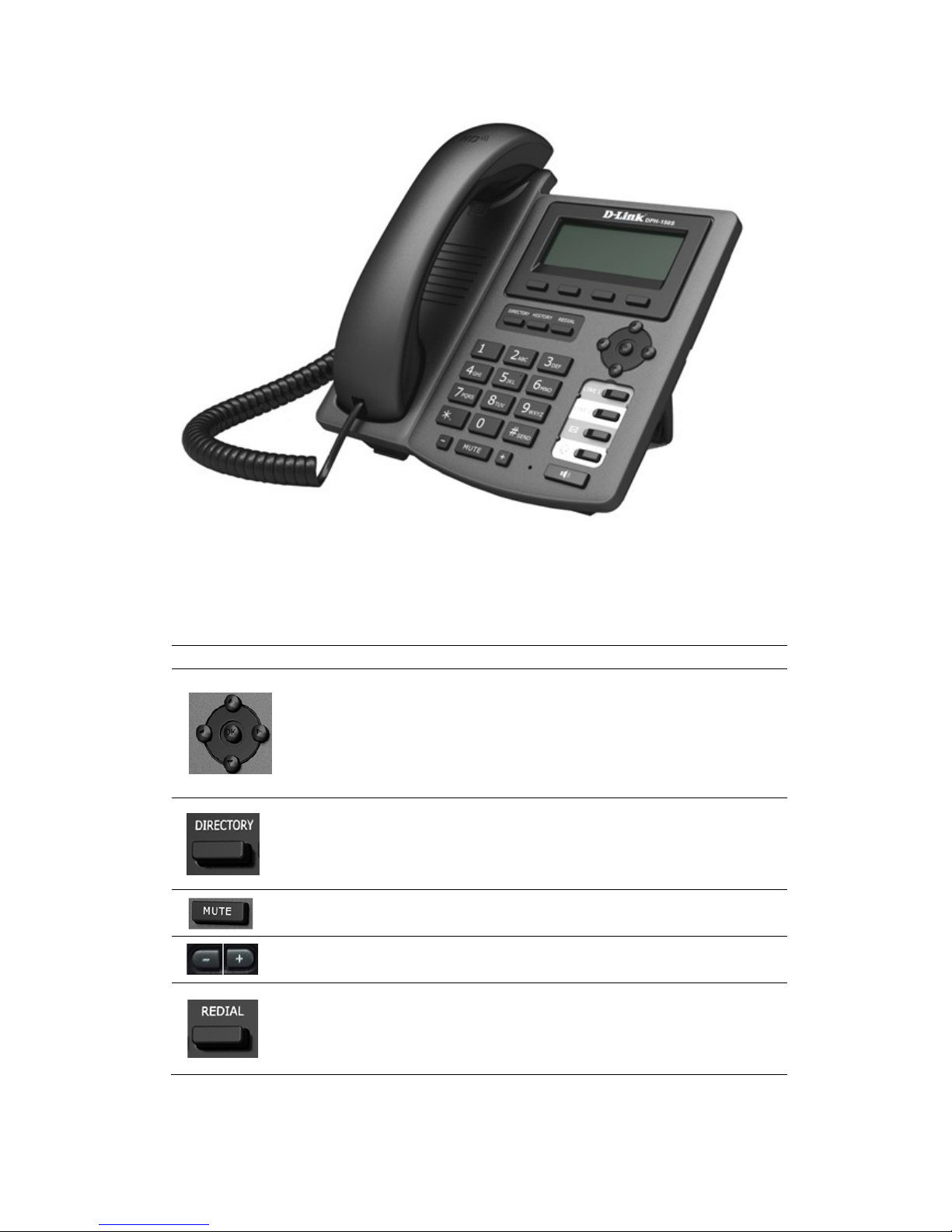

IP Phone are designed to look like conventional phones, the following photo
shows a broad overview of the IP Phone.
Item
Description
IP Phone
DPH-150S/DPH-150SE Phone wit display and
keypad.
Power Adapter
Power supply for telephone.
Network Cable
Used to access network for the phone.
Handset
Make phone calls with the phone’s basic functions.
Handset Cord
Connected with the handset and the phone.
Quick Installation Guide
Quick install the DPH-150S/DPH-150SE guide.
CD
Containing manual and quick installation guide.
Warranty Safety Information
Warranty Safety Information for
DPH-150S/DPH-150SE.

1.3 Keypad
Key
Key name

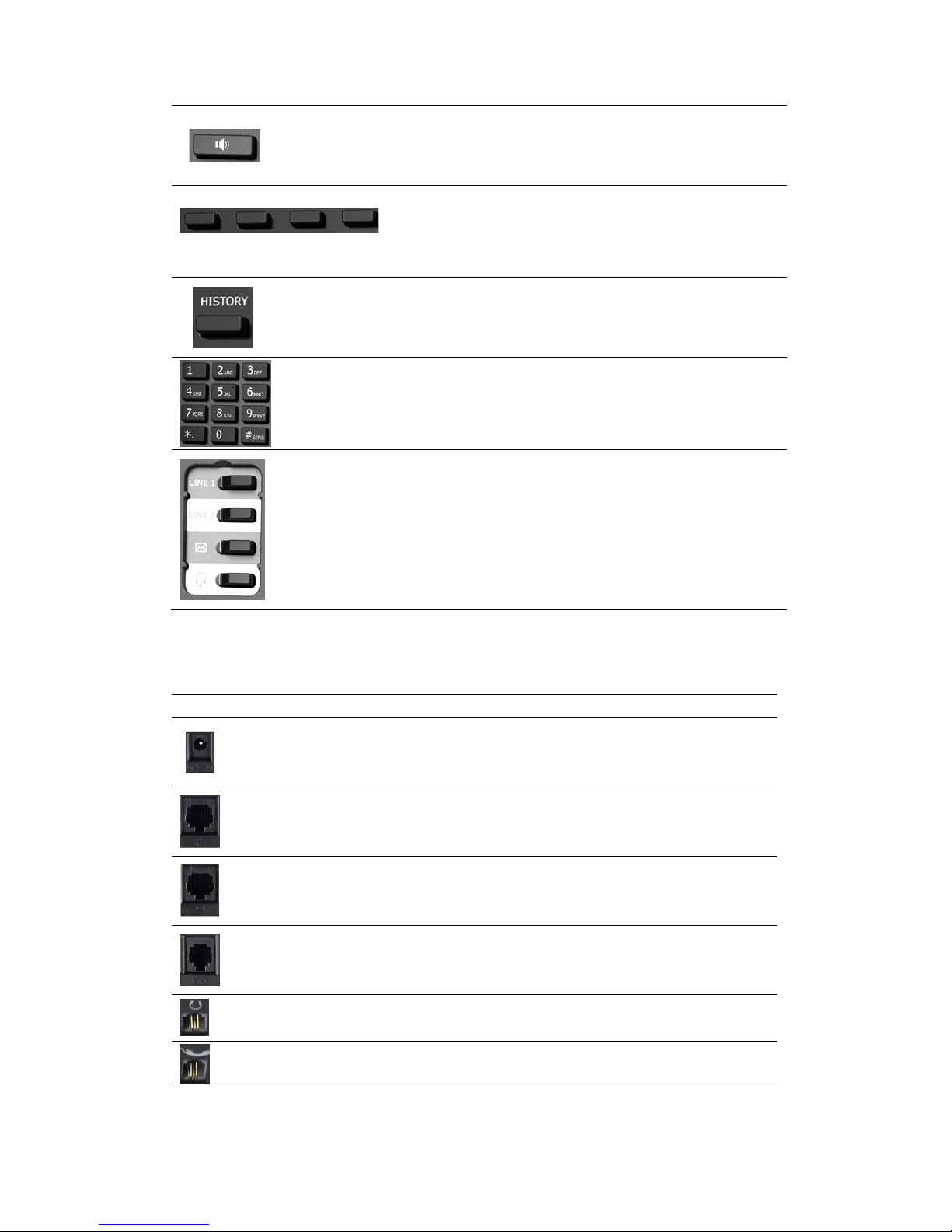

Function Description
Navigation
Navigation key assist users for operating.
In desktop, dialer, calling, desktop long pressed
state they have special function.
You can configure through the web page according
to your patterns of use.
Directory
Access to phone book, check the record list and
add new records and revise the record. When check
the phone book record, press this key again will
return to idle mode.
Mute
Press this key in calling mode, you can hear the
other side, and the other side cannot hear you.
Volume -/+
Turn down or turn up the volume by pressing these
two keys.
Redial
1. In the hook off /hands-free mode, use the key
to dial the last call number;
2. In stand-by mode, it has a function to check the
Outgoing Call.

Hands-free
Make the phone into hands-free mode.
Soft key 1/2/3/4
Keys combination, include functions such as
History/Directory/DND/Menu/Del/Redial/Send/
Quit/Answer/Divert/Reject/Hold/Transfer/Conf/Cl
ose and so on.
History
View the Missed call, Incoming Call and dialed
Call.
Digital
keyboard
Inputting the phone number or DTMF.
DSS keys
You can configure them in the web page.
1.4 Port for connecting
Port
Port name
description
Power switch Input: 5V AC, 1A
WAN 10/100M Connect it to Network
LAN 10/100M Connect it to PC
External console
interface Port type: RJ-11 direct connector
Headset Port type: RJ-9 connector
Handset Port type: RJ-9 connector

1.5 Icon introduction
Icon
Description
Call out
Call in
Call hold
Auto answer
Call mute
Contact
DND(Do not Disturb)
In hand-free mode
In handset mode
In headset mode
SMS
Missed call
Call forward
1.6 LED introduction
Table 1 Programmable key LEDs for BLF
LED Status
Description
Steady green
The object is in idle status.
Slow blinking red
The object is ringing.
Steady red
The object is active.
Fast blinking red
The object is failed.
Off
No subscribe.

Table 2 Programmable key LEDs for Presence
LED Status
Description
Steady green
The object is online.
Slow blinking red
The object is ringing.
Steady red
The object is active.
Fast blinking red
The object is failed.
Off
No subscribe.
Table 3 Programmable key LEDs for line
LED Status
Description
Steady green
The account is active.
Fast Blinking red
There is an incoming call to the account.
Slow Blinking red
The call is on hold.
Slow Blinking red
Registration is unsuccessful.
Off
The line is not unapplied or idle.
Table 4 Programmable key LEDs for MWI
LED Status
Description
Blinking red
There are new voice mails.
Off
There is no new voice mail.

2Initial Connecting and Settings
2.1 Connect the phone
2.1.1 Connect to network
Step 1: Connect the IP Phone to the corporate IP telephony network. Before you
connect the phone to the network, please check if your network can work
normally.
You can do this in one of two ways, depending on how your workspace is set up.
Direct network connection—by this method, you need at least one available
Ethernet port in your workspace. Use the Ethernet cable in the package to connect
WAN port on the back of your phone to the Ethernet port in your workspace.
Since this VoIP Phone has router functionality, whether you have a broadband
router or not, you can make direct network connect. The following two figures are
for your reference.
Shared network connection—Use this method if you have a single Ethernet port in
your workspace with your desktop computer already connected to it. First,
disconnect the Ethernet cable from the computer and attach it to the WAN port on
the back of your phone. Next, use the Ethernet cable in the package to connect
LAN port on the back of your phone to your desktop computer. Your IP Phone

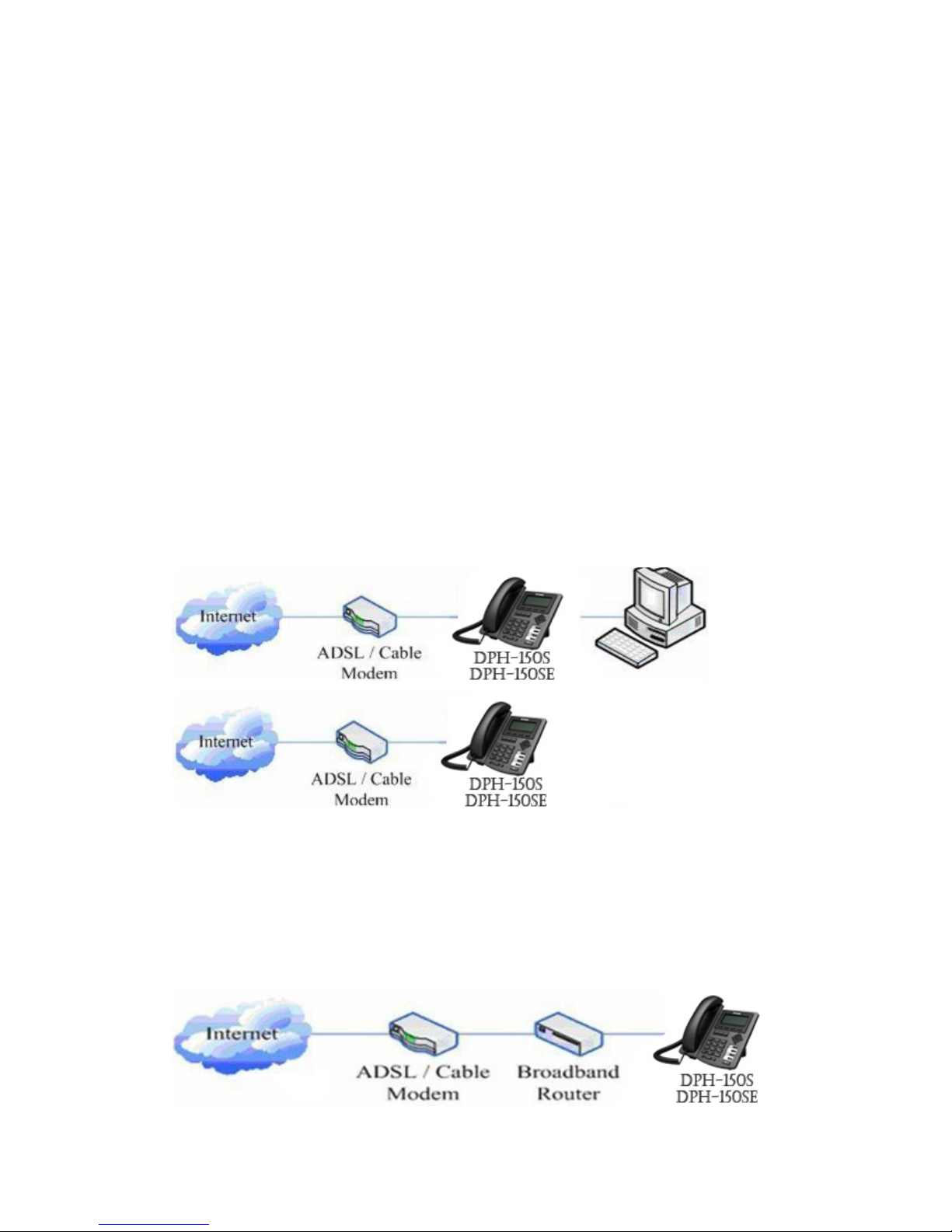

now shares a network connection with your computer. The following figure is for
your reference.

Step 2: Connect the handset to the handset port by the handset cable in the
package.
Step 3: connect the power supply plug to the AC 5V adapter port on the back of
the phone. Use the power cable to connect the power supply to a standard power
outlet in your workspace.
Step 4: push the on/off switch on the back of the phone to the one side, then the
phone’s LCD screen displays “Initializing wait logon”. Later, a ready screen
typically displays the date, time.
If your LCD screen displays different information from the above, you need refer
to the next section “Initial setting” to set your network online mode.
If your VoIP phone registers into corporate IP telephony Server, your phone is
ready to use.
2.1.2 Power adaptor connection
Make sure that the power you use is comply with the parameters of power adaptor.
1. Plug power adaptor to power socket.
2. Plug power adaptor’s DC output to the DC5V port of DPH-150S/DPH-150SE
to start up.
3. There will be displayed black line and “INITIALIZING” on the screen. After
finishing startup, phone will show greeting, current date and time and so forth.
4. If phone has registered to the server, you can place or answer calls.
2.2 Basic Initialization
DPH-150S/DPH-150SE is provided with a plenty of functions and parameters for
configuration. User needs some network and VoIP knowledge so that user could
understand the meanings of parameters. In order to make user use the phone more
easily and convenient, there are basic configurations introduced which is
mandatory to ensure phone calls.
2.2.1 Network settings
Make sure that network is connected already before setting network of phone.
DPH-150S/DPH-150SE uses DHCP to get WAN IP configurations, so phone
could access to network as long as there is DHCP server in it. If there is no DHCP
server available, phone has to be changed WAN network setting to Static IP or
PPPoE.
Setting PPPoE mode (for ADSL connection)
1. Get PPPoE account and password first.
2. Press Menu->Settings->Advanced Settings, then enter passwords, and choose

network ->WAN settings->Connection Mode, enter and choose PPPoE through
navigation keys and press the Save key.
3. Press Back, then choose PPPoE Set, press Enter.
4. The screen will show the current information. Press Del to delete it, then input
your PPPoE user and password and press Save.
5. Press Back six times to return to the idle screen.
6. Check the status. If the screen shows “Negotiating…” it shows that the phone is
trying to access to the PPPoE Server; if it shows an IP address, then the phone has
already get IP with PPPoE.
Setting Static IP mode (static ADSL/Cable, or no PPPoE / DHCP network)
1. Prepare the network’s parameters first, such as IP Address, Net mask,
Default Gateway and DNS server IP address. If you don’t know this information,
please contact the service provider or technician of network.
2. Press Menu->Settings->Advanced Settings, then enter passwords, and choose
network ->WAN settings->Connection Mode, enter and choose Static through
navigation keys and press the Save key.
3. Press Back, then choose Static Set, press Enter.
4. The screen will show the current information, and then press Del to delete.
Input your IP address, Mask, Gateway, DNS and press Save to save what you
input.
5. Press Back six times to return to the idle screen.
6. Check the status, the screen shows “Static” .the screen shows the IP address
and gateway which were set just now, if the phone could display the right time, it
shows that Static IP mode takes effect.
Setting DHCP mode
1. Press Menu->Settings->Advanced Settings, then enter passwords, and choose
network ->WAN settings->Connection Mode, enter and choose DHCP through
navigation keys and press the Save key.
2. Press back six times to return to the idle screen.
3. Check the status, the screen shows “DHCP”, if the screen shows the IP address
and gateways which were set just now, it shows that DHCP mode takes effect.

3Basic Function
3.1 Making a call
3.1.1 Call Device
You can make a phone call via the following devices:
1. Pick up the handset, icon will be showed in the idle screen.
2. Press the Speaker button, icon will be showed in the idle screen.
3. Press the Headset button if the headset is connected to the Headset Port in
advance. The icon will be showed in the idle screen.
You can also dial the number first, and then choose the method you will use to
speak to the other party.
3.1.2 Call Methods
You can press an available line button if there is more than one account, then
1. Dial the number you want to call.
2. Press History softkey, use the navigation buttons to highlight your choice
(press Left/Right button to choose Missed Calls, Incoming Calls and Outgoing
Calls.
3. Press the R/SEND button to call the last number called.
4. Press the programmable keys which are set as speed dial button.
Then press the Send button or Dial softkey to make the call if necessary.
3.2 Answering a call
Answering an incoming call
1. If you are not on another phone, lift the handset using, or press the Speaker
button/ Answer softkey to answer using the speaker phone, or press the headset
button to answer the headset.
2. If you are on another call, press the answer softkey.
During the conversation, you can alternate between Headset, Handset and Speaker
phone by pressing the corresponding buttons or picking up the handset.

3.3 DND
Press DND softkey to active DND Mode. Further incoming calls will be rejected
and the display shows: icon. Press DND softkey twice to deactivate DND
mode. You can find the incoming call record in the Call History.
3.4 Call Forward
This feature allows you to forward an incoming call to another phone number. The
display showed icon.
The following call forwarding events can be configured:
Off: Call forwarding is deactivated by default.
Always: Incoming calls are immediately forwarded.
Busy: Incoming calls are immediately forwarded when the phone is busy.
No Answer: Incoming calls are forwarded when the phone is not answered
after a specific period.
To configure Call Forward via Phone interface:
1. Press Menu ->Features->Enter->Call Forwarding->Enter.
2. There are 4 options: Disabled, Always, Busy, and No Answer.
3. If you choose one of them (except Disabled), enter the phone number you
want to forward your call to. Press Save to save the changes.
3.5 Call Hold
1. Press the Hold button or Hold softkey to put your active call on hold.
2. If there is only one call on hold, press the hold softkey to retrieve the call.
3. If there are more than one call on hold, press the line button, and the Up/Down
button to highlight the call, then press the Unhold button to retrieve the call.
3.6 Call Waiting
1. Press Menu ->Features->Enter->Call Waiting->Enter.
2. Use the navigation keys to active or inactive call waiting.
3. Then press the Save to save the changes.
3.7 Mute
Press Mute button during the conversation, icon will be showed in the LCD.
Then the called will not hear you, but you can hear the called. Press it again to get
the phone to normal conversation.

3.8 Call transfer
1. Blind Transfer
During talk, press the key Transf, and then dial the number that you want to
transfer to, and finished by "#". Phone will transfer the current call to the third
party. After finishing transfer, the call you talk to will be hanged up. User cannot
select SIP line when phone transfers call.
2. Attended Transfer
During talk, press the key Transf, then input the number that you want to transfer
to and press Send. After that third party answers, then press Transfer to complete
the transfer. (You need enable call waiting and call transfer first). If there are two
calls, you can just talk to one, and keep hold to the other one. The one who is keep
hold cannot speak to you or hear from you. In other way, if user wants to invite the
third party during the call, they can press Conf to make calls mode in conference
mode. If user wants to stop conference, user can press Split. (User must enable call
waiting and three way call first).
Note: the server that user uses must support RFC3515 or it might not be used
3. Alert Transfer
During the talk, press Transf firstly, and then press Send after inputting the
number that you want to transfer. You are waiting for connection, now, press
Transf and the transfer will be done. (To use this feature, you need enable call
waiting and call transfer first).
3.9 3-way conference call
1. Press the Conf softkey during an active call.
2. The first call is placed on hold. Then you will hear a dial tone. Dial the
number to conference in, then press Send key.
3. When the call is answered, press Conf and add the first call to the conference.
4. If you want to release the conference, press Split key.
3.10 Multiple-way call
If user has 2 line calls and wants to invite the three party during the call, they can
press Conf or Transf “New Call”, press OK, enter the number ,then press Send and
wait for the other party to answer. When the multiple-way calls, you can press the
arrow keys to select a call.

4Advanced Function
4.1 Call pickup
Call pickup is implemented by simulating pickup function of PBX. it’s that, when
A calls B, B rings but no answer, at this moment, C can hook off and input an
appointed prefix plus B’s number, pick up A’s call and talk with A.

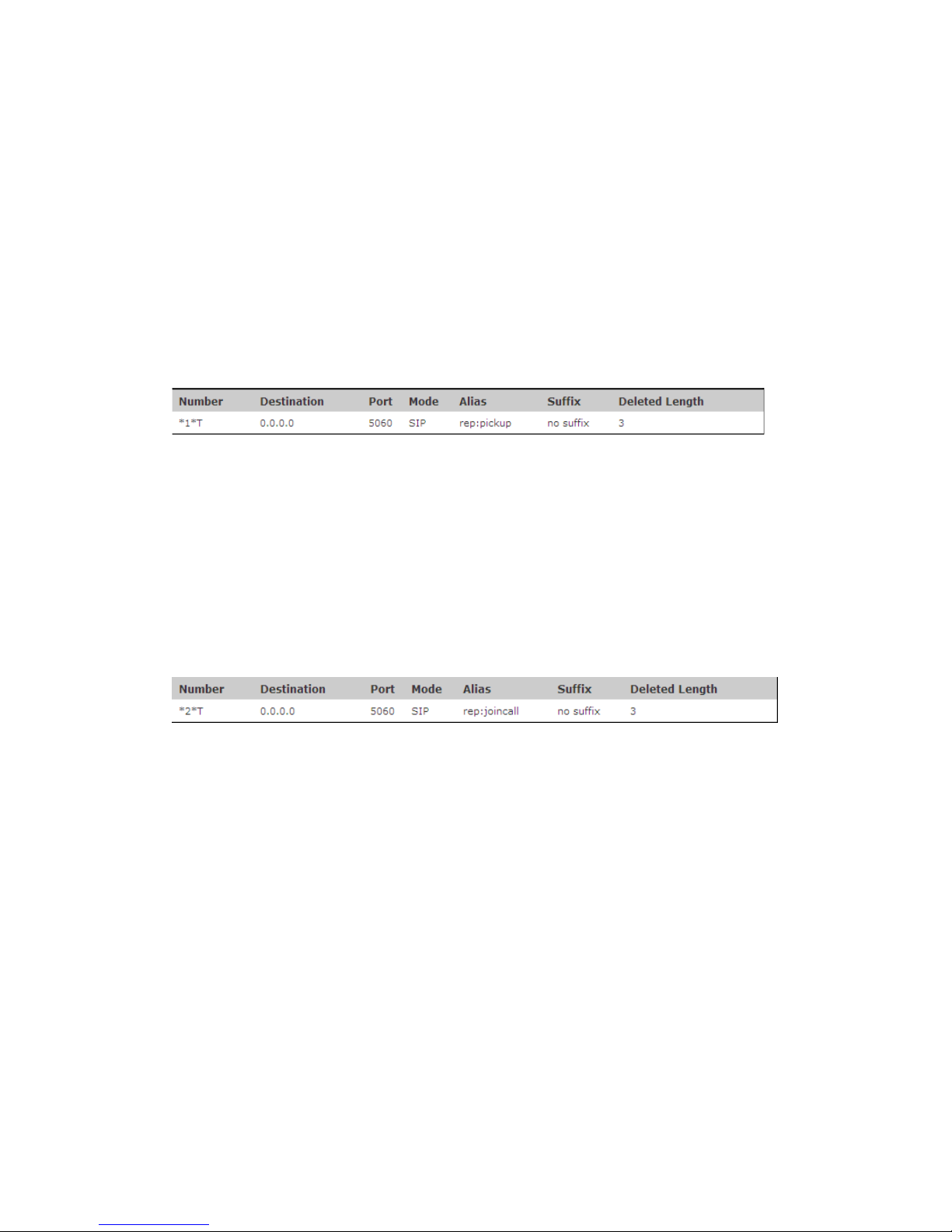

The following chart shows how to configure an appointed prefix in dial peer to
have call pick up function.
*1* means appointed prefix code. After making the above configuration, C can
dial *1* plus B’s phone number to pick up A’s call. User can set prefix in random,
in the case of no affecting current dialing rules.
4.2 Join call
When B is calling C, A can join in the existing call by inputting an appointed
prefix numbers plus B or C number, if B or C also supports join call.
The following chart shows how to configure an appointed prefix in dial peer to
have join call function.
*2* means appointed prefix code. After making the above configuration, A can
dial *2* plus B or C number to join B and C’s call. User can set prefix in random,
in the case of no affecting current dialing rules.
4.3 Redial / Unredial
If B is in busy line when A calls B, A will get notice: busy, please hang up. If A
want to connect B as soon as B is in idle, he can use redial function at the moment
and he can dials an appointed prefix number plus B’s number to realize redial
function.
What is redial function? A can’t not build a call with B when B is in busy, then A
will subscribe B’s calling mode at 60 second intervals. Once B is available, A will
get reminder of rings to hook off, while a hooks off, A will call B automatically. If
at this time A is occupied temporarily and unwilling to contact B, A also can
cancel the redial function by dialing an appointed prefix plus B’s number before
making the redial function.

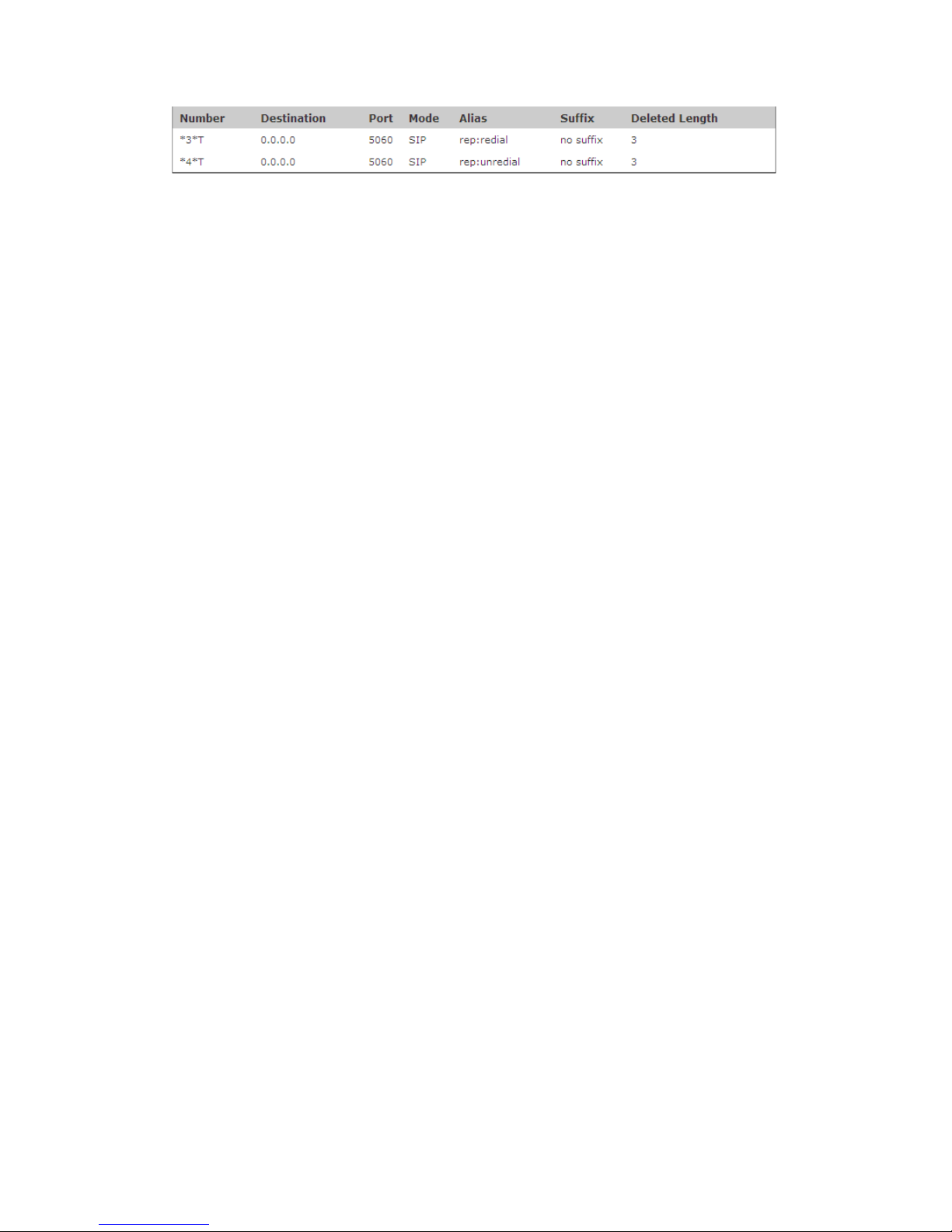

*3* is appointed prefix code. After making the above configuration, A can dial
*3* plus B’s phone number to make the redial function.
*4* is appointed prefix code. After configuration, A can dial *4* to cancel redial
function.
User can set prefix in random, in the case of no affecting current dialing rules.
4.4 Click to dial
When user A browses in an appointed Web page, user A can click to call user B
via a link (this link to user B), then user A’s phone will ring, after A hooks off, the
phone will dial to B.
4.5 Call back
This function allows you dial out the last phone call you received.
4.6 Auto answer
When there is an incoming call, after no answer time, the phone will answer the
call automatically.
4.7 Hotline
You can set hotline number for every sip, and then enter the dialer interface and
after Warm Line Time, the phone will call out the hotline number automatically.
4.8 Application
4.8.1 SMS
1) Press Menu ->Applications->Enter->SMS->Enter.
2) Use the navigation keys to highlight the options. You can read the message in
the Inbox/Outbox.
3) After view the new message, you can press Reply to reply the message, and use
the 2aB softkey to change the Input Method, when enter the reply message, press
OK, then use the navigation keys to select the line from which you want to send,
then Send.

4) If you want to write a message, you can press New and enter message. Use the
2aB softkey to change the Input Method. When you input the message you want to
send, press OK, then use the navigation keys to select the line from which you
want to send, then Send.
5) If you want to delete the message, after view the message, press Del, then you
have three options to choose: Yes, All, No.
4.8.2 Memo
You can add some memos to record some important things to remind you.
Press Menu->Application->Memo->Enter->Add.
There are some options to configure: Mode, Date, Time, text, Ring. When the
configuration is completed, press Save.
4.8.3 Voice Mail
1) Press Menu->Application->Voice Mail->Enter.
2) Use the navigation keys to highlight the line for which you want to set, press
Edit, and use the navigation key to turn on the mode, and the input the number.
Press 2aB softkey to choose the proper input method.
3) Press Save to save the change.
4) To view the new voicemail, Press the Voicemail softkey directly. Press Dial,
then you may be prompted to enter the password, then you can listen to your new
and old messages.
4.9 Programmable Key Configuration
The phone has 4 programmable keys which are able to set up to many functions
per key. The following list shows the functions you can set on the programmable
keys and provides a description for each function. The default configuration for
each key is N/A which means the key hasn’t been set for any functions.
1. Set the type as Memory Key
Press Menu->Settings->Basic Settings->Enter->Keyboard->DSS Key Settings,
you have two options: Line Key Settings and Function Key Settings, choose one
you want to make the assignment, use the navigation key to choose the type as
memory key. In the Dial field, you have some options, such as Normal, Speed Dial,
Intercom, BLF, Presence, and MWI.
Speed dial
You can configure the key as a simplified speed dial key. This key function allows
you to easily access your most dialed numbers.
Intercom
You can configure the key for Intercom code and it is useful in an office

environment as a quick access to connect to the operator or the secretary.
BLF
BLF is also called “Busy lamp field”, and it is used to prompt the user to pay
attention to the state of the object than has been subscribed, and used to cooperate
with the server to pick up the phone call. You can configure the key for Busy
Lamp Field (BLF) which allows you to monitor the status (idle, ringing, or busy)
of other SIP account. User can dial out on a BLF configured key. Please refer to
“LED Instruction” for more detail about the LED status in different situation.
Note: In the Web interface, you can also set the pickup number to active the
pickup function. For example, if you set the BLF number as 212, and the pickup
number is 189, then when there is an incoming call to 212, press the BLF key, it
will call out the 189 automatically to pick up the incoming call on 212.
Presence
Presence is called present, and compared to the BLF, it can also check whether
object online.
Note: You can subscribe the BLF and presence station of the same number at the
same time.
MWI
When the key is configured as MWI, you are allowed to access voicemail quickly
by pressing this key.
2. Set the type as Line
You can set these keys as line keys, and press it, it will enter dialer interface.
3. Set the type as Key Event
You can set these keys as Key Event, and the subtype have many options.
Choose one and it will have corresponding function.
None
Auto Redial Off
Auto Redial On
Call Back
Call Forward
DND
Flash
Headset
History
Hold
Hot Desking: Pressing the key, you can clear all sip information and register
yourself sip information.
Join
Lock: Pressing the key, you can lock the keyboard.
Memo
MWI
Phonebook
Pickup
Prefix
