D-Link DPH-120S User manual

Check Your Package Contents
These are the items included with your DPH-120S IP Phone purchase：
If any of the above items are missing, please contact your reseller.
©2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective
holders. Software and specifications subject to change without notice. DPH-120S.12232004
This product can be set up using
Keypad and Web browser, such as
IE (Internet Explorer).
DPH-120S
IP Phone
• DPH-120S VoIP Phone
• CD-ROM (containing Manual and
Installation program)
• Ethernet cable
•Power adapter Usingapowe
r
supplywitha
different voltage rating
will damage and void the
warranty for this product.

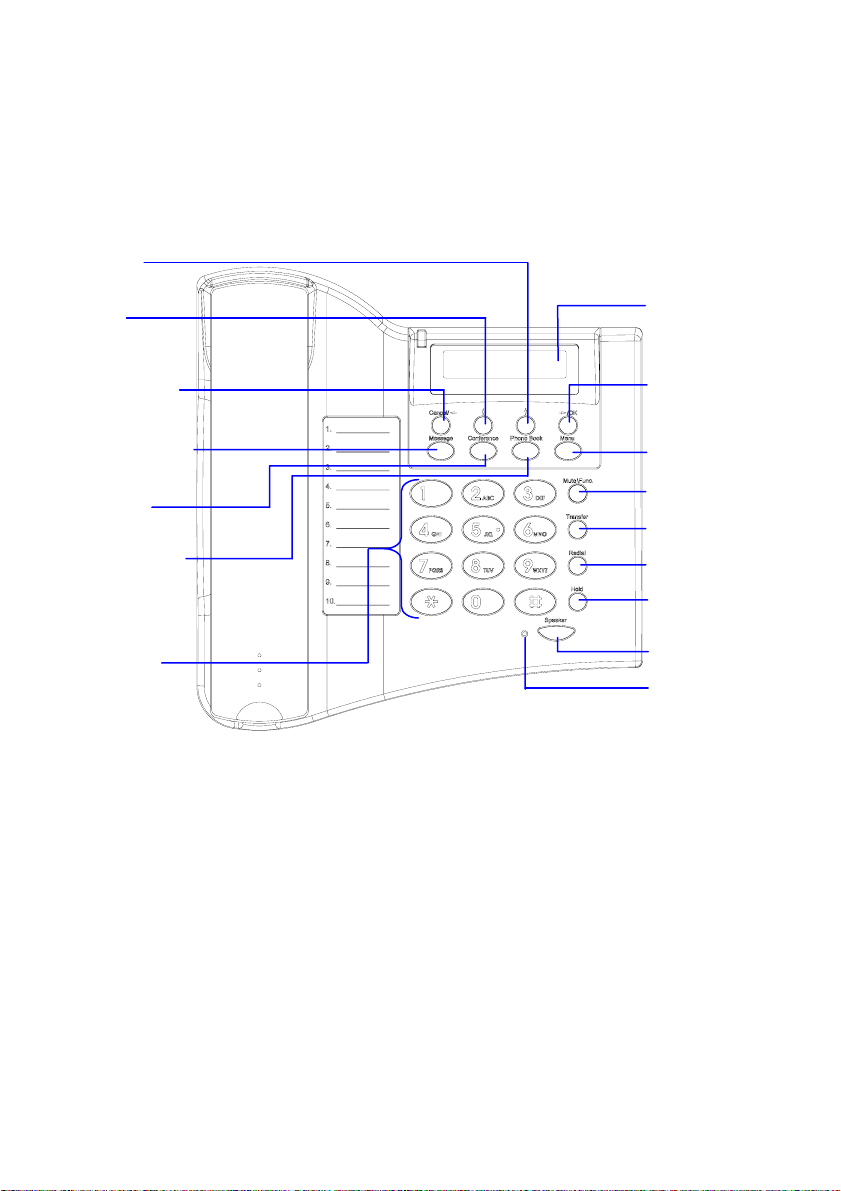

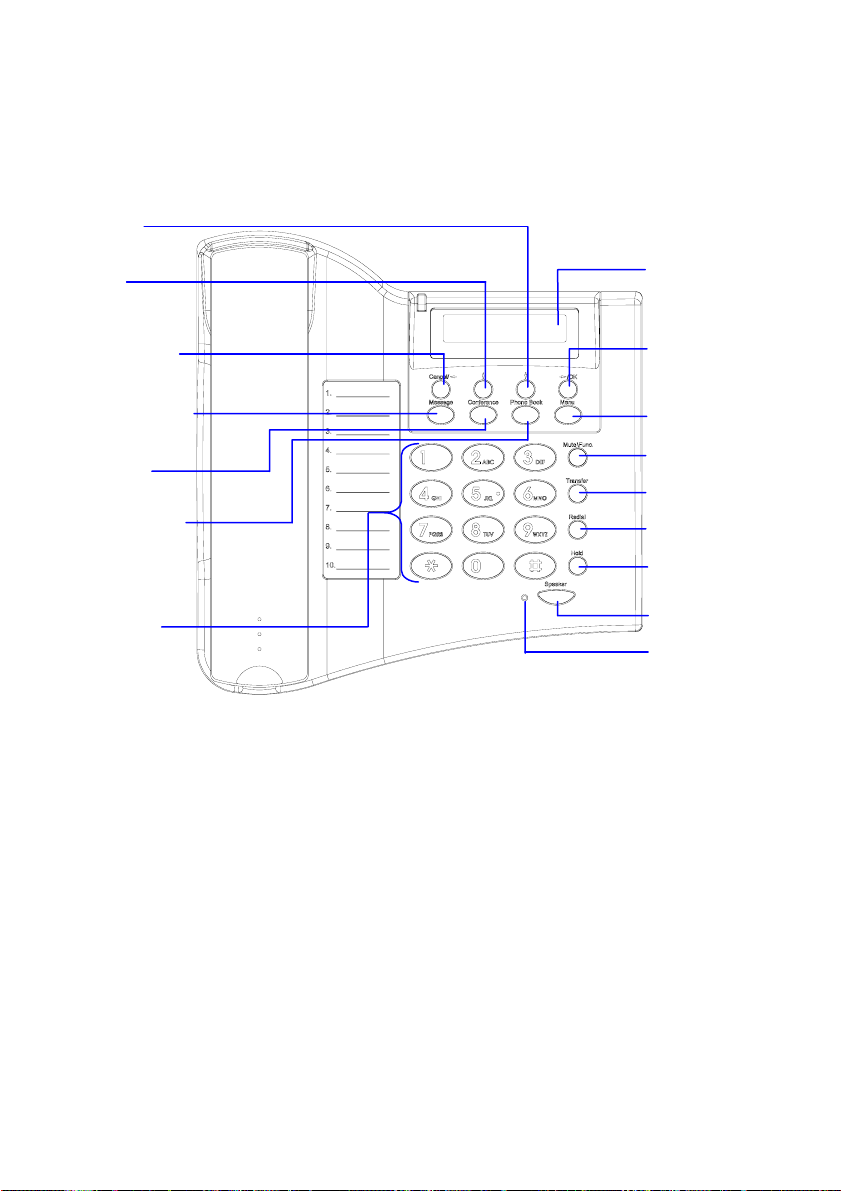

The Appearance of Product
Front view and keypad function:
(6) Redial/Call History
(7) Hold
(5) Transfer
(4) Mute/Function
(16) Numeric
Keypad
(1) 2 x 16 Characters
LCD Display
(14) 3-Way
Conference
(13) Voice Message
(2) OK / Right
(12) Cancel / Left
(15) Phone Book
(
3
)
Menu
(8) Speaker Phone
(9) Speaker Phone
Indicator
(11) Up
(10) Down

Keys Functions
(1) LCD Display Displays menu, time, clock, name, phone number,
call status
(2) OK/Right Confirm setting change, exit menu, dial, save
changes
(3) Menu Access the phone menu
(4) Mute/Function Disable user’s microphone so that the person on the
other line can not hear anything, access the
language selection, access the time format
(5) Transfer Transfer the person you are currently having a
conversation to another line
(6) Redial/Call History Redial last dialed number, access redial menu
(7) Hold Place the person on the other line on hold, answer
call waiting
(8) Speaker Phone Enable user to use the phone without using the
handset
(9) Speaker Phone
Indicator
Indicates that phone is currently in speaker phone
mode
(10) Down Cycle through the phone menu, adjust volume
(11) Up Cycle through the phone menu, adjust volume
(12) Cancel/Left Deny changes, cancel phone calls, ignore phone
calls, backspace
(13) Voice Message Check voice message
(14) 3-Way Conference Enable 3-way conference
(15) Phonebook Access the phonebook
(16) Numeric Keypad Input IP/phone number/alphabet characters

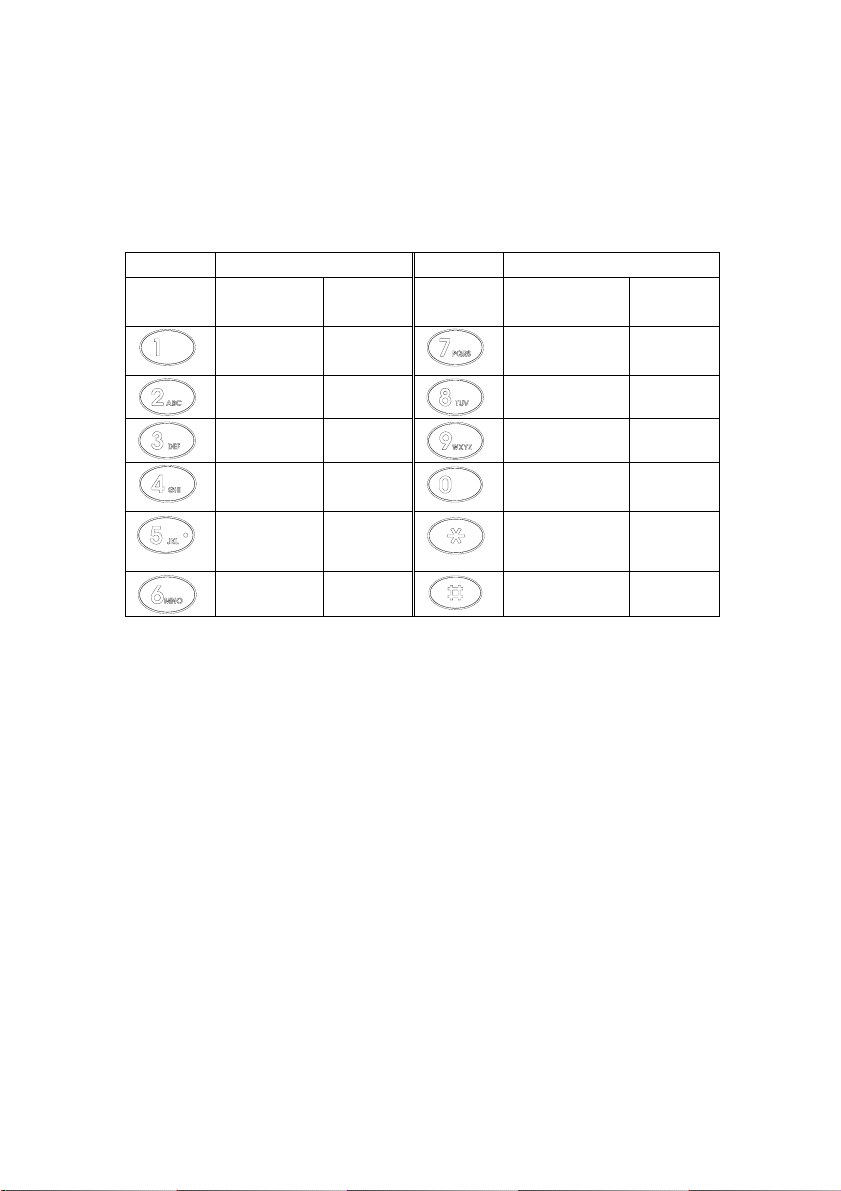

Text entry
You use alphanumeric characters to enter details in to the ADSL ID and ADSL
Password from phone as your ISP provide. This text entry is also available for phone
book setting.
Text Mode Text Mode
Key Normal
(ABC)
Numeric
(0-9)
Key Normal
(ABC)
Numeric
(0-9)
1 PQRSpqrs 7
ABCabc 2 TUVtuv 8
DEFdef 3 WXYZwxyz 9
GHIghi 4
@ . _ －* #
( ) % & + / $ , 0
JKLjkl 5 *
MNOmno 6 #

Connector:

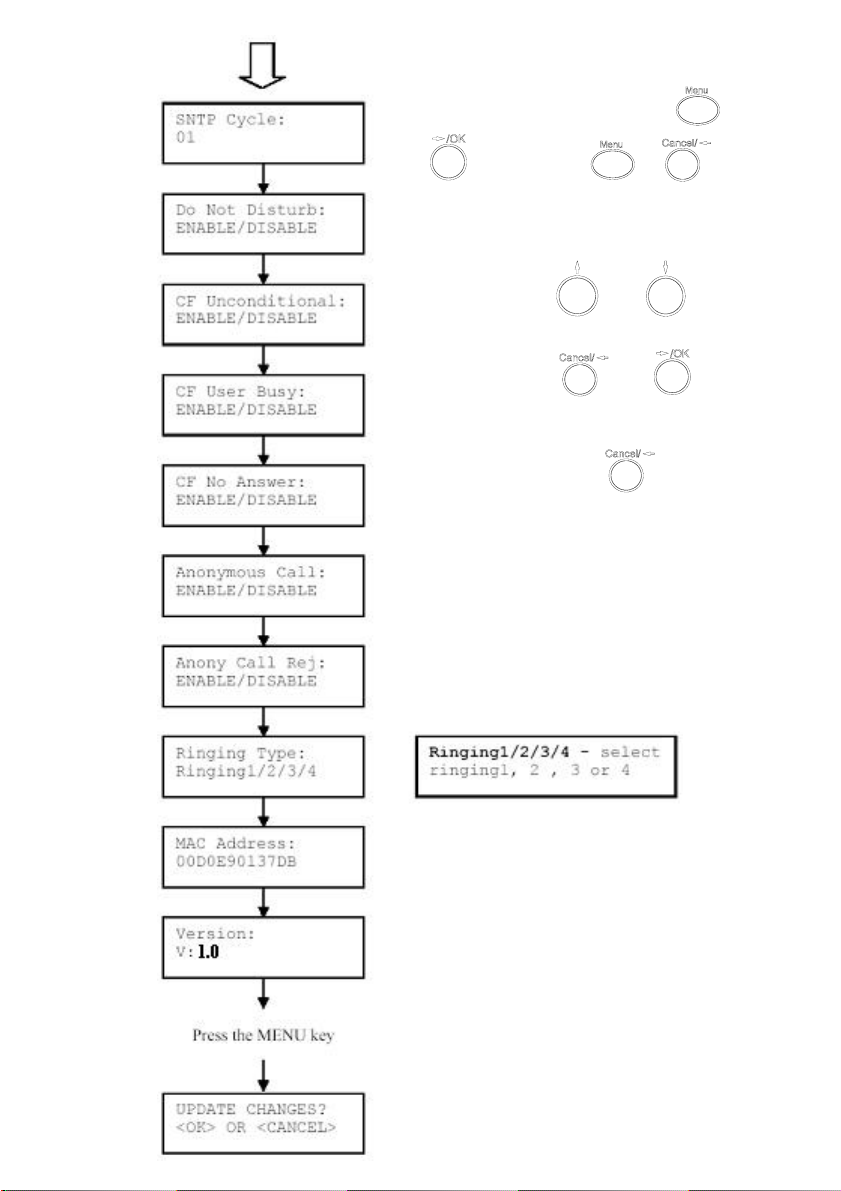

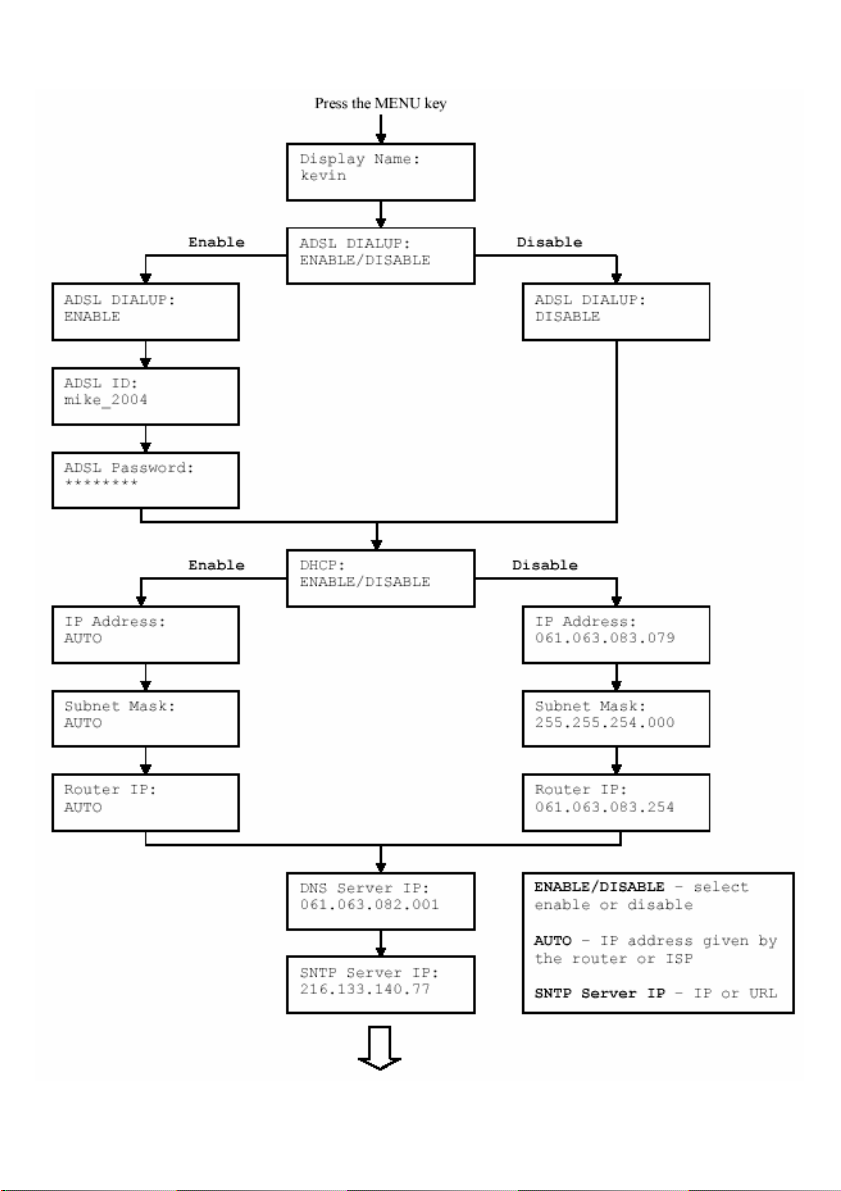

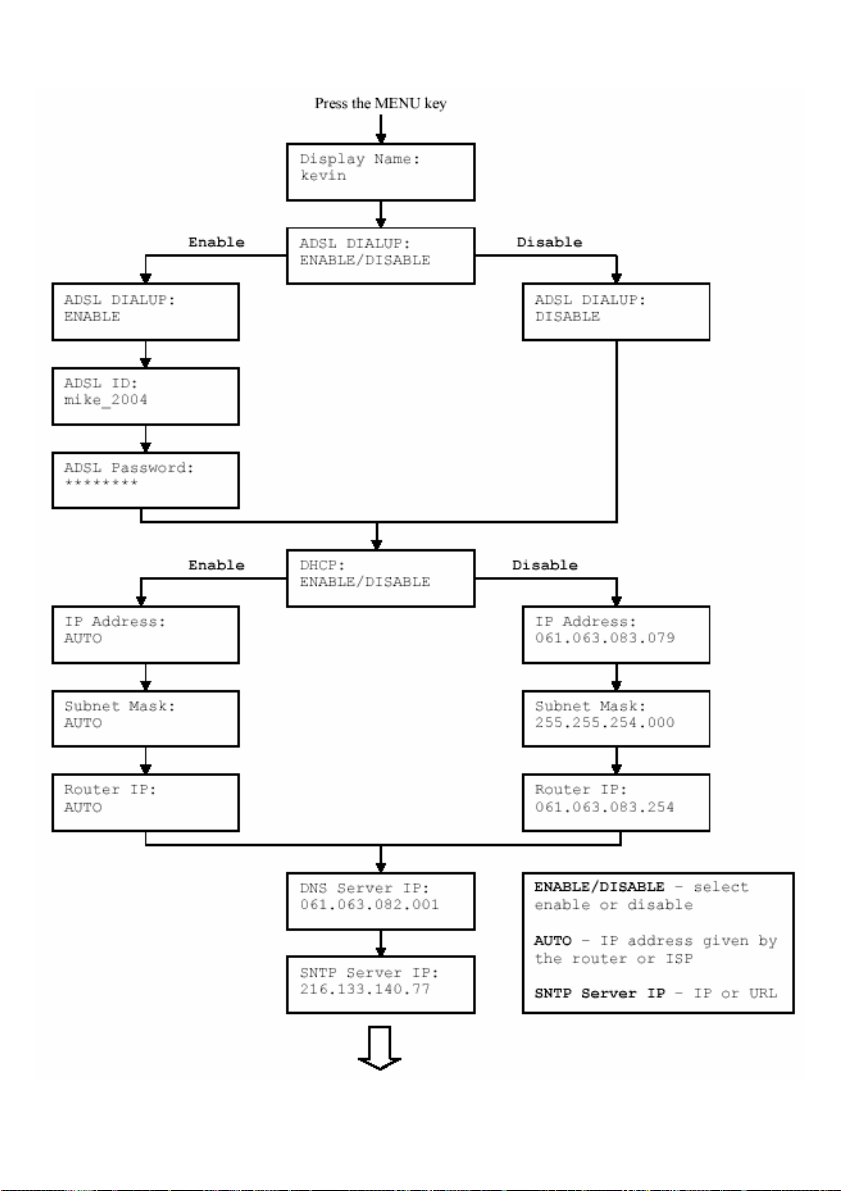

IP Phone Setup Menu

NOTE 1:If you made any modifications, you may
quit setup at any time by pressing +
save and exit or + to quit
without saving. The phone will automatically exit
the menu screen if there are no inputs from the
user.
NOTE 2: Use up and down arrow
on the direction pad to switch among stages.
NOTE 3: Use left and right arrow
on the direction pad to select ENABLE or
DISABLE.
NOTE 4: Left arrow key can be used as
Backspace key.

Technical Support
You can find software updates and user documentation on the
D-Link website.
Tech Support for customers within Australia:
D-Link Technical Support over the Telephone:
1300-766-868
Monday to Friday 8:00am to 8:00pm EST
Saturday 9:00am to 1:00pm EST
D-Link Technical Support over the Internet:
http://www.dlink.com.au
email:[email protected]
Tech Support for customers within New Zealand:
D-Link Technical Support over the Telephone:
0800-900-900
Monday to Friday 8:30am to 8:30pm
Saturday 9:00am to 5:00pm
D-Link Technical Support over the Internet:
http://www.dlink.co.nz
email:[email protected]

Technical Support
You can find software updates and user documentation on the
D-Link website.
Tech Support for customers within South
Eastern Asia and Korea:
D-Link South Eastern Asia and Korea Technical Support
over the Telephone:
[phone]
Monday to Friday 9:00am to 12:30pm, 2:00pm-6:00pm
Singapore Time
D-Link Technical Support over the Internet:
email:[email protected]

Technical Support
You can find software updates and user documentation on the
D-Link website.
Tech Support for customers within India
D-Link Technical Support over the Telephone:
[phone]
[phone] –ext 161 to 167
Monday to Friday 9:30AM to 7:00PM
D-Link Technical Support over the Internet:
http://ww.dlink.co.in
http://www.dlink.co.in/dlink/drivers/support.asp
ftp://support.dlink.co.in
email: [email protected]

Technical Support
You can find software updates and user documentation on the
D-Link website.
D-Link provides free technical support for customers for the
duration of the warranty period on this product.
Customers can contact D-Link technical support through our
web site or by phone.
Tech Support for customers within the Russia
D-Link Technical Support over the Telephone:
[phone]
Monday to Friday 10:00am to 6:30pm
D-Link Technical Support over the Internet
http://www.dlink.ru
email: [email protected]

Technical Support
You can find software updates and user documentation on the D-Link website.
Tech Support for customers within the U.A.E & North Africa:
D-Link Technical Support over the Telephone:
(971) 4-391-6480 (U.A.E)
Sunday to Wednesday 9:00am to 6:00pm GMT+4
Thursday 9:00am to 1:00pm GMT+4
D-Link Middle East & North Africa
D-Link Technical Support over the Internet:
http://support.dlink-me.com
email:[email protected]
Tech Support for customers within Israel:
D-Link Technical Support over the Telephone:
[phone]
Sunday to Thursday 9:00am to 5:00pm
D-Link Technical Support over the Internet:
http://www.dlink.co.il/forum
e-mail: [email protected]
Tech Support for customers within Turkey:
D-Link Technical Support over the Telephone:
([phone]
Monday to Friday 9:00am to 6:00pm
D-Link Technical Support over the Internet:
http://www.dlink.com.tr
e-mail: [email protected]
Tech Support for customers within Egypt:
D-Link Technical Support over the Telephone:
[phone]
Sunday to Thursday 9:00am to 5:00pm
D-Link Technical Support over the Internet:
http://support.dlink-me.com
e-mail: [email protected]

Technical Support
You can find software updates and user documentation on the
D-Link website.
Tech Support for customers within South
Africa and Sub Sahara Region:
D-Link South Africa and Sub Sahara Technical Support
over the Telephone:
[phone]
08600 DLINK ( For South Africa only )
Monday to Friday 8:30am to 9:00pm South Africa Time
D-Link Technical Support over the Internet:
http://www.d-link.co.za
email:[email protected]

Technical Support
You can find updates and user documentation on the D-Link website
Tech Support for Latin America customers:
D-Link Technical Support over the followings Telephones:
Argentina: 0800-666 1442 Monday to Friday 09:00am to 22:00pm
Chile: 800-214 422 Monday to Friday 08:00am to 21:00pm
Colombia: 01800-700 1588 Monday to Friday 07:00am to 20:00pm
Ecuador: 1800-777 711 Monday to Friday 07:00am to 20:00pm
El Salvador: 800-6137 Monday to Friday 06:00am to 19:00pm
Guatemala:1800-300 0017 Monday to Friday 06:00am to 19:00pm
Panama: 0800-560 0193 Monday to Friday 07:00am to 20:00pm
Peru: 0800-52049 Monday to Friday 07:00am to 20:00pm
Venezuela: 0800-100 3470 Monday to Friday 08:00am to 21:00pm
D-Link Technical Support over the Internet:
www.dlinkla.com
www.dlinklatinamerica.com
email:[e-mail]
Tech Support for customers within Brazil:
D-Link Technical Support over the Telephone:
0800-7014104
Monday to Friday 8:30am to 18:30pm
D-Link Technical Support over the Internet:
www.dlinkbrasil.com.br
email:[e-mail]

Проверьте содержимое комплекта
поставки
Вкомплект поставки IP-телефона DPH-120S входит следующее：
Если что-либо из перечисленного отсутствует, пожалуйста, обратитесь кВашему поставщику.
©2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective
holders. Software and specifications subject to change without notice. DPH-120S.12232004
Это устройство может быть
настроено спомощью
клавиатуры или Web-браузера,
такого как IE (Internet Explorer).
DPH-120S
IP-телефон
• DPH-120S VoIP телефон
• CD-ROM (содержит руководство
пользователя ипрограмму установки)
• Кабель Ethernet
• Адаптер питания
Использование
источника
питания сдругим
напряжением
питания может
привести квыходу
из строя устройства
ипотере гарантии.

Внешний вид устройства
Вид передней панели ифункции клавиш:
(6) Повторный
набор/История
звонков
(7) Удержание
(5) Перевод звонка
(4) Блокировка
звука
/
Функция
(16) Цифровые
клавиши
(1) LCD-дисплей
2 x 16 символов
(14) 3-сторонняя
конференция
(13) Голосовое
сообщение
(2) OK / Вправо
(12) Отменить /
Влево
(15) Телефонная
книга
(
3
)
Меню
(8) Громкоговоритель
(9) Индикатор
громкоговорителя
(11) Вверх
(10) Вниз

Клавиши Функции
(1) LCD-дисплей Показывает меню, время, часы, имя, номер
телефона, состояние звонка
(2) OK/Вправо Подтверждает изменение настроек, выход из
меню, набранный номер, сохранение изменений
(3) Меню Доступ кменю телефона
(4) Блокировка
звука/Функция
Отключение микрофона телефонной трубки
таким образом, что человек на другом конце
линии ничего не может слышать, доступ квыбору
языка, доступ кформату вывода времени
(5) Перевод Перевод текущего звонка на другую линию
(6) Повторный
набор/История
звонков
Повторный набор последнего набранного
номера, доступ кменю повторного набора
(7) Удержание Удержание текущего звонка, ответ на
ожидающий звонок
(8) Громкоговоритель Позволяет пользоваться телефоном без
использования телефонной трубки
(9) Индикатор
громкоговорителя
Показывает, что внастоящее время телефон
находится врежиме громкоговорителя
(10) Вниз Цикл через меню телефона, регулировка звука
(11) Вверх Цикл через меню телефона, регулировка звука
(12) Отменить/Влево Отменить изменения, отменить телефонные
звонки, игнорировать телефонные звонки,
возврат на одну позицию (backspace)
(13) Голосовое
сообщение
Проверить голосовое сообщение
(14) 3-сторонняя
конференция
Включить 3-стороннюю конференцию
(15) Телефонная книга Доступ ктелефонной книге
(16) Цифровые
клавиши
Ввод IP/телефонного номера/символов
алфавита

Ввод текста
Используйте символы алфавита для ввода стелефона информации об
идентификаторе ипароле ADSL, предоставленной провайдером услуг. Эти
рекомендации также подходят для настройки телефонной книги.
Текстовый режим Текстовый режим
Клавиша Обычный
(ABC)
Цифровой
(0-9)
Клавиша Обычный
(ABC)
Цифровой
(0-9)
1 PQRSpqrs 7
ABCabc 2 TUVtuv 8
DEFdef 3 WXYZwxyz 9
GHIghi 4
@ . _ －* #
( ) % & + / $ , 0
JKLjkl 5 *
MNOmno 6 #

Подключение:

Меню установки IP-телефона
