D-Link DPH-C160S User manual

©2007 D-Link Australia Pty Ltd. All rights reserved. Trademarks or registered trademarks are the
property of their respective holders. Software and specifications subject to change without notice.
DPH-C160S DECT Cordless VoIP Phone.
Before You Begin
1. The DPH-C160S is a DECT Cordless VoIP Phone that allows you make telephone calls over the
Internet using VoIP technology. It does not provide a connection to the Internet or to other
computers −you must have a modem or router that has multiple Ethernet ports (or is connected to
a switch or hub that provides multiple Ethernet ports) and a valid Internet account to use this device.
2. The DPH-C160S will need to be connected directly to a switch or router via an Ethernet port. An IP
address is assigned to the DPH-C160S via your DHCP Server, if you do not have a DHCP Server a static
IP will be configured onto the DPH-C160S by default. Once this is completed you will be able to configure
or modify its configuration from any PC on your LAN.

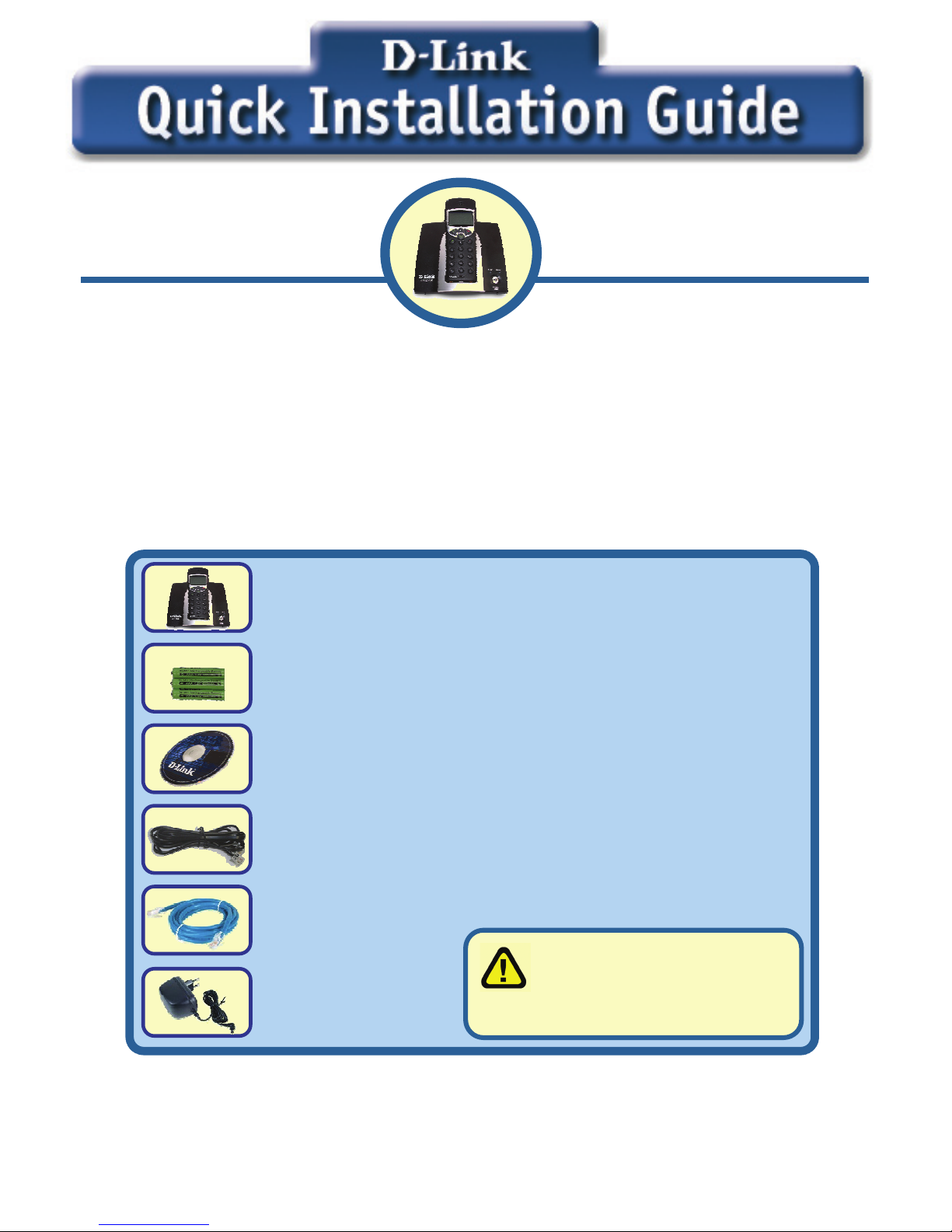

Check Your Package Contents
If any of the above items are missing, please contact your reseller.
This product can be set up using
any current web browser.
Internet Explorer 6 or Netscape
Navigator 6.2.3 is recommended.
DPH-C160S
DECT Cordless VoIP Phone
Using a power adapter with
a different voltage rating will
damage and void the
warranty for this product.
DPH-C160S
DECT Cordless Handset + Base Station
3 x AAA NiMH Rechargeable Batteries
CD-ROM with Product Documentation
Telephone Cable (RJ-11)
CAT 5 UTP Ethernet Cable (RJ-45)
9V 1A
Power Ada
p
te
r

2

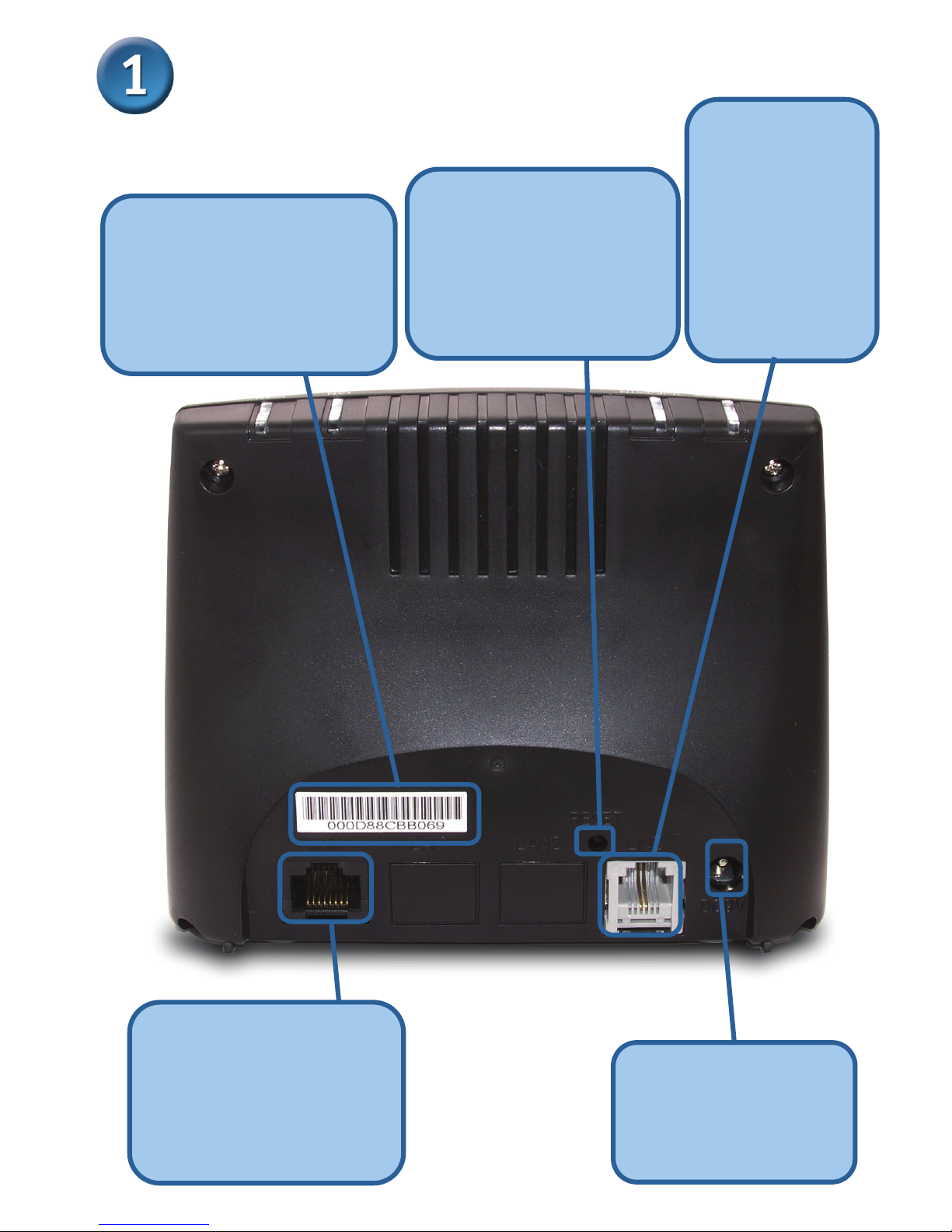

Connecting the DPH-C160S Base Unit to
your Network
Phone
Connection
Connect to
your phone
line using a
standard
phone cable
(RJ-11).
WAN Port
Connect the Ethernet
cable from your router
to this port.
Factory Reset Button
Pressing this button
will restore the phone
to its factory default
settings.
Power Socket
Connect your 9V
1A power adapter
here.
MAC Address
The MAC address
assigned to your DPH-
C160S by the factory is
printed on this label.

3

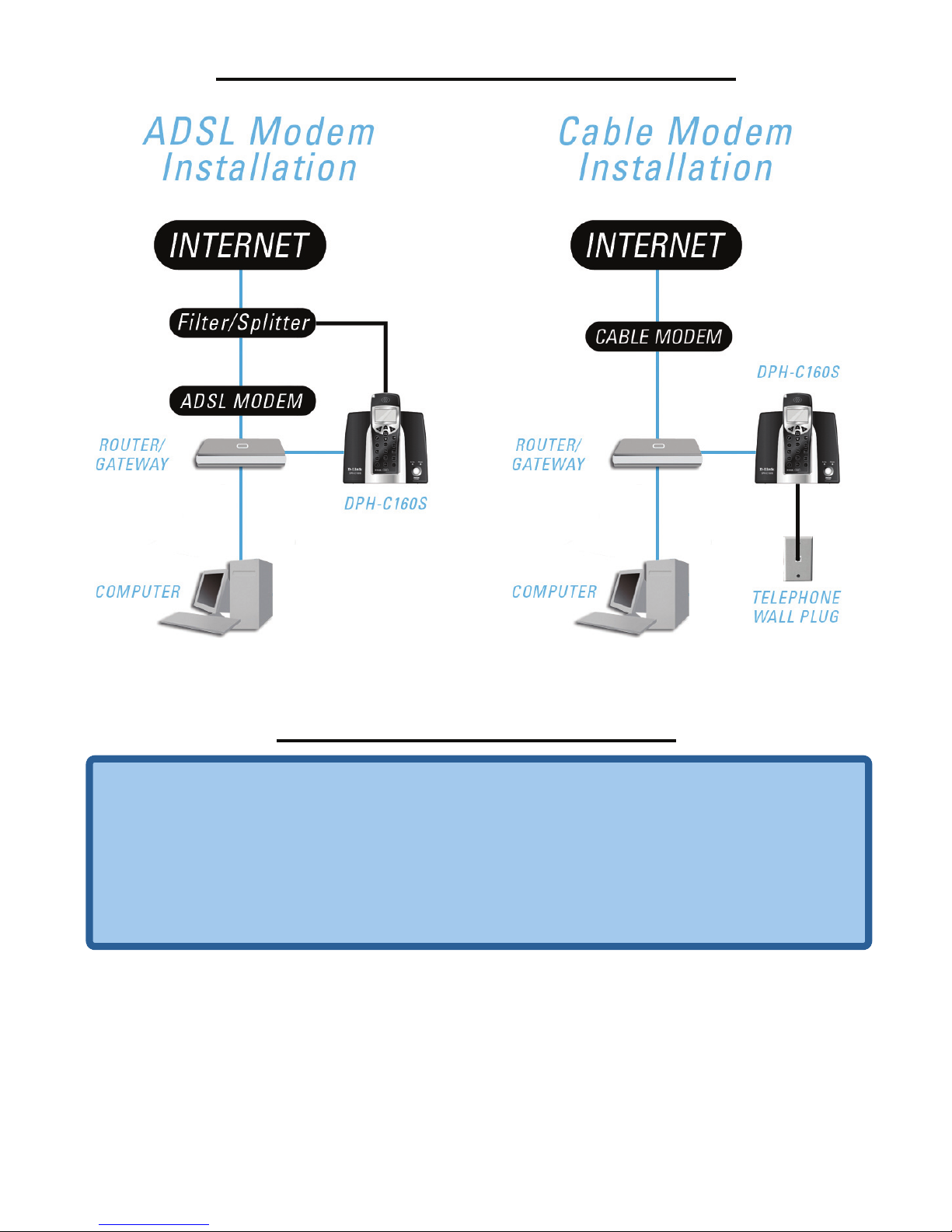

Recommended Network Configuration
IP Address of the DPH-C160S
How to Obtain the DPH-C160S IP Address:
You can determine the IP address of your DPH-C160S at any time by
pressing the IP/OK button followed by **1 on the cordless handset. A
prerecorded voice message will read the IP address currently assigned
to the DPH-C160S over the handset’s speaker.
Please write down the IP address of your DPH-C160S below for your
future reference. Please note that this IP address may change if your
router or DPH-C160S is turned off for a period of time.
IP Address of the DPH-C160S: ______ . ______ . ______ . ______

4

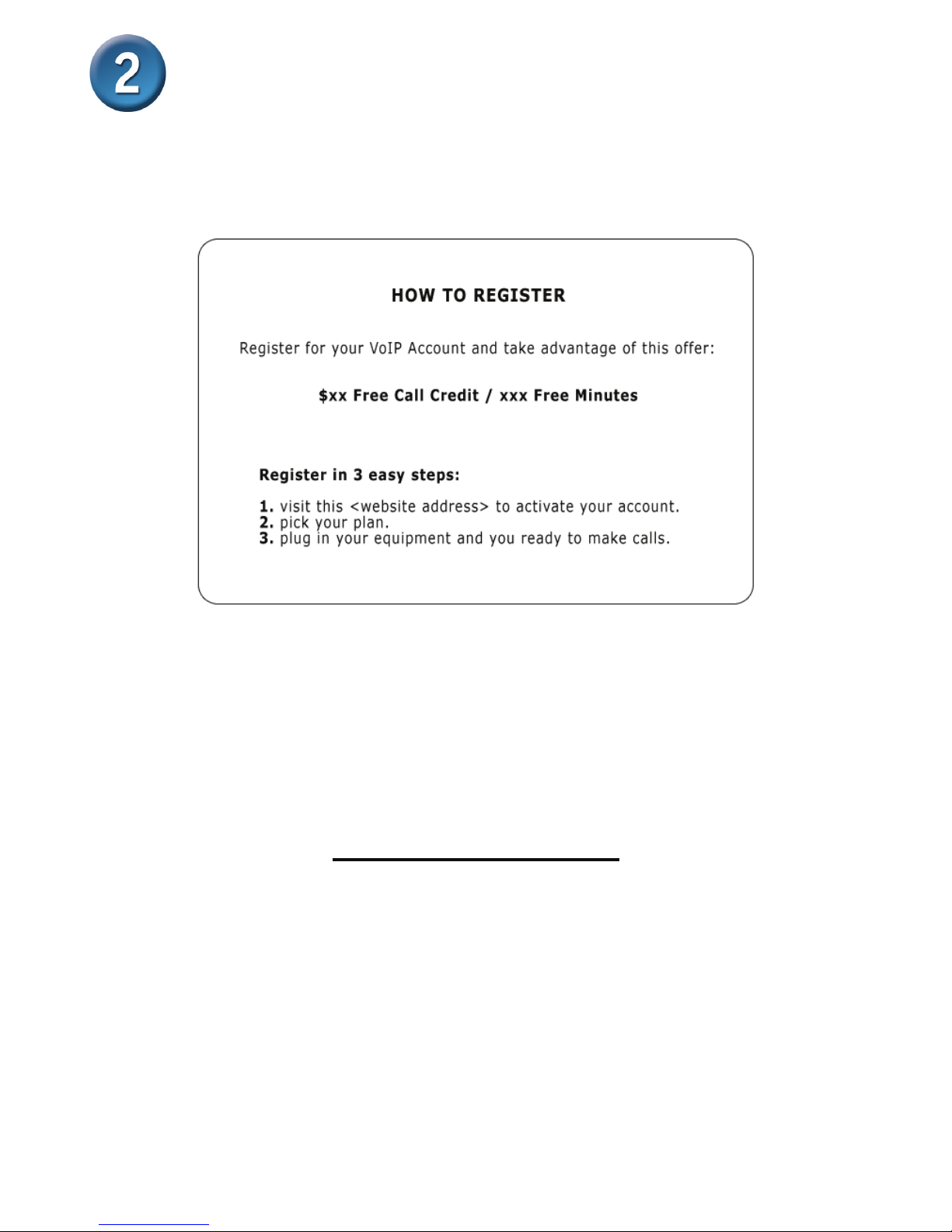

Connecting to your VoIP Service Provider
If you purchased this phone from a VoIP Service Provider, they may have
included a leaflet inside the box with more details on how to activate your
account. Here is an example of the leaflet:
If you cannot find the leaflet, the first step in connecting your new DPH-
C160S DECT Cordless VoIP Phone to your VoIP Service Provider is to
open a web browser and find your VoIP Service Provider’s website.
Please follow the instructions on your VoIP Service Provider’s website to
activate and setup your account so you can start making calls.
VoIP Account Details
We recommend that you write down all of your VoIP account details for
future reference.
VoIP Account Number: ________________________
VoIP Username/Phone Number: ________________________
VoIP Password: ________________________

5

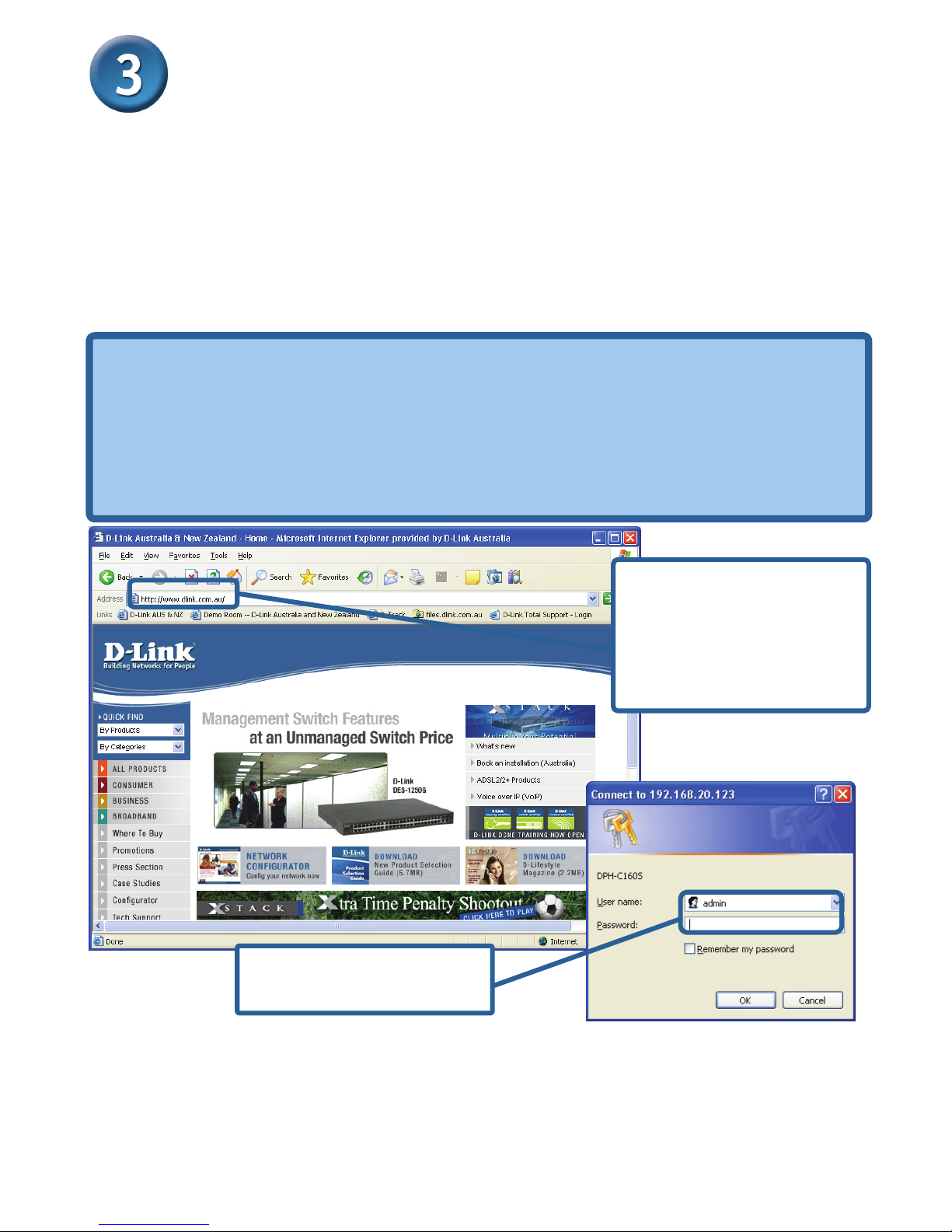

Configuring the DPH-C160S to make calls
Once you have a VoIP account established and activated, you can
configure your DPH-C160S DECT Cordless VoIP Phone to use the VoIP
Service Provider to make calls.
Open your web browser and enter the IP address assigned to your DPH-
C160S by your multi-port Ethernet router in the Address field.
How to Obtain the DPH-C160S IP Address:
You can determine the IP address of your DPH-C160S at any time by
pressing the IP/OK button followed by **1 on the cordless handset. A
prerecorded voice message will read the IP address currently assigned
to the DPH-C160S over the handset’s speaker
The DPH-C160S’s web-based configuration menu will now open.
Type the IP address of
the DPH-C160S into the
address bar of your web
browser. Refer to section
1 of this guide for the
co
rr
ec
t IP
add
r
ess
.
Enter the Username and
Password as “admin”

6

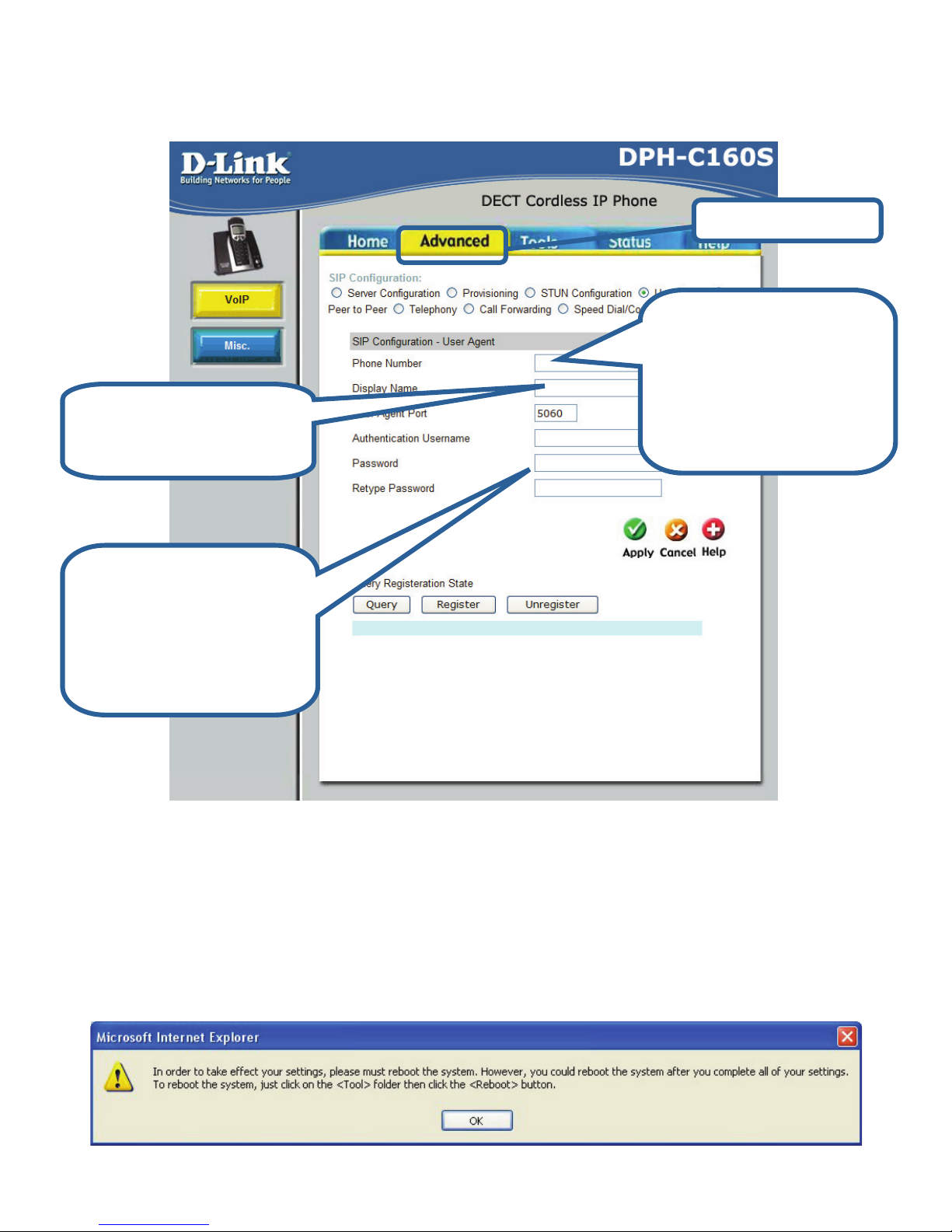

Now you need to configure the DPH-C160S to use the VoIP Service.
Click the Advanced tab and then click the VoIP button on the left side.
You should ignore all of the other default settings unless instructed to
change them by your VoIP Service Provider. To save the changes click
the Apply button.
The following dialog box will prompt you to restart the DPH-C160S DECT
Cordless VoIP Phone to make your new settings take effect.
Click Advanced.
Step 1: Enter your
username/phone
number from your VoIP
Account Details into the
Phone Number and
Authentication
Username fields.
Step 3: Enter your
password from your
VoIP Account Details
into the Password and
Retype Password
fields.
Step 2: Enter your full
name into the Display
Name field.

7

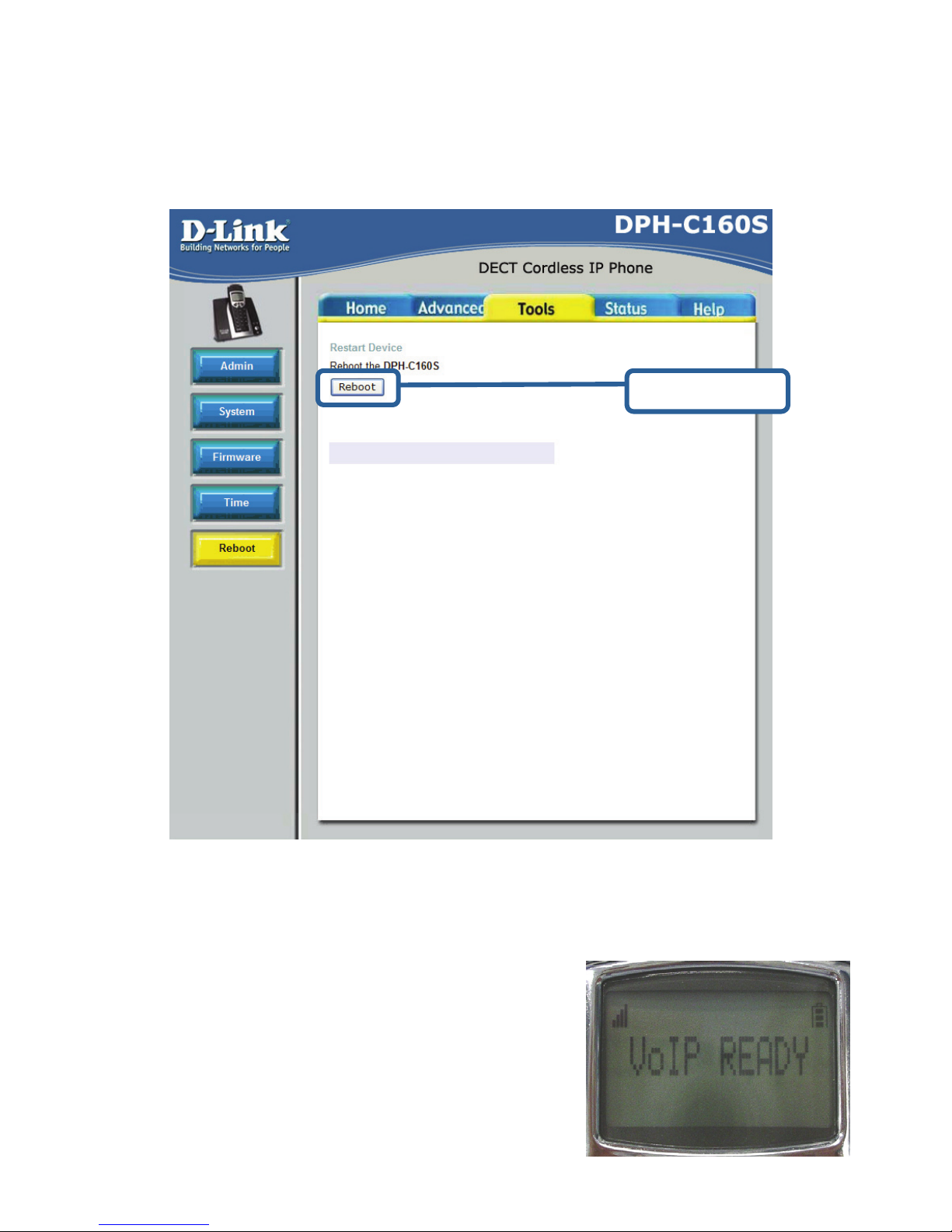

To reboot the DPH-C160S and make the settings you entered become
active, click on the Tools tab and the click the Reboot button on the left
side. This will open the following screen. Click the Reboot button to
restart the DPH-C160S and activate the new settings.
You will hear a short tone on the telephone and also see the words “VoIP
READY” displayed on the LCD screen after the DPH-C160S has
successfully connected to the VoIP Service
Provider. This means that the DPH-C160S
DECT Cordless VoIP Phone has now been
registered with the VoIP Service Provider.
You should see this image (right) on the LCD
screen when the DPH-C160S is registered
with the VoIP Service Provider.
Click Reboot

8
2007/08/29
Ver.2.00(AU)
6PHC160SN
Q
03G
Technical Support
You can find software updates and user
documentation on D-Link’s website.
D-Link Australia
1 Giffnock Avenue
North Ryde, NSW 2113
Sydney, Australia
TEL: [phone]
FAX: [phone]
Australia: 1300-766-868
New Zealand: 0800-900-900
URL:
www.dlink.com.au
www.dlink.co.nz
E-MAIL:
[email protected]
