Quick Installation Guide
DPH-150S/SE
IP Phone
Check Your Package Contents
Using a power adapter with a different voltage rating will
damage this product and void the warranty.
DPH-150S/SE
IP Phone
CD-ROM which
includes the Use
r
Manual
Handset Handset cord Ether (CAT5
UTP) Cable
Power Adapter

3
OVERVIEW
The DPH-150S(SE) IP Phone allows callers to take advantage of their Internet connection
to make inexpensive Internet phone calls. The DPH-150SE includes PoE (Power over
Ethernet) and does not require a DC power adapter. Besides the PoE function, all other
device and configuration features are the same for DPH-150S and DPH-150SE.

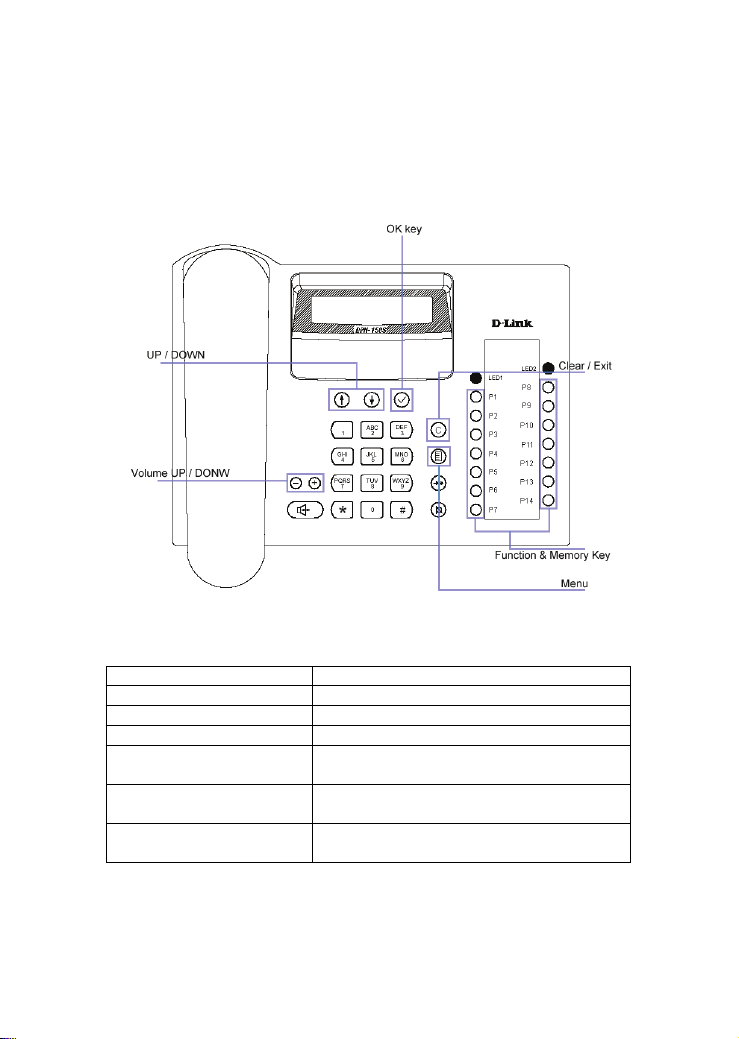

Button Name Function
UP/DOWN buttons Moves cursor on the phone’s LCD screen
Volume UP/DOWN buttons Controls phone volume
OK key button Confirms and enters options on the LCD screen
Clear / Exit button Clears the selected item on the LCD screen, returns
to the Main screen from any other setup screen
Function & Memory Keys
buttons
Controls call activity and speed dial
Menu button Sets up and updates phone appearance and screen
functions

4
START UP
For the DPH-150S, plug in the DC power adapter. All LEDs will light ON and the phone
will start up.
For the DPH-150SE, if your switch supports PoE, then you don’t need use our DC power
adapter. Connect an Ethernet cable (RJ-45) to the Network port on the phone, connect
the other end to your PoE switch, and the DPH-150S will start up automatically.
CONNECTION
Connect an Ethernet cable (RJ-45) to the Network port on the phone. The other end of
the Ethernet cable connects the SIP server’s networks。

5

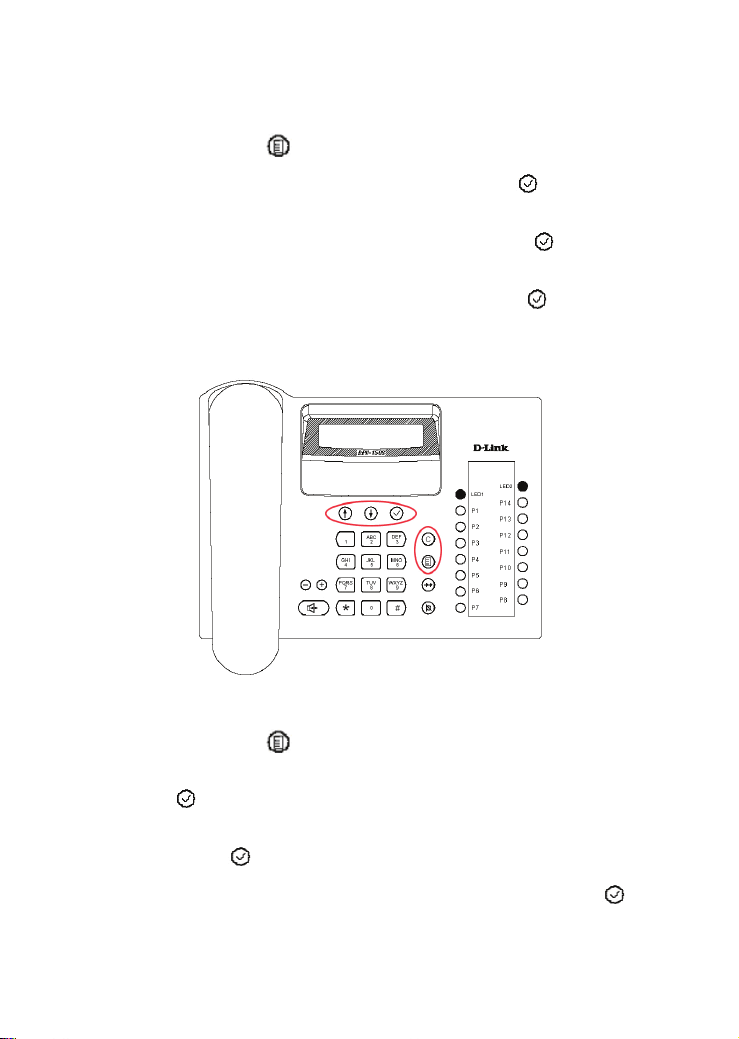

Configure a fixed IP address
1. Press the Menu button and the LCD screen will display the configuration menu.
2. Select “Network setting”Æ“Set IP mode” Æ“FIXED”. Press to save the
configuration.
3. Select “Network setting”Æ“IP Address”. Enter the IP Address. Press to save the
configuration.
4. Select “Network setting”Æ“IP Mask”. Enter the IP mask. Press to save the
configuration.
5. Reboot the phone manually and then the configuration will be effective.
6. For more detailed information, please refer to the user manual.
Configure SIP information
1. Press the Menu button and the LCD screen will display the configuration menu.
2. Select “SIP setting”Æ“Proxy setting”Æ“PxyServ”. Enter the Proxy Server IP Address.
Press to save the configuration.
3. Select “SIP setting”Æ“Proxy setting”Æ“RegServ”. Enter the Register Server IP
Address. Press to save the configuration.
4. Select “SIP setting”Æ“User Info”Æ“PhoneNum”. Enter the phone number. Press
to save the configuration.

6
5. The configuration will be effective at once. There is no need to reboot the phone.
6. For more detailed information, please refer to the user manual.

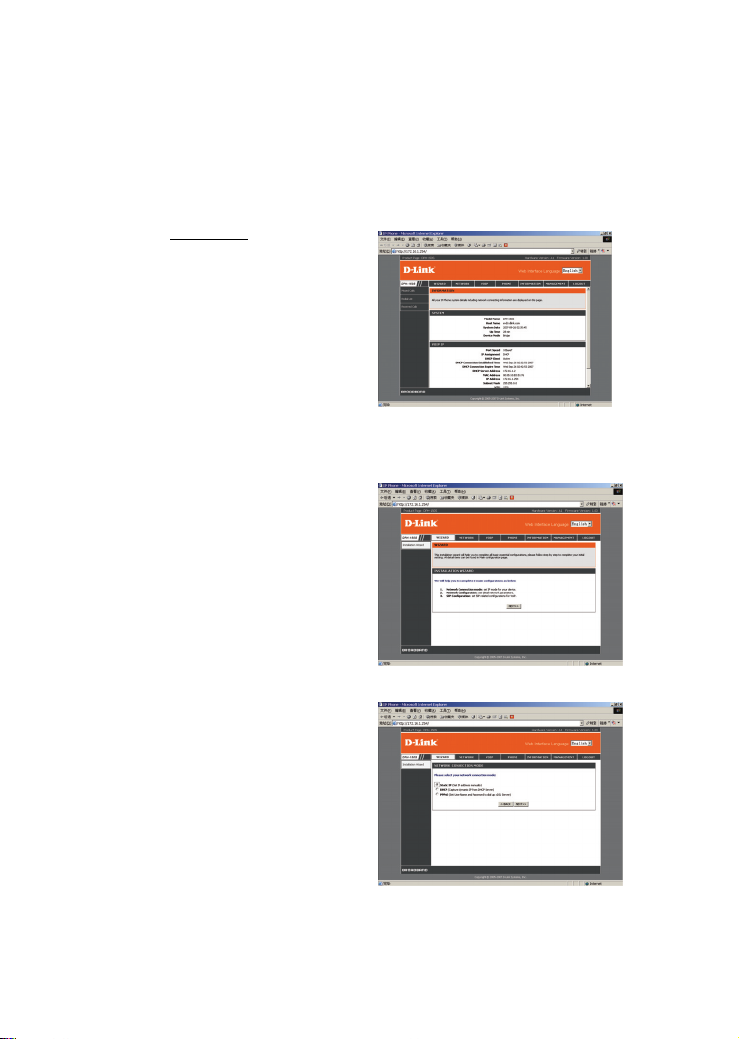

Logging in to the DPH-150S(SE) web management interface:
1. Enter DPH-150S’s (DPH-150SE’s) IP address in Internet Explorer’s address field.
Example: http://X.X.X.X
Using the Installation Wizard to configure a fixed IP address\
DHCP\PPPoE:
1. Select Installation Wizard in the menu.
2. Click the Next button.
3. Select Connect mode Static IP, DHCP, or
PPPoE.

7

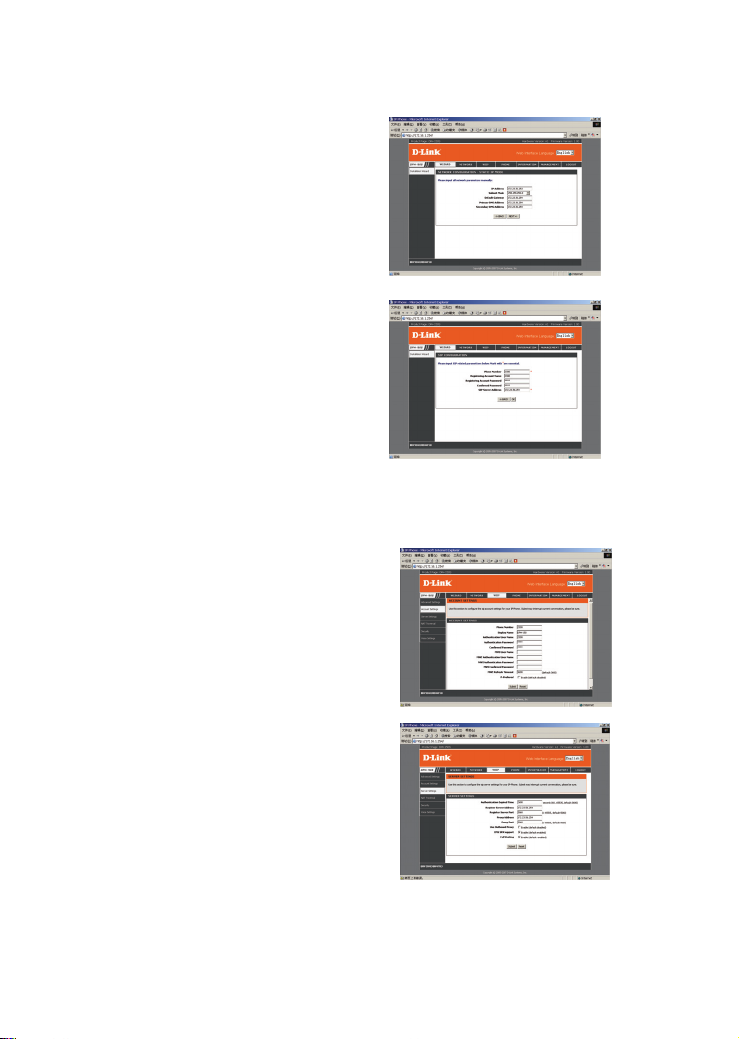

4. Configure the IP Address and Mask,
Gateway, DNS address, click NEXT.
7. Configure the SIP information and click
OK. Reboot the phone manually.
How to set up DPH-150S (SE) quickly:
1. Log in to DPH-150S(SE) web configuration.
2. Choose VOIPÆAccount Setting.
3. Modify Account Information, and click the
Submit button.
4. Choose VOIPÆServer Setting
5. Modify Server Information, and click the
Submit button.
6. If your SIPSET LCD displays DPH-150S(SE), that means it has registered
successfully. Now you can dial a number.

8
Ver.1.00
2007/10/12
F39033-V6000-V105
