D-Link DPH-120S User manual

C
Ch he ec ck k Y Yo ou ur r P Pa ac ck ka ag ge e C Co on nt te en nt ts s
These are the items included with your DPH-120S IP Phone purchase：
If any of the above items are missing, please contact your reseller.
©2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective
holders. Software and specifications subject to change without notice. DPH-120S.12232004
This product can be set up using
Keypad and Web browser, such as IE
(Internet Explorer).
D
DP PH H- -1 12 20 0S S
I
IP P P Ph ho on ne e
• DPH-120S VoIP Phone
• CD-ROM (containing Manual and
Installation program)
• Ethernet cable
• Power cord
Usingapowe
r
supplywitha
different voltage rating
will damage and void the
warranty for this product.

T
Th he e A Ap pp pe ea ar ra an nc ce e o of f P Pr ro od du uc ct t

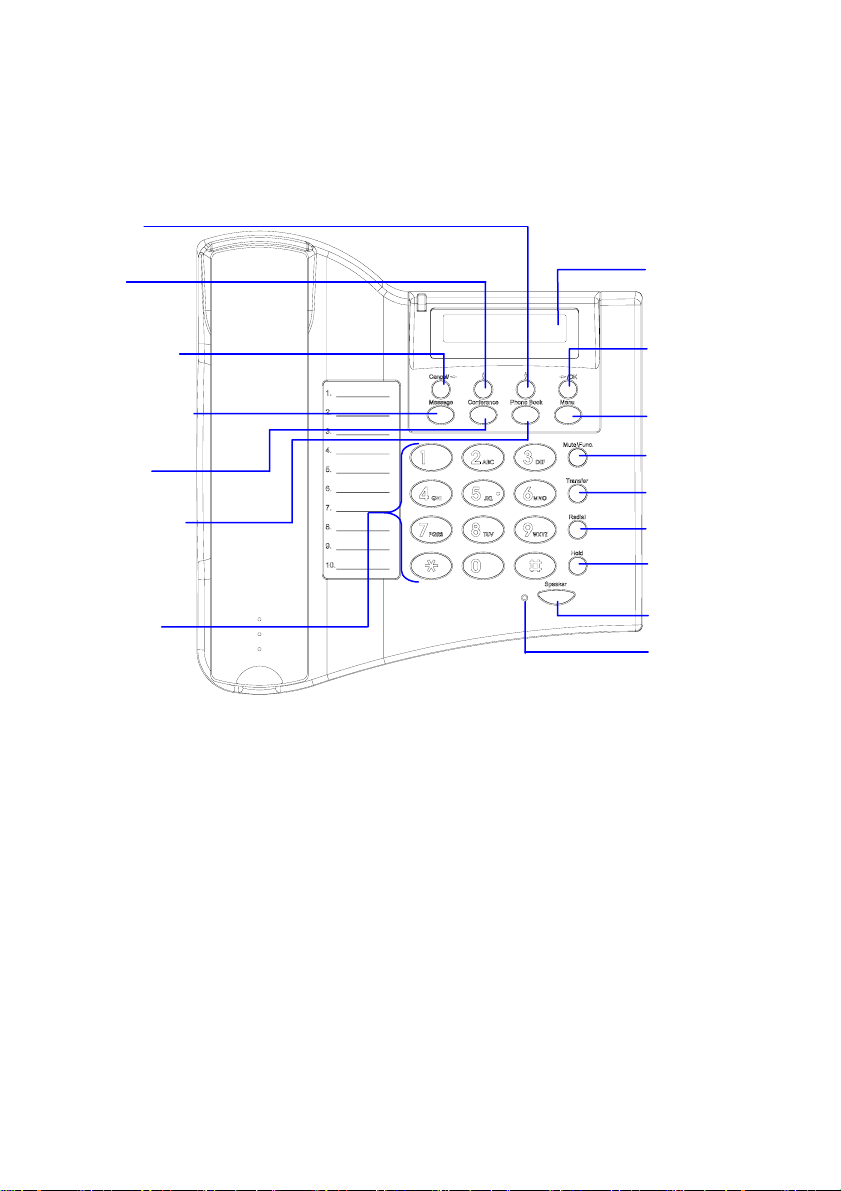

Front view and keypad function:
(6) Redial/Call History
(7) Hold
(5) Transfer
(4) Mute/Function
(16) Numeric
Keypad
(1) 2 x 16 Characters
LCD Display
(14) 3-Way
Conference
(13) Voice Message
(2) OK / Right
(12) Cancel / Left
(15) Phone Book
(
3
)
Menu
(8) Speaker Phone
(9) Speaker Phone
Indicator
(11) Up
(10) Down

Keys Functions
(1) LCD Display Displays menu, time, clock, name, phone number,
call status
(2) OK/Right Confirm setting change, exit menu, dial, save
changes
(3) Menu Access the phone menu
(4) Mute/Function Disable user’s microphone so that the person on the
other line can not hear anything, access the
language selection, access the time format
(5) Transfer Transfer the person you are currently having a
conversation to another line
(6) Redial/Call History Redial last dialed number, access redial menu
(7) Hold Place the person on the other line on hold, answer
call waiting
(8) Speaker Phone Enable user to use the phone without using the
handset
(9) Speaker Phone
Indicator
Indicates that phone is currently in speaker phone
mode
(10) Down Cycle through the phone menu, adjust volume
(11) Up Cycle through the phone menu, adjust volume
(12) Cancel/Left Deny changes, cancel phone calls, ignore phone
calls, backspace
(13) Voice Message Check voice message
(14) 3-Way Conference Enable 3-way conference
(15) Phonebook Access the phonebook
(16) Numeric Keypad Input IP/phone number/alphabet characters

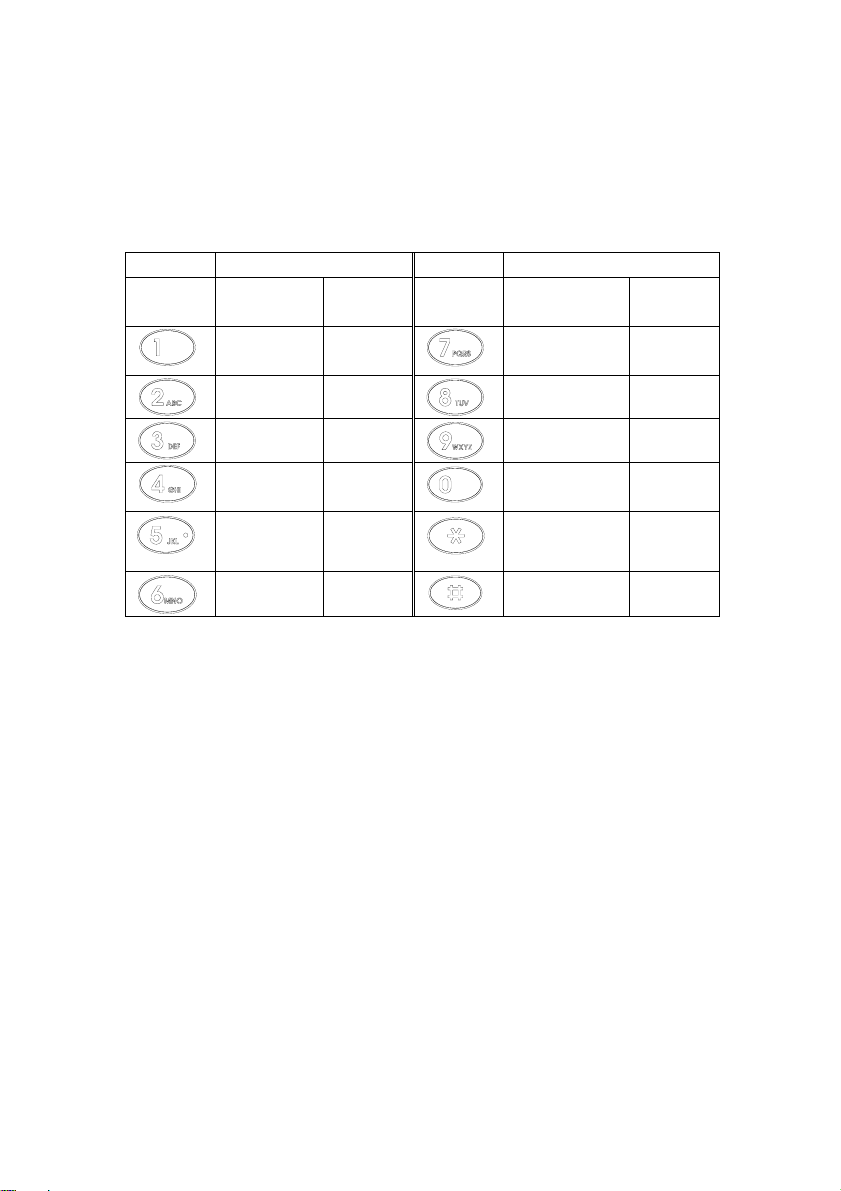

Text entry
You use alphanumeric characters to enter details in to the ADSL ID and ADSL
Password from phone as your ISP provide. This text entry is also available for phone
book setting.
Text Mode Text Mode
Key Normal
(ABC)
Numeric
(0-9)
Key Normal
(ABC)
Numeric
(0-9)
1 PQRSpqrs 7
ABCabc 2 TUVtuv 8
DEFdef 3 WXYZwxyz 9
GHIghi 4
@ . _ －* #
( ) % & + / $ , 0
JKLjkl 5 *
MNOmno 6 #

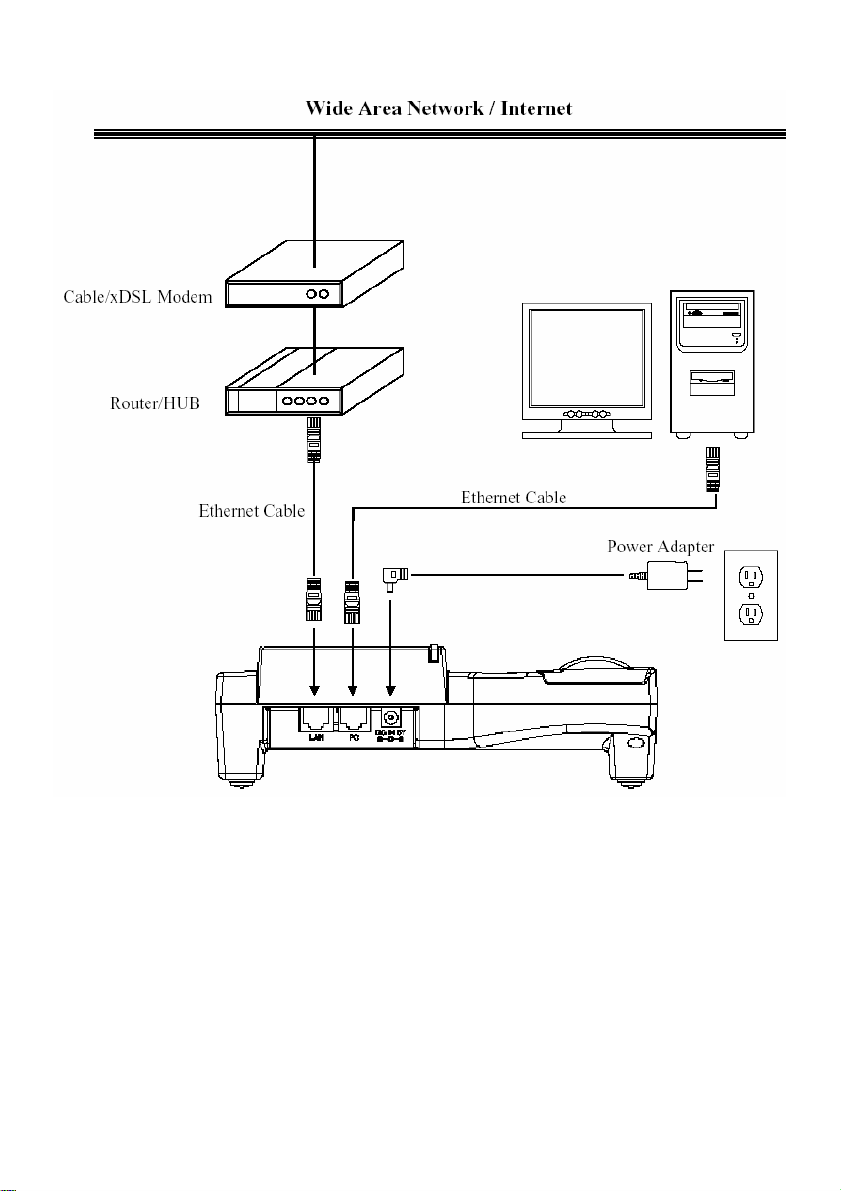

Connector:

I

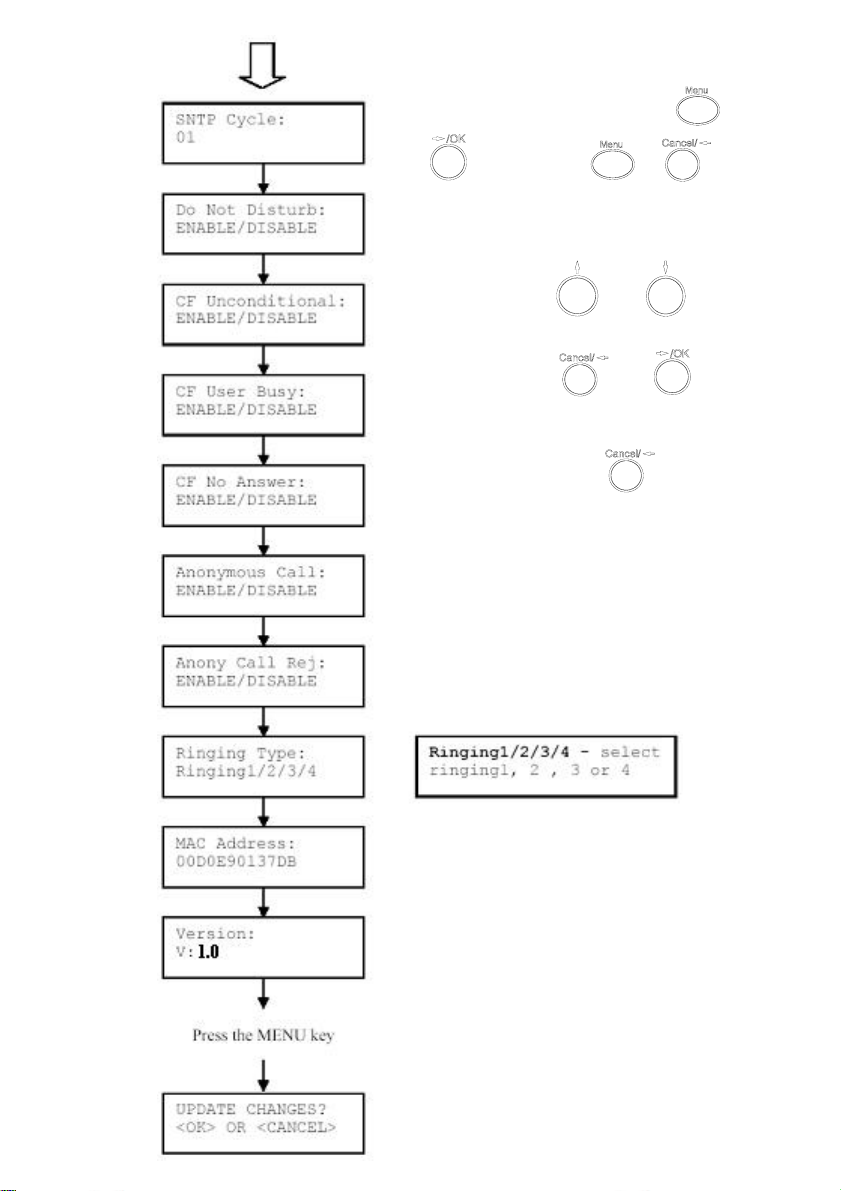

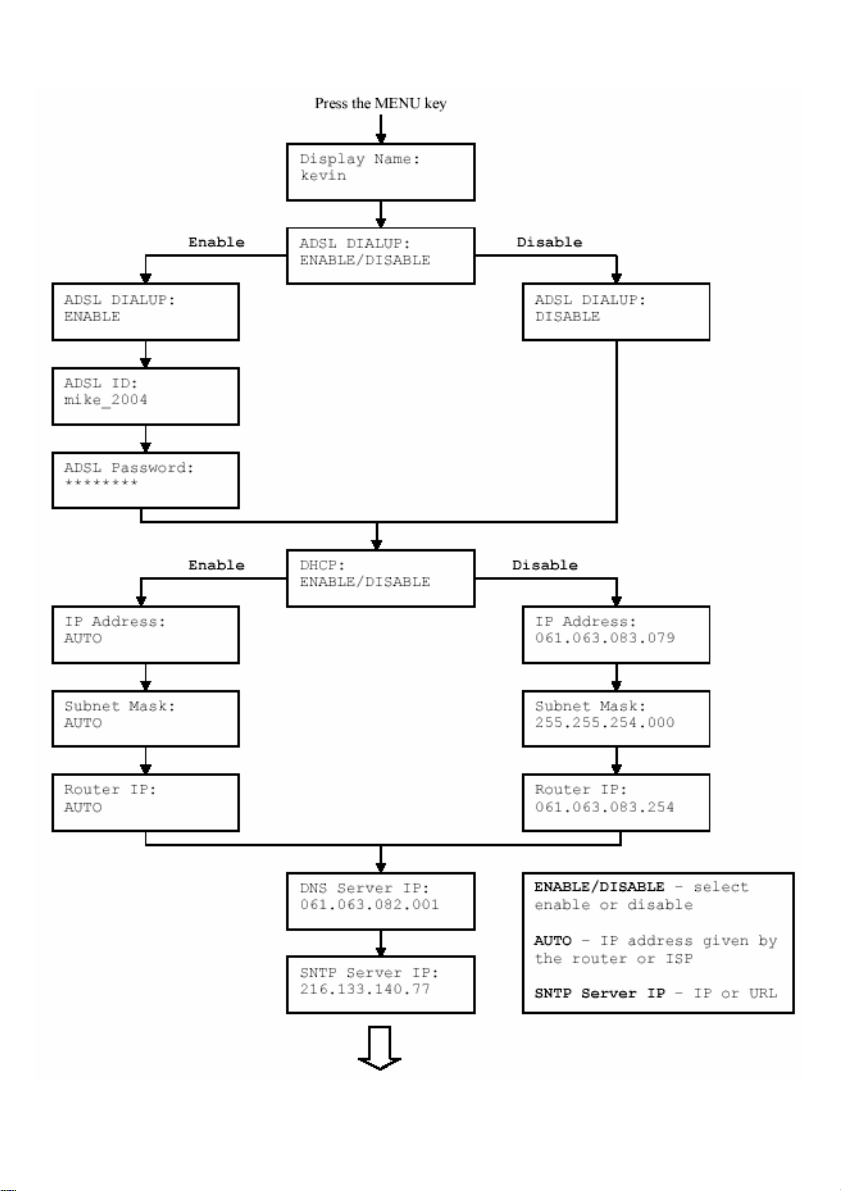

IP P P Ph ho on ne e S Se et tu up p M Me en nu u

NOTE 1:If you made any modifications, you may
quit setup at any time by pressing +
save and exit or + to quit
without saving. The phone will automatically exit
the menu screen if there are no inputs from the
user.
NOTE 2: Use up and down arrow
on the direction pad to switch among stages.
NOTE 3: Use left and right arrow
on the direction pad to select ENABLE or
DISABLE.
NOTE 4: Left arrow key can be used as
Backspace key.
