D-Link DPH-150SE User manual

Before You Begin
This product can be set up using the Keypad and a Web browser such as Internet
Explorer.
If you purchased this product to make a VoIP call, you must have either an
Ethernet-based Cable or a DSLmodem with an active connection to the Internet.
Check Your Package Contents
These are the items included with your DPH-150SE (H/W:B1) IP Phone
purchase: purchase:
DPH-150SE
VoIP Phone
This product can be set up using
any current Web browser, i.e.,
Internet Explorer 6.0 or Netscape
Navigator 7.0
• DPH-150SE VoIP Phone
• CD-ROM (containing Manual and Quick Installation Guide)
• Quick User Guide
• Power adaptor (9V DC)
• Ethernet Cable
©2008 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of
their respective holders. Software and specications subject to change without notice.

3
D-Link DPH-150SE Quick Install Guide
The The Appearance of Product

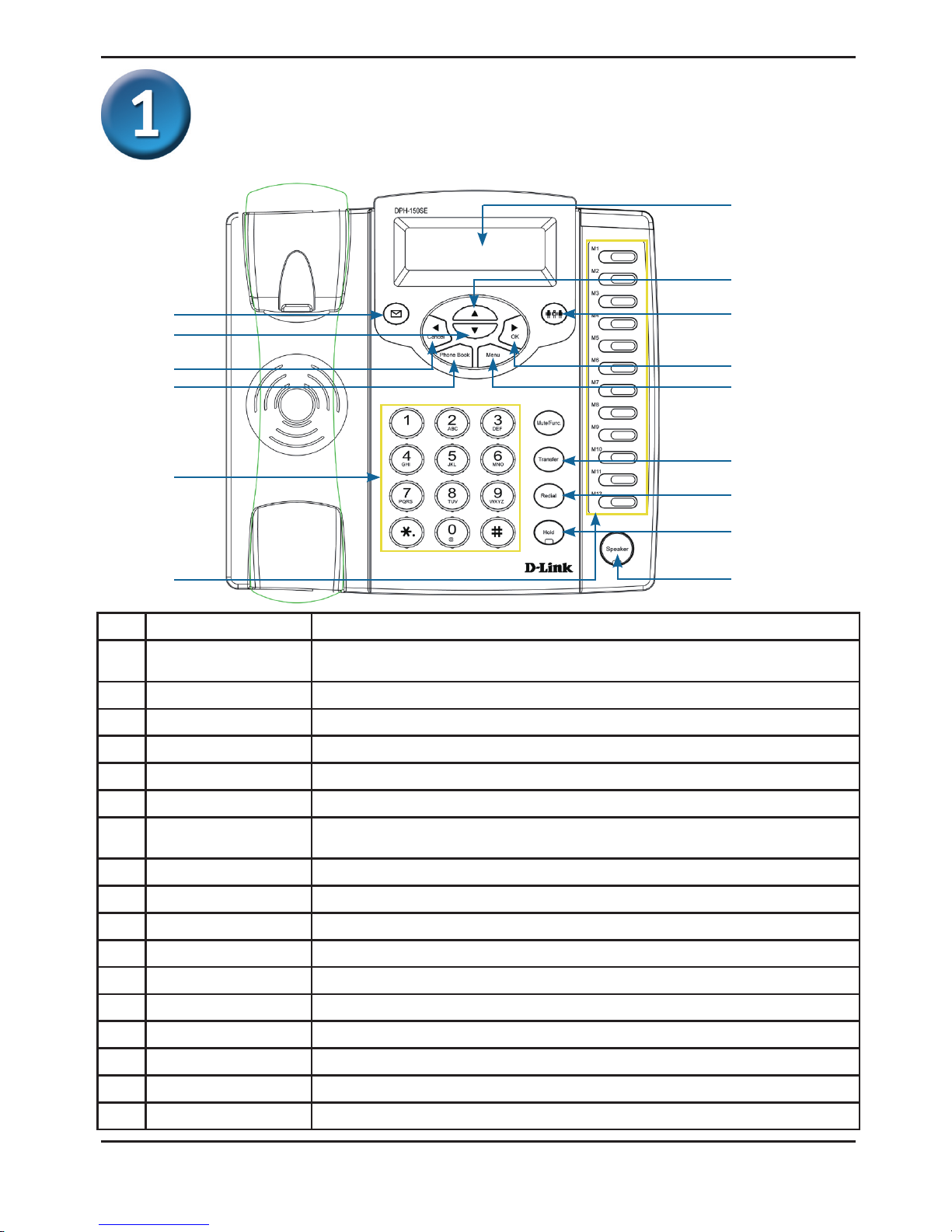

Front view and keypad function:
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
No. Key Function
(1) 2 x 16 Characters LCD
Display
Displays menu, time, clock, name; Phone number; Call status
(2) LED Indicator Indicates if the phone is currently in use or ringing
(3) Up Cycle through the phone menu; Adjust volume
(4) 3-Way Conference Enable 3-way conference
(5) OK / Right Conrm setting change; Dial; Save changes
(6) Menu Access the phone menu; Exit menu
(7) Mute/Function Disable user’s microphone so that the person on the other line can not hear any-
thing; Access the language selection; Access the time format
(8) Transfer Transfer the person you are currently conversing with to another line
(9) Redial/Call History Redial last dialed number; Access redial menu
(10) Hold Place the person on the other line on hold; Answer call waiting
(11) Speaker Phone Enable user to use the phone without using the handset
(12) Voice Message Check voice message
(13) Down Cycle through the phone menu; Adjust volume
(14) Cancel / Left Deny changes; Cancel phone calls; Ignore phone calls, backspace
(15) Phone Book Access the phonebook
(16) Numeric Keypad Input IP/phone number/alphabet character
(17) Local Multi-Line Switch to different lines
(12)
(13)
(14)
(15)
(16)
(17)

4
D-Link DPH-150SE Quick Install Guide

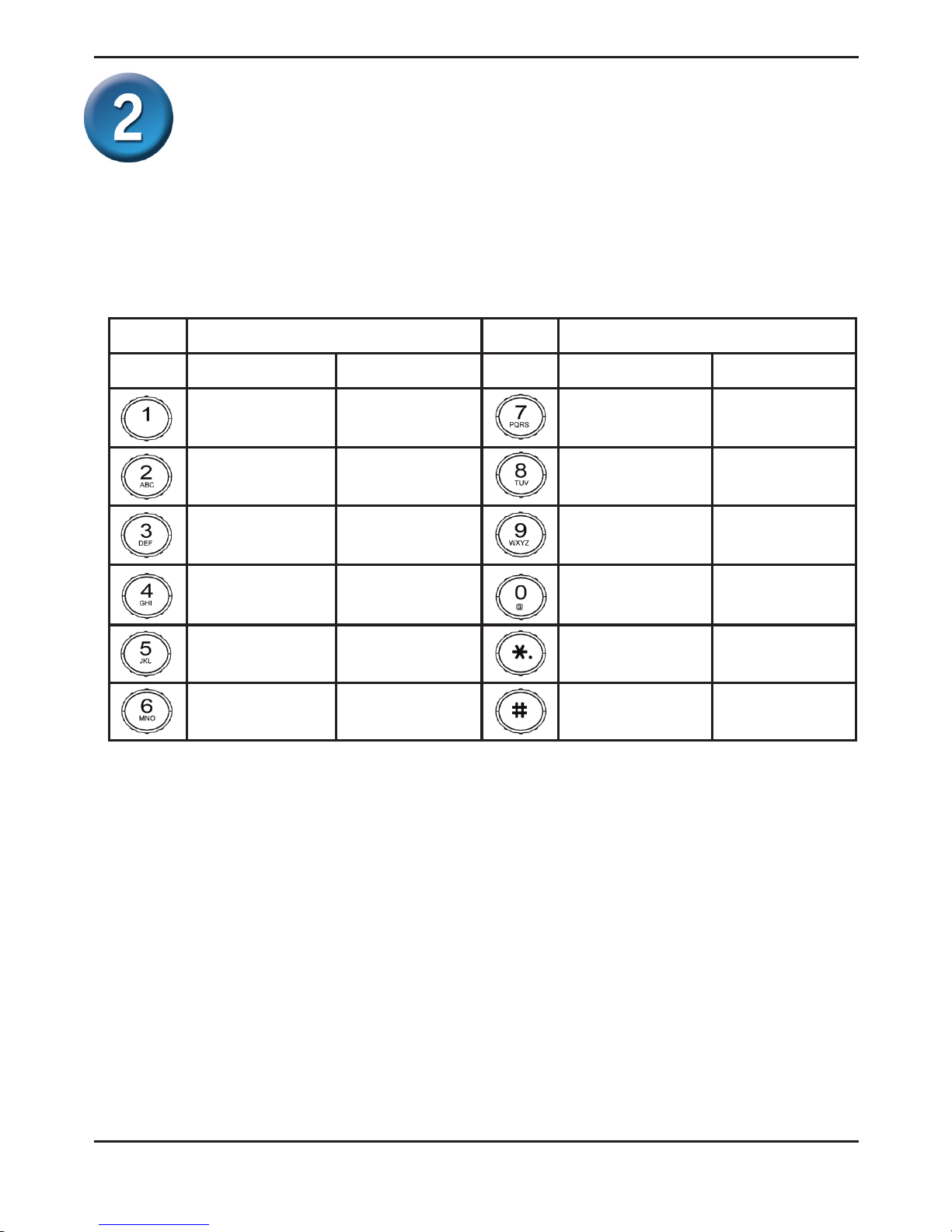

Text Mode Text Mode
Key Normal (ABC) Numeric (0-9) Key Normal (ABC) Numeric (0-9)
1 PQRSpqrs 7
ABCabc 2 TUVtuv 8
DEFdef 3 WXYZwxyz 9
GHIghi 4 ＠．＿－＊＃
（）％＆＋／＄
0
JKLjkl 5 *
MNOmno 6 #
Text entry
You may use alphanumeric characters when entering details (as provided by your
ISP) into the ADSL ID and ADSL Password sections from a phone. This text entry
is also available for phone book setting.

5
D-Link DPH-150SE Quick Install Guide

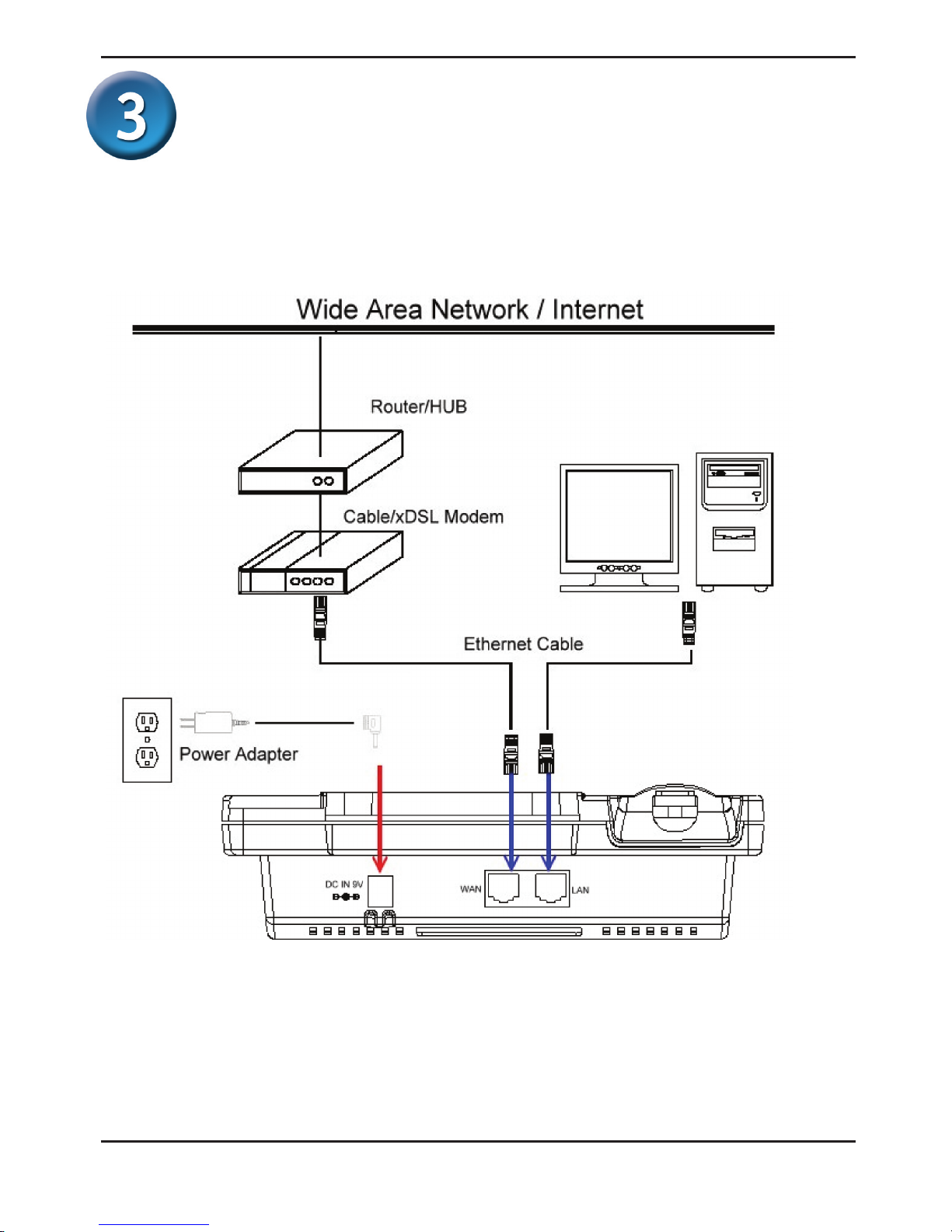

Connecting IP Phone
Connect the IP Phone as shown by the following diagram:

6
D-Link DPH-150SE Quick Install Guide

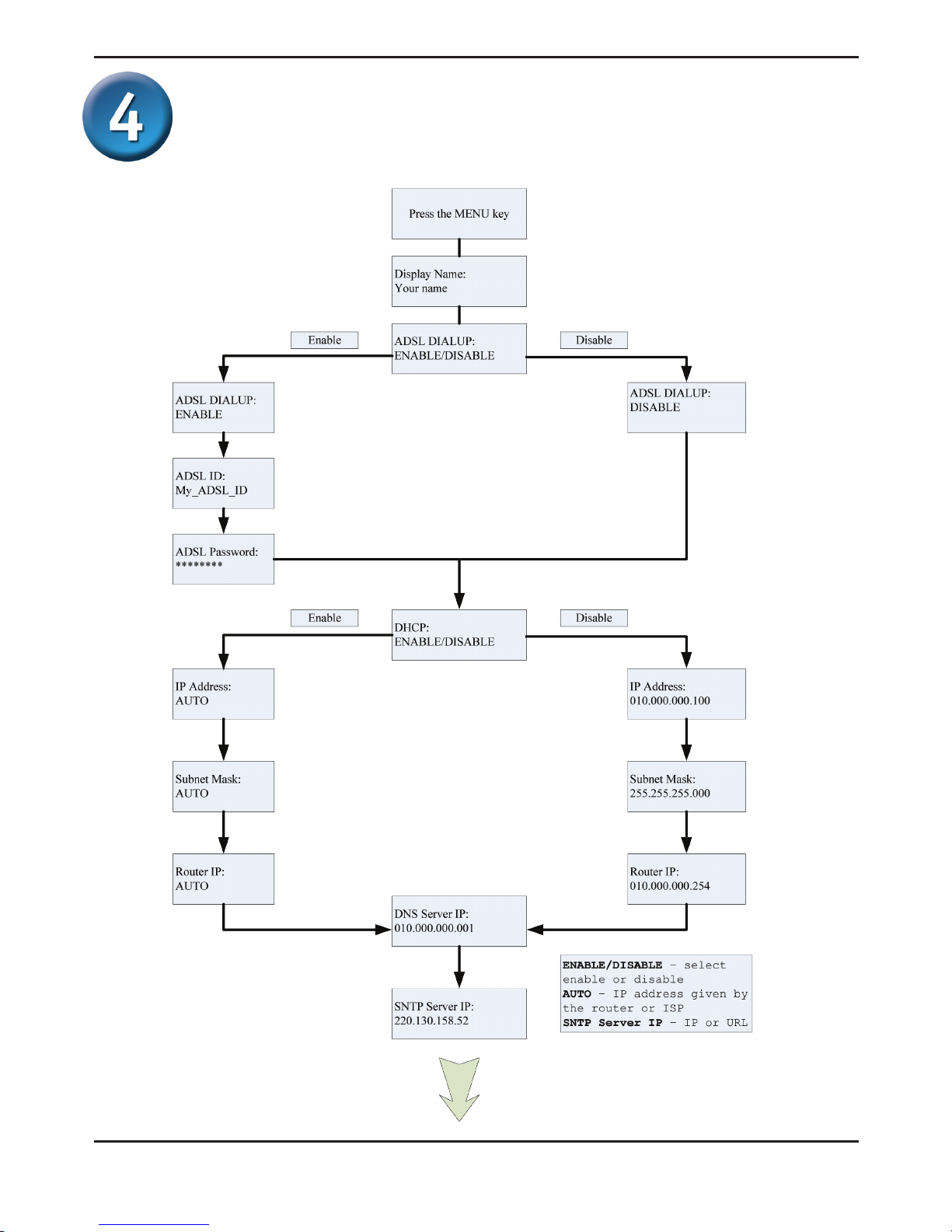

IP Phone Setup Menu

7
D-Link DPH-150SE Quick Install Guide

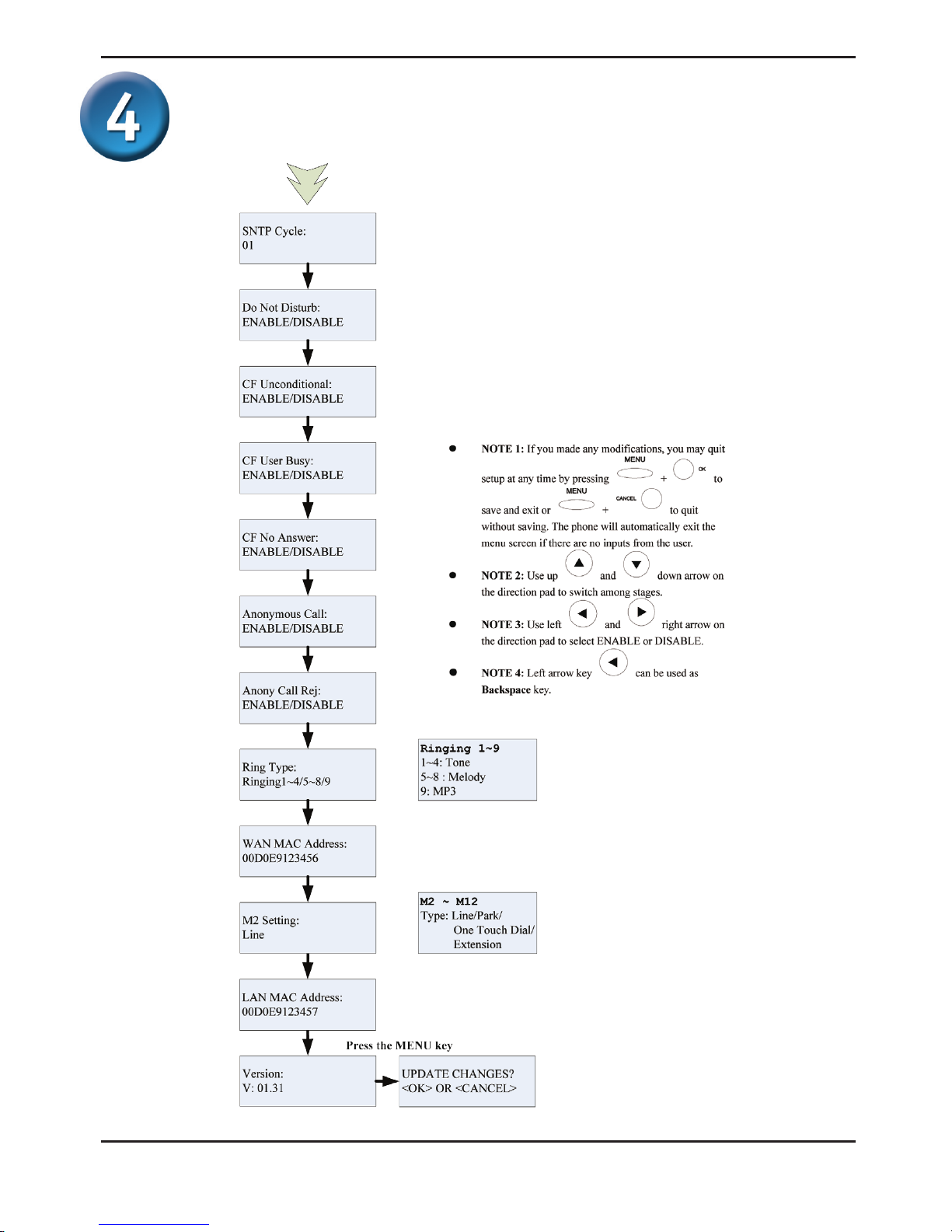

IP Phone Setup Menu

8
D-Link DPH-150SE Quick Install Guide
The conguration menu of DPH-150SE can be accessed using the convenient and
user-friendly interface of a web browser.

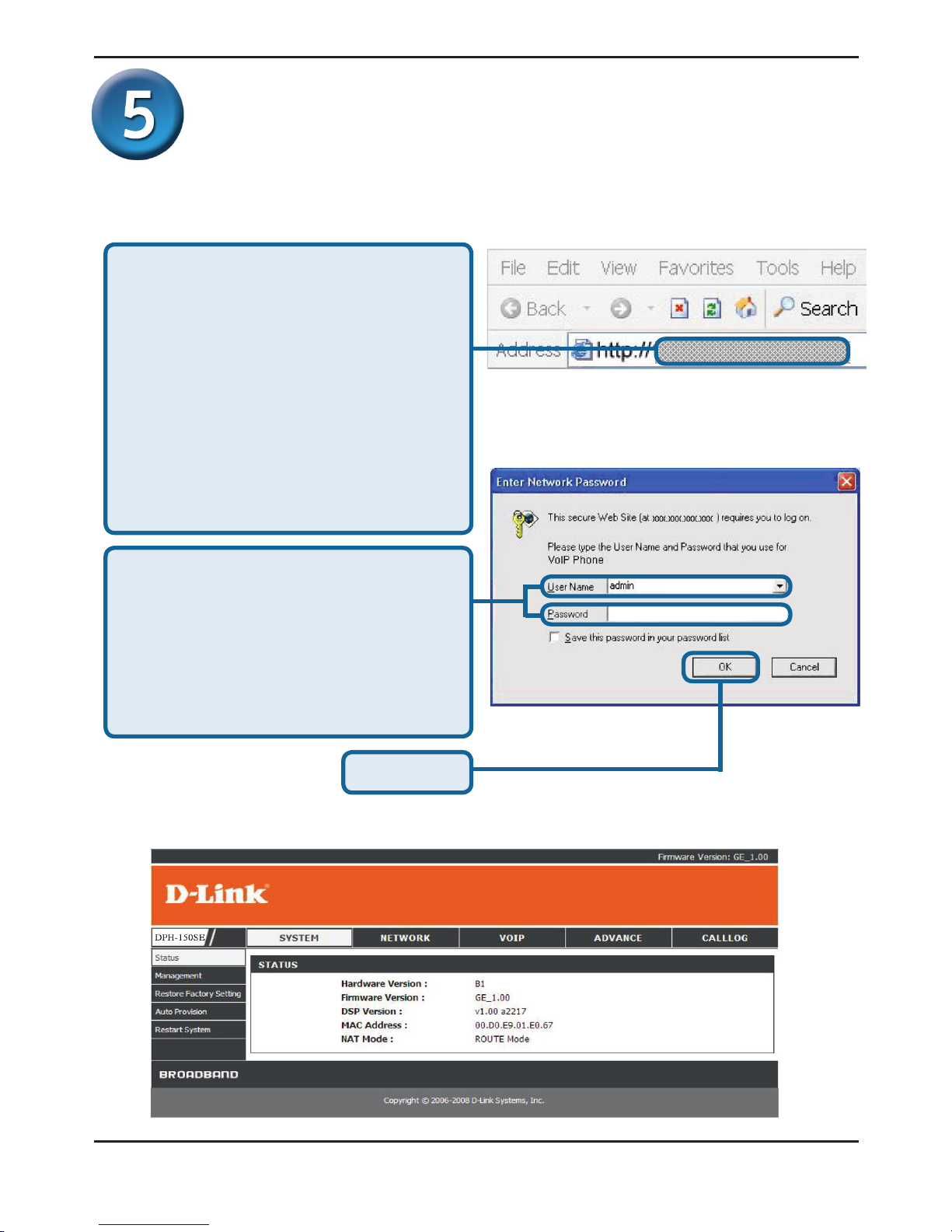

Web Login
Open your web browser (ie. Internet
Explorer, Netscape…)
Type in the IP Address of the phone
IP address is provided by your Internet
Service Provider (ISP). If your ISP
supports DHCP, you may obtain the
IP address from you phone. Press “
Func.+ 9 ” to get IP address.
You can also login from LAN port
through http://192.168.15.1
Please see the following screen after login.
Enter User Name and Password
(leave User Name and Password blank
if you are installing the phone for the
rst time);
The default User Name is “admin” and
the Password is left empty.
Click OK

9
D-Link DPH-150SE Quick Install Guide

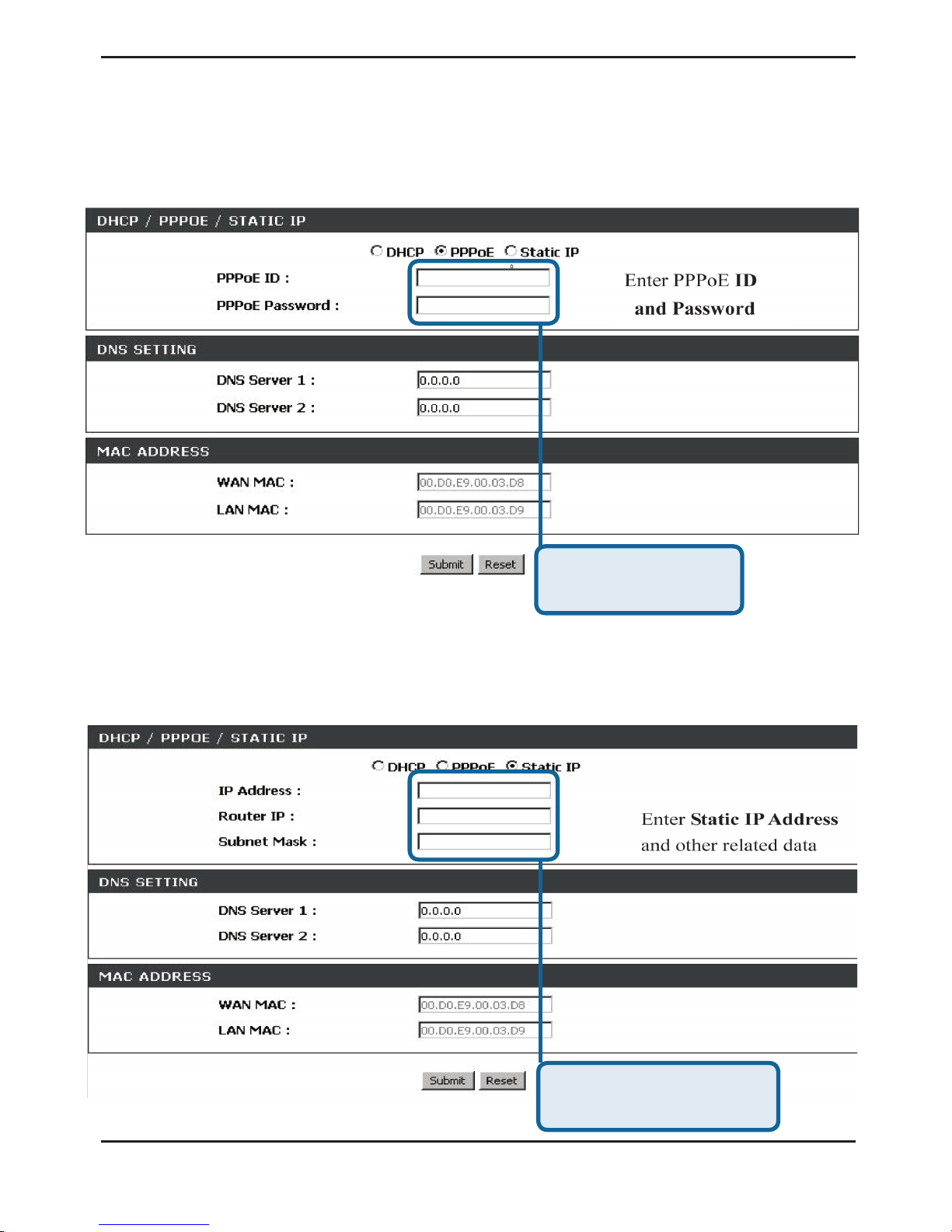

Networks - PPPoE Setting
Networks - Static Setting
Select Static as network connection type if all Wide Area Network IP is provided to you by
your ISP.
Select Networks from the main menu.
Select PPPoE as network connection type if your ISP uses PPPoE. (Most DSL users use
PPPoE.)
Enter PPPoE ID and
Password
Enter Static IP Address
and other related data

10
D-Link DPH-150SE Quick Install Guide

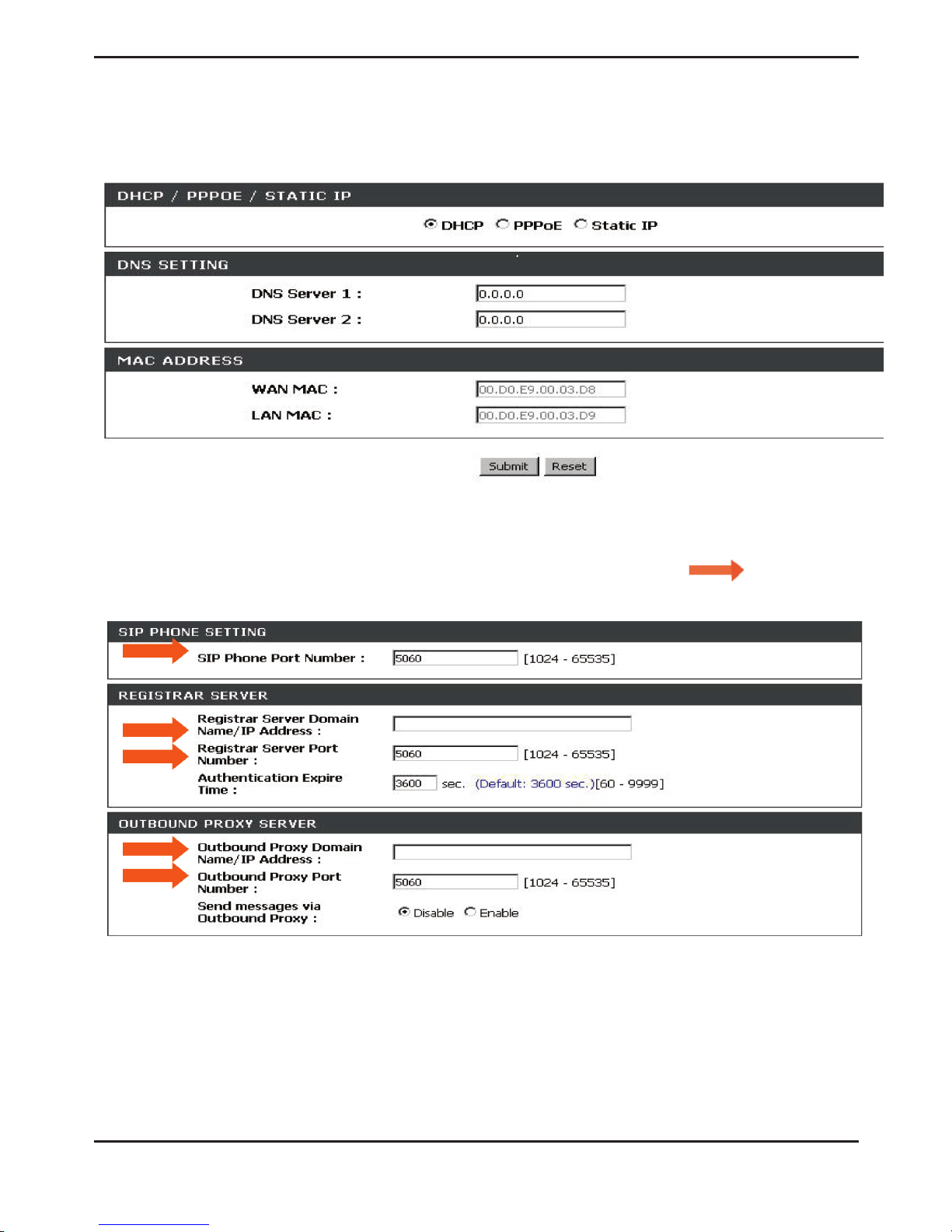

Networks - DHCP Setting
SIP Settings
Select SIP Settings from the main menu. The following elds with “ ” are required.
Then click Submit.
Select DHCP as network connection type that allows the network administrator to distribute
IP addresses when this IP Phone is plugged into a different place in the network.
SIP Phone Port Number Local SIP port number.
Registrar Server Domain
Name / IP Address SIP Register Server IP address.
Registrar Server Port
Number Port number of SIP Register Server.

11
D-Link DPH-150SE Quick Install Guide

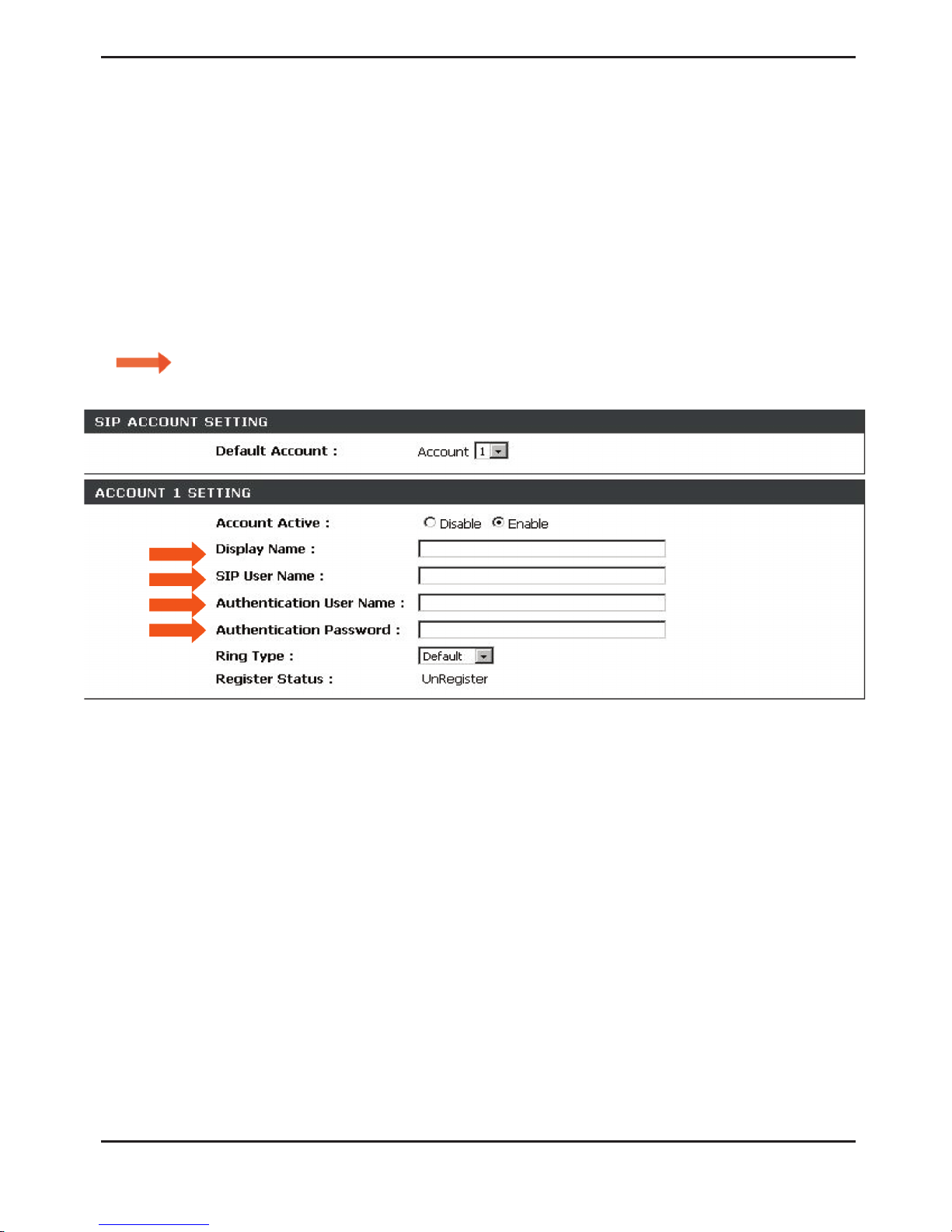

SIP Account Settings
Select SIP Account Settings from the VoIP of main menu. The following elds with
“ ” are required. Then click Submit.
Display Name Name displayed on the callee’s LCD.
SIP User Name The number in the URI displayed on the
LCD for the caller.
Authentication User Name User name for logging into the SIP server.
Authentication Password Password for logging into the SIP server.
Outbound Proxy Domain
Name / IP Address Outbound Proxy server IP address.
Outbound Proxy Port
Number Port number of Outbound Proxy Server.

12
D-Link DPH-150SE Quick Install Guide

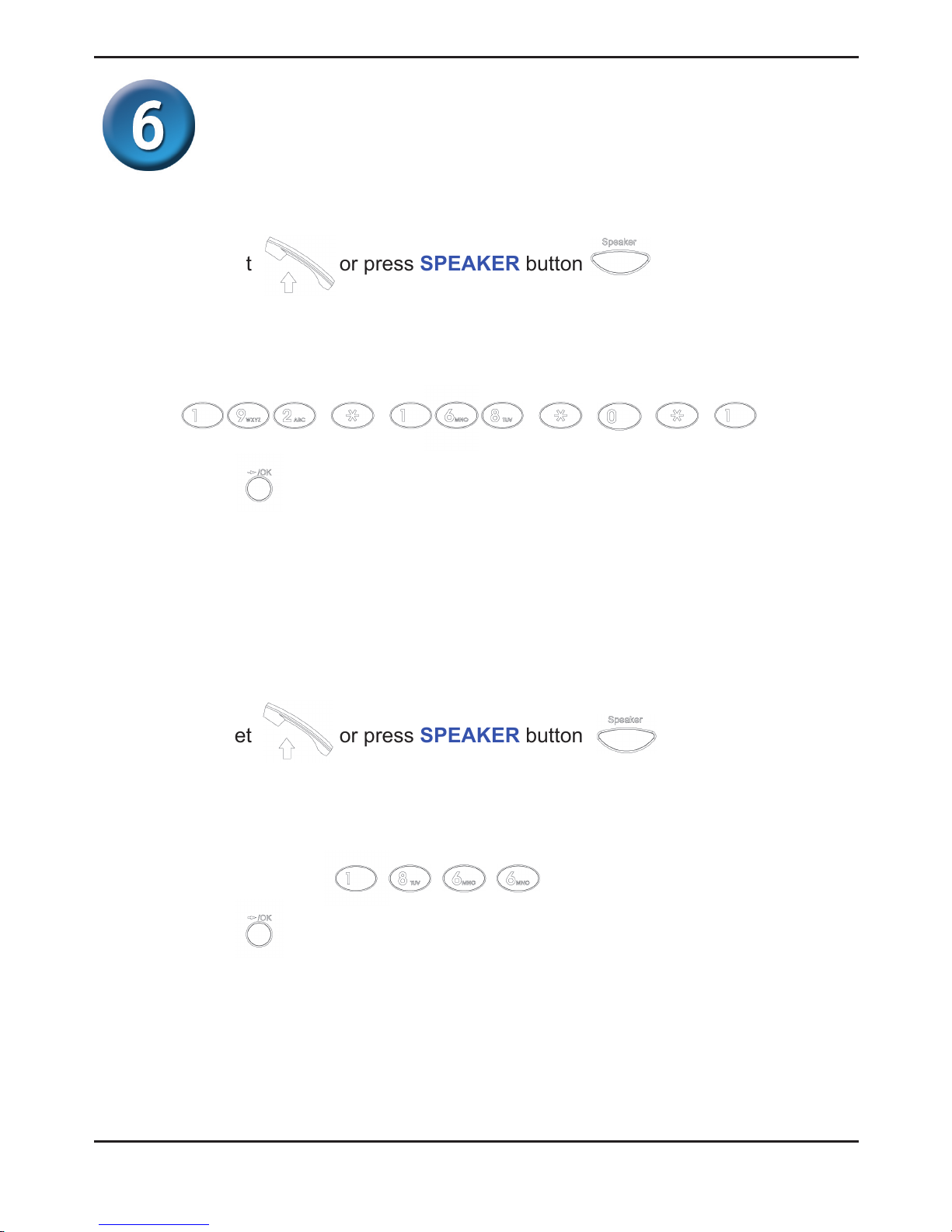

Make a phone call
IP Address:
1. Lift handset or press SPEAKER button
2. Dial IP address.
For example: dialing 192.168.0.1
3. Press OK or wait until the timer expires to dial.
SIP Number:
Note: You have to register with SIP server to use SIP number.
1. Lift handset or press SPEAKER button
2. Dial SIP number.
For example: dialing 1866
3. Press OK or wait until the timer expires.

13
