D-Link DPH-10U Instruction manual

DPH-10U VoIP USB Phone
Quick User Guide
Version 1.0

2
TABLE OF CONTENTS
1. INTRODUCTION........................................................................................3
2. PACKAGE CONTENTS .............................................................................3
3. REQUIREMENTS.......................................................................................4
4. DPH-10U INSTALLATION .........................................................................4
5. ENABLING DPH-10U ..............................................................................10
6. DPH-10U KEYPAD BUTTON................................................................... 11
7. DPH-10U STATES ...................................................................................12
7.1 DPH-10U LEDS....................................................................................12
7.2 TESTING DPH-10U.................................................................................12
8. UTILITY CONFIGURATION .....................................................................15
8.1 OVERVIEW..............................................................................................15
8.2 SYSTEM .................................................................................................15
8.3 MAPPING MODE......................................................................................16
8.4 SKYPE MODE .........................................................................................16
8.5 EXIT.......................................................................................................16
9. RECODE ..................................................................................................17
10. DISABLING DPH-10U ...........................................................................18
11. UNINSTALL............................................................................................18

3
1. Introduction
This is a sleek powerful tool and easy to carry USB phone. It has USB port to
connect into PC, and it allows you communicate with others through internet.
It includes other features to enhance internet voice chat futures, because it
has same ability as USB phone such as portable and easy to use, and you
can use it for PC to PC or PC to Phone; along with crystal clear voice
communication with minimize noise. It has phone’s look but it is best to use for
family, office or SOHO

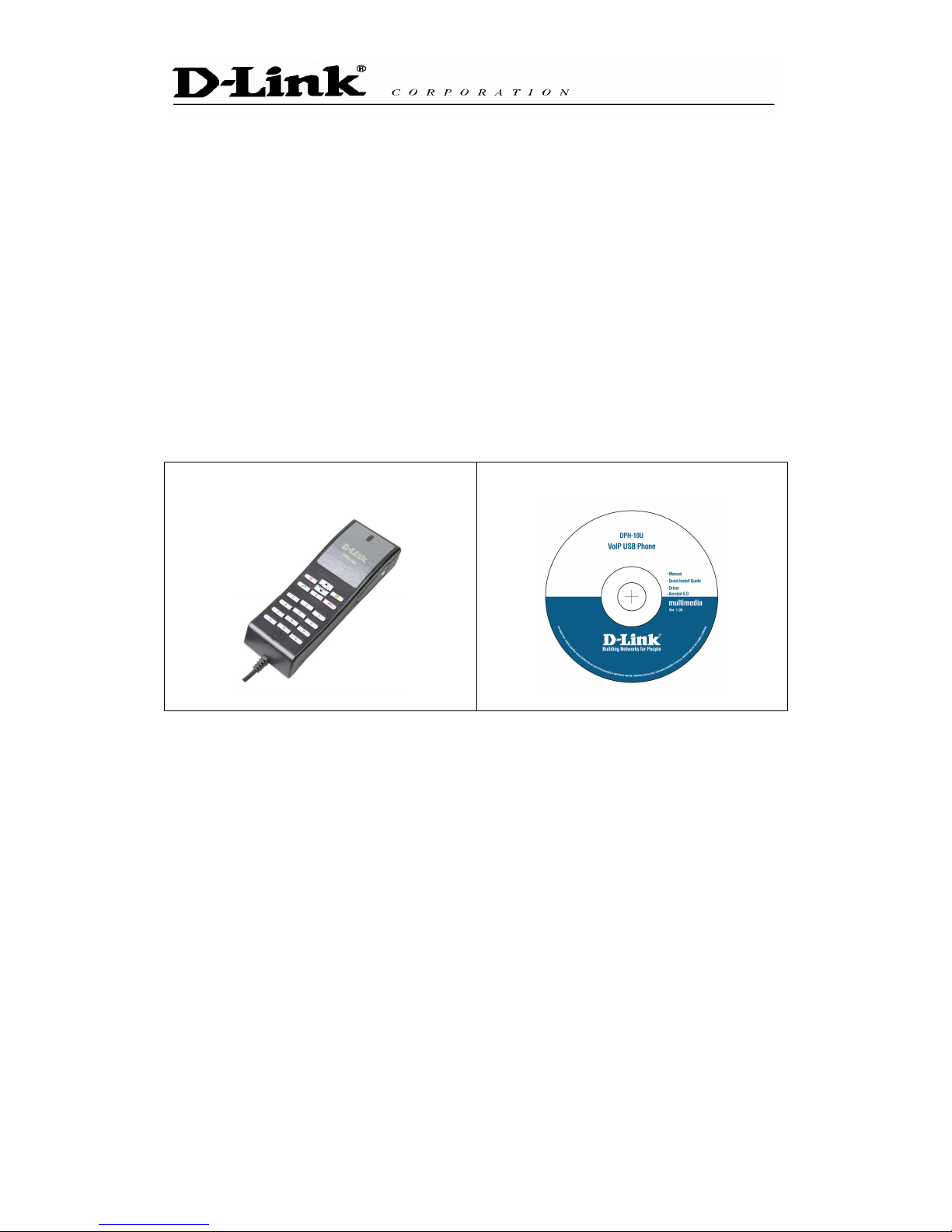

2. Package Contents
The DPH-10U package includes the following (note that your particular
hardware and cables may look slightly different than shown below).
1. DPH-10U 2. USB Cable

4
3. Requirements
In order to install the DPH-10U VoIP USB Phone you will need the following:
1. DPH-10U VoIP USB Phone
2. PC with the following minimum specifications:
oPentium 400MHz or equivalent
oWindows 2000 or XP
oAvailable USB port (1.0, 1.1 or 2.0)
oSkype™ version 1.1.079 or higher (www.skype.com) must be installed
o128MB RAM
o10MB available hard disk space
oCD-ROM drive to install DPH-10U software from the supplied
CD-ROM
4. DPH-10U Installation
The following instructions will guide you to through the process of installing
the DPH-10U VoIP USB Phone.
The installation procedure is to:
•Install Skype™ (step 1 below)
•Plug in the DPH-10U WHEN INSTRUCTED TO DO SO (step 2 below)
•Start the DPH-10U software installation (step 3 below)
•Following the installation is OK (step 3 below)
•Use your DPH-10U to make Skype™ calls
The detailed instructions follow:
STEP 1: If Skype™ is not already installed on your computer, visit
http://www.skype.com and follow the instructions there to install Skype™. Verify
that Skype™ is working before installing the DPH-10U.

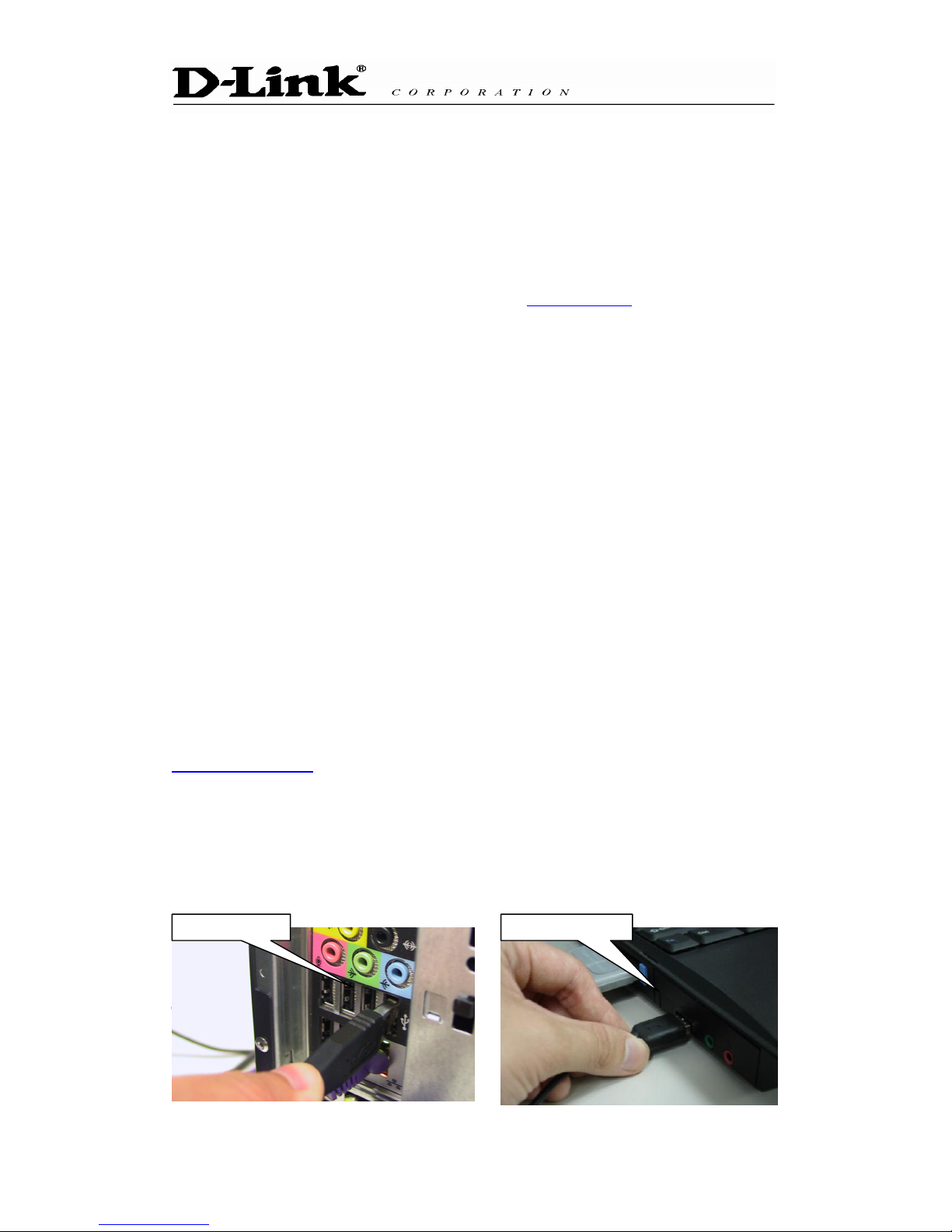

STEP 2: Connect the DPH-10U USB port as shown below.
You will see the following popup. Press Yes to proceed or No to cancel.
Connect to PC Connect to NB

5

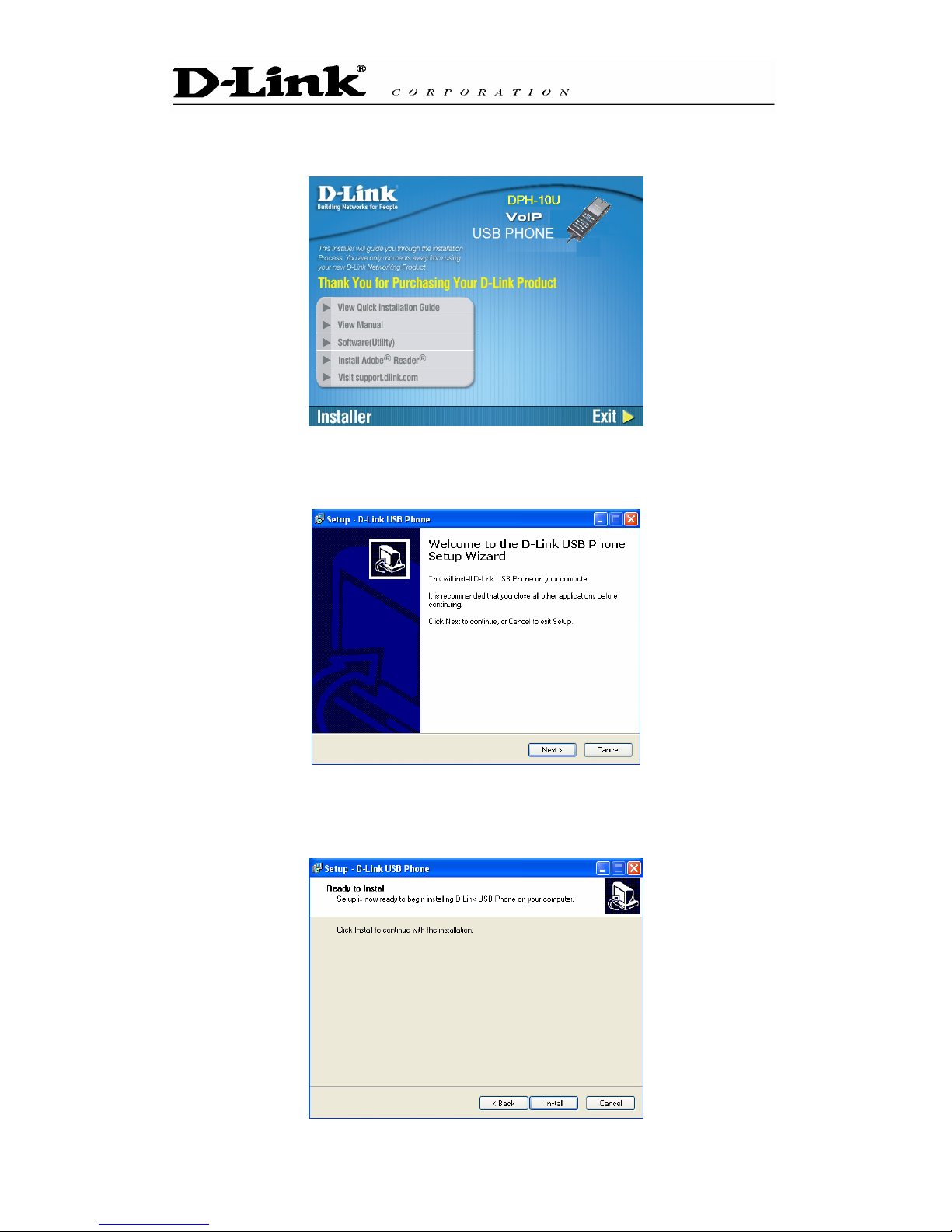

STEP 3: Insert the supplied CD-ROM into your PC CD-ROM drive. The
installation should start automatically. Please press “Software(Utility)”.
STEP 4: You will see the following popup. Press Next to proceed or cancel
to stop the install processes.
STEP 5: You press the Install and stare to install the DPH-10U Utility.

6

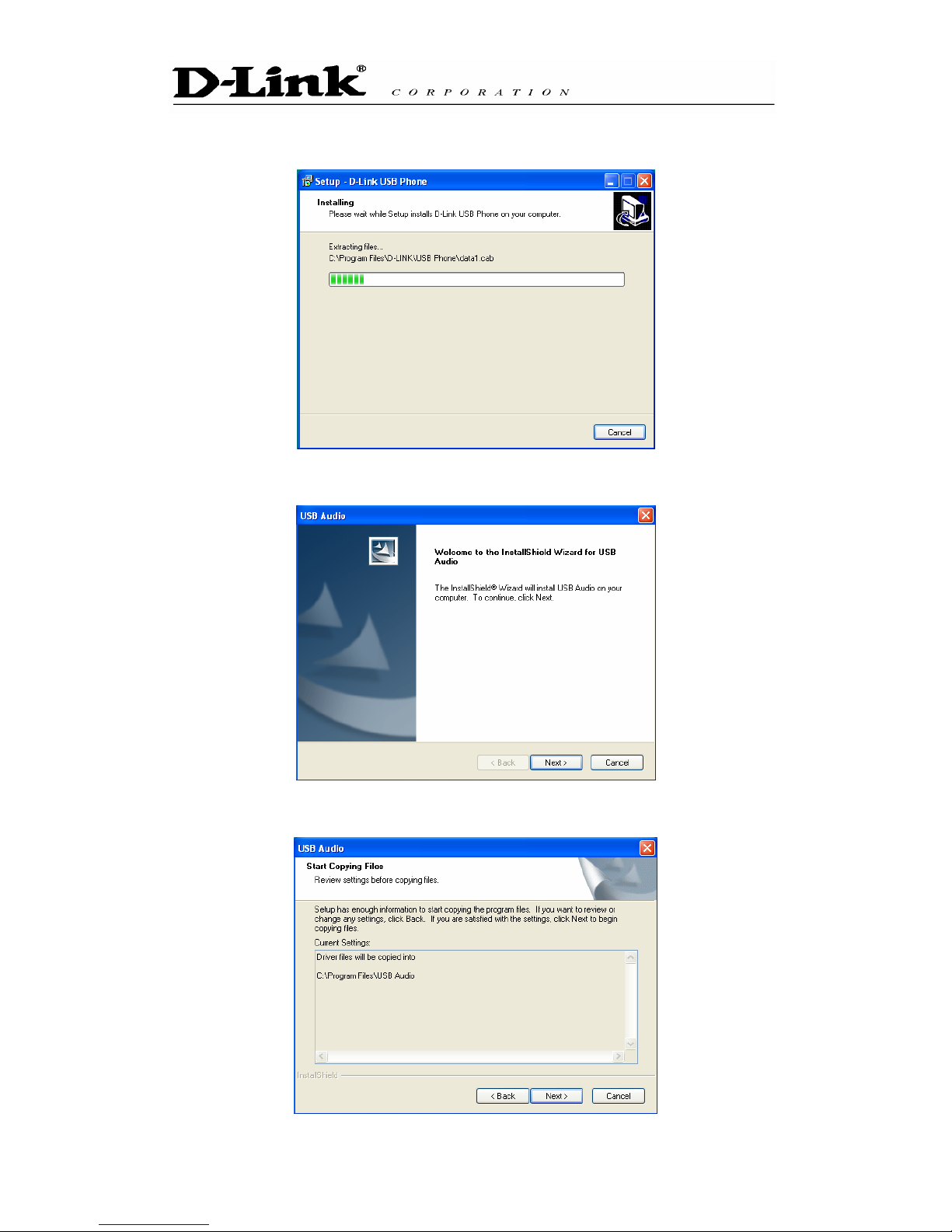

STEP 6: You will see the following progress bar below indicating that the
installation is proceeding.
STEP 7: The program installing audio driver. Press Next.
STEP 8: You will see the driver install path. Press Next

7

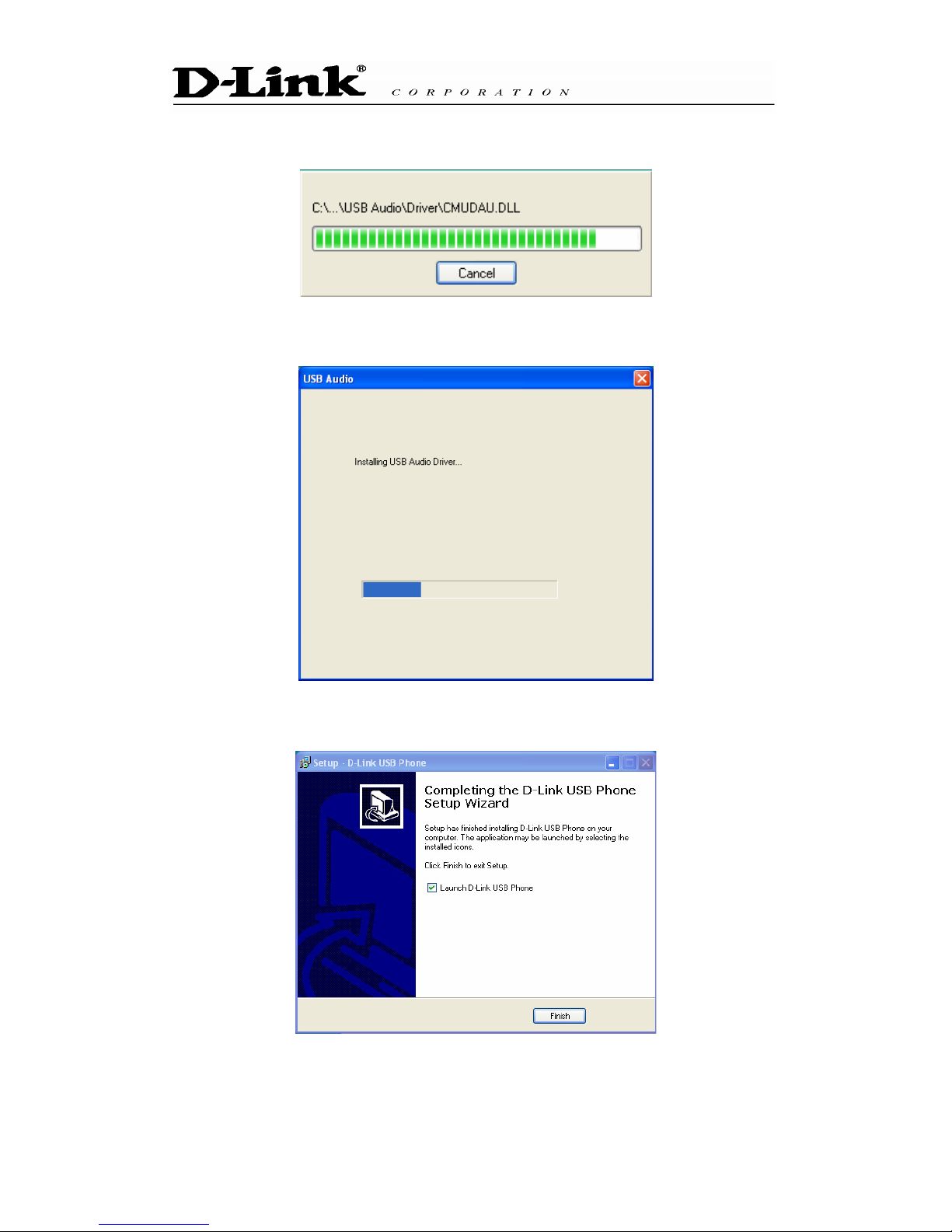

STEP 9: You will see the following progress bar below indicating that the
installation is proceeding
STEP 9: You will see the following progress bar below indicating that the
installation is proceeding
STEP 10: You will see the following popup. Press Finish to close the
installation

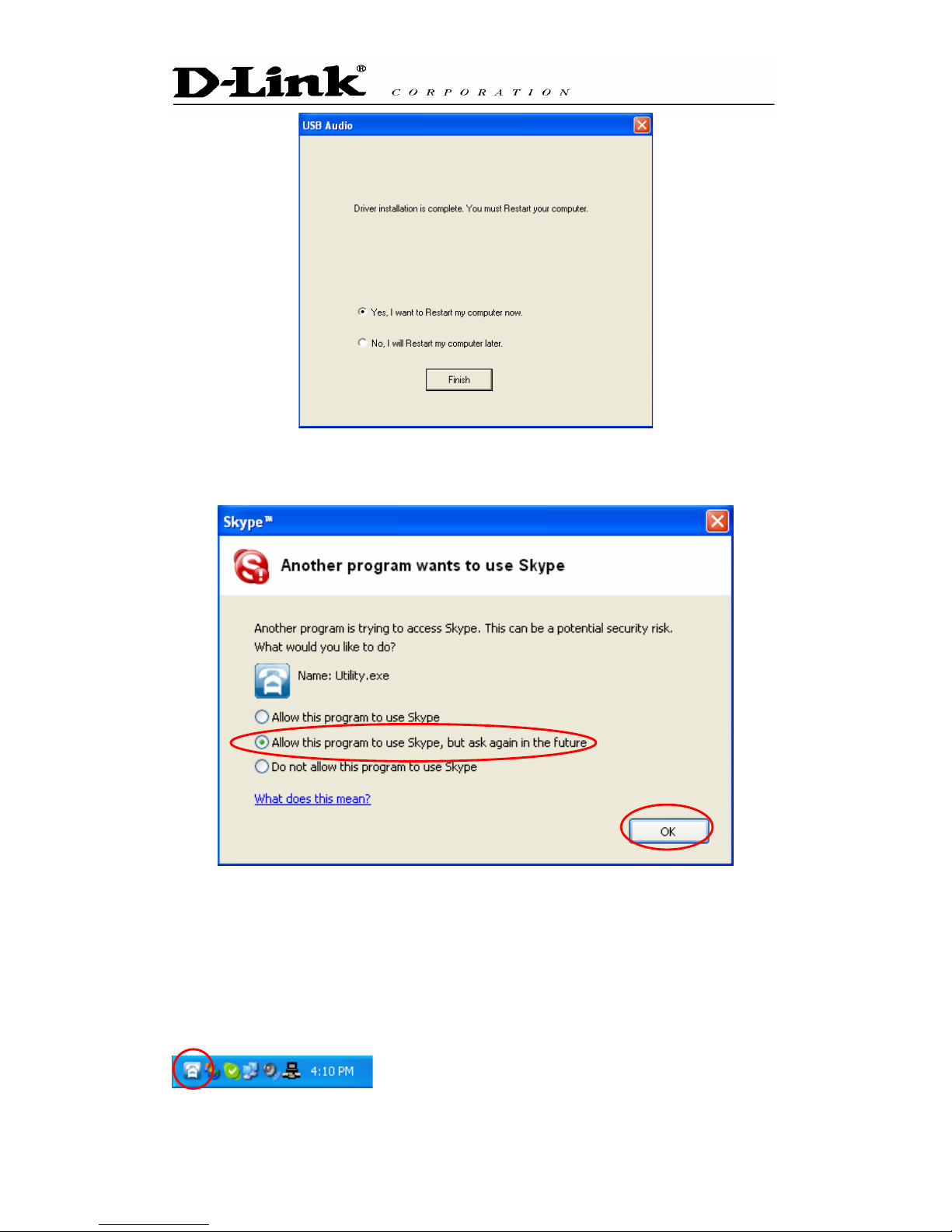

STEP 11: You will see the following popup. Press Finish to close the
program and restart computer

8
STEP 12: When you will see the following screen, select the option, “allow
this program to use Skype” and press the OK button.
STEP 13: When the installation completes you should see the following
message appear near your system tray and a new telephone icon (circled in
red below) in your system tray as shown below.
The USB Phone icon indicates that the DPH-10U software is installed and
running and that you can start making calls with DPH-10U

9
You will see a new program group named “USB Phone”, accessed from the
Start button -> All Programs as shown below.
You final configuration should resemble the following.
DPH-10U connect PC
DPH-10U connect NB

10
5. Enabling DPH-10U
In order to use DPH-10U and it’s features, (1) the DPH-10U VoIP USB Phone
must be plugged into the PC, (2) the DPH-10U utility must be running (see
green telephone in the Windows System Tray).

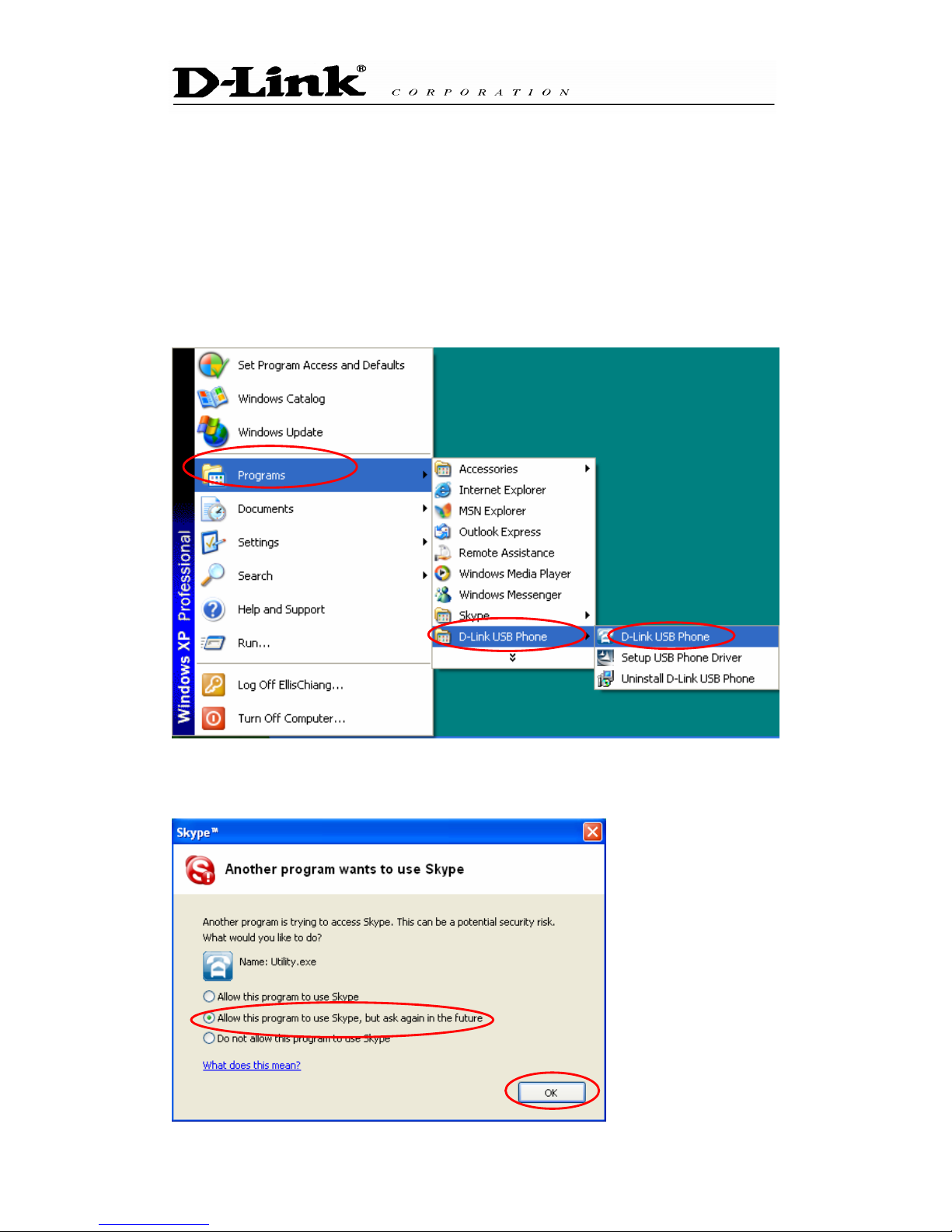

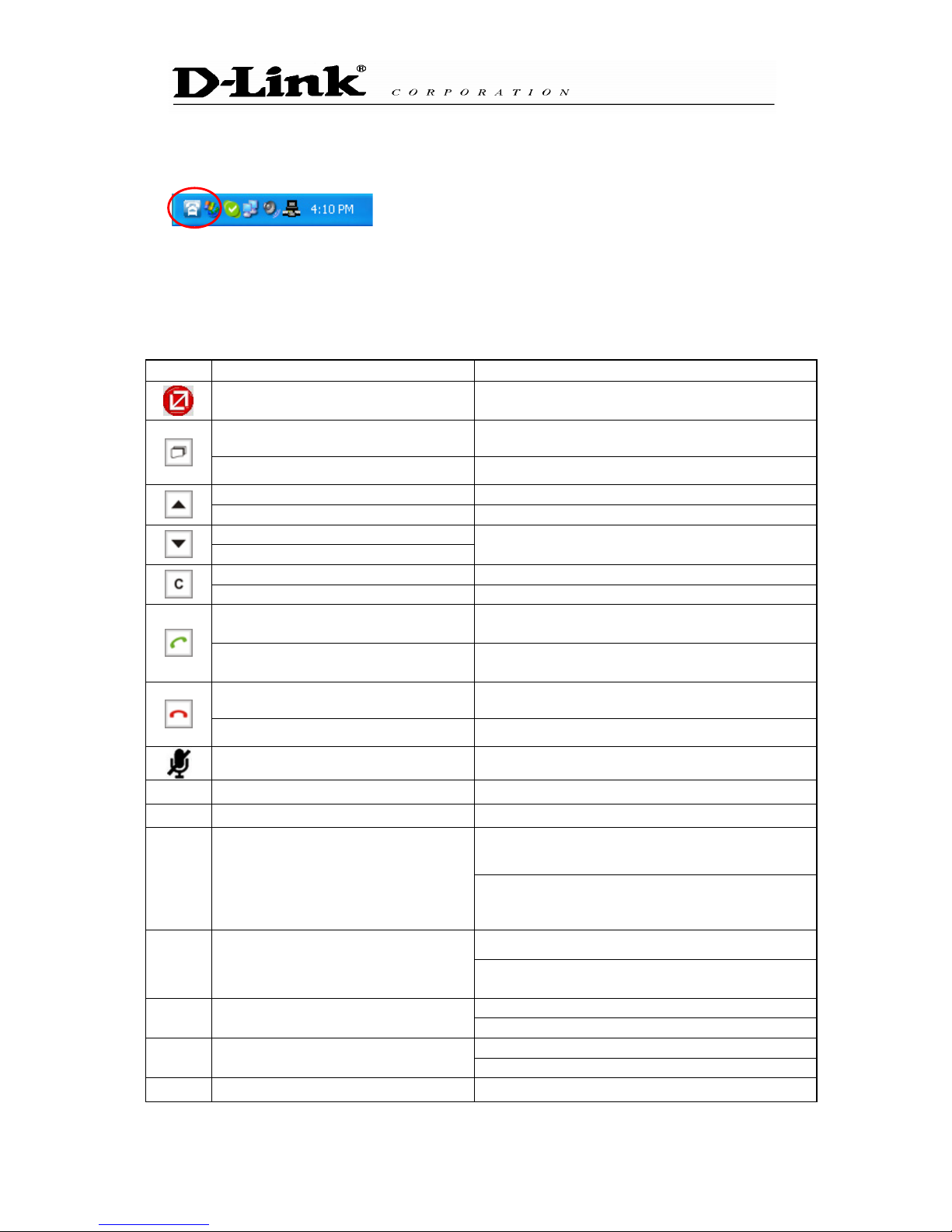

If the DPH-10U utility is not running (i.e. no blue telephone in the system tray),
make sure the DPH-10U VoIP USB Phone is connected to the PC and start
the DPH-10U as shown below (Start -> Programs -> USB Phone -> USB
Phone):
You may see the following screen, select the option, “allow this program to
use Skype” and press the OK button.
