IP-Phone Comes True VoIP on the Desktop
Key Features

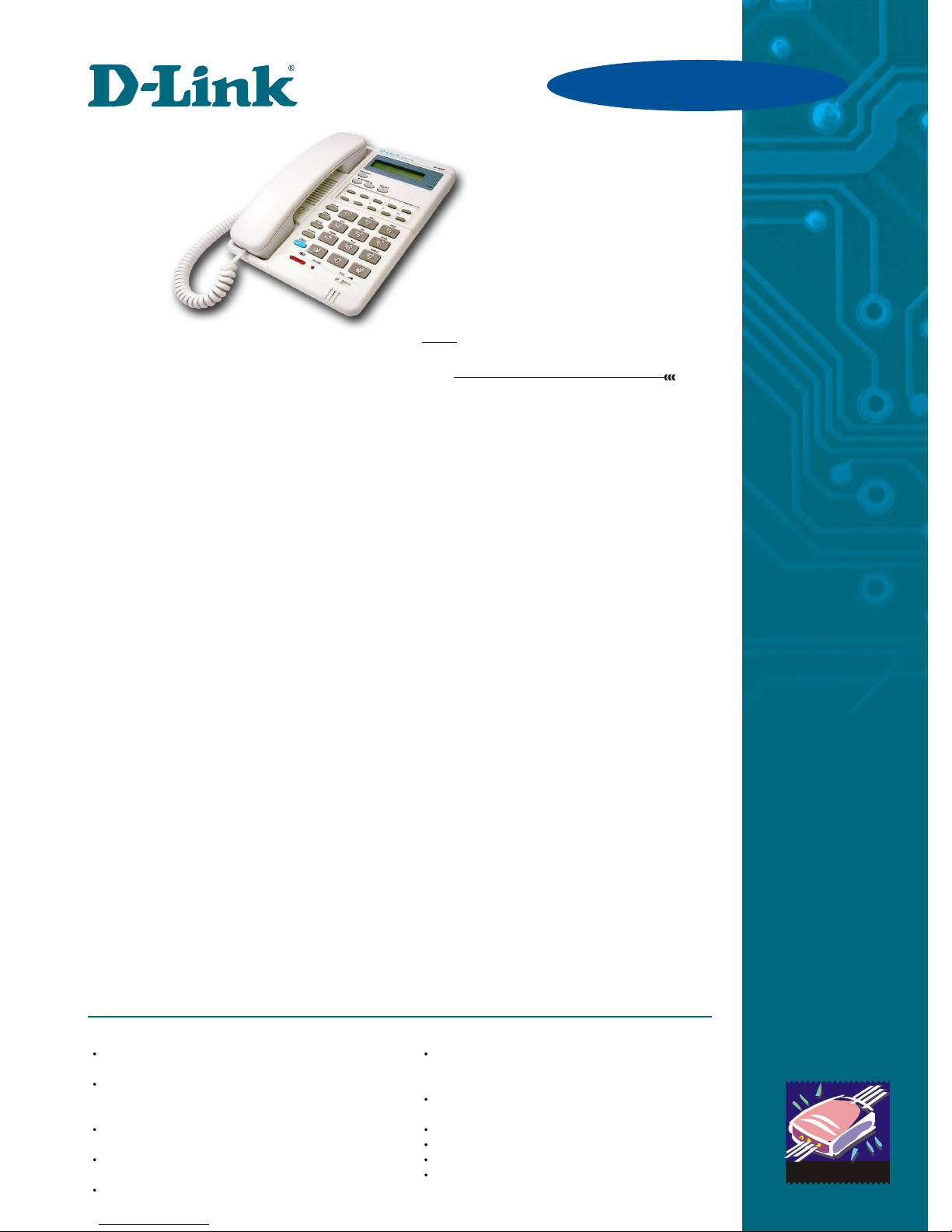

DPH-100H/M
The D-Link IP-Phone is a fully featured Ethernet business phone that allows both business
and residential customers to benefit from IP Telephony services. It reduces costs by receiving
local and long distance voice services and data services over a single network connection.
Data/Voice Traffic over a Single
IP Network
Business Applications Support
The IP-Phone is a fully-featured digital
business phone that plugs directly into a
customer's LAN and converts voice to IP
right on the desktop, enabling voice and
data traffic over a single wiring
infrastructure on the spot and over a single
packet (IP) connection back to the service
provider's network.
The IP-Phone utilizes 10/100BASE-TX for
Ethernet connectivity and supports
telephone network features such as Call
Waiting. In addition, it provides access to a
host of features for business applications,
including hold, transfer, memory dialing
and multipleline conferencing.
The IP-Phone is easy to install and
maintain. It is configured and upgraded
remotely, using a central administrative
server that features an intuitive browser
interface.
By routing calls over the Internet or any IP
network, the IP-Phone can reduce or
eliminate long distance inter-office phone
charges.
Easy Installation and Maintenance
Reduce Long Distance Phone
Charges
A speaker phone with automatic echo
cancellation
Silence suppression and comfort noise
generation that make the user feel natural
when connected
Adaptive jitter buffer for a smooth voice
Reception
Lost packet recovery ability for improved
voice quality
Support QoS function to guarantee voice quality
IP address assignment using DHCP (Dynamic
Host Configuration Protocol) or static
configuration
Fully-configurable and management via
standard web browsers
DTMF tone detection / generation
Adjustable speaker / ringer volume control
Adjustable ring tone
Easy to use set-up and programming interface
IP-Phone
D-Link IP-Phone features 2 10/100Mbps Ethernet ports, supporting
voice telephony over data network. It reduces costs by
obtaining all services over a single network connection.

Rev. 01 (Nov.1999)
Printed in Taiwan
7DCM20000010
RECYCLABLE
Technical Specifications
IP-Phone
General
Physical & Environmental
Protocol
- VoIP ProtocolsCompliant
H.323 v2/ MGCP/ SIP
- Internet Protocols
TCP/IP,UDP,ARP, TFTP, ICMP, DHCP, HTTP
- Audio Codec Compliant
G.711, G.723.1,G.729A (option)
- Echo Cancellation
G.165, G.168 Compliant
Standard
- IEEE 802.3 10BASE-TEthernet Compliant
- IEEE 802.3u 100BASE-TXFast Ethernet Compliant
Key Pad
0~9, , and programmable featurebuttons
LAN Interface
Two 10/100BASE-TXRJ-45 ports
LCD Interface
2 16 LCD display
Power Supply
AC-to-DC power adapter(provided)
DC Input 12VDC/1A
Dimension
162(W) x 223(D)x 82(H) mm
Operating Temperature
0 - 50
Storage Temperature
-10 - 70
Humidity
5% - 95%non-condensing
Emission(EMI)
FCC class B
VCCI class B
BSMI class B
CE class B
C-Tick classB
Safety
UL/CUL
TUV/GS
Specifications subject to change
without prior notice.
