TECHNICAL MANUAL

FWB - CT/CF

2 pipes systems 4 pipes systems Centrifugal fan Ducted

FEATURES

» Multi speed motor

» Heat exchanger up to 4 rows

» Water connections

» ABS centrifugal fans

Medium static pressure ducted fan coil units 2-8 kW

Duct units

UT66002760-03 08/21

OPERATING LIMITS

Thermal carrier uid: water

Water temperature: from 5°C ÷ +95°C

Air temperature: from -20°C ÷ 43°C

Supply voltage: 230 V +/- 10 %

Maximum water pressure during operation: 16 bar

Limit of room air relative humidity: RH<85% not

condensing

TABLE OF CONTENTS

1 MAIN FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 4

1.1 PERFORMANCE AND COMPACTNESS IN

RECESSED CEILING INSTALLATIONS . . . . . . . . . . . p. 4

2 MAIN COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . p. 4

STRUCTURE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 4

ELECTRIC MOTOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 4

AIR FILTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 4

2.1 AIR INTAKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 4

HEAT EXCHANGER . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 4

FANS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 4

3 INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 5

3.1 INSTALLATION REQUIREMENTS. . . . . . . . . . . . . . . . p. 5

3.2 ASSEMBLY OF UNITS . . . . . . . . . . . . . . . . . . . . . . . . . . p. 6

4 AVAILABLE ACCESSORIES . . . . . . . . . . . . . . . . . p. 7

5 RATED TECHNICAL DATA . . . . . . . . . . . . . . . . . . p. 8

6 WEIGHTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 10

7 SOUND POWER LEVELS FOR 2-PIPES

OCTAVE BAND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 10

7 SOUND POWER LEVELS FOR OCTAVE

BAND 4 PIPE SYSTEMS AND 1 ROW . . . . . . p. 11

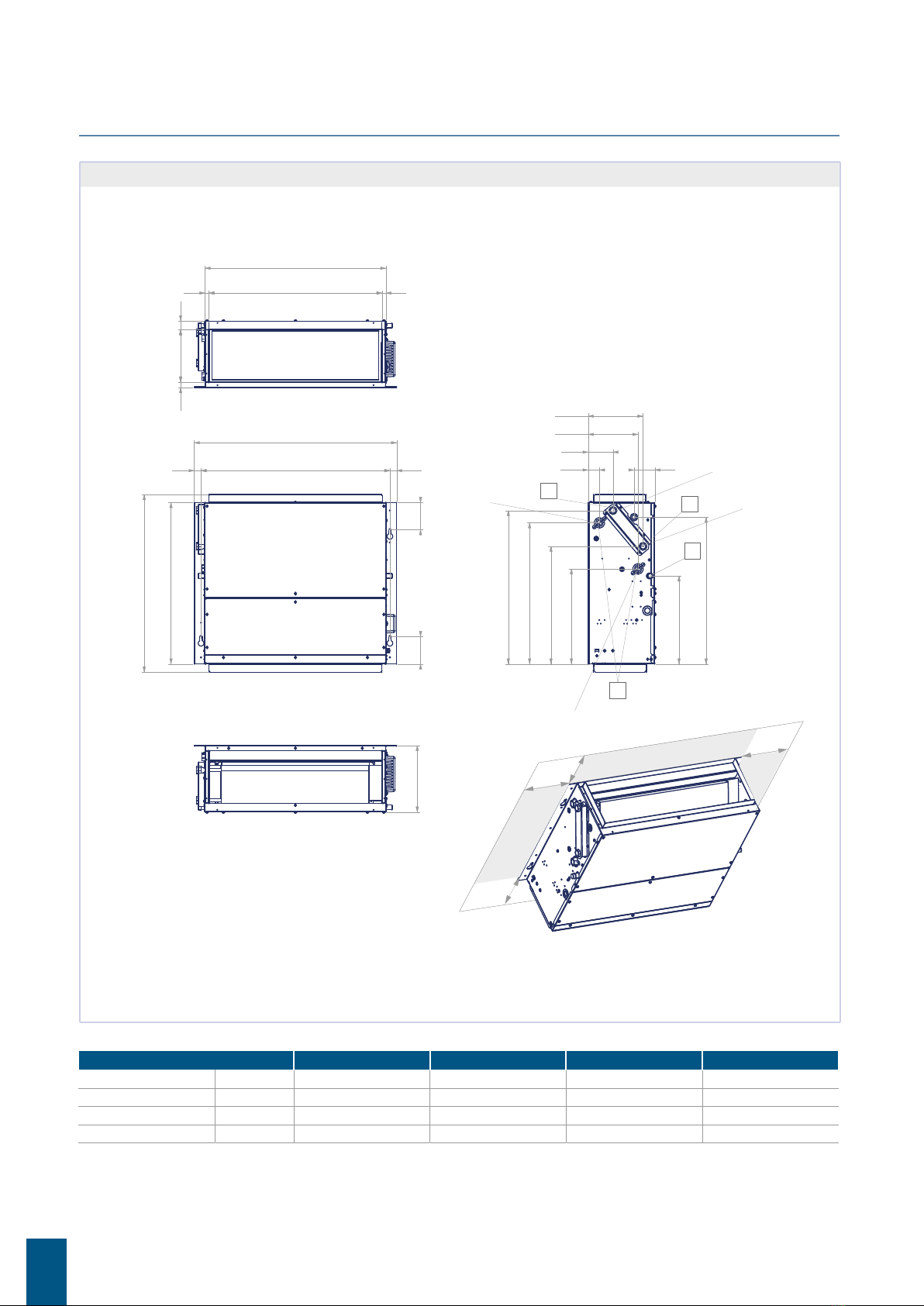

8 OVERALL DIMENSIONS . . . . . . . . . . . . . . . . . . . p. 12

9 ELECTRICAL CONNECTIONS. . . . . . . . . . . . . . p. 14

10 ELECTRICAL WIRES . . . . . . . . . . . . . . . . . . . . . . . . p. 15

11 ACCESSORIES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 23

12 MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . p. 25

12.1 CLEANING THE AIR FILTER. . . . . . . . . . . . . . . . . . . . p. 25

12.2 CLEANING THE HEAT EXCHANGER . . . . . . . . . . . p. 25

FWBC

TECHNICAL MANUAL4

1 MAIN FEATURES

PERFORMANCE AND COMPACTNESS IN RECESSED CEILING INSTALLATIONS

The FWB-C ducted unit has been conceived for air condition-

ing interiors where the installation of high-performance medi-

um-head units with reduced overall dimensions is required. The

range features 8 models with air ows of from 300 to 1200 m3/h

with over 70Pa available static pressure and cooling powers

from 2 to 8 kW.

The heat exchanger enables FWB-C to be used under a whole

variety of operating conditions. The weight-bearing structure in

fact houses a 3- or 4-rows exchanger which can be combined

with an additional 1- or 2-rows exchanger for exceptional perfor-

mance even with low temperature dierentials.

Heat exchanger can be optimized for centralized applications

such as district cooling. FWB-C was designed to ceiling horizon-

tal installation.

The main condensate drip tray is situated inside the structure of

the unit and is at a positive pressure relative to the drain outlet

to facilitate condensate drainage.

A wide range of wall-mounted controllers is available, includ-

ing microprocessor controllers with display. Heating elements

complete with safety devices are available to supplement the

hydronic system.

2 MAIN COMPONENTS

STRUCTURE

Built from galvanised steel sheet, heat and sound insulated by

means of Class 1 self-extinguishing panels. Reduced height to

facilitate installation in a horizontal position in a false ceiling. The

structure incorporates a drip tray and condensate drain outlet.

The bearing structure allows to combine a large range of acces-

sories in suction and air delivery in order to obtain the optimized

unit conguration.

ELECTRIC MOTOR

Single-phase asynchronous multi-speed electric motor with permanently connected capacitor and thermal protector, mounted on

vibration-damping supports.

AIR FILTER

Washable air lter, made of acrylic bre, ltration class G3, applied on the air intake; may be pulled out from below.

AIR INTAKE

Air intake from the front or bottom of the unit, according to system requirements.

HEAT EXCHANGER

High eciency standard with 3 rows, but also available with 4

rows upon request, heat exchanger made with copper piping

and aluminium ns blocked to pipings by mechanical expan-

sion, provided with brass manifolds and air vent valve.The heat

exchanger usually comes with water connections mounted on

the left, but it can be turned by 180°. High-eciency heat ex-

changers optimized for district cooling applications are availa-

ble on request.

FANS

Double suction centrifugal fans made with ABS or aluminium, with statically and dynamically balanced forward-curving blades,

directly coupled to the electric motor.

UT66002760-02

All copying, even partial, of this manual is strictly forbidden 5

3 INSTALLATION

WARNING: unit installation and start-up must be entrusted

to competent personnel and performed in a workmanlike

manner, in accordance with current regulations.

WARNING: Install the ducted unit, the line switch (IL) and/or

all remote controls in a position out of the reach of persons

who are in the bathroom or in the shower.

DANGER: The unit may be used by children of at least 8

years of age and by persons with reduced physical, sen-

sory, or mental capabilities, or who lack experience or the

necessary knowledge, provided that they are supervised or

after they have received instructions relating to the safe use

of the unit and understand the inherent dangers. Children

must not play with the unit. Cleaning and maintenance to

be carried out by the user must not be performed by unsu-

pervised children.

IMPORTANT: It is advisable to install any accessories on the

standard unit prior to positioning the latter, making refer-

ence to the technical sheets. The air intake and outlet have

a rectangular cross-section, with pre-cut holes for fastening

the available accessories.

The heat exchanger connections can be switched over to the op-

posite side by carrying out the following steps:

 remove the upper closing panel.

 remove the collecting condensate tray.

 remove the heat exchanger module by taking out the fas-

tening screws (2 per side).

 turn the heat exchanger by 180° (on the vertical axis) and

screw it back into the unit again.

 reassemble the tray and the upper closing panel.

3.1 INSTALLATION REQUIREMENTS

Some rules to follow

 Vent air from the exchanger while the pumps are o. For

this purpose use the air vent valves situated next to the ex-

changer connections.

 All ducts, especially the outlet ducts, must be insulated with

anti-condensation material.

 An inspection panel must be provided in proximity to the

unit to enable maintenance and cleaning operations.

 Install the control panel on the wall; choose an accessible

position from where functions may be easily set and which is

suitable for taking temperature readings, where applicable.

Avoid positions directly exposed to sunlight or direct cur-

rents of hot or cold air and make sure there are no obstacles

which may preclude a correct temperature reading.

WARNING:

In normal operation, particularly with the fan at minimum

speed and ambient air with high relative humidity, conden-

sation may form on the air outlet and on some external parts

of the unit.

To avoid such issues while always remaining within the oper-

ating limits envisaged for the unit, it is necessary to limit the

inlet temperature of the water inside the heat exchanger. In

particular, the dierence between the air dew point (TA,DP)

and the inlet water temperature (TW) must NOT exceed 14

°C, according to the following relationship: TW>TA,DP-14

°C

Example: in the case of ambient air at 25 ° C with 75% rela-

tive humidity, the dew point temperature is about 20 ° C and

therefore the inlet temperature of the water in the battery

must be greater then:

 20-14 = 6 °C in order to avoid condensation on a fancoil

equipped with a valve.

 20-12 = 8 °C If the valve kit accessory can not be installed.

Fan coil with valve

Air temperature dry bulb (°C)

21 23 25 27 29 31 33

Relative

humidity %

40 5555555

50 5555568

60 55557911

70 5 5 6 8 9 11 13

80 5 6 8 10 12 14 16

90 6 8 10 12 14 16 18

Fan coil without valve

Air temperature dry bulb (°C)

21 23 25 27 29 31 33

Relative

humidity %

40 6666666

50 66666810

60 6 6 6 7 9 11 13

70 6 6 8 10 11 13 15

80 6 8 10 12 12 16 18

90 8 10 12 14 14 18 20

In the event the indoor unit is stopped for a prolonged peri-

od, with the fan stopped and circulation of cold water in the

heat exchanger, condensation may also form on the unit’s

exterior. In this case it is advisable to install the 3-way (or

2-way) valve accessory in order to stop the ow of water in

the coil when the fan is stopped.

During wintertime periods of shut down, drain water from the

system, to prevent ice from forming. If anti-freeze solutions are

used, check for their freezing point using the table below.

% Glycol by weight Freezing

temperature (°C)

Capacity

adjustment

Pressure drop

adjustment

0 0 1,00 1,00

10 -4 0,97 1,05

20 -10 0,92 1,10

30 -16 0,87 1,15

40 -24 0,82 1,20

FWBC

TECHNICAL MANUAL6

3.2 TROUBLESHOOTING

If the unit is not working properly, before calling a service engi-

neer carry out the checks indicated in the table below.

If the problem cannot be solved, contact your dealer or the near-

est service centre.

PROBLEM CAUSE SOLUTION

The unit fails to work

No power supply Restore the power supply

The automatic safety cutout has tripped Call a service centre for assistance

The on/oﬀ switch is on Start the unit by moving the switch to ON

The unit provides insuﬃcient cooling

or heating

The air ﬁlter is dirty or clogged Clean the air ﬁlter

An obstacle is obstructing the air intake or outlet Remove the obstacle

Air is trapped inside the heat exchanger Call the installer for assistance

There are open windows and/or doors Close windows and/or doors

The minimum speed has been selected Select medium or maximum speed

The unit“leaks”water The unit has not been installed with the correct inclination Call the installer for assistance

The drainage outlet is clogged Call the installer for assistance

3.3 ASSEMBLY OF UNITS

Mounting the unit

Insert the vibration dampers provided in the 4 slots indicated for

ceiling installation

Fasten the base unit to the ceiling or wall using at least 4 of the

8 slots provided.

 It is recommended to use 8MA threaded bars plus screw an-

chors of adequate capacity to bear the weight of the unit,

and to prepare the positioning of the unit using 3 8MA bolts

(2 in the lower part, 1 in the upper part as shown in g-

ure p.6) and two washers for each bar. Before tightening

the lock nut, adjust the main nut so as to assure that the unit

is properly inclined so as to facilitate condensate drainage

(gure p.6). To obtain the proper inclination, tilt the unit

so that the intake side is slightly lower (approximately 10

mm) than the outlet side. Make the plumbing connections

to the heat exchanger and, where the cooling function is to

be used, to the condensate drainage outlet. Use one of the

two tray drain outlets, which can be seen on the outside of

the unit side panels.

 To connect the unit to the drainage line, use a exible rub-

ber hose and secure it to the pre-selected drain pipe (ø 3/8'')

using a metal clamp (use the drain outlet situated on the

plumbing connection side).



» Ceiling installation unit

1x8MA

2x8MA

» Condensate discharge proper inclination

UT66002760-02

All copying, even partial, of this manual is strictly forbidden 7

4 AVAILABLE ACCESSORIES

Electronic microprocessor control panels with display

FWECSAP

Circuit board for FWECS control

FWECSAC

User interface with display for FWECS controller

FWEC1A

FWEC1A electronic controller with display

FWEC2A

FWEC2A electronic controller with display

FWEC3A

FWEC3A electronic controller with display

FWHSKA

Humidity sensor for FWEC2A/3A, FWECS

FWTSKA

Water sensor for FWEC1A/2A/3A and FWECS controllers

Auxiliary water drip trays, insulating shell, condensate drainage pump

CDRP1A Condensate drainage pump kit

Electrical heating elements

EH Heating element with installation kit, relay box and safety devices

Accessories

EPIMSB6 Power interface for connecting in parallel up to 4 fan coil units to the one controller

EDPD Auxiliary water drip tray

Valve kits

2-way valves, ON/OFF or MODULATING actuator, 230 V or 24V power supply, hydraulic kit, for

additional heat exchanger

2-way valve, ON/OFF or MODULATING actuator, 230 V or 24V power supply, hydraulic kit, for main heat

exchanger

3-way valves, ON/OFF or MODULATING actuator, 230 V or 24V power supply, hydraulic kit, for

additional heat exchanger

3-way valves, ON/OFF or MODULATING actuator, 230 V or 24V power supply, hydraulic kit, for heat

exchanger

2-way valves pressure independent, ON/OFF or MODULATING actuator, 230 V or 24V power supply,

hydraulic kit, for main and additional heat exchanger

FWBC

TECHNICAL MANUAL8

5 RATED TECHNICAL DATA

» 2 pipes

FWB-C

04 05 06 08

Speed

min med max min med max min med max min med max

Declared speed

2,5,7 1,5,7 1,6,7 1,4,7

Rated air ﬂow (E) m³/h

109 246 276 171 275 341 195 360 402 305 532 652

Available static pressure (E) Pa

10 50 63 19 50 77 19 50 63 17 50 75

Power input (E) W

24 57 82 34 69 106 34 85 106 76 143 192

Maximum current absorption A

0,40 0,56 0,56 1,10

Total cooling capacity (1)(E) kW

0,92 1,72 1,90 1,27 1,90 2,27 1,57 2,69 2,96 1,92 3,17 3,68

Sensible cooling capacity (1)(E) kW

0,61 1,21 1,34 0,89 1,34 1,59 1,07 1,86 2,03 1,42 2,39 2,81

FCEER class (E)

D E

Water ﬂow (1) l/h

160 306 340 222 339 408 274 476 527 343 568 664

Water pressure drop (2)(E) kPa

2563683793811

Heating capacity (3)(E) kW

0,88 1,81 1,99 1,33 1,98 2,35 1,59 2,80 3,10 2,35 3,71 4,31

FCCOP class (E)

Water ﬂow (3) l/h

153 315 346 231 345 408 276 488 538 408 644 749

Water pressure drop (3)(E) kPa

1452572684911

Standard coil - number of rows

3343

Total sound power level (4) dB(A)

28 49 52 39 50 54 39 50 54 38 52 58

Inlet + radiated sound power level (4)(E) dB(A)

26 47 50 37 48 52 37 48 52 36 50 56

Outlet sound power level (4)(E) dB(A)

25 46 49 36 47 51 36 47 51 35 49 55

Water content - standard coil dm³

1,20 1,20 1,60 1,60

Power supply cable type

N07V-K

Cross-section area of power cables

(5) mm² 1,00 1,00 1,00 1,50

Safety fuse F

A1112

Fuses type

FWB-C

10 11 15 17

Speed

min med max min med max min med max min med max

Declared speed

1,6,7 1,6,7 5,6,7 5,6,7

Rated air ﬂow (E) m³/h

333 687 760 333 687 760 1050 1163 1289 1050 1163 1289

Available static pressure (E) Pa

12 50 61 12 50 61 40 50 60 40 50 60

Power input (E) W

76 167 192 76 167 192 235 280 332 235 280 332

Maximum current absorption A

1,10 1,10 2,10 2,10

Total cooling capacity (1)(E) kW

2,22 4,22 4,63 2,44 4,79 5,23 6,15 6,66 7,21 6,91 7,49 8,12

Sensible cooling capacity (1)(E) kW

1,60 3,09 3,39 1,70 3,33 3,64 4,51 4,88 5,29 4,83 5,23 5,67

FCEER class (E)

Water ﬂow (1) l/h

394 753 828 432 850 930 1095 1191 1295 1225 1333 1448

Water pressure drop (2)(E) kPa

2 7 8 3 10 12 13 16 18 20 23 26

Heating capacity (3)(E) kW

2,54 4,76 5,17 2,63 5,03 5,49 6,68 7,22 7,80 7,18 7,80 8,46

FCCOP class (E)

Water ﬂow (3) l/h

442 827 898 457 875 955 1162 1256 1357 1248 1356 1472

Water pressure drop (3)(E) kPa

2 7 8 3 9 11 12 14 16 17 20 23

Standard coil - number of rows

3434

Total sound power level (4) dB(A)

38 55 58 38 55 58 61 63 69 61 63 69

Inlet + radiated sound power level (4)(E) dB(A)

36 53 56 36 53 56 59 61 67 59 61 67

Outlet sound power level (4)(E) dB(A)

35 52 55 35 52 55 58 60 66 58 60 66

Water content - standard coil dm³

2,50 3,30 2,50 3,30

Power supply cable type

N07V-K

Cross-section area of power cables

(5) mm² 1,50 1,50 1,50 1,50

Safety fuse F

A2222

Fuses type

(1) Water temperature 7°C / 12°C, air temperature dry bulb 27°C, wet bulb 19°C (47% relative humidity) according to EN1397:2015

(2) Water temperature 7°C / 12°C, air temperature dry bulb 27°C, wet bulb 19°C (47% relative humidity)

(3) Water temperature 45°C / 40°C, air temperature 20°C

(4) Sound power measured according to standards ISO 3741 and ISO 3742

(5) The shown section is to be considered as the minimum recommended section.The cables must be chosen in compliance with CEI - UNEL 35024/1. standard.

(E) EUROVENT certiﬁed data

Power supply 230-1-50 (V-ph-Hz)

UT66002760-02

All copying, even partial, of this manual is strictly forbidden 9

» 4 pipes

FWB-C

04 05 06 08

Speed

min med max min med max min med max min med max

Declared speed

2,5,7 1,5,7 1,6,7 1,4,7

Rated air ﬂow (E) m³/h

109 243 270 170 272 336 195 357 398 302 524 642

Available static pressure (E) Pa

10 50 63 19 50 77 19 50 63 17 50 75

Power input (E) W

24 57 82 34 69 106 34 85 106 76 143 192

Maximum current absorption A

0,40 0,56 0,56 1,10

Total cooling capacity (1)(E) kW

0,92 1,70 1,86 1,26 1,88 2,24 1,57 2,67 2,93 1,89 3,13 3,64

Sensible cooling capacity (1)(E) kW

0,61 1,20 1,31 0,88 1,33 1,57 1,07 1,84 2,01 1,41 2,35 2,78

FCEER class (E)

D E

Water ﬂow (2) l/h

160 302 333 221 335 404 274 473 522 339 562 656

Water pressure drop (2)(E) kPa

2563683793811

Heating capacity (3)(E) kW

1,14 1,93 2,06 1,55 2,07 2,32 2,09 3,09 3,29 2,80 3,82 4,24

FCCOP class (E)

CDCD

Water ﬂow (3) l/h

100 169 180 136 181 204 183 271 288 245 334 371

Water pressure drop (3)(E) kPa

123233234356

Additional coil - number of rows

1111

Total sound power level (4) dB(A)

28 49 52 39 50 54 39 50 54 38 52 58

Inlet + radiated sound power level (4)(E) dB(A)

26 47 50 37 48 52 37 48 52 36 50 56

Outlet sound power level (4)(E) dB(A)

25 46 49 36 47 51 37 47 51 35 49 55

Water content - additional coil dm³

0,47 0,47 0,59 0,59

Power supply cable type

N07V-K

Cross-section area of power cables

(5) mm² 1,00 1,00 1,00 1,50

Safety fuse F

A1112

Fuses type

FWB-C 10 11 15 17

Speed

min med max min med max min med max min med max

Declared speed

1,6,7 1,6,7 5,6,7 5,6,7

Rated air ﬂow (E) m³/h

333 683 755 333 683 755 1050 1163 1289 1050 1163 1289

Available static pressure (E) Pa

12 50 61 12 50 61 40 50 60 40 50 60

Power input (E) W

76 167 192 76 167 192 235 280 332 235 280 332

Maximum current absorption A

1,10 1,10 2,10 2,10

Total cooling capacity (1)(E) kW

2,22 4,20 4,60 2,44 4,76 5,20 6,15 6,66 7,21 6,91 7,49 8,12

Sensible cooling capacity (1)(E) kW

1,60 3,07 3,36 1,70 3,31 3,62 4,51 4,88 5,29 4,83 5,23 5,67

FCEER class (E)

Water ﬂow (2) l/h

394 749 822 432 846 925 1095 1191 1295 1225 1333 1448

Water pressure drop (2)(E) kPa

2 7 8 3 10 12 13 16 18 20 23 26

Heating capacity (3)(E) kW

3,40 5,17 5,45 3,40 5,17 5,45 6,42 6,73 7,06 6,42 6,73 7,06

FCCOP class (E)

Water ﬂow (3) l/h

297 452 477 297 452 477 562 590 618 562 590 618

Water pressure drop (3)(E) kPa

6 13 14 6 13 14 19 21 22 19 21 22

Additional coil - number of rows

1111

Total sound power level (4) dB(A)

38 55 58 38 55 58 61 63 69 61 63 69

Inlet + radiated sound power level (4)(E) dB(A)

36 53 56 36 53 56 59 61 67 59 61 67

Outlet sound power level (4)(E) dB(A)

35 52 55 35 52 55 58 60 66 58 60 66

Water content - additional coil dm³

0,97 0,97 0,97 0,97

Power supply cable type

N07V-K

Cross-section area of power cables

(5) mm² 1,50 1,50 1,50 1,50

Safety fuse F

A2222

Fuses type

(1) Water temperature 7°C / 12°C, air temperature dry bulb 27°C, wet bulb 19°C (47% relative humidity) according to EN1397:2015

(2) Water temperature 7°C / 12°C, air temperature dry bulb 27°C, wet bulb 19°C (47% relative humidity)

(3) Water temperature 65°C / 55°C, air temperature 20°C

(4) Sound power measured according to standards ISO 3741 and ISO 3742

(5) The shown section is to be considered as the minimum recommended section.The cables must be chosen in compliance with CEI - UNEL 35024/1. standard.

(E) EUROVENT certiﬁed data

Power supply 230-1-50 (V-ph-Hz)

FWBC

TECHNICAL MANUAL10

6 WEIGHTS

FWB-C

04 05 06 08 10 11 15 17

2 pipes kg 24,4 25,4 33,0 36,0 45,0 45,0 51,0 51,0

4 pipes kg 25,8 26,8 34,6 37,6 47,5 47,5 53,5 53,5

7 SOUND POWER LEVELS FOR 2PIPES OCTAVE BAND

Model Vr

IN+R 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz Lw OUT 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz

dB(A) dB dB dB dB dB dB dB dB(A) dB dB dB dB dB dB dB

min(2) 26 30,3 28,0 24,3 19,9 16,3 2,1 2,1 25 0,0 25,8 23,5 19,8 15,4 11,8 0,0

med(5) 47 51,2 48,9 45,2 40,8 37,2 31,2 22,5 46 50,2 47,9 44,2 39,8 36,2 30,2 21,5

max(7) 50 54,2 51,9 48,2 43,8 40,2 34,2 25,5 49 53,2 50,9 47,2 42,8 39,2 33,2 24,5

min(1) 37 41,2 38,9 35,2 30,8 27,2 21,2 3,0 36 40,2 37,9 34,2 29,8 26,2 20,2 16,2

med(5) 46 50,2 47,9 44,2 39,8 36,2 30,2 21,5 45 49,2 46,9 43,2 38,8 35,2 29,2 20,2

max(7) 52 56,2 53,9 50,2 45,8 42,2 36,2 27,5 51 55,2 52,9 49,2 44,8 41,2 35,2 26,2

min(1) 37 41,2 38,9 35,2 30,8 27,2 21,2 3,0 36 40,2 37,9 34,2 29,8 26,2 20,2 16,2

med(6) 48 52,2 49,9 46,2 41,8 38,2 32,2 23,5 47 51,2 48,9 45,2 40,8 37,2 31,2 22,2

max(7) 52 56,2 53,9 50,2 45,8 42,2 36,2 27,5 51 55,2 52,9 49,2 44,8 41,2 35,2 26,2

min(1) 36 40,2 37,9 34,2 29,8 26,2 20,2 0,0 35 39,2 36,9 33,2 28,8 25,2 19,2 0,0

med(4) 50 54,2 51,9 48,2 43,8 40,2 34,2 25,5 49 53,2 50,9 47,2 42,8 39,2 33,2 24,5

max(7) 56 60,2 57,9 54,2 49,8 46,2 40,2 31,5 55 59,2 56,9 53,2 48,8 45,2 39,2 30,5

min(1) 36 40,2 37,9 34,2 29,8 26,2 20,2 0,0 35 39,2 36,9 33,2 28,8 25,2 19,2 0,0

med(6) 53 57,2 54,9 51,2 46,8 43,2 37,2 28,5 52 56,2 53,9 50,2 45,8 42,2 36,2 27,5

max(7) 56 60,2 57,9 54,2 49,8 46,2 40,2 31,5 55 59,2 56,9 53,2 48,8 45,2 39,2 30,5

min(1) 36 40,2 37,9 34,2 29,8 26,2 20,2 0,0 35 39,2 36,9 33,2 28,8 25,2 19,2 0,0

med(6) 53 57,2 54,9 51,2 46,8 43,2 37,2 28,5 52 56,2 53,9 50,2 45,8 42,2 36,2 27,5

max(7) 56 60,2 57,9 54,2 49,8 46,2 40,2 31,5 55 59,2 56,9 53,2 48,8 45,2 39,2 30,5

min(5) 59 63,2 60,9 57,2 52,8 49,2 43,2 34,5 58 62,1 59,8 56,1 51,7 48,1 42,1 43,4

med(6) 61 65,2 62,9 59,2 54,8 51,2 45,2 36,5 60 64,2 61,9 58,2 53,8 50,2 44,2 35,5

max(7) 67 71,2 68,9 65,2 60,8 57,2 51,2 42,5 66 70,2 67,9 64,2 59,8 56,2 50,2 31,5

min(5) 59 63,2 60,9 57,2 52,8 49,2 43,2 34,5 58 62,1 59,8 56,1 51,7 48,1 42,1 43,4

med(6) 61 65,2 62,9 59,2 54,8 51,2 45,2 36,5 60 64,2 61,9 58,2 53,8 50,2 44,2 35,5

max(7) 67 71,2 68,9 65,2 60,8 57,2 51,2 42,5 66 70,2 67,9 64,2 59,8 56,2 50,2 31,5

Data referring to ﬁlter G3 units at PU = 0 Pa - For all operating points and work limits not present in the upper table, refer to the factory selection program

LW _out: Octave sound power level - outlet
