Data Video SLD-1 User manual

SLD-1
SHOULDER MOUNT RIG
www.datavideo.com
Instruction Manual

1
Table of Contents
FCC COMPLIANCE STATEMENT ..........................................................................2
WARNINGS AND PRECAUTIONS ........................................................................ 2
WARRANTY ....................................................................................................... 3
STANDARD WARRANTY .............................................................................................3
THREE YEAR WARRANTY ...........................................................................................3
DISPOSAL ..........................................................................................................3
1. INTRODUCTION .............................................................................................4
FEATURES ...............................................................................................................4
2. CONNECTIONS...............................................................................................5
3. QUICK CAMERA REMOVAL ............................................................................ 8
4. APPLICATION DIAGRAMS .............................................................................. 9
CAMERA AND AD-2..................................................................................................9
ON TRIPOD .............................................................................................................9
CAMERA AND V-MOUNT BATTERY ................................................................................9
5. DIMENSIONS ............................................................................................... 10
6. SPECIFICAT IONS ........................................................................................... 11
SERVICE & SUPPORT ....................................................................................... 12
Disclaimer of Product & Services
The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies
will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that
some information in this manual, from time to time, may not be correct or may be incomplete. This manual may
contain typing errors, omissions or incorrect information. Datavideo Technologies always recommend that you
double check the information in this document for accuracy before making any purchase decision or using the
product. Datavideo Technologies is not responsible for any omissions or errors, or for any subsequent loss or
damage caused by using the information contained within this manual. Further advice on the content of this
manual or on the product can be obtained by contacting your local Datavideo Office or dealer.

2
FCC Compliance Statement
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1). This device may not cause harmful interference, and
(2). This device must accept any interference received, including interference that may cause
undesired operation.
Warnings and Precautions
1. Read all of these warnings and save them for later reference.
2. Follow all warnings and instructions marked on this unit.
3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use
a damp cloth for cleaning.
4. Do not use this unit in or near water.
5. Do not place this unit on an unstable cart, stand, or table. The unit may fall, causing serious
damage.
6. Slots and openings on the cabinet top, back, and bottom are provided for ventilation. To ensure
safe and reliable operation of this unit, and to protect it from overheating, do not block or
cover these openings. Do not place this unit on a bed, sofa, rug, or similar surface, as the
ventilation openings on the bottom of the cabinet will be blocked. This unit should never be
placed near or over a heat register or radiator. This unit should not be placed in a built-in
installation unless proper ventilation is provided.
7. This product should only be operated from the type of power source indicated on the marking
label of the AC adapter. If you are not sure of the type of power available, consult your
Datavideo dealer or your local power company.
8. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord
will be walked on, rolled over, or otherwise stressed.
9. If an extension cord must be used with this unit, make sure that the total of the ampere ratings
on the products plugged into the extension cord do not exceed the extension cord rating.
10. Make sure that the total amperes of all the units that are plugged into a single wall outlet do
not exceed 15 amperes.
11. Never push objects of any kind into this unit through the cabinet ventilation slots, as they may
touch dangerous voltage points or short out parts that could result in risk of fire or electric
shock. Never spill liquid of any kind onto or into this unit.
12. Except as specifically explained elsewhere in this manual, do not attempt to service this product
yourself. Opening or removing covers that are marked “Do Not Remove” may expose you to
dangerous voltage points or other risks, and will void your warranty. Refer all service issues to
qualified service personnel.
13. Unplug this product from the wall outlet and refer to qualified service personnel under the
following conditions:
a. When the power cord is damaged or frayed;
b. When liquid has spilled into the unit;
c. When the product has been exposed to rain or water;
d. When the product does not operate normally under normal operating conditions. Adjust
only those controls that are covered by the operating instructions in this manual;
improper adjustment of other controls may result in damage to the unit and may often
require extensive work by a qualified technician to restore the unit to normal operation;
e. When the product has been dropped or the cabinet has been damaged;
f. When the product exhibits a distinct change in performance, indicating a need for service.

3
Warranty
Standard Warranty
•Datavideo equipment are guaranteed against any manufacturing defects for one year from the
date of purchase.
•The original purchase invoice or other documentary evidence should be supplied at the time of
any request for repair under warranty.
•The product warranty period beings on the purchase date. If the purchase date is unknown, the
product warranty period begins on the thirtieth day after shipment from a Datavideo office.
•Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is not covered
under warranty.
•Viruses and malware infections on the computer systems are not covered under warranty.
•Any errors that are caused by unauthorized third-party software installations, which are not
required by our computer systems, are not covered under warranty.
•All mail or transportation costs including insurance are at the expense of the owner.
•All other claims of any nature are not covered.
•Cables and batteries are not covered under warranty.
•Warranty only valid in the country or region of purchase.
•Your statutory rights are not affected.
Three Year Warranty
•All Datavideo products purchased after July 1st, 2017 are qualified for a
free two years extension to the standard warranty, providing the
product is registered with Datavideo within 30 days of purchase.
•Certain parts with limited lifetime expectancy such as LCD panels, DVD
drives, Hard Drive, Solid State Drive, SD Card, USB Thumb Drive,
Lighting, Camera module, PCIe Card are covered for 1 year.
•The three-year warranty must be registered on Datavideo's official website or with your local
Datavideo office or one of its authorized distributors within 30 days of purchase.
Disposal
For EU Customers only - WEEE Marking
This symbol on the product or on its packaging indicates that this product
must not be disposed of with your other household waste. Instead, it is your
responsibility to dispose of your waste equipment by handing it over to a
designated collection point for the recycling of waste electrical and electronic
equipment. The separate collection and recycling of your waste equipment at
the time of disposal will help to conserve natural resources and ensure that it
is recycled in a manner that protects human health and the environment. For
more information about where you can drop off your waste equipment for recycling, please contact
your local city office, your household waste disposal service or the shop where you purchased the
product.
CE Marking is the symbol as shown on the left of this page. The letters "CE"
are the abbreviation of French phrase "Conformité Européene" which literally
means "European Conformity". The term initially used was "EC Mark" and it
was officially replaced by "CE Marking" in the Directive 93/68/EEC in 1993. "CE
Marking" is now used in all EU official documents.

4
1. Introduction
SLD-1 Camera SLED is a shoulder mount rig for offering comfortable and
professional operation. It perfectly accommodates many popular cameras from
major camera manufacturers.
Equipped with a rear V-mount battery plate, the SLD-1 Camera SLED has an extra
power option and allows for other accessories to be mounted to the back like
the AD-2 adaptor. There is also a D-Tap connector which supplies power to the
camera mounted on the SLD-1.
A USB port is included to supply power to an external LED light. Also, two bi-
color tally LED lights are provided to serve as indications to the camera crew.
Features
•Light & robust aluminium die-cast body
•Great weight balance
•Power supply from the V-mount battery
•USB port for an external LED light
•Two bi-color tally LED lights

5
2. Connections
V-Mount Plate
V-Mount Battery Plate
The V-mount battery plate allows you to
mount either an AD-2 adaptor or a V-
mount battery.
Left View

6
USB Port
The USB port serves as a power supply
port for an external LED Light when the
SLD-1 is mounted the AD-2 Adaptor.
Tally Power
Switch
The power switch toggles between
internal and external power modes.
INT Mode: AD-2
is mounted on the
SLD-1.
EXT Mode: When SLD-1 is used in pair
with the ITC-100SL Intercom Belt Pack.
INT Mode EXT Mode
The tally light signal comes from the
AD-2 adaptor when AD-
2 is
mounted to the V-
mount battery
plate.
The AD-2 Adaptor powers the rear
and front bi-color tally LEDs and the
USB port, which will thus be able to
supply power.
Switch to INT mode when the AD-2
is mounted.
When using the SLD-1 with the ITC-
100SL Intercom Belt Pack,
the tally
light signal then comes from the ITC-
100SL and directly supplies power to
the rear and front bi-color tally LEDs
without having to mount a V-mount
battery to the V-mount battery plate.
However, if the V-mount battery plate
is not mounted, the USB port will NOT
be able to supply power.
Switch to EXT mode when used in pair
with the ITC-100SL.
Tally IN Connects an external tally light signal,
for example the ITC-100SL tally light.
Rear Bi-Color Tally LED
Red indicates LIVE
Green indicates CUED
Front Bi-Color
Tally LED
Red indicates LIVE
Green indicates CUED

7
Right View
D-Tap Connector Supply power to the camera
Camera Mount Plate
Camera Mounting Plate allows the user to
mount different camera models to the SLED
with a hand screw.
The hand screw comes in two sizes, 1/4" and
3/8 ”.

8

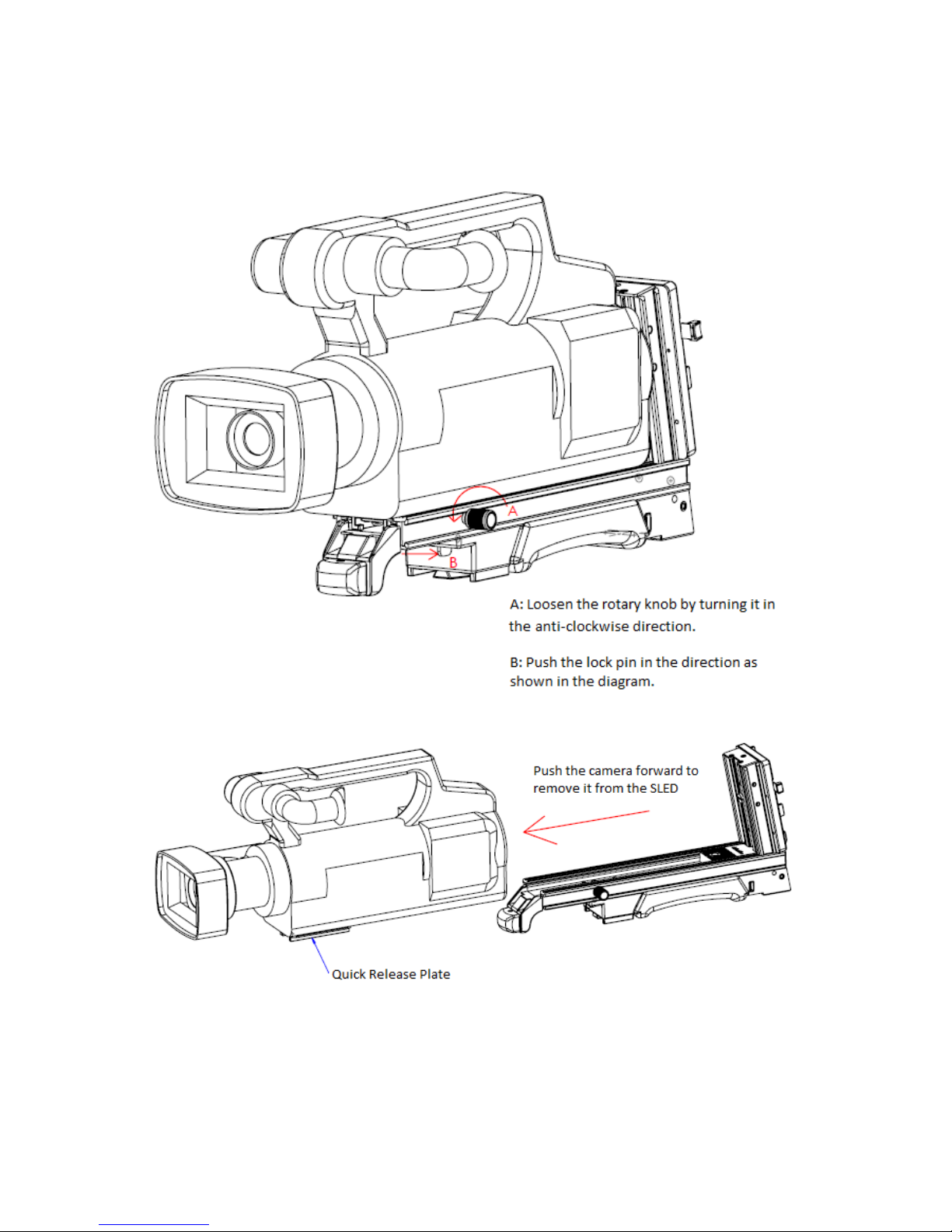

3. Quick Camera Removal
Follow the steps outlined below to remove the camera from SLED.

9

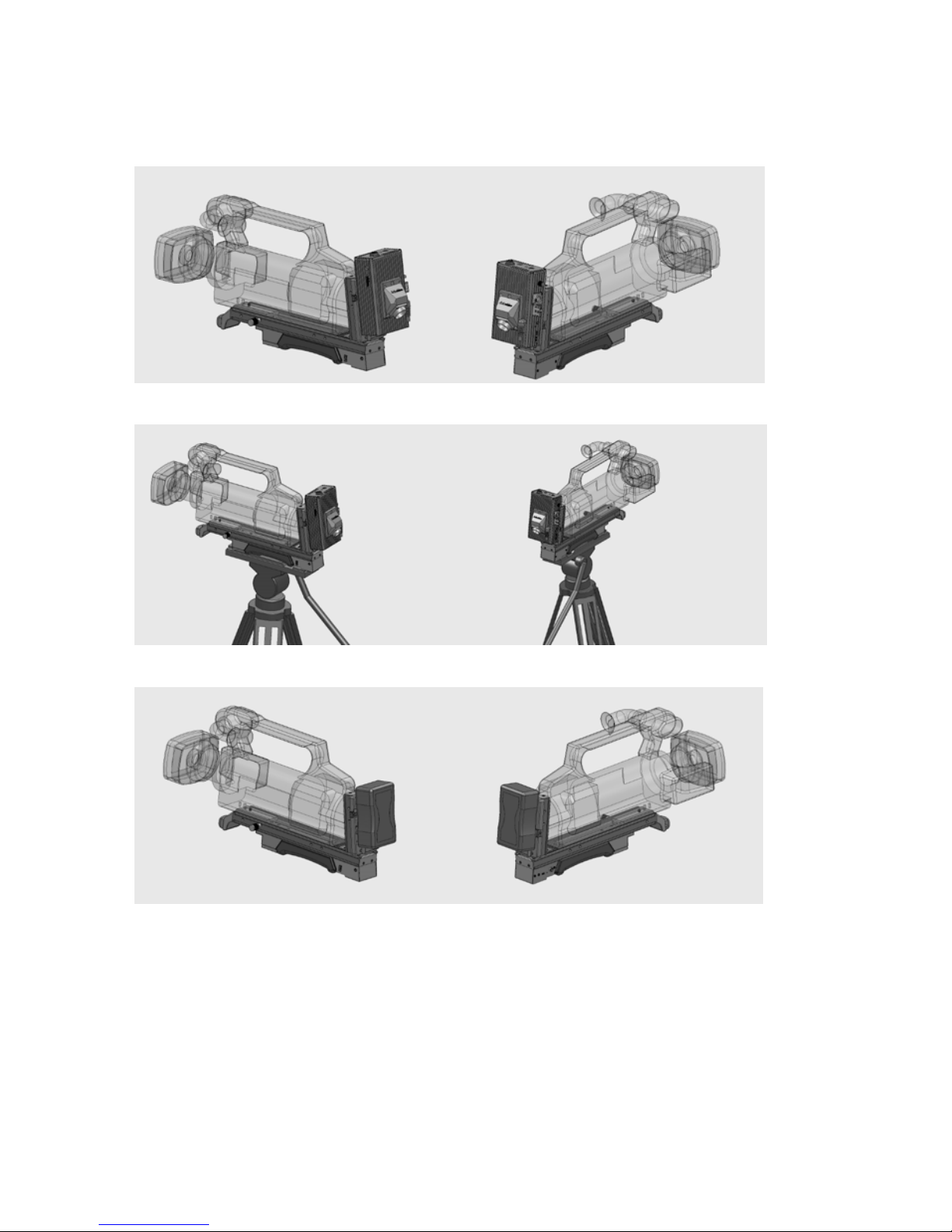

4. Application Diagrams
Camera and AD-2
On Tripod
Camera and V-Mount Battery

10

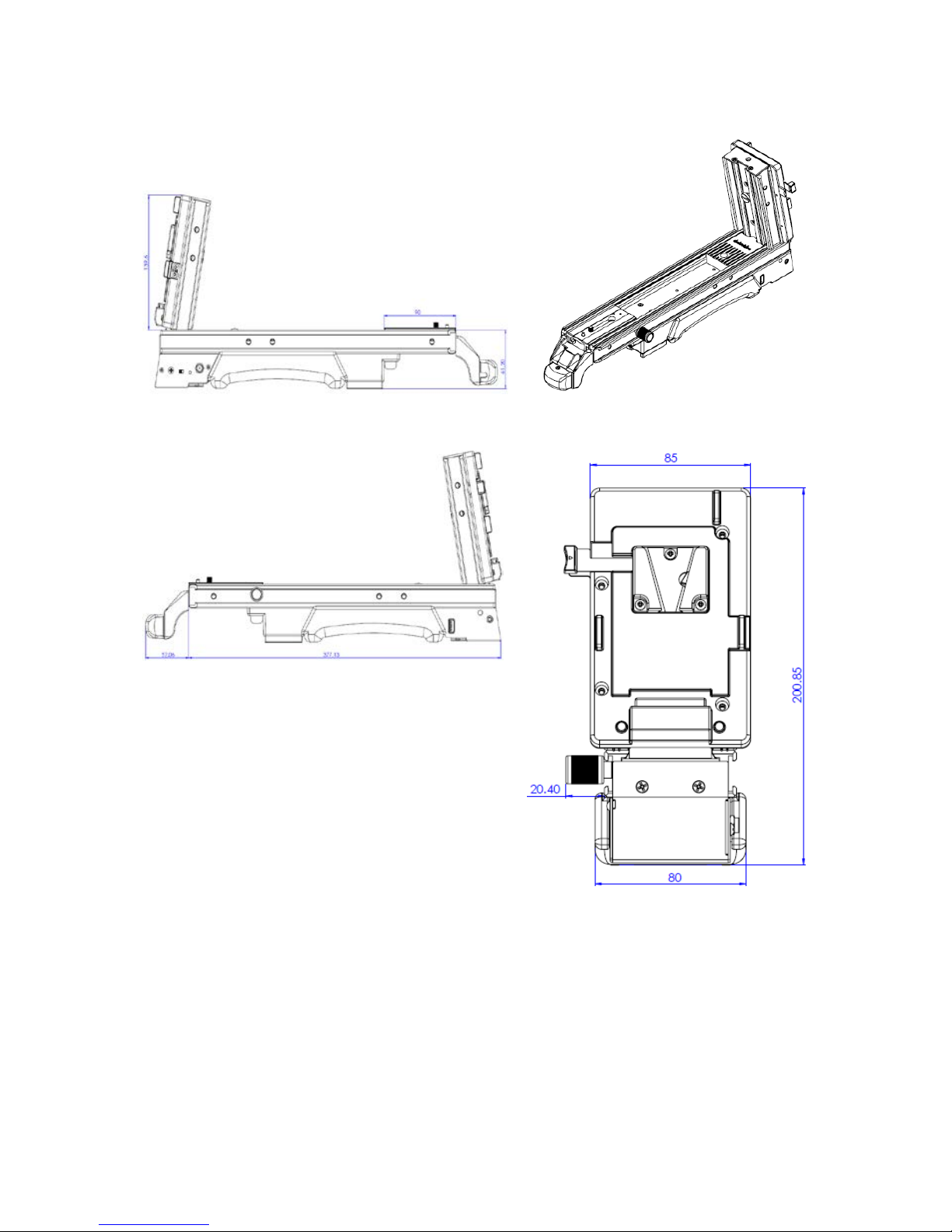

5. Dimensions
All measurements in millimeters (mm)

11
6. Specifications
Power Input V-mount battery plate
Power Output D-Tap Connector
Tally Light Two bi-color LED lights
External LED Light Power
Supply USB
Dimensions (mm) 377.13 x 85 x 139.6
Weight (kg) 1.890

It is our goal to make your products ownership a satisfying experience. Our
supporting sta󰀨 is available to assist you in setting up and operating your
system. Please refer to our web site www.datavideo.com for answers to
common questions, support requests or contact your local o󰀩ce below.
All the trademarks are the properties of their respective owners. Datavideo Technologies
Co., Ltd. All rights reserved 2018
Service & Support
DATAVIDEO WORLDWIDE OFFICES
Tel: [phone]
Fax:[phone]
E-mail:[email protected]E-mail: [email protected]
China Shanghai
Datavideo Technologies China Co
601,Building 10,No.1228,
Rd.Jiangchang,
Jingan District,Shanghai
Tel: [phone]
Fax:[phone]
E-mail:[e-mail]
Singapore
Datavideo Visual Technology(S) Pte Ltd
No. 178 Paya Lebar Road #06-07
Singapore 409030
Tel: [phone]
Fax:[phone]
E-mail:[email protected]
Singapore
Datavideo Technologies Co. Ltd
10F. No. 176, Jian 1st Rd.,Chung Ho
District, New Taipei City 235, Taiwan
Tel: [phone]
Fax:[phone]
E-mail:[e-mail]
Taiwan
Datavideo Corporation
7048 Elmer Avenue.
Whittier, CA 90602,
U.S.A.
United States
Datavideo UK Limited
Brookfield House, Brookfield Industrial
Estate, Peakdale Road, Glossop,
Derbyshire, SK13 6LQ
Tel: [phone]
Fax:[phone]
E-mail:[e-mail]
United Kingdom
Datavideo Technologies China Co
902, No. 1 business building,
Xiangtai Square, No. 129,
Yingxiongshan Road, Shizhong District,
Jinan City, Shandong Province, China
Tel: [phone]
E-mail:[e-mail]
China Jinan
Datavideo France s.a.r.l.
Cité Descartes 1, rue Albert Einstein
Champs sur Marne 774477 –
Marne la Vallée cedex 2
Tel: [phone]
Fax:[phone]
E-mail:[email protected]
France
Datavideo Hong Kong Ltd
G/F.,26 Cross Lane
Wanchai, Hong Kong
Tel: [phone]
Fax:[phone]
E-mail:[email protected]k
Hong Kong
Datavideo India Noida
Fax:[phone]
E-mail: [email protected]
Tel: [phone]
A-132, Sec-63,Noida-201307,
India
India Noida
Datavideo India Kochi
Tel: [phone]
Fax:[phone]
2nd Floor- North Wing, Govardhan Building,
Opp. NCC Group Headquaters, Chittoor Road,
Cochin- 682035
India Kochi
Datavideo Technologies Europe BV
Floridadreef 106
3565 AM Utrecht,
The Netherlands
Tel: [phone]
Fax:[phone]
E-mail:[e-mail]
Netherlands
China Beijing
Datavideo Technologies China Co
No. 812, Building B, Wankai Center,
No.316, Wan Feng Road, Fengtai District,
Beijing, China
Tel: [phone]
Fax:[phone]
E-mail:[e-mail]
Datavideo Technologies China Co
A1-2318-19 Room,No.8, Aojiang Road,
Taijiang District,Fuzhou,Fujian,China
Tel: [phone]
Fax:[phone]
E-mail:[e-mail]
China Fuzhou
Datavideo Technologies China Co
B-823,Meinian square,No.1388,
Middle of Tianfu Avenue,Gaoxin District,
Chengdu,Sichuan
Tel: [phone]
Fax:[phone]
E-mail:[e-mail]
China Chengdu
Datavideo Technologies (S) PTE Ltd
No. 178 Paya Lebar Road #06-03
Singapore 409030
Tel: [phone]
Fax:[phone]
E-mail:[email protected]g
Jul-15.2017
Please visit our website for latest manual update.
www.datavideo.com/product/SLD-1
