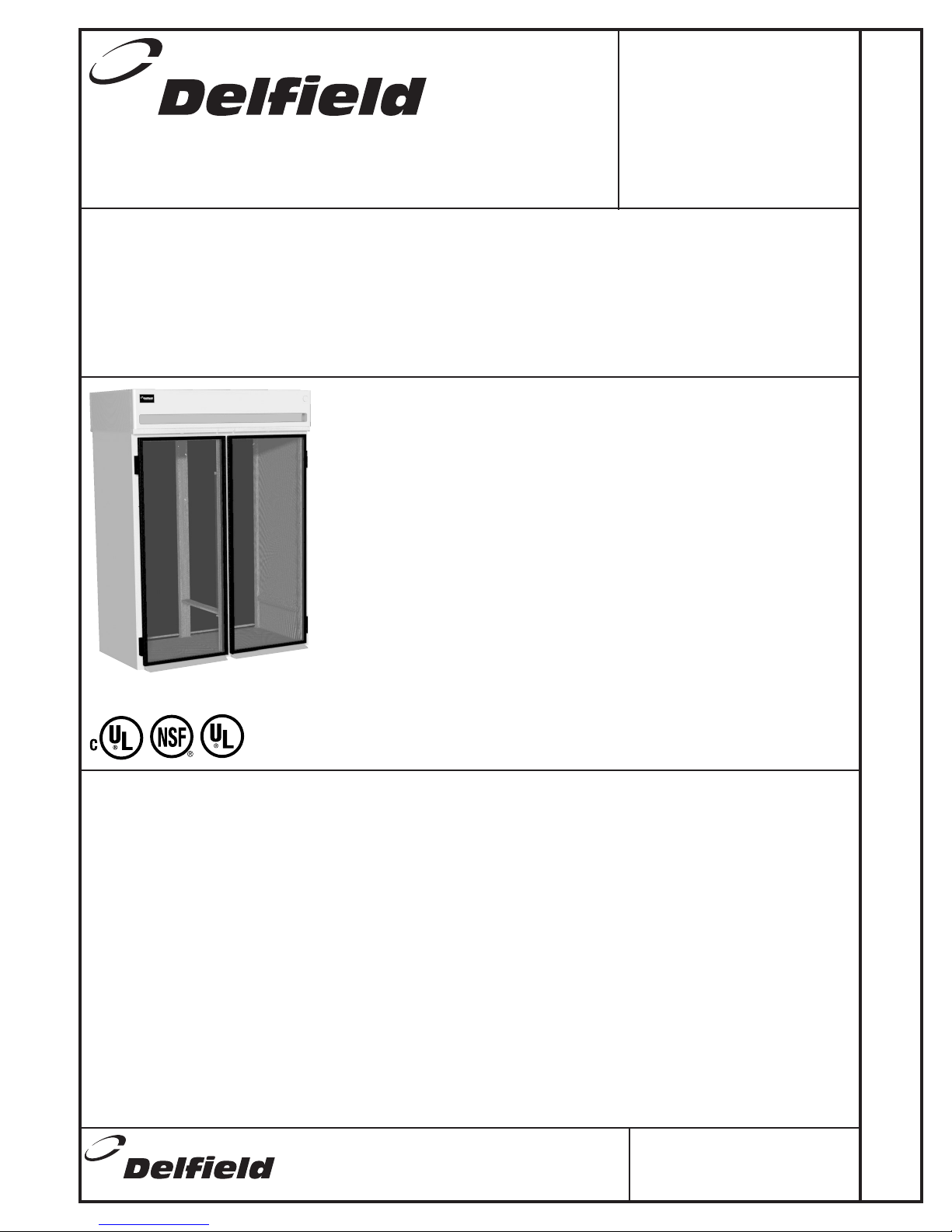

MERIDIAN SERIES® HEATED ROLL-THROUGHS
Project __________________________
Item____________________________
Quantity _________________________
CSI Section 11400
MERIDIAN SERIES®
Heated Roll-Throughs
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.deleld.com
Phone: [phone]
Fax: [phone]
Email: info@deleld.com
Approval _________________
Date____________________
MHRT2-G
SPECIFICATIONS
Exterior: Cabinet front and shroud shall be 22-gauge
stainless steel. Exterior sides shall be aluminum. Facing
of shroud shall be easily removable without the use
of tools.
Cabinet interior shall be anodized aluminum. Bottom
& top of liner shall be die-stamped to provide
radius corners and a recessed bottom. Base shall be
fully insulated with high-density foamed in place
polyurethane.
Doors: Solid doors shall have a 22-gauge stainless
steel exterior & anodized aluminum interior liner.
Doors shall be fully insulated with high density foamed
in place polyurethane. Each door shall have two
self-closing, cam-lift style hinges. Doors shall be easily
removable without use of tools. Door gaskets shall be
magnetic snap-in style to allow simple replacement.
Door handles shall be recessed.
Glass Doors - Unit is provided with hinged glass front
door(s). Glass doors are constructed with a combination of
extruded aluminum & PVC, and are provided with magnetic
gaskets. Doors will have self-closing hinges and continuous
handle along vertical dimension of door(s).
• Please specify right or left hand hinging at time of order.
Mechanical controls shall be located behind a removable
shroud facing.
Dual Voltage Models Only: Electrical connections shall
be 115/280-240 volt, 60 hertz, single phase, and must be
hard-wired to the junction box located on top of the unit.
Heating Assembly: Cabinets to be designed to maintain
temperature up to 200ºF. Fin strip heating elements. High
speed blower to provide uniform airow in cabinet 3ºF
variability. Removable/replaceable heating system. No
exposed elements inside cabinet. Fan and heating
elements service accessible without tools. Temperature
to be controlled by an adjustable electronic thermostat.
Night switch in front.
Notes: Bottom to be reinforced with 14-gauge
channels. All units to be supplied with easily attachable
16-gauge stainless steel ramps, one per door opening.
Wiper gasket shall be provided on bottom of door for
seal to ramp.
MODELS:
 MHRT1-S Single section  MHRT2-S Two section
Solid full height door Solid full height doors
 MHRT1-GS Single section  MHRT2-GS Two section
Solid full height door (one side) Solid full height door (one side)
Glass full height door (one side) Glass full height door (one side)
STANDARD FEATURES
• Built in door locks
• Durable stainless steel doors and shroud, for lasting
good looks
• New high-density foam insulation cuts energy costs
• Big, easy grip handles are easy to nd, don’t intrude
into kitchen trafc
• Attractive aluminum side panels are easy to clean and
corrosion resistant
• Heavy-duty hinges with stay open feature
• Heating system is located outside the food zone, more
space for product storage
• Easy to read dial thermometer
• Tri seal door gaskets lower energy costs with a unique
insulating design
• Aluminum interior stands up to food acids without
corroding
• Lots of interior storage space for the money
OPTIONS AND ACCESSORIES
 Stainless steel exterior sides
 Stainless steel interior
 Door and end laminate
 Digital thermometer
 220/50/1 electrical

Meridian Series® Solid/Glass Door Heated Roll-Through
Model #__________
CSI Section 11400
Printed in the USA.
01/04
DSMRTH
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.deleld.com
Phone: [phone]
Fax: [phone]
Email: info@deleld.com
MECHANICAL DATA
CU. FT. SHELVES # of RACK UNIT BTU/HR CAB BTU/HR SHIP NEMA
MODEL VOLTAGE AMPS STORAGE SQ. FT. SHELVES CAP. H.P. LOAD SYSTEM CAP WEIGHT PLUG
STAINLESS
MHRT1-S 120/208-240 9.0 38.58 NA NA 1 NA NA NA 450 NA
MHRT2-S 120/208-240 16.0 79.74 NA NA 2 NA NA NA 766 NA
GLASS/SOLID
MHRT1-GS 120/208-240 9.0 38.58 NA NA 1 NA NA NA 465 NA
MHRT2-GS 120/208-240 16.0 79.74 NA NA 2 NA NA NA 796 NA
PLAN VIEW MHRT1-S PLAN VIEW MHRT2-S
36.25”
93.4cm
34”
86.4cm
36.25”
93.4cm
66”
167.6cm
ELEVATION VIEW MHRT2-SELEVATION VIEW MHRT1-S
DOOR CLEARANCE DETAIL
ALL MODELS
32.25”
81.9cm
END/SECTION VIEW
ALL MODELS
89”
226.1cm
70.75”
179.1cm
30”
76.2cm
89”
226.1cm
12.14”
30.8cm
43.58”
110.7cm
73.28”
186.1cm
36.25”
92.1cm
PERSPECTIVE VIEW
ALL MODELS
29.12”
74cm
Ramp Width
3.80”
9.7cm
29.75”
75.6cm
MECHANICAL DETAIL
Ramp dimensions
see below
5.92”
15.04cm
1.06”
2.69cm
RAMP DIMENSIONS
(Not to scale)
