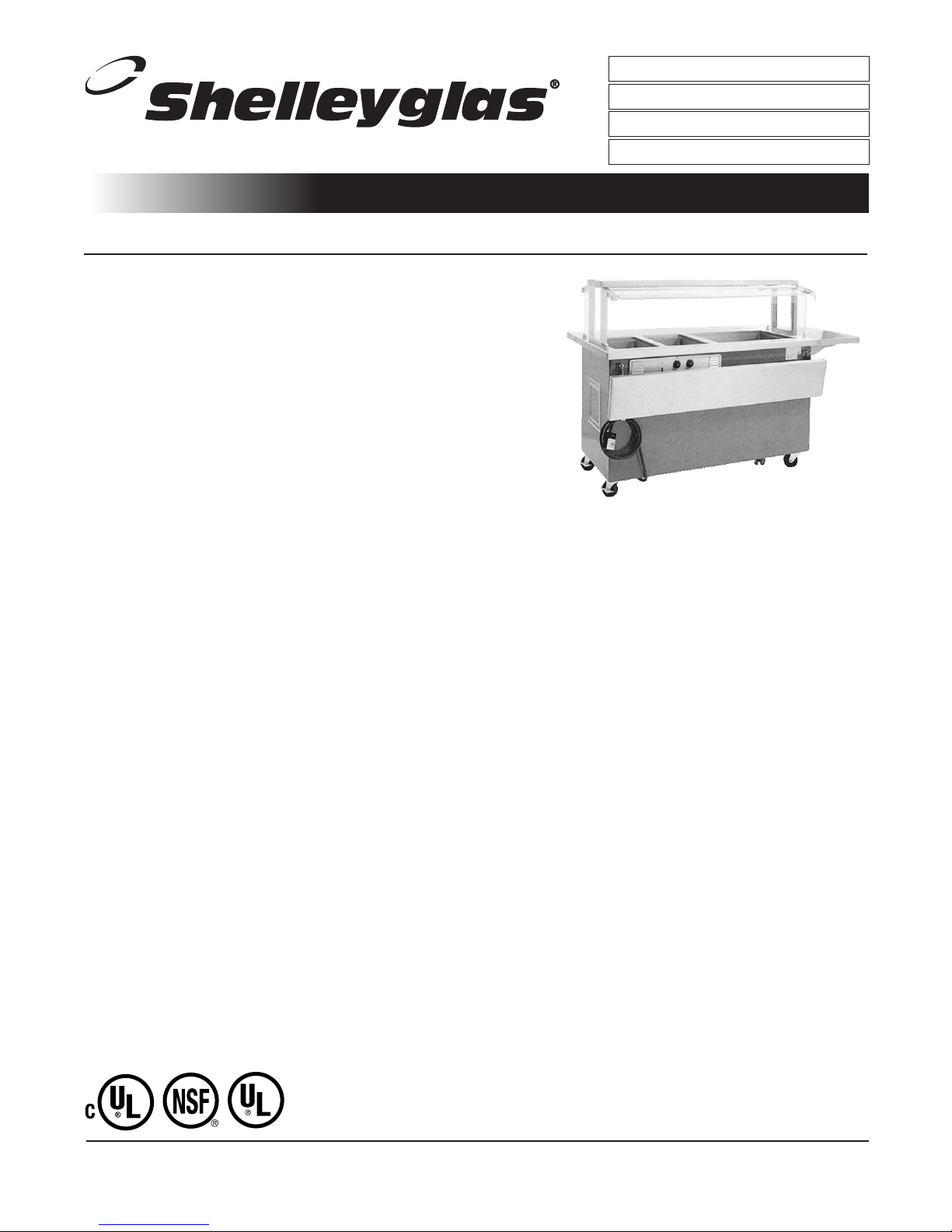

Mobile Hot and Cold Combination Counters
Short Form
Specifications
Exterior Body is seamless, one-piece
molded fiberglass, having perfectly
smooth exterior surface with all corners
fully rounded. The fiberglass reinforced
polyester (F.R.P.) is molded with
permanent color. Stress points are
internally reinforced.
Exterior top is constructed of 14-gauge
stainless steel, welded, ground and
polished into one integral unit. Top is
fabricated with square exterior corners.
Top has one to four electrically heated,
recessed, die-stamped stainless steel hot
food warmers. Each warmer
accommodates one 12.75” x 20.75” x 6”
(32.4cm x 52.7cm x 15.2cm) pan.
Heated food warmers are constructed of
die-stamped stainless steel. Each Heated
food warmer is individually equipped with
a heated element rated at 1000 watts for
120 volt or 208/230 volt, 60 hertz, single
phase service and wired to an adjustable
control switch and indicator light in the
control panel. Heated food warmers are
interwired to a 3-wire, grounded plug for
120 volt or 208/230 volt, 60 hertz, single
phase electrical service. Unit has on/off
switch mounted on the exterior.
Insulated ice pan is 7" (17.8cm) deep and
constructed of 22-gauge stainless steel.
A removable, perforated false bottom 1"
(2.54cm) high, constructed of stainless
steel is supplied. The ice pan is separated
from the exterior top by a concealed
breaker strip and fully insulated with
foamed-in-place polyurethane insulation.
Ice pan is equipped with a drain valve
located at the bottom of the unit.
Casters: Unit is mounted on 5” (12.7cm)
diameter swivel casters with non-marking
polyolefin tires and plate brakes. Overall
height of caster assembly is 6.00”
(15.2cm).
Optional Accessories and
Modifications:
A) 12” (30.5cm) wide stainless steel
fold-down tray slide
C) 10” (25.4cm) wide three-bar fold-
down tray slide
D) 10” (25.4cm) wide composite fold-
down cutting boards
E) 10” (25.4cm) wide stainless steel
fold-down work shelf
F) Line-up interlock device
G) Glass-front counter protector
H) Two tier display with glass shelves
and sneezeguards
HD) Dual service two tier display with
sneezeguards
I) Three tier display with glass shelves
and sneezeguards
J) 12” (30.5cm) wide 18-gauge
stainless steel overshelf
KS) Single service flip-up sneezeguard
KD) Double service flip-up sneezeguard
LI) *Incandescent light fixtures
M) *Radiant heat lamps
MB) *Bullet-style heat lamps
P) Open understorage with shelf
(KH-NU Series only)
Q) *120V/60Hz/1ø, 10 amp
convenience outlet with breaker
QQ) Drains from food wells, plumbed to
common valve
ST) Stainless steel trim strips
UU) Molded fiberglass trim strips
V) 6” (15.2cm) high adjustable
stainless steel legs in lieu of
casters
*Inclusion of these options will alter the
electrical specifications of unit.
Model KH2C-60-NU
shown with option A,E and KS
KHC-NU

The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • [phone] • Fax [phone] • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2002 The Delfield Company. All rights reserved. Printed in U.S.A.
GSKHC 02/02
Mobile Hot and Cold Combination Counters
1.12"
2.9 cm
DRAIN VALVE
9.00"
22.9 cm
COLD PAN ON/OFF SWITCH
FOOD WELL CONTROL
1.62"
4.1 cm
36"
91.4 cm
6"
15.2 cm
1.62"
4.1 cm
KHC-NU
30.00"
76.2 cm
60"
127 cm
21.62
54.9 cm
12"
30.5 cm
20"
50.8 cm
7"
17.8 cm
DEEP
26"
66 cm
30"
76.2 cm
60"
152.4 cm
21.62"
54.9 cm
7"
17.8 cm
DEEP
39"
99 cm 12"
30.5 cm
20"
50.8 cm
30"
76.2 cm
74"
188 cm
21.62"
54.9 cm
12"
30.5 cm
20"
50.8 cm
7"
17.8 cm
DEEP
26"
66 cm
30"
76.2 cm
74"
188 cm
21.62"
54.9 cm
12"
30.5 cm
20"
50.8 cm
7"
17.8 cm
DEEP
26"
66 cm
30"
76.2 cm
96"
243.8 cm
21.62"
54.9 cm
7"
17.8 cm
DEEP
65"
165 cm 12"
30.5 cm
20"
50.8 cm
30"
76.2 cm
96"
243.8 cm
21.62"
54.9 cm
12"
30.5 cm
20"
50.8 cm
7"
17.8 cm
DEEP
39"
99 cm
30.00"
76.2 cm
96"
243.8 cm
21.62"
54.9 cm
12"
30.5 cm
20"
50.8 cm
7"
17.8 cm
DEEP
52"
132 cm
30"
76.2 cm
96"
243.8 cm
21.62"
54.9 cm
12"
30.5 cm
20"
50.8 cm
7"
17.8 cm
DEEP
26"
66 cm
MODEL VOLTAGE NEMA SHIP WEIGHT
NUMBER (60HZ/1Ø)
AMP PLUG LBS./KG.
KHC-50-NU 120 9.0 5-15P 300/136
KHC-60-NU 120 9.0 5-15P 350/159
KHC-74-NU 120 9.0 5-15P 400/181
KHC-96-NU 120 9.0 5-15P 425/193
Mechanical Data — Standard Unit
MODEL VOLTAGE/ NEMA SHIP WEIGHT
NUMBER (60HZ/1
Ø
) AMP PLUG LBS./KG.
KH2C-74-NU 120/208-230 11.0 14-20P 410/186
KH2C-96-NU 120/208-230 11.0 14-20P 430/195
KH3C-74-NU 120/208-230 16.0 14-20P 420/191
KH3C-96-NU 120/208-230 16.0 14-50P 450/204
KH4C-96-NU 120/208-230 22.0 14-30P 460/209
PLAN VIEW
KHC-50-NU
PLAN VIEW
KHC-60-NU
PLAN VIEW
KHC-74-NU
PLAN VIEW
KH2C-74-NU
PLAN VIEW
KH3C-74-NU
PLAN VIEW
KHC-96-NU
PLAN VIEW
KH2C-96-NU
PLAN VIEW
KH3C-96-NU
PLAN VIEW
KH42C-96-NU
TYPICAL ELEVATION VIEW
ALL MODELS
RIGHT END VIEW
ALL MODELS
30.00"
76.2 cm
60"
127 cm
21.62
54.9 cm
12"
30.5 cm
20"
50.8 cm
7"
17.8 cm
DEEP
26"
66 cm
