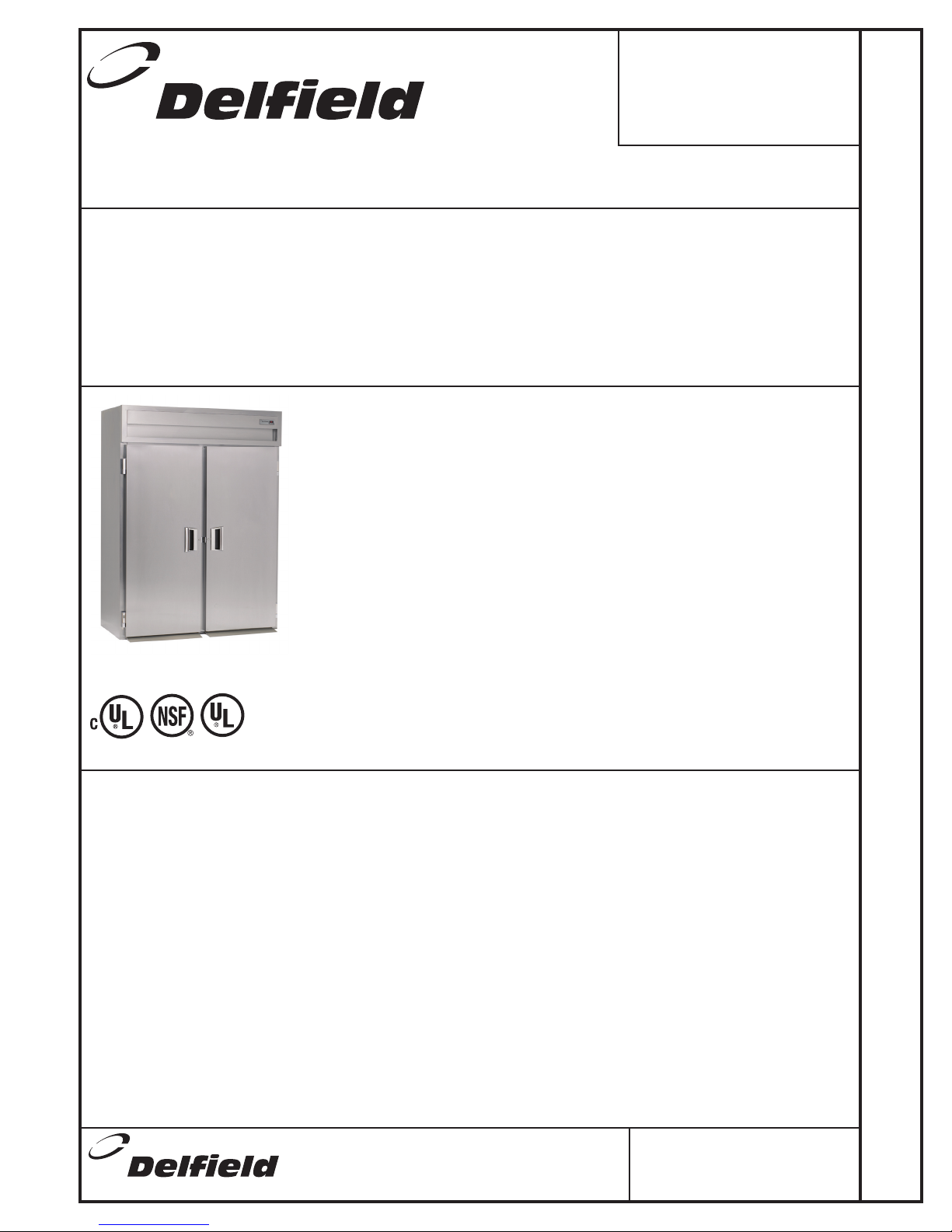

SPECIFICATION LINE: SELF-CONTAINED SOLID DOOR HEATED ROLL-IN
Project __________________________
Item ____________________________
Quantity _________________________
CSI Section 11400
Specifi cation Line
Self-Contained Solid Door Heated Roll-In
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfi eld.com
Phone: [phone]
Fax: [phone]
Email: info@delfi eld.com
Approval _________________
Date ____________________
SSHRL2-S
SPECIFICATIONS
Exterior: Cabinet exterior sides, front and shroud
shall be 22-gauge, corrosion resistant stainless steel.
Upper shroud shall be hinged, with stay-open feature
to provide easy access to refrigeration system.
Interior: Cabinet interior shall be 22-gauge, corrosion
resistant stainless steel (SS models) or heavy gauge
aluminum (SA models). Bottom and top surfaces are
die stamped to provide radius corners and recessed
fl oor. Interior light, mounted to the interior ceiling is
controlled automatically through a switch mounted in
the hinge assembly to protect against breakage. Door
openings are protected with heavy gauge stainless
steel breaker strips. An air duct is mounted to the
ceiling assuring low velocity, even air movement
throughout the cabinet interior.
Solid Doors: Exterior shall be 22-gauge, corrosion
resistant stainless steel. Interior liner shall be stainless steel.
Each door has two edge mount, self closing, cam lift style
hinges. Doors can be removed from cabinet without the
use of tools. Metal door handle is recessed into the door for
easy grip without impacting aisle space. Keyed door lock
is mounted in the door next to the handle. Lock engages
into a heavy duty strike mounted to the cabinet face. Door
gaskets are magnetic and mount to the door snapping in
place and are removable without tools.
Heating System: Cabinets are designed to maintain
temperatures between 120˚F and 200˚F. Heating elements
are helical shaped, with tubular fi ns. High speed blower
provides uniform airfl ow in the cabinet. Entire heating
system is mounted to the exterior of the cabinet ceiling,
outside the food zone. It is assembled as one piece and can
be removed as one piece. Temperature is controlled by an
adjustable electronic thermostat. System on/off switch is
located on the front exterior of the cabinet.
Electrical: Standard electrical is 120/208-240 volt,
60Hz, single phase. Connection must be hard wired to
junction box on exterior top of the cabinet.
MODELS
❑ SSHRL1-S 1 section stainless interior
full door
❑ SAHRL1-S 1 section aluminum interior
full door
❑ SSHRL2-S 2 section stainless interior
full door
❑ SAHRL2-S 2 section aluminum interior
full door
❑ SSHRL3-S 3 section stainless interior
full door
STANDARD FEATURES
• Stainless steel interior and exterior (SS)
• Stainless steel exterior, aluminum interior (SA)
• Built in door locks with heavy duty strikes
• Recessed metal door handle
• Exterior digital thermometer
• Easy access “fl ip up” shroud
• Stainless steel breaker strips
• Stainless steel interior door liner
• Inclined stainless steel exterior ramp
• Two year parts & labor warranty
OPTIONS AND ACCESSORIES
❑ Security package
❑ Stainless steel back
❑ Laminate on front, sides and back
❑ Heat shield end
❑ Stainless steel kick plate
❑ Full height shelf kit
❑ Half height shelf kit
❑ Flat exterior ramp
❑ 220-50-1 electrical
❑ 220-60-1 electrical

Specification Line: Self-contained solid door heated roll-in
Model #__________
CSI Section 11400
Printed in the USA.
09/05
DSSSRIH
980 S. Isabella Road
Mt. Pleasant, MI 48858
www.delfield.com
Phone: [phone]
Fax: [phone]
Email: info@delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice.
Mechanical Data
MODEL
NUMBER VOLTAGE AMPS STORAGE SHELVES SQ.FT. NO. OF
SHELVES
UNIT
H.P.
BTU/HR CAB
LOAD
BTU/HR
SYSTEM CAP SHIP WEIGHT NEMA PLUG
SSHRI1-S, SAHRI1-S, 120/208-
240 9.0 36.15 N/A N/A N/A N/A N/A 459 N/A
SSHRI2-S, SAHRI2-S 120/208-
240 12.2 74.72 N/A N/A N/A N/A N/A 704 N/A
SSHRI3-S 120/208-
240 10 113.28 N/A N/A N/A N/A N/A 1008 N/A
ELEVATION VIEW
SSHRI1-S, SAHRI1-S
ELEVATION VIEW
SSHRI2-S, SAHRI2-S
PLAN VIEW
SSHRI1-S, SAHRI1-S PLAN VIEW
SSHRI2-S, SAHRI2-S PLAN VIEW
SSHRI3-S
ELEVATION VIEW
SSHRI3-S









  









  









  









  









  









  









  
END SECTION VIEW
ALL MODELS
