DeVilbiss® Pulmo-Aide® Compressor/Nebulizer Instruction Guide
Models 5650C, 5650D, 5650F, 5650I, 5650K & 5650P
CAUTION– Federal (U.S.A.) law restricts this device to sale by, or on the order of a physician.
Made in U.S.A. of U.S. and Imported Parts
LATEX Not made with natural rubber latex.
Model 5650F IEC 60601-1 & 60601-1-2 Compliant

EN - 2
A-5650
ENGLISH..........................................................................................................
EN-2
TABLE OF CONTENTS
IEC Symbols............................................................................................................................................................ EN - 2
Important Safeguards.............................................................................................................................................. EN - 2
Introduction.............................................................................................................................................................. EN - 3
Important Parts
DeVilbiss 5650 Compressor ............................................................................................................................. EN - 4
Disposable Nebulizer........................................................................................................................................ EN - 4
How to Operate Your Compressor .......................................................................................................................... EN - 4
Cleaning and Maintenance
Nebulizer Cleaning ........................................................................................................................................... EN - 5
Compressor Cleaning....................................................................................................................................... EN - 5
Filter Change .................................................................................................................................................... EN - 5
Maintenance ..................................................................................................................................................... EN - 6
Specifications/5650F Classifications....................................................................................................................... EN - 6
Warranty .................................................................................................................................................................. EN - 7

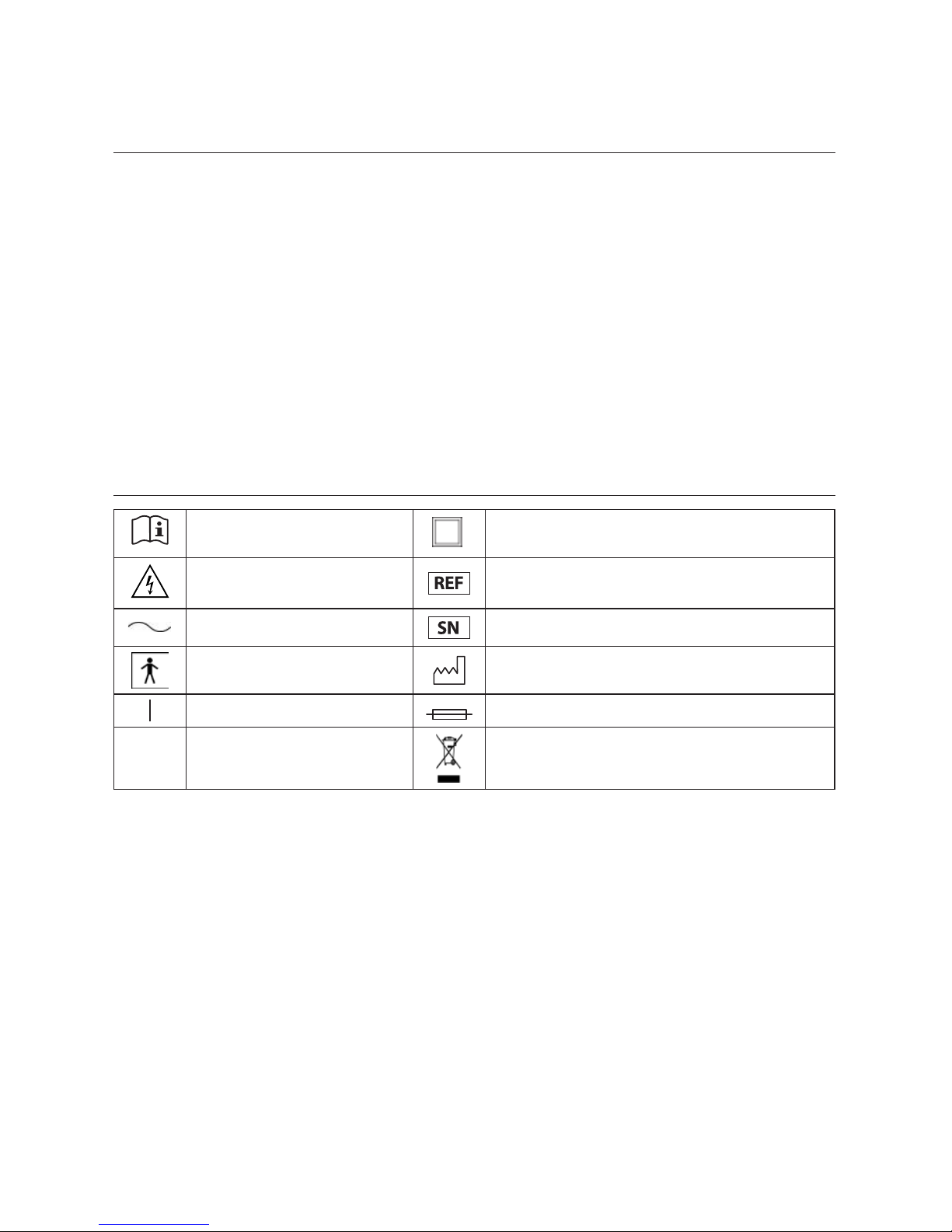

IEC SYMBOLS
Consult Instruction for Use Double Insulated
Electric Shock Hazard
Do Not Open Catalog/Model Number
Alternating Current Serial Number
Type BF Applied Part Date of Manufacture
On Fuse Rating
OOff
This device contains electrical and/or electronic equipment
that must be recycled per EU Directive 2012/19/EU -
Waste Electrical and Electronic Equipment (WEEE)
IMPORTANT SAFEGUARDS
When using electrical products, especially when children are present, basic safety precautions should always be followed.
Read all instructions before using. Important information is highlighted by these terms:
DANGER – Urgent safety information for hazards that will cause serious injury or death.
WARNING – Important safety information for hazards that might cause serious injury.
CAUTION – Information for preventing damage to the product.
NOTE – Information to which you should pay special attention.
READ ALL INSTRUCTIONS BEFORE USING.
DANGER
To reduce the risk of electrocution:
1. Always unplug this product immediately after using.
2. Do not use while bathing.
3. Do not place or store product where it can fall or be pulled into a tub or sink.
4. Do not place in or drop into water or other liquid.

EN - 3A-5650
5. Do not reach for a product that has fallen into water. Unplug immediately.
WARNING
To reduce the risk of burns, electrocution, fire or injury to persons:
1. The product should never be left unattended when plugged in.
2. Close supervision is necessary when this product is used by, on, or near children or physically incapacitated
individuals.
3. Use this product only for its intended use as described in this guide. Do not use attachments not recommended by
the manufacturer.
4. Never operate this product if:
a. It has a damaged power cord or plug.
b. It is not working properly.
c. It has been dropped or damaged.
d. It has been dropped into water.
Return the product to an authorized DeVilbiss service center for examination and repair.
5. Keep the power cord away from heated surfaces.
6. Never block the air openings of the product or place it on a soft surface, such as a bed or couch, where the air
openings may be blocked. Keep the air openings free of lint, hair, and the like.
7. Never use while drowsy or asleep.
8. Never drop or insert any object into any opening or hose.
9. Do not use outdoors. This product is for household use only.
10. Do not use in an oxygen enriched environment.
11. Connect this product to an appropriate outlet only.
12. DonotusethisproductwithaDCtoACconverter,orwithanyACvoltageand/orfrequencyotherthanspecied.
13. Do not operate unit in a backpack or carrying bag.
14. Care should be taken when this product is used in the vicinity of other electronic equipment concerning possible
electromagnetic or other interference between them. They may need to be moved apart. 5650F complies with EMC
requirements of IEC 60601-1-2.
NOTE– This unit employs a temperature and/or current limiting device that will shut off the entire product should a
malfunction occur or in the event of product misuse, abuse, or abnormal operation. The 5650 will restart when the motor
cools to an acceptable level.
Model5650Dhasapolarizedplug(onebladeiswiderthantheother).Asasafetyfeature,thisplugwilltinapolarized
outletonlyoneway.Iftheplugdoesnottfullyintheoutlet,reversetheplug.Ifitstilldoesnott,contactaqualied
electrician. Do not attempt to defeat this safety feature. If repair or replacement of the cord or plug is necessary, contact
yourqualiedDeVilbissprovider.
NOTE–The exterior surfaces of the unit and the air outlet connector may become slightly warm to the touch during use.
Warm air can also be felt exiting the vents on the sides of the case of the unit. This is normal.
SAVE THESE INSTRUCTIONS
INTRODUCTION
Your doctor has prescribed a liquid medication to treat your respiratory condition. To best utilize this liquid medication, he
has prescribed a DeVilbiss brand compressor/nebulizer. Your DeVilbiss compressor/nebulizer works to convert the
medicationtoahigh-qualitymistofneparticlesthatpenetratesdeepintothelungs.
Be sure that you read and understand the information in this instruction guide. By following these simple instructions and
the advice of your physician, your compressor will become an effective addition to your therapeutic routine.
Statement of Intended Use
The DeVilbiss compressor/nebulizer includes an AC powered air compressor that provides a source of compressed air for
home health care use. The compressor is used in conjunction with a jet (pneumatic) nebulizer to convert certain inhalable
drugs into an aerosol form for inhalation by a patient. The device can be used with adult or pediatric patients.
NOTE–If using a nebulizer other than one distributed by DeVilbiss, verify that the pressure and/or ow characteristics of
the nebulizer (while driven by the DeVilbiss compressor) meet the nebulizer manufacturer’s recommendation.

EN - 4 A-5650
IMPORTANT PARTS
1
3
4
25
7
8
6 (on back)
12
6
7
4
5
8
3
HOW TO OPERATE YOUR COMPRESSOR
DeVilbiss 5650 Compressor
1. Storage compartment
2. Storage compartment door with operating instructions
3. Power switch
4. Filter cap
5. Air-outlet connector
6. Carrying handle
7. Power cord storage
8. Nebulizer holder
Disposable Nebulizer
1. Mouthpiece
2. T-piece
3. Corrugated Tubing
4. Cap
5. Bafe
6. Medication Cup
7. Nebulizer Air-Inlet Connector
8. Tubing
Nebulizer parts are not sold separately. Additional nebulizers (part #3655D-621)
are available through your DeVilbiss provider.
NOTE–Your neb may look different than pictured.
DeVilbiss also offers reusable nebulizers that can be cleaned and reused for an
extended period of time.
Figure 1
Figure 3
Figure 2
NOTE–Before initial operation, your nebulizer should be cleaned following cleaning
instructions, or as recommended by your physician or DeVilbiss provider.
1. Place compressor on a level, sturdy surface so that the controls can be easily
reached when seated. Never block the air openings of the product or place it on a
soft surface, such as a patient’s lap or a bed or couch where the air openings may
be blocked.
2. Open door to storage compartment.
3. Make sure the power switch is in the “Off” position (Fig. 1). Unwrap power cord and
plugpowercordintoanappropriatewalloutlet(refertoSpecications).
DANGER
DeVilbiss compressor/nebulizer must be operated on the specied power source to
avoid risk of electric shock and damage to the compressor.
4. Wash hands.
5. Connect one end of the nebulizer tubing to the compressor air-outlet connector.
NOTE–During high-humidity weather conditions, condensation (water build up) can occur
in the nebulizer tubing.
6. Assemble clean nebulizer and add prescribed medication (Fig. 2).
7. Assemble mouthpiece, t-piece, and corrugated tubing (if applicable) and insert into
the top of the nebulizer cap. If using an aerosol mask, insert the bottom part of the
mask directly into the top of the nebulizer cap.
8. Attach tubing to nebulizer air-inlet connector (Fig. 3).
9. Press the power switch “On” (Fig. 1) to start the compressor.
10. Begin treatment by placing the mouthpiece between teeth. With mouth closed,
inhaledeeplyandslowlythroughmouthasaerosolbeginstoow,thenexhale
slowly through the mouthpiece (Fig. 4). If treatment needs to be interrupted, simply
press power switch “Off.”
NOTE–Your physician may recommend a specic breathing pattern during treatment. If
so, follow his/her recommendations.

EN - 5A-5650
11. If an aerosol mask is used, place the mask over mouth and nose (Fig. 5). As aerosol
beginstoow,inhaledeeplyandslowlythroughmouth,thenexhaleslowly.
12. When treatment is complete, turn unit off by pressing the power switch to the “Off”
position. Unplug the unit from the wall power outlet.
CLEANING AND MAINTENANCE
Nebulizer Cleaning
All parts of the nebulizer, except tubing, should be cleaned according to the following
instructions. Your physician and/or DeVilbiss provider may specify a certain cleaning
procedure. If so, follow their recommendations.
WARNING
To prevent possible risk of infection from contaminated medication, cleaning of the
nebulizer is recommended after each aerosol treatment. Disinfecting is
recommended once a day.
Clean After Every Use:
1. With power switch in the “Off” position, unplug power cord from wall outlet.
2. Disconnect tubing from the air-inlet connector and set aside.
3. Disassemble mouthpiece or mask from cap. Open nebulizer by turning cap
counterclockwiseandremovingbafe.
4. Wash all items, except tubing, in a warm water/dishwashing detergent solution.
Rinse under warm tap water for 30 seconds to remove detergent residue. Allow to
air dry.
Disinfect Daily:
1. Using a clean container or bowl, soak items in three parts warm water
(131˚F-149ºF/55˚C-65˚C)toonepartwhitevinegar(>=5%aceticacidconcentration)
for 30 minutes (Fig. 6) OR use a medical bacterial-germicidal disinfectant available
through your provider. Be sure to follow manufacturer’s instructions carefully.
2. With clean hands, remove items from disinfectant solution, rinse under warm tap
water, and air dry on a clean paper towel. Store in a zip-lock bag.
NOTE– Do not towel dry nebulizer parts; this could cause contamination.
WARNING
Figure 4
Figure 5
Figure 6
To prevent possible risk of infection from contaminated cleaning solutions, always prepare fresh solution for each
cleaning cycle and discard solution after each use.
3. Keep the outer surface of the tubing dust-free by wiping regularly. Nebulizer tubing does not have to be washed
becauseonlylteredairpassesthroughit.
NOTE– The disposable nebulizer supplied with the unit will last at least 15 days and possibly longer, depending on usage.
Proper cleaning will also help extend the life of the nebulizer. Because it is disposable, we recommend that an extra
nebulizer be kept on hand at all times.
Compressor Cleaning
1. With power switch in the “Off” position, unplug power cord from wall outlet.
2. Wipe outside of the compressor cabinet with a clean damp cloth every few days to keep dust-free.
DANGER
Do not submerge in water; doing so will result in compressor damage.
Filter Change
1. Filtershouldbechangedevery6monthsorsooneriflterturnscompletelygrayincolor.
2. Removeltercapbygraspingitrmlyandpullingoutoftheunit.
3. Removedirtylterwithngersanddiscard.
4. ReplacewithanewDeVilbisslter(part#5650D-602).AdditionalltersshouldbepurchasedfromyourDeVilbiss
provider.
5. Pushltercapwithnewlterintoposition.
CAUTION– Do not reuse or wash lter or substitute any other material such as cotton for a DeVilbiss air-inlet lter. It will
result in compressor damage.
NOTE– An extra lter is packaged with the 5650 series units.

EN - 6 A-5650
Maintenance
AllmaintenancemustbeperformedbyaqualiedDeVilbissproviderorauthorizedservicecenter.
DANGER
Electric shock hazard. Do not remove compressor cabinet. All disassembly and maintenance must be done by a
qualied DeVilbiss provider.
SPECIFICATIONS/CLASSIFICATIONS
Size.......................................................................................................... 10.1” D x 10.5” H x 6.5” W (26 cm x 27 cm x 17 cm)
Weight ................................................................................................................................................................7.1 lbs. (3.2 kg)
Electrical Requirements:
5650D & 5650C ..............................................................................................................................1.3 amps, 115VAC 60Hz
5650I.............................................................................................................................................. 0.8 amps, 230VAC 50Hz
5650K & 5650P......................................................................................................................... 0.8 amps, 230VAC 50/60Hz
5650F............................................................................................................................................. 0.8 amps, 230VAC 50Hz
Sound Level:
All Models except 5650F.......................................................................................................................................51-55 dBA
5650F....................................................................................................................................................................49-53 dBA
Power Consumption:
5650D & 5650C .......................................................................................................................................90 watts maximum
5650I, 5650K & 5650P...........................................................................................................................100 watts maximum
5650F.....................................................................................................................................................105 watts maximum
Maximum Compressor Pressure...................................................................................................................30 psig (206 kPa)*
Compressor Free Air Flow 5650 .....................................................................................................................................12 lpm*
Operating Temperature Range:
All Models except 5650C .......................................................................................................+40° to +104°F (+5 to +40°C)
5650C..................................................................................................................................+40° to +101°F (+5 to +38.5°C)
Operating Humidity...........................................................................................................................upto95%non-condensing
Storage/Transport Temperature Range.....................................................................................-40° to +140°F (-40° to +60°C)
Storage/Transport Humidity .............................................................................................................upto95%non-condensing
Storage/Transport Pressure .....................................................................................................7.3 to 15.4 psia (50 to 106 kPa)
Supplied Nebulizer Capacity .......................................................................................................................................10 ml (cc)
Supplied Nebulizer Nebulization Rate....................................................................................................0.15 ml/min or greater*
Supplied Nebulizer MMAD ............................................................................................................................5 microns or less**
*Conditions may vary based on altitude above sea level, barometric pressure, and temperature.
**Value determined with minimum ow rate through the nebulizer (20°C, sea level).
5650F Classications
With respect to protection against electric shock......................................................Class II
Degree of protection against electrical shock ............................................Type BF Applied Parts
Degree of protection against ingress of liquids .........................................................IPXO
Mode of Operation ..........................................................................Continuous

EN - 7A-5650
FIVE-YEAR LIMITED WARRANTY ON COMPRESSOR PARTS
AllDeVilbissCompressormodelsarewarrantedtobefreefromdefectiveworkmanshipandmaterialforaperiodofve
years from the date of purchase. Any defective part(s) will be repaired or replaced at DeVilbiss’s option if the unit has not
been tampered with or used improperly during that period. Make certain that any malfunction is not due to inadequate
cleaning or failure to follow the instructions. If repair is necessary, contact your DeVilbiss Healthcare Provider or DeVilbiss
Service Department for instructions: .
NOTE—This warranty does not cover providing a loaner compressor, compensating for costs incurred in compressor rental
while said unit is under repair, or costs for labor incurred in repairing or replacing defective part(s).
THERE IS NO OTHER EXPRESS WARRANTY. IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THE EXPRESS LIMITED
WARRANTY AND TO THE EXTENT PERMITTED BY LAW ANY AND ALL IMPLIED WARRANTIES ARE EXCLUDED.
THIS IS THE EXCLUSIVE REMEDY AND LIABILITY FOR CONSEQUENTIAL AND INCIDENTAL DAMAGES UNDER ANY
AND ALL WARRANTIES ARE EXCLUDED TO THE EXTENT EXCLUSION IS PERMITTED BY LAW. SOME STATES DO
NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE LIMITATION OR EXCLUSION
OF CONSEQUENTIAL OR INCIDENTAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY
TO YOU.
Thiswarrantygivesyouspeciclegalrights,andyoumayalsohaveotherrightswhichvaryfromstatetostate.
MANUFACTURER’S NOTE
ThankyouforchoosingaDeVilbisscompressor/nebulizer.Wewantyoutobeasatisedcustomer.Ifyouhaveany
questions or comments, please send them to our address on the back of this manual.
For Service Call Your Authorized DeVilbiss Provider:
_______________________________________________________________________________________________
_______________________________________________________________________________________________
_______________________________________________________________________________________________
Phone _________________________________________________________________________________________________
Purchase Date___________________________________________________________________________________________
Serial # / Date of Manufacturer ______________________________________________________________________________
