Dietz AS[01] User manual

AS[01] adaptive wheelchair
Operating instructions
Version 1.1.3 EN

2

Product group: Manual wheelchairs
Product: AS[01] adaptive wheelchair
Operating instructions Version 1.1.3 EN
Item no. 911309
Date 10/2016 (LA/RP)
DIETZ GmbH
Reutäckerstraße 12
76307 Karlsbad
Tel.: [phone]
Fax. [phone]
[email protected]
www.dietz-reha.de
© 2016 DIETZ GmbH · In certain circumstances, the images in these operating
instructions may deviate from the product delivered. Date 10/2016 Version 1.1.3 EN
3OPERATING INSTRUCTIONS AS[01]

4

Thank you for deciding to purchase
the AS[01] adaptive wheelchair from DIETZ.
This wheelchair is a medical aid. In order to use it properly and avoid pos-
sible risks due to unintended use, you must become thoroughly familiar with
its operation.
FOR THIS REASON, PLEASE:
Read these operating instructions carefully before you begin to use your
new AS[01]. They contain important notes that will allow you to use the
wheelchair‘s technical advantages to the fullest extent.
You will also receive information related to the operational and trafc-rela-
ted safety of your adaptive wheelchair and nd out how to retain as much
of its value as possible.
If you require more information on product performance, please contact
your medical supplies shop.
5OPERATING INSTRUCTIONS AS[01]

6CONTENTS
01 Important information
Intended use. . . . . . . . . . . . . . . . . . . . . . . . . .8
Indication . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Counter-indication. . . . . . . . . . . . . . . . . . . . . .8
Icons and symbols. . . . . . . . . . . . . . . . . . . . . .9
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
02 Product description
Scope of delivery . . . . . . . . . . . . . . . . . . . . . .10
Structure of the AS[01]
Basic components . . . . . . . . . . . . . . . . . . . . .11
03 Commissioning the wheelchair
3.1 Unfolding the wheelchair . . . . . . . . . . .14
3.2 Folding up the wheelchair . . . . . . . . . . .15
3.3 Attaching the leg rests . . . . . . . . . . . . .16
3.4 Foot rests / Foot plate . . . . . . . . . . . . . .17
3.5 Adjusting the back straps . . . . . . . . . . .18
3.6 Changing the seat depth. . . . . . . . . . . .18
3.7 Changing the push handle height . . . . .19
3.8 Swivelling the side pieces upward
(optional) . . . . . . . . . . . . . . . . . . . . . . .20
3.9 Removing and attaching the
rear wheels. . . . . . . . . . . . . . . . . . . . . .21
04 Using the wheelchair
4.1 Sitting down and getting up . . . . . . . . .22
4.2 Using the handrails to propel
and stop the wheelchair . . . . . . . . . . . .24
4.3 Using the wheel lock to stop
the wheelchair . . . . . . . . . . . . . . . . . . .25
4.4 Brake for accompanying person. . . . . . .26

7CONTENTS
05 Wheelchair settings
Important note on the settings . . . . . . . . . . .27
5.1 Arm rest pads (optional) . . . . . . . . . . . .28
5.2 Changing the lower leg length . . . . . . .29
5.3 Changing the foot rest/foot
plate angle . . . . . . . . . . . . . . . . . . . . . .29
5.4 Setting the back angle . . . . . . . . . . . . .30
5.5. Setting the back height . . . . . . . . . . . . .31
5.6. Setting the rear seat height . . . . . . . . . .32
5.7. Setting the rear wheel position
active < - > passive . . . . . . . . . . . . . . .34
5.8. Setting the rear wheel camber. . . . . . . .36
5.9 Setting the front seat height . . . . . . . . .38
5.10 Assembling the caster arms at
the top or bottom (setting the
front seat height) . . . . . . . . . . . . . . . . .42
5.11 Setting the caster angle. . . . . . . . . . . . .44
5.12 Setting the wheel lock. . . . . . . . . . . . . .46
06 Technical documentation
How we at DIETZ take measurements . . . . . .48
Dimensions and weight . . . . . . . . . . . . . . . . .50
Maintenance log . . . . . . . . . . . . . . . . . . . . . .51
07 Safety instructions
Safety instructions. . . . . . . . . . . . . . . . . . . . .52
08 Notes on use
Notes on care . . . . . . . . . . . . . . . . . . . . . . . .54
Nameplates / Warnings . . . . . . . . . . . . . . . . .54
Serial number . . . . . . . . . . . . . . . . . . . . . . . .54
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Sharing and re-use . . . . . . . . . . . . . . . . . . . .55
09 Warranties
Guarantee. . . . . . . . . . . . . . . . . . . . . . . . . . .56
Declaration of conformity . . . . . . . . . . . . . . .56
Responsibility . . . . . . . . . . . . . . . . . . . . . . . .57
Liability. . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

INTENDED USE
The AS[01] wheelchair has been designed for indoor and outdoor use. It is
solely intended for self-transport and the transport of third party persons.
The AS[01] is designed for a maximum load of 125 kg or 150 kg. You can
verify this information on the nameplate attached to the frame. When atta-
ching accessories in particular (e.g., electric drives), be sure that you do not
exceed the maximum load.
Indication
This wheelchair supports individuals who are unable to walk or have
a severe walking disability due to
wParalysis
wLoss of limbs
wDefective/deformed limbs
wJoint contractures/joint damage (not on both arms)
wOther illnesses
Counter-indication
This wheelchair may not be used in the event of
tSensory disorders
tSevere vertigo
tLoss of limbs on both arms
tJoint contractures/joint damage on both arms
tInability to sit
tReduced or insufficient eyesight
01 IMPORTANT INFORMATION 01 IMPORTANT INFORMATION
8
DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN

WARNING
You must observe all warnings.
They draw your attention to the
fact that there is a risk of injury
CAUTION
Alerts you to possible damage
due to improper operation or use
NOTE
Here you will receive tips and
advice that make it easier to use
the wheelchair functions
ICONS AND SYMBOLS
These symbols mark text passages that are hel-
pful for the use and operation of the product in
daily life.
01 IMPORTANT INFORMATION 01 IMPORTANT INFORMATION
9

02 PRODUCT DESCRIPTION 02 PRODUCT DESCRIPTION
10
DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN
The AS[01] comes completely assembled from the factory. Before rst use,
you only have to unfold the wheelchair and attach the leg rests. In the follo-
wing chapter, you will nd notes on how to prepare the wheelchair for use
and how to use it.
In chapter »03 Commissioning«, you will nd explanations of all the
setting options you can make without tools to adjust the wheelchair to sa-
tisfy your needs.
In chapter »05 Settings«, from page 27 you will nd explanation on the
more complex settings such as seat height, angle, etc. for optimal adjustment.
Scope of delivery
n Wheelchair corresponding to the configuration selected
n Leg rests (pair)
n Operating instructions
n Accessories (if selected)

02 PRODUCT DESCRIPTION 02 PRODUCT DESCRIPTION
11
STRUCTURE OF THE AS[01]
The AS[01] can be configured in many variants, enabling it to be
optimally adjusted to the user.
Basic components
Foot rest /
Foot plate
Leg rests
Caster arms Caster
Side piece with clothing
guard and wheel cover
Thru axle
Drive wheel
Wheel lock
Handrails
Drive wheel
adapter plate
Push handle, optionally
with brake lever for
accompanying person

12
03 COMMISSIONING THE WHEELCHAIR 03 COMMISSIONING THE WHEELCHAIR
DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN

COMMISSIONING THE WHEELCHAIR
The AS[01] comes completely assembled from the factory. Before rst use,
you only have to unfold the wheelchair and attach the leg rests. In the follo-
wing chapter, you will nd notes on how to unfold the wheelchair and pre-
pare it for use. You will also nd explanations of all the setting options you
can make without tools to adjust the wheelchair to optimally satisfy your
needs.
You will nd explanations on more complex settings such as seat height,
angle, etc. in chapter »05 Settings« from page 27.
13
03 COMMISSIONING THE WHEELCHAIR 03 COMMISSIONING THE WHEELCHAIR

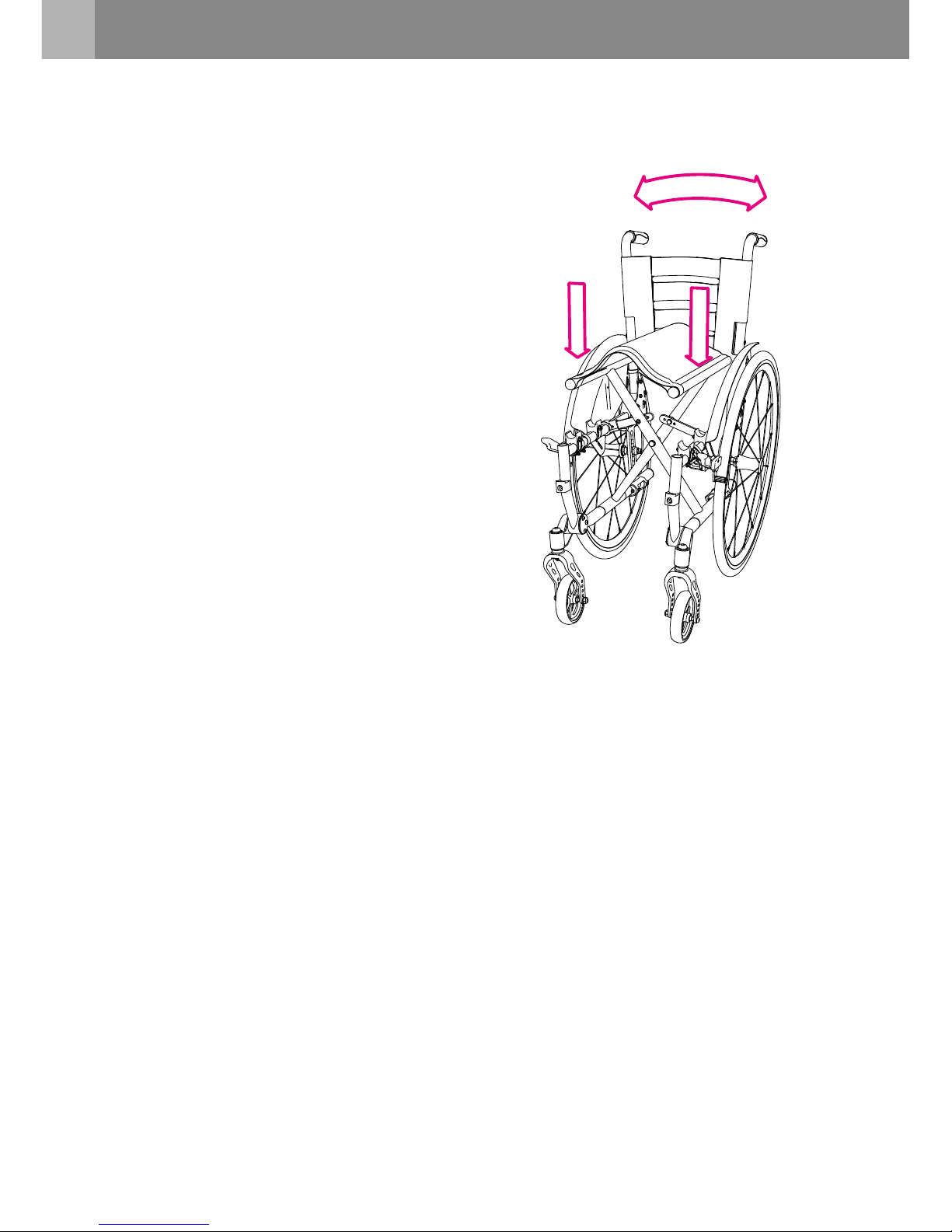

3.1 Unfolding the wheelchair
Using both hands, press the left and right seat
tubes downward at the same time. The wheel-
chair will now unfold itself automatically.
When the wheelchair is completely unfolded,
please verify that both seat tubes are correctly
seated in their intended holders.
Next, put the back pad in place and close the
Velcro on the other side, at the lower end of the
back.
14
03 COMMISSIONING THE WHEELCHAIR 03 COMMISSIONING THE WHEELCHAIR
DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN

3.2 Folding the wheelchair
First undo the Velcro on the lower end of the
back pad (beneath the seat).
NOTE
The back pad can remain on the
wheelchair and must not be
removed completely.
Now grasp the centre of the seat pad at the front
and back. Pull upward. The wheelchair will now
fold itself automatically.
15
03 COMMISSIONING THE WHEELCHAIR 03 COMMISSIONING THE WHEELCHAIR

3.3 Attaching the leg rests
From above, insert the upper pin of the leg rest
into its intended holder.
Now swivel the leg rest to the front in the direc-
tion of travel.
You will hear and feel it snap into place.
16
03 COMMISSIONING THE WHEELCHAIR 03 COMMISSIONING THE WHEELCHAIR
DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN

3.4 Foot rests / Foot plate
Swivel the foot rests or foot plate (optional)
downward to put them in the correct position.
Depending on the installation side, the foot plate
can be swivelled upward towards the left or the
right.
17
03 COMMISSIONING THE WHEELCHAIR 03 COMMISSIONING THE WHEELCHAIR

3.5 Adjusting the back straps
First remove the back pad (see no. 3.2).
The four Velcro straps are now easily accessible.
Release the straps and adjust the length until
you have found a comfortable sitting position.
Replace the back pad.
3.6 Changing the seat depth
First release the Velcro strap at the bottom front
of the seat pad and then the strap from the seat
tubes at the sides.
Now you can push the strap to the rear under-
neath the seat. This will raise the seat 3 cm.
18
03 COMMISSIONING THE WHEELCHAIR 03 COMMISSIONING THE WHEELCHAIR
DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN

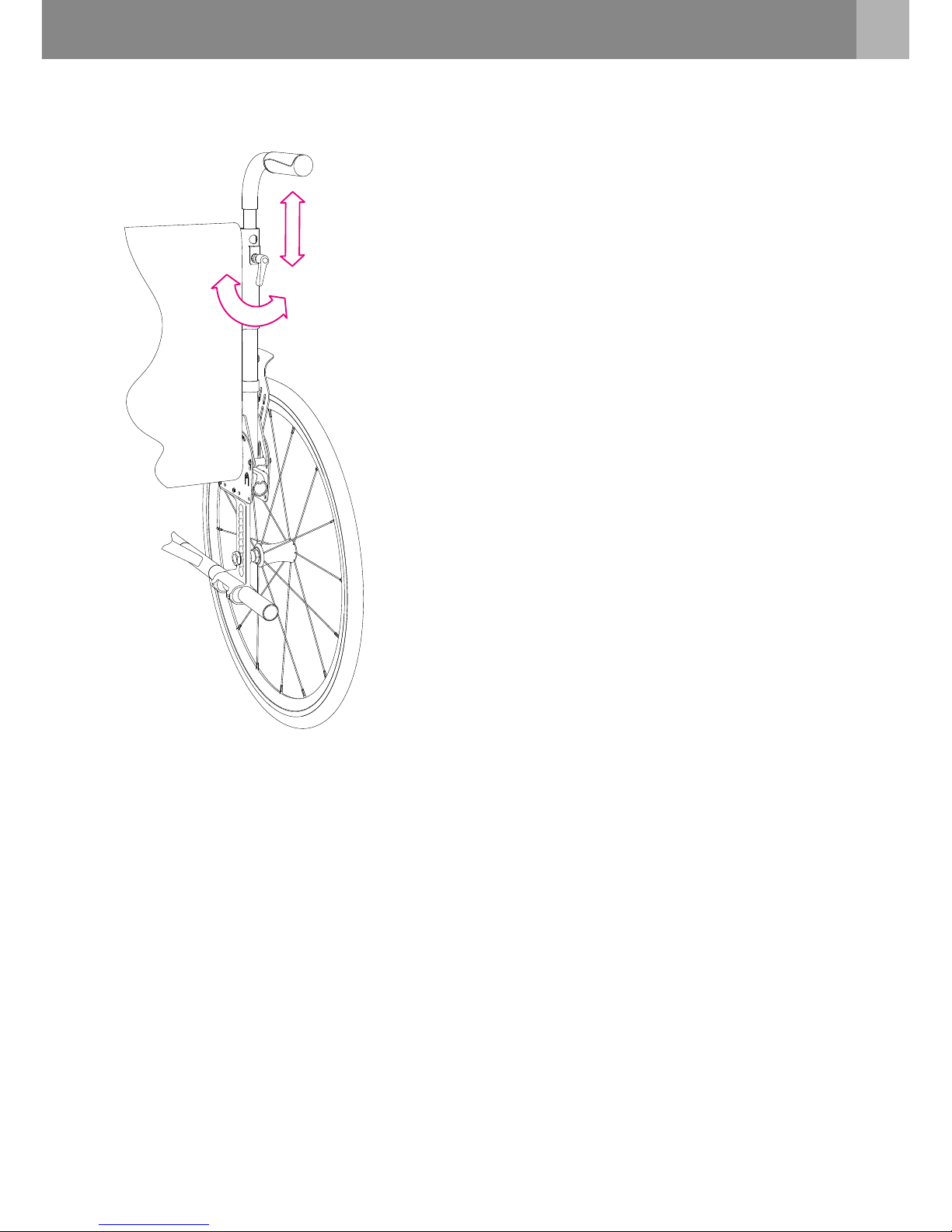

3.7 Changing the push handle height
(optional)
Turn the T-screws once or twice to loosen it. Now
pull or push the push handle to the required
height and re-tighten the T-screws.
19
03 COMMISSIONING THE WHEELCHAIR 03 COMMISSIONING THE WHEELCHAIR

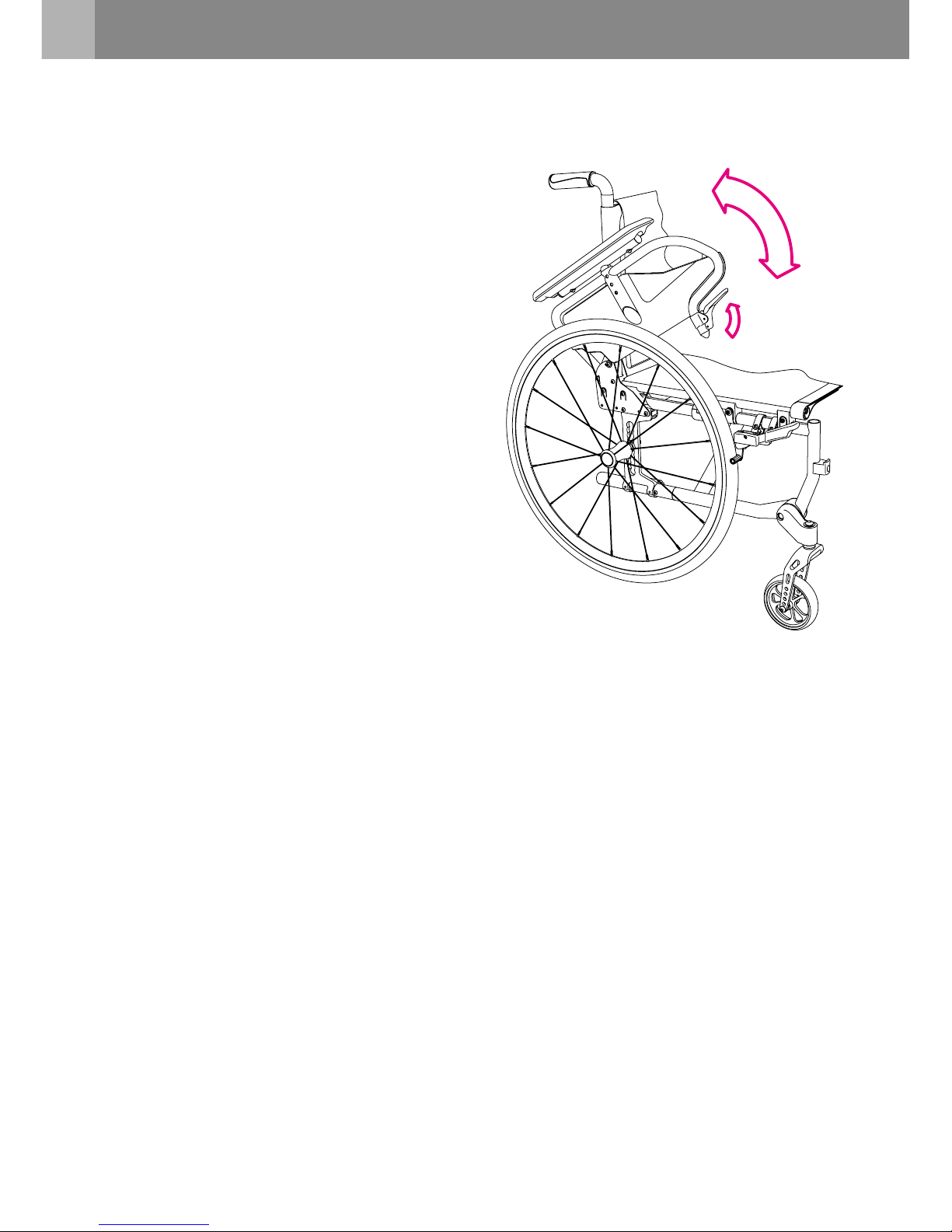

3.8 Swivelling the side pieces upward
(optional)
To make it easier to sit down, get up and transfer
sideways, you can swivel the side pieces upward /
to the rear.
To do this, pull the locking lever slightly upward.
The side piece is no longer locked and you can
swivel the complete side piece to the rear /
upward.
You will hear and feel it automatically lock into
place again if you push the side piece back
downward into the starting position.
20
03 COMMISSIONING THE WHEELCHAIR 03 COMMISSIONING THE WHEELCHAIR
