Folding wheelchair for heavy loads
Operating instructions
Version 2.0.0

Product group: Manual wheelchair
Product: Folding wheelchair for heavy loads
User’s manual Version 2.0.0. EN
State 04/2018 (LA/BL)
DIETZ GmbH
Reutäckerstraße 12
76307 Karlsbad
Tel.: [phone]
Fax: [phone]
[email protected]
www.dietz-reha.de
© 2017 DIETZ GmbH · Pictures and Illustrations in
this user manual may differ from the actual product.
2
DIETZ GmbH / Operating instructions / Folding wheelchair for heavy loads CANEO_XL / Version 2.0.0 EN
OPERATING INSTRUCTIONS CANEO_XL

Thank you for purchasing a CANEO_XL
wheelchair for heavy loads from DIETZ Reha
Produkte.
Please read these operating instructions carefully before first using the
wheelchair. They contain important safety instructions and valuable tips
on correctly using and caring for the wheelchair. If you have any ques-
tions or require additional information, please contact the specialist re-
tailer which supplied the wheelchair to you.
These operating instructions contain all of the instructions necessary for
adjusting and operating the CANEO_XL wheelchair.
3
DIETZ GmbH / Operating instructions / Folding wheelchair for heavy loads CANEO_XL / Version 2.0.0 EN
DE
EN
FR
IT
NL
OPERATING INSTRUCTIONS CANEO_XL
NOTE
For better visibility find our user
manual also online under
www.dietz-reha.de as PDF
file with zoom function.

4
DIETZ GmbH / Operating instructions / Folding wheelchair for heavy loads CANEO_XL / Version 2.0.0 EN
CONTENTS
01 Information
Intended purpose . . . . . . . . . . . . . . . . . . . . . .6
Indication . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Contraindication . . . . . . . . . . . . . . . . . . . . . . .6
Warning symbols. . . . . . . . . . . . . . . . . . . . . . .7
02 Product description
Scope of delivery. . . . . . . . . . . . . . . . . . . . . . .8
The CANEO_XL‘s equipment . . . . . . . . . . . . . .9
03 Putting into operation
Preparing the wheelchair for use . . . . . . . . . .11
3.1 Folding apart . . . . . . . . . . . . . . . . . . . .12
3.2 Back upholstery . . . . . . . . . . . . . . . . . .13
3.3 Leg rests . . . . . . . . . . . . . . . . . . . . . . .13
3.4 Foot plates / board . . . . . . . . . . . . . . . .14
3.5 Removing and connecting
the rear wheels . . . . . . . . . . . . . . . . . .15
3.6 Seat depth . . . . . . . . . . . . . . . . . . . . . .16
3.7 Lower leg length. . . . . . . . . . . . . . . . . .17
04 Drive mode

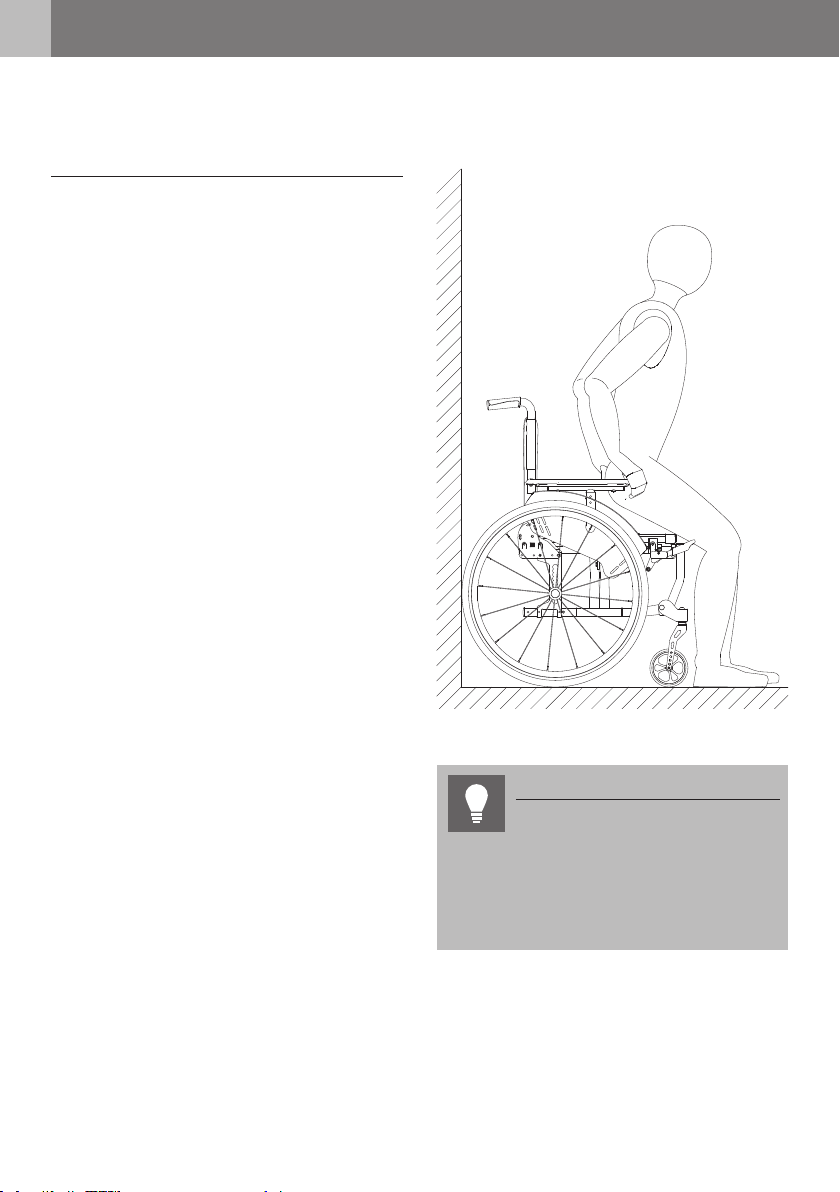

4.1 Getting in and out of
your wheelchair . . . . . . . . . . . . . . . . . .18
4.2 Swivelling the side panels back . . . . . .20
4.3 Folding up the foot plates . . . . . . . . . .20
4.4 Swivelling away and detaching
the leg rests . . . . . . . . . . . . . . . . . . . . .21
4.5 Propelling and slowing down the
wheelchair with the push rims. . . . . . . .22
4.6 Locking brakes . . . . . . . . . . . . . . . . . . .23
4.7 Braking by an accompanying
person (optional) . . . . . . . . . . . . . . . . .24
4.8 Anti-tip wheels (optional) . . . . . . . . . . .25
4.9 Tilting aids . . . . . . . . . . . . . . . . . . . . . .25
4.10 Transporting and folding together . . . . .26
4.11 Safety belt (optional). . . . . . . . . . . . . . .27

5
DIETZ GmbH / Operating instructions / Folding wheelchair for heavy loads CANEO_XL / Version 2.0.0 EN
DE
EN
FR
IT
NL
05 Adjustments for individual settings
Important note about the adjustments . . . . .28
5.1 Locking brakes . . . . . . . . . . . . . . . . . . .28
5.2 Drum brakes (optional) . . . . . . . . . . . . .29
5.3 Backrest . . . . . . . . . . . . . . . . . . . . . . . .29
5.4 Arm rests . . . . . . . . . . . . . . . . . . . . . . .30
5.5 Seat height adjustment . . . . . . . . . . . .30
5.6 Extending the wheelbase . . . . . . . . . . .31
06 Technical data
Dietz‘s measurement system . . . . . . . . . . . . .32
Dimensions and weight . . . . . . . . . . . . . . . .34
Maintenance log . . . . . . . . . . . . . . . . . . . . . .35
07 General safety instructions
Safety instructions. . . . . . . . . . . . . . . . . . . . .36
CONTENTS
08 Instructions for general use
Checking the wheelchair by the user . . . . . . .38
Care instructions for the user. . . . . . . . . . . . .39
Labels / Serial number. . . . . . . . . . . . . . . . . .39
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Forwarding/Reusing . . . . . . . . . . . . . . . . . . .40
09 Guarantee
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Declaration of conformity . . . . . . . . . . . . . . .41
Responsibility . . . . . . . . . . . . . . . . . . . . . . . .41
Liability. . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

6
DIETZ GmbH / Operating instructions / Folding wheelchair for heavy loads CANEO_XL / Version 2.0.0 EN
01 INFORMATION
INTENDED PURPOSE
The CANEO_XL wheelchair has been designed for indoor and outdoor
use. It can be self-propelled by the patient or used with an accompa-
nying person to support.
The Caneo_XL is designed for a maximum load of 170 / 200 kg.This speci-
cation can be checked on the serial number sticker placed on the cross-
bar/frame.
INDICATION
Inability to walk or severely pronounced walking disability due to
wParalysis
wLoss of limbs
wLimb defect/deformation
wJoint contracture/joint damage (not on both arms)
wOther diseases
CONTRAINDICATION
Use of the wheelchair is unsuitable in the case of
t False sensations
t Severe disequilibrium
t Loss of limbs on both arms
t Joint contracture/joint damage on both arms
t Inability to sit
t Impaired or inadequate vision

CAUTION
Warnings about potential
dangers with the risk of injury of
the user or accompanying person.
NOTE
Valuable tips and tricks to help
you use your wheelchair.
ATTENTION
Warning about potential dangers
that might damage or destroy the
product.
7
DIETZ GmbH / Operating instructions / Folding wheelchair for heavy loads CANEO_XL / Version 2.0.0 EN
DE
EN
FR
IT
NL
01 INFORMATION 01 INFORMATION
SYMBOLS
Different symbols are used in this manual to give
you warnings about potential dangers and help-
ful advice for the daily use of your wheelchair.

8
DIETZ GmbH / Operating instructions / Folding wheelchair for heavy loads CANEO_XL / Version 2.0.0 EN
02 PRODUCT DESCRIPTION
The CANEO_XL wheelchair is packed in a cardboard box. Please keep
the packaging if possible; it can subsequently be used to store the
wheelchair if necessary.
The CANEO_XL is pre-assembled and very easy to set up. To get started
you simply have to unfold the wheelchair and click the leg rests into
place. In the following chapter you can find some information about
how to set up and use your wheelchair.
In chapter »03 Putting into operation« from page 11 you can find
information about simple settings and adjustments that can be done
without tools.
In chapter »05 Adjustments for individual settings« from page 26
you can find information about more complex settings to adjust the
wheelchair to your special requirements. Some of these adjustments
may only be carried out by trained service personnel.
SCOPE OF DELIVERY
On receipt of the wheelchair, please immediately check to make sure
that the contents are complete and undamaged.The contents consist of:
w1 set of cardboard box and packaging
w1 pre-assembled wheelchair
w1 padded back upholstery
w1 pair of leg supports, footboard and heel strap
w1 user’s manual
wAccessories (if selected)

9
DIETZ GmbH / Operating instructions / Folding wheelchair for heavy loads CANEO_XL / Version 2.0.0 EN
DE
EN
FR
IT
NL
02 PRODUCT DESCRIPTION

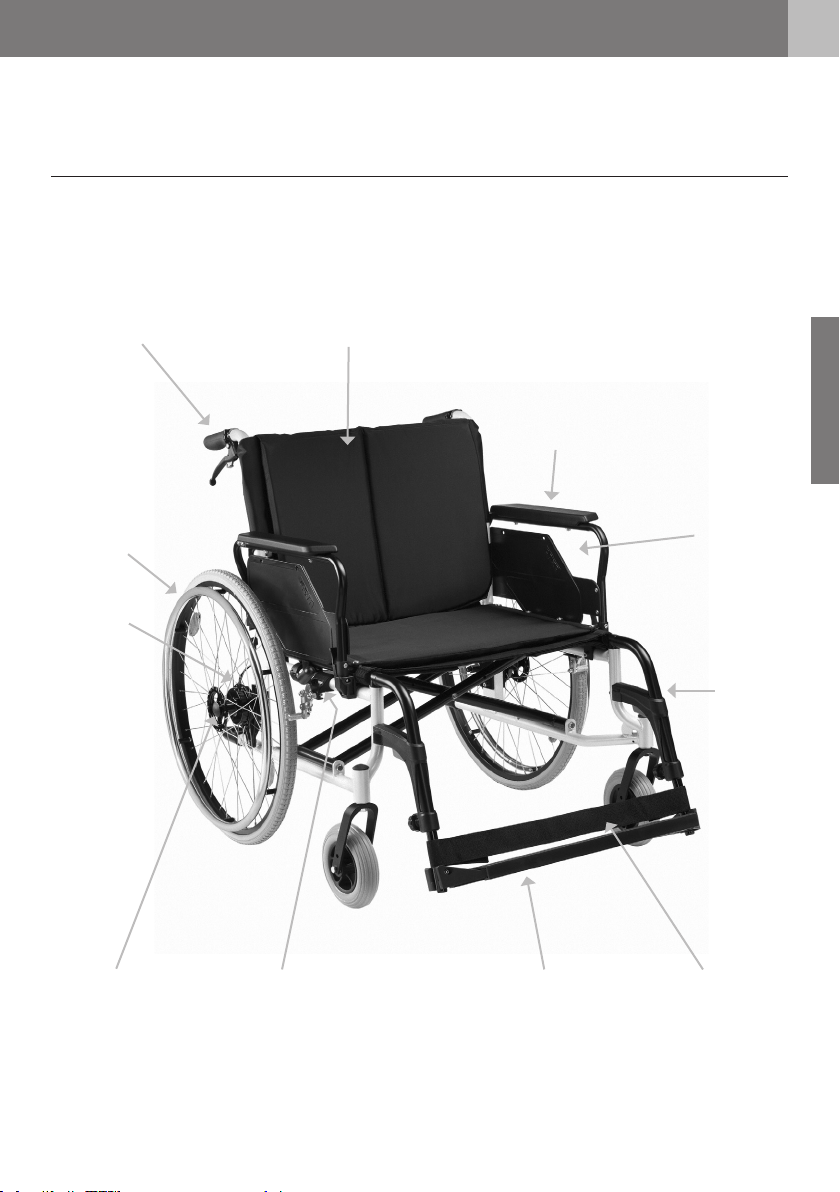

Locking brake Foot plate
Heel strap
Quick-release axle
Leg rest
Side panel
Armrest
Backrest
Push handles
Push rims
Curb climber
THE CANEO_XL’S EQUIPMENT
Basic components

10
DIETZ GmbH / Operating instructions / Folding wheelchair for heavy loads CANEO_XL / Version 2.0.0 EN

11
DIETZ GmbH / Operating instructions / Folding wheelchair for heavy loads CANEO_XL / Version 2.0.0 EN
DE
EN
FR
IT
NL
03 PUTTING INTO OPERATION
PREPARING THE WHEELCHAIR FOR USE
The CANEO_XL is pre-assembled and very easy to set up. To get started
you simply have to unfold the wheelchair and click the leg rests into
place. In this folowing chapter you can find some information about
how to set up and use your wheelchair. You can find information about
simple settings and adjustments that can be done without any tools.
Information about more complex adjustments like seat height etc. can
be found in chapter »05 Adjustments for individual settings«
from page 26.
CAUTION
Risk of trapping!
When folding and unfolding your wheelchair, pay attention
to your ngers and only grip the parts as seen in the
illustrations.

12
DIETZ GmbH / Operating instructions / Folding wheelchair for heavy loads CANEO_XL / Version 2.0.0 EN
03 PUTTING INTO OPERATION

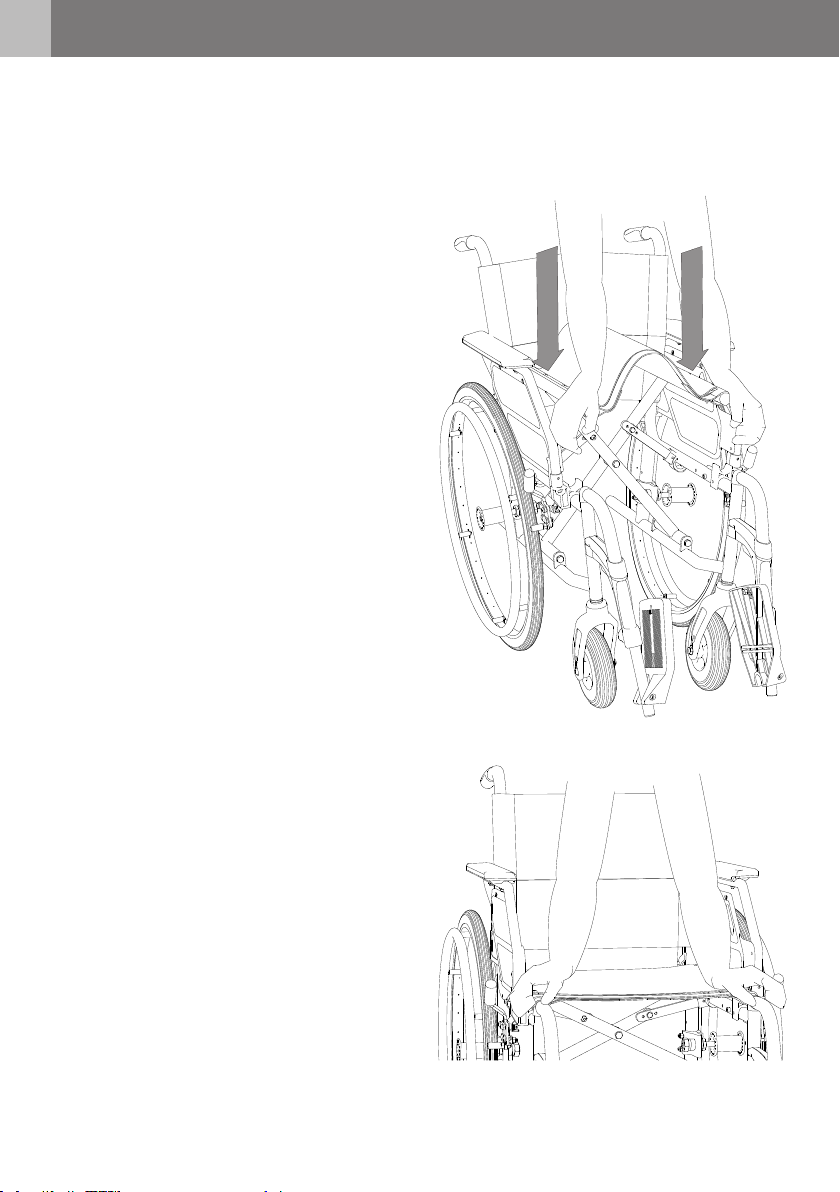

3.1 Folding apart
Position yourself next to the wheelchair and
tilt it slightly towards you. Then press the
crossbar apart with both your hands.
Make sure that the crossbar engages properly
in its sideframe brackets.

13
DIETZ GmbH / Operating instructions / Folding wheelchair for heavy loads CANEO_XL / Version 2.0.0 EN
DE
EN
FR
IT
NL
03 PUTTING INTO OPERATION

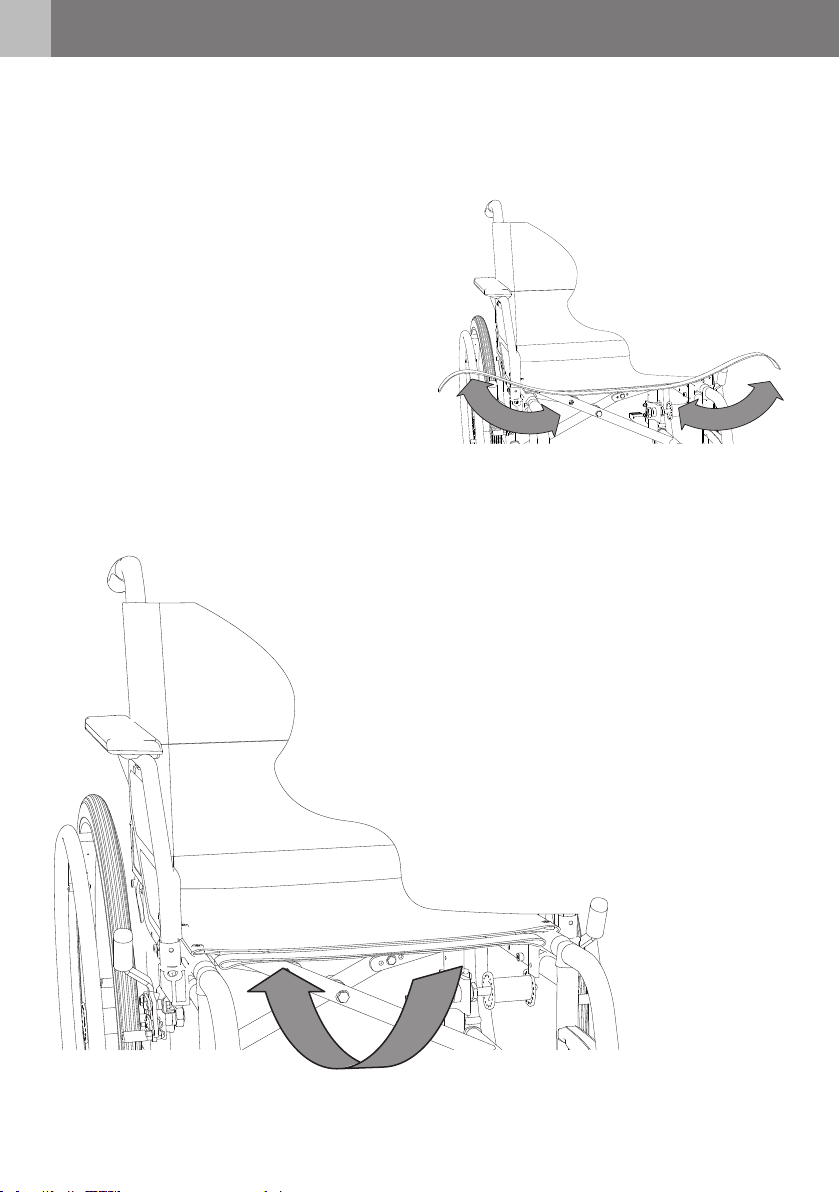

3.2 Back upholstery
Pull the backupholstery lid to the rear undersi-
de of the seat and secure it with the Velcro
strap; the gap between the backrest and the
seat surface is now closed.

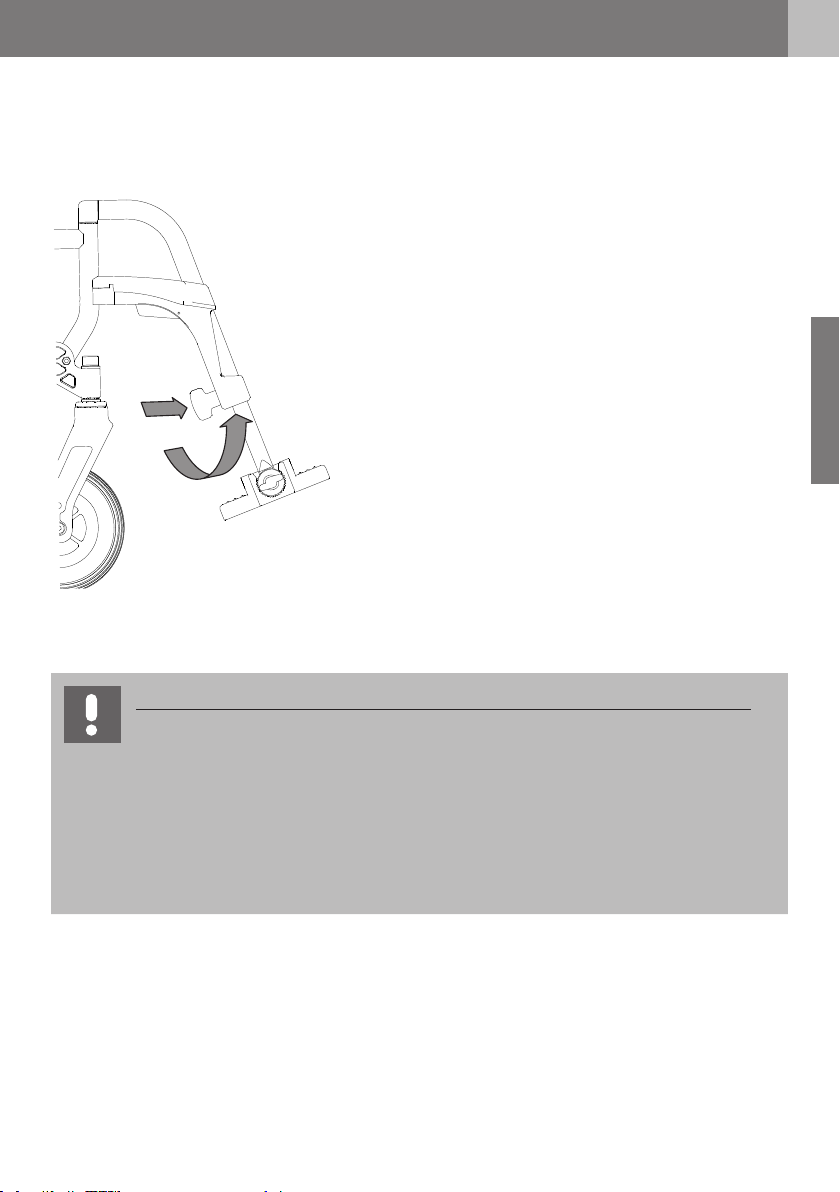

3.3 Leg rests
Hook the leg supports in and swivel them for-
wards. The leg rest will then click into place
automatically.

14
DIETZ GmbH / Operating instructions / Folding wheelchair for heavy loads CANEO_XL / Version 2.0.0 EN
03 PUTTING INTO OPERATION
3.4 Foot plates / board
Finally slide the footboard on one of the two
plates and fold it down until it rests securely
on the other foot plate and attach the heel
strap.

15
DIETZ GmbH / Operating instructions / Folding wheelchair for heavy loads CANEO_XL / Version 2.0.0 EN
DE
EN
FR
IT
NL
3.5 Removing and connecting the rear
wheels
In some situations it is helpful to remove the
rear wheels.
Press the button on the quick-release axle and
hold the hub with four fingers. Then pull the
rear wheel out of the axle mounting.
To connect the rear wheels, press the quick-re-
lease axle button with your thumb again. Now
insert the axle into the axle mounting; the
quick-release axle will engage automatically.
ATTENTION
After connecting the wheels
make sure that the quick-release
axles are engaged properly.
NOTE
Push the quick-release button
while engaging the wheels. The
axle/wheel will engage a lot
easier.
03 PUTTING INTO OPERATION

16
DIETZ GmbH / Operating instructions / Folding wheelchair for heavy loads CANEO_XL / Version 2.0.0 EN
3.6 Seat depth
The wheelchair is always delivered with the
maximum possible seat depth. To reduce the
seat depth, first remove the leg supports. Next,
open the Velcro straps on the right and left of
the seat frame. Secure the Velcro straps to the
extension so that they are no longer wrapped
around the frame. Fold the extension beneath
the seat and fasten the Velcro straps to secure
it there.
Carry the procedure out in the opposite se-
quence to increase the seat depth.
03 PUTTING INTO OPERATION

17
DIETZ GmbH / Operating instructions / Folding wheelchair for heavy loads CANEO_XL / Version 2.0.0 EN
DE
EN
FR
IT
NL
03 PUTTING INTO OPERATION
3.7 Lower leg length
The setting is correct when your upper legs are
horizontal with your feet positioned on the
foot plates.
To adjust, release the adjustment screw one
quarter of a turn and pull the locking mecha-
nism backwards. Move the foot plate to a
comfortable position and release the locking
mechanism again. The mechanism automati-
cally locks in the next position. Then tighten
the adjustment screw securely again.
ATTENTION
Take note that the CANEO_XL is an oversized wheelchair. Depending on the
model and it‘s seatwidth (56/60 cm) the wheelchair may not fits through every
door.
Always ensure that the wheelchair is not parked in direct vicinity of emergency
exits and escape routes and blocks them.

18
DIETZ GmbH / Operating instructions / Folding wheelchair for heavy loads CANEO_XL / Version 2.0.0 EN
04 DRIVE MODE
DRIVE MODE
4.1 Getting in and out of your
wheelchair
Different handicaps allow more or less
manoeuvrability.
To get in and out of your wheelchair easily and
safely, the following tips can be helpful.
NOTE
To stop the wheelchair from rolling
or sliding away while getting
seated, it is helpful to place both
rear wheels against a wall.
04 DRIVE MODE

19
DIETZ GmbH / Operating instructions / Folding wheelchair for heavy loads CANEO_XL / Version 2.0.0 EN
DE
EN
FR
IT
NL
04 DRIVE MODE 04 DRIVE MODE
Getting into your wheelchair
1. Take off the leg rests (see chapter 4.4).
2. If possible, place the wheelchair’s rear wheels against a wall to
avoid any roll-off.
3. Apply both locking brakes.
4. Place yourself in front of the wheelchair. Then carefully move back-
wards until your legs touch the seat.
5. Now grab the armrest with your hands.
6. You can now sit down slowly and safely.
7. Put the leg rests back into place.
8. Fold the foot plates down (see chapter 3.4).
Getting out of your wheelchair
Carry the procedure out in the opposite sequence.
NOTE
To transfer sideways, you can swing away the side panels
(see chapter 4.2).

20
DIETZ GmbH / Operating instructions / Folding wheelchair for heavy loads CANEO_XL / Version 2.0.0 EN
4.2 Swivelling the side panels back
To swivel up, press the locking lever and pull
the side panel upwards.
The side panel engages automatically on swi-
velling back.
This engagement is clearly audible.
4.3 Folding the foot plates up
Fold the foot plates up to make entering and
exiting easier.
The foot plates must be folded up to save spa-
ce when folding the wheelchair together.
04 DRIVE MODE 04 DRIVE MODE
