Dietz AS[01] User manual

EN
User manual adaptive
wheelchair Version 2.0.0

2
DIETZ GmbH / User manual adaptive wheelchair AS[01] | AS[01]RF / Version 2.0.0 EN
Product group: Manual wheelchairs
Product: AS[01] | AS[01]RF adaptive wheelchair
User manual Version 2.0.0 EN
State 07/2018 (LA / RPO)
DIETZ GmbH
Reutäckerstraße 12
76307 Karlsbad
Tel.: +49 7248.9186-0
Fax: +49 7248.9186-86
www.dietz-reha.de
Misprint, falsities, price and product changes reserved.
© DIETZ GmbH Reha-Produkte, Karlsbad
Reproduction, also extracts, by written permission from
DIETZ GmbH, Karlsbad only.

3
DE
EN
FR
IT
NL
USER MANUAL AS[01] | AS[01]RF
NOTE
For better visibility find our user
manual also online under
www.dietz-reha.de as PDF
file with zoom function.
Thank you for deciding to purchase the
AS[01] | AS[01]RF adaptive wheelchair
from DIETZ
This wheelchair is a medical aid. In order to use it properly and avoid pos-
sible risks due to unintended use, you must become thoroughly familiar
with its operation.
FOR THIS REASON, PLEASE:
Read these operating instructions carefully before you begin to use your
new AS[01] | AS[01]RF.They contain important notes that will allow you to
use the wheelchair‘s technical advantages to the fullest extent.
You will also receive information related to the operational and trafc-re-
la- ted safety of your adaptive wheelchair and nd out how to retain as
much of its value as possible.
If you require more information on product performance, please contact
your medical supplies shop.

4
DIETZ GmbH / User manual adaptive wheelchair AS[01] | AS[01]RF / Version 2.0.0 EN
CONTENTS
01 Information
Intended purpose . . . . . . . . . . . . . . . . . . . . . .6
Indication . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Counter-indication. . . . . . . . . . . . . . . . . . . . . .6
Icons and symbols. . . . . . . . . . . . . . . . . . . . . .7
02 Product description
Scope of delivery . . . . . . . . . . . . . . . . . . . . . . .8
Information on the overall dimensions . . . . . . .8
Structure of the AS[01] . . . . . . . . . . . . . . . . . .9
Structure of the AS[01]RF . . . . . . . . . . . . . . .10
03 Putting into operation
3.1 Unfolding the wheelchair . . . . . . . . . . .12
3.2 Folding the wheelchair . . . . . . . . . . . . .13
3.3 Attaching the leg rests only AS[01] . . . .14
3.4 Foot rests / Foot plate . . . . . . . . . . . . . .15
3.5 Adjusting the back straps . . . . . . . . . . .16
3.6 Changing the seat depth. . . . . . . . . . . .16
3.7 Changing the push handle height . . . . .17
3.8 Swivelling the side pieces upward . . . .18
3.9 Removing and attaching
the rear wheels. . . . . . . . . . . . . . . . . . .19
04 Drive mode
4.1 Sitting down and getting up . . . . . . . . .20
4.2 Using the handrails to propel
and stop the wheelchair . . . . . . . . . . . .22
4.3 Using the wheel lock to
stop the wheelchair. . . . . . . . . . . . . . . .22
4.4 Brake for accompanying person
(optional) . . . . . . . . . . . . . . . . . . . . . . .23
4.5 Transporting . . . . . . . . . . . . . . . . . . . . .24
Transport of the wheelchair
without wheelchair users . . . . . . . . . . .24
Using wheelchair as a passenger
seat in a vehicle . . . . . . . . . . . . . . . . . .25
Securing the wheelchair
restraint system. . . . . . . . . . . . . . . . . . .26
Wheelchair occupant restraint
system . . . . . . . . . . . . . . . . . . . . . . . . .27

5
DE
EN
FR
IT
NL
CONTENTS
05 Adjustments for individual settings
Important Note . . . . . . . . . . . . . . . . . . . . . . .29
5.1 Arm rests (optional) . . . . . . . . . . . . . . .29
5.2 Changing the lower leg length . . . . . . .30
5.3 Changing the foot rest /
foot plate angle (optional). . . . . . . . . . .30
5.4 Setting the back angle . . . . . . . . . . . . .31
5.6 Setting the rear seat height . . . . . . . . . .32
5.7 Setting the rear wheel position
(active / passive) . . . . . . . . . . . . . . . . . .34
5.8 Setting the rear wheel camber. . . . . . . .36
5.9 Setting the front seat height . . . . . . . . .38
5.10 Assembling the caster arms
at the top or bottom
(setting the front seat height) . . . . . . . .41
5.11 Setting the caster angle. . . . . . . . . . . . .43
5.12 Setting the wheel locks . . . . . . . . . . . . .44
06 Technical data
How we at DIETZ take measurements . . . . . .46
Dimension AS[01] . . . . . . . . . . . . . . . . . . . . .48
Dimension AS[01]RF without frame
retraction . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Dimension AS[01]RF with frame retraction . . .50
Maintenance log . . . . . . . . . . . . . . . . . . . . . .51
07 Safety Instructions
Safety Instructions. . . . . . . . . . . . . . . . . . . . .52
08 Instructions for general use
Checking the wheelchair by the user . . . . . . .54
Care instructions for the user. . . . . . . . . . . . .55
Serial number . . . . . . . . . . . . . . . . . . . . . . . .55
Disposal / Recycling. . . . . . . . . . . . . . . . . . . .55
Produkt Labels . . . . . . . . . . . . . . . . . . . . . . .56
Forwarding / Reusing . . . . . . . . . . . . . . . . . .57
09 Manufacturer‘s declarations
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Life Time . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Declaration of conformity . . . . . . . . . . . . . . .58
Product test . . . . . . . . . . . . . . . . . . . . . . . . .59
Responsiblity. . . . . . . . . . . . . . . . . . . . . . . . .59
Liability. . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

6
DIETZ GmbH / User manual adaptive wheelchair AS[01] | AS[01]RF / Version 2.0.0 EN
INTENDED PURPOSE
The AS[01] | AS[01]RF wheelchair has been designed for indoor and out-
door use. It is solely intended for self-transport and the transport of third
party persons.
The AS[01] | AS[01]RF ] is designed for a maximum load of 125 kg or 150
kg. You can verify this information on the nameplate attached to the
frame. When atta- ching accessories in particular (e.g., electric drives), be
sure that you do not exceed the maximum load.
INDICATION
This wheelchair supports individuals who are unable to walk or have a
severe walking disability due to
wParalysis
wLoss of limbs
wDefective/deformed limbs
wJoint contractures/joint damage (not on both arms)
wOther illnesses
COUNTER-INDICATION
tThis wheelchair may not be used in the event of
tSensory disorders
tSevere vertigo
tLoss of limbs on both arms
tJoint contractures/joint damage on both arms
tInability to sit
tReduced or insufficient eyesight
01 INFORMATION 01 INFORMATION

7
DE
EN
FR
IT
NL
ICONS AND SYMBOLS
These symbols mark text passages that are hel-
pful for the use and operation of the product in
daily life.
01 INFORMATION 01 INFORMATION
NOTE
Here you will receive tips and
advice that make it easier to use
the wheelchair functions
CAUTION
Alerts you to possible damage
due to improper operation or
use
WARNING
You must observe all warnings.
They draw your attention to the
fact that there is a risk of injury

8
DIETZ GmbH / User manual adaptive wheelchair AS[01] | AS[01]RF / Version 2.0.0 EN
The AS[01] | AS[01]RF comes completely assembled from the factory. Be-
fore rst use, you only have to unfold the wheelchair and attach the leg
rests. In the follo- wing chapter, you will nd notes on how to prepare the
wheelchair for use and how to use it.
SCOPE OF DELIVERY
On receipt of the wheelchair, please immediately check to make sure that
the contents are complete and undamaged. The contents consist of:
n 1 set of cardboard box and packaging
n Wheelchair corresponding to the configuration selected
n Leg rests (pair) only for AS[01]
n User manual
n Accessories (if selected)
INFORMATION ON THE OVERALL DIMENSIONS
The AS[01] | AS[01]RF can be congured to suit the user’s needs. Depend-
ing on the accessories selected in combination with the seat width, the
product may exceed the recommended overall width of 70 cm.
02 PRODUCT DESCRIPTION

9
DE
EN
FR
IT
NL

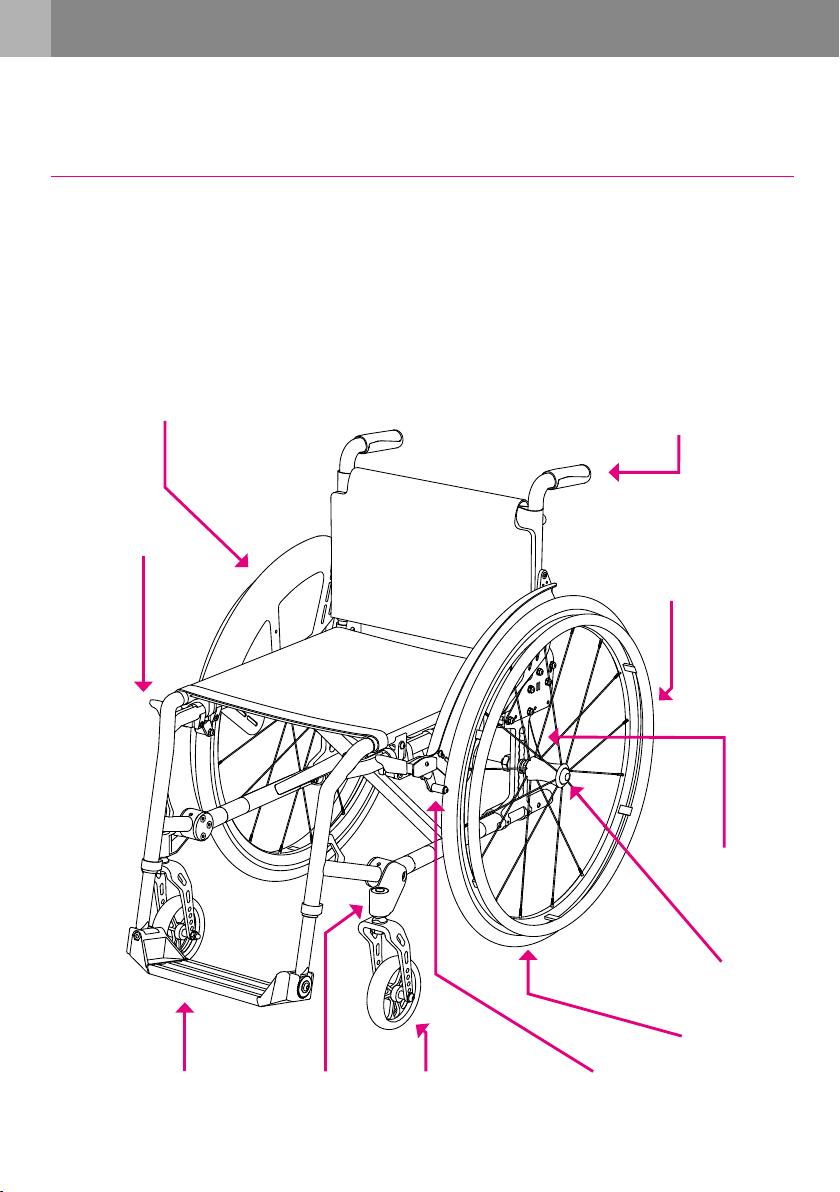

STRUCTURE OF THE AS[01]
The AS[01] can be configured in many variants, enabling it to be optimally
adjusted to the user. The overview shows, representative for all models, the
most important components of the wheelchair.
Basic components
Foot rest /
Foot plate
Leg rests
removable
Caster arms Caster
Side piece with clothing
guard and wheel cover
Thru axle
Drive wheel
Wheel lock
Handrails
Drive wheel
adapter plate
Push handle, optionally
with brake lever for
accompanying person
02 PRODUCT DESCRIPTION

10
DIETZ GmbH / User manual adaptive wheelchair AS[01] | AS[01]RF / Version 2.0.0 EN
STRUCTURE OF THE AS[01]RF
The AS[01]RF can be configured in many variants, enabling it to be optimally
adjusted to the user. The overview shows, representative for all models, the
most important components of the wheelchair.
Basic components
Foot rest /
Foot plate
Leg rests
integrated
Caster arms Caster
Side piece with clothing
guard and wheel cover
Thru axle
Drive wheel
Wheel lock
Handrails
Drive wheel
adapter plate
Push handle, optionally
with brake lever for
accompanying person
02 PRODUCT DESCRIPTION

11
DE
EN
FR
IT
NL
PREPARING THE WHEELCHAIR FOR USE
The AS[01] comes completely assembled from the factory. Before rst use,
you only have to unfold the wheelchair and attach the leg rests. In the
follo- wing chapter, you will nd notes on how to unfold the wheelchair
and pre- pare it for use. You will also nd explanations of all the setting
options you can make without tools to adjust the wheelchair to optimally
satisfy your needs.
In chapter »03 Putting into operation«, you will nd explanations of
all the setting options you can carry out without tools to adjust the wheel-
chair to satisfy your needs.
In chapter »05 Adjustments for individual settings«, you will nd
explanations on the more complex settings such as seat height, angle, etc.
for optimal adjustment.
NOTE
First operation should be carried out by trained personnel of
the medical supplies shop.
03 PUTTING INTO OPERATION

12
DIETZ GmbH / User manual adaptive wheelchair AS[01] | AS[01]RF / Version 2.0.0 EN
03 PUTTING INTO OPERATION 03 PUTTING INTO OPERATION

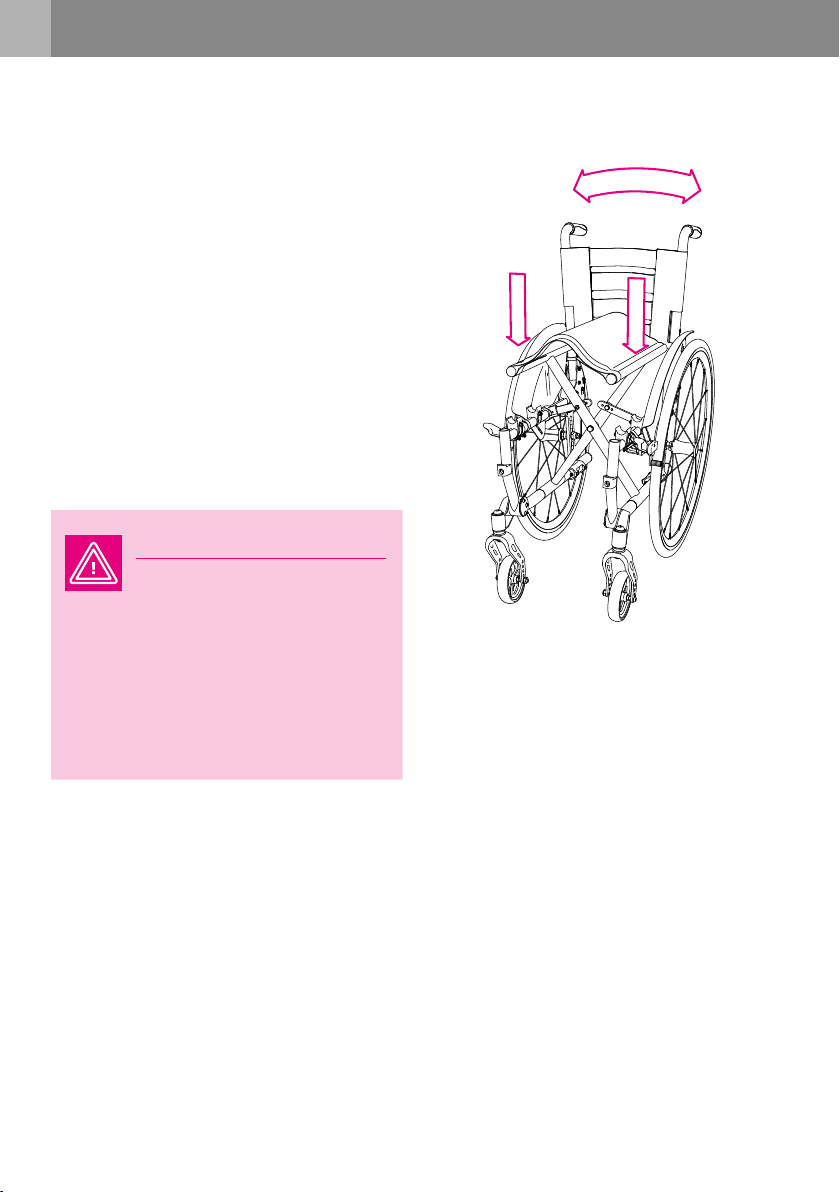

3.1 Unfolding the wheelchair
Using both hands, press the left and right seat
tubes downward at the same time. The wheel-
chair will now unfold itself automatically.
When the wheelchair is completely unfolded,
please verify that both seat tubes are correctly
seated in their intended holders.
Next, put the back pad in place and close the
Velcro on the other side, at the lower end of
the back.
WARNING
Risk of trapping!
When folding and unfolding
your wheelchair, pay attention
to your fingers and only grip
the parts as seen in the
illustrations.

13
DE
EN
FR
IT
NL
03 PUTTING INTO OPERATION 03 PUTTING INTO OPERATION

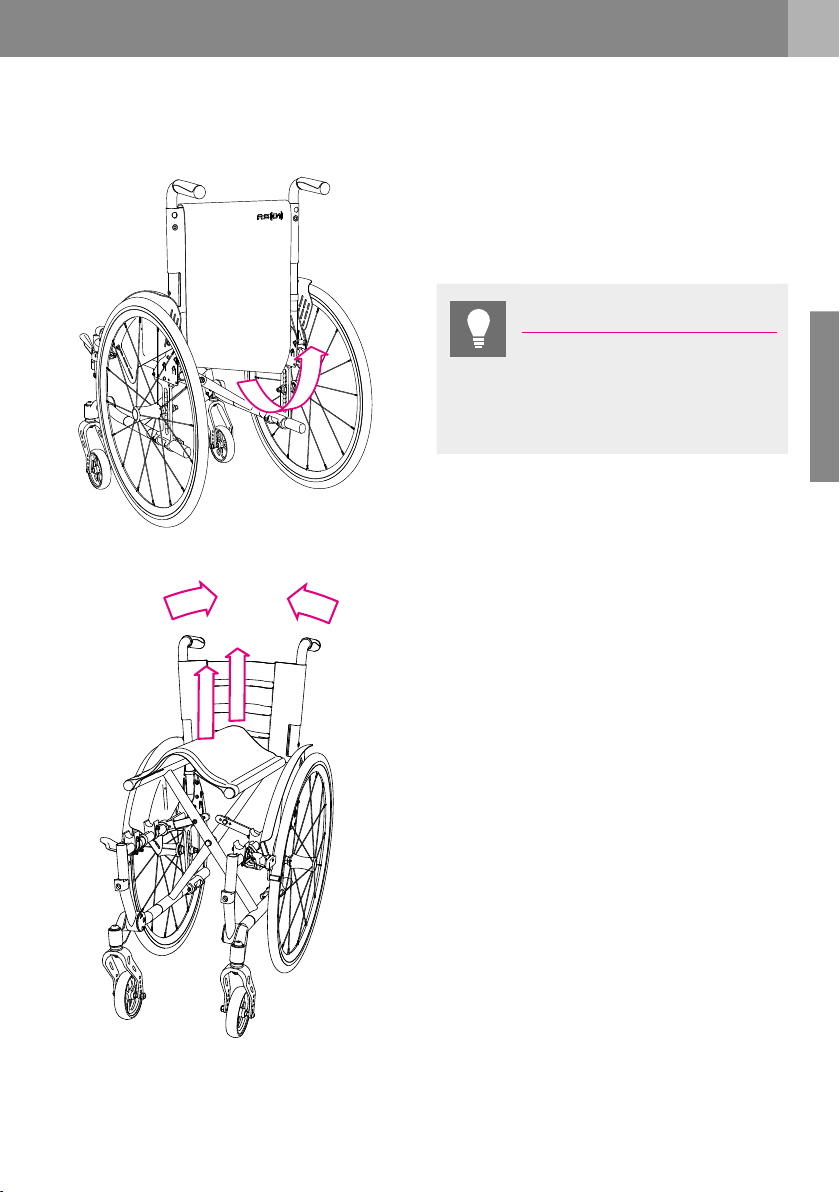

3.2 Folding the wheelchair
First undo the Velcro on the lower end of the
back pad (beneath the seat).
NOTE
The back pad can remain on the
wheelchair and must not be
removed completely.
ow grasp the centre of the seat pad at the front
and back. Pull upward. The wheelchair will now
fold itself automatically.

14
DIETZ GmbH / User manual adaptive wheelchair AS[01] | AS[01]RF / Version 2.0.0 EN
3.3 Attaching the leg rests
only AS[01]
From above, insert the upper pin of the leg rest
into its intended holder.
Now swivel the leg rest to the front in the direc-
tion of travel.
You will hear and feel it snap into place.
03 PUTTING INTO OPERATION 03 PUTTING INTO OPERATION
WARNING
Before any actions on the leg
rests the wheelchair is to be
secured against unintentional
rolling motions.

15
DE
EN
FR
IT
NL

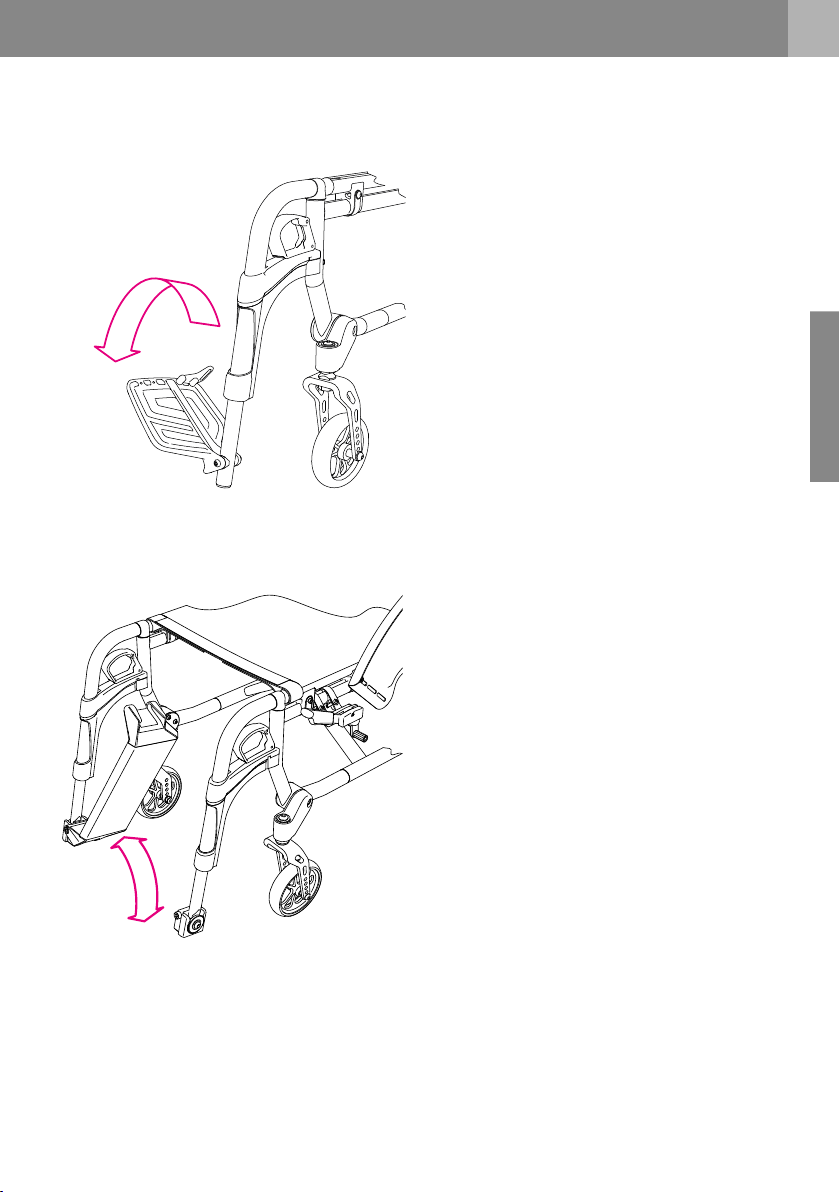

3.4 Foot rests / Foot plate
Swivel the foot rests or foot plate (optional) up-
ward or downward to put them in the correct
position.
Depending on the installation side, the foot
plate can be swivelled upward or downward
towards the left or the right.
03 PUTTING INTO OPERATION 03 PUTTING INTO OPERATION

16
DIETZ GmbH / User manual adaptive wheelchair AS[01] | AS[01]RF / Version 2.0.0 EN
3.5 Adjusting the back straps
First remove the back pad (see no. 3.2).
The four Velcro straps are now easily accessible.
Release the straps and adjust the length until
you have found a comfortable sitting position.
3.6 Changing the seat depth
First release the Velcro strap at the bottom
front of the seat pad and then the strap from
the seat tubes at the sides.
Now you can push the strap to the rear under-
neath the seat. This will raise the seat 3 cm.
03 PUTTING INTO OPERATION 03 PUTTING INTO OPERATION

17
DE
EN
FR
IT
NL

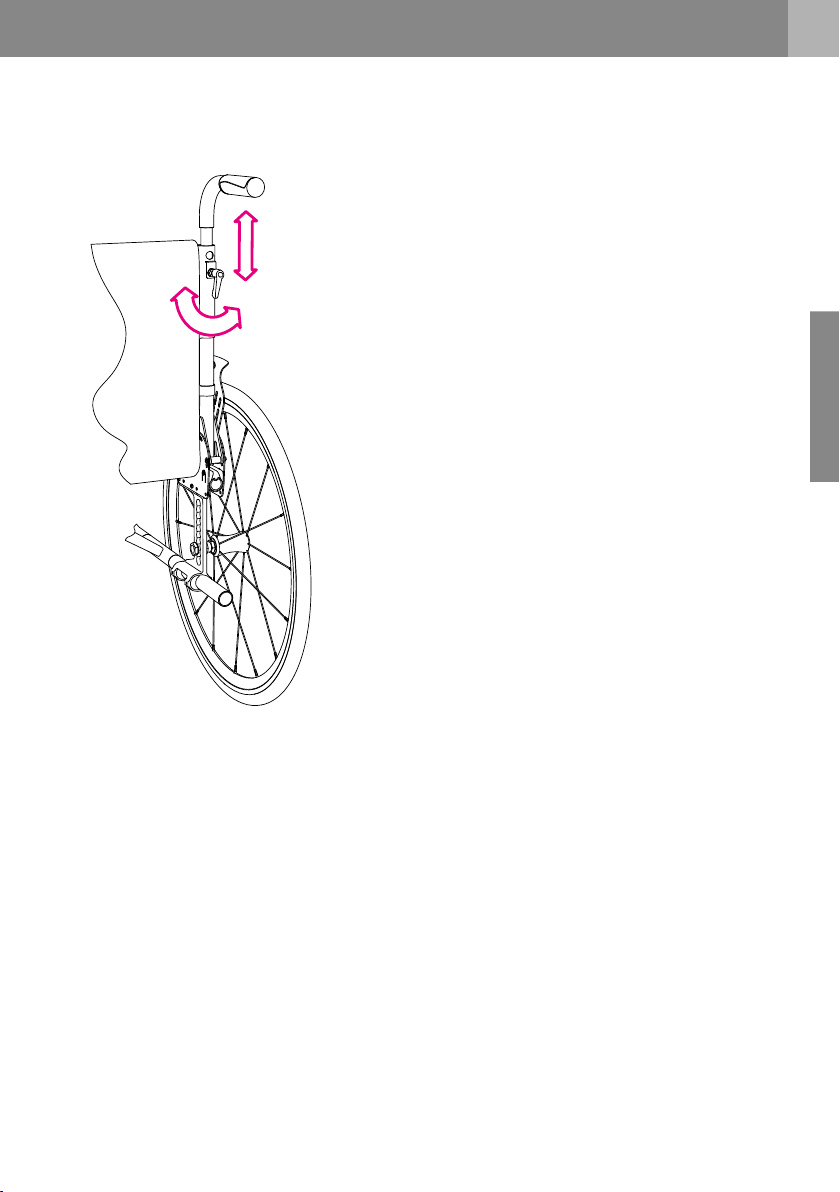

3.7 Changing the push handle height
(optional)
Turn the T-screws once or twice to loosen it.
Now pull or push the push handle to the re-
quired height and re-tighten the T-screws.
03 PUTTING INTO OPERATION 03 PUTTING INTO OPERATION

18
DIETZ GmbH / User manual adaptive wheelchair AS[01] | AS[01]RF / Version 2.0.0 EN
3.8 Swivelling the side pieces upward
(optional)
To make it easier to sit down, get up and trans-
fer sideways, you can swivel the side pieces up-
ward / to the rear.
To do this, pull the locking lever slightly up-
ward.
The side piece is no longer locked and you can
swivel the complete side piece to the rear / up-
ward.
You will hear and feel it automatically lock into
place again if you push the side piece back
downward into the starting position.
03 PUTTING INTO OPERATION 03 PUTTING INTO OPERATION

19
DE
EN
FR
IT
NL
3.9 Removing and attaching
the rear wheels
By pressing the button at the centre of the
wheel hub, you will release the rear wheel lock.
Now you can easily pull the rear wheel to the
outside and off.
NOTE
Press and hold the locking
button when you attach the rear
wheels to make the thru axle
easier to insert.
CAUTION
After attaching the wheels,
always verify that the lock has
correctly engaged.
03 PUTTING INTO OPERATION 03 PUTTING INTO OPERATION

20
DIETZ GmbH / User manual adaptive wheelchair AS[01] | AS[01]RF / Version 2.0.0 EN
USING THE WHEELCHAIR

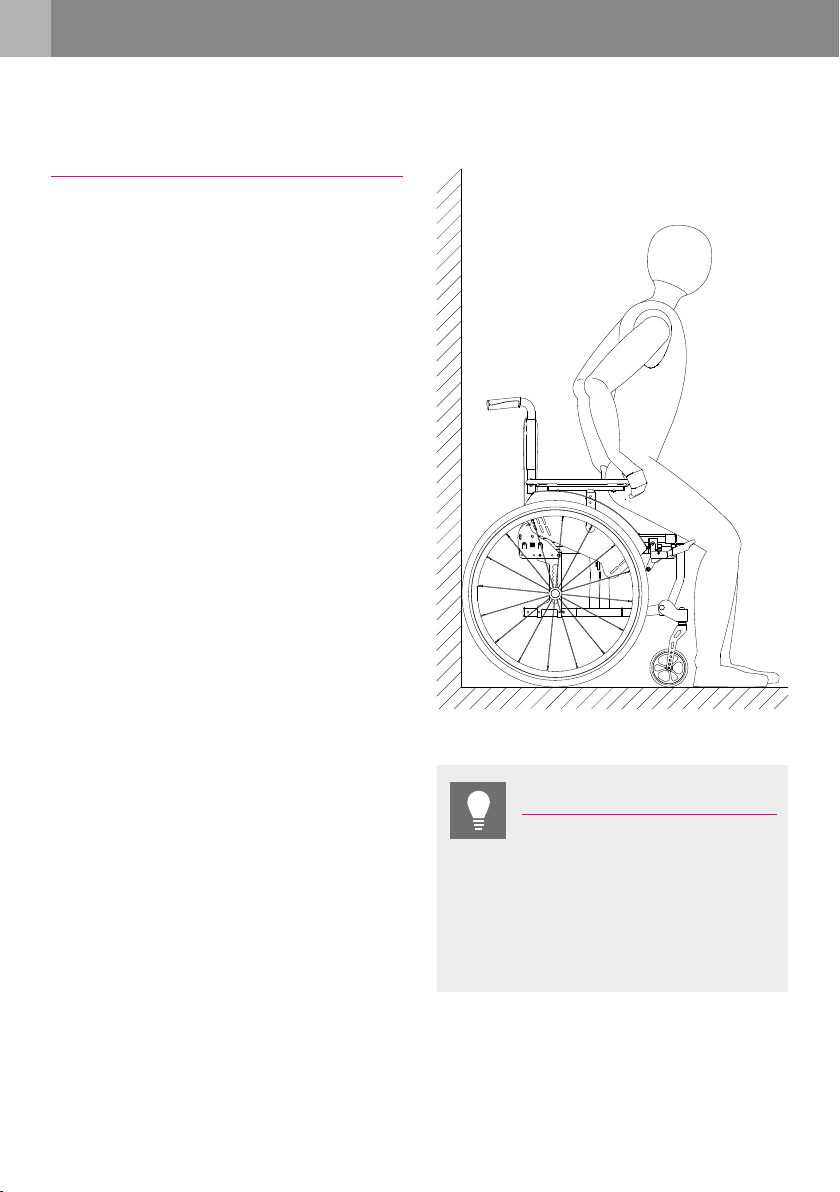

4.1 Sitting down and getting up
The various individual clinical pictures or disabi-
li- ties limit freedom of movement or the ability
to manoeuvre to a greater or lesser extent.
To sit down in your wheelchair and get up again
easily and safely, please proceed as follows.
04 DRIVE MODE 04 DRIVE MODE
NOTE
Place the back of the wheelchair
against a stable wall. This
ensures that the wheelchair
cannot slip away on smooth
surfaces.
Other manuals for AS[01]
1
This manual suits for next models
1
Table of contents
Other Dietz Wheelchair manuals

Dietz
Dietz Serena II User manual

Dietz
Dietz TOMTAR Levina 320-2 User manual

Dietz
Dietz Tauron DTRS User manual

Dietz
Dietz Individual tauron dts User manual

Dietz
Dietz 197022 User manual

Dietz
Dietz SANGO ADVANCED Series User manual

Dietz
Dietz Tauron User manual

Dietz
Dietz CANEO_XL User manual

Dietz
Dietz tauron rsi XXL User manual

Dietz
Dietz 430101 User manual
