DINGLI JCPT0307 Setup guide

SELF-PROPELLED SCISSOR LIFTS
OPERATOR’S MANUAL
with Maintenance Information

OPERATOR’S MANUAL with Maintenance Information
Important
Read, understand and obey these safety rules
and operating instructions before operating
this machine.
Only trained and authorized personnel shall be
permitted to operate this machine. This
manual should be considered a permanent
part of your machine and should remain with
the machine at all times. If you have any
questions, please call DINGLI Machinery.
Contents
Page
Owners, Users and operators:
We appreciate your choice of our machine for
your application. Our number one priority is
user safety, which is best achieved by our joint
efforts. We feel that you make a major
contribution to safety if you, as the equipment
users and operators:
1 Comply with employer, job site and
governmental rules.
2 Read, understand and follow the
instructions in this and other manuals
supplied with this machine.
3 Use good safe work practices in a
commonsense way.
4 Only have trained / certified operators,
directed by informed and knowledgeable
supervision, running the machine.
If there is anything in this manual that is not
clear or which you believe should be added,
please contact us.
Safety Rules
1
Legend
7
Decals
8
Specifications
12
Control panel
14
Pre-Operating Instructions
17
Workplace Inspection
19
Contact us:
Function Tests
20
Operating Instructions
24
Transport and Lifting Instructions
33
Maintenance
35
Schematic
58
Parts list
60
Inspection and Repair Log
71
i

OPERATOR’S MANUAL with Maintenance Information
Safety Rules
1
Danger
Failure to obey the instructions and
safety rules in this manual will
result in death or serious injury.
Do Not Operate Unless:
You learn and practice the principles of
safe machine operation contained in this
operator's manual.
1 Avoid hazardous situations.
Know and understand the safety rules
before going on to the next section.
2Always perform a pre-operation
inspection.
3Always perform function tests prior to
use.
4Inspect the workplace.
5Only use the machine as it was
intended.
You read, understand and obey the
manufacturer's instructions and safety
rules— safety and operator's manuals and
machine decals.
You read, understand and obey employer's
safety rules and worksite regulations.
You read, understand and obey all
applicable governmental regulations.
You are properly trained to safely operate
the machine.

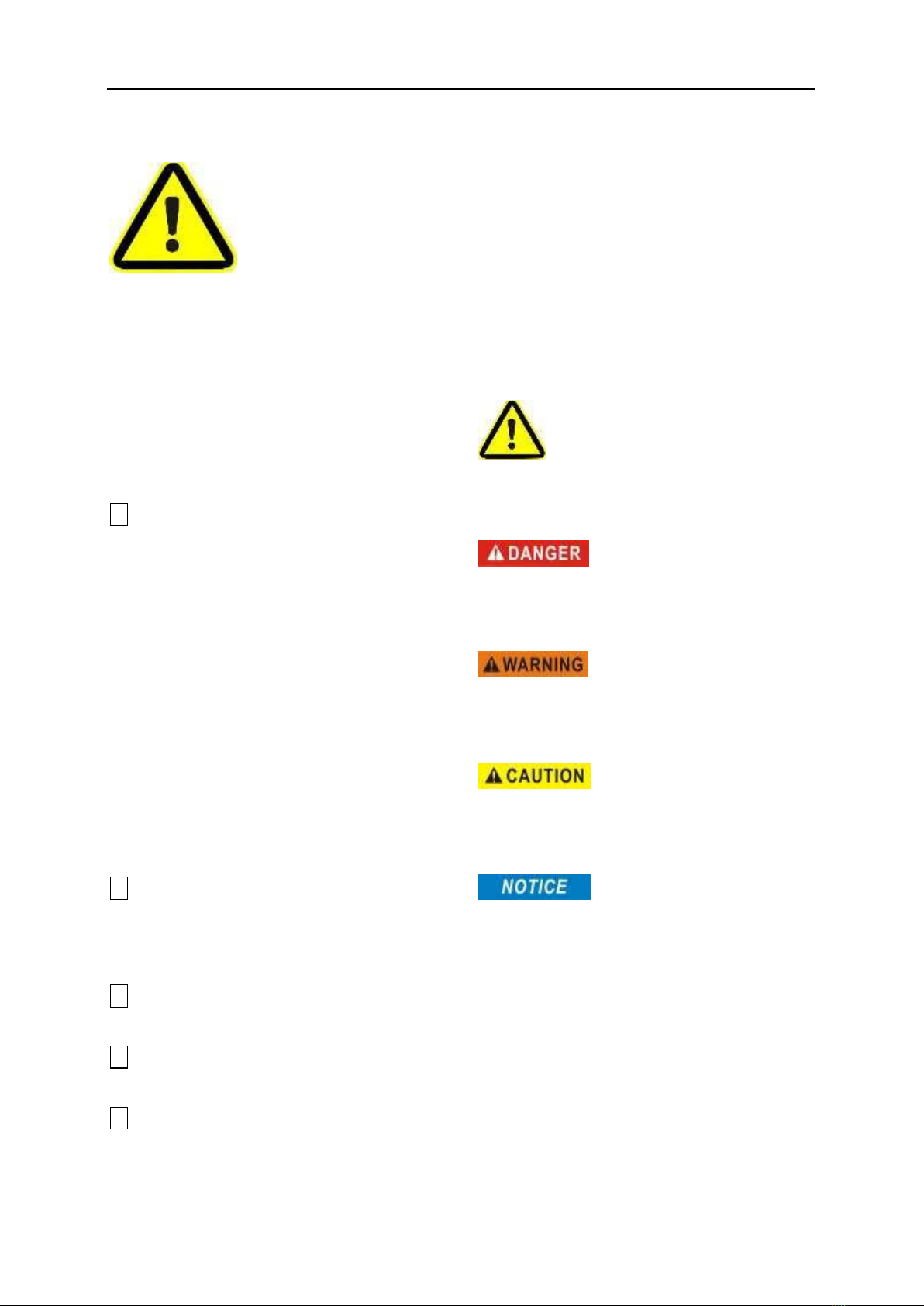

Decal Legend
Our product decals use symbols, color
coding and signal words to identify the
following:
Safety alert symbol—used to alert
personnel to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
Red—used to indicate the
presence of an imminently hazardous situation
which, if not avoided, will result in death or
serious injury.
Orange—used to indicate the
presence of a potentially hazardous situation
which, if not avoided, could result in death or
serious injury.
Yellow with safety alert
symbol- used to indicate the presence of a
potentially hazardous situation which, if not
avoided, may cause minor or moderate injury.
Blue without safety alert
symbol- used to indicate the presence of a
potentially hazardous situation which, if not
avoided, may result in property damage.
√
√
√
√
√

OPERATOR’S MANUAL with Maintenance Information
Safety Rules
2
Intended Use
This machine is intended to be used only to lift
personnel, along with their tools and materials
to an aerial work site.
Safety Sign Maintenance
Replace any missing or damaged safety signs.
Keep operator safety in mind at all times. Use
mild soap and water to clean safety signs. Do
not use solvent-based cleaners because they
may damage the safety sign material.
Electrocution Hazard
This machine is not electrically insulated and
will not provide protection from contact with or
proximity to electrical current.
Maintain safe distances from electrical power
lines and apparatus in accordance with
applicable governmental regulations and the
following chart.
Allow for platform movement, electrical line
sway or sag and beware of strong or gusty
winds.
Keep away from the machine if it contacts
energized power lines. Personnel on the
ground or in the platform must not touch or
operate the machine until energized power
lines are shut off.
Do not operate the machine during lightning or
storms.
Do not use the machine as a ground for
welding.
Tip-over Hazard
Occupants, equipment and materials must not
exceed the maximum platform capacity or the
maximum capacity of the platform extension.
Indoor/outdoor switch must turn to the outdoor
position while using machine outdoor .if not
the wind forces may make it unstable.
Maximum capacity JCPT03
Maximum capacity JCPT04
Maximum occupants (Indoor use) 1
Platform allowable maximum load 240 kg
Extension deck allowable maximum load 100kg
Maximum occupants (outdoor use) 1
Voltage
Phase to Phase
Minimum Safe
Approach Distance
Platform Height ≤2.5m
Platform allowable maximum load 240 kg
Extension deck allowable maximum load 100kg
Work Area Safety
Do not raise the platform unless the machine
is on a firm, level surface.
Do not drive over 0.5 km/h with the platform
raised.
Meters
0 to 300V
Avoid Contact
300V to 50KV
3.05
50KV to 200KV
4.60
200KV to 350KV
6.10
350KV to 500KV
7.62
500KV to 750KV
10.67
750KV to 1000KV
13.72

OPERATOR’S MANUAL with Maintenance Information
Safety Rules
3
Do not depend on the tilt alarm as a level
indicator. The tilt alarm sounds on the chassis
and in the platform when the machine is on a
slope.
If the tilt alarm sounds:
drop-offs.
Do not drive the machine on or near uneven
terrain, unstable surfaces or other hazardous
conditions with the platform raised.
Do not push off or pull toward any object
outside of the platform.
Lower the platform. Move the machine to a
firm, level surface. If the tilt alarm sounds
Maximum allowable manual force 200N
when the platform is raised, use extreme
caution to lower the platform.
For outdoor use machine, do not raise the
platform when wind speeds may exceed 12.5
m/s. If wind speeds exceed 12.5 m/s when the
platform is raised, lower the platform and do
not continue to operate the machine.
Do not operate the machine in strong or gusty
winds. Do not increase the surface area of the
platform or the load. Increasing the area
exposed to the wind will decrease machine
stability.
Do not use the platform controls to free a
platform that is caught, snagged or otherwise
prevented from normal motion by an adjacent
structure. All personnel must be removed from
the platform before attempting to free the
platform using the ground controls.
Use extreme care and slow speeds while
driving the machine in the stowed position
across uneven terrain, debris, unstable or
slippery surfaces and near holes and

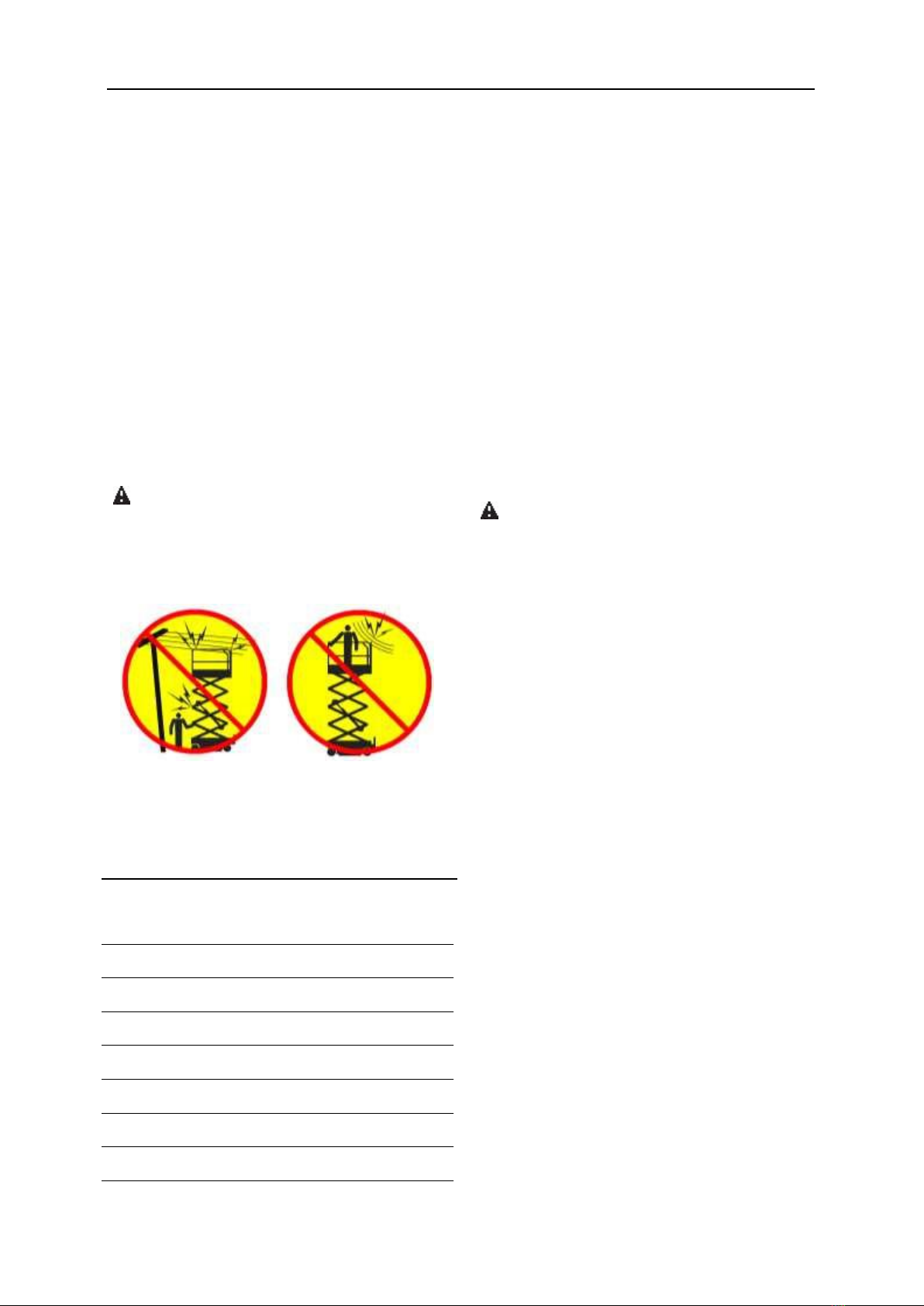

Do not use the machine as a crane.
Do not place or attach fixed or overhanging
loads to any part of this machine.
Do not push the machine or other objects with
the platform.
Do not operate the machine with the chassis
trays open.
Do not contact adjacent structures with the
platform.
Do not alter or disable the limit switches.
Do not tie the platform to adjacent structures.
Do not place loads outside the platform
perimeter.
Do not alter or disable machine components
that in any way affect safety and stability.
Do not replace items critical to machine
stability with items of different weight or
specification.
Do not use batteries that weigh less than the

OPERATOR’S MANUAL with Maintenance Information
Safety Rules
4
original equipment. Batteries are used as
counterweight and are critical to machine
stability. Each battery must weigh 17.6 kg. The
batteries must weigh a minimum of 35.2 kg.
Do not modify or alter an aerial work platform
without prior written permission from the
manufacturer. Mounting attachments for
holding tools or other materials onto the
platform, toe boards or guard rail system can
increase the weight in the platform and the
surface area of the platform or the load.
Do not place ladders or scaffolds in the
platform or against any part of this machine.
Do not transport tools and materials unless
they are evenly distributed and can be safely
handled by person in the platform.
Do not use the machine on a moving or mobile
surface or vehicle.
Be sure all tires are in good condition and lug
nuts are properly tightened.
Crushing Hazard
Keep hands and limbs out of scissors.
Maintain a firm grasp on the platform rail when
removing the rail pins. Do not allow the
platform guard rails to fall.
Operation on Slopes Hazard
Do not drive the machine on a slope that
exceeds the slope and side slope rating of the
machine.
Slope rating applies to machines in the stowed
position.
Fall Hazard
The guard rail system provides fall protection.
During operation, occupants in the platform
must wear a full body harness with a lanyard
attached to an authorized lanyard anchorage
point. Attach only one (1) lanyard per lanyard
anchorage point.
Do not sit, stand or climb on the platform guard
rails. Maintain a firm footing on the platform
floor at all times.
Do not climb down from the platform when
raised.
Keep the platform floor clear of debris.
Close the entry gate before operating.
Do not operate the machine the entry gate is
secured for operation.
Collision Hazard
Be aware of limited sight distance and blind
spots when driving or operating.
Operators must comply with employer, job site
Model
Maximum
slope rating
Maximum
side slope rating
and governmental rules regarding use of
personal protective equipment.
stowed position stowed position
JCPT0307 25% (14°) 25% (14°)
JCPT0407 25% (14°) 25% (14°)
Check the work area for overhead obstructions
or other possible hazards.
Note: Slope rating is subject to ground
conditions and adequate traction.

OPERATOR’S MANUAL with Maintenance Information
Safety Rules
5
Be aware of crushing hazards when grasping
the platform guard rail.
Observe and use color-coded direction arrows
on the platform controls and platform decal
plate for drive and steer functions.
Do not operate a machine in the path of any
crane or moving overhead machinery unless
the controls of the crane have been locked out
and/or precautions have been taken to prevent
any potential collision.
No stunt driving or horseplay while operating a
machine.
Do not lower the platform unless the area
below is clear of personnel and obstructions.
Limit travel speed according to the condition of
the ground surface, congestion, slope, location
of personnel, and any other factors which may
cause collision.
Component Damage Hazard
Do not use any battery or charger greater than
24V.
Do not use the machine as a ground for
welding.
Explosion and Fire Hazard
Do not operate the machine in hazardous
locations or locations where potentially
flammable or explosive gases or particles may
be present.
Damaged Machine Hazard
Do not use a damaged or malfunctioning
machine.
Conduct a thorough pre-operation inspection
of the machine and test all functions before
each work shift. Immediately tag and remove
from service a damaged or malfunctioning
machine.
Be sure all maintenance has been performed
as specified in this manual
Be sure all decals are in place and legible.
Be sure the manuals are complete, legible and
in the storage container located in the platform.
Crushing Hazard
Keep hands and limbs out of scissors.
Use common sense and planning when
operating the machine with the controller from
the ground. Maintain safe distances between
the operator, the machine and fixed objects.
Bodily Injury Hazard
Do not operate the machine with a hydraulic oil
or air leak. An air leak or hydraulic leak can
penetrate and/or burn skin.
Improper contact with components under any
cover will cause serious injury. Only trained
maintenance personnel should access
compartments. Access by the operator is only
advised when performing a pre-operation
inspection. All compartments must remain
closed and secured during operation.

OPERATOR’S MANUAL with Maintenance Information
Safety Rules
6
Battery Safety
Burn Hazard
Batteries contain acid. Always wear protective
clothing and eye wear when working with
batteries.
Avoid spilling or contacting battery acid.
Neutralize battery acid spills with baking soda
and water.
Explosion Hazard
Keep sparks, flames and lighted tobacco away
from batteries. Batteries emit explosive gas.
The battery tray should remain open during the
entire charging cycle.
Do not contact the battery terminals or the
cable clamps with tools that may cause
sparks.
Component Damage Hazard
Do not use any battery charger greater than
24V to charge the batteries.
Electrocution/ Burn Hazard
Connect the battery charger to
a grounded, AC 3-wire
electrical outlet only.
Inspect daily for damaged
cords, cables and wires.
Replace damaged items
before operating.
Avoid electrical shock from contact with
battery terminals. Remove all rings, watches
and other jewelry.
Tip-over Hazard
Do not use batteries that weigh less than the
original equipment. Batteries are used as
counterweight and are critical to machine
stability. Each battery must weigh 17.6 kg. The
batteries must weigh a minimum of 35.2 kg.
Lifting Hazard
Use the appropriate number of people and
proper lifting techniques when lifting batteries.
Lockout after Each Use
1 Select a safe parking location - firm level
surface, clear of obstruction and traffic.
2 Lower the platform.
3 Turn the key switch to the off position and
remove the key to secure from
unauthorized use.
4 Chock the wheels.
5 Charge the batteries.

7
OPERATOR’S MANUAL with Maintenance Information
Decals

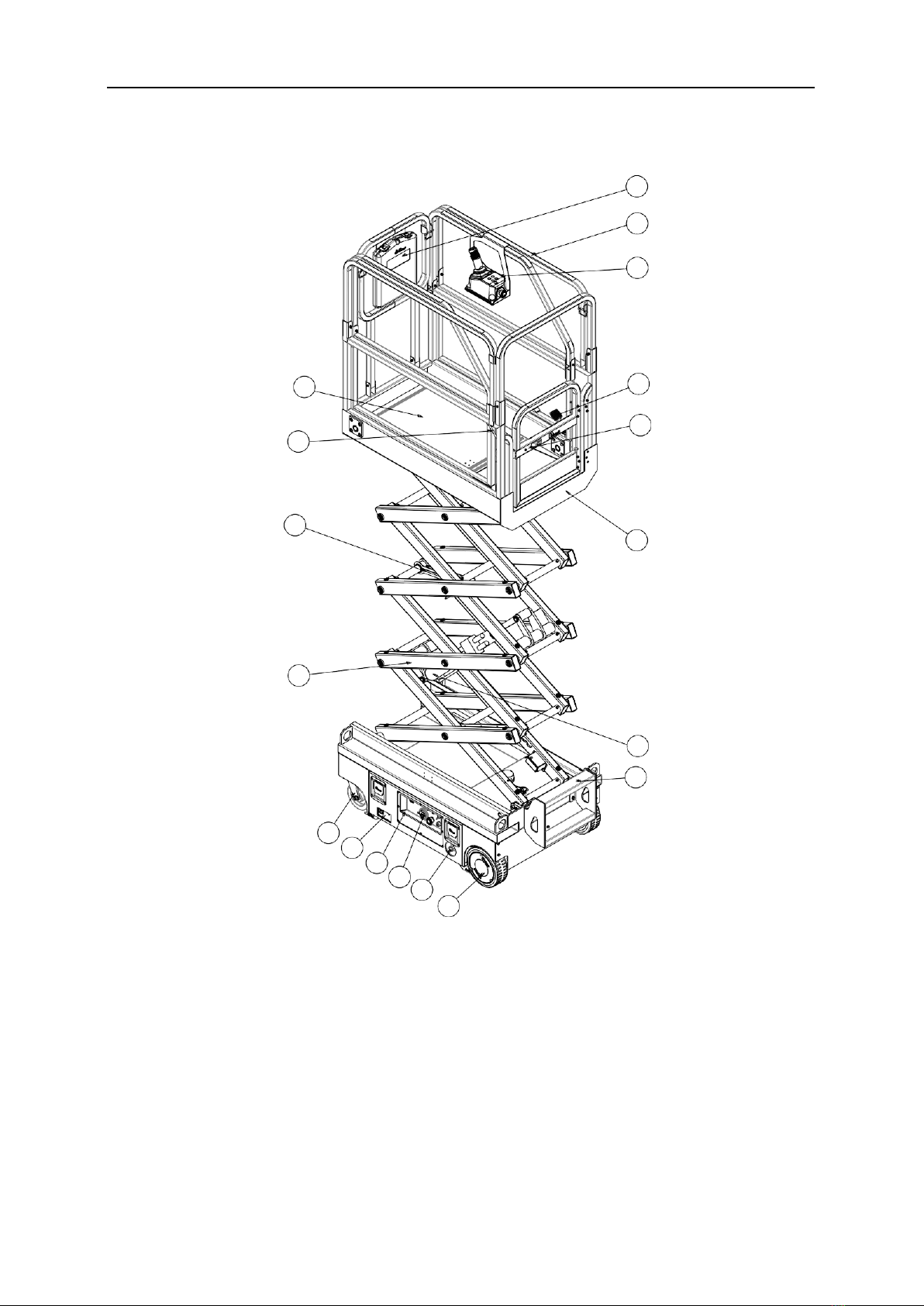

Legend
Legend
1 Manual storage container
2 Platform guard rails
3 Platform controller
4 Platform extension release pedal
5 Platform entry gate
6 Main Platform
7 Lift Cylinder
8 Entry ladder
9 Drive wheels
10 Emergency lowering knob
11 Ground Control Panel
12 Pump & Ground Control Drawer
13 Batteries charger
14 Swivel Wheel
15 Scissor
16 Safety arms
17 Lanyard anchorage point
18 Platform extension
1
2
3
18
4
5
17
16
6
15
7
8
14
13
12
11
10
9

8
OPERATOR’S MANUAL with Maintenance Information
Decal Inspection
Use the pictures on the next page to verify that all decals are legible and in place.
Below is a numerical list with quantities and descriptions.
No.
Part No.
Description
Qty.
Remark
1
9334011
Notice – Operator’s Manual Storage
1
2
9114017
Label – Platform Console Panel
1
3
9314011
Label – Lanyard Anchorage
2
4
9414103
Danger – Tip-over Hazard
1
5
9414049
Label – Capacity 240kg
1
6
9414113
Danger – Electrocution Hazard
2
7
9414117
Warning – Tip-over Hazard
2
8
9414111
Caution – Max. Manual Force: 200N
2
9
9414121
Warning – Crushing Hazard / Falling Hazard
2
10
9514301
Cosmetic – IPAF
1
11
9413013
Danger – Crushing Hazard
1
12
9514201
Cosmetic – CE
1
13
9913011
Cosmetic – Warning（Right）
8
For: JCPT0307
12
For: JCPT0407
14
9913013
Cosmetic – Warning（Left）
8
For: JCPT0307
12
For: JCPT0407
15
9313011
Instructions – Safety Arm
2
16
9311011
Instructions – Forklift Pockets
4
17
9311027
Instructions – Wheel Load: 320kg
4
For: JCPT0307
9311033
Instructions – Wheel Load: 365kg
4
For: JCPT0407
18
9411015
Danger – Tip-over Hazard
1
19
9311015
Instructions – Tie Down Point
4
20
9311013
Instructions – Lift Point
4
21
9111017G
Label – Ground Console Panel
1
9111018G
Label – Ground Console Panel
1
22
9311017
Instructions – Emergency Down
1
23
9411011
Danger – Explosion / Burn Hazard
1
24
9211013
Decal – Machine Plate
1

9
OPERATOR’S MANUAL with Maintenance Information
Decals
1
2
3
9
8
74
65
16
913
8
14
710
611
12
17
19
20
15 22 16
21
20
19
18
13 17
14
19
20
17
24
23 16
20
19
17

10
OPERATOR’S MANUAL with Maintenance Information
Specifications
JCPT0307
Height, working maximum
(indoor use)
5.0 m
Maximum hydraulic pressure
(functions)
180bar
Height, platform maximum
(indoor use )
Height, working maximum
3.0 m
System voltage 24V/10A
Driving wheels Φ230×80mm
(outdoor use) 4.5 m
Front wheels Φ152mm
Height, platform maximum
(outdoor use )
Height, stowed maximum
Rails up
Height, stowed maximum
Rails lowered
2.5 m
1.86 m
1.41m
Airborne noise emissions <70 dB
Maximum sound level at normal operating
workstations (A-weighted)
Vibration value does not exceed 2.5m / s2
Maximum slope rating ,
Width 0.76 m
Stowed position 25%
Length, platform retracted 1.15 m
Maximum side slope rating
25%
Stowed position
Length, platform extended 1.7 m
Platform dimensions
Platform length x width
Note: Slope rating is subject to ground
conditions and adequate traction.
Maximum working slope X-1.5
,Y-2
Platform extension length 0.55 m
° °
Drive speeds
Maximum load capacity 240 kg
Stowed, maximum 4.0 km/h
Maximum wind speed
(indoor use)
Maximum wind speed
(outdoor use)
0 m/s
12.5 m/s
Platform raised, maximum 0.5 km/h
Floor loading information
Tire load, maximum 320kg
Wheelbase 0.98 m
Turning radius (outside) 1.1m
Tire contact pressure 8.0Kg/cm2
784kPa
Occupied floor pressure 908Kg/m2
Turning radius (inside) 0
Ground clearance 5cm
Weight 554kg
Machine weights vary with option configurations
Power source 2 Batteries , 12V 55AH
Controls Proportional
AC outlet in platform Standard
8.9kPa
Note: Floor loading information is approximate
and does not incorporate different option
configurations.
It should be used only with adequate safety
factors.
Continuous improvement of our products is a
our policy. Product specifications are subject
to change without notice or obligation.
1.15 x 0.7 m

11
OPERATOR’S MANUAL with Maintenance Information
Specifications
JCPT0407
Height, working maximum
(indoor use)
5.9 m
Maximum hydraulic pressure
(functions)
180bar
Height, platform maximum
(indoor use )
Height, working maximum
3.9 m
System voltage 24V/10A
Driving wheels Φ230×80mm
(outdoor use) 4.5 m
Front wheels Φ152mm
Height, platform maximum
(outdoor use )
Height, stowed maximum
Rails up
Height, stowed maximum
Rails lowered
2.5 m
1.86 m
1.5m
Airborne noise emissions <70 dB
Maximum sound level at normal operating
workstations (A-weighted)
Vibration value does not exceed 2.5m / s2
Maximum slope rating ,
Width 0.76 m
Stowed position 25%
Length, platform retracted 1.15 m
Maximum side slope rating
25%
Stowed position
Length, platform extended 1.7 m
Platform dimensions
Platform length x width
Note: Slope rating is subject to ground
conditions and adequate traction.
Maximum working slope X-1.5
,Y-2
Platform extension length 0.55 m
° °
Drive speeds
Maximum load capacity 240 kg
Stowed, maximum 4.0 km/h
Maximum wind speed
(indoor use)
Maximum wind speed
(outdoor use)
0 m/s
12.5 m/s
Platform raised, maximum 0.5 km/h
Floor loading information
Tire load, maximum 365 kg
Wheelbase 0.98 m
Turning radius (outside) 1.1m
Tire contact pressure 9.1Kg/cm2
894.3kPa
Occupied floor pressure 978.3Kg/m2
Turning radius (inside) 0
Ground clearance 5cm
Weight 615kg
Machine weights vary with option configurations
Power source 2 Batteries , 12V 55AH
Controls Proportional
AC outlet in platform Standard
9.58kPa
Note: Floor loading information is approximate
and does not incorporate different option
configurations.
It should be used only with adequate safety
factors.
Continuous improvement of our products is a
our policy. Product specifications are subject
to change without notice or obligation.
1.15 x 0.7 m

12
OPERATOR’S MANUAL with Maintenance Information
○
8
○
7
○
6
○
1
○
5
○
4
○
2
○
3
Control Panel
Platform Control Panel
1 Drive function select button
2 Drive speed button
3 Red Emergency Stop button
4 LED
5 Horn button
6 Lift function select button
7 Proportional control handle
8 Function enable switch for lift and drive
functions

13
OPERATOR’S MANUAL with Maintenance Information
Control Panel
Platform Control Panel
1 Drive function select button
Press this button to activate the drive
function.
2 Drive speed button
Press this button to activate the slow or
fast drive function.
3 Red Emergency Stop button
Push in the red Emergency Stop button to
the off position to stop all functions. Pull
out the red Emergency Stop button to the
on position to operate the machine.
4 LED
Diagnostic read out and battery charge
indicator.
5 Horn Button
Push the horn button and the horn will
sound. Release the horn button and the
horn will stop.
6 Lift function select button
Press this button to activate the lift
function.
7 Proportional control handle
8 Function enable switch for lift and drive
functions
Lift function: Press and hold the function
enable switch to enable the lift function on
the platform control handle. Move the
control handle in the direction indicated by
the blue arrow and the platform will raise.
Move the control handle in the direction
indicated by the yellow arrow and the
platform will lower. The descent alarm
should sound while the platform is
lowering.
Drive function: Press and hold the
function enable switch to enable the drive
function on the platform control handle.
Move the control handle in the direction
indicated by the blue up arrow on the
control panel and the machine will move
in the direction that the blue arrow points.
Move the control handle in the direction
indicated by the yellow down arrow on the
control panel and the machine will move
in the direction that the yellow arrow
points.
Press and hold the function enable switch
to enable the drive function on the
platform control handle. Move the control
handle in the direction indicated by the
blue left arrow on the control panel and
the machine will turn to the lift direction
that the blue arrow points. Move the
control handle in the direction indicated by
the yellow right arrow on the control panel
and the machine will turn to right direction
that the yellow arrow points.

14
OPERATOR’S MANUAL with Maintenance Information
Pre-operation Inspection
Do Not Operate Unless:
You learn and practice the principles of
safe machine operation contained in this
operator's manual.
1 Avoid hazardous situations.
2 Always perform a pre-operation
inspection.
Know and understand the pre-operation
inspection before going on to the next
section.
3 Inspect the workplace.
4 Always perform function tests prior to
use.
5 Only use the machine as it was
intended.
Fundamentals
It is the responsibility of the operator to
perform a pre-operation inspection and routine
maintenance.
The pre-operation inspection is a visual
inspection performed by the operator prior to
each work shift. The inspection is designed to
discover if anything is apparently wrong with a
machine before the operator performs the
function tests.
The pre-operation inspection also serves to
determine if routine maintenance procedures
are required. Only routine maintenance items
specified in this manual may be performed by
the operator.
Refer to the list on the next page and check
each of the items.
If damage or any unauthorized variation from
factory delivered condition is discovered, the
machine must be tagged and removed from
service.
Repairs to the machine may only be made by
a qualified service technician, according to the
manufacturer's specifications. After repairs are
completed, the operator must perform a
pre-operation inspection again before going on
to the function tests.
Scheduled maintenance inspections shall be
performed by qualified service technicians,
according to the manufacturer's specifications
and the manual.
√

15
OPERATOR’S MANUAL with Maintenance Information
Pre-operation Inspection
Pre-operation Inspection
Be sure that the operator’s manual are
complete, legible and in the storage
container located in the platform.
Be sure that all decals are legible and in
place. See Decals section.
Check for hydraulic oil leaks and proper
oil level. Add oil if needed. See
Maintenance section.
Check for battery fluid leaks and proper
fluid level. Add distilled water if needed.
See Maintenance section.
Check the following components or areas for
damage, improperly installed or missing parts
and unauthorized modifications:
Electrical components, wiring and
electrical cables
Hydraulic hoses, fittings, cylinders and
manifolds
Battery pack and connections
Drive motors
Wear pads
Tires and wheels
Ground strap
Limit switches, alarms and horn
Nuts, bolts and other fasteners
Platform overload components
Platform entry gate
Beacon and alarms
Safety arm
Platform extension(s)
Scissor pins and retaining fasteners
Platform control joystick
Brake release components
Check entire machine for:
Cracks in welds or structural
components
Dents or damage to machine
Be sure that all structural and other
critical components are present and all
associated fasteners and pins are in
place and properly tightened
Be sure that the chassis trays are
closed and latched and the batteries
are properly connected.
Note: If the platform must be raised to inspect
the machine, make sure the safety arm is in
place. See Operating Instructions section.

16
OPERATOR’S MANUAL with Maintenance Information
Workplace Inspection
Do Not Operate Unless:
You learn and practice the principles of
safe machine operation contained in this
operator's manual.
1 1 Avoid hazardous situations.
2 Always perform a pre-operation
inspection.
3 Inspect the workplace.
Know and understand the workplace
inspection before going on to the next
section.
4 Always perform function tests prior to
use.
5 Only use the machine as it was
intended.
Fundamentals
The workplace inspection helps the operator
determine if the workplace is suitable for safe
machine operation. It should be performed by
the operator prior to moving the machine to the
workplace.
It is the operator's responsibility to read and
remember the workplace hazards, then watch
for and avoid them while moving, setting up
and operating the machine.
Workplace Inspection
Be aware of and avoid the following hazardous
situations:
- Drop-offs or holes
- Bumps, floor obstructions or debris
- Sloped surfaces
- Unstable or slippery surfaces
- Overhead obstructions and high voltage
conductors
- Hazardous locations
- Inadequate surface support to withstand all
load forces imposed by the machine
- The presence of unauthorized personnel
- Other possible unsafe conditions
√
