Dometic FreshJet 3000 User manual

FreshJet3000
Air conditioning roof unit
Operating manual . . . . . . . . . . . . . . . . . . . . .6
Dachklimaanlage
Bedienungsanleitung . . . . . . . . . . . . . . . . .27
Climatiseur de toit
Notice d’utilisation . . . . . . . . . . . . . . . . . . .49
Aire acondicionado de techo
Instrucciones de uso . . . . . . . . . . . . . . . . . . 71
Ar condicionado para tejadilho
Manual de instruções . . . . . . . . . . . . . . . . .94
Climatizzatore a tetto
Istruzioni per l’uso . . . . . . . . . . . . . . . . . . . 117
Airconditioning voor dakinbouw
Gebruiksaanwijzing. . . . . . . . . . . . . . . . . .140
Klimaanlæg til tagmontering
Betjeningsvejledning . . . . . . . . . . . . . . . .162
Takmonterad klimatanläggning
Bruksanvisning. . . . . . . . . . . . . . . . . . . . . .183
Takmontert klimaanlegg
Bruksanvisning. . . . . . . . . . . . . . . . . . . . . 205
Kattooilmastointilaitteisto
Käyttöohje . . . . . . . . . . . . . . . . . . . . . . . . 226
Накрышный кондиционер
Инструкция по эксплуатации . . . . . . . . . 247
Klimatyzator dachowy
Instrukcja obsługi . . . . . . . . . . . . . . . . . . . 272
Strešné klimatizačné zariadenie
Návod na obsluhu. . . . . . . . . . . . . . . . . . . 295
Střešní klimatizace
Návod k obsluze . . . . . . . . . . . . . . . . . . . . 317
Tető klí ma- berendezés
Használati utasítás. . . . . . . . . . . . . . . . . . .338
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
CLIMATE CONTROL
FRESHJET
FreshJet3000-OPM.book Seite 1 Donnerstag, 27. Februar 2020 4:17 16

© 2020 Dometic Group. The visual appearance of the contents of this manual is
protected by copyright and design law. The underlying technical design and the
products contained herein may be protected by design, patent or be patent
pending. The trademarks mentioned in this manual belong to Dometic Sweden AB.
All rights are reserved.
FreshJet3000-OPM.book Seite 2 Donnerstag, 27. Februar 2020 4:17 16

FreshJet3000
3
1
1
AUTO
2
°C
°F
ON OFF
h
1
3
FreshJet3000-OPM.book Seite 3 Donnerstag, 27. Februar 2020 4:17 16

FreshJet3000
4
AUTO
1
4
1
5
1
6

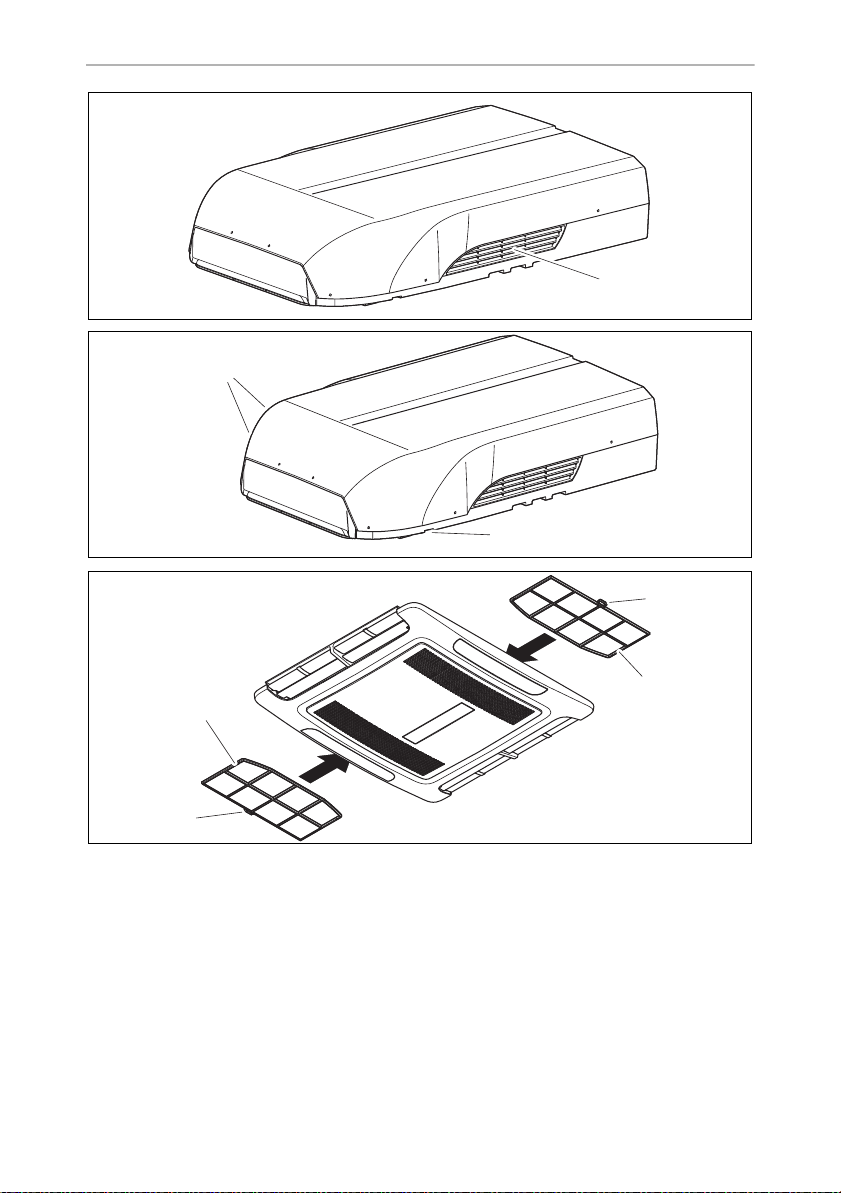

FreshJet3000-OPM.book Seite 4 Donnerstag, 27. Februar 2020 4:17 16

FreshJet3000
5
1
7
1
1
8
9
22
1
1
FreshJet3000-OPM.book Seite 5 Donnerstag, 27. Februar 2020 4:17 16

EN
a
FreshJet3000
6
Original instructions
Please read this instruction manual carefully before first use, and storeit in
a safe place. If you pass on the product to another person, hand over this
instruction manual along with it.
You find the installation manual online at:
“dometic.com/manuals”.
The instructions in the installation manual are intended for qualified
personnel at workshops who are familiar with the guidelines and
safety precautions to be applied.
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2.1 General safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
2.2 Operating the device safely . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3 Target group for this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
4 Intended use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
5.1 Control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
5.2 Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.3 Air conditioning modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
5.4 Additional functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
6 Before initial use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
7 Operating the roof air conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
7.1 Basic notes on operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
7.2 Using the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
7.3 Hints for improved use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
7.4 Switching the roof air conditioner on and to stand-by . . . . . . . . . . .16
7.5 Selecting the air conditioning mode . . . . . . . . . . . . . . . . . . . . . . . . .16
7.6 Selecting the fan setting manually . . . . . . . . . . . . . . . . . . . . . . . . . . .16
7.7 Setting the temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
7.8 Adjusting the air nozzles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
7.9 Setting the timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
FreshJet3000-OPM.book Seite 6 Donnerstag, 27. Februar 2020 4:17 16

EN
FreshJet3000 Explanation of symbols
7
7.10 Activating the sleep function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
7.11 Operating the ambient lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
7.12 Replacing the remote control batteries . . . . . . . . . . . . . . . . . . . . . . 20
8 Cleaning the roof air conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
9 Maintenance of the roof air conditioner . . . . . . . . . . . . . . . . . . . . . . . .21
10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
11 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
12 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
1 Explanation of symbols
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
• Damage to the product resulting from mechanical influences and incorrect
connection voltage
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
NOTE
Supplementary information for operating the product.
FreshJet3000-OPM.book Seite 7 Donnerstag, 27. Februar 2020 4:17 16

EN
a
Safety instructions FreshJet3000
8
In particular, the manufacturer will not be liable for any consequential damage,
especially consequential damage caused by failure of the roof air conditioner.
2.1 General safety
!WARNING!
•Electrical devices are not toys.
The appliance is not to be used by persons (including chil-
dren) with reduced physical, sensory or mental capabili-
ties, or lack of experience and knowledge, unless they are
under supervision or have been given instruction.
•Children should be supervised to ensure that they do not
play with the appliance.
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they are under supervision or have been given instruction
concerning use of the appliance in a safe way and under-
stand the hazards involved.
•Children shall not play with the appliance.
•Cleaning and user maintenance shall not be performed by
children without supervision.
•Only use the device as intended.
•Do not make any alterations or conversions to the device.
•Installation, maintenance and repairs of the roof air condi-
tioner may only be carried out by qualified personnel who
are familiar with the risks involved when handling refriger-
ant and air conditioning systems as well as the relevant reg-
ulations. Inadequate repairs may cause serious hazards.
For repair service, please contact the service centre in your
country (addresses on the back page).
•Do not use the device near flammable fluids or in closed
rooms.
FreshJet3000-OPM.book Seite 8 Donnerstag, 27. Februar 2020 4:17 16

EN
FreshJet3000 Target group for this manual
9
•Make sure no combustible objects are stored or installed
near the air outlet. A distance of at least 50 cm must be
kept.
•Do not reach into air outlets or insert any foreign objects in
the roof air conditioner.
•Do not undo the upper cover of the roof air conditioner in
the event of a fire. Use approved extinguishing agents
instead. Do not use water to extinguish fires.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified per-
sons in order to avoid a hazard.
ANOTICE!
• Never drive through automatic car washes when the roof air
conditioner is mounted.
• Please ask your vehicle manufacturer if a technical inspection is
required after fitting an air conditioner and whether the height entered
in your vehicle documents needs to be altered.
• If faults occur in the roof air conditioner's refrigerant circuit, the roof air
conditioner must be checked by a specialist company and properly
repaired. The refrigerant must never be released into the air.
2.2 Operating the device safely
!WARNING!
• Always disconnect the power supply when working on the device.
ANOTICE!
• The roof air conditioner is not suitable for use in agricultural or
construction vehicles.
• Operate the device only if you are certain that the housing and the
cables are undamaged.
3 Target group for this manual
This operating manual is for the user of the roof air conditioner.
FreshJet3000-OPM.book Seite 9 Donnerstag, 27. Februar 2020 4:17 16

EN
a
Intended use FreshJet3000
10
4 Intended use
The FreshJet3000 roof air conditioners are designed for installation on the roof of a
caravan or recreational vehicle to provide reverse cycle heating and cooling. It is
intended for vehicles with roofs with a thickness of 20 to 100 mm. The roof air
conditioner must be installed so that it is within ±10° of the horizontal plane. It is not
suitable for houses and apartments.
The roof air conditioner is not suitable for installation in construction machines,
agricultural machines or similar equipment. It will not work properly if exposed to
strong vibrations.
The function of the roof air conditioner is guaranteed for temperatures between
–2 °C and 52 °C.
5 Technical description
The roof air conditioner supplies the interior with cool or warm air which is without
dust and dirt and can be dehumidified.
The roof air conditioner is operated with the remote control or via the control panel
on the air conditioner.
I
5.1 Control panel

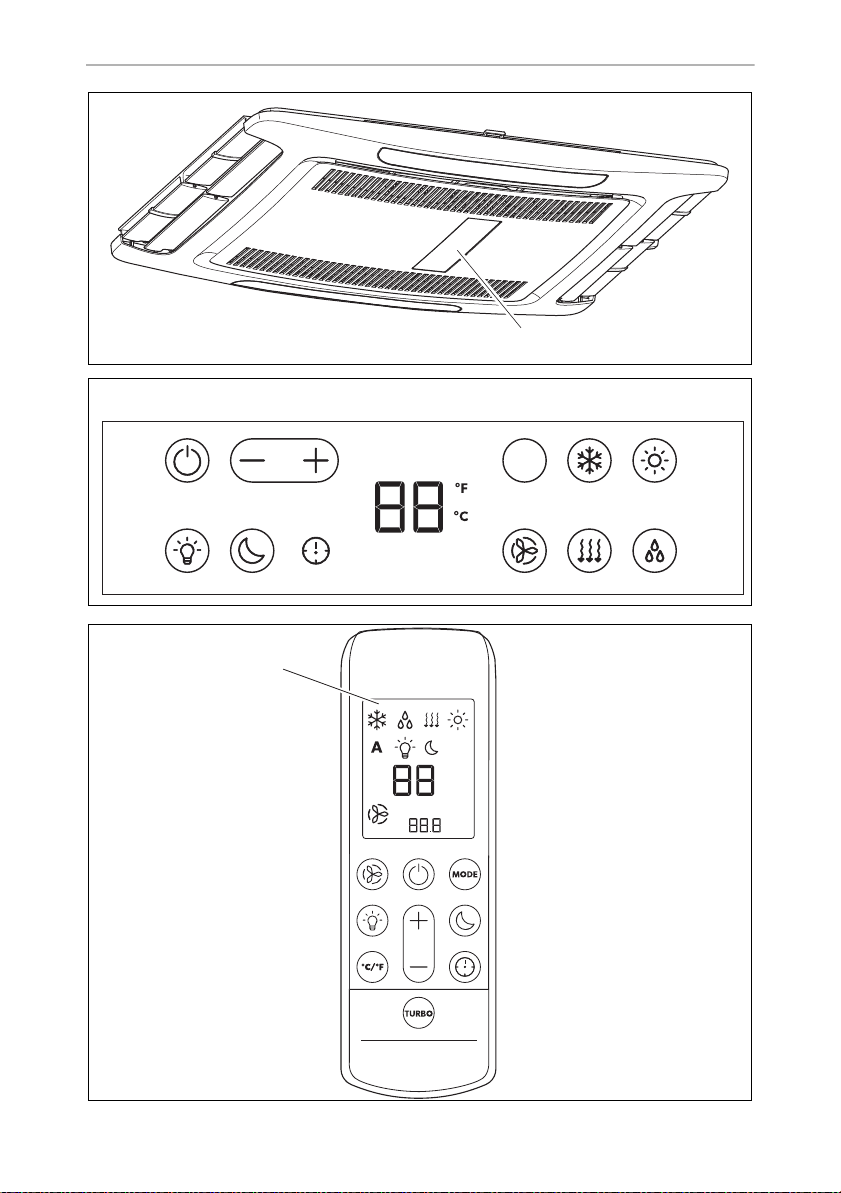

The control panel (fig. 11, page 3) is at the air outlet unit of the roof air conditioner.
NOTE
The roof air conditioner can lower the temperature within the vehicle to
a certain level. The temperature depends on the type of vehicle, the
ambient temperature and the cooling capacity of your roof air
conditioner.
Below an outer temperature of 16 °C the roof air conditioner doesn’t
cool anymore. In this case only use the air conditioning mode
“Ventilation” ( ).
FreshJet3000-OPM.book Seite 10 Donnerstag, 27. Februar 2020 4:17 16

EN
FreshJet3000 Technical description
11

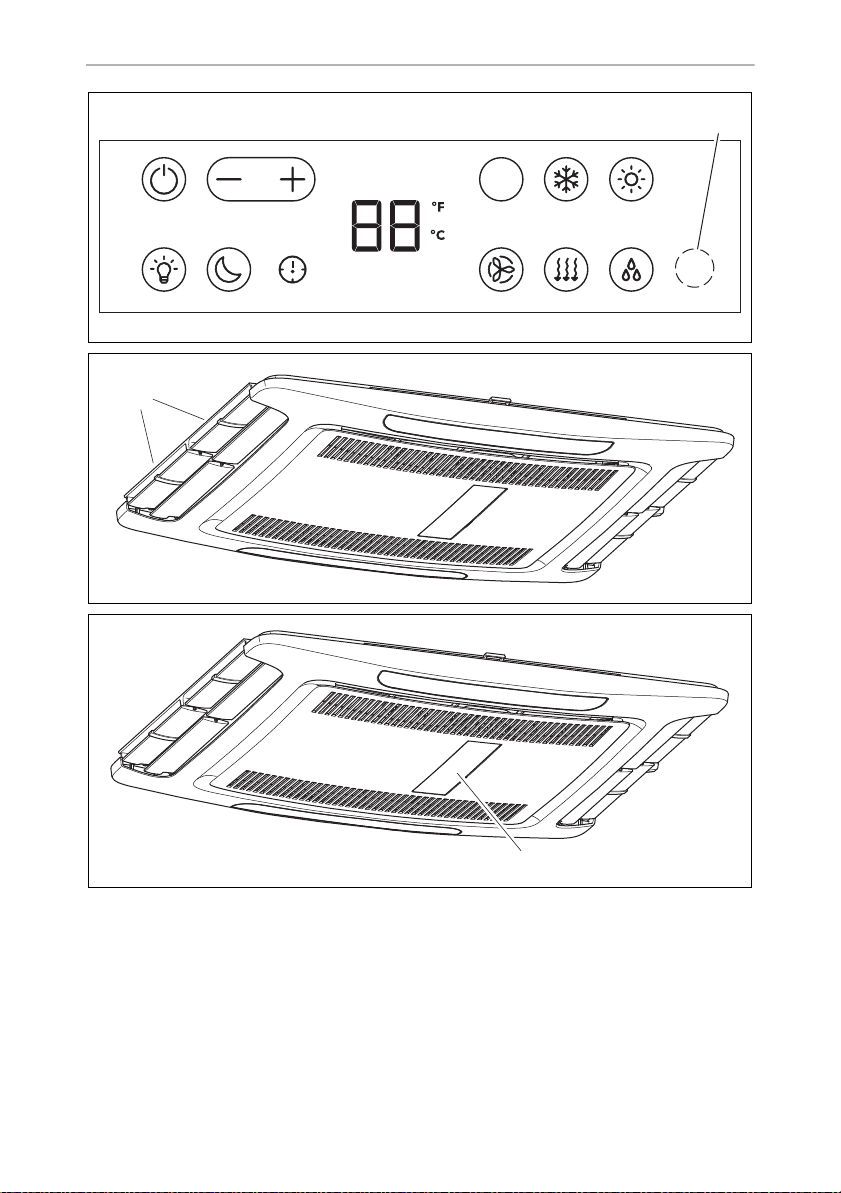

Control and display elements (fig. 2, page 3):
5.2 Remote control
All settings of the device (e. g. temperature settings, timer programming) are
transmitted to the roof air conditioner by remote control.

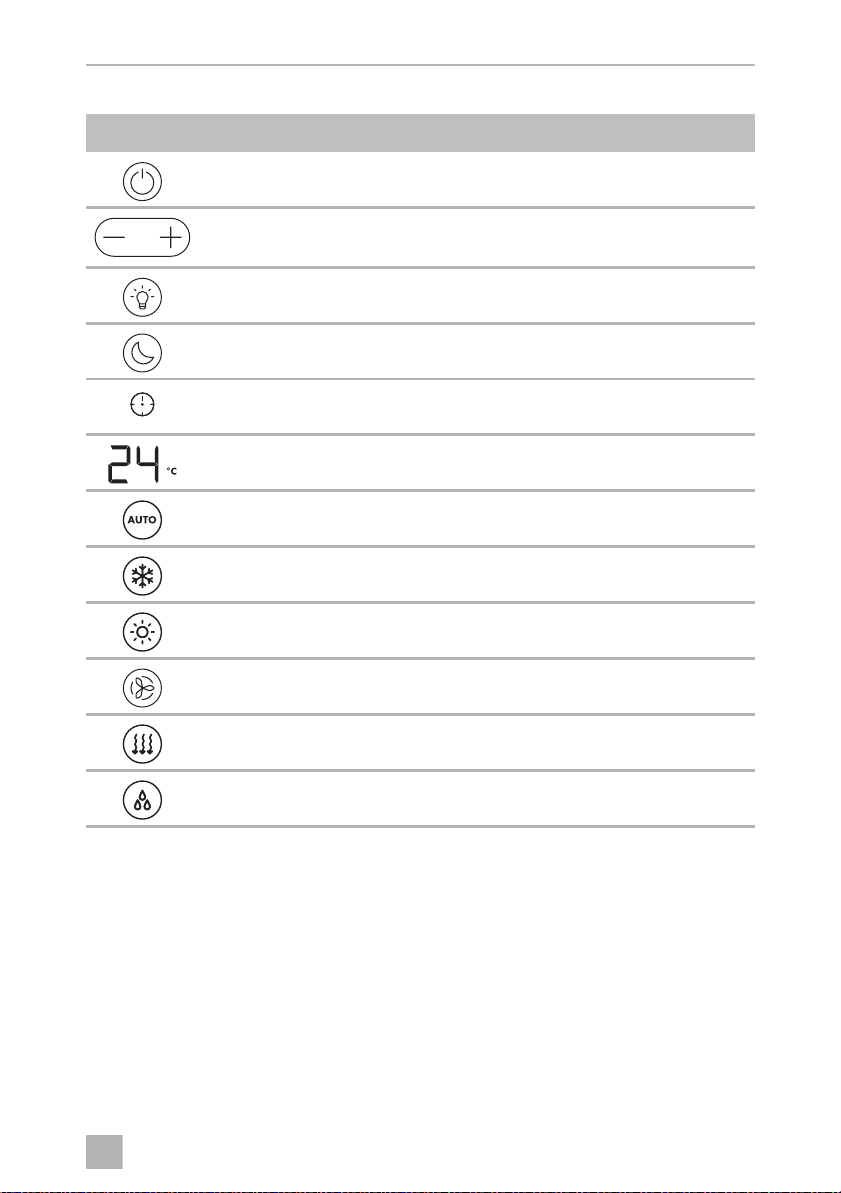

Symbol Explanation
Switches the roof air conditioner on or to stand-by mode.
+button: Increases the currently displayed value.
–button: Reduces the currently displayed value.
Switches ON or OFF the ambient lights in the air outlet unit.
Activates the sleep function (chapter “Additional functions” on page 13).
Indicates the timer is set.
Displays the set temperature and indicates fan level when fan is adjusted.
Enables/disables automatic mode (chapter “Air conditioning modes” on
page 13).
Enables/disables cooling mode (chapter “Air conditioning modes” on
page 13).
Enables/disables heating mode (chapter “Air conditioning modes” on
page 13).
Adjusts the fan speed between Low, Med, High or Auto – showing as 1, 2, 3
or A on the air outlet unit display for a short time when changed.
Enables/disables ventilation mode (chapter “Air conditioning modes” on
page 13). Circulates air without heating or cooling.
Enables/disables dehumidification mode (chapter “Air conditioning
modes” on page 13).
FreshJet3000-OPM.book Seite 11 Donnerstag, 27. Februar 2020 4:17 16

EN
a
Technical description FreshJet3000
12
The following control and display elements are available on the remote control
(fig. 3, page 3):
No./
Button Explanation
1Display
Displays the following:
• Selected room temperature (target value) in °C or °F
• Air conditioning mode
• Fan level
• Symbols for active additional functions
Adjusts the fan speed between Low, Med, High or Auto – showing as 1, 2, 3 or A
on the air outlet unit display for a short time when changed.
Switches ON or OFF the ambient lights in the air outlet unit.
Switches between temperature units Celsius (°C) and Fahrenheit (°F)
Switches the roof air conditioner on or to stand-by mode.
+button: Increases the currently displayed value.
–button: Reduces the currently displayed value.
Selects the turbo mode.
Sets the fan speed to Turbo speed to rapidly cool or heat the inside of the vehicle.
After it is pressed again the fan will return to the previous setting.
Selects the air conditioning mode (chapter “Air conditioning modes” on page 13).
Activates the sleep function (chapter “Additional functions” on page 13).
Sets the timer.
FreshJet3000-OPM.book Seite 12 Donnerstag, 27. Februar 2020 4:17 16

EN
FreshJet3000 Technical description
13
5.3 Air conditioning modes
The roof air conditioner has the following air conditioning modes:
5.4 Additional functions
The roof air conditioner has the following additional functions:
Air conditioning
mode
Display
message Explanation
Automatic
(on display)
(on remote
control)
You specify the temperature, and the air conditioner
brings the interior to this temperature by heating or
cooling and by controlling the necessary fan speed.
Cooling You specify the temperature and fan settings, and the
air conditioner cools the interior to this temperature.
Heating You specify the temperature and fan settings, and the
air conditioner heats the interior to this temperature.
The fan will only start after 2 min (on Low speed) and
then after around 5 min will go to the set fan speed
(after the evaporator reaches temperature).
Ventilation The fan operates to circulate air without heating or
cooling.
Dehumidification Dehumidification removes moisture from the air with-
out heating or cooling the inside. The fan speed is
Low.
Additional
function
Display
message Explanation
Timer The air conditioner is switched on in the specified
number of hours.
The air conditioner is switched off in the specified
number of hours.
Sleep The sleep function reduces the fan speed and the
compressor speed to reduce the noise levels for easier
sleeping.
FreshJet3000-OPM.book Seite 13 Donnerstag, 27. Februar 2020 4:17 16

EN
a
Before initial use FreshJet3000
14
6 Before initial use
Inspection before starting up
Before you switch on the roof air conditioner, observe the following:
➤Check whether the supply voltage and frequency correspond to the values
specified in the technical data (see leaflet).
➤Ensure both the air intake opening and the air nozzles are free. All ventilation
grilles must always be kept free to ensure that the roof air conditioner is able to
operate at maximum capacity.
!
Set the remote control
➤Insert the batteries (see chapter “Replacing the remote control batteries” on
page 20).
✓The display shows all symbols for 5 seconds.
✓The remote control is ready for operation.
7 Operating the roof air conditioner
7.1 Basic notes on operation
The roof air conditioner has three operating modes:
You can use the control panel to
• switch the roof air conditioner to and from stand-by mode
• switch the ambient lights on and off
CAUTION! Beware of injury
Do not insert your fingers or objects into the air nozzles or the intake
grille.
Operating mode Features
Off The roof air conditioner is switched off.
The remote control is inactive.
Stand-by The roof air conditioning is ready for operation and can be switched
on with the remote control. The ambient lights are available.
On The roof air conditioner is conditioning the air in the interior.
FreshJet3000-OPM.book Seite 14 Donnerstag, 27. Februar 2020 4:17 16

EN
FreshJet3000 Operating the roof air conditioner
15
• make the settings
• select additional functions
You can use the remote control to
• switch the roof air conditioner to and from stand-by mode.
• switch the ambient lights on and off
• make the settings
• select additional functions
7.2 Using the remote control
The remote control must be pointed at the IR receiver (fig. 41, page 4) on the
control panel during operation.
➤Press a button.
✓The value is transmitted directly to the roof air conditioner.
✓The roof air conditioner confirms the receipt of data with a high note.
Switching only the remote control to or from stand-by
In stand-by mode, the remote control display is inactive.
If the remote control is not pointing to the IR receiver on the control panel, you can
activate the remote control or switch it to stand-by independently from the roof air
conditioner:
➤Press the button.
FreshJet3000-OPM.book Seite 15 Donnerstag, 27. Februar 2020 4:17 16

EN
a
Operating the roof air conditioner FreshJet3000
16
7.3 Hints for improved use
The following hints will optimise the performance of your roof air conditioner:
• Improve the heat insulation of your vehicle by sealing gaps and hanging reflective
blinds or curtains on your windows.
• If the vehicle has been subjected to direct sunlight for a long time: Operate the
roof air conditioner in the “Ventilation” ( ) mode with the windows open for a
while before switching on the “Cooling” ( ) air conditioning mode.
• Avoid opening doors and windows as far as possible in the “Cooling” ( )
mode.
• Align the air nozzles sensibly.
• Make sure the air nozzles and intake grille are not covered by cloths, paper or
other objects.
7.4 Switching the roof air conditioner on and to stand-by
I
➤Press the button.
✓The roof air conditioner is switched on.
➤Press the button again to switch to stand-by.
7.5 Selecting the air conditioning mode
➤Select the desired air conditioning mode using the MODE button, see chapter
“Air conditioning modes” on page 13.
✓The roof air conditioner confirms the receipt of the values with a high note.
✓The roof air conditioner is switched to the selected air conditioning mode.
7.6 Selecting the fan setting manually
The fan controls the strength of the air supply.
NOTE
• When roof air conditioner is switched on, it begins to condition the
air to the values that were set most recently.
• The roof air conditioner can be switched off only by cutting mains
power.
• You can use the remote control or the control panel to switch it on or
to stand-by
FreshJet3000-OPM.book Seite 16 Donnerstag, 27. Februar 2020 4:17 16

EN
FreshJet3000 Operating the roof air conditioner
17
In all modes, except for the “Automatic”( ) mode, the fan speed can be selected
manually.
➤Use the button to select the desired fan speed.
✓The roof air conditioner confirms the receipt of the values with a high note.
✓The new fan speed is set.
7.7 Setting the temperature
Cooling Mode
In the “Automatic” ( ), “Cooling” ( ), and “Dehumidifying” ( ) modes, you can
specify a temperature between 16 °C and 30 °C via the remote control.
➤Use the +or – button to select the desired temperature.
✓The roof air conditioner confirms the receipt of the values with a high note.
✓The temperature is set on the roof air conditioner.
Heating Mode
In the “Automatic” ( ) and “Heating” ( ) modes, you can specify a temperature
between 16 °C and 30 °C via the remote control.
➤Use the +or – button to select the desired temperature.
✓The roof air conditioner confirms the receipt of the values with a high note.
✓The temperature is set on the roof air conditioner.
Display message Explanation
1, 2, 3Fan icon will show plus the number 1, 2 or 3 to indicate Low, Med or
Hi speeds. After a short time the display will return to the set
temperature.
AA Auto fan (changes the fan speed based on the temperature setting
and actual room temperature)
only available in the “Cooling” ( ), “Heating” ( ) and
“Ventilation” ()modes.
4Turbo fan speed, only when TURBO button is pressed
only available in the “Cooling” ( ) and “Heating” ( ) modes.
FreshJet3000-OPM.book Seite 17 Donnerstag, 27. Februar 2020 4:17 16

EN
a
Operating the roof air conditioner FreshJet3000
18
7.8 Adjusting the air nozzles
The air supply within the vehicle can be regulated by setting the air nozzles.
➤Turn the slats (fig. 51, page 4) in the air nozzles independently in the required
directions. The air flow can be adjusted along the ceiling or towards the floor.
7.9 Setting the timer
The timer function allows you to set a specific time period for air conditioning. You
can specify the number of hours until the air conditioner will be switched on and the
number of hours until the air conditioner will be switched to stand-by (up to
24 hours).
I
➤Before programming the timer, select the air conditioning mode and all required
values (e.g. temperature).
Setting the switch-on and the switch-off time
I
➤Press the button once.
✓The ON symbol flashes on the display of the remote control.
➤Use the +or –button to set the number of hours until the air conditioner will be
switched ON.
➤Press the button again to confirm the value.
✓The switch-on time is set on the roof air conditioner.
The roof air conditioner is switched on with the selected air conditioning mode
at the specified time.
✓The OFF symbol flashes on the display of the remote control.
If no OFF time is needed press the button again without changing the hour value.
➤Use the +or –button to set the number of hours until the air conditioner will be
switched to stand-by.
➤Press the button again to confirm the value.
NOTE
The remote control returns to its initial mode if no button is pressed on
the remote control for 15 seconds while programming the timer.
NOTE
The ON timer can only be set when the unit is turned OFF.
FreshJet3000-OPM.book Seite 18 Donnerstag, 27. Februar 2020 4:17 16

EN
FreshJet3000 Operating the roof air conditioner
19
✓The switch-off time is set on the roof air conditioner.
Switch the roof air-conditioner to Stand-by.
Cancelling timer settings
If you have set the timer, you can cancel these settings as follows:
➤Press the button once.
✓The timer symbol disappears.
✓The setting has been cancelled.
7.10 Activating the sleep function
I
When the sleep function is activated, the compressor speed and the fan speed is
limited to a lower level to reduce the noise levels for easier sleeping.
➤Set the required temperature (see chapter “Setting the temperature” on
page 17).
➤Press the button.
✓The symbol appears in the display.
The sleep function is activated.
➤To deactivate the sleep function press the button again.
I
7.11 Operating the ambient lights
I
Switching the lights on/off with the control panel
➤Briefly press the button to switch the lights on or off.
NOTE
The sleep function is only available in “Cooling” ( )" or “Heating” ( )
modes.
NOTE
The sleep function is deactivated if the MODE button is pressed.
NOTE
The button on the remote control is active even if the remote control
is switched off.
FreshJet3000-OPM.book Seite 19 Donnerstag, 27. Februar 2020 4:17 16

EN
a
Cleaning the roof air conditioner FreshJet3000
20
Switching the lights on/off with the remote control
➤Press the button to switch the lights on or off.
✓The symbol appears in the display when the lights are switched on.
7.12 Replacing the remote control batteries
The battery compartment is on the back of the remote control.
I
➤Gently push down the lid of the battery compartment and slide it open in the
direction of the arrow.
➤Insert the new batteries (2x type AAA) in the remote control as indicated in the
battery compartment.
➤Close the cover of the battery compartment.
BProtect the environment!
Do not dispose of batteries with general household waste.
Return any used batteries to your retailer or take them to a collection
point.
8 Cleaning the roof air conditioner
A
A
NOTE
The display of the remote control will still be bright even if the batteries
are running low.
NOTICE! Beware of damage
• Do not clean the roof air conditioner with a high-pressure cleaner.
Exposure to water can damage the air conditioner.
• Do not use sharp or hard objects or cleaning agents for cleaning as
these may damage the roof air conditioner.
• To clean the roof air conditioner, use water with a gentle cleaning
agent. Never use petrol, diesel or solvents.
NOTICE! Beware of damage
The air outlet unit display screen (fig. 61, page 4) is acrylic and can be
damaged by some common household chemicals.
Only use a mild solution of warm soapy water to clean it.
Chemical cleaners, window cleaners, alcohol, certain tensides, organic
solvents, softeners and similar can damage the display.
FreshJet3000-OPM.book Seite 20 Donnerstag, 27. Februar 2020 4:17 16
