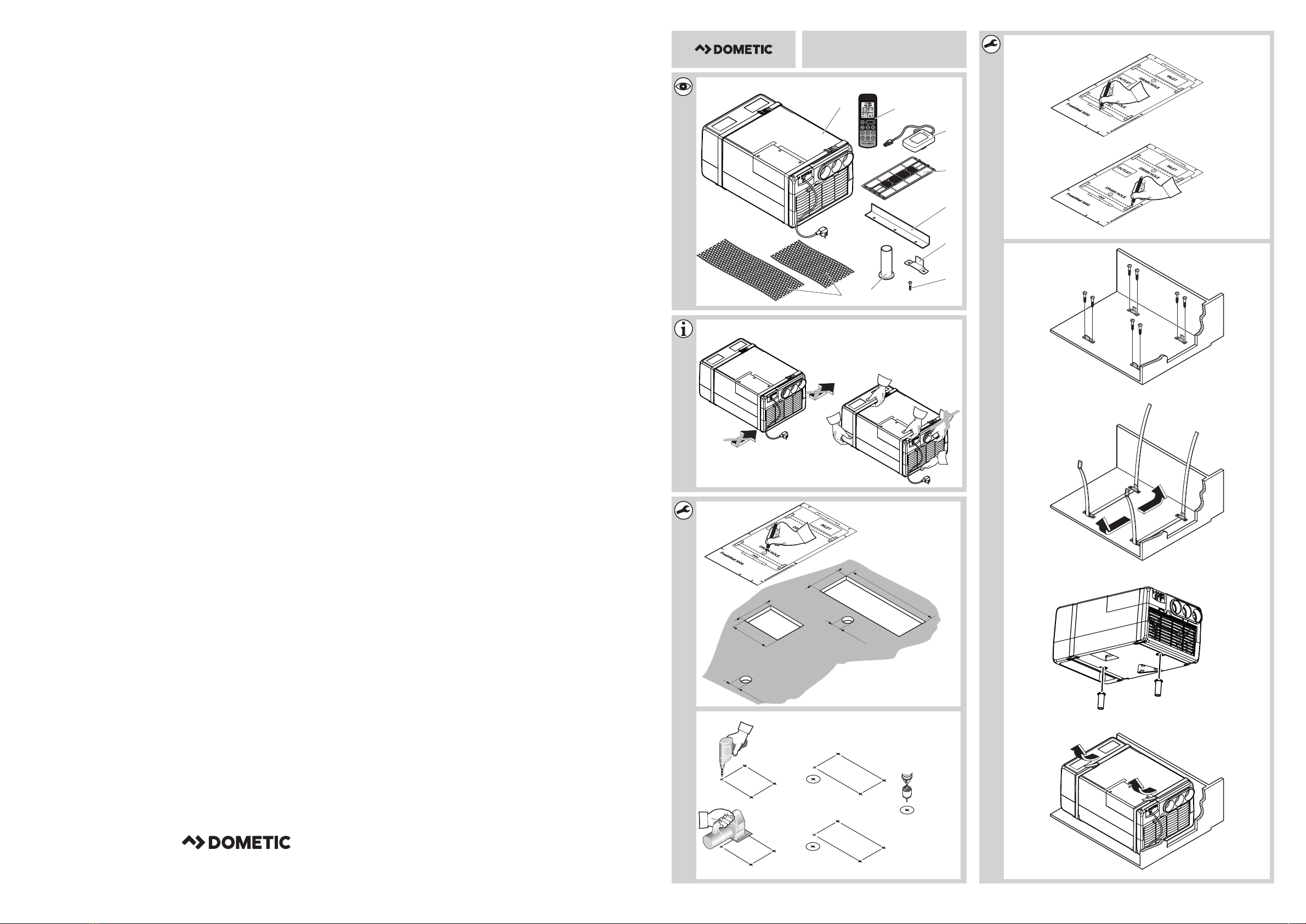

Dometic FreshWell 3000 User manual

B
C
A
A
B
A
B
C
B
D
A
Ø 32 mm
A
B
Ø
32 mm
324 mm
96 mm
Ø
32 mm
123 mm
96 mm
12
3
4
5
6
7
89
FreshWell3000
1
2
6
3
4
5
4445101820 ST0194 825 02 01-98 09/2019
leaflet_figures_landscape.fm Seite 1 Mittwoch, 12. Dezember 2018 11:42 11
YOUR LOCAL DEALER
dometic.com/dealer
A complete list of Dometic companies, which comprise the Dometic Group, can be found in the public filings of:
DOMETIC GROUP AB Hemvärnsgatan 15 SE-17154 Solna Sweden
YOUR LOCAL SUPPORT
dometic.com/contact
YOUR LOCAL SALES OFFICE
dometic.com/sales-offices

59 mm
X + 29,5 mm
X
50 mm
Y
93,5 mm
Y + 47
DC-Kit
IR LIN1 12 VLIN2
POWER
DC-Kit
1, 4 Inverter
2, 5 Remote On
3, 6 Economy
LIN
1, 3, 4, 5 GND
2 LIN
6 NC
13
4
123456
6
CN1
COMP
COM COM
HEATER
4V IN FAN
CN1
CN7CN4CN10CN3
CN2
OUT FAN
AC-L1
N2-N3
N1-N4
N5-N6
CN1
CN5 CN4
CN3
CN2
LIN1 LIN2
ye
bk
ye
ye
bn
bu
bk
bn
bu
og
bk
rd
rd
rd
bu ye
bk
bk
wh
bn
bn
wh
gn
rd
wh
gn
1 2
1 2
LIN 1
AUX
LIN 2
+
–
1 2
bu ye wh
rd bn
T1 – Line
T2 – Neutral
T3 – Ground
230 Vw
12 Vg
2
1
11
10
5
5
5
7
8
6
2
1
3
4
9
2
3
1
b
c
EN DE FR ES PT IT NL DA SV NO FI RU PL SK CS HU
bk Black Schwarz Noir Negro Preto Nero Zwart Sort Svart Svart Musta Черный Czarny Čierna Černá Fekete
bn Brown Braun Marron Marrón Castanho Marrone Bruin Brun Brun Brun Ruskea Коричневый Brązowy Hnedá Hněda Barna
bu Blue Blau Bleu Azul Azul Blu Blauw Blå Blå Blå Sininen Синий Niebieski Modrá Modrá Kék
cy Cyan Cyan Cyan Cian Ciano Cyan Cyaan Cyan Cyan Cyan Syaani Голубой Cyjan Azúrová Azurová Cián
gn Green Grün Vert Verde Verde Verde Groen Grøn Grön Grønn Vihreä Зеленый Zielony Zelená Zelená Zöld
gy Grey Grau Gris Gris Cinzento Grigio Grijs Grå Grå Grå Harmaa Серый Szary Sivá Šedá Szürke
og Orange Orange Orange Naranja Cor de
laranja
Arancione Oranje Orange Orange Oransje Oranssi Оранжевый Pomarańczowy Oranžová Oranžová Narancs
pk Pink Pink Rosa Rose Cor de
rosa
Rosa Roze Lyserøde Rosa Rosa Pinkki Розовый Różowy Ružová Růžová Rózsaszín
rd Red Rot Rouge Rojo Vermelho Rosso Rood Rød Röd Rød Punainen Красный Czerwony Červená Červená Piros
vt Violet Violett Violeta Lila Violeta Violetto Paars Violet Violett Fiolett Violetti Фиолетовый Fioletowy Fialová Fialová Ibolya
wh White Weiß Blanc Blanco Branco Bianco Wit Hvid Vit Hvit Valkoinen Белый Biały Biela Bílá Fehér
ye Yellow Gelb Jaune Amarillo Amarelo Giallo Geel Gul Gul Gul Keltainen Желтый Żółty Žltá Žlutá Sárga
a
9
07
8
leaflet_figures_landscape.fm Seite 2 Mittwoch, 12. Dezember 2018 11:42 11

FW3000
Under-bench air conditioner
Installation Manual. . . . . . . . . . . . . . . . . . . . .2
Staukastenklimaanlage
Montageanleitung. . . . . . . . . . . . . . . . . . . . 16
Climatiseur de coffre
Instructions de montage . . . . . . . . . . . . . . . 31
Equipo de aire acondicionado de
cajón
Instrucciones de montaje . . . . . . . . . . . . . .47
Sistema de climatização para caixa
de arrumação
Instruções de montagem . . . . . . . . . . . . . .62
Climatizzatore per vano di carico
Indicazioni di montaggio . . . . . . . . . . . . . .77
Airco onder de bank
Montagehandleiding . . . . . . . . . . . . . . . . .92
Klimaanlæg til montering i et
magasin
Monteringsvejledning. . . . . . . . . . . . . . . . 107
Klimatanläggning för
förvaringsutrymmen
Monteringsanvisning . . . . . . . . . . . . . . . . 121
Takboksklimaanlegg
Monteringsanvisning . . . . . . . . . . . . . . . . 135
Kaappi-ilmastointilaite
Asennusohje . . . . . . . . . . . . . . . . . . . . . . . 149
Встраиваемый в багажный ящик
кондиционер
Инструкция по монтажу. . . . . . . . . . . . . . 163
Klimatyzator umieszczany
wschowku
Instrukcja montażu . . . . . . . . . . . . . . . . . . 179
Klimatizačné zariadenie do
úložného priestoru
Návod na montáž . . . . . . . . . . . . . . . . . . . 194
Klimatizace do zavazadlového
prostoru
Návod k montáži . . . . . . . . . . . . . . . . . . . . 208
Tárolóládás klímaberendezés
Szerelési útmutató . . . . . . . . . . . . . . . . . . 222
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
AIR CONDITIONERS
FRESHWELL
FreshWell3000-I-16s.book Seite 1 Mittwoch, 12. Dezember 2018 2:11 14

EN
Explanation of symbols FreshWell3000
2
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2 Safety and installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
3 Target group for this instruction manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
4 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
6 Labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
7 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
9 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
10 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
1 Explanation of symbols
!
!
A
I
WARNING!
Safety instruction: Failure to observe this instruction can cause death
or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
FreshWell3000-I-16s.book Seite 2 Mittwoch, 12. Dezember 2018 2:11 14

EN
FreshWell3000 Safety and installation instructions
3
2 Safety and installation instructions
Pleaseobserve the prescribedsafety instructionsand stipulationsfromthe
vehicle manufacturer and service workshops.
The manufacturer accepts no liability for damage in the following cases:
• Damage to the product resulting from mechanical influences and incorrect
connection voltage
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual
Note the following basic safety information when using electrical devices to protect
against:
• Electric shock
•Firehazards
•Injury
2.1 Handling the device
!WARNING!
•Electrical devices are not toys.
Keep electrical devices out of reach of children or infirm persons. Do
not allow them to use electrical devices without supervision.
•This device can be used by childrenaged 8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and/or knowledge, providing they are supervised
or have been taught how to use the device safely and are aware of the
resulting risks.
•Cleaning and user maintenance must not be carried out by children
without supervision.
•Children must not play with the device.
•Children must be supervised to ensure that they do not play with the
device.
• Always keep and use the device out of the reach of children under the
age of 8 years.
• In the event of a fire only use approved extinguishing agents. Do not
use water to extinguish fires.
FreshWell3000-I-16s.book Seite 3 Mittwoch, 12. Dezember 2018 2:11 14

EN
Safety and installation instructions FreshWell3000
4
• Installation, maintenance and repairs of the under-bench air
conditioner must only be carried out by qualified personnel who are
familiar with the risks involved when handling refrigerant and air
conditioning systems as well as the relevant regulations. Inadequate
repairs may cause serious hazards. For repair service, please contact
the service centre in your country (addresses on the back page).
• A damaged supply cord must be replaced by the manufacturer or a
qualified person in order to avoid a hazard.
!CAUTION!
• The under-bench air conditioner must be installed securely so that it
cannot fall down.
• Only operate the under-bench air conditioner if you are certain that
the housing and the cables are not damaged.
• Do not use the under-bench air conditioner near flammable fluids.
• Make sure no combustible objects are stored or installed near the air
outlet. A distance of at least 50 cm must be kept.
• Do not reach into air outlets or insert any foreign objects in the device.
ANOTICE!
• Only use the device as intended.
• The under-bench air conditioner is not suitable for use in agricultural or
construction vehicles.
• Do not make any alterations or conversions to the device.
• If faults occur in this refrigerant circuit, the system must be checked by
a specialist company and repaired properly. The refrigerant must
never be released into the air.
2.2 Handling electrical cables
!WARNING!
• The electrical power supply may only be connected by a qualified
electrician (e.g. VDE 0100, Part 721 in Germany).
!CAUTION!
• Attach and lay the cables so that they cannot be tripped over or
damaged.
FreshWell3000-I-16s.book Seite 4 Mittwoch, 12. Dezember 2018 2:11 14

EN
FreshWell3000 Target group for this instruction manual
5
ANOTICE!
• Use cable ducts to lay cables through walls with sharp edges.
• Do not lay loose or bent cables next to electrically conductive
materials (metal).
• Do not pull on the cables.
3 Target group for this instruction manual
The instructions in this manual are intended for qualified personnel at workshops
who are familiar with the guidelines and safety precautions to be applied.
4Scopeofdelivery
5 Intended use
The Dometic FreshWell3000 under-bench air conditioner (ref. no. 9105306670) is
designed for use in motorcaravans, caravans and other vehicles with habitation
compartments only. It is not suitable for houses and appartments.
The under-bench air conditioner is not suitable for installation in construction
machines, agricultural machines or similar equipment. It will not work properly if
exposed to strong vibrations.
No. in fig. 1Qunatity Description
1 1 Under-bench air conditioner
2 1 Remote control
3 1 Receiver
4 4 Air filter
5 2 Angle section
6 4 Fastening bracket
7 14 Fastening screw
8 2 Drain pipe
9 2 External grids
– 1 Assembly template
FreshWell3000-I-16s.book Seite 5 Mittwoch, 12. Dezember 2018 2:11 14

EN
Labels FreshWell3000
6
The operating mode of FreshWell3000 is guaranteed for temperatures between
0°Cand52°C.
I
6Labels
Labels are attached to the Dometic FreshWell under-bench air conditioners. These
labels provide the user and fitter with information on specifications of the device.
7 Installation
!
I
7.1 Note on installation
Read this installation manual completely before installing the under-bench air
conditioner.
The following tips and instructions must be observed while installing the under-
bench air conditioner:
D
NOTE
You can find additional information on under-bench air conditioners in
the operating manual, such as the technical description or the controls.
CAUTION! Beware of injury
The under-bench air conditioner must only be installed by qualified
personnel from a specialist company. The following information is
intended for technicians who are familiar with the guidelines and safety
precautions to be applied.
NOTE
The device should not be touched after installation.
DANGER! Danger of electrocution
Disconnect all power supplies when working on the under-bench air
conditioner.
FreshWell3000-I-16s.book Seite 6 Mittwoch, 12. Dezember 2018 2:11 14

EN
FreshWell3000 Installation
7
!
A
Note on transport
• Always have someone help you carry the under-bench air conditioner.
• Always lift the under-bench air conditioner to move it and never drag it over the
floor (fig. 2A).
• Do not use the ventilation slots to lift it (fig. 2B).
Note on installation location
• To install the machine it is necessary to create openings in the floor. These open-
ings must be accessible and must not be covered by any parts of the vehicle.
• Before installing the under-bench air conditioner, check whether any vehicle
components could be damaged by the installation of the under-bench air
conditioner (such as lamps, cupboards, doors).
• Make sure no combustible objects are stored or installed near the air outlet. A
distance of at least 50 cm should be kept.
• The inclination of the installation surface may not exceed 10°.
• For safety reasons, note the location of existing wiring harnesses, wires and other
components within the installation area, in particular those which are not visible,
when installing the under-bench air conditioner (when drilling or screwing etc.).
• To obtain the optimal air-conditioning in the vehicle, install the under-bench air
conditioner in a central position, in a compartment or a similar housing.
• Choose a place that is easily accessible for servicing as well as disassembling and
installing.
CAUTION! Beware of injury
• Improper installation of the under-bench air conditioner can result in
irreparable damage to the device and put the safety of the user at
risk.
• The manufacturer assumes no liability for malfunctions and for the
safety of the under-bench air conditioner, especially for injury and/or
damage to property, if the under-bench air conditioner is not fitted in
accordance with these installation instructions.
• Always wear the recommended protective clothing (e.g. protective
goggles, gloves).
NOTICE! Beware of damage
Observe the structural engineering of the vehicle and seal of all open-
ings made when installing the under-bench air conditioner.
FreshWell3000-I-16s.book Seite 7 Mittwoch, 12. Dezember 2018 2:11 14

EN
Installation FreshWell3000
8
• Place the assembly template into the chosen compartment and check the space
available for the openings in the floor.
• To minimize the transmission of noise and vibration during operation, the under-
bench air conditioner should have a all around minimum clearance of 30 mm to
walls and furniture.
• The under-bench air conditioner must be installed on the floor.
• Keep a distance of 200 mm between the front of the under-bench air conditioner
and the walls of the compartment to facilitate filter replacement.
• Installing the under-bench air conditioner into an external compartment (e.g.
false bottoms), the air to be treated must be drawn in from the vehicle’s
passenger compartment.
• Suctioning of outside air can significantly reduce the power of the system.
Note on electrical system (see fig. c)
• Only a qualified electrician should connect the under-bench air conditioner to
the electrical power.
• Check that the voltage specification on the type plate is the same as that of the
power supply.
• Do not lay cables which are loose or bent next to electrically conductive material
(metal).
No. in fig. cDescription
1 Motor ventilator (inner)
2 Motor ventilator (outer)
3 Capacitor
4 Compressor
5 Temperature sensor
6PCB
7PCBdisplay
8 PCB interface
9 Soft start
10 Valve
11 Resistor
FreshWell3000-I-16s.book Seite 8 Mittwoch, 12. Dezember 2018 2:11 14

EN
FreshWell3000 Installation
9
• Install an all-pole switch with a contact opening width of at least 3 mm on the
installation side.
• If the appliance is powered by the mains,install a 2-pole switch that interrupts the
AC voltage supply in case of overcurrent.
• If the appliance is powered by the mains, ensure that the AC voltage supply has
a residual current circuit breaker.
• Make sure that the grounding cable of the air conditioner is connected to the
vehicle‘s grounding system.
7.2 Making openings
See fig. 3
➤Mark the position and size of the openings using the template included in the
packaging (Aand B).
See fig. 4
➤Drill out the corners (A).
➤Carefully cut out the openings using a keyhole saw or a similar tool (B).
Make sure no electrical power cables are damaged.
➤Drill out a condensation water drainage opening with a diameter of 32 mm (C).
See fig. 5
➤Mark the position of the angle sections (A) and the fastening brackets (B).
7.3 Installing the fastening brackets and belts
See fig. 6
➤Fasten the four fastening brackets (A).
➤Pull the belts through the fastening brackets (B).
➤Install the drain pipes under the under-bench air conditioner (C).
➤Fasten the under-bench air conditioner with the belts (D).
7.4 Installing the angle section
See fig. 7
➤Fasten the under-bench air conditioner with the two angle sections an three
fastening screw for each as shown.
FreshWell3000-I-16s.book Seite 9 Mittwoch, 12. Dezember 2018 2:11 14

EN
Installation FreshWell3000
10
7.5 Installing the external grids
See fig. 8
➤Fasten the external grids as shown with the screws and washers included in the
supply.
7.6 Installing the receiver
See fig. 9
➤Drill an opening of 50 mm into the wall.
See fig. 0
➤Lay the cable through the hole to the under-bench air conditioner.
➤Fasten the receiver as shown.
7.7 Laying the connecting cables
D
The under-bench air conditioner must be connected to an electric circuit which is
able to supply the required current (see chapter “Technical data” on page 15).
➤Select the cross-section of the cable corresponding to the length:
– Length<7.5m:1.5mm²
–Length>7.5m:2.5mm²
See fig. a
➤Plug the four-pole plug of the receiver into the IR socket of the (1).
➤Plug the 230 Vwplug into an 230 Vwsocket (2).
7.8 Air ducting
See fig. b
Make the air ducting (1) with trade parts (not included in the supply). It is recom-
mended to use cardboard pipe for air conditioning with an aluminium core and
external covering of PVC. The nominal inside diameter should size up to 60 mm, the
outside diameter 65 mm.
DANGER! Danger of electrocution
Make sure there is no voltage at electrically operated components
before carrying out work on them!
FreshWell3000-I-16s.book Seite 10 Mittwoch, 12. Dezember 2018 2:11 14

EN
FreshWell3000 Installation
11
The ventilation pipes (3) are joined by pressing them together thanks to the tapered
hole on the air outlet.
The pipes are connected to the register output.
To achieve the best efficiency it is recommended to:
• lay the air pipes as short and straight as possible
• restrict the length of the pipes to 5 m
• don‘t lay the pipes near any heat sources
The recirculation air is drawn in through a grille or through other openings with a total
cross-section of at least 300 cm². The recirculation air opening (2) must be created
near the machine. If this is not possible, make sure that the air flow must be
obstructed by anything; if necessary, create an air ductbetween the opening and the
machine.
I
The recirculation air must be taken from inside the passenger compartment; if taken
from the outside then the efficiency of the under-bench air conditioner will be
reduced.
NOTE
To avoid condensation on the pipes insulate the pipes with insulation
material (not included in the scope of delivery).
FreshWell3000-I-16s.book Seite 11 Mittwoch, 12. Dezember 2018 2:11 14

EN
Troubleshooting FreshWell3000
12
8 Troubleshooting
Problem Cause Remedy
No cooling
capacity
The under-bench air conditioner is not
set to cooling.
➤Set the under-bench air
conditioner to cooling.
The ambient temperature is above 52 °C. The under-bench air conditioner is
only designed for ambient
temperatures of up to 52 °C.
The temperature set is higher that the
room temperature.
➤Select a lower temperature.
The ambient temperature is below 16 °C. The under-bench air conditioner is
only designed for ambient tempera-
tures above 16 °C.
The thermal protection is defective. ➤Contact an authorised workshop.
The compressor is damaged.
The refrigerating agent filling is
insufficient.
The heat exchange coils are polluted.
The external blower is defective.
No heating
capacity
The under-bench air conditioner is not
set to heating.
➤Set the under-bench air
conditioner to heating.
The ambient temperature is below 0 °C. The under-bench air conditioner is
only designed for ambient
temperatures higher than 0 °C.
The temperature set is lower than the
room temperature.
➤Select a higher temperature.
The ambient temperature is higher than
31 °C.
The temperature is adjustable
between 16 °C and 31 °C.
The thermal protection is defective. ➤Contact an authorised workshop.
The compressor is damaged.
The refrigerating agent filling is
insufficient.
The heat exchange coils are polluted.
The external blower is defective.
Low air output The air filter is obstructed. ➤Clean the air filter.
The heat exchange coils are polluted. ➤Contact an authorised workshop.
The internal blower is defective.
FreshWell3000-I-16s.book Seite 12 Mittwoch, 12. Dezember 2018 2:11 14

EN
FreshWell3000 Disposal
13
9Disposal
Regulations for environmental safety and correct disposal
All organisations must apply a set of procedures to identify, evaluate and control the
influence that their activities (manufacturing, products, services, etc.) have on the
environment.
The procedures tobe followed toidentify significant environmental impact must take
the following factors into account:
• use of raw materials and natural resources
• atmospheric emissions
• discharge of liquids
• waste management and recycling
Water enters the
vehicle
The condensation water drainage open-
ings are clogged up.
➤Clean the drainage openings for
condensation water.
The seals are damaged. ➤Contact an authorised workshop.
Under-bench air
conditioner does
not switch on.
No supply voltage (230 Vw) connected. ➤Check the power supply.
The voltage is too low (under 200 Vw).
The voltage converter is defective.
➤Contact an authorised workshop.
The defective thermal protection is
defective.
The electrical fuse of the power supply is
too low.
➤Check the electrical fuse of the
power supply.
Under-bench air
conditioner stops
working.
The air filter is obstructed. ➤Clean the air filter.
The voltage is too low (under 200 Vw).
The voltage converter is defective.
➤Contact an authorised workshop.
The defective thermal protection is
defective.
The condenser fan is damaged.
The heat exchange coils are polluted.
The external blower is defective.
Under-bench air
conditioner does
not switch off.
One of the temperature sensors is
defective.
➤Contact an authorised workshop.
Problem Cause Remedy
FreshWell3000-I-16s.book Seite 13 Mittwoch, 12. Dezember 2018 2:11 14

EN
Disposal FreshWell3000
14
• contamination of the soil
In order to minimise environmental impact, the manufacturer provides a series of
indications here below that should be taken into account by all those who, for
whatever reason, interact with the appliance during its working life.
• All packing components must be disposed of (preferably recycled) in compli-
ance with statutory legislation in the country in which disposal takes place.
• All product components must be disposed of (preferably recycled) in compli-
ance with statutory legislation in the country in which disposal takes place.
• For correct disposal, the appliance must be consigned to an authorised waste
disposal company to ensure that all recyclable components are reused and the
remaining materials are processed properly.
• During installation ensure the room has adequate ventilation to prevent the build-
up of stale air that might be harmful to the health of the operators.
• During operation and maintenance ensure that any waste pollutant products (oil,
grease, etc.) are disposed of correctly.
• Keep noise levels down to reduce noise pollution.
For more information on correct dismantling of our products please refer to the
recycling handbooks at dometic.com.
➤Place the packaging material in the appropriate recycling waste bins wherever
possible.
➤When in operation or undergoing repairs and maintenance work, make sure that
the refrigerant circuit is not damaged and refrigerant cannot escape. It acts as a
greenhouse gas and should not be allowed into the environment.
MIf you wish to finally dispose of the product, ask your local recycling centre
or specialist dealer for details about how to do this in accordance with the
applicable disposal regulations.
➤Dispose of the product at an official waste disposal facility in accordance with the
applicable recycling or disposal guidelines.
BProtect the environment!
Do not dispose of any batteries with general household waste.
Return defective or used batteries to your retailer or dispose of them at
collection points.
FreshWell3000-I-16s.book Seite 14 Mittwoch, 12. Dezember 2018 2:11 14

EN
FreshWell3000 Technical data
15
10 Technical data
Contains fluorinated greenhouse gases
Hermetically sealed equipment
FreshWell3000
Cooling capacity according to ISO 5151: 2700 W
Heating capacity: 3000 W
(2500 W + 500 W additional
heating element)
Rated input voltage: 220 – 240 Vw, 50/60 Hz
Current consumption: Cooling (50/60 Hz): 5.1/6.2 A
Heating (50/60 Hz): 4.6/4.8 A
Required fuse: 5 A
Operating temperature range: 0 °C to +52 °C
Noise emission: < 70 dB
Refrigerant: R-410A
Refrigerant quantity: 0.6 kg
CO2equivalent: 1,2528 t
Global warming potential (GWP): 2088
Additional heating element: 500 W
Blower: 3 blower levels
1 Automatic mode
Protection class: IP X5
Max. volume of space in the vehicle
(with insulated walls):
30 m³
Dimensions L x W x H: 628 x 400 x 286 mm
Weight: approx. 21 kg
Inspection/certification:
FreshWell3000-I-16s.book Seite 15 Mittwoch, 12. Dezember 2018 2:11 14

DE
Erklärung der Symbole FreshWell3000
16
Bitte lesen Sie diese Anleitung vor Einbau und Inbetriebnahme sorgfältig
durch und bewahren Sie sie auf. Geben Sie sie im Falle einer Weitergabe
des Produktes an den Nutzer weiter.
Inhaltsverzeichnis
1 Erklärung der Symbole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
2 Sicherheits- und Einbauhinweise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
3 Zielgruppe dieser Anleitung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
4 Lieferumfang . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
5 Bestimmungsgemäßer Gebrauch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6 Kennzeichnungsschilder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7 Montage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
8 Störungsbeseitigung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
9 Entsorgung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
10 Technische Daten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
1 Erklärung der Symbole
!
!
A
I
WARNUNG!
Sicherheitshinweis: Nichtbeachtung kann zu Tod oder schwerer
Verletzung führen.
VORSICHT!
Sicherheitshinweis: Nichtbeachtung kann zu Verletzungen führen.
ACHTUNG!
Nichtbeachtung kann zu Materialschäden führen und die Funktion des
Produktes beeinträchtigen.
HINWEIS
Ergänzende Informationen zur Bedienung des Produktes.
FreshWell3000-I-16s.book Seite 16 Mittwoch, 12. Dezember 2018 2:11 14

DE
FreshWell3000 Sicherheits- und Einbauhinweise
17
2 Sicherheits- und Einbauhinweise
Beachten Sie die vom Fahrzeughersteller und vom Kfz-Handwerk vorge-
schriebenen Sicherheitshinweise und Auflagen!
Der Hersteller übernimmt in folgenden Fällen keine Haftung für Schäden:
• Beschädigungen am Produkt durch mechanische Einflüsse und falsche
Anschlussspannung
• Veränderungen am Produkt ohne ausdrückliche Genehmigung vom Hersteller
• Verwendung für andere als die in der Anleitung beschriebenen Zwecke
Beachten Sie folgende grundsätzliche Sicherheitsmaßnahmen beim Gebrauch von
elektrischen Geräten zum Schutz vor:
• elektrischem Schlag
• Brandgefahr
•Verletzungen
2.1 Umgang mit dem Gerät
!WARNUNG!
•Elektrogeräte sind kein Kinderspielzeug!
Kinder können Gefahren, die von elektrischen Geräten ausgehen,
nicht richtig einschätzen. Lassen Sie Kinder nicht ohne Aufsicht elekt-
rische Geräte benutzen.
•Dieses Gerät kann von Kindern ab 8 Jahren und darüber sowie von Per-
sonen mit verringerten physischen, sensorischen oder mentalen
Fähigkeiten oder Mangel an Erfahrung und Wissen benutzt werden,
wenn sie beaufsichtigt oder bezüglich des sicheren Gebrauchs des
Gerätes unterwiesen wurden und die daraus resultierenden Gefahren
verstehen.
•Reinigung und Benutzer-Wartung dürfen nicht von Kindern ohne
Beaufsichtigung durchgeführt werden.
•Kinder dürfen nicht mit dem Gerät spielen.
•Kinder sollten beaufsichtigt werden, um sicherzustellen, dass sie nicht
mit dem Gerät spielen.
• Verwahren und benutzen Sie das Gerät außerhalb der Reichweite von
Kindern unter 8 Jahren.
• Im Falle von Feuer verwenden Sie nur zugelassene Löschmittel.
Verwenden Sie kein Wasser zum Löschen.
FreshWell3000-I-16s.book Seite 17 Mittwoch, 12. Dezember 2018 2:11 14

DE
Sicherheits- und Einbauhinweise FreshWell3000
18
• Die Installation, Wartung und Reparaturen der Staukastenklimaanlage
dürfen nur von Fachkräften durchgeführt werden, die mit den
Gefahren beim Umgang mit Kältemittel und Klimaanlagen sowie den
einschlägigen Vorschriften vertraut sind. Durch unsachgemäße
Reparaturen können erhebliche Gefahren entstehen. Wenden Sie
sich im Reparaturfall an den Service-Stützpunkt in Ihrem Land
(Adressen auf der Rückseite).
• Wenn das Anschlusskabel dieses Gerätes beschädigt wird, muss es
durch den Hersteller, seinen Kundendienst oder eine ähnlich
qualifizierte Person ersetzt werden, um Gefährdungen zu vermeiden.
!VORSICHT!
• Die Staukastenklimaanlage muss so sicher installiert werden, dass
diese nicht herabfallen kann.
• Betreiben Sie die Staukastenklimaanlage nur, wenn das Gehäuse und
die Leitungen unbeschädigt sind.
• Setzen Sie die Staukastenklimaanlage nicht in der Nähe von entflamm-
baren Flüssigkeiten ein.
• Achten Sie darauf, dass brennbareGegenstände nicht im Bereich des
Luftaustritts gelagert bzw. montiert sind. Der Abstand muss mindes-
tens 50 cm betragen.
• Greifen Sie nicht in Lüftungsauslässe, und führen Sie keine Fremd-
gegenstände in die Anlage ein.
AACHTUNG!
• Benutzen Sie das Gerät nur zu seinem bestimmungsgemäßen
Gebrauch.
• Die Staukastenklimaanlage ist nicht für den Betrieb in Land- und Bau-
maschinen geeignet.
• Führen Sie keine Änderungen oder Umbauten am Gerät durch.
• Treten Fehler im Kältemittelkreislauf der Anlage auf, so muss die
Anlage von einem Fachbetrieb geprüft und ordnungsgemäß instand
gesetzt werden. Auf keinen Fall darf das Kältemittel in die freie Atmo-
sphäre abgelassen werden.
2.2 Umgang mit elektrischen Leitungen
!WARNUNG!
• Der elektrische Anschluss darf nur von einem Fachbetrieb durch-
geführt werden (z. B. in Deutschland VDE 0100, Teil 721).
FreshWell3000-I-16s.book Seite 18 Mittwoch, 12. Dezember 2018 2:11 14
