Dometic FreshJet 3 Series User manual

CLIMATE CONTROL
FRESHJET
WARNING
Cancer and Reproductive Harm
www.P65Warnings.ca.gov Form No. 3317884.000 4445104241 2023-10-12
FreshJet 3 Series and FreshJet 4 Series
EN Rooop Air Conditioner (Air
Distribution Box, Electronic Controls)
Installation and Operation Manual .........2

2EN
Rooop Air Conditioner (Air Distribution Box, Electronic Controls)
Copyright
© 2023 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law.
The underlying technical design and the products contained herein may be protected by design, patent or be patent
pending. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved.

Rooop Air Conditioner (Air Distribution Box, Electronic Controls) Contents
1 Related documents...................... 3
2 Explanation of symbols and safety
instructions ............................ 4
2.1 Recognize safety information .............4
2.2 Understand signal words ................4
2.3 Supplemental directives .................4
2.4 General safety messages.................4
3 Intended use ........................... 4
4 General information ..................... 5
4.1 Tools and materials .....................5
4.2 Model identification ....................5
4.3 ADB components ......................6
4.4 Rooftop component dimensions ..........6
4.5 ADB component dimensions .............7
4.6 Placement requirements .................7
5 Specifications .......................... 8
6 Wiring diagrams ........................ 9
7 Pre-installation ........................ 10
7.1 Determining your cooling needs .........10

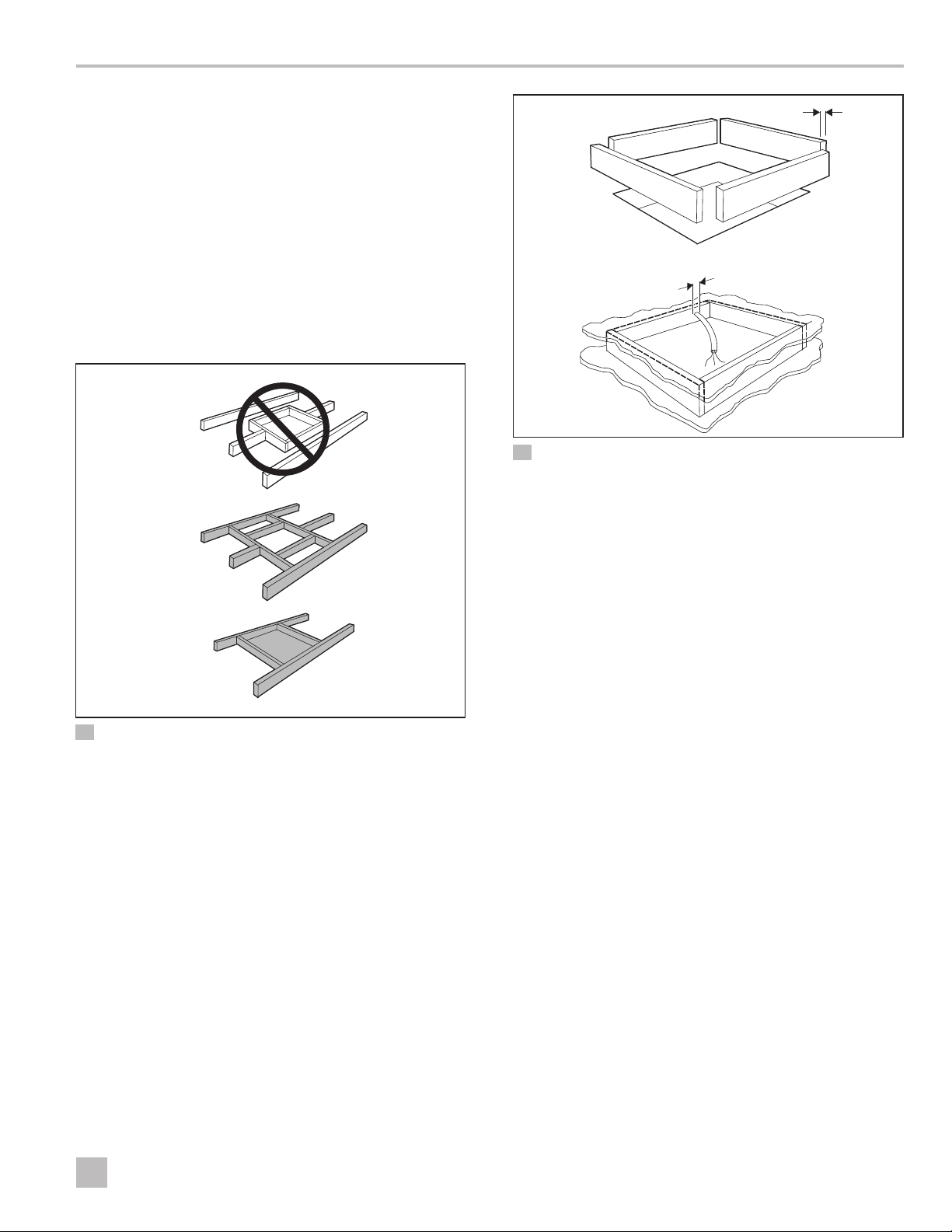

7.2 Preparing the RV roof opening ...........10
7.3 Routing the supply wiring to the roof
opening ............................. 11
7.4 Positioning the rooftop component.......12
7.5 Preparing to work inside the RV ..........12
8 Installation ............................ 13
8.1 Wiring the rooftop component ..........13
8.2 Installing the foam dividers ..............14
8.3 Securing the ADB .....................17
9 System check .......................... 18
10 Operation............................. 18

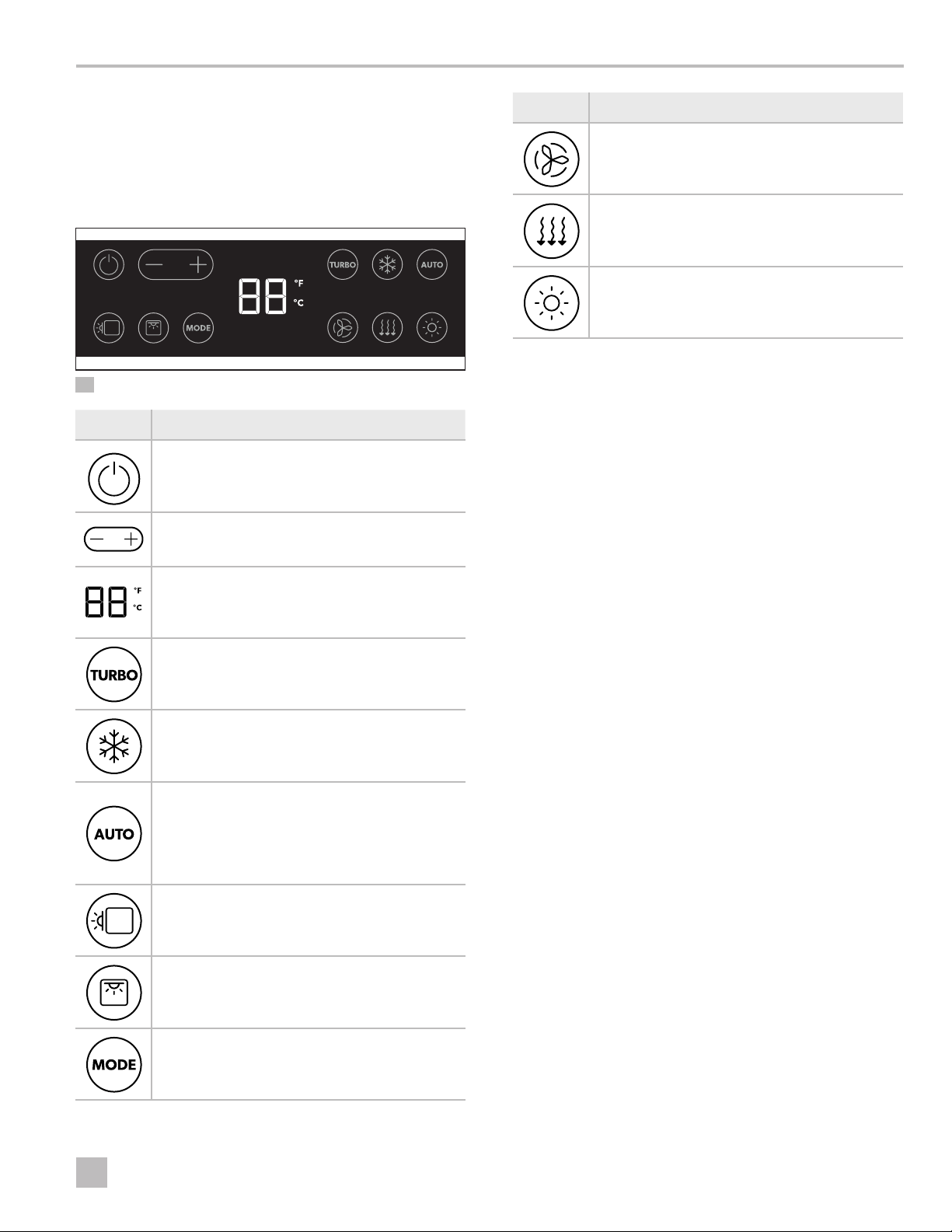

10.1 Locating the control panel ..............18
10.2 Understanding the control panel .........19
10.3 Using the control panel ................19
11 Maintenance ..........................25
11.1 Cleaning the air filter ...................25
11.2 Cleaning the ADB .....................25
11.3 Servicing the blower ...................25
12 Troubleshooting .......................26
13 Disposal .............................. 27
Limited one-year warranty ................. 27
Contents
Service Center & Dealer Locations
Visit: www.dometic.com
Please read these instructions carefully and follow all instructions,
guidelines, and warnings included in this product manual in order to
ensure that you install, use, and maintain the product properly at all
times. These instructions MUST stay with this product.
By using the product, you hereby confirm that you have read
all instructions, guidelines, and warnings carefully and that you
understand and agree to abide by the terms and conditions as set
forth herein. You agree to use this product only for the intended
purpose and application and in accordance with the instructions,
guidelines, and warnings as set forth in this product manual as well
as in accordance with all applicable laws and regulations. A failure
to read and follow the instructions and warnings set forth herein may
result in an injury to yourself and others, damage to your product,
or damage to other property in the vicinity. This product manual,
including the instructions, guidelines, and warnings, and related
documentation, may be subject to changes and updates. For up-to-
date product information, please visit www.dometic.com.
3
EN
1 Related documents
Find the installation manual on-line in
French at
http://qr.dometic.com/beJZzw
Find the installation manual on-line in
Spanish at
http://qr.dometic.com/beJa1y

4EN
Explanation of symbols and safety instructions Rooop Air Conditioner (Air Distribution Box, Electronic Controls)
2 Explanation of symbols and
safety instructions
This manual has safety information and instructions to
help you eliminate or reduce the risk of accidents and
injuries.
2.1 Recognize safety information
This is the safety alert symbol. It is used to alert
you to potential physical injury hazards. Obey all
safety messages that follow this symbol to avoid
possible injury or death.
2.2 Understand signal words
A signal word will identify safety messages and property
damage messages, and also will indicate the degree or
level of hazard seriousness.
DANGER!
Indicates a hazardous situation that, if not avoided,
will result in death or serious injury.
WARNING
Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
CAUTION
Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
NOTICE: Used to address practices not related to
physical injury.
IIndicates additional information that is not related
to physical injury.
2.3 Supplemental directives
To reduce the risk of accidents and injuries, please
observe the following directives before proceeding to
install, operate, or service this product:
• Read and follow all safety information and instructions.
• Read and understand these instructions before
installing, operating, or servicing this product.
• The installation must comply with all applicable local
or national codes, including the latest edition of the
following standards:
U.S.A.
– ANSI/NFPA70, National Electrical Code (NEC)
– ANSI/NFPA 1192, Recreational Vehicles Code
– ANSI Z21.57, Recreational Vehicles Code
Canada
– CSA C22.1, Parts l & ll, Canadian Electrical Code
– CSA Z240 RV Series, Recreational Vehicles
2.4 General safety messages
WARNING: ELECTRICAL SHOCK, FIRE, AND/
OR EXPLOSION HAZARD. Failure to obey the
following warnings could result in death or
serious injury:
• Use only Dometic replacement parts and
components that are specifically approved for use
with the product.
• Avoid improper installation, adjustment, alterations,
service, or maintenance of the product. Installation,
service, and maintenance must be done by a
qualified service person only.
• Do not modify this product in any way. Modification
can be extremely hazardous.
• Use care when diagnosing and/or adjusting
components on a powered product.
• This product is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the product by a
person responsible for their safety.
• Children should be supervised to ensure that they do
not play with the product.
IThe FreshJetX4 series is equipped with a LED light
on the shroud. The light cannot be used while the
recreational vehicle is in motion.
3 Intended use
The FreshJet Rooop Air Conditioner (Air Distribution
Box, Electronic Controls), (also referred to as the
“product” or “unit”), is designed and intended for
installation on the roof of a Recreational Vehicle

5
EN
Rooop Air Conditioner (Air Distribution Box, Electronic Controls) General information
(hereinaer referred to as the “RV”) during or aer the
time it is manufactured. The product is comprised of
two main components: the rooop component and
the internal air distribution box (ADB) component. This
product is only suitable for the intended purpose and
application in accordance with these instructions.
This manual provides information that is necessary
for proper installation and operation of the unit. Poor
installation and/or improper operating or maintenance
will result in unsatisfactory performance and a possible
failure. The manufacturer accepts no liability for damage
in the following cases:
• Incorrect assembly or connection, including excess
voltage
• Incorrect maintenance or use of spare parts
other than original spare parts provided by the
manufacturer
• Alterations to the product without express permission
from the manufacturer
• Use for purposes other than those described in this
manual
Dometic reserves the right to change product
appearance and product specifications.
4 General information
This section provides general information about the unit
and its components.
IThe images used in this document are for
reference purposes only. Components and
component locations may vary according to
specific product models. Measurements may vary
±0.38in.(10mm).
4.1 Tools and materials
Dometic recommends that the following tools and
materials be used.
Recommended tools and materials
Framing wood All-weather caulk
Knife/box cutter Screwdrivers
Electrical connectors 3/8” Torque wrench socket
Basic electrical connection
tools
Torque wrench
(22.2 in. lbs/2.5 N·m)
Optional parts1
FreshJet air distribution box
spacer kit
9620006638
1 Available as an accessory (not included). Accommodates a roof thickness
greater than 5.5 in. (140 mm) and includes two spare 1.2 in. (30mm) foam
dividers and four 9-1/2 in. long bolts.
4.2 Model identification
The model identification labels are located as follows:
• The rooop component and serial numbers are found
on the identification label located on the bottom of
the base pan. To view the identification label, remove
the ADB cover.
• The ADB component model and serial numbers
are found on the rating plate located on the ceiling
template. To view the rating plate, look through the
filter opening.
IHave this information ready before contacting
Dometic for service.

6EN
General information Rooop Air Conditioner (Air Distribution Box, Electronic Controls)
4.3 ADB components
This section identifies the main ADB components.
q
w
r
tt
tt
e
1 ADB components
qFoam dividers rLong bolts
wCeiling template tAir filter
eADB cover

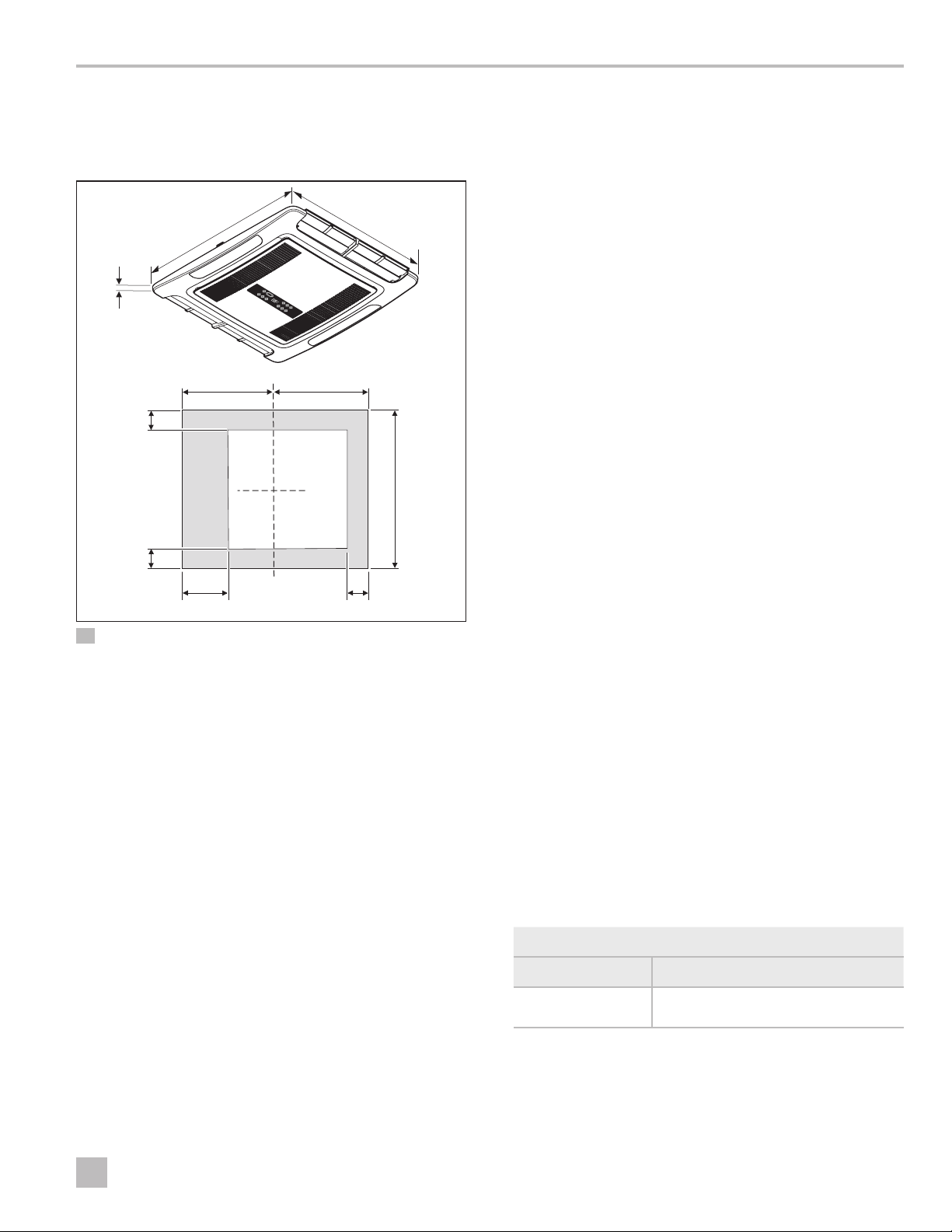

4.4 Rooop component dimensions
This section provides the external dimensions and
clearance measurements of the rooop component.
qq
yyt
r
uuii
wwee
2 FreshJet (FJX3 and FJX4 series)
q14.4 in. (366 mm) yCenter line of unit
w29.6 in. (752 mm) uRoof opening
e27.6 in. (701 mm) iFront of unit
r18.0 in. (457 mm)
Clearance
tAir flow clearance area
(shaded)

7
EN
Rooop Air Conditioner (Air Distribution Box, Electronic Controls) General information
4.5 ADB component dimensions
This section provides the internal dimensions of the ADB
component.
q
t
y
w
rr
ee
rr
uu
ii
ii
ooa
uu
3 Dimension measurements
qFront of unit yCenter line of unit
w2.3 in. (58 mm) u11.6 in. (295 mm)
e23.0 in. (584 mm) i3.4 in. (86 mm)
r20.4 in. (518 mm) o6.0 in. (152 mm)
tRoof opening a3.0 in. (76 mm)
4.6 Placement requirements
This section describes factors to consider when placing
the rooop component.
4.6.1 Planning the rooop location
The rooop component is specifically designed for
installation on the roof of an RV. To determine where to
place the rooop component, consider these items.
• A 14.3 in. x 14.3 in. (363 mm x 363 mm)
[±0.1in.(3mm)] square opening and hereinaer
referred to as “roof opening” is required. The
roof opening is part of the return air system of
the rooop component and must be finished in
accordance with NFPA 1192.
• The raer/joist support frames must be spaced
no greater than 16.0 in. (406 mm) on center. The
rooop component is designed to fit over an existing
roof vent opening.
• The distance between the roof and the RV ceiling
must be between 1.5 in. (38 mm) and 6.0 in.
(152mm).
• When no roof vent is available or when another
location is desired, an opening must be cut through
the roof and ceiling of the RV. This opening must
be located between the roof reinforcing members.
Consider these recommendations along with your
cooling needs:
– For a single rooop component: mount the
rooop component slightly forward of the RV’s
center (front to back) and centered from side to
side.
– For two rooop components: measuring from
the front of the RV and centering from side
to side, mount the first rooop component
at 1/3 the length of the RV and the second
rooop component at 2/3 the length of the RV.
4.6.2 Tilt requirements
When measuring for placement, perform the following
actions:
1. Make all measurements while the RV is parked on a
level surface.
2. Install the rooop component on a flat and level roof
section.
3. Use the tilt allowance table to determine the
maximum acceptable roof tilt.
Tilt allowance
Model number Maximum tilt (all directions)
FreshJet 3 series
FreshJet 4 series
15°

8EN
Specifications Rooop Air Conditioner (Air Distribution Box, Electronic Controls)
5 Specifications
This section provides the electrical specifications by
model.
FreshJet
model
Nominal
capacity
cooling
(BTU HR)
Electrical
rating
Compressor
amps
Fan motor
amps (high)
Refrigerant
R-410A
Minimum
wire size1
AC circuit
protection2
(installer
supplied)
Minimum
generator
size3
(1 unit/
2 units)
Rated
load
Locked
rotor
Rated
load
Locked
rotor
FreshJet3 series
FJX3473EWHAS 13,500 115 VAC,
60 HZ,
1 ph
13.0 73.0 3.3 6.9 12.7 oz
(376 ml)
12 AWG 20 Amp 3.5 kW/
5.0 kW
FJX3473EBKAS
FJX3573EWHAS 15,000 13.4 oz
(396 ml)
FJX3573EBKAS
FJX3573EHPWHAS4
FJX3573EHPBKAS4
FreshJet4 series
FJX4373EHEWHASL High
Efficiency
115 VAC,
60 HZ,
1 ph
9.0 73.0 2.2,
.875
3.0,
1.85
13.4 oz
(396 ml)
12 AWG 15 Amp 3.5 kW/
5.0 kW
FJX4373EHEBKASL
FJX4473EWHASL 13,500 13.0 12.7 oz
(376 ml)
20 Amp
FJX4473EBKASL
FJX4573EWHASL 15,000 13.0 13.4 oz
(396 ml)
FJX4573EBKASL
FJX4573EHPWHASL4
FJX4573EHPBKASL4
1The wiring size indicated is for copper wiring up to 24  (7.3 m) in length. For wire lengths over 24  (7.3 m), consult the National Electrical Code for proper sizing.
2Circuit protection: a time delay fuse or circuit breaker is required.
3Dometic Corporation gives general guidelines for generator requirements. These guidelines come from experiences people have had in actual applications.
When sizing the generator, the total power usage of your RV must be considered. Generators may lose power at high altitudes and from lack of maintenance.
4This model includes a heat pump.
5The FreshJet 4 series have dual high speed fans.

9
EN
Rooop Air Conditioner (Air Distribution Box, Electronic Controls) Wiring diagrams
6 Wiring diagrams
This section provides the wiring diagrams for the product.1
1Wiring diagram definitions; 115 VAC; 60 Hz 1 PH; Use copper conductors only
- - - - - - Field wiring
---------- Factory wiring
• Line splice
4 FreshJet 3 series
5 FreshJet 4 series

10 EN
Pre-installation Rooop Air Conditioner (Air Distribution Box, Electronic Controls)
7 Pre-installation
WARNING: FIRE OR ELECTRICAL SHOCK
HAZARD. Failure to obey these warnings
could result in death or serious injury.
• Shut off the gas supply, disconnect the 115 VAC
power from the RV, and disconnect the positive
(+) 12VDC terminal from the supply battery before
drilling or cutting into the RV.
• Make sure there are no obstacles such as wires or
pipes inside the RV’s roof.
• Provide grounding in compliance with all applicable
electrical codes.
CAUTION: LIFTING HAZARD.
Use proper liing technique and control when
liing the rooop component. Two people are
required to li the rooop component to the roof.
Failure to obey this caution could result in minor or
moderate injury.
NOTICE: Failure to follow these notices could
result in damage to the rooop component
and/or the RV.
• Never create a low spot on the RV roof.
• Maintain the structural integrity of the RV roof. The
roof must be designed to support 130 lbs (59 kg)
when the RV is in motion. Normally, a 200 lb (91 kg)
static load design will meet this requirement.
• Read this entire section before beginning the
installation.
This section describes how to install and set up the unit.
7.1 Determining your cooling needs
When determining your cooling requirements, consider
the following items:
• The size of the RV
• The RV window area (which could increase heat gain)
• The amount of insulation in the walls and the roof
• The geographical location where the RV will be used
• The personal comfort level required
7.2 Preparing the RV roof opening
NOTICE: The roof opening must be structurally framed
to provide adequate support and to prevent air from
being drawn from the roof cavity. Framing stock with
0.75 in. (19 mm) or more thickness must be used.
Remember to provide an entrance hole for power
supplies at the front of the opening. See Figure 7.
This section describes how to prepare the RV roof
opening.
7.2.1 Using an existing roof vent
opening
IIf the roof does not have an existing roof vent, skip
to “Making a new roof opening” on page11.
This section describes how to prepare the RV roof when
using an existing vent.
1. Shut off the gas supply, disconnect the 115 VAC
power from the RV, and disconnect the positive
(+)12VDC terminal from the supply battery.
2. Unscrew and remove the roof vent.
3. Remove the caulking compound around the
opening.
4. Seal the screw holes and seams where the roof
gasket will be located. Use a good grade of
all-weather sealant.
5. Measure the roof opening (review “Placement
requirements” on page7). If the roof opening
is within specifications, skip to “Routing the supply
wiring to the roof opening” on page11.
6. If the opening needs to be resized, proceed to
“Making a new roof opening” on page11.
– If the opening exceeds 14.4 x 14.4 in.
(366 x 366mm), it will be necessary to reduce the
size of the opening.
– If the opening is less than 14.0 x 14.0in.
(356 x 356mm), it will be necessary to enlarge
the opening.

11
EN
Rooop Air Conditioner (Air Distribution Box, Electronic Controls) Pre-installation
7.2.2 Making a new roof opening
IIf the roof has an existing roof vent, see “Using an
existing roof vent opening” on page10.
This section describes how to prepare the RV roof when
making a new roof opening.
1. Shut off the gas supply, disconnect the 115 VAC
power from the RV, and disconnect the positive
(+)12VDC terminal from the supply battery.
2. Carefully mark the required roof opening. See
“Placement requirements” on page7.
q
w
e
6 Structure for a new roof opening
qIncorrect eCorrect
wCorrect
3. Make sure the new opening does not compromise
the roof’s structural integrity.
– Do not cut the roof structure or the raers.
– The raers should remain supported by a cross
beam.
– The opening should be between the raers.
4. Carefully cut the required roof opening.
q
w
e
7 Structural framing for a new roof opening
q0.8 in. (20 mm)
Minimum width for the
framing stock
e15.0 in. (381 mm)
Exposed length
of 115 VAC power
supply wire
w0.3 in. (8 mm)
Minimum width for
access hole
5. Frame the opening so it will not collapse when
bolting the rooop component down.
6. At the front of the frame opening, leave or create
an access hole to allow for the length of exposed
115VAC power supply wiring required to complete
the installation.
7. Using the roof opening as a guide, cut a matching
hole in the ceiling of the RV interior.
7.3 Routing the supply wiring to the
roof opening
IThe power must be on an appropriately-sized
separate time-delay fuse or circuit breaker. See
“Specifications” on page8.
This section describes how to route the wiring for the
rooop component.

12 EN
Pre-installation Rooop Air Conditioner (Air Distribution Box, Electronic Controls)
7.3.1 Routing the VAC power supply
wire
1. Route the 115 VAC power supply wire, with ground,
from the time-delay fuse or circuit breaker box to
the roof opening. Use a listed/certified non-metallic
sheathed single-strand cable. See “Specifications”
on page8.
IIf an AC or a vent fan were removed, the existing
power supply wire may be used provided it is of the
proper type, size, and location, and if it is correctly
fused.
2. Make sure that at least 15.0 in. (381 mm) of the
115 VAC power supply wire extends into the roof
opening to ensure an easy connection at the junction
box.
7.3.2 Routing the VDC power supply
wire
1. Route a dedicated 12 VDC fused supply wire, 18 to
22 AWG, from the filtered side of the RV converter or
from the battery to the roof opening.
2. Make sure that at least 15.0 in. (381 mm) of the
12VDC supply wire extends into the roof opening.
7.4 Positioning the rooop
component
NOTICE: Do not slide the rooop component along
a surface or damage to the gasket on the bottom of the
rooop component could occur and cause a leak.
1. Remove all the contents from the carton and discard
the carton.
2. Place all the ADB kit contents in the RV. The ADB kit
contains mounting hardware for the ADB that will be
installed inside the RV.
3. Move the rooop component to the roof.
q
w
8 Placing the rooop component
qFront of the rooop
component
wRoof opening
4. Li and place the rooop component over
the prepared opening using the gasket on the
rooop component as a guide.
IThe outside work is complete. Minor adjustments
can be made from inside the RV if required.
7.5 Preparing to work inside the RV
This section describes the interior preparation.
1. Confirm the ADB kit is inside the RV.
q
9 Centering the rooop component inside the RV
qRoof gasket
2. From inside the RV, check the gasket alignment of
the rooop component over the roof opening. If
necessary, adjust the rooop component from below
by gently pushing up.

13
EN
Rooop Air Conditioner (Air Distribution Box, Electronic Controls) Installation
q
w
10 Return air opening
qWiring harness wCeiling thickness
3. Reach up into the return air opening of the
rooop component and pull down the rooop
component’s electrical cord and wiring harness.
4. If the rooop component has a built-in board,
complete the following:
a. Mount the junction box to the framing in front
of the roof opening, using the installer-supplied
screws.
b. Install the strain relief.
8 Installation
WARNING: FIRE OR ELECTRICAL SHOCK
HAZARD. Failure to obey these warnings
could result in death or serious injury.
• Shut off the gas supply, disconnect the 115 VAC
power from the RV, and disconnect the positive
(+) 12VDC terminal from the supply battery before
drilling or cutting into the RV.
• Provide grounding in compliance with all applicable
electrical codes.
This section describes how to install the product.
8.1 Wiring the rooop component
This section describes how to connect the wires for the
rooop component.
8.1.1 Connecting the 115 VAC power
supply to the junction box
1. Route the previously run 115 VAC power supply wire
from the rooop component through a strain relief
and into the junction box.
2. Tighten the strain relief making sure not to damage
the wires. Leave enough wire inside the electronic
control box to connect to the rooop component’s
115 VAC wires.
3. Connect the white neutral wires together, using
appropriately-sized connectors.
4. Connect the black live wires to each other, using
appropriately-sized connectors.
5. Connect the bare copper wire to the green or bare
copper wire, using appropriately-sized connectors.
6. Ensure the connectors to the 115 VAC power supply
wire are secured so they do not vibrate loose.
7. Push the connected wires into the junction box.
8.1.2 Connecting the low voltage wire
to the electronic control box
NOTICE: Make sure the positive (+) 12 VDC terminal
is disconnected from the supply battery. Otherwise,
damage to the rooop component could occur.
1. Connect the previously run (+) 12 VDC supply wire
protruding from the roof opening to the (+) 12 VDC
red wire at the electronic control box.
2. Connect the previously run (–) 12 VDC supply wire
protruding from the roof opening to the (–) 12 VDC
black wire at the electronic control box.
8.1.3 Connecting the communication
cable to the electronic control box
Connect the 4-conductor communication cable
supplied with the ADB to the “TO ADB” matching
connector on the electronic control box.

14 EN
Installation Rooop Air Conditioner (Air Distribution Box, Electronic Controls)
8.1.4 Connecting the lighting cable to
the electronic control box (optional)
If the ADB is equipped with LED lighting, connect the
2-conductor lighting cable supplied with the ADB to
the “INTERNAL LIGHT” matching connector on the
electronic control box.
8.2 Installing the foam dividers
Roof thicknesses vary among RVs and the ADB
installation may require additional foam to fill any gaps in
thicker roofs.
This section describes how to determine if additional
foam dividers are required, the number required, and
the installation method.
ww
q
ee
11 Measuring the roof thickness for foam divider installation
qCeiling opening eRoof thickness
wRooop component basepan
1. Inspect the ADB and the mounting hardware placed
inside the RV in “Positioning the rooop component”
on page12. See “ADB components” on
page6 for the parts configuration.
2. Measure the roof thickness, from a flat surface of the
installed rooop component’s basepan to the ceiling
opening inside the RV.
q
w
e
u
y
t
r
12 Stacking the foam dividers and placement location
qStacked foam dividers tFoam divider -
0.4in. (10mm) (2)
wRoof thickness
eTop foam -
0.4in. (10mm) (1)
yFoam divider -
1.2in. (30mm) (3)
uADB adapter (1)
rTop foam ring - 0.4in.
(10mm) (1)
3. Identify the different types and sizes of foam dividers.
4. Using the tables in “Roof thickness 1.25to 5.5
in. (32to140 mm)” on page16 and in “Roof
thickness 6.0 to 7.5 in. (152to191mm)” on
page17, determine the number and combination
of foam dividers required based on the roof
thickness.

15
EN
Rooop Air Conditioner (Air Distribution Box, Electronic Controls) Installation
q
ww
e
13 Confirming the foam divider height measurement
qFlat surface of the
ADB
eFull height
measurement (equal to
the roof thickness)
wStack of foam
dividers
5. Place the ADB face down on a stable, protected, flat
surface.
6. Stack the foam dividers required and place them onto
the ADB.
7. Measure the full height, from the flat surface of the
ADB to the top of the foam dividers to confirm the
full height is equal to the previously determined roof
thickness.
8. Adjust the number of foam dividers to reach the
correct full height, as necessary.
ww
qq
rr
ee
14 Passing the wire through the filter notch
qFilter e4-Conductor
communication cable
wFilter notch r2-Conductor light cable
9. Slide out the filter to expose the filter notch.
10. Pass the 4-pin communication cable and the 2-pin
lighting cable (if equipped) through the filter notch.

16 EN
Installation Rooop Air Conditioner (Air Distribution Box, Electronic Controls)
Roof thickness 1.25to 5.5 in. (32to140 mm)
All models1
Roof
thickness
1.25in.
(32 mm)
1.5 in.
(38 mm)
2.0in.
(51mm)
2.5in.
(64mm)
3.0in.
(76 mm)
3.5 in.
(90 mm)
4.0in.
(102 mm)
4.5in.
(114mm)
5.0in.
(127 mm)
5.5in.
(140 mm)
Total divider
thickness
1.7in.
(50 mm)
2.4in.
(60 mm)
2.8in.
(70 mm)
3.5 in.
(90 mm)
3.9 in.
(100 mm)
4.3in.
(110 mm)
4.7in.
(120 mm)
5.5in.
(140 mm)
5.9in.
(150 mm)
6.3in.
(160 mm)
Top foam
0.4 in.
(10 mm)
x x x x x x x x x x
Top foam
ring
0.4 in.
(10 mm)
x x x x x x x x x x
Foam
divider
0.4 in.
(10 mm)
x x x x x x x
Foam
divider
0.4 in.
(10 mm)
x x x
Foam
divider
1.2 in.
(30 mm)
x x x x x x x
Foam
divider
1.2 in.
(30 mm)
x x x x x
Foam
Divider
1.2 in.
(30 mm)
x x x
ADB adaptor
1.2 in.
(30 mm)
x x x x x x x x x x
1Up to 0.4 in. (10 mm) of compression of the foam dividers is acceptable and may be required in some instances.

17
EN
Rooop Air Conditioner (Air Distribution Box, Electronic Controls) Installation
Roof thickness 6.0 to 7.5 in. (152to191mm)
All models1
Roof
thickness
6.0in.
(152mm)2
6.5in.
(165mm)2
7.0in.
(178mm)2
7.5in.
(191mm)2
Total divider
thickness
7.0in.
(180mm)
7.5in.
(190mm)
7.9in.
(200mm)
8.3in.
(210mm)
Top foam
0.4 in.
(10 mm)
x x x x
Top foam
ring
0.4 in.
(10 mm)
x x x x
Foam divider
0.4 in.
(10 mm)
x x x
Foam divider
0.4 in.
(10 mm)
x
Foam divider
1.2 in.
(30 mm)
x x
Foam divider
1.2 in.
(30 mm)
x x x x
Foam divider
1.2 in.
(30 mm)
x x x x
ADB adapter
1.2 in.
(30 mm)
x x x x
Spare2
foam divider
1.2 in.
(30 mm)
x x x x
Spare2
foam divider
1.2 in.
(30 mm)
x x x x
1Up to 0.4 in. (10 mm) of compression of the foam dividers is acceptable and may be
required in some instances.
2To accommodate a roof thickness greater than 5.5 in. (140 mm), order the optional
accessory kit. See “Tools and materials” on page5.
8.3 Securing the ADB
NOTICE: Overtightening could damage the base pan
or ceiling template. Not enough torque will cause an
inadequate roof seal, and could cause a leak.
IAll models in this manual use a four-bolt pattern to
secure the ADB kit.
This section describes how to secure the ADB to the roof.
1. For ADBs that fit within the 14.0 x 14.0 in. (366 x
366mm) ceiling opening, press the entire ADB up
toward the basepan and into the ceiling opening.
2. Use the following figures to determine the proper
mounting pattern (A, B, C, D) and bolt location.
AB
CD

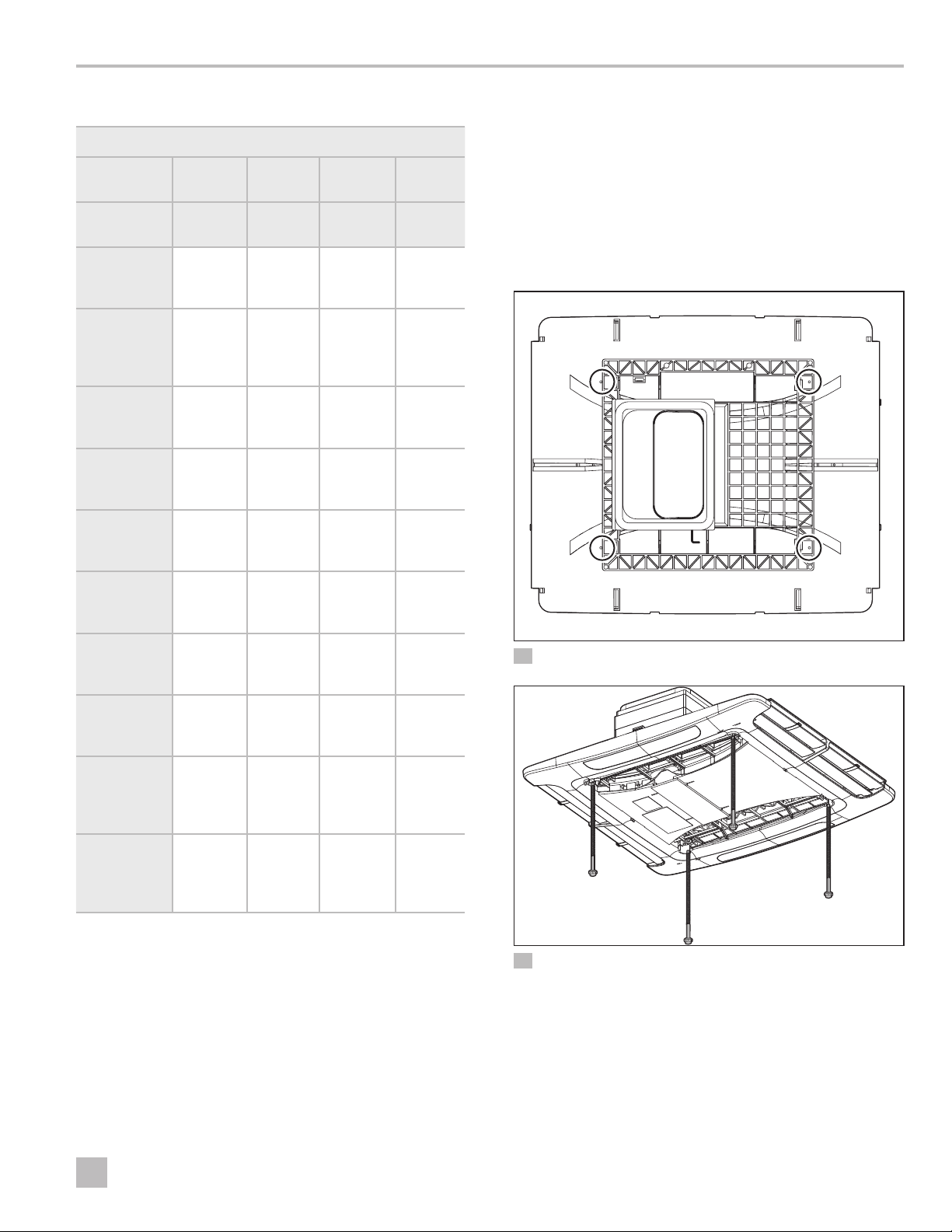

15 Mounting bolt pattern
w
w
w
w
q
16 Mounting bolt location
qCeiling template wMounting bolt
3. Start each mounting bolt by hand, through the
ceiling template and up into the rooop component
base pan.

18 EN
System check Rooop Air Conditioner (Air Distribution Box, Electronic Controls)
4. Tighten all four mounting bolts evenly at 22.2 in. lbs
(2.5 N·m).
5. Plug the 4-pin communication cable and the 2-pin
lighting cable (if equipped) into the display located
on the ceiling template.
q
w

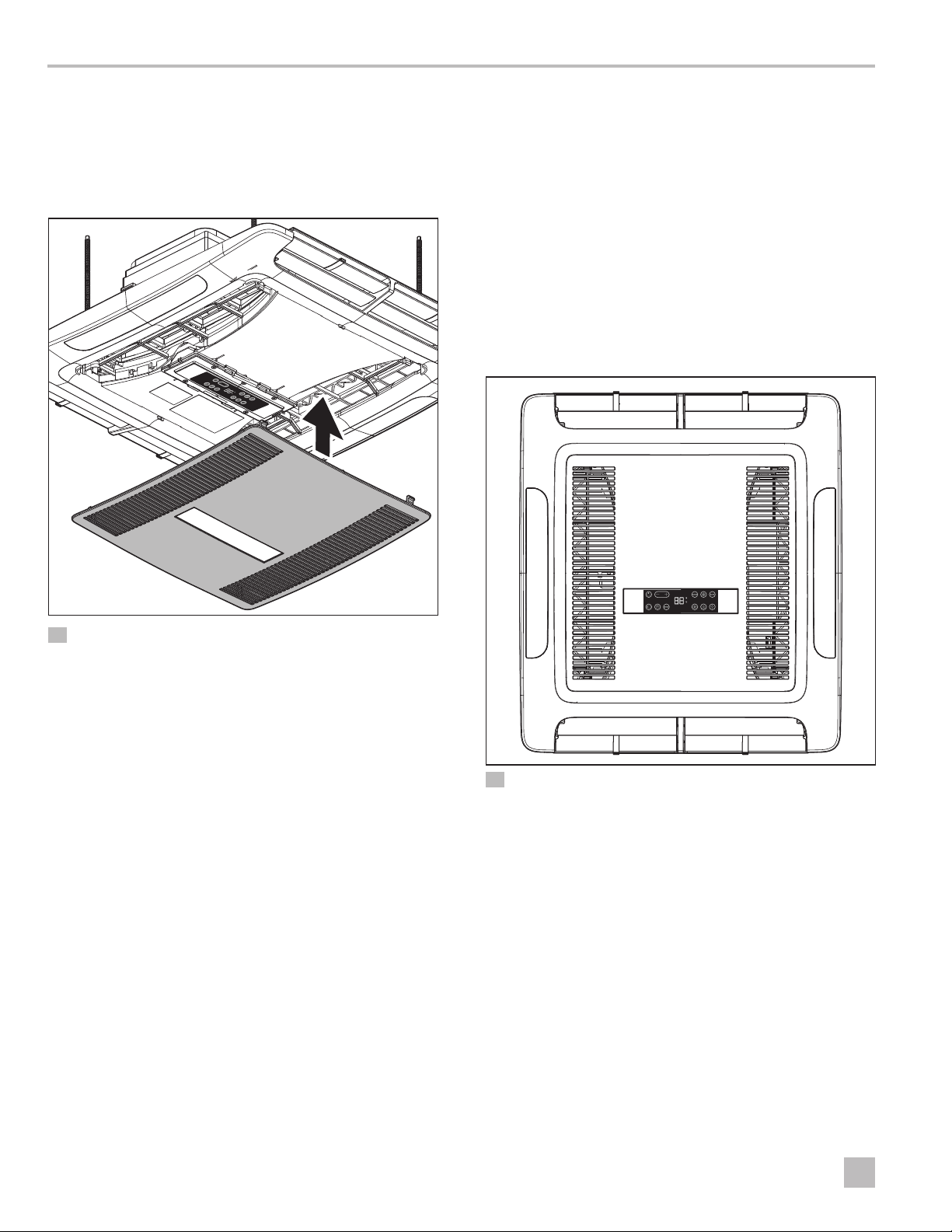

17 Attaching the center cover
qCenter cover wClip
6. Clip the center cover to the ADB.
7. Turn on the power supply.
8. Verify that all the unit features work.
IRead the following operating instructions before
attempting to run the unit.
9 System check
This section describes how to reset and/or complete a
final check of the system.
1. Verify the system features function properly.
2. Verify the operation of all applicable modes,
including: auto, cooling, fan, and heating.
3. If a feature does not work correctly:
a. Disconnect the 120 VAC and 12 VDC power
supplies.
b. Verify all the wiring is correct.
10 Operation
This section describes the AC’s operating controls and
settings.
10.1Locating the control panel
q
18 Control panel location
qControl panel
The control panel is located on the air outlet of the AC
cover.

19
EN
Rooop Air Conditioner (Air Distribution Box, Electronic Controls) Operation
10.2 Understandingthecontrolpanel
This section explains the electronic controls on the
control panel.
10.2.1 Electronic controls
19 Electronic control panel icons
Icon Name Function
On/Standby Turns the AC On or puts the AC
in Standby.
+ / – Raises or lowers the temperature
setpoint.
LED display
Displays the setpoint
temperatures and selection
indicators during mode
selection.
Turbo mode
Provides maximum cooling for
rapid pull-down and/or spot
cooling.
Cool mode
Uses cooling-only to
maintain the desired setpoint
temperature.
Auto mode
If the rooop component is
equipped with heat pump
operation, the unit cycles
between heating and cooling
to maintain the desired setpoint
temperature.
Exterior light
Illuminates the exterior of the
AC. The exterior light cannot be
illuminated when the vehicle is
in motion.
Interior light Illuminates the interior light on
the ADB.
Special
mode
Toggles between the available
special mode settings: Sleep,
Eco, and Dry.
Icon Name Function
Fan speed Toggles between the available
fan speed settings.
Ventilation
speed
Uses only the ventilation fan
to maintain air circulation or a
desired temperature within the
vehicle.
Auxiliary heat
mode
(if equipped)
Uses heating to maintain the
desired setpoint temperature.
10.3 Using the control panel
This section explains how to use the control panel.
10.3.1 Powering on
Press and release the On/Standby icon.
• When the power is on, the On/Standby icon (and
the last selected icon) illuminates at 100% brightness
(steady, no blinking) during the entire time the AC is on.
• All unselected icons illuminate at 50% brightness.
10.3.2 Reading the LED display
The LED display shows the current set point temperature.
• If available, the default mode is Auto mode (with the
Auto Fan Speed). The default temperature setting is
70°F(21°C).
• If Auto mode is not available, the default mode
is Cool. The default temperature setting is
72°F(22°C).
10.3.3 Adjusting the temperature
Press (+/–) icon to increase or decrease the
temperature.
When adjusting the temperature:
• The (+/–) icon illuminates at 100% during
selection.
• Modify the temperature aer selecting the function.
• Modify the mode aer the function and temperature
are set.

20 EN
Operation Rooop Air Conditioner (Air Distribution Box, Electronic Controls)
10.3.4 Selecting standby
Press and release the On/Standby icon.
When Standby is active:
• The AC is idle.
• The On/Standby icon illuminates at 50% brightness.
• The LED display is off.
• The Interior Light and Exterior Light icons
illuminate at 50% brightness.
10.3.5 Setting the Auto mode
IFor the Auto mode and the specified selections
to operate effectively, the rooop component
must be a heat pump or have a furnace wired to
the electronic control box. The Auto Mode icon
will not illuminate without a heat pump or furnace
present.
1. Press and release the Auto Mode icon.
2. To specify the temperature, press the (+/–) icon to
set a desired temperature between 40°F and 90°F
(4°Cand32°C). The default setting is 70°F(21°C).
The (+/–) icon illuminates at 100% brightness
during selection and then remains illuminated at 50%
brightness aer the button is released.
All unselected icons illuminate at 50% brightness.
3. To turn off Auto mode, select a different mode or turn
the on/standby button off.
When the Auto mode is active, one of the following
operations can occur:
• Auto Change Over Cooling: If the room temperature
rises above the setpoint by 2°F (1°C), cooling is
initiated. The unit stays on until the room temperature
drops to the setpoint, and then turns off.
• Auto Change Over Heating: If the room temperature
drops below the setpoint by 2°F (1°C), heating
is cycled on and off based on the measured room
temperature and the setpoint temperature. If more
than one heat source is available, the priority for
selecting the auxiliary heat source is: heat pump (first)
then furnace (second).
The heating source stays on until the room
temperature reaches the setpoint, then the heating
source turns off.
During Auto Change Over Heating, if the heat pump
operation is inhibited, the LED display flashes LO to
indicate an outdoor temperature of 29°F (-2°C) or
lower. The user must select an alternate heat source
within the vehicle.
• Auto Fan Cycling: The Auto mode defaults to Auto
Fan regardless of the fan speed selection.
With Auto Fan Cycling, the fan cycles on and off
automatically, based on the temperature differential
between the room temperature and the setpoint
temperature.
The fan operates at Turbo speed when the room
temperature is above the setpoint temperature by
more than 8°F ±0.5°F (5°C ±0.3°C).
The fan operates at High speed when the room
temperature is above the setpoint temperature by
5°F to 7°F ±0.5°F (3°C to 4°C ±0.3°C).
The fan operates at Low speed when the room
temperature is above the setpoint temperature by less
than 4°F ±0.5°F (2°C ±0.3°C).
10.3.6 Setting the Cool mode
1. Press and release the Cool Mode icon.
2. To specify the temperature, press the (+/–) icon to
set a desired temperature between 55°F and 90°F
(13°Cand32°C).
The (+/–) icon illuminates at 100% brightness
during selection and then remains illuminated at 50%
brightness aer the button is released.
All unselected icons illuminate at 50% brightness.
3. Select the fan speed in Fan mode.
Pressing the fan speed button shows the current fan
speed. Pressing again will allow the fan to change to
desired speed.
When the Cool mode is active:
• The system cycles cooling on and off based on
the measured room temperature and the setpoint
temperature.
