dreo Atom 316 User manual

DREO
PTC Fan Heater
USER MANUAL

Thanks for
Choosing
DREO!
Your support means the world to us. We
hope you enjoy our product as much as
we did creating it.

Extend Warranty
to 30 Months
Scan or visit dreo.com/warranty
to extend your warranty for free by registering your product.
If you have any product issues, we always stand ready to help.
X [email protected]
@ www.dreo.com
<, [phone]
Mon - Fri, 9:00 am-5:00 pm PST/PDT

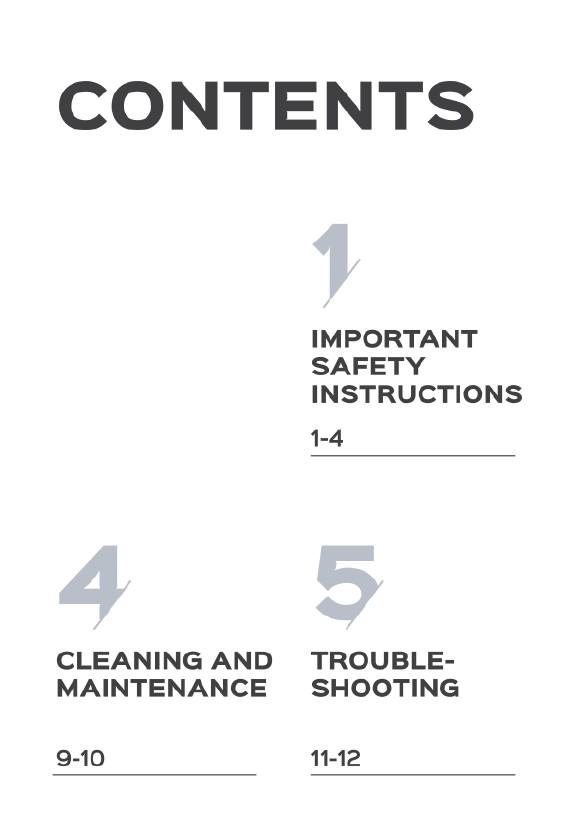

CONTENTS
IMPORTANT
SAFETY
INSTRUCTIONS
14
CLEANING AND TROUBLE-
MAINTENANCE SHOOTING
9-10 1-12

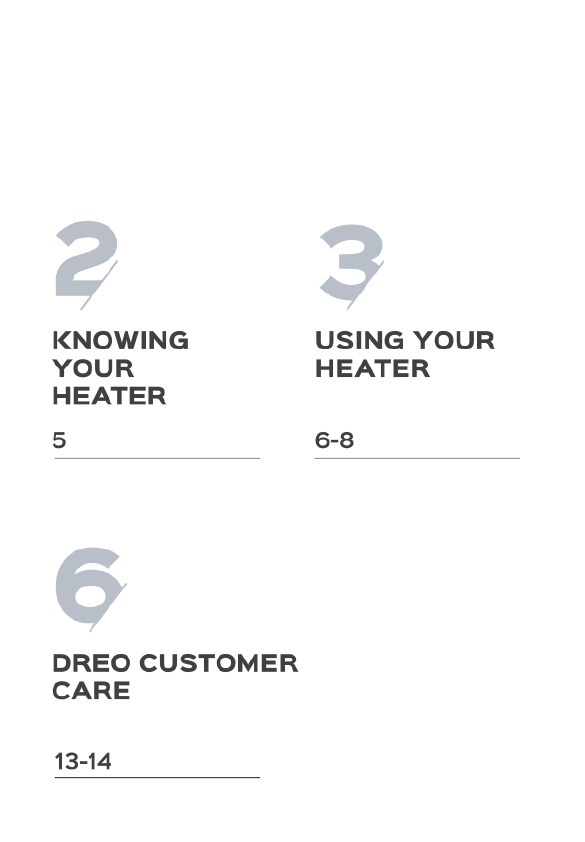

KNOWING USING YOUR
YOUR HEATER
HEATER
5 6-8
DREO CUSTOMER
CARE
13-14

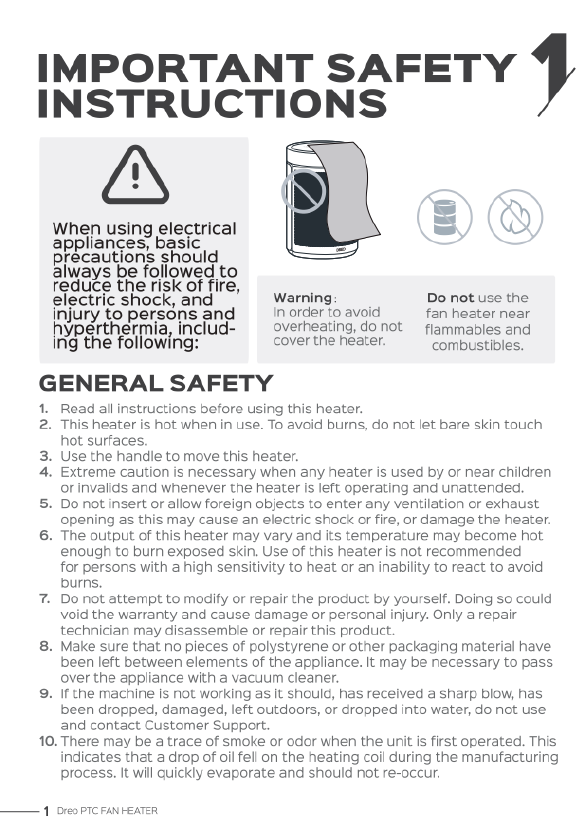

IMPORTANT SAFETY
INSTRUCTIONS
N
=]
When using ele%rlcal = ®
electric shock, an Warning Do not use the
injury to persons and In order to avoid fan heater near
hyperthermia, includ- overheating, donot flammables and
ing the followin cover the heater. combustibles.
GENERAL SAFETY
1. Read all instructions before using this heater.
2. This heater is hot when in use. To avoid burns, do not let bare skin touch
hot surfaces.
3. Use the handle to move this heater.
4. Extreme caution is necessary when any heater is used by or near children
or invalids and whenever the heater is left operating and unattended,
5. Do not insert or allow foreign objects to enter any ventilation or exhaust
opening as this may cause an electric shock or fire, or damage the heater.
6. The output of this heater may vary and its temperature may become hot
enough to burn exposed skin. Use of this heater is not recommended
for persons with a high sensitivity to heat or an inability to react to avoid
burns.
7. Do not attempt to modify or repair the product by yourself. Doing so could
void the warranty and cause damage or personal injury. Only a repair
technician may disassemble or repair this product.
8. Make sure that no pieces of polystyrene or other packaging material have
been left between elements of the appliance. It may be necessary to pass
over the appliance with a vacuum cleaner.
9. If the machine is not working as it should, has received a sharp blow, has
been dropped, damaged, left outdoors, or dropped into water, do not use
and contact Customer Support.
10. There may be a trace of smoke or odor when the unit s first operated. This
indicates that a drop of oil fell on the heating coil during the manufacturing
process. It will quickly evaporate and should not re-occur.

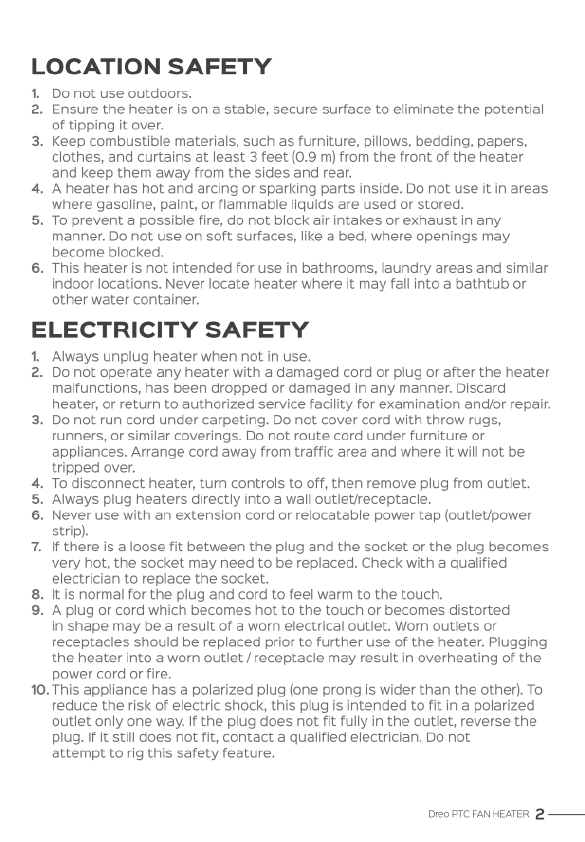

LOCATION SAFETY
1. Do not use outdoors.
2. Ensure the heater is on a stable, secure surface to
of tipping it over.
3. Keep combustible materials, such as furniture, pillows, bedding, papers,
clothes, and curtains at least 3 feet (0.9 m) from the front of the heater
and keep them away from the sides and rear.
A heater has hot and arcing or sparking parts inside. Do not use it in areas
where gasoline, paint, or flammable liquids are used or stored.
5. To prevent a possible fire, do not block air intakes or exhaust in any
manner. Do not use on soft surfaces, like a bed, where openings may
become blocked.
6. This heater is not intended for use in bathrooms, laundry areas and similar
indoor locations. Never locate heater where it may fall into a bathtub or
other water container.
ELECTRICITY SAFETY
1. Always unplug heater when not in use.
2. Do not operate any heater with a damaged cord or plug or after the heater
malfunctions, has been dropped or damaged in any manner. Discard
heater, or return to authorized service facility for examination and/or repair.
3. Do not run cord under carpeting. Do not cover cord with throw rugs,
runners, or similar coverings. Do not route cord under furniture or
appliances. Arrange cord away from traffic area and where it will not be
tripped over.
4. To disconnect heater, turn controls to off, then remove plug from outlet.
5. Always plug heaters directly into a wall outlet/receptacle.
6. Never use with an extension cord or relocatable power tap (outlet/oower
strip).
7. Ifthere is a loose fit between the plug and the socket or the plug becomes
very hot, the socket may need to be replaced. Check with a qualified
electrician to replace the socket.
8. Itis normal for the plug and cord to feel warm to the touch.
9. A plug or cord which becomes hot to the touch or becomes distorted
in shape may be a result of a worn electrical outlet. Worn outlets or
receptacles should be replaced prior to further use of the heater. Plugging
the heater into a worn outlet / receptacle may result in overheating of the
power cord or fire.
10.This appliance has a polarized plug (one prong is wider than the other). To
reduce the risk of electric shock, this plug is intended to fit in a polarized
outlet only one way. If the plug does not fit fully in the outlet, reverse the
plug. If it still does not fit, contact a qualified electrician. Do not
attempt to rig this safety feature.
ate the potential
»
Dreo PTC FAN HEATER 2 ———

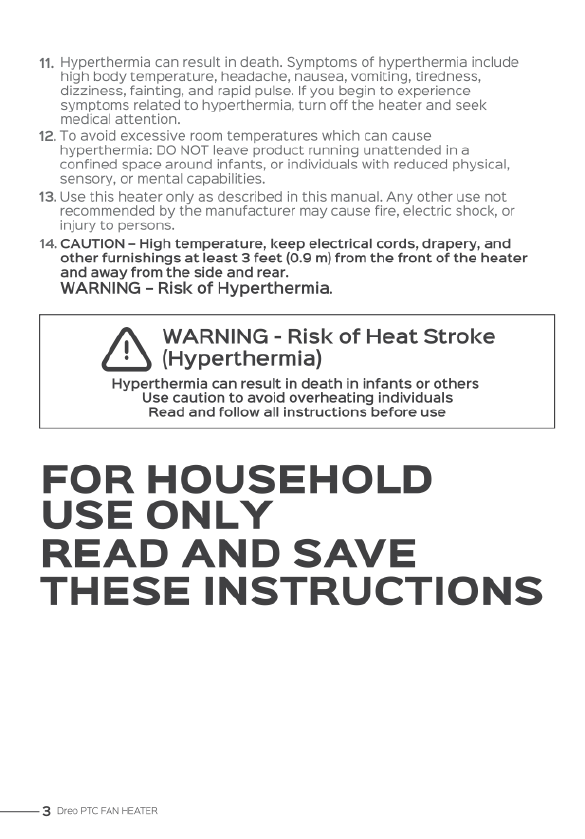

Hyperthermia can result in death. Symptoms of hyperthermia include
high body temperature, headache, nausea, vomiting, tiredness,
dizziness, fainting, and rapid pulse. If you begin to experience
symptoms related to hyperthermia, turn off the heater and seek
medical attention.
12.To avoid excessive room temperatures which can cause
hyperthermia: DO NOT leave product running unattended in a
confined space around infants, or individuals with reduced physical,
sensory, or mental capabilities.
13.Use this heater only as described in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock, or
injury to persons.
14.CAUTION - High temperature, keep electrical cords, drapery, and
other furnishings at least 3 feet (0.9 m) from the front of the heater
and away from the side and rear.
WARNING - Risk of Hyperthermia.
WARNING - Risk of Heat Stroke
(Hyperthermia)
Hyperthermia can result in death in infants or others
Use caution to avoid overheating individuals
Read and follow all instructions before use
FOR HOUSEHOLD
USE ONLY
READ AND SAVE
THESE INSTRUCTIONS

Gentle Reminder: Specifications
DR-HSHO08
Check the appliance regularly Model
and refer to TROUBLESHOOTING DR-HSHOOBA
or contact our customer support
I it shows any of the following IR 15000
signs:
or plug is damaged.
- Loud noise, unusual smell or excessive heat,
input 120V~ 60Hz
HOT SURFACE
THE FRONT SURFACE CAN BE
VERY HOT DURING USE.
DO NOT TOUCH WHEN IN USE.
C FAN HEATER 4 ———

KNOWING YOUR
HEATER
Package Contents
User
Manual
Quick
Start
Guide
5 Oreo PTCRANHEATER
Handle
Air Inlet
Temp Sensor
Power & Plug
Control Panel
LED Display
Air Outlet

USING YOUR
HEATER
Control Panel
Power On/Off
Touch to turn the heater on or off.
Note:
- When the heater is plugged into the electric outlet,
the power indicator Gwill light in red.
- Once tured off, a 30-second countdown will show
up on the display as the fan will continue to run for
30 seconds to blow out the remaining heat.
Mode Settings
Touch to switch between - ECO ->%.
Yoy Fouerhest ith thee hesting evels
X HI1000W)H2(1300W), H3 (1500W).
ECO The heater will automatically select its optimal
heating power, depending on the difference
between the set temperature (41-95 °F) and ambient
temperature.
Note:
- When the ambient temperature reaches the set
temperature, the heater will tur off automatically in
30 seconds.
- When the ambient temperature drops below the
set temperature, the heater will operate on low
or high power (1000W or 1500W), depending on the
difference between the two temperatures.
B Fanoniy.
Mute/Unmute
To turn onloff the button sounds, long press the Mode:
button @) on the panel for 3s.
Dreo PTC FAN HEATER 6 ——

©)
()
()
Auto-Off Timer
- When the heater is on, touch to set a timer
(0-12h). After the timer ends, the heater will turn off
automatically.
- To cancel, set the timer to O hour.
Heat Level / Temperature
- In Power Heat mode, touch @or Qto adjust the
heating level.
- In ECO mode, touch @or Oto adjust the set
temperature.
Note:
In ECO mode, the heater will turn off automatically when
the set temperature has been reached. If your heater
turns off frequently, please raise the set temperature,
or switch to Power Heat mode.
Child Lock
Long press () and O for 3s o activate/deactivate the Chid
Lockfunction, when activated, the display wi show'LC’, andal
the buttons onthe space heaterwil belocked.
LED Display
Power Heat
7 CreoPTCRANHEATER
ey
Qg;
o
Fan Only
<@
Heat Level / Timer Hour / Plugged In
Set Temperature

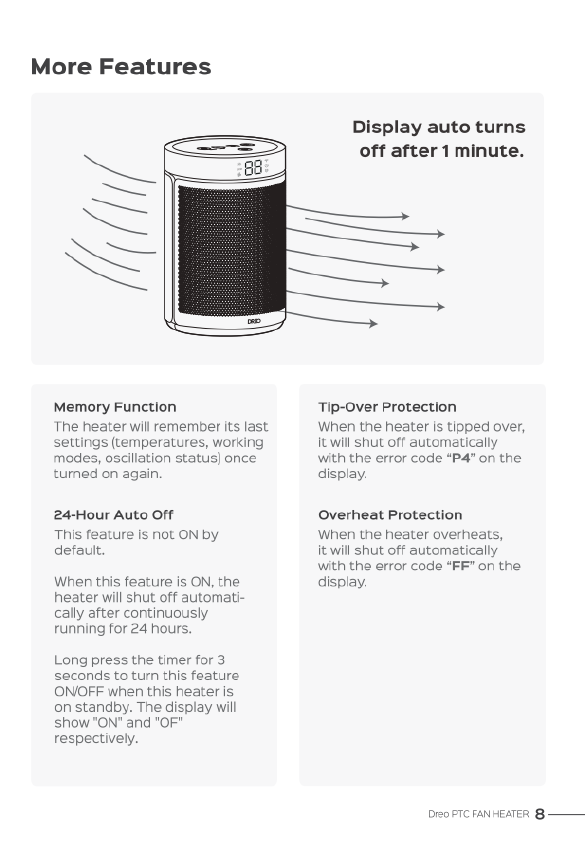

More Features
Display auto turns
off after 1 minute.
Memory Function Tip-Over Protection
The heater will remember its last When the heater is tipped over,
settings (temperatures, working it will shut off automatically
modes, oscillation status) once with the error code “P4” on the
turned on again. display.
24-Hour Auto Off Overheat Prote
This feature is not ON by When the heater overheats,
default. it will shut off automatically
with the error code “FF” on the
When this feature is ON, the display.
heater will shut off automati-
cally after continuously
running for 24 hours.
Long press the timer for 3
seconds to turn this feature
ON/OFF when this heater is
on standby. The display wil
show "ON" and "OF"
respectively.
Dreo PTC FAN HEATER § ———

CLEANING AND
MAINTENANCE
Cleaning and Maintenance
PTCFANHEATER
Always tur off and unplug before cleaning
Outer Surface
Use a soft, dry cloth to gently wipe clean
the outer surface.
Air Inlet
Use a soft, dry cloth or a cotton-tipped
swab to remove any dust from the air inlet.

A ATTENTION
U
DO NOT unscrew
the unit.
DO NOT use
cleaning agents.
DO NOT use
abrasive scrubbers.
Fire or electrical shock hazard. DO
NOT immerse the main unit in water.
NEVER allow water to get inside the
heater.
Except for cleaning, any servicing
should be performed by an authorized
service representative.
Store in a cool, dry area and keep the
cable out of high-traffic areas to avoid
tripping hazards.
Dreo PTC FAN HEATER 10—

TROUBLESHOOTING
Troubleshooting
e SR m
Unplug it from the power
source and contact
Customer Support.
E2- Temperature
sensor short circuit
B Unplug it from the power
&l Temperatqre " source and contact
sensor open circuit B s
Malfunction
codes on LED
display
Unplug
and
wait
for
it
EhnOveicsy to cool down before
Protection plugging in again.
) Place the heater back on
B over a flat, level and stable
(et surface.
Power cord is not. Connect the plug to
i a powered electrical
properly pluggedin. 3 POWS
Heater does :
Unplug and allow it to
not start o
Overheat protection
has been activated.
Remove any objects on
or near the heater.
11 reo PTC AN HEATER

Ensure that your circuit
breaker o fuse is working
properly.
No power is passing
BrRLENERERE Ensure that your heater is
placed on a flat and even
surface.
Heater does
not start
The set temperature Ensure that the
is lower than the temperature is set to be
ambient higher than the
temperature. ambient temperature.
The
temperature
Turn
off
and
unplug
exceeds the the unit. Allow it to
threshold of the cool and plug into the
thermal cutoff. electrical outlet again.
The heater
suddenly’
stops during
heating. The heater is tipped Place it on a flat, level
over. and stable surface.
In ECO mode, the heater This is normal. If your heater
will tur off automatically ~ tumns off frequently, please
when the set temperature raise the set temperature, or
has been reached. switch to Power Heat mode.
If your problem is not listed or still persists, contact our Customer
Support (see page 13).
FAN HEATER 12—

DREO CUSTOMER
CARE
Default 12-Month Warranty
This appliance is covered by Dreo warranty for 12 months from the date of
its original purchase.
Extend Your Warranty
Extend your warranty by registering your new appliance on our website
https:/dreo.com/warranty
The warranty will not apply in cases of:
1. Accident, misuse, or repairs performed by unauthorized personnel
2. Any unit that has been tampered with or used for commercial purposes.
3. Normal wear and tear of wearable parts.
4. Use of force, damage caused by external influences.
5. Damage caused by non-observance of the User Manual, e.g. connection
to an unsuitable mains supply or noncompliance with the instructions.
Partially or completely dismantled appliances.
7. Defects caused by or resulting from damages from shipping or from
repairs, service, or alteration to the product or any of its parts that have
been perform ed by a repair person not authorized by Dreo.
o
We can only provide after-sales service for products that are sold by Dreo
or Dreo authorized retailers and distributors. If you have purchased the
appliance from a different place, please contact your seller for return and
warranty issues.
We're Here to Help!
@ [phone] @ supportedreo.com
Mon - Fr, 9:00 am-5:00 pm PSTRDT
@ www.dreo.com
13 Dreo PTCFANHEA

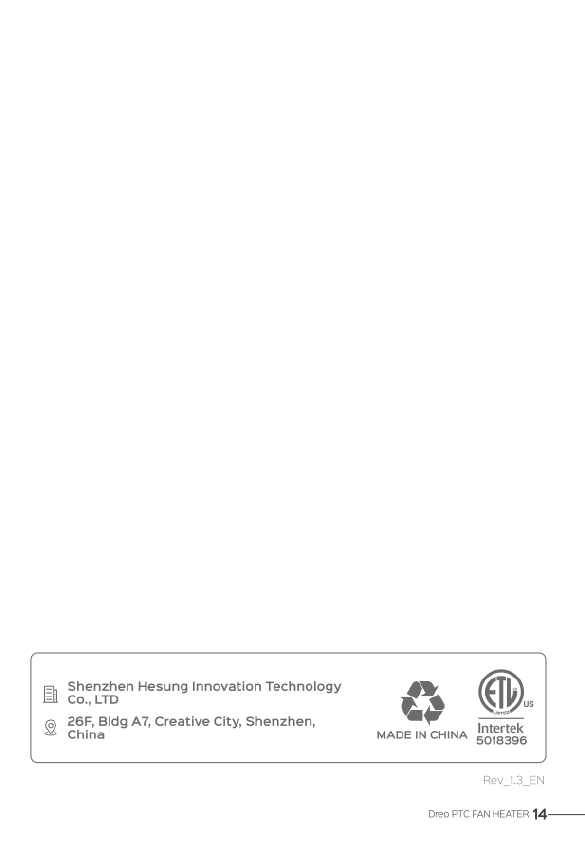

Shenzhen Hesung Innovation Technology oy
Co, LTD [ Y @
@ 26F, Bldg A7, Creative City, Shenzhen,
China
Intertek
MADE INCHINA Jpertel
Dreo PTC FAN HEATER 14—

www.dreo.com
DR-HSHO006 / DR-HSHOO6A
Looking for help?
Contact us to get expert support.
@ [email protected] @ (888) 2901688 @ www.dreo.com
Mon -Fri, 8:00 am-5:00 pm PSTPDT
