dreo DR-HSHS004A User manual

DREO
PTC FAN HEATER
WITH ALCI SAFETY PLUG
USER MANUAL

Thanks for
Choosing
DREO!
Your support means the world to us. We
hope you enjoy our product as much as
we did creating it.

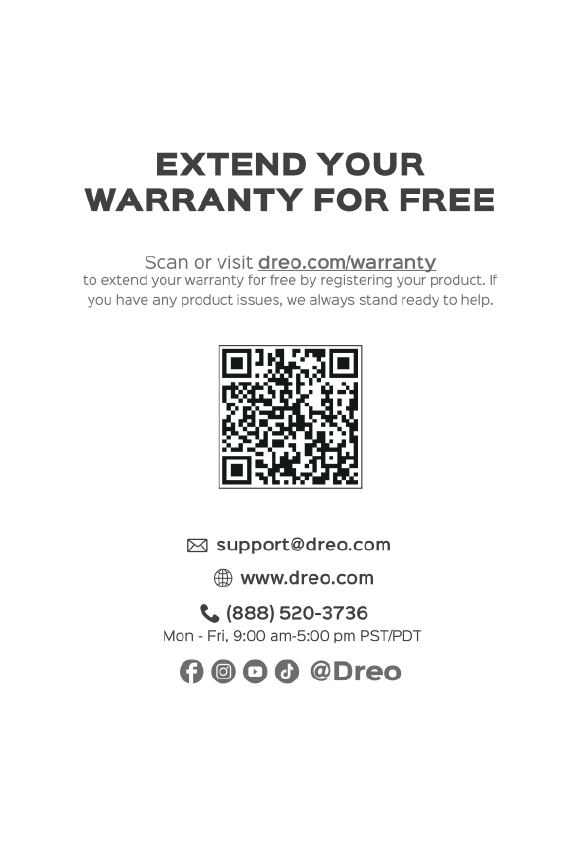

EXTEND YOUR
WARRANTY FOR FREE
Scan or visit dreo.com/warranty
to extend your warranty for free by registering your product. If
you have any product issues, we always stand ready to help.
X [email protected]
@ www.dreo.com
<, [phone]
Mon - Fri, 9:00 am-5:00 pm PST/PDT
O © O 6 @Dreo

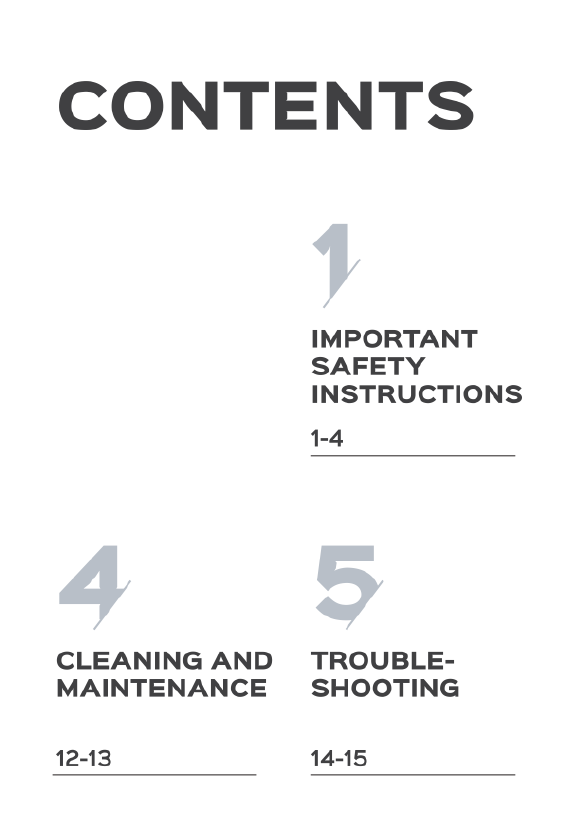

CONTENTS
IMPORTANT
SAFETY
INSTRUCTIONS
14
CLEANING AND TROUBLE-
MAINTENANCE SHOOTING
12-13 14-15

KNOWING USING YOUR
YOUR HEATER
HEATER
5 6-11
DREO CUSTOMER
CARE
16

IMPORTANT SAFETY
INSTRUCTIONS
I
When using electrical
appllances, basic
precautions should always
be followed toreduce the
CRMOCEEITS Donotcowrthe Donotusethe
including the following: airinlet and outlet fan heater near
whilein operation. flammables and
‘combustibles.
GENERAL SAFETY
1. Readallinstructions before using this heater.
2. This heater is hot when in use. To avoid bums, do not let bare skin touch
hot surfaces.
3. Use the handle to move this heater.
4. Extreme caution Is necessary when any heater Is used by or near children
or invalids and whenever the heater is left operating and unattended.
6. Do not insert or allow foreign objects to enter any ventilation or exhaust
opening as this may cause an electric shock or fire, ordamage the heater.
6. The output of this heater may vary and Its temperature may become hot
enough to bum exposed skin. Use of this heater is not recommended
for persons with a high sensitivity to heat or an Inabllity to react to avoid
burrs.
7. Do not attempt tomodity of repalr the product by yourself. Doing so could
woid the warranty and cause damage or personal injury. Only a repair
technician may disassemble or repair this product.
8. Make sure that no pieces of polystyrene orother packaging materlal have
been left between elements of the appliance. It may be necessary to pass
over the appliance with a vacuum cleaner.
9. If the machine is not working as it shouid, has received a sharp biow, has
been dropped, damaged, left outdoors, or dropped into water, do not use
and contact Customer Support.
10. There may be a trace of smoke or odor when the unit is first operated. This
indicates that a drop of oil fell on the heating coil during the manufacturing
process. It wil quickly evaporate and should not re-occur.
1 OreoPTCEAN HEATER

LOCATION SAFETY
1. Donot use outdoors.
2. Ensure the heateris on a stable, secure surface to eliminate the potential
of tipping It over.
3. Keep combustible materials, such as furniture, pillows, bedding, papers,
clothes, and curtains at least 3 feet (0.8 m) from the front of the heater
and keep them away from the sides and rear.
4. Aheater has hot and arcing or sparking parts Inside. Do not use It In areas
where gasoline, paint, or flammable liquids are used or stored.
5. To prevent a possible fire, do not block air intakes or exhaust in any
manner. Do not use on soft surfaces, lie a bed, where openings may
become blocked.
6. Never locate heater where it may fallIntoa bathtub or other water
container.
ELECTRICITY SAFETY
1. Always unplug heater when not In use.
2. Donot operate any heater witha damaged cord or plug or after the heater
malfunctions, has been dropped or damaged In any manner. Discard
heater, or retum to authorized service facllity for examination andor repair.
3. Donot run cord under carpeting. Do not cover cord with throw rugs,
runners, or similar coverings. Do not route cord under fumiture or
appliances. Arrange cord away from traffic area and where it will not be
tripped over.
To disconnect heater, tum controls to off, then remove plug from outlet.
Always plug heaters directlyintoa wall outletreceptacle.
Nevelruse with an extension cord of relocatable power tap outletipower
stri
If there Is a loose fit between the plug and the socket or the plug becomes
very hot, the socket may need to be replaced. Check with a qualified
electrician to replace the socket.
Itis normal for the plug and cord to feel warm to the touch.
Aplug or cord which becomes hot to the touch or becomes distorted
in'shape may be a result of a worn electrical outlet. Worn outlets or
receptacles should be replaced prior to further use of the heater. Plugging
the heater Into a wom outlet / receptacle may result in overheating of the
power cord or fire.
10.This appllance has a polarized plug (one prong is wider than the other). To
reduce the risk of electric shack, this plug isintended to fit in a polarized
outlet only one way. If the plug does not fit fully In the outlet, reverse the
plug. If it still does not fit, contact a qualified electrician. Do ot
attempt to rig this safety feature.
N
oms
DIe0 PTC FANHEATER 2 ——

11. This product employs an ALCI. If the ALCI is de-activated this indicates
an arcing fault, unplug and check the supply cord and product. If no
damage is visible, reset the device by pressing the reset button. If the
ALCI de-activates again, a hazardous condition may be present and the
product should be discarded or returned to an authorized service facility
for examination and/or repair.
12. This appliance is provided with a protective device that may make the
appliance inoperable under some abnormal conditions. If the appliance
becomes inoperable, discard the appliance or return the appliance to a
service center for examination and repair.
ALCI (Appliance Leakage Current
Interrupter) SAFETY DEVICE:
This device provides protection against electric
shock due to ground fault currents by automati-
cally shutting off the power.
To test the operation of the ALCI Safety Device,
switch the heater ON. Press the TEST button on
the ALCI device attached to the plug end of the
line cord. The heater and fan should stop
operating and the Power light should be
extinguished. Press the RESET button on the
ALCI device to resume normal operation of the
Plug in, press TEST, | heater. This devise should not be used on
then press RESET. | ON/OFF operation switch.
Risk of fire. Do not replace attachment plug.
Contains a safety device (ALCI) that should not
be removed. Discard product if the attachment
plug is damaged.
CAUTION: ALTHOUGH THIS DEVICE IS
PROVIDED WITH PROTECTION WHICH REDUCES
THE RISK OF ELECTRIC SHOCK, THIS PRODUCT
SHOULD NEVER BE USED NEAR WATER.
CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
DANGER - High temperatures may be generated under certain
abnormal conditions. Do not partially or fully cover or obstruct the
front of this heater.
3 OreoPTCRANHEATER

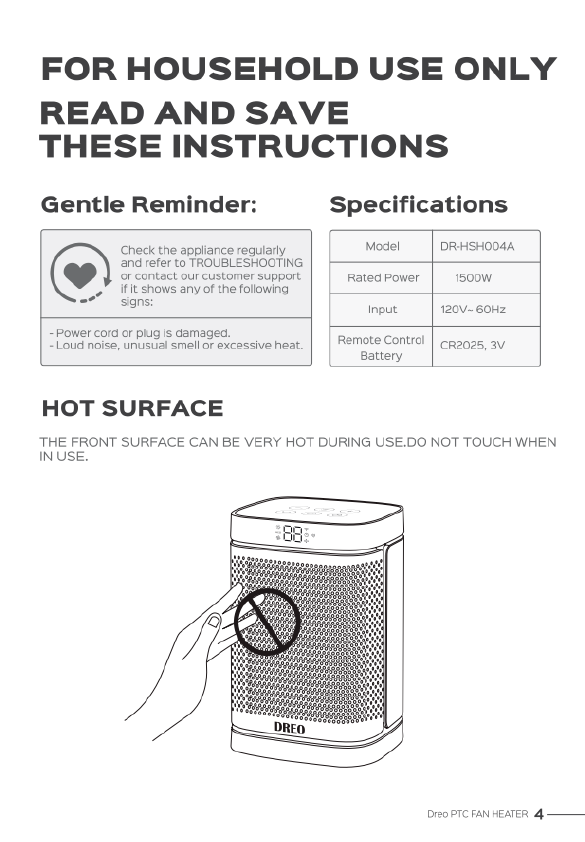

FOR HOUSEHOLD USE ONLY
READ AND SAVE
THESE INSTRUCTIONS
Gentle Reminder: Specifications
Check the appliance regularly Model DR-HSHOO4A
and refer to TROUBLESHOOTING
or contact our customer support | | Rated Power | 1500W
i shows any of the following
221 Input. 120V~ 60Hz
~Power cord or pug is damaged.
- Loud noise, unusual smell or excessive heat. Re‘“fic“ control | cragas, 3v
attery
HOT SURFACE
THE FRONT SURFACE CAN BE VERY HOT DURING USE.DO NOT TOUCH WHEN
INUSE.
:‘33.-'4;
BEEE
DREQ
Dreo PTC FAN HEATER 4 ———

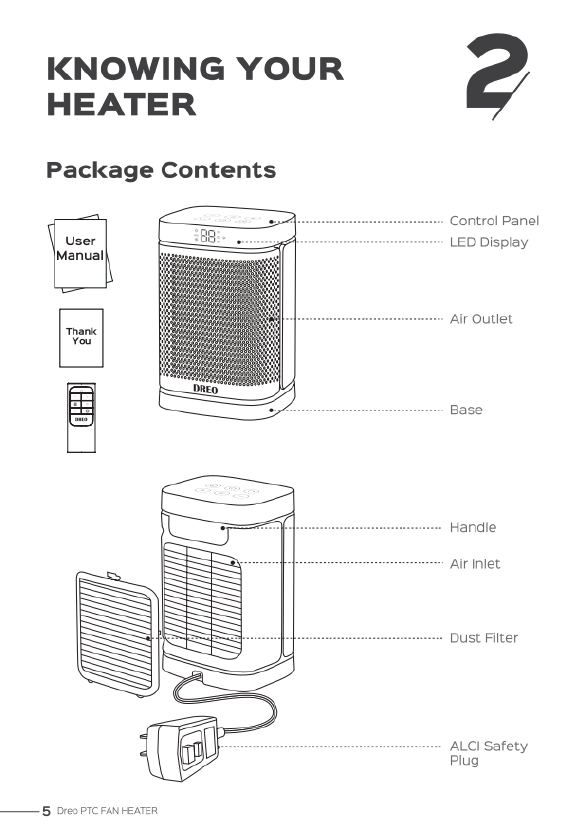

KNOWING YOUR
HEATER
Package Contents
T
Manual&
.. Control Panel
LED Display
-+ Air Outlet
Base
- Handle
Air Inlet.
=
Dust Filter
- ALCI Safety
Plug
5 Oreo PICFANHEATER

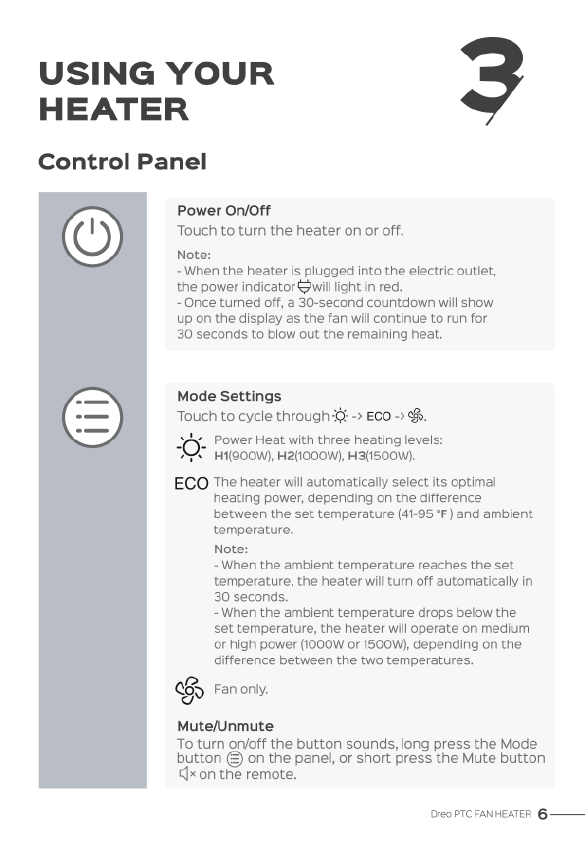

USING YOUR
HEATER
Control Panel
Power On/Off
Touch to turn the heater on or off.
Note:
- When the heater is plugged into the electric outlet,
the power indicator Swill ight in red.
- Once turned off, a 30-second countdown will show
up on the display as the fan will continue to run for
30 seconds to blow out the remaining heat.
Mode Settings
Touch to cycle through £ -> ECO -> .
(Y. Power Heat win three heating levels:
X HI(200W), H2(1000W), H3(1500W).
ECO The heater will automatically select its optimal
heating power, depending on the difference
between the set temperature (41-95 °F) and ambient
temperature.
Note:
- When the ambient temperature reaches the set
temperature, the heater will turn off automatically in
30 seconds.
- When the ambient temperature drops below the
set temperature, the heater will operate on medium
or high power (1000W or 1500W), depending on the
difference between the two temperatures.
B Fanony.
Mute/Unmute
To turn on/off the button sounds, long press the Mode
button @ on the panel, or short press the Mute button
xon the remote.
Ore0 PTC FANHEATER 6 ——

(O
(WH
(@
7 CreoPTCRANHEATER
Auto-Off Timer
- When the heater is on, touch to set a timer
(0-12h). After the timer ends, the heater will turn off
automatically.
+To cancel, set the timer to O hour.
Heat Level / Temperature
+In Power Heat mode, touch @or @to adjust the
heating level.
+In ECO mode, touch ®or Gto adjust the set
temperature.
Note:
In ECO mode, the heater will turn off automatically when
the set temperature has been reached. If your heater
turns off frequently, please raise the set temperature,
or switch to Power Heat mode.
Oscillation
Touch to turn on or off oscillation.

Safety Tips Before Use
1. This heater can't handle dense 2. Place the heater as far as
fluid water. Do not splash wateron possible from water source like
the heater. bathtub, shower, and sink.
3. Never place the heater ina 4. Keep the heater on the ground
position where it may fall into water. and away from water source.
Dreo PTC FAN HEATER § ———

LED Display
Heat Level / Timer Hour / Plugged In
Set Temperature
Display auto turns
off after 1 minute.
———© DreoPTCFANHEATER

Memory Function
‘The heater will remember its last
settings (temperatures, working
modes, oscillation status) once
turned on again.
24-Hour Auto Off
When the heater has been
running continuously for 24
hours, it will shut off
automatically for safety reasons.
To turn this feature OFF/ON,
long press the Timer button
for 3 seconds when the heater
is off; the display will show
“0F "and “0" respectively.
Remote Control
Power Indicator o
(o=
Heat Level -/
Temperature - -
Mode —
Oscillation ——— et
Tip-Over Protection
When the heater is tipped over,
it will shut off automatically
with the error code “P4” on the.
display.
Overheat Protection
When the heater overheats,
it will shut off automatically
with the error code “FF” on the
display.
Power
+ .H_ Heat Level +/
H Temperature +
‘ ® -—H— Timer
DREO
Dreo PTC FAN HEATER 10—

Battery Replacement
@ Press the locking button to pop
out the battery holder.
@ Replace with the same battery
type with the (+) side facing up.
@ Push in the holder until securely
locked into place.
Note: Jf the indicator on the remote
control doesn't turn on any more,
please consider replacing the
battery.
A———\CR0253V
(C——
WARNING
Chemical Burn Hazard. Keep batteries away
from children.
‘This product contains a lithium buttorcoin cell battery. If a new or
used lithium button/coin cell battery is swallowed or enters the body,
it can cause severe internal burns and can lead to death in as little
as 2 hours. Always completely secure the battery compartment. If
the battery compartment does not close securely, stop using the
product, remove the battery, and keep it away from children. If you
think batteries might have been swallowed or placed inside any part
of the body, seek immediate medical attention.
‘The batteries must be disposed of properly, including keeping them
‘away from children. Even used cells may cause injury.
11 DreoPTC FANHEA

CLEANING AND
MAINTENANCE
Cleaning and Maintenance
%’5"' Always turn off and unplug before cleaning.
Outer Surface
Use a soft, dry cloth to gently wipe clean the
outer surface.
Dust Filter
4
1. Pull out the filter 2. Rinse the filter 3. Wait until dry.
from the back. under running water.
TIP: For best performance, please clean the filter every 2-4 weeks.
Alr Inlet
Use a soft, dry cloth or a cotton-tipped
swab to remove any dust from the air inlet.
Dreo PTC FAN HEATER 12—

ATTENTION
.’
DO NOT unscrew
the unit.
DO NOT use DO NOT use
cleaning agents. abrasive scrubbers.
Fire or electrical shock hazard. DO
NOT immerse the main unit in water.
NEVER allow water to get insid
heater.
Except for cleaning, any servicing
should be performed by an authorized
service representative.
@@
Store in a cool, dry area and keep the
cable out of high-traffic areas to avoid
tripping hazards.

TROUBLESHOOTING
Troubleshooting
ssible Causes m
Unplug it from the power
source and contact
Customer Support.
E2 - Temperature
sensor short circuit
Unplug it from the power
source and contact
Customer Support.
E1- Temperature
sensor open circuit
Malfunction
Codes on LED
CEpiay E—— Unplug and walt for it
Protection to cool down before
plugging in again.
. Place the heater back on
Proraiiover afiat, level and stable
e surface.
Power cord is not. Connect the plug to
a powered electrical
properly plugged in. Elbony
pester does Unplug and allow it to
cool.
Overheat protection
has been activated.
Remove any objects on
or near the heater.
FAN HEATER 14—

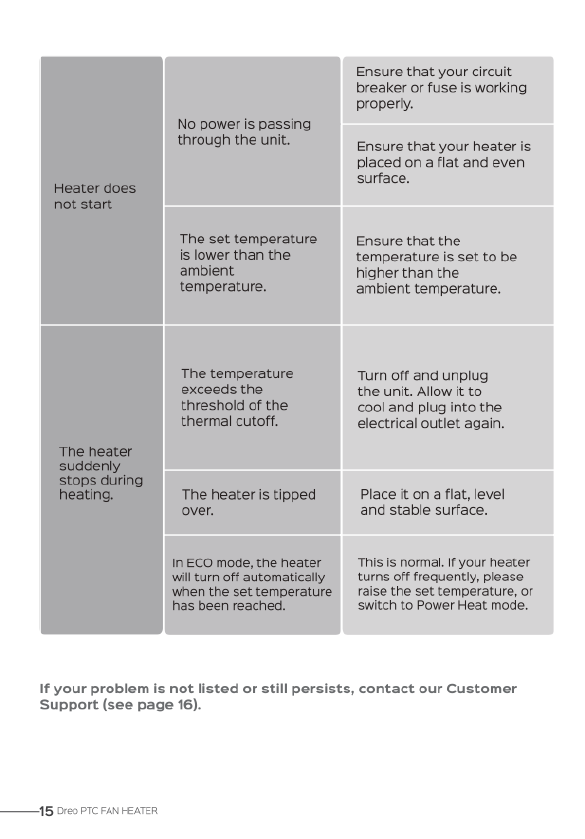

If your problem is not listed o still persists, contact our Customer
Support (see page 16).
15 Dreo PTCFAN HEATER.
