DTS DELTA R FULL COLOR User manual

GB
Made in Italy
DELTA R
User’s Manual Rel 1.5
D.T.S. Illuminazione srl - ITALY
http://www.dts-lighting.it
DELTA R TRILED
DELTA R FULL COLOR
DELTA 5-7 RGB R

2 DELTA R
Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia
non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo
documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso
scritto della D.T.S .
DTS si riserva il diritto di apportare senza preavviso cambiamenti e modifiche estetiche , funzionali o di
design a ciascun proprio prodotto. D.T.S non assume alcuna responsabilità sull’uso o sull’applicazione dei
prodotti o dei circuiti descritti.
The information contained in this publication has been carefully prepared and checked. However, no
responsibility will be taken for any errors. All rights are reserved and this document cannot be copied,
photocopied or reproduced, in part or completely, without prior written consent from D.T.S.
D.T.S. reserves the right to make any aesthetic, functional or design modifications to any of its products
without prior notice. D.T.S. assumes no responsibility for the use or application of the products or circuits
described herein.
Les informations contenues dans le présent manuel ont été rédigées et contrôlées avec le plus grand
soin. Nous déclinons toutefois toute responsabilité en cas d'éventuelles inexactitudes. Tous droits
réservés. Ce document ne peut être copié, photocopié ou reproduit, dans sa totalité ou partiellement,
sans le consentement préalable de .
se réserve le droit d'apporter toutes modifications et améliorations esthétiques, fonctionnelles ou
de design, sans préavis, à chacun de ses produits. décline toute responsabilité sur l'utilisation ou
sur l'application des produits ou des circuits décrits.
D.T.S
D.T.S.
D.T.S.
Las informaciones contenidas en este documento han sido cuidadosamenteredactadas y
controladas. Con todo, no se asume ninguna responsabilidad por eventuales inexactitudes.
Todos los derechos han sido reservados y este documento no puede ser copiado, fotocopiado
o reproducido, total o parcialmente, sin previa autorizaciónescrita de
se reserva el derecho a aportar sin previo aviso cambios y modificaciones de carácter
estético, funcional o de diseño a cada producto suyo. no se asume responsabilidad de
ningún tipo sobre la utilización o sobre la aplicació
n de los productos o de los circuitos descritos.
D.T.S.
D.T.S.
D.T.S.

3 DELTA R
INDEX:
1- TECHNICAL FEATURES 4
2- IMPORTANT SAFETY INFORMATION 8
2.1 Fire prevention
2.2 Prevention of electric shock
2.3 Protection against direct light radiation
2.4 Safety
2.5 Level of protection against the penetration of solid and liquid matter
3- VOLTAGE AND FREQUENCY 9
4- INSTALLATION 9
4.1 Safety cable
4.2 Risk of fire
4.3 Ambient temperature
5- MAINS CONNECTION 10
5.1 Protection:
6- DMX SIGNAL CONNECTION 10
6.1 DMX Addresses
6.2 Selecting the DMX address
7- MOVEMENT 11
8- DISPLAY FUNCTIONS 12
9- OPENING UP THE PROJECTOR HOUSING 25
9.1 Arms
9.2 base
10- CHANGHING THE LENSES 26
11- PERIODIC CLEANING 28
12- PERIODIC CONTROLS
13- DMX PROTOCOL 29

1- TECHNICAL FEATURES
Delta R Full Color
40 RGB Full Color LEDs/ LED power 3W
2.800 Lumens / 370 Lux at 5 m (medium flood lenses)
RGB color generation / 16 million colours
Colour temperature variable on a linear range (3.200°K÷5.500°K)
No infrared emission / no ultraviolet emission
LEDs average lifespan: 100.000 hours
Optical units can be interchanged by users (spot / medium /wide)
Interface: OLED display + 4 buttons / infrared remote control
Control signals: USITT DMX 512 USITT serial digital signals
15 DMX channels
Independent operation (Master / Slave)
Programmable automated playback (7 days)
Movement on 3 axes : Pan 320° /Tilt1 160°(Motorized) / Tilt2 135°(Manual).
Safety-locking system
IP65 protection level
Professional HARTING / ILME sockets (IP65 protection rating)
Full range AC 90-260V, 50-60Hz power supply
Operating ambient temperature -10° / 40°
Weight: 24 Kg
ACCESSORIES
Lenses set spot (cod. 03.LK.008)
Lenses set medium flood (cod. 03.LK.001)
Lenses set wide flood (cod. 03.LK.002)
Flight case for 1 DELTA (cod. 0521C029)
Flight case for 2 DELTA (cod. 0521C030)
Safety wire (3mm x 60 cm), Ring spring catch (max. capacity load 60Kg) (Cod. 0521A010)
“C” Clamp GQUICK with “Fast Lock” connection ¼ turn (max. load 80Kg) (cod. 0521A014)
4 DELTA R
Packaging Dimensions (LxDxH)
530 x 500 x 660 mm
Weight 30 Kg (motorized version)
Dimensions (LxDxH)
projector 430 x 285 x 570 mm
Weight24 Kg (motorized version)

Delta R Triled
20 LEDs / TRILED technology / LED power 1W x 3
2.400 Lumens / 450 Lux at 5 m (medium flood lenses)
RGB color generation / 16 million colours
Colour temperature variable on a linear range (3.200°K÷5.500°K)
No infrared emission / no ultraviolet emission
LEDs average lifespan: 100.000 hours
Optical units can be interchanged by users (spot / medium flood / wide flood)
Interface: OLED display + 4 buttons / infrared remote control
Control signals: USITT DMX 512 USITT serial digital signals
15 DMX channels
Independent operation (Master / Slave)
Programmable automated playback (7 days)
Movement on 3 axes : Pan 320° /Tilt1 160°(Motorized) / Tilt2 135°(Manual)
Safety-locking system
IP65 protection level
Professional HARTING / ILME sockets (IP65 protection rating)
Full range AC 90-260V, 50-60Hz power supply
Operating ambient temperature -10° / 40°
Weight: 24 Kg
ACCESSORIES
Lenses set spot (cod. 03.LK.004)
Lenses set medium flood (cod. 03.LK.005)
Lenses set wide flood (cod. 03.LK.006)
Flight case for 1 DELTA (cod. 0521C029)
Flight case for 2 DELTA (cod. 0521C030)
Safety wire (3mm x 60 cm), Ring spring catch (max. capacity load 60Kg) (Cod. 0521A010)
“C” Clamp GQUICK with “Fast Lock” connection ¼ turn (max. load 80Kg) (cod. 0521A014)
5 DELTA R
Dimensions (LxDxH)
projector 430 x 285 x 570 mm
Weight24 Kg (motorized version)
Packaging Dimensions (LxDxH)
530 x 500 x 660 mm
Weight 30 Kg (motorized version)

1- TECHNICAL FEATURES
Delta 5 RGB R
108 X 1W Luxeon type LEDS (36 Red, 36 Green, 36 Blue)
2.400 Lumens / 900 Lux at 5 m (medium flood lenses)
RGB color generation / 16 million colours
Colour temperature variable on a linear range (3.200°K÷5.500°K)
No infrared emission / no ultraviolet emission
LEDs average lifespan: 100.000 hours
Optical units can be interchanged by users (spot / medium /wide)
Interface: OLED display + 4 buttons / infrared remote control
Control signals: USITT DMX 512 USITT serial digital signals
15 DMX channels
Independent operation (Master / Slave)
Programmable automated playback (7 days)
Movement on 3 axes : Pan 320° /Tilt1 160°(Motorized) / Tilt2 135°(Manual).
Safety-locking system
IP65 protection level
Professional HARTING / ILME sockets (IP65 protection rating)
Full range AC 90-260V, 50-60Hz power supply
Operating ambient temperature -10° / 40°
Weight: 24 Kg
ACCESSORIES
Lenses set spot (cod. 03.LK.008)
Lenses set medium flood (cod. 03.LK.001)
Lenses set wide flood (cod. 03.LK.002)
Flight case for 1 DELTA (cod. 0521C029)
Flight case for 2 DELTA (cod. 0521C030)
Safety wire (3mm x 60 cm), Ring spring catch (max. capacity load 60Kg) (Cod. 0521A010)
“C” Clamp GQUICK with “Fast Lock” connection ¼ turn (max. load 80Kg) (cod. 0521A014)
6 DELTA R
Packaging Dimensions (LxDxH)
530 x 500 x 660 mm
Weight 30 Kg (motorized version)
Dimensions (LxDxH)
projector 430 x 285 x 570 mm
Weight24 Kg (motorized version)

1- TECHNICAL FEATURES
Delta 7 RGB R
108 X 1W P4 type LEDS (36 Red, 36 Green, 36 Blue)
2.400 Lumens / 1150 Lux at 5 m (medium flood lenses)
RGB color generation / 16 million colours
Colour temperature variable on a linear range (3.200°K÷5.500°K)
No infrared emission / no ultraviolet emission
LEDs average lifespan: 100.000 hours
Optical units can be interchanged by users (spot / medium /wide)
Interface: OLED display + 4 buttons / infrared remote control
Control signals: USITT DMX 512 USITT serial digital signals
15 DMX channels
Independent operation (Master / Slave)
Programmable automated playback (7 days)
Movement on 3 axes : Pan 320° /Tilt1 160°(Motorized) / Tilt2 135°(Manual).
Safety-locking system
IP65 protection level
Professional HARTING / ILME sockets (IP65 protection rating)
Full range AC 90-260V, 50-60Hz power supply
Operating ambient temperature -10° / 40°
Weight: 24 Kg
ACCESSORIES
Lenses set spot (cod. 03.LK.008)
Lenses set medium flood (cod. 03.LK.001)
Lenses set wide flood (cod. 03.LK.002)
Flight case for 1 DELTA (cod. 0521C029)
Flight case for 2 DELTA (cod. 0521C030)
Safety wire (3mm x 60 cm), Ring spring catch (max. capacity load 60Kg) (Cod. 0521A010)
“C” Clamp GQUICK with “Fast Lock” connection ¼ turn (max. load 80Kg) (cod. 0521A014)
7 DELTA R
Packaging Dimensions (LxDxH)
530 x 500 x 660 mm
Weight 30 Kg (motorized version)
Dimensions (LxDxH)
projector 430 x 285 x 570 mm
Weight24 Kg (motorized version)

2- IMPORTANT SAFETY INFORMATION
2.1 Fire prevention:
-Never locate the fixture on any flammable surface.
-Minimum distance from flammable materials: 1 m.
-Minimum distance from the closest illuminable surface: 1 m.
-Replace any blown or damaged fuses only with those of identical value. Refer to the wiring diagram if
there is any doubt.
-Connect the projector to mains power via a thermal magnetic circuit breaker.
2.2 Prevention of electric shock:
-High voltage is present inside the unit. Isolate the projector from the mains supply prior to performing
any function which involves touching the inside of the unit.
-The level of technology inherent in the DELTA R requires the assistance of specialised personnel for all
servicing.Please refer to an authorised DTS service centre.
-A good earth connection is essential for proper functioning of the projector.
Never connect the unit without proper earth connection.
-The fixture should be located in places with a good air ventilation.
2.3 Protection against direct light radiation:
-Never turn the unit on if any of the lenses or the glass lenses protection is damaged.
-Never look directly the leds when they are on.
2.4 Safety:
-The projector should always be installed with bolts, clamps and other tools that are capable of
supporting the weight of the unit.
-Always use a second safety chain to sustain the weight of the unit in case of the failure of the main
fixing point.
-The external surface of the unit, at various points, may exceed 80°C. Never handle the unit until it’s on.
-Never install the fixture in an enclosed area lacking sufficient air flow.
-The ambient temperature should not exceed 40°C.
2.5 Level of protection against the penetration of solid and liquid matter:
-The projector is classified as an ordinary appliance and its protection level against the penetration of
solid and liquid matter is IP 65.
8 DELTA R

.
3- VOLTAGE AND FREQUENCY:
Delta R can operate at 90-270V, 50 or 60 Hz.
4- INSTALLATION:
4.1 Safety cable:
4.2 Risk of fire:
Each fixture produces heat and must be installed in a well-ventilated position. The minimum
recommended distance from flammable material is 1m. Minimum distance from the object being
illuminated is 1 m.
Delta R may be either floor or ceiling mounted.
For floor mounting installations, the unit is supplied with four rubber mounting feet on the base.
For ceiling mounted installations, we reccommend the use of appropriate clamps to fix the unit to the
mounting surface.
The supporting structure from which the unit is hung should be capable of bearing the weight of the
unit, as should any clamps used to hung it. The structure should also be sufficiently rigid so as not to
move or shake whilst the Delta R is moving.
The Delta R is fitted with 4 fixing points on the bottom used to attach accessories (clamps, hooks, etc.)
With a fast lock closure/release system (1/4 turn) to fix the fixture in any position.
.
We recommend the use of a safety cable or chain connected to the Delta R and to the suspension truss
in order to avoid the fixture accidentally falling should the main fixing point fail. Make sure that the iron
cable or chain can bear the weight of the entire unit.
You may attach the safety chain to the holes located on the base of the fixture, as shown in the picture
below.
9 DELTA R
SAFETY CABLE
FIXING POINT

4.3 Ambient temperature:
The projector should never be installed in places that lack a constant air flow. The ambient temperature
should NOT exceed 40°C.
5- MAINS CONNECTION:
Delta R can operate at 90-270V, 50 or 60Hz.
For connection purposes, ensure that your plug can handle at least 300W power consuption.
Strict adherence to regulatory norms is strongly
Recommended.
5.1 Protection:
The use of a thermal magnetic circuit breaker is recommended for each Delta R.
A good earth connection is essential for the correct operation of the projector.

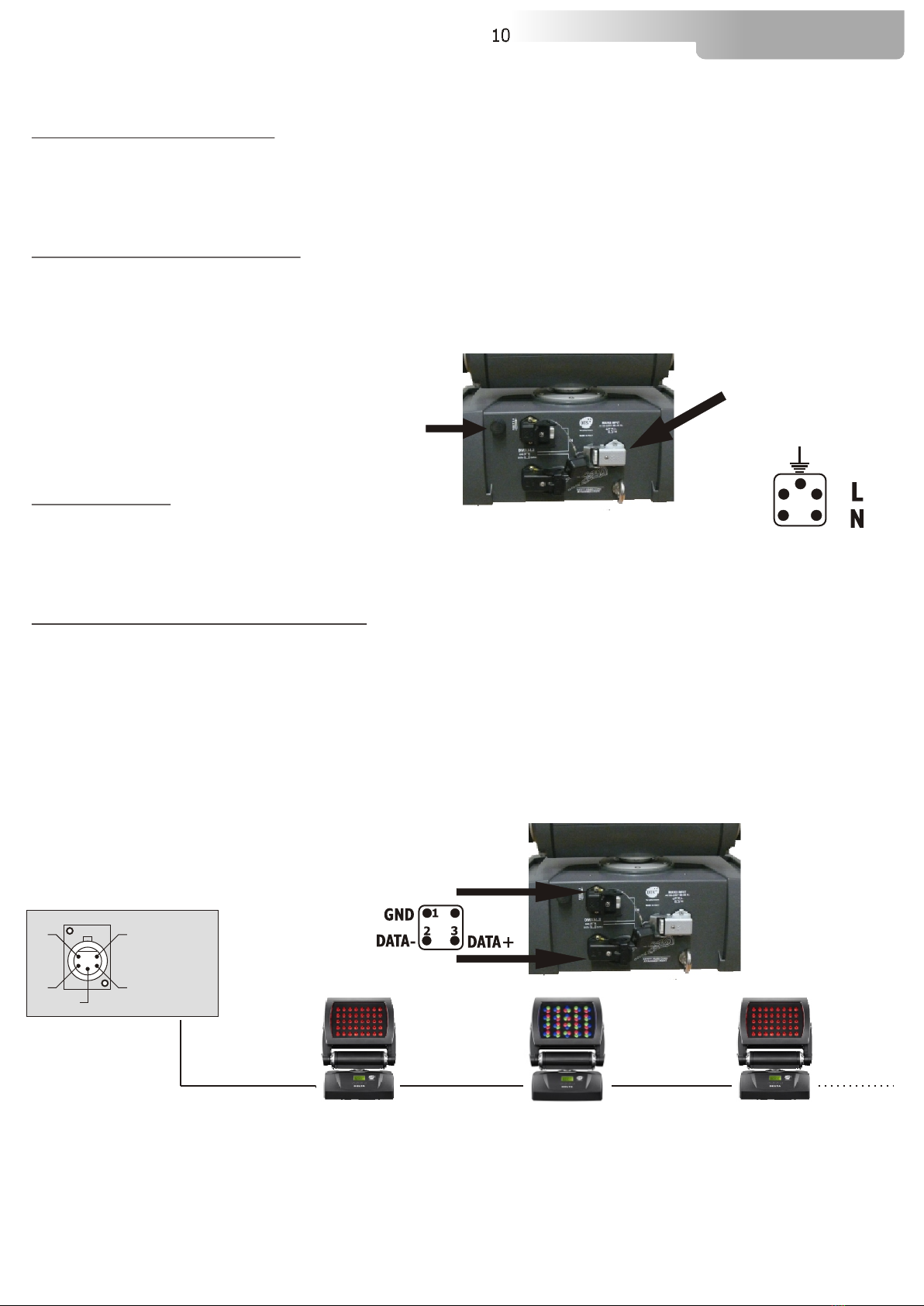

6- DMX SIGNAL CONNECTION:
The unit operates using a digital DMX 512 (1990) signal. Connection between the control box and the
projector or between projectors must be carried out using a two pair screened ø0.5 mm cable and a
CANNON XLR 5 or 3 pole connector.
P.S:
If the display showing the DMX address flashes, then one of the following errors has occurred:
- DMX signal not present
- DMX reception problem
Ensure that the conductors do not touch each other.Do not connect the cable ground to the XLR chassy
The plug housing must be isolated. Connect the mixer signal to the DMX IN projector plug and connect
it to the next projector by connecting the DMX OUT plug on the first projector to the DMX IN plug of the
second one.
In this way, all the projectors are cascade connected.
5
3
4 2
11=GND
2=DATA-
3=DATA+
CONTROLLER
S T A N D A R D
D M X 5 1 2
OUT
IN OUT
10 DELTA R
OUT OUT
IN IN
DMX IN
DMX OUT
FUSE: T 3,15A Electronic ballast
90-260V 50 / 60Hz
MAINS
1
32
4

11 DELTA R
6.1 DMX Addresses:
DELTA R have 15 DMX control channels.
Here below are described the DMX channels addressing for the controller:
Projector 1 A001
Projector 2 A016 If you want to select the next projector, just add “15”
Projector 3 A031
….. A….
projector 6 A091
6.2 Selelcting the DMX address:
1) Press the UP-DOWN key until you reach the required DMX address. The numbers on the display will
start to flash (but the new DMX address hasn't yet been set).
2) Press ENTER to confirm your selection. The numbers on the display will stop flashing and the
projector is now controlled by the new DMX address.
TIPS: if you keep pushed the UP or DOWN keys, the channels are calculated more quickly and you get
a faster selection.
7- Movement
The projector has a maximum movement of 320° for Pan,180° for Tilt 1 and 135° for tilt 2
(7 mechanical steps 22,5° each).
DO NOT place any obstructions in the path of the projector's movement.
MENU
ENTER DOWN
UP
Tilt 2 mechanical regulation TILT1 180°
Motorized
PAN 320°
TILT2 135°
Mechanical

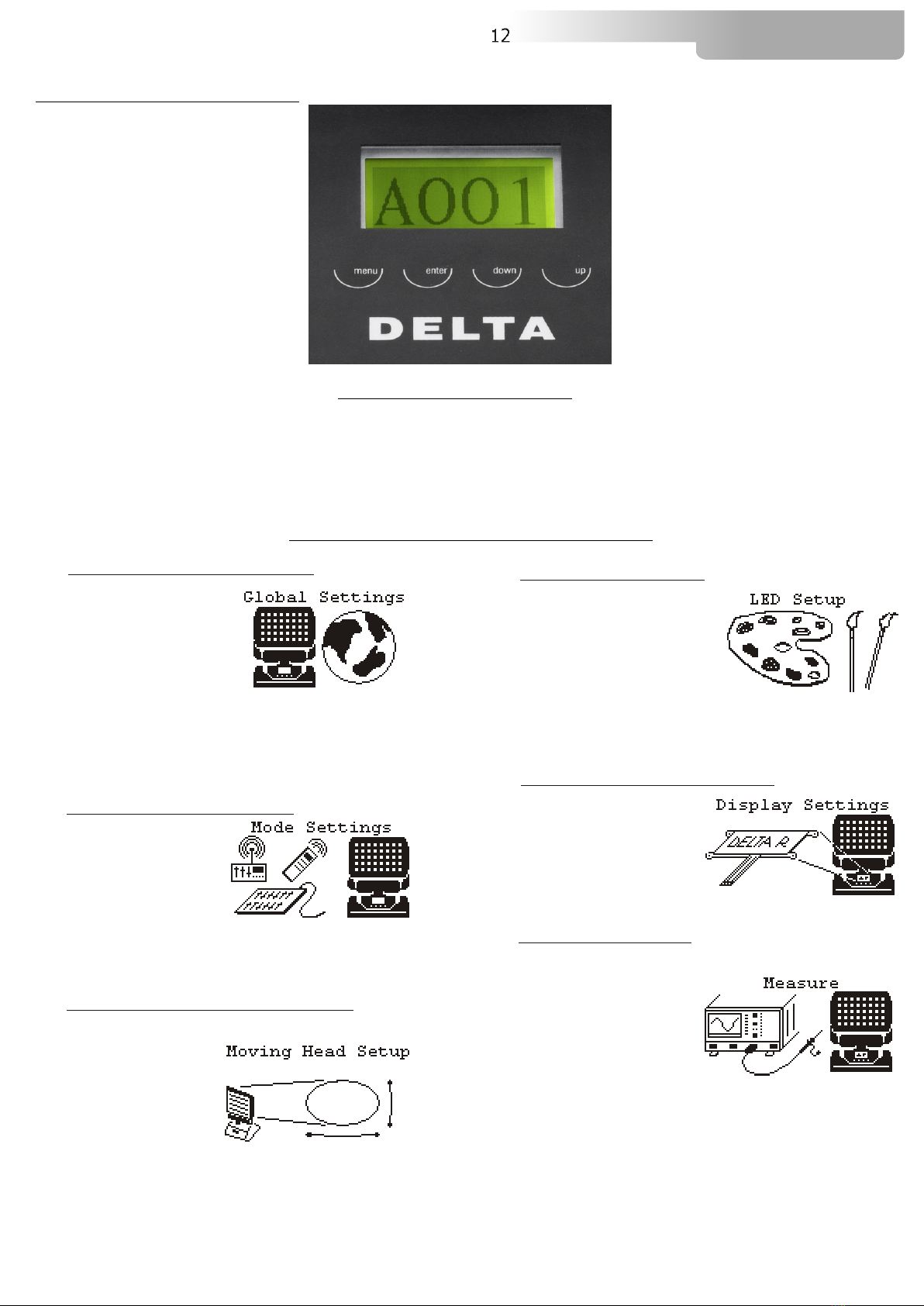

8- DISPLAY FUNCTIONS
12
DISPLAY FUNCTIONS
The DELTA R display panel shows all the available functions . Using these functions, it is possible
to change some of the parameters and add some functions. Changing the DTS setting can vary the
functions of the unit so that it does not respond to the DMX 512 used to control it. Carefully
follow the instructions below before carrying out any variations or selections.
DELTA R
1)GLOBAL SETTING MENU
LANGUAGE
DEFAULT PAGE
SECURITY
DEFAULT SETTING
SET DATE
SET TIME
UPDATE
DOWNLOAD
ABOUT
2)MODE SETTING MENU
MODE DMX
MODE RECORDER
MODE MASTER
MODE SLAVE
MODE IR
MODE MANUAL
MODE TWILIGHT
3)MOVING HEAD SETUP MENU
PAN MIN
PAN MAX
TILT MIN
TILT MAX
CALIBRATE PAN
CALIBRATE TILT
INVERT PAN
INVERT TILT
SWAP PAN & TILT
ENCODER
RESET PAN & TILT
SPEED PAN & TILT
4)LED SETUP MENU
COLOUR MODE
WHITE BALANCE
BOOST DRIVING
MIN RGB
MAX RGB
SMOOT FILTER
PWM FREQUENCY
5)DIPLAY SETTINGS MENU
CONTRAST
FLIP DISPLAY
SCREEN SAVER
6)MEASURE MENU
LIFE
DMX
VOLTAGE
TEMPERATURA
TWILIGHT
DELTA SOFTWARE RELEASE 1.72

13 DELTA R
1)GLOBAL SETTING MENU
LANGUAGE
DEFAULT PAGE
SECURITY
DEFAULT SETTING
SET DATE
SET TIME
UPDATE
DOWNLOAD
ABOUT
Up-Down
Menu
A001 GLOBAL SETTING
ENTER
Language
Up-Down Up-DownENTER
Up-Down
LANGUAGE SELECTION
This menu allow to set the
English = Default
Default Page
Up-Down Up-DownENTER
Up-Down
DEFAULT PAGE SELECTION
This menu allow to set the
visualisation for the start up page
Four Digit = DMX address
visualisation
ENTER
Status = DMX / Color Mode / Boost
Power / Security
ENTER
ENTER
Security
Up-Down Up-DownENTER
SECURITY PASSWORD
This menu allow to select a security
password to lock the user’s settings
Default 0000 = no password ENTER
Up-Down
Default Setting
Up-Down
DEFAULT SETTINGS
This menu allow to set the unit to
the company settings
ENTER
GAME,TIMER and WHITE SETTING
will not be changed
ENTER
Set Language
English
Set Default Page
Four Digit
Status
A001
Security Unlocked
Enter Security Code
0 0 0 0
Confirm Security Code
0 0 0 0
Restore Main Settings
ENTER to CONFIRM
& Reboot
Up-DownENTER
Up-Down
Universal Unlock code = 2903
Set Date
Up-Down Up-DownENTER
Year 2007
Month Jan
Day of the month 01
Day of the week Mon
DATE SETTING
This menu allow to set the day of
the week the month and the year
ENTER
Set Date Date settings for Stand Alone mode

14 DELTA R
Update
Up-Down Up-DownENTER
UPDATE MENU
This menu allow to upgrade the
uni’s software by computer or
remote control
ENTER
Update the unit’s software from PC by
cable
Download
Up-Down Up-DownENTER
DOWNLOAD MENU
This menu allow to save unit’s
programs into computer
ENTER
Download the unit’s program to PC by
cable
ABOUT
Up-Down ENTER About DELTA R
Master PCB 0514L019
Loader Version 1.02
HW Version 1.01
SW Version 1.61
Pan&Tilt PCB 0514S100
PAn&Tilt Version 2.05
ABOUT MENU
This menu show informations about
unit’s hardware and software
Up-Down ENTER
Select UPDATE Mode
Direct to PC
ENTER to CONFIRM
Select DOWNLOAD Mode
Direct to PC
ENTER to CONFIRM
Unit’s Hardware and software infos
TIME SETTING
This menu allow to set the unit’s on
board clock for STAND ALONE
MODE
Set Time
Up-Down Up-DownENTER Real time internal clock setting ENTER
Set Time
Hour 03
Minute 01

15 DELTA R
2)MODE SETTING MENU
MODE DMX
MODE RECORDER
MODE MASTER
MODE SLAVE
MODE IR
MODE MANUAL
MODE TWILIGHT
A001 MODE SETTINGS
Up-Down
Menu ENTER
Mode DMX
Up-Down Up-DownENTER
DMX ADDRESS SELECTION
This menu allow to set the unit’s
DMX address.
Set Address DMX
001
Address range 001-489 ENTER
Mode Recorder In Manual Recording Mode,it is
possible to create and store the
steps of the chase by using the unit
display panel and buttons.
ENTER
Up-Down Up-DownENTER
RECORDER MODE SETTING
This menu let you create 2 different chases,CPR1
and CPR2 (16 steps each) that will then run in
Master Mode.
Two different recording mode are available:
1)Manual Recording Mode
2)DMX Recording Mode
RECORDER Mode
Input Mode MANUAL
Select Chase CPR1
RECORDER MANUAL
CPR1 STEP 01 EDIT
PAN 016 TILT 255
SHUTTER 009 DIMM 017
R 016 G 016 B 000
WHITE 012 CTC 000
MACRO 000
Three different options are available:
1)EDIT = Let you modify and store
new values for all the channels on
the selected Step.
2)WIEV MEM = Let you see the
existing programmed steps of the
chase
3)SET LAST = Let you set the last
step to be ran on the chase.
In DMX Recording Mode,it is
possible to create and store the
steps of the chases by using an
external DMX controller.
ENTER
RECORDER Mode
Input Mode DMX
Select Chase CPR1
Warning 18 channels !
RECORDER DMX
CPR1 STEP 01 EDIT
PAN 016 TILT 255
SHUTTER 009 DIMM 017
R 016 G 016 B 000
WHITE 012 CTC 000
MACRO 000
2)DMX Recorder Mode
To program CPR1 and CPR2 by using a DMX controller,
3 more DMX channels are needed in addition to the 15
channels necessary to control the unit.
So that in RECORDER mode (via DMX) the unit will
need 18 channels to be correctly programmed.
The 3 new DMX channels are:
DMX channel 16 = STEPS channel
From 0 - 15 = VIEW DMX, the unit shows the values
received from the DMX controller in that moment.
From 16 – 255, the previously programmed steps (16
steps from 01 to 16) are displayed.
DMX channel 17 = VIEW / EDIT / SET LAST channel
If channel 16 (STEPS channel) is set to value 0 - 15,
the DMX channel 17 has no functions.
If channel 16 (STEPS channel) is set to value 16 - 255,
the DMX channel 17 has the following functions:
From 0 - 19 = VIEW MEM, the unit shows the
previously programmed steps.
From 20 - 234 = EDIT, the unit runs the configuration
given by the DMX controller in that moment.
1)Manual Recording Mode
With the STEPS channel it is possible to select the step to create, while with REC channel it is possible to store the configuration on the selected step.-
From 234 - 255 = SET LAST, the unit runs the configuration given by the DMX controller in that moment closing the Program as last step.
With the REC channel it is possible to record the selected step as last step to be ran on the Program.
DMX channel 18 = REC channel
REC channel saves the configuration given by the DMX controller in the selected step: you change the DMX value from 0 to 255 (the display shows
“WRITING” indicating that the step has been recorded). We suggest to keep the REC channel set to 0 and to run through the 255 only once you have
decided to save the new configuration. If CPR1 or CPR2 are not closed, by indicating the last step (Edit channel between 235-255), all 16 steps will be
played through in playback mode, even if not programmed.
WARNING !
To program CPR1 and CPR2 by using
a DMX controller, 3 more DMX
channels are needed in addition to
the 15 channels necessary to control
the unit.

Mode Master The Delta setted as MASTER, send
DMX signal to all the other units
connected to the same DMX line
ENTER
Master Mode
Set CHASE CPR1
Set TIME Sec 0025
Set WAIT Sec 0015
Up-Down Up-DownENTER
MASTER MODE SETTING
This menu allow to set Delta R as
master unit (No DMX signal must
be present on unit’s DMX input
panel) .
The unit will ran in automatic mode
without needing of an external
controller.
Different chases are selectable by
user
ENTER
Set MASTER MODE
Mode : MASTER
Actual : DMX
ENTER to CONFIRM
Up-Down
16 DELTA R
CRNB
Rainbow colours effect.
Time and Pan&Tilt selectable by
user
CUE 1-9
Color Macros with fixed colors
Pan&Tilt selectable by user
CPR1/CPR2/CPR1&2
Chases with 16 steps previously
created in RECORDER mode.
Time and Wait time selectable by
user
By setting all the units connected to
the MASTER, to DMX address 1,
them will be sinchronized with the
Master unit following the chase
selected on it, including TIME, WAIT
and Pan&Tilt position of the MASTER
unit.
By setting all the units connected to
the MASTER, as SLAVE unit (see
SLAVE mode), them will be
sinchronized with the Master unit
only for TIME and WAIT time, but
running their own chase CPR1/CPR2
with dedidicated Pan&Tilt position,
colors and effects.
Mode Slave ENTER
The SLAVE unit receive DMX signal
from the MASTER unit
Up-Down Up-DownENTER
SLAVE MODE SETTING
This menu allow to set the Delta R
as slave unit.
DMX signal must be present from
MASTER unit in order to ran in
SLAVE mode.
Set SLAVE MODE
Mode : SLAVE
Actual : DMX
ENTER to CONFIRM
By setting all the units connected to
the MASTER, as SLAVE unit, them
will be sinchronized with the Master
unit only for TIME and WAIT time,
but running their own chase
CPR1/CPR2 with dedidicated
Pan&Tilt position, colors and effects.

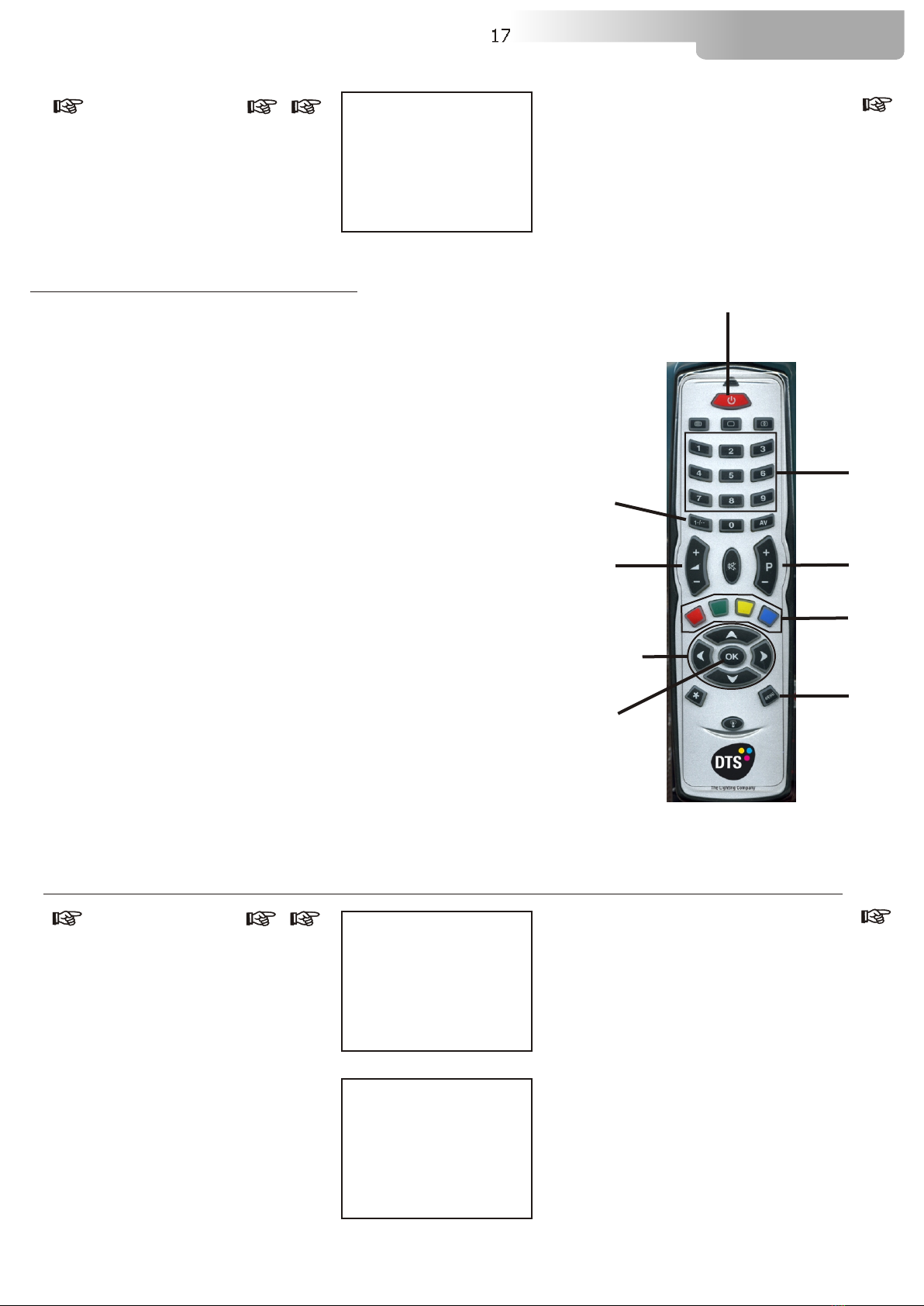

Mode IR ENTER
The unit is controlled by the infrared
remote control
Up-Down Up-DownENTER
IR MODE SETTING
By activating IR mode on Delta unit
it will be possible to navigate
trought the unit functions by using
the D.T.S. infrared remote control
(D.T.S. Code :0514L008).
INFRARED REMOTE CONTROL
By activating IR mode on Delta unit it will be possible to navigate
trought the unit functions by using the D.T.S. infrared remote
control (D.T.S. Code :0514L008).
Infrared remote control functions:
ON/OFF and MUTE buttons
In Master/Slave mode let you stop the games running.
Master and slave units will go in Stand-by mode
1-9 buttons
Let you select the chase to run (CPR1/CPR2/CRNB/CUE 1-6)
1-/.. Button
Let you select the chase to run (CUE 7-9)
VOL +/-
No function
PROG +/-
Let you scroll between the selectable chases
RED/GREEN/YELLOW/BLUE buttons
Direct acces to cues for Red/Green/Blue/Yellow colour.
Red=CUE1 / Green=CUE3 / Yellow=CUE2 / Blue=CUE5
Navigation buttons
Same as UP/DOWN on unit display
OK button
Same as ENTER on unit display
MENU button
Same as MENU on unit display
ON/OFF
Button
1-9
Buttons
1-/..
Button
VOL +/-
Buttons
PROG +/-
Buttons
R-G-Y-B
Buttons
NAVIGATION
Buttons
OK
Button
MENU
Button
17 DELTA R
Set IR MODE
Mode : IR
Actual : DMX
ENTER to CONFIRM
Mode Manual ENTER
In MANUAL mode it is possible to
adjust all the unit functions by using
UP/DOWN and ENTER buttons:
PAN H
PAN L
TILT H
TILT L
SPEED PAN&TILT
SHUTTER
DIMMER
RED
GREEN
BLUE
WHITE
CTC
MACRO
FUNCTION
RESET
Up-Down Up-DownENTER Set MANUAL MODE
Mode : MANUAL
Actual : DMX
ENTER to CONFIRM
MANUAL MODE SETTING
This menu let you control Delta unit in manual
mode by using the unit display.
In MANUAL mode, no external controller is
needed.
MAN Mode Enter VALUES
Channel Value
PAN H 128

18 DELTA R
TWILIGHT MODE
Up-Down Up-DownENTER
TWILIGHT MODE MENU
This menu allow to set the unit in
Twilight mode.
Twilight mode let you turn ON and
OFF the unit at a specific clock time
(including day of the week) and/or
at a specific twilight level.
The Twilight mode make use of a
twilight sensor located on the front
panel near unit display.
To know the twilight ambient level
value measured from the sensor,
scroll the unit menu till MEASURE
Mode and select Twilight.
ENTER
The unit is switched on and off at
the desired twilight level or/and
at a specific clock time.
3)MOVING HEAD SETUP MENU
PAN MIN
PAN MAX
TILT MIN
TILT MAX
CALIBRATE PAN
CALIBRATE TILT
INVERT PAN
INVERT TILT
SWAP PAN & TILT
ENCODER
RESET PAN & TILT
SPEED PAN & TILT
Set TWILIGHT MODE
Mode : TWILIGHT
Actual : DMX
ENTER to CONFIRM
TWILIGHT Mode
ACTION CPR1
LEVEL ON 100 OFF 150:
TIME CONDIT INCLUSIVE
DAY Mon START 22:00
TIME ON 10:00
ACTION :
Let you select the desired
function in twilight mode.
You can choose between: DMX /
CPR1 / CPR2 / CPR1&2 / CRNB /
CUE 1-9 /
LEVEL ON and OFF :
Let you select the desired twilight
levels for:
Twilight mode ON and OFF.
TIME CONDITION:
Four different options are available:
1) INACTIVE
Clock time (START) and Time on period (TIME ON), are inactive.
In this condition the unit goes ON only if the twilight level is valid
2)COMBINED
Clock time (START), Time on period (TIME ON) and Twilight level are active.
In this condition, the unit goes ON only if all the parameters are valid.
3)INCLUSIVE
Clock time (START), Time on period (TIME ON) and Twilight level are active.
In this condition, the unit goes ON also if only one of the paramete is valid.
4)EXCLUSIVE
Clock time (START) and Time on period (TIME ON), are active, while Twilight level is inactive.
In this condition, the unit goes ON only if Clock time (START) is valid.
Up-Down
Menu
A001 MOVING HEAD SETUP
ENTER

Up-Down Up-DownENTER
PAN MINIMUM POSITION
This menu allow to set the Pan
minimum position (Default =000)
Pan Max
Up-Down Up-DownENTER
PAN MAXIMUM POSITION
This menu allow to set Pan
maximum position (Default = 255)
Pan Min
Up-Down Up-DownENTER
TILT MINIMUM POSITION
This menu allow to set the Tilt
minimum position in degrees
(Default =000)
Tilt Min
Setting Pan Min
Pan Min : 000
Range 000-255
Default = 000 ENTER
Setting Pan Max
Pan Man : 000
Range 255-000
Default = 255 ENTER
Setting Tilt Min
Tilt Min : 000
Range 000-255
Default = 000 ENTER
Up-Down
Menu
A001 MOVING HEAD SETUP
ENTER
19 DELTA R
Calibrate Pan
Up-Down Up-DownENTER
PAN CALIBRATION
This menu allow to calibrate Pan
home position (Default = 105)
Calibrate Tilt
Up-Down Up-DownENTER
TILT CALIBRATION
This menu allow to calibrate Tilt
home position (Default = 128)
Tilt Max Setting Tilt Max
Tilt Max : 000
Range 000-255 ENTER
Up-Down Up-DownENTER
TILT MAXIMUM POSITION
This menu allow to set the Tilt
maximum position (Default = 255)
Calibrating Pan
Pan : 105
Calibrating Tilt
Tilt : 105
Range 000-255 ENTER
Range 255-000
Default = 255 ENTER

20 DELTA R
Invert Pan
Up-Down Up-DownENTER
PAN INVERTION
This menu allow to set the Pan
movement.
Normal or Inverted
Invert Tilt
Up-Down Up-DownENTER
TILT INVERTION
This menu allow to set the Tilt
movement.
Normal or Inverted
Swap Pan&Tilt
Up-Down Up-DownENTER
PAN&TILT SWAP
This menu allow to invert the
control of Pan with the control of
Tilt.
IMPORTANT: (During PAN/TILT MIN,PAN/TILT MAX and PAN/TILT CALIBRATE setting,PAN/TILT INVERT and PAN/TILT SWAP are disabled
Encoder
Set PAN INVERTION
Pan : Normal
Actual Normal
Pan movement Normal or Inverted
Default = Normal ENTER
Set TILT INVERTION
Tilt : Normal
Actual Normal
Tilt movement Normal or Inverted
Default = Normal ENTER
Set Pan/Tilt SWAPPING
Swap : Normal
Actual Normal
Pan control inverted with Tilt control
and vice versa
Dfault = Normal
ENTER
Set Encoder Status
Encoder : Active
Actual Active
Pan/Tilt auto-repositioning system
enabled or disabled
Default = Active
ENTER
Up-Down Up-DownENTER
ENCODER SETTING
This menu allow to enable/disable
the auto-repositioning function for
Pan and Tilt
Resetting Pan & Tilt
PRESS ENTER
To RESET Pan & Tilt
PAN&TILT RESET
This menu allow to reset Pan and
Tilt Motors
Reset Pan & Tilt
Up-Down ENTER Pan &Tilt motors reset ENTER
Set SPEED MAX P&T
Speed MAX % 100
PAN & TILT MAXIMUM SPEED
This menu allow to set the
maximum speed for Pan & Tilt
movement.
Speed Pan & Tilt
Up-Down Up-DownENTER Pan&Tilt maximum motor speed
Selectable between 25-100% ENTER
