DTS NICK NRG1200 CT User manual

D.T.S. Illuminazione s.r.l.
Via Fagnano Selve 10/12/14
47843 Misano Adriatico (RN) ITALIATel [phone] Fax [phone] [email protected] http://www.dts-lighting.it
Made in Italy
CT

2
Le informazioni contenute in questo documento sono state attentamente redatte e
controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze.
Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato,
riprodotto per intero o in parte senza previo consenso scritto della D.T.S .
D.T.S. si riserva il diritto di apportare senza preavviso cambiamenti e modifiche
estetiche , funzionali o di design a ciascun proprio prodotto. D.T.S non assume alcuna
responsabilità sull’uso o sull’applicazione dei prodotti o dei circuiti descritti.
The information contained in this publication has been carefully prepared and
checked. However, no responsibility will be taken for any errors. All rights are
reserved and this document cannot be copied, photocopied or reproduced, in part or
completely, without prior written consent from D.T.S.
D.T.S. reserves the right to make any aesthetic, functional or design modifications to
any of its products without prior notice. D.T.S. assumes no responsibility for the use or
application of the products or circuits described herein.
Les informations contenues dans le présent manuel ont été rédigées et contrôlées
avec le plus grand soin. Nous déclinons toutefois toute responsabilité en cas
d'éventuelles inexactitudes. Tous droits réservés. Ce document ne peut être copié,
photocopié ou reproduit, dans sa totalité ou partiellement, sans le consentement
préalable de D.T.S.
D.T.S. se réserve le droit d'apporter toutes modifications et améliorations esthétiques,
fonctionnelles ou de design, sans préavis, à chacun de ses produits. D.T.S. décline
toute responsabilité sur l'utilisation ou sur l'application des produits ou des circuits
décrits.
Las informaciones contenidas en este documento han sido cuidadosamente
redactadas y controladas. Con todo, no se asume ninguna responsabilidad por
eventuales inexactitudes. Todos los derechos han sido reservados y este documento
no puede ser copiado, fotocopiado o reproducido, total o parcialmente, sin previa
autorización escrita de D.T.S.
D.T.S. se reserva el derecho a aportar sin previo aviso cambios y modificaciones de
carácter estético, funcional o de diseño a cada producto suyo. D.T.S. no se asume
responsabilidad de ningún tipo sobre la utilización o sobre la aplicación de los
productos o de los circuitos descritos.

3
INDEX:
1-SYMBOLS 4
2- GENERAL WARNING 4
3- GENERAL WARRANTY CONDITION 4
4- TECHNICAL FEATURES 5
5- TECHNICAL SPECIFICATIONS 7
6- ACCESSORIES 7
7- IMPORTANT SAFETY INFORMATION 8
7.1 Fire prevention
7.2 Prevention of electric shock
7.3 Safety
7.4 Level of protection against the penetration of solid and liquid objects
8- VOLTAGE AND FREQUENCY 9
9- INSTALLATION 9
9.1 Safety cable
9.2 Protection against liquids
9.3 Movement
9.4 Risk of fire
9.5 Forced ventilation
9.6 Ambient temperature
10- MAINS CONNECTION 11
10.1 Protection
11- DMX SIGNAL CONNECTION 12
11.1 DMX Addresses
11.2 Selecting the DMX address
12- FIRMWARE UPDATING 13
13- DISPLAY FUNCTIONS 14
14- PERIODIC CLEANING 23
15- PERIODIC CONTROLS 23
16- DMX PROTOCOL 24

4
1- SYMBOLS
Graphic symbols used on this manual
THIS SYMBOL INDICATES A HOT SURFACE
THIS SYMBOL INDICATES ELECTRIC SHOCK
RISK
THIS SYMBOL INDICATES GENERAL RISK
THIS SYMBOL MEANS “DO NOT PLACE THE
UNIT ON INFLAMMABLE SURFACES”
THIS SYMBOL INDICATES THE MINIMUM
DISTANCE TO BE KEPT BETWEEN THE DEVICE
AND THE LIT OBJECT
2- GENERAL WARNING
Read the instruction contained in this user manual carefully, as they give important
information regarding safety during installation , use and maintenance.
The device is not for domestic use and must be installed by a qualified electrician or
experienced person.
Always disconnect the device from the mains before maintenance.
The device must always be equipped with an efficient ground connection.
3- GENERAL WARRANTY CONDITIONS
The unit is guaranteed for 36 months from the date of purchase against manufacturing
material defects.
F
!
0,5M

5
4- TECHNICAL FEATURES
Overview
NICK NRG 1200 CT is the most efficient LED moving head wash light ever produced.
The exceptional brightness / consumption ratio makes NICK NRG 1200 CT a truly
“green” fixture.
NICK NRG 1200 CT is equipped with 30 high-power Full White LEDs, 5.600 °K.
NICK NRG 1200 CT features three interchangeable lens fittings: Spot, Medium Flood
and Wide Flood and ultra-fast silent Pan / Tilt.
Applications:
NICK NRG 1200 CT is suitable for top professional applications, such as tours and
special events.
Product codes:
03.LDR008.FW12 NICK NRG 1200 CT Full White *Spot lenses *Black finish
03.LDR008.FW25 NICK NRG 1200 CT Full White *Medium flood lenses *Black finish
03.LDR008.FW45 NICK NRG 1200 CT Full White *Wide flood lenses *Black finish
03.LDR008.FW12WS NICK NRG 1200 CT Full White *Spot lenses
*With Wireless on board *Black finish
03.LDR008.FW25WS NICK NRG 1200 CT Full White *Medium flood lenses
*With Wireless on board *Black finish
03.LDR008.FW45WS NICK NRG 1200 CT Full White *Wide flood lenses
*With Wireless on board *Black finish
LED Technology
* 30 Full White LEDs (5.600 °K)
Optical group
* Three interchangeable lenses sets: Spot, Medium Flood and Wide Flood
* Uniform projection on surfaces
Interface / Control / Programming
* Multi-function OLED graphic colour display + 4 soft keys: control / management /
monitoring of the main parameters
* Controlled via DMX 512 and RDM standard digital communication protocols
* Wireless ready; Ethernet ready
* Internal operating system updatable via D.T.S. RED BOX interface via “D.T.S.
firmware upgrade utility” program on windows based PC

6
DMX
20 DMX channels
Pan & Tilt
* 16-bit movement resolution
* Ultra-fast movement: Pan 540° (2 sec.); Tilt 270° (1,2 sec.)
* Selectable speed ranges
Power supply
* Electronic full-range AC 90-260 V 50 / 60 Hz
* Power consumption: 90 V –3,7 A –340 W ; 120 V –2,83 A –340 W ;
230 V –1,47 A - 340 W ; 260 V –1,3 A –340 W
Connectors
* DMX: 4 XLR connectors (3 poles In / Out; 5 poles In / Out) by Neutrik
* Power supply: POWERCON In / Out connectors by Neutrik
Operating ambient temperature
-10° / 40°
Weight
9,5 Kg
International certifications
Certification CE; LED Class: Class 2 LED product

7
5- TECHNICAL SPECIFICATIONS
Dimensions
Packaging Dimensions (LxWxH)
530 x 430 x 414 mm
Weight: 12 Kg
Unit Dimensions (LxWxH)
369x218x497 mm
Weight: 9,5 Kg
6- ACCESSORIES
As standard
• 1 x POWERCON male cable connector (cod. 0520P014)
•1 x XLR 5 Pins Male cable connector by Neutrik (cod. 0508B066)
•1 x XLR 5 Pins Female cable connector by Neutrik (cod. 0508B065)
• “C” Clamp GQUICK with “Fast Lock” connection 1/4 turn (cod. 0521A014)
• User’s manual
Optional (on request)
Flight case
• Professional Flight case for 4 units; compartment for accessories, swivel wheels,
cover with hinges with-stay, dishes on cover for piling, 8 handles (2 eachside)
(cod. 0521C051.1)
Wireless DMX receiver retrofit
• Wireless DMX Receiver Card with INDOOR IP20 omnidirectional 2dBi antenna
included (cod.03.LA.126)
Clamps / safety wires
• “C” Clamp G60 black (max. load 50Kg) (cod. 0521A004)
• “C” Clamp G60 chrome (max. load. 50Kg) (cod. 0521A004.20)
• “C” Clamp GQUICK with “Fast Lock” connection 1/4 turn (max. load. 80Kg)
(cod. 0521A014)
• “C” Clamp G100 black / professional (max. load. 200Kg) (cod. 0521A015)
• Omega clamp with “Fast Lock” connection 1⁄4 turn 1 couple (2 pieces)
(Cod. 02K00467)
• Safety wire (3mm x 60 cm), ring spring catch, max. capacity load 60Kg (cod. 0521A010)
369 mm
306 mm
497mm
413mm
218 mm

8
7- IMPORTANT SAFETY INFORMATION
7.1 Fire prevention:
-Never locate the fixture on any flammable surface.
-Minimum distance from flammable materials: 1 MT.
-Minimum distance from the closest illuminable surface: 0,5 MT.
-Replace any blown or damaged fuses only with those of identical value.
Refer to the wiring diagram if there is any doubt.
-Connect the projector to mains power via a thermal magnetic circuit breaker.
7.2 Prevention of electric shock:
-High voltage is present inside the unit. Unplug the unit prior to performing any
function which involves touching the inside of the moving head.
-The level of technology inherent in the NICK NRG 1200 CT requires the assistance
of specialised personnel for all servicing.
Please refer to an authorised D.T.S. service centre.
-A good earth connection is essential for proper functioning of the projector.
-Never connect the unit without proper earth connection.
-The fixture should be located in places with a good air ventilation.
7.3 Safety:
-The projector should always be installed with bolts, clamps and other tools that are
capable of supporting the weight of the unit.
-Always use a second safety cable to sustain the weight of the unit in case of the
failure of the main fixing point.
-The external surface of the unit, at various points, may exceed 70°C. Never handle
the unit until at least 10 minutes have elapsed since the projector was turned off.
-Never install the fixture in an enclosed area lacking sufficient air flow.
The ambient temperature should not exceed 40°C.
7.4 Level of protection against the penetration of solid and liquid objects:
-The projector is classified as an ordinary appliance and its protection level against the
penetration of solid and liquid objects is IP 20.
F
!
!
0,5M

9
8- VOLTAGE AND FREQUENCY
The NICK NRG 1200 CT can operate at 90-260 VOLT 50 or 60 Hz.
9- INSTALLATION
NICK NRG 1200 CT may be either floor or ceiling mounted.
For floor mounting installations, the NICK NRG 1200 CT is supplied with four rubber
mounting feet on the base.
For ceiling mounted installations, we reccomend the use of appropriate clamps to fix
the unit to the mounting surface.
The supporting structure from which the unit is hung should be capable of bearing the
weight of the unit, as should any clamps used to hung it. The structure should also be
sufficiently rigid so as not to move or shake whilst the NICK NRG 1200 CT is moving.
Four 1/4 turn Fast Locks connections placed in the base of the unit allow to hang the
NICK NRG 1200 CT by using the Fast Lock “C” clamps provided in the box.
9.1- Safety cable
We recommend the use of a safety cable or chain connected to the NICK NRG 1200
CT and to the suspension truss in order to avoid the fixture accidentally falling should
the main fixing point fail.
Make sure that the iron cable or chain can bear the weight of the entire unit.
You may attach the safety chain/cord to the attachment point (A) located on the base
of the fixture, as shown in the picture below.
!
SAFETY CHAIN/CORD
ATTACHMENT POINT
A

10
9.2 Protection against liquids
The projector contains electric and electronic components which should under no
circumstances come into contact with oil, water or any other liquid.
The proper unit functioning would be compromised should this occur.
9.3- Movement
Ultra-fast movement: Pan 540° (2,0 sec.); Tilt 270° (1,2 sec.)
WARNING
Do not place any object in the path
of the projector’s movement
9.4- Risk of fire
Each fixture produces heat and must be installed in a well-ventilated place.
The minimum recommended distance from flammable material is 1 MT.
Minimum distance from the object being illuminated is 0,5 MT.
9.5- Forced ventilation
You will note, on inspection, that the unit features various air inlets and cooling fans.
These should, under no circumstances, be blocked or obstructed whilst the projector is
in operation. Doing so could cause the fixture to seriously overheat thereby
compromising its proper operation.
9.6- Ambient temperature
The projector should never be installed in places that lack a constant air flow.
The ambient temperature should NOT exceed 40°C.
F
!
!
0,5M
540°
270°

11
10- MAINS CONNECTION
NICK NRG 1200 CT operate at 90-260 VOLT 50-60 Hz.
Prior to connecting the unit to your mains supply, ensure that the model in your
possession correctly matches the mains supply available.
For connection purposes, ensure that your plug is capable of supporting 2 amps
at 230V, or 5 amps at 90 V.
Strict adherence to regulatory norms is strongly recommended.
MAINS AC OUTPUT 90 –260 V 50 / 60 Hz (16A Max)
MAX 10 NICK NRG 1200 UNITS @ 230V
MAX 5 NICK NRG 1200 UNITS @ 120V
MAINS AC INPUT 90 –260 V 50 / 60 Hz
Wireless DMX Receiver Retrofit (Cod. 03.LA.126)
FUSE 5A T 5X20
10.1- Protection
The use of a thermal magnetic circuit breaker is recommended for each
NICK NRG 1200 CT.
!
Cod. 03.LDR008.FW12
Cod. 03.LDR008.FW25
Cod. 03.LDR008.FW45
Cod. 03.LDR008.FW12WS
Cod. 03.LDR008.FW25WS
Cod. 03.LDR008.FW45WS

12

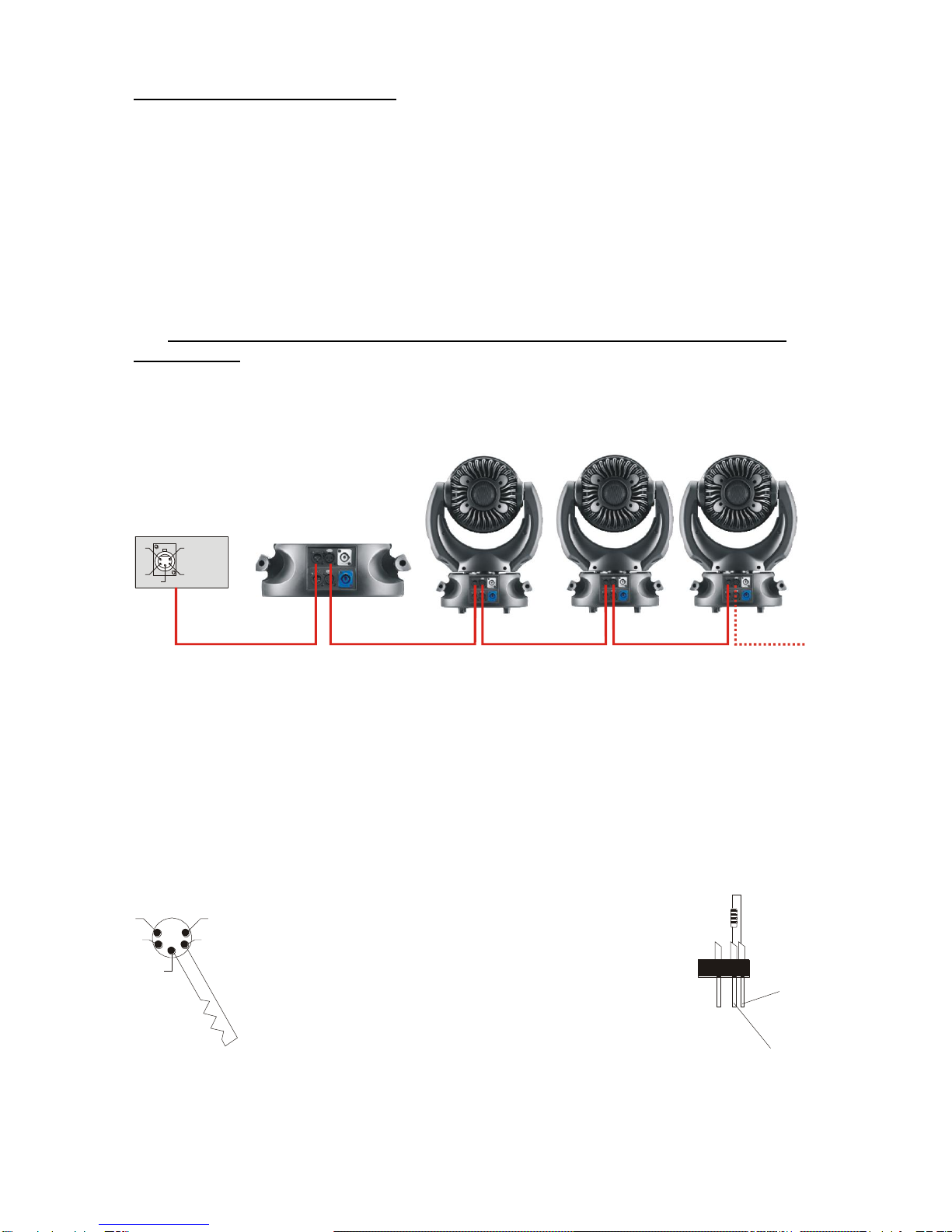

11- DMX SIGNAL CONNECTION
The unit operates using the digital DMX 512 (1990) signal.
Connection between the mixer and the projector or between projectors must be carried
out using a two pair screened ø 0.5 mm cable and a XLR 5 or 3 pins connector.
Ensure that the conductors do not touch each other.
Do not connect the cable ground to the XLR chassy.
The plug housing must be isolated. Connect the mixer signal to the DMX IN projector
plug and connect it to the next projector by connecting the DMX OUT plug on the first
projector to the DMX IN plug of the second one.
This way, all the projectors are cascade connected.
NB. If the display showing the DMX address flashes, then one of the following errors
has occurred:
- DMX signal not present
- DMX address not valid
- DMX reception problem
For Installations where long distance DMX cable connections are needed, we suggest
to use a DMX terminator.
The DMX terminator is a male XLR 3-5 pins connector with a 120 ohm resistor
between pin 2 and 3.
The DMX terminator must be plugged into the last unit (DMX out panel connector) of
the DMX line.
PLACE A 120 OHM RESISTOR BETWEEN PIN 2
AND 3 OF A MALE XRL CONNECTOR AND PLUG IT
INTO THE DMX OUT PANEL CONNECTOR OF THE
LAST UNIT CONNECTED TO THE DMX LINE
1
2
3
5
4
OUT
120 ohm
PIN 3
PIN 2
5
3
4 2
11=GND
2=DATA-
3=DATA+
CONTROLLER
S TA N D A R D
D M X 5 1 2
DMX OUT DMX OUT
DMX OUT
DMX OUTDMX IN DMX IN DMX IN DMX IN DMX OUT

13
11.1-DMX Addresses
NICK NRG 1200 CT can be controlled with 20 DMX channels.
In order to use the unit in 20 channels, set the following addresses on the mixer:
Projector 1 A001
Projector 2 A021 If you want to select the next projector, just add “20”
Projector 3 A041
….. A….
projector 6 A101
11.2-Selecting the DMX address
1) Press the UP-DOWN key until you reach the required DMX channel. The numbers
on the display will start to flash (but the new DMX address hasn't yet been set).
2) Press ENTER to confirm your selection. The numbers on the display will stop
flashing and the projector is now setted to the new DMX address.
TRICKS:
if you keep pushed the UP or DOWN keys, the channels are calculated more quickly
and you get a faster selection.
12- FIRMWARE UPDATING
Warning:
This procedure require a base knowledge of computer applications and Windows
Hyperterminal program. Please refer to an authorised D.T.S. service centre.
To update the software version of the NICK NRG 1200 you need:
D.T.S. RED BOX interface (D.T.S. Code: 03.LA.008).
USB-DMX Driver for the D.T.S. RED BOX interface.
D.T.S. Firmware upgrade utility program.
(The driver and the installation procedure are available in our web site
www.dts-lighting.it)
Updating the software version.
Please follow the procedure below to perform the update:
1. Install the D.T.S. RED BOX USB-DMX driver on the PC you will use to update the
unit software.
2. Connect the D.T.S. RED BOX interface to the PC by using a USB cable.
3. Connect the D.T.S. RED BOX interface to the fixture by using a DMX cable.
4. Download the new software version into the unit by using D.T.S. Firmware upgrade
utility program.
!

14
13- DISPLAY FUNCTIONS
DISPLAY FUNCTIONS
The NICK NRG 1200 CT display panel shows all the available functions . Using these
functions, it is possible to change some of the parameters and add some functions.
Changing the D.T.S. setting can vary the functions of the unit so that it does not
respond to the DMX 512 used to control it. Carefully follow the instructions below
before carrying out any variations or selections.
NOTE: the symbol shows which key has to be pushed to obtain the desired
function.
MENU
ENTER DOWN
UP
DISPLAY
2dBi IP20 omnid.
antenna
DMX
IN
DMX
OUT
WIRELESS DMX
RECEIVER
RETROFIT
03.LA.126
03.LDR008.FW12
03.LDR008.FW25
03.LDR008.F12
03.LDR008.F25
MAINS AC INPUT
90-260V 50 / 60Hz
MAINS AC OUTPUT
90-260V 50 / 60 Hz
(16A Max)
DMX OUT
DMX IN
DMX OUT
DMX IN
Cod. 03.LDR008.FW12WS
Cod. 03.LDR008.FW25WS
Cod. 03.LDR008.FW45WS
Cod. 03.LDR008.FW12
Cod. 03.LDR008.FW25
Cod. 03.LDR008.FW45

15
13- DISPLAY FUNCTIONS
Software version 1.10
Display
DISPLAY POSITION / STAND BY
Display Position:
Reverses display's reading depending on
the mounting position
(on the ground or suspended).
Display Standby:
To turn off the display (after 5 seconds)
or leave it always on.
DMX Set
DMX MODE / MACRO
DMX Mode
20 channels
Up-Down
Menu
Up-DownENTER
ENTER
ENTER
Up-Down
Menu
Up-DownENTER
ENTER
MENU ENTER DOWN UP
AA
DISPLAY
MENU ENTER DOWN UP
OFF
DISPLAY
POSITION
STANDBY
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
STD
DMX SET
MACRO
Display Position
ON THE GROUND (Default)
SUSPENDED
Display Standby
OFF = Display Standby
disabled (Default)
ON = Display goes OFF
after 5 seconds
DMX Mode
20 channels
MACRO
(Colour MACROS active only on NICK
NRG 1200 FULLCOLOUR,
NICK NRG 1200 CT will show only
different white light intensity )
Macro Mode:
STD = Standard (Default)
EXT = Extended; enable rainbow
effects on Macro channel (DMX ch 16)
MACRO (Active only on NICK NRG
1200 FULLCOLOUR
NICK NRG 1200 CT will show only
different white light intensity)
STD = Standard mode enabled
(Default)
EXT = Extended; enable rainbow
effects on Macro channel
(DMX ch 16)
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
20 channels
DMX SET
DMX MODE

16
13- DISPLAY FUNCTIONS
LED
NICK NRG 1200 FULLCOLOUR:
RGBA MINIMUM VALUES
This menu allow to select the
minimum levels for Red, Green,
Blue and Amber/White
NICK NRG 1200 CT:
4 x WHITE MINIMUM VALUES
This menu allow to select the
minimum levels for Red = White 1,
Green = White 2, Blue = White 3 and
Amber/White = White 4
NICK NRG 1200 FULLCOLOUR:
RGBA MAXIMUM VALUES
This menu allow to select the
maximum levels for Red, Green,
Blue and Amber/White
These settings have priority
on Master Dimmer (DMX channel 9)
NICK NRG 1200 CT:
4 x WHITE MAXIMUM VALUES
This menu allow to select the
maximum levels for Red = White 1,
Green = White 2, Blue = White 3 and
Amber/White = White 4
These settings have priority
on Master Dimmer (DMX channel 9)
SMOOTH VALUE
This menu allow to select the value
of the delay (in milliseconds) for
RGBA (NICK NRG 1200 FULLCOLOUR)
or WHITE (NICK NRG 1200 CT) and
Dimmer channels reaction to DMX or
program variation.
4 = 25 ms delay (Fast response)
20 = 250 ms delay (Slow response)
Up-Down
Menu
Up-DownENTER
ENTER
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
0
LED
RED MIN
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
0
LED
GREEN MIN
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
0
LED
BLUE MIN
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
0
LED
AMBER MIN
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
4
LED
SMOOTH
NICK NRG 1200
FULLCOLOUR / CT:
RED / WHITE 1
Min default = 0
RED / WHITE 1
Max default = 100
NICK NRG 1200
FULLCOLOUR / CT:
BLUE / WHITE 3
Min default = 0
BLUE / WHITE 3
Max default = 100
NICK NRG 1200
FULLCOLOUR / CT:
GREEN / WHITE 2
Min default = 0
GREEN / WHITE 2
Max default = 100
NICK NRG 1200
FULLCOLOUR / CT:
AMBER / WHITE 4
Min default = 0
AMBER / WHITE 4
Max default = 100
SMOOTH
Range = Off –20
Default = 4

17
13- DISPLAY FUNCTIONS
GAMMA CORRECTION
This menu allow to select
between Linear current output
or Quadratic current output for LEDs
Default = Quadratic
OUTPUT FREQUENCY
This menu allow to adjust
the PWM frequency value (Hz)
in order to reduce flickering in
the process of your camera
recordings
BOOST DRIVING
This menu allow to increase
the LED’s current from 350 mA
to 500 mA
AUTO
AUTOMATIC MODE
Automatic demo games
without DMX controller
(Colour MACROS active only on
NICK NRG 1200 FULLCOLOUR,
NICK NRG 1200 CT will show only
different white light intensity )
STEP 01/16
Chase with 16 steps previously
created in REC MODE
Speed time, Wait time, Dimmer, Pan
and Tilt values selectable by user.
PERSONAL COLOURS
RGBA, Dimmer, Shutter, Pan and Tilt
values selectable by user.
RAINBOW
Rainbow colours effect.
Speed time, Dimmer, Shutter, Pan
and Tilt values selectable by user.
ENTER
Up-Down
Menu
Up-DownENTER
ENTER
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
AUTO
SURE?
Menu - NO
Enter - YES
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
01/16
AUTO-PROGRAM
STEP
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
120
AUTO-PERS.COL.
RED
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
0010
AUTO-RAINBOW
SPEE
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
QUAD
LED
GAMMA CORR.
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
610
LED
OUTPUT FREQ.
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
ON
LED
BOOST
GAMMA CORRECTION
Linear = Linear current output
Quadratic = Linear light output
(default)
OUTPUT FREQUENCY
Range = 610 Hz –10KHz
Default = 610 Hz
BOOST
With BOOST active, the
LEDs current is set to
500 Ma (30% more gain)
Default = Enabled
By setting all the units connected
to the MASTER to DMX address 1,
them will be synchronized with the
Master unit following the chase
selected on it including TIME, WAIT,
Pan and Tilt position of the MASTER
unit.

18
13- DISPLAY FUNCTIONS
FIXED COLOURS
Sixteen Colour Macros as
on “MACRO” channel.
Dimmer, Shutter, Pan and Tilt it,
values selectable by user.
WHITE MACROS (Active only on
NICK NRG 1200 FULLCOLOUR)
Sixteen macros for White
colour (active only on NICK NRG
1200 FULLCOLOUR);
White Macros for NICK
NRG 1200 CT: Different white light
Intensity.
Dimmer, Shutter, Pan and Tilt
values selectable by user.
SLAVE
SLAVE MODE SETTING
This menu allow to set the
NICK NRG 1200 CT as slave unit.
DMX signal must be present
from MASTER unit (set in
AUTO MODE) in order to ran
the units in SLAVE mode.
By setting all the SLAVE units
connected to the MASTER, to
DMX address 1, them will be
synchronized with the Master
unit following the chase
selected on it, but running their
own Pan and Tilt position.
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
1
AUTO-WHITE
WHITE NO.
20 ch
DMX SET
DMX MODE
1
AUTO-FIXED COL.
COLOR
MENU ENTER DOWN UP MENU ENTER DOWN UP
Up-Down
Menu
Up-DownENTER
ENTER
ENTER
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
128
SLAVE
PAN
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
SLAVE
SURE?
Menu - NO
Enter - YES
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
128
SLAVE
TILT
By setting all the units connected
to the MASTER to DMX address 1,
them will be synchronized with the
Master unit following the chase
selected on it including TIME, WAIT,
Pan and Tilt position of the
MASTER unit.
The SLAVE unit receive DMX
signal from the MASTER unit.
By setting all the SLAVE units
connected to the MASTER, to
DMX address 1, them will be
synchronized with the Master
unit following the chase selected
on it, but running their own Pan
and Tilt position.

19
13- DISPLAY FUNCTIONS
WIRELESS
WIRELESS DMX
Wieless DMX enabled / disabled.
By activating WDMX MODE, it will
be possible to control NICK NRG
1200 CT via D.T.S. ANTENNA
Wireless DMX Transmitter (cod.
03.E1271).
Wireless DMX Receiver Kit
(Cod. 03.LA.126) on NICK NRG
1200 CT is available on request.
Logging on NICK NRG 1200 CT (WIRELESS DMX must be enabled on the unit).
To log on the NICK NRG 1200 CT in the WIRELESS system simply press and quickly release the
function button on the transmitter .
The transmitter will start flashing rapidly red/green scanning for new free receivers / NICK NRG 1200
CT units. When a NICK NRG 1200 CT logs on to the transmitter the LINK green light on transmitter
starts to flash rapidly.
After approximately 10 seconds the transmitter will jump back to normal mode and continue transmitting
data. The NICK NRG 1200 CT now try to synchronize to the transmitter.
When synchronized to the transmitter, 2 different modes are possible:
1. Antenna transmitter has detected and transmits a DMX signal, in this mode a solid green light is seen
on the transmitter and solid display is seen on NICK NRG 1200 CT.
2. No DMX signal connected, the Antenna transmitter will flash red/green; display blinking on NICK
NRG 1200 CT.
To log off NICK NRG 1200 CT from a transmitter simply select UNLINK function under WIRELESS
DMX MENU and press ENTER.
When NICK NRG 1200 CT is logged off the display is blinking, meaning its available for log in on a new
transmitter.
Logging out a NICK NRG 1200 CT.
Select UNLINK function under WIRELESS DMX MENU and press ENTER.
When NICK NRG 1200 CT is logged off the display is blinking, meaning its available for log in on a new
transmitter.
Logging out all NICK NRG 1200 CT linked to a transmitter.
Press and hold the function button of the transmitter for about 3 seconds. When the display is blinking
on NICK NRG 1200 CT, it mean that the units are logged out.
Transmitter, Status LED.
Flashing red/green, no dmx connected.
Solid green, dmx signal detected and transmitted.
Fast flashing red/green, log in mode (every free NICK NRG 1200 CT unit, not logged in to any other
transmitter, will be logged on)
NICK NRG 1200 CT Status.
Display blinking, not logged on to a transmitter (free).
Solid display, logged on to a transmitter and receiving dmx data.
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
WIRELESS
UNLINK
20 ch
DMX SET
DMX MODE
OFF
WIRELESS
SELECTION
MENU ENTER DOWN UP MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
ON
WIRELESS
SELECTION
MENU ENTER DOWN UP MENU ENTER DOWN UP
Up-Down
Menu
Up-DownENTER
ENTER
ENTER
ENTER
WIRELESS DMX SYSTEM
DISABLED (Default)
WIRELESS DMX SYSTEM
ENABLED
UNLINK = LOG OUT

20
13- DISPLAY FUNCTIONS
EMERGENCY
EMERGENCY
Emergency operating mode.
By setting Emergency mode, it will
be possible to select one of the
16 pre-programmed WHITE cues
(active only on NICK NRG 1200
FULLCOLOUR;
NICK NRG 1200 CT will show only
different white light intensity) that
will then ran if DMX signal is missing
or not available.
Useful for Emergency EXIT
illumination on public areas.
Dimmer level and Pan&Tilt values
selectable by user.
Up-Down
Menu
Up-DownENTER
ENTER
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
OFF
EMERGENCY
SELECTION
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
1
EMERGENCY
WHITE
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
255
EMERGENCY
DIMMER
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
128
EMERGENCY
PAN
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
128
EMERGENCY
TILT
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
ON
EMERGENCY
SELECTION
EMERGENCY
Disabled = Default
EMERGENCY
Enabled
WHITE (1-16)
Default = WHITE 1
DIMMER
Default = 255
PAN
Default = 128
TILT
Default = 128
