DTS SCENA LED 80 WHITE User manual

SCENA LED 80 WHITE
Made in Italy
SCENA LED 80 PC
SCENA LED 80 FR
User’s Manual rel E.13 GB
D.T.S. Illuminazione s.r.l. –ITALY
http://www.dts-lighting.it/

2
Le informazioni contenute in questo documento sono state attentamente redatte e
controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze.
Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato,
riprodotto per intero o in parte senza previo consenso scritto della D.T.S .
D.T.S. si riserva il diritto di apportare senza preavviso cambiamenti e modifiche
estetiche , funzionali o di design a ciascun proprio prodotto. D.T.S non assume alcuna
responsabilità sull’uso o sull’applicazione dei prodotti o dei circuiti descritti.
The information contained in this publication has been carefully prepared and
checked. However, no responsibility will be taken for any errors. All rights are
reserved and this document cannot be copied, photocopied or reproduced, in part or
completely, without prior written consent from D.T.S.
D.T.S. reserves the right to make any aesthetic, functional or design modifications to
any of its products without prior notice. D.T.S. assumes no responsibility for the use or
application of the products or circuits described herein.
Les informations contenues dans le présent manuel ont été rédigées et contrôlées
avec le plus grand soin. Nous déclinons toutefois toute responsabilité en cas
d'éventuelles inexactitudes. Tous droits réservés. Ce document ne peut être copié,
photocopié ou reproduit, dans sa totalité ou partiellement, sans le consentement
préalable de D.T.S.
D.T.S. se réserve le droit d'apporter toutes modifications et améliorations esthétiques,
fonctionnelles ou de design, sans préavis, à chacun de ses produits. D.T.S. décline
toute responsabilité sur l'utilisation ou sur l'application des produits ou des circuits
décrits.
Las informaciones contenidas en este documento han sido cuidadosamente
redactadas y controladas. Con todo, no se asume ninguna responsabilidad por
eventuales inexactitudes. Todos los derechos han sido reservados y este documento
no puede ser copiado, fotocopiado o reproducido, total o parcialmente, sin previa
autorización escrita de D.T.S.
D.T.S. se reserva el derecho a aportar sin previo aviso cambios y modificaciones de
carácter estético, funcional o de diseño a cada producto suyo. D.T.S. no se asume
responsabilidad de ningún tipo sobre la utilización o sobre la aplicación de los
productos o de los circuitos descritos.

3
INDEX:
1-SYMBOLS..................................................................................................................4
2-GENERAL WARNING ...............................................................................................4
3-GENERAL WARRANTY CONDITIONS.....................................................................4
4-TECHNICAL FEATURES ..........................................................................................5
5-ACCESSORIES .........................................................................................................6
6-IMPORTANT SAFETY INFORMATION.....................................................................7
6.1 Fire prevention......................................................................................................7
6.2 Prevention of electric shock..................................................................................7
6.3 Safety...................................................................................................................7
6.4 Waste Electrical and Electronic Equipment directive............................................7
7-INSTALLATION.........................................................................................................8
8-INPUT / OUTPUT CONNECTIONS............................................................................9
9-DMX SIGNAL CONNECTION..................................................................................10
9.1 DMX addresses..................................................................................................11
9.2 Selecting the DMX address................................................................................11
10-FIRMWARE UPDATING........................................................................................11
11-DISPLAY FUNCTIONS..........................................................................................12
12-DMX PROTOCOL..................................................................................................16

4
!
1- SYMBOLS
Graphic symbols used on this manual:
THIS SYMBOL INDICATES A HOT SURFACE
THIS SYMBOL INDICATES ELECTRIC SHOCK
RISK
THIS SYMBOL INDICATES GENERAL RISK
THIS SYMBOL MEANS “DO NOT STARE
AT THE OPERATING LIGHT SOURCE”
THIS SYMBOL INDICATES THE EUROPEAN
COMMUNITY DIRECTIVE 2002/96/EC ON
WASTE ELECTRICAL AND ELECTRONIC
EQUIPMENT (WEEE)
2- GENERAL WARNING
Read the instruction contained in this user manual carefully, as they give important
information regarding safety during installation , use and maintenance.
The unit is not for residential use and must be installed by a qualified electrician or
experienced person.
Always disconnect the device from the mains before maintenance.
The device must always be equipped with an efficient ground connection.
3- GENERAL WARRANTY CONDITIONS
The unit is guaranteed for 36 months from the date of purchase against manufacturing
material defects.

5
5000116
4- TECHNICAL FEATURES
OVERVIEW
SCENA LED 80 WHITE is a compact, lightweight, DMX-controlled projector featuring
a single high-power LED, and a wide excursion zoom, enabling it to be used as a PC
Beam or a very wide Wash.
SCENA LED 80 WHITE is a modern alternative to conventional lights, improving light
quality, flexibility of use and installation, energy savings and component duration.
In fact the fixture doesn’t heat up, and the projection is always flicker free.
Also, the dimming curves are similar to those of halogen lamps.
LED Technology
1 x White LED (3000K), 7700 lm, CRI>90; 4000K and 5000K also available
(2700K, 5600K or 6500K on request)
Optical group
PC version: Ø90 mm PC lens, 10°-76° linear zoom
FR version: Ø112mm Fresnel lens, 14° - 77° linear zoom
Control
2 DMX channels (default)
4 digit 7 segments display + 4 soft keys
Connection
Power supply: POWERCON In/Out panel connectors
DMX: XLR 5 poles In/Out panel connectors
Power supply
Electronic full-range 100-240Vac 50-60 Hz
Consumption: 100W Max
Weight
3,7 Kg
International certifications
2006/95/CE ; 2004/108/CE
IEC 62471 ; IEC 695-2-1
EN 60598-1 ; EN 62471 ; EN 61347-2-13
EN 60598-2-17 ; EN 55015 EMC ; EN 61347-1
Conforms to UL Std. 1573; Cert. to CSA Std. C22.2 No.166.

6
DIMENSIONS
5- ACCESSORIES
As standard
1 x User’s Manual
1 x POWERCON male cable connector (D.T.S. Code 0520P014)
1 x XLR 5 pins male cable connector (D.T.S. Code 0508B028)
1 x XLR 5 pins female cable connector (D.T.S. Code 0508B027)
1 x Filterframe for SCENA COMPACT *Black finish (D.T.S. Code 02M00422.46)
Optional (on request)
- “C” Clamp G50 (Max. Load. 10 Kg) *Black finish (D.T.S. Code 0521A012)
- “C” Clamp G60 (Max. Load. 50 Kg) *Black finish (D.T.S. Code 0521A004)
- Safety cable 3 mm x 60 cm, max capacity load 60 Kg (D.T.S. Code 0521A010)
- Barndoor for SCENA COMPACT *Black finish (D.T.S. Code 03.TA206)

7
6- IMPORTANT SAFETY INFORMATION
6.1 Fire prevention:
Replace any blown or damaged fuses only with those of identical value (2AT).
6.2 Prevention from electric shock:
High voltage is present inside the unit. Unplug the unit prior to performing any
operation which involves touching the inside of the unit.
This equipment must be grounded, do not connect to non-grounded supplies.
The use of a thermal magnetic circuit breaker is recommended for each SCENA LED
80 unit. Use only AC supplies 100-240V 50-60 Hz.
SCENA LED 80 should never be located in position exposed to rain or in areas of
extreme humidity.
A good air ventilation is essential for proper equipment work.
6.3 Safety:
The unit is not for residential use and must be installed by a qualified electrician or
experienced person.
Do not stare at the operating light source.
The luminaire should be positioned so that prolonged staring into the luminaire at a
distance closer than 3.7 m is not expected.
The light source contained in this luminaire shall only be replaced by the manufacturer
or his service agent or a similar qualified person.
The external surface of the unit may exeed 50°C; never handle the unit until at least 5
minutes have elapsed since the unit was turned off.
Never install the unit in an enclosed area lacking sufficient air flow.
The ambient temperature should not exeed 40°C and should not be lower than -10°C.
6.4 Waste Electrical and Electronic equipment (WEEE) directive:
The unit, accessories and packaging should be sorted for environmetal-friendly
recycling.
For EC countries: according to the European Directive 2002/96/EC for Waste
Electrical and Electronic Equipment and its implementation into national right,
luminaires that are no longer usable must be collected separately and disposed of in
an environmentally correct manner.
!

8

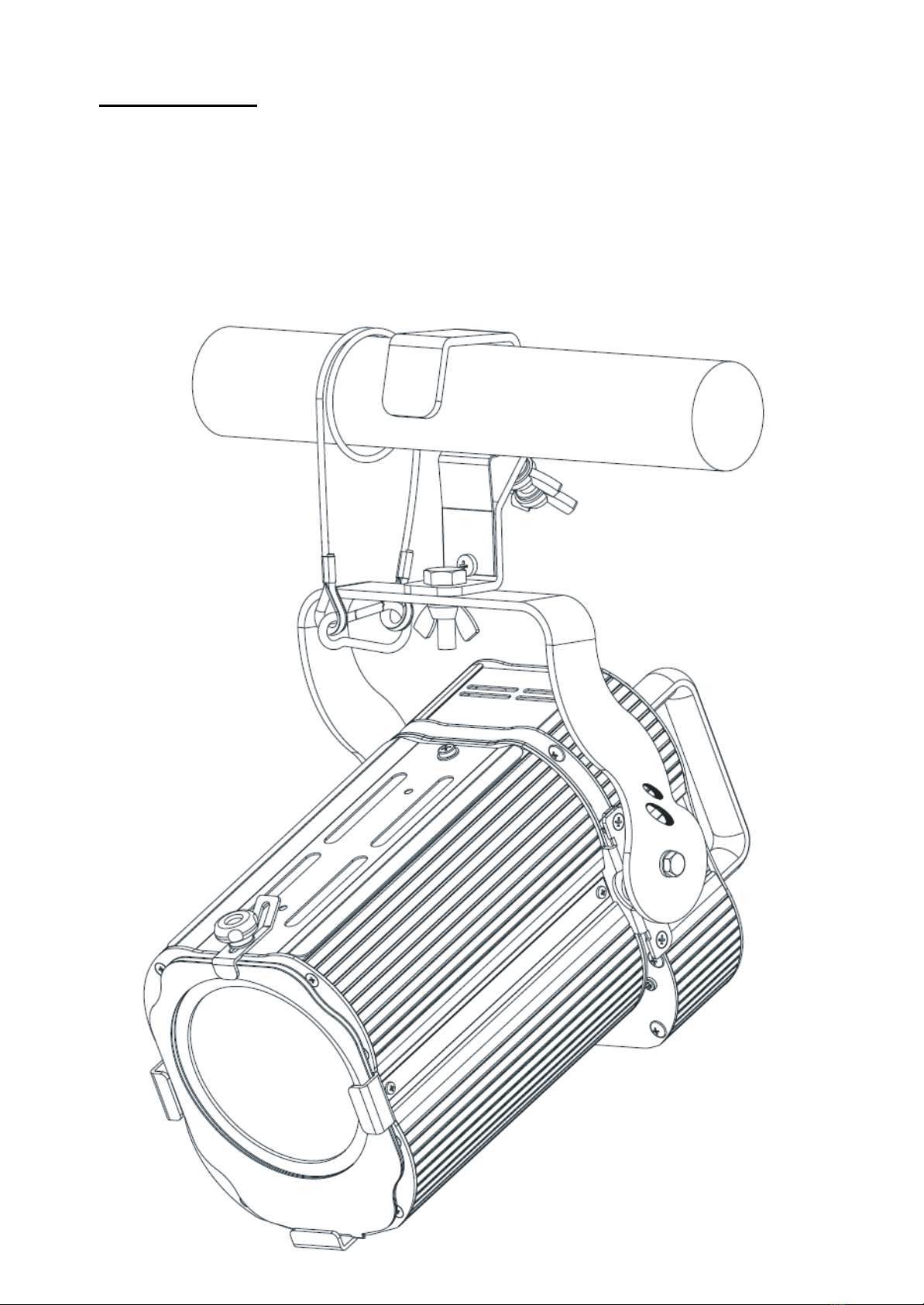

7- INSTALLATION
The unit is suitable for dry locations only.
SCENA LED 80 can be installed on a truss or on the ceiling.
It is recommend the use of appropriate clamps to fix the unit to the mounting surface.
ATTENTION:
A safety cable (code 0521A010) must be securely fixed to the unit’s mounting bracket
and to the support structure of the projector as showed in the picture below.
Fixing clamps and safety cable are available on request.

9

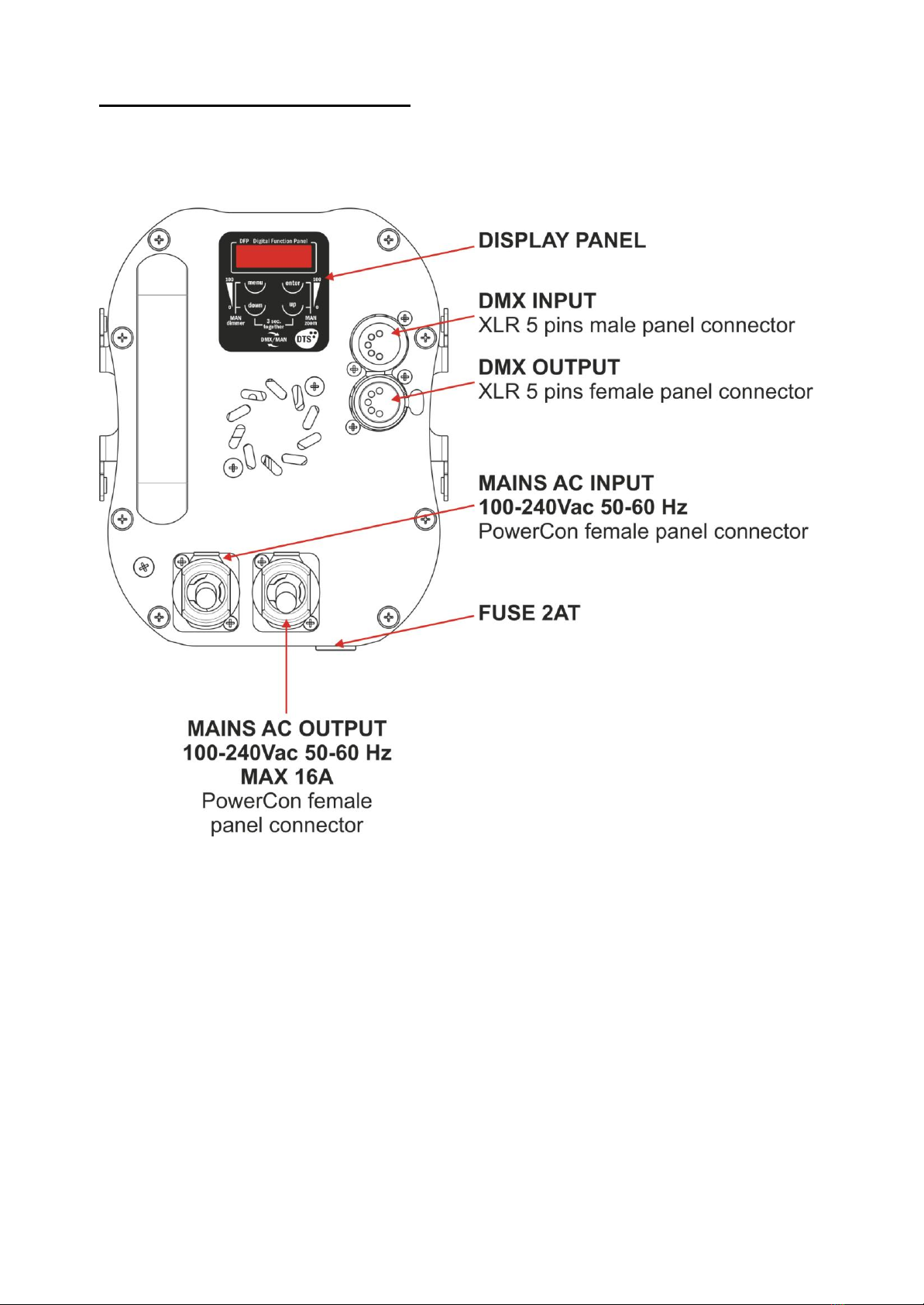

8- INPUT / OUTPUT CONNECTIONS

10
9- DMX SIGNAL CONNECTION:
The unit operates using a digital DMX 512 signal.
Connection between the controller and the unit or between units must be carried out
using a two pair screened ø 0.5 mm.
Ensure that the conductors do not touch each other.
Do not connect the cable ground to the DMX connector chassis.
The plug housing must be isolated. Connect the mixer signal to the DMX IN projector
plug and connect it to the next projector by connecting the DMX OUT plug on the first
unit to the DMX IN plug of the second one.
In this way, all the projectors are cascade connected.
If the display showing the DMX address flashes, then one of the following errors has
occurred:
- DMX signal not present
- DMX reception problem
For Installations where long distance DMX cable connections are needed, we
suggest to use a DMX terminator.
The DMX terminator is a male XLR 3-5 pins connector with a 120 ohm resistor
Between pin 2 and 3.
The DMX terminator must be plugged into the last unit (DMX out panel connector) of
the DMX line.
PLACE A 120 OHM RESISTOR BETWEEN PIN 2
AND 3 OF A MALE XRL CONNECTOR AND PLUG IT
INTO THE DMX OUT PANEL CONNECTOR OF THE
LAST UNIT CONNECTED TO THE DMX LINE
1
2
3
5
4
OUT
120 ohm
PIN 3
PIN 2

11
9.1 DMX addresses
SCENA LED 80 FR can be controlled with 2 DMX channels (default), 3 DMX channels
or 1 DMX channel.
In order to use the unit in 2 DMX channels mode, set the following addresses on the
mixer:
Projector 1 A001
Projector 2 A003 If you want to select the next projector, just add “2”
Projector 3 A005
….. A….
projector 6 A011
9.2 Selecting the DMX address
1) Press the UP-DOWN key until you reach the required DMX address. The numbers
on the display will start to flash (but the new DMX address hasn't yet been set).
2) Press ENTER to confirm your selection. The numbers on the display will stop
flashing and the projector is now controlled by the new DMX address.
TIPS: if you keep pushed the UP or DOWN keys, the channels are calculated more
quickly and you get a faster selection.
2) Press ENTER to confirm your selection. The numbers on the display will stop
flashing and the projector is now controlled by the new DMX address.
10- FIRMWARE UPDATING
To update the software version of the SCENA LED 80 you need:
- D.T.S. RED BOX interface (D.T.S. Code: 03.LA.008)
- USB-DMX Driver for the D.T.S. RED BOX interface
- “D.T.S. Firmware upgrade utility” program installed on PC
- Latest firmware release available for SCENA COMPACT LED 50 unit
Updating the software version.
Please follow the procedure below to perform the update:
1. Install the D.T.S. RED BOX USB-DMX driver on the PC you will use to update the
unit software.
2. Connect the D.T.S. RED BOX interface to the PC by using a USB cable.
3. Connect the D.T.S. RED BOX interface to the fixture by using a DMX cable.
4. Send the new software version into the unit by using “D.T.S. Firmware upgrade
Utility”program.

12

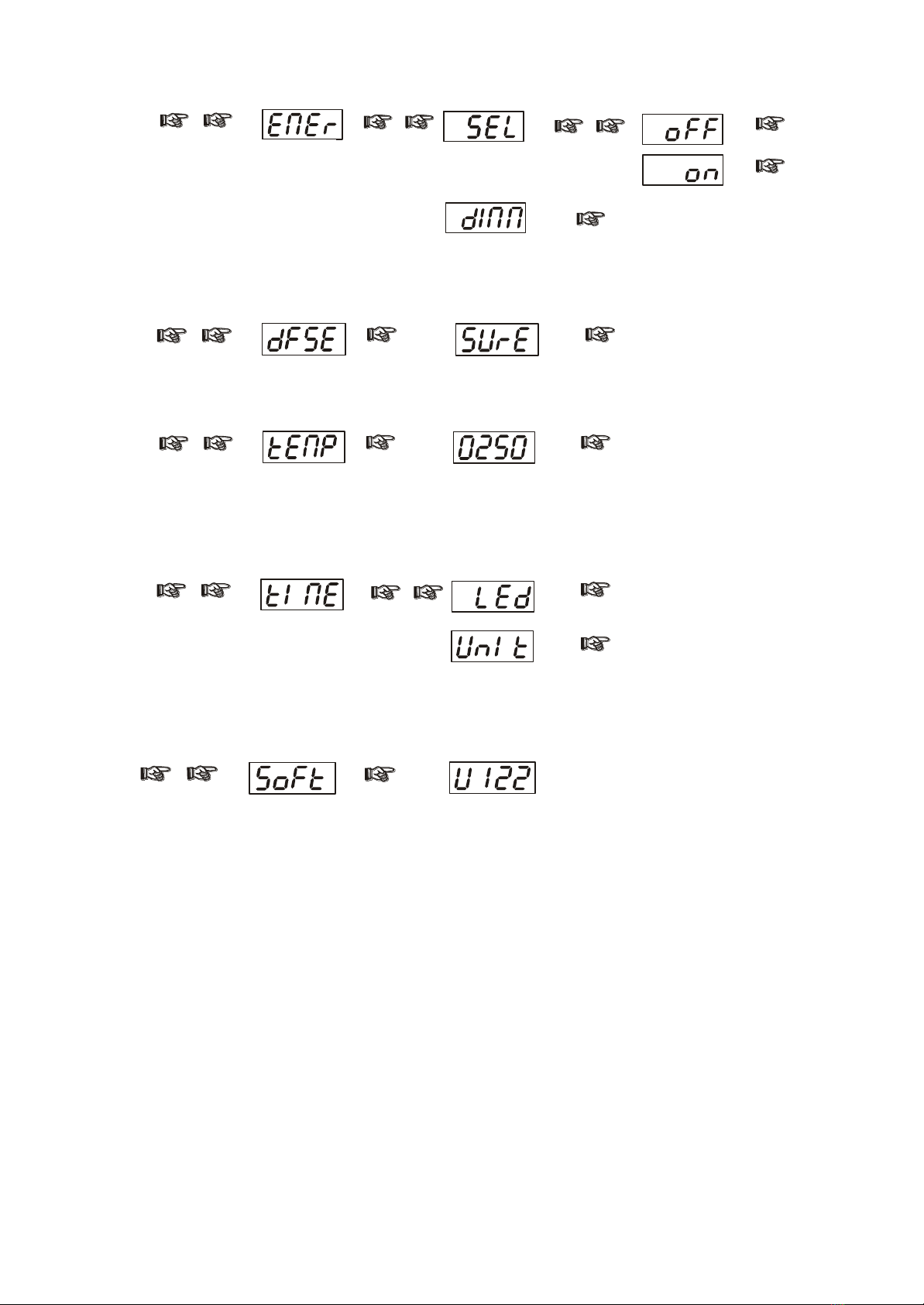

Up-Down
MENU ENTERUp-Down Up-DownENTER
Up-DownENTER
ENTER
ENTER
ENTER
ENTER
Up-Down
Up-Down
MENU ENTER
Up-Down ENTER
ENTER
Up-Down ENTER
ENTER
ENTER
11- DISPLAY FUNCTIONS
DISPLAY FUNCTIONS
The SCENA LED 80 display panel shows all the available functions.
Using these functions, it is possible to change some of the parameters and add some
functions. Changing the D.T.S. setting can vary the functions of the unit so that it does
not respond to the DMX 512 used to control it. Carefully follow the instructions below
before carrying out any variations or selections.
NOTE: the symbol shows which key has to be pushed to obtain the desired
function.
Software version 1.06
REVERSE DISPLAY
Reverses display's reading depending on
the mounting position (on the ground or
suspended).
DISPLAY STAND BY
To turn off the display (after 5 seconds)
Or leave it always on.
DMX MODE
To select DMX mode : 2 DMX channels
mode (default), 1 DMX channel mode,
3 DMX channels mode or Manual mode.
Manual mode can also be activated by
pressing at the same time the “UP’’ +
”DOWN” buttons on unit display for 3
seconds (“A001”).
Suspended
Position
Floor
Position
Display
Off
Display
Always on
Default DMX Mode
2 Channels
Manual Mode
1 DMX channel mode
3 DMX channels mode

13
With BOOST active, the LED’S
current is set to Max value.
(30% more gain compared to
BOOST Off)
Default = Disabled
Up-Down
MENU ENTER
Up-Down ENTER
Up-Down
Up-Down Up-DownENTER ENTER
ENTER
Up-Down
Up-Down
Up-Down
ENTER
Up-DownENTER
Up-DownENTER
Up-DownENTER ENTER
ENTER
ENTER
ENTER
MENU Up-Down Up-DownENTER ENTER
LED
Led Min/Max, Smooth, Compression,
Sync and Boost level values settings
LED MINIMUM VALUE
This menu allows to select the
minimum levels for white
LED MAXIMUM VALUE
This menu allows to select the
maximum levels for white
These settings have priority
on Master Dimmer channel
SMOOTH VALUE
This menu allows to select the value of
the delay (in milliseconds) for Dimmer
channel reaction to DMX or Program
variation.
Off = 25 ms. Instant response to DMX
variation.
20 = 250 ms. Smooth response to DMX
variation.
COMPRESSION
This menu allows to select between
Linear current output or Quadratic
current output for LEDs
Default = Quadratic
SYNC
This menu allows to adjust the PWM
frequency value (Hz) in order to reduce
flickering in the process of your camera
recordings
BOOST DRIVING
This menu allow to increase the LED’s
current from Min to Max
Linear = Linear
Current output
Quadratic =
Linear light
output
Default = 0
Default = 100
Range = Off-20
Default = 4
Range =
610 Hz –10 KHz
Default = 610 Hz
Boost mode
activated
Boost mode
deactivated
MENU Up-Down Up-DownENTER ENTER
ENTER
INFRARED MODE
Infrared remote control.
By activating Ir Mode, it will be
possible to navigate trought the unit
functions by using the D.T.S.
infrared remote control
(D.T.S. Code: 0514L008)
Note:
External infrared remote sensor
needed (D.T.S. Code: 03.LA.016)
NOT IMPLEMENTED ON SCENA LED 80
DIMMER
Dimmer intensity level (range 0-255)
Active only if MODE = 1 DMX channel mode

14
MENU Up-Down Up-DownENTER Up-DownENTER ENTER
ENTER
ENTER
WIRELESS DMX
Wireless DMX enabled / disabled.
By activating WDMX MODE, it will be
possible to control SCENA LED 80 via
D.T.S. ANTENNA Wireless DMX
Transmitter (cod. 03.E1271).
Active only on SCENA LED 80 with
Wireless on board
Wireless
Enabled
Wireless
Disabled
UNLINK = LOG OUT
Logging on SCENA LED 80 (WIRELESS DMX must be enabled on SCENA LED 80 unit)
To log on the SCENA LED 80 in the WIRELESS system simply press and quickly release the function button
on the transmitter.
The transmitter will start flashing rapidly red/green scanning for new free receivers / SCENA LED 80 units.
When a SCENA LED 80 logs on to the transmitter the LINK green light on transmitter starts to flash rapidly.
After approximately 10 seconds the transmitter will jump back to normal mode and continue transmitting data.
The SCENA LED 80 now try to synchronize to the transmitter.
When synchronized to the transmitter, 2 different modes are possible:
1. Antenna transmitter has detected and transmits a DMX signal, in this mode a solid green light is seen on the
transmitter and solid display is seen on SCENA LED 80.
2. No DMX signal connected, the Antenna transmitter will flash red/green; display blinking on SCENA LED 80.
To log SCENA LED 80 off from a transmitter simply select UNLINK function under WIRELESS
DMX MENU and press ENTER.
When SCENA LED 80 is logged off, the display is blinking, meaning its available for log in on a new
transmitter.
Logging out a SCENA LED 80
Select UNLINK function under WIRELESS DMX MENU and press ENTER.
When SCENA LED 80 is logged off the display is blinking, meaning its available for log in on a new
transmitter.
Logging out all SCENA LED 80 units linked to a transmitter
Press and hold the function button of the transmitter for about 3 seconds. When the display is blinking on
SCENA LED 80, it mean that the units are logged out.
Transmitter, Status LED
Flashing red/green, no dmx connected.
Solid green, dmx signal detected and transmitted.
Fast flashing red/green, log in mode (every free SCENA LED 80 unit, not logged in to any other transmitter,
will be logged on)
SCENA LED 80 Status
Display blinking = not logged on to a transmitter (free).
Solid display = logged on to a transmitter and receiving dmx data.

15
MENU Up-Down Up-DownENTER
ENTER
Up-DownENTER ENTER
ENTER
EMERGENCY
Emergency operating mode.
By setting Emergency mode, it
will be possible to select
Dimmer intensity level that will
then ran if DMX signal is
missing or not available.
Usefull for Emergency EXIT
illumination on public areas.
Default = 204 (80%)
ENTERENTER
Up-Down
MENU
ENTERENTER
Up-Down
MENU .
DEFAULT SETTING
To restore default settings
TEMPERATURE
LED Driver board and external
unit temperature visualisation
LIFE TIME
This menu show the total
unit life time and the
LED life time
SOFTWARE
Software version
Default = OFF
ENTER
Up-DownENTER
Up-Down
MENU
ENTER
ENTER
Up-Down
MENU . .

16
12- DMX PROTOCOL
2 CHANNELS MODE (Default)
1 SHUTTER / STROBE
2 DIMMER
DMX CHANNEL
1
Parameter: SHUTTER / STROBE
DMX range
Value
Mid Point
DMX
value
Move Range
(degrees)
Mode
Option
Function
000-009
Black-out
010-019
Open
020-029
Black-out
030-119
Strobe (from 3.27 s to 30 ms)
120-149
Pulse up (from 42.6 s to 120 ms)
150-179
Pulse down (from 42.6 s to 120 ms)
180-204
Random strobe
(Dimmer channel active)
205-229
Full independent Random Strobe
(Dimmer channel disabled)
230-255
Open
DMX CHANNEL
2
Parameter: DIMMER
DMX range
Value
Mid Point
DMX
value
Move Range
(degrees)
Mode
Option
Function
000-255
Proportional dimmer
1 CHANNEL MODE
1 DIMMER
DMX CHANNEL
1
Parameter: DIMMER
DMX range
Value
Mid Point
DMX
value
Move Range
(degrees)
Mode
Option
Function
000-255
Proportional dimmer

17
3 CHANNELS MODE
1 SHUTTER / STROBE
2 DIMMER
3 DIMMER FINE
DMX CHANNEL
1
Parameter: SHUTTER / STROBE
DMX range
Value
Mid Point
DMX
value
Move Range
(degrees)
Mode
Option
Function
000-009
Black-out
010-019
Open
020-029
Black-out
030-119
Strobe (from 3.27 s to 30 ms)
120-149
Pulse up (from 42.6 s to 120 ms)
150-179
Pulse down (from 42.6 s to 120 ms)
180-204
Random strobe
(Dimmer channel active)
205-229
Full independent Random Strobe
(Dimmer channel disabled)
230-255
Open
DMX CHANNEL
2
Parameter: DIMMER
DMX range
Value
Mid Point
DMX
value
Move Range
(degrees)
Mode
Option
Function
000-255
Proportional dimmer
DMX CHANNEL
3
Parameter: DIMMER FINE
DMX range
Value
Mid Point
DMX
value
Move Range
(degrees)
Mode
Option
Function
000-255
Proportional dimmer

18
NOTES

19
NOTES

20
MADE IN ITALY
ISO 9001:2008
D.T.S. quality system
is certified to the
ISO 9001:2008 standard
D.T.S. products are designed
and manufactured at the D.T.S.
plants in italy
The information contained in this publication has been carefully prepared and
checked. However, no responsibility will be taken for any errors. All rights are reserved
and this document cannot be copied, photocopied or reproduced, in part or
completely, without prior written consent from D.T.S.
D.T.S. reserves the right to make any aesthetic, functional or design modifications to
any of its products without prior notice. D.T.S. assumes no responsibility for the use or
application of the products or circuits described herein.
D.T.S. Illuminazione s.r.l. –Via Fagnano Selve 10-12-14 47843
Misano Adriatico (RN) Italia
Tel.: [phone]. Fax + 39 0541 611111
[email protected] www.dts-lighting.it
0517I243.ETL
*0517I243.ETL*
