TITAN SOLO
User’s Manual Rel 1.6
D.T.S. Illuminazione srl - ITALY
http://www.dts-lighting.it

TITAN SOLO
Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia
non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo
documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso
scritto della D.T.S .
DTS si riserva il diritto di apportare senza preavviso cambiamenti e modifiche estetiche , funzionali o di
design a ciascun proprio prodotto. D.T.S non assume alcuna responsabilità sull’uso o sull’applicazione dei
prodotti o dei circuiti descritti.
The information contained in this publication has been carefully prepared and checked. However, no
responsibility will be taken for any errors. All rights are reserved and this document cannot be copied,
photocopied or reproduced, in part or completely, without prior written consent from D.T.S.
D.T.S. reserves the right to make any aesthetic, functional or design modifications to any of its products
without prior notice. D.T.S. assumes no responsibility for the use or application of the products or circuits
described herein.
Les informations contenues dans le présent manuel ont été rédigées et contrôlées avec le plus grand
soin. Nous déclinons toutefois toute responsabilité en cas d'éventuelles inexactitudes. Tous droits
réservés. Ce document ne peut être copié, photocopié ou reproduit, dans sa totalité ou partiellement,
sans le consentement préalable de .
se réserve le droit d'apporter toutes modifications et améliorations esthétiques, fonctionnelles ou
de design, sans préavis, à chacun de ses produits. décline toute responsabilité sur l'utilisation ou
sur l'application des produits ou des circuits décrits.
D.T.S
D.T.S.
D.T.S.
Las informaciones contenidas en este documento han sido cuidadosamenteredactadas y
controladas. Con todo, no se asume ninguna responsabilidad por eventuales inexactitudes.
Todos los derechos han sido reservados y este documento no puede ser copiado, fotocopiado
o reproducido, total o parcialmente, sin previa autorizaciónescrita de
se reserva el derecho a aportar sin previo aviso cambios y modificaciones de carácter
estético, funcional o de diseño a cada producto suyo. no se asume responsabilidad de
ningún tipo sobre la utilización o sobre la aplicació
n de los productos o de los circuitos descritos.
D.T.S.
D.T.S.
D.T.S.
2

DESCRIPTION
TITAN SOLO is a new range of compact self-contained LED projectors designed for fixed and
mobile installations either indoor or outdoor.
All models are made on aluminium offering high resistance to mechanical stress, and IP20 or
IP65 protection rating.
TITAN SOLO range features
XLR Male / Female
cable connectors
TITAN is also available without integrated power supply.
Three dedicated lenses sets (Spot, Medium flood, Wide flood) are available for each model,
offering different light beam projection angles with even coverage of lighted areas.
TITAN SOLO can be controlled via any DMX lighting console.
TITAN range comprises 3 models, which employ different sets of LEDs tailored for distinct
applications: TITAN SOLO FULL COLOUR, TITAN SOLO RGB and TITAN SOLO WHITE.
TITAN SOLO FULL COLOUR: 15 x 3W Full Colour LEDs; 16 million colours; 990 Lux at 2 m
(spot lenses); linear colour temperature 3200°K ÷ 5500°K; 16 selectable types of White.
The 15 Full Colour LEDs all generate the same colour at the same time, so that the illuminated
object is not only uniformly lit, but also projects no false shadows.
TITAN SOLO RGB: 54 x 1W P4 LEDs (12 x Red, 15 x Green, 15 x Blue, 12 x Amber); 16 million
colours; 4388 Lux at 2 m (spot lenses); linear colour temperature 3200°K ÷ 5500°K; 16
selectable types of White. The LEDs distribution pattern guarantees high mixing quality for RGB
colours and a uniform projection on surfaces, no matter what colour is used.
TITAN SOLO WHITE: 54 x 1W P4 LEDs (42 White, 12 x Amber); 9900 Lux at 2 m (spot lenses);
linear colour temperature 3200°K ÷ 5500°K; 16 selectable types of White.
TITAN SOLO WHITE is ideal in various applications where colour is not needed and white light
must have well defined features.
Full colour LEDs Power supply on board
03.LDB030S.F10 TITAN SOLO IP20 FULLCOLOUR SPOT LENSES
03.LDB030S.F25 TITAN SOLO IP20 FULLCOLOUR MEDIUM FLOOD LENSES
03.LDB030S.F40 TITAN SOLO IP20 FULLCOLOUR WIDE FLOOD LENSES
03.LDB036C.F10 TITAN SOLO C IP65 FULLCOLOUR SPOT LENSES
03.LDB036C.F25 TITAN SOLO C IP65 FULLCOLOUR MEDIUM FLOOD LENSES
03.LDB036C.F40 TITAN SOLO C IP65 FULLCOLOUR WIDE FLOOD LENSES
Red/Green/Blue/Amber LEDs Power supply on board
03.LDB030S.T10 TITAN SOLO IP20 RGBA SPOT LENSES
03.LDB030S.T25 TITAN SOLO IP20 RGBA MEDIUM FLOOD LENSES
03.LDB030S.T40 TITAN SOLO IP20 RGBA WIDE FLOOD LENSES
03.LDB036C.T10 TITAN SOLO C IP65 RGBA SPOT LENSES
03.LDB036C.T25 TITAN SOLO C IP65 RGBA MEDIUM FLOOD LENSES
03.LDB036C.T40 TITAN SOLO C IP65RGBA WIDE FLOOD LENSES
3 X White /Amber LEDs Power supply on board
03.LDB030S.W10 TITAN SOLO IP20 WHITE SPOT LENSES
03.LDB030S.W25 TITAN SOLO IP20WHITE MEDIUM FLOOD LENSES
03.LDB030S.W40 TITAN SOLO IP20WHITE WIDE FLOOD LENSES
03.LDB036C.W10 TITAN SOLO C IP65 WHITE SPOT LENSES
03.LDB036C.W25 TITAN SOLO C IP65 WHITE MEDIUM FLOOD LENSES
03.LDB036C.W40 TITAN SOLO C IP65 WHITE WIDE FLOOD LENSES
an integrated power supply and is therefore extremely easy to set
up and use.
2 integrated power supply with different protection rating are available: IP20 (Powerconn + XLR
connectors), and IP65 (3 x 1.5 sq mm Main AC cable 1 meter lenght +
1 meter cable lenght ).
3TITAN SOLO

LED technology
TITAN SOLO FULL COLOUR: 15 x Full Colour LEDs; 990 Lux / 2 m (spot lenses)
TITAN SOLO RGB: 54 x 1W P4 LEDs (12 x Red, 15 x Green, 15 x Blue, 12 x Amber; 4388 Lux /
2 m (spot lenses)
TITAN SOLO WHITE: 54 x 1W P4 LEDs (42 x White, 12 x Amber) 9900 Lux / 2 m (spot lenses)
Variable white colour temperature:
3.200°K÷5.500°K
No infrared emission; no ultraviolet emission
LEDs average lifespan: 100.000 hours
Optical units
3 lenses sets available (Spot, Medium flood, Wide flood)
Control
Via any DMX lighting console
Protection
IP20 or IP65 protection level against the penetration of solids and liquids
Construction
TITAN SOLO is made on aluminium
Power supply
Internal power supply
Connection
M12 connection system between head and power supply (
)
Powerconn + XLR connectors
XLR Male / Female cable connectors
ACCESSORIES
Lenses set Spot (TITAN SOLO FULL COLOUR) (Cod. 03.LK.019)
Lenses set Medium flood (TITAN SOLO FULL COLOUR) (Cod. 03.LK.020)
Lenses set Wide flood (TITAN SOLO FULL COLOUR) (Cod. 03.LK.021)
Lenses set Spot (TITAN SOLO RGB / WHITE) (Cod. 03.LK.022)
Lenses set Medium flood (TITAN SOLO RGB / WHITE) (Cod. 03.LK.023)
Lenses set Wide flood (TITAN SOLO RGB / WHITE) (Cod. 03.LK.024)
10XAWG26 multipolar black outdoor cable (Cod. 0509C061)
M12 female (8 pole) cable connector (Cod. 0520P050)
M12 male (8 pole) cable connector (Cod 0520P051)
MAIN ELECTRICAL CHARACTERISTICS:
Input Voltage Range : Vin 90 - 260 Vac
Frequency : 50 - 60 HZ
Power Consumption Range : 6 - 100 W
Power Factor ( Pf) : 0.95 electronic PFC controller
Efficiency : 90% typical
Output:
Power Output Range : 4 channels output 1,5 - 25W per channel
Output Current : 350 mA @ 100% per channel (500mA @ 100% per channel in BOOST Mode)
Output Voltage : Vout 48V
Control Input:
Control Signal : DMX 512
Dimming System :Constant Current PWM
Address Range : DMX 512 channels addressable by display
TITAN SOLO IP20 / TITAN SOLO
IP65
panel (TITAN SOLO IP20)
3 x 1.5 sq mm Main AC cable 1 meter lenght + 1 meter
cable lenght (TITAN SOLO IP65)
4TITAN SOLO

IMPORTANT SAFETY INFORMATION
Fire prevention:
Never locate the fixture on any flammable surface.
Minimum distance from flammable materials: 10 cm
Replace any blown or damaged fuses only with those of identical value
Prevention from electric shock:
High voltage is present inside the unit.
Unplug the unit prior to performing any operation which involves touching the inside of the unit.
This equipment must be grounded, do not connect to non-grounded supplies.
Use only AC supplies 90-260V, 50-60Hz
TITAN SOLO IP20 should never be located in position exposed to rain or in areas of extreme
humidity.
A good air ventilation is essential for proper equipment work.
Safety:
The external surface of the unit may exeed 50°C; never handle the unit until at least 5 minutes
have elapsed since the unit was turned off.
Never install the unit in an enclosed area lacking sufficient air flow.
The ambient temperature should not exeed 40°C and should not be lower than -10°C
UNIT DIMENSIONS:
The use of a thermal magnetic circuit breaker is recommended for each TITAN SOLO unit.
Unit Dimensions
(LxWxH)
250 x 256 x 206 mm
Weight
6,3 Kg
Packing Dimensions
(LxWxH)
300 x 320 x 220 mm
Weight
7,5 Kg
5TITAN SOLO

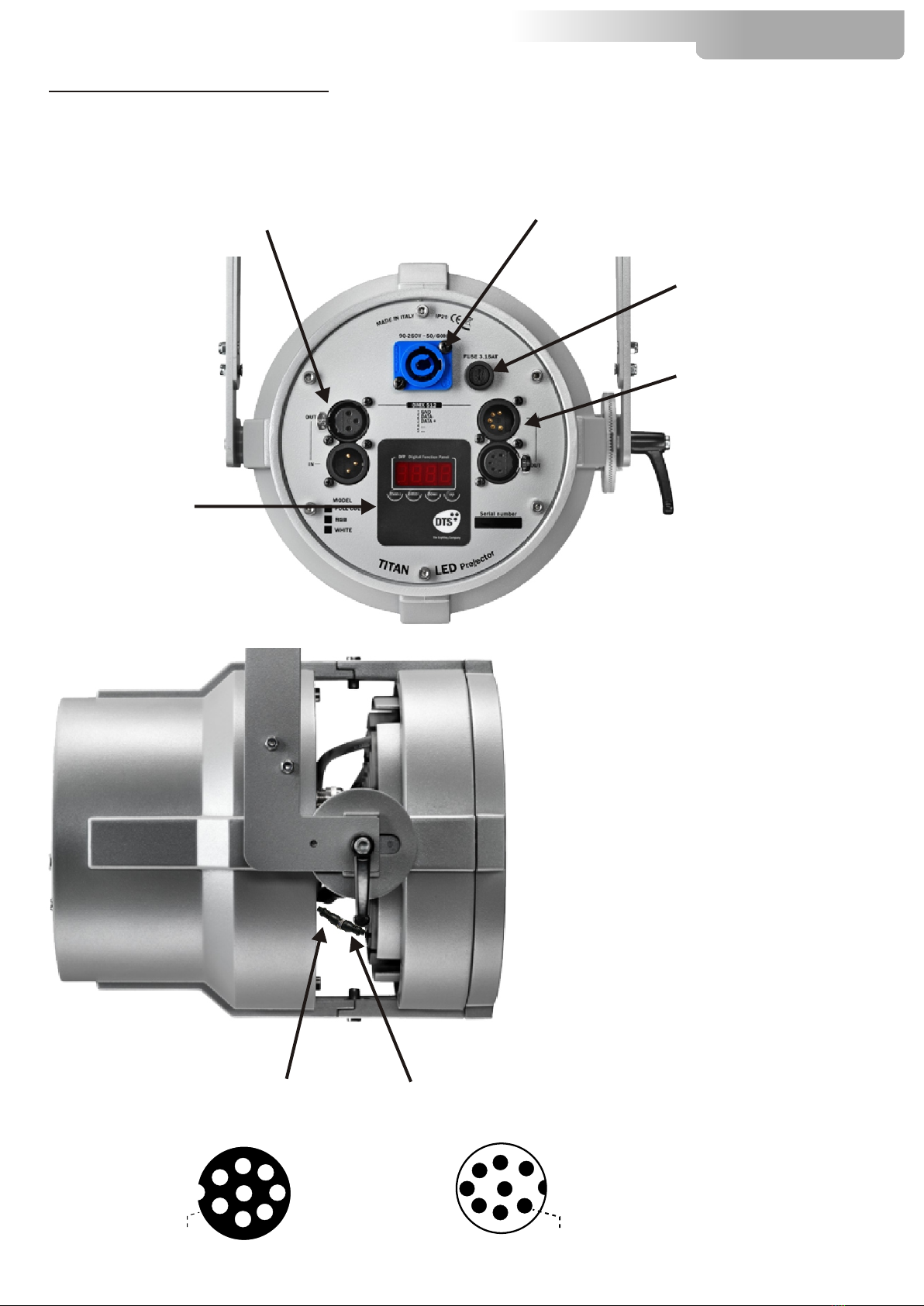

INPUT/OUTPUT CONNECTIONS
TITAN SOLO IP20
Mains 90-260 V AC
50-60 Hz input Powerconn
Female panel connector
DMX IN/OUT
XLR 5 pins Male / Female
Panel Connectors
Fuse 3,15 AT
DMX IN/OUT
XLR 3 pins Male / Female
Panel Connectors
Panel display
Pin1
234
5
6
7
M12 LED output
Female cable connector
Pin1
2
3
4
5
67
M12 LED input
Male cable connector
LEDS
CONNECTOR PINOUT
4-GREEN -
5-BLUE +
6-BLUE -
7-AMBER - (RGB / WHITE)
8-AMBER + (RGB / WHITE)
1-RED +
2-RED -
3-GREEN +
LEDS
CONNECTOR
4-GREEN - (FC / RGB / WHITE)
5-BLUE + (FC / RGB / WHITE)
6-BLUE - (FC / RGB / WHITE)
7-
1-RED + (FC / RGB / WHITE)
2-RED - (FC / RGB / WHITE)
3-GREEN + (FC / RGB / WHITE)
6TITAN SOLO

INPUT/OUTPUT CONNECTIONS
TITAN SOLO IP65
Mains 90-260 V AC
50-60 Hz input
3 x 1.5mm Cable
DMX IN/OUT
XRL 5 pin Female
Cable Connectors
Display panel
Pin1
234
5
6
7
M12 LED output
Female cable connector
Pin1
2
3
4
5
67
M12 LED input
Male cable connector
LEDS
CONNECTOR PINOUT
4-GREEN -
5-BLUE +
6-BLUE -
7-AMBER - (RGB / WHITE)
8-AMBER + (RGB / WHITE)
1-RED +
2-RED -
3-GREEN +
LEDS
CONNECTOR
4-GREEN - (FC / RGB / WHITE)
5-BLUE + (FC / RGB / WHITE)
6-BLUE - (FC / RGB / WHITE)
7-
1-RED + (FC / RGB / WHITE)
2-RED - (FC / RGB / WHITE)
3-GREEN + (FC / RGB / WHITE)
7
Fuse 3,15 AT
DMX IN/OUT
XRL 5 pin Male
Cable Connectors
2
CONTROLLER
S T A N D A R D
D M X 5 1 2
TITAN SOLO
Please note that the XLR connectors installed on the TITAN IP65 have an
IP20 protection rate.
Thus, for any application where an IP65 rate is needed, the XLR connectors
must be protected within an IP65-rated container.

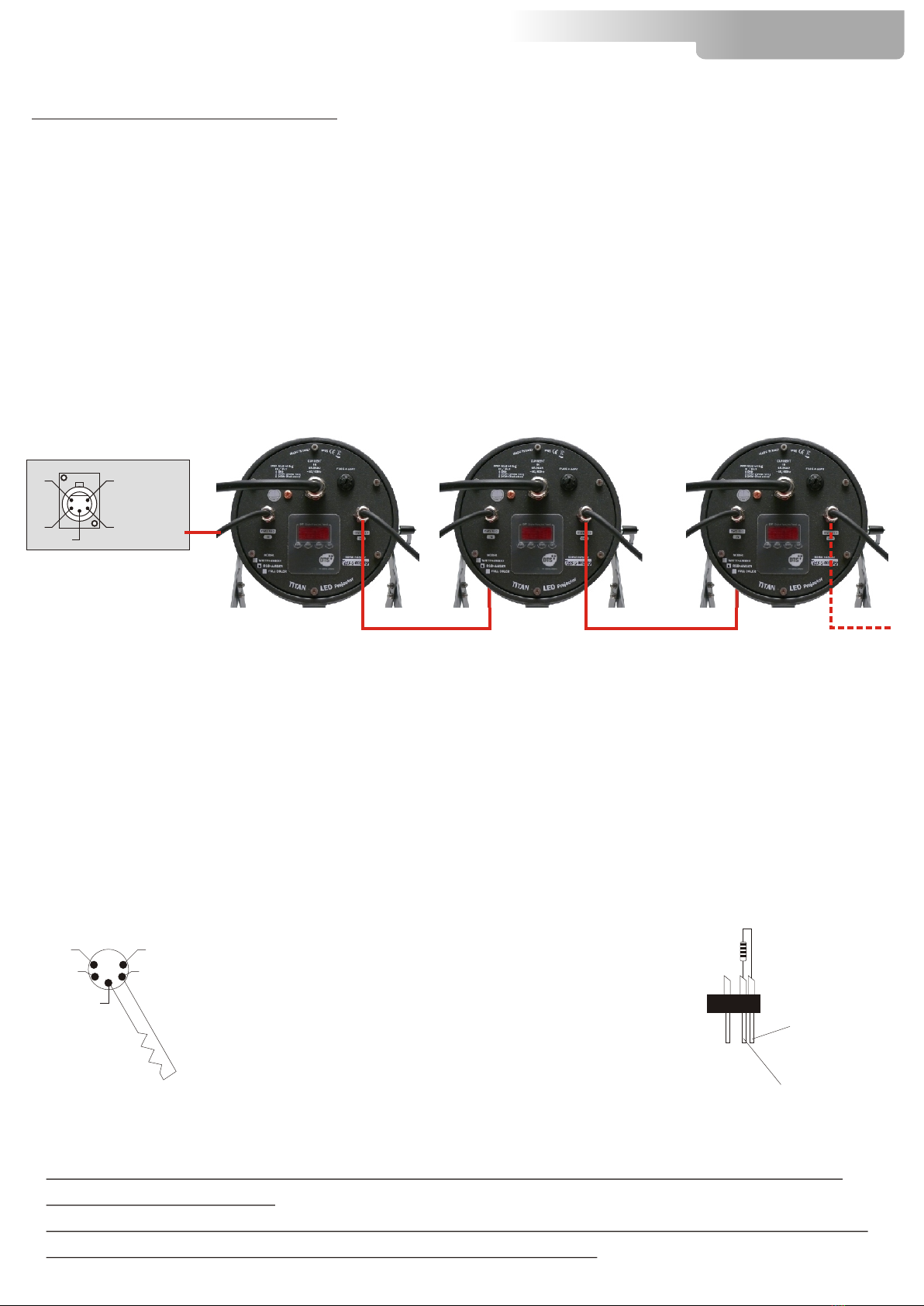

DMX SIGNAL CONNECTION:
TITAN SOLO IP20
The unit operates using a digital DMX 512 signal. Connection between the controller and the unit or
between units must be carried out using a two pair screened ø0.5 mm.
P.S:
If the display showing the DMX address flashes, then one of the following errors has occurred:
- DMX signal not present
- DMX reception problem
For Installations where long distance DMX cable connections are needed, we suggest to use a DMX
terminator.
The DMX terminator is a male XLR 3-5 pins connector with a 120 ohm resistor Between pin 2 and 3.
The DMX terminator must be plugged into the last unit (DMX out panel connector) of the DMX line.

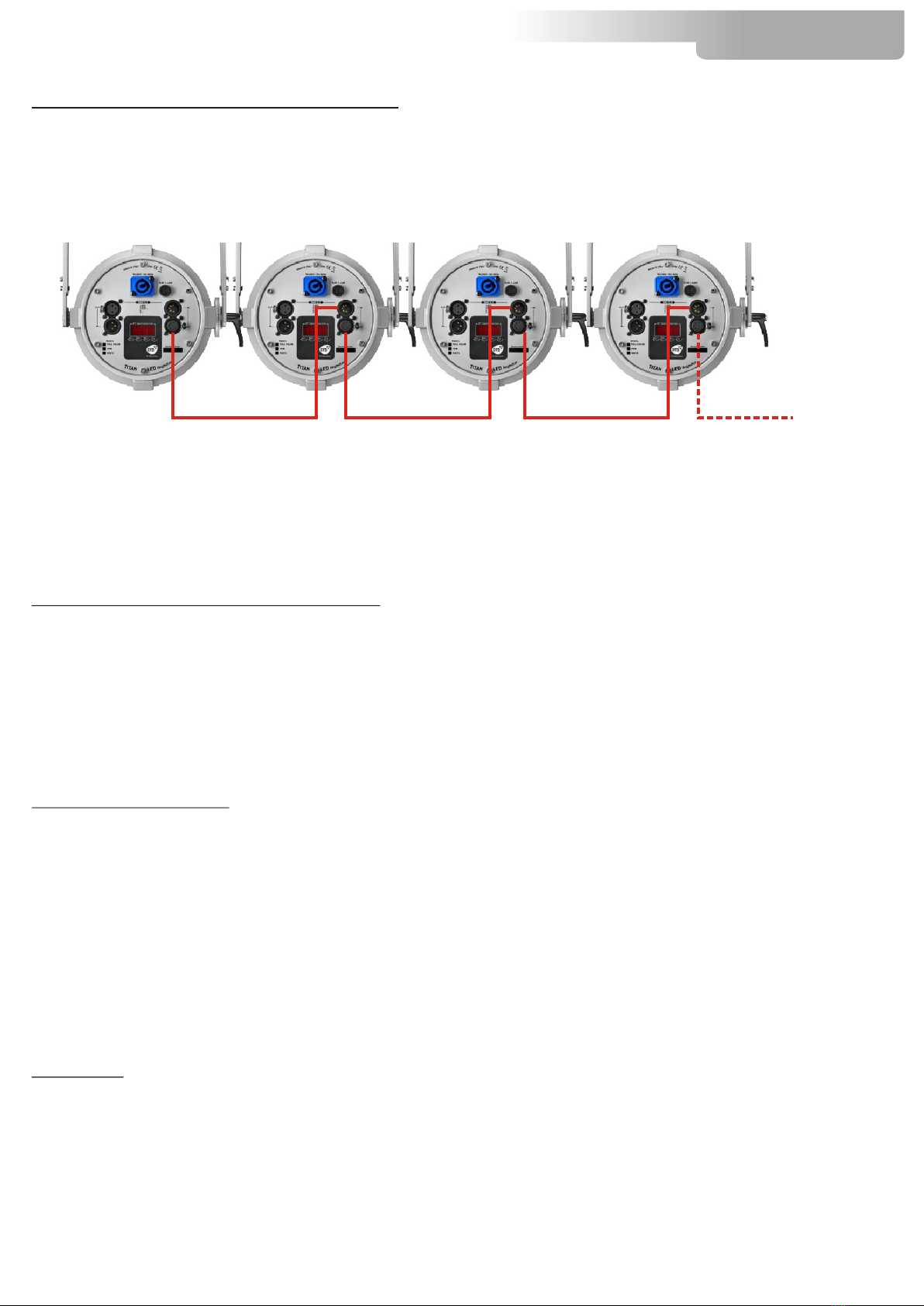

Ensure that the conductors do not touch each other. Do not connect the cable ground to the DMX
connector chassis. The plug housing must be isolated. Connect the mixer signal to the DMX IN
projector plug and connect it to the next projector by connecting the DMX OUT plug on the first unit to
the DMX IN plug of the second one.
In this way, all the projectors are cascade connected.
1
2
3
5
4
OUT
120 ohm
PIN 3
PIN 2
PLACE A 120 OHM RESISTOR BETWEEN PIN 2
AND 3 OF A MALE XRL CONNECTOR AND PLUG IT
INTO THE DMX OUT PANEL CONNECTOR OF THE
LAST UNIT CONNECTED TO THE DMX LINE
8TITAN SOLO
5
3
4 2
11=GND
2=DATA-
3=DATA+
CONTROLLER
S TA N D A R D
D M X 5 1 2

5
3
4 2
11=GND
2=DATA-
3=DATA+
CONTROLLER
S TA N D A R D
D M X 5 1 2
9
DMX SIGNAL CONNECTION:
TITAN SOLO IP65
The unit operates using a digital DMX 512 signal. Connection between the controller and the unit or
between units must be carried out using a two pair screened ø0.5 mm.
P.S:
If the display showing the DMX address flashes, then one of the following errors has occurred:
- DMX signal not present
- DMX reception problem
For Installations where long distance DMX cable connections are needed, we suggest to use a DMX
terminator.
The DMX terminator is a male XLR 3-5 pins connector with a 120 ohm resistor Between pin 2 and 3.
The DMX terminator must be plugged into the last unit (DMX out panel connector) of the DMX line.
Ensure that the conductors do not touch each other. Do not connect the cable ground to the DMX
connector chassis. The plug housing must be isolated. Connect the mixer signal to the DMX IN
projector plug and connect it to the next projector by connecting the DMX OUT plug on the first unit to
the DMX IN plug of the second one.
In this way, all the projectors are cascade connected.
1
2
3
5
4
OUT
120 ohm
PIN 3
PIN 2
PLACE A 120 OHM RESISTOR BETWEEN PIN 2
AND 3 OF A MALE XRL CONNECTOR AND PLUG IT
INTO THE DMX OUT PANEL CONNECTOR OF THE
LAST UNIT CONNECTED TO THE DMX LINE
TITAN SOLO
Please note that the XLR connectors installed on the TITAN IP65 have an
IP20 protection rate.
Thus, for any application where an IP65 rate is needed, the XLR connectors
must be protected within an IP65-rated container.

DMX ADDRESS
Projector 1 A001
Projector 2 A010 If you want to select the next projector, just add “9”
Projector 3 A019
….. A….
projector 6 A046
Projector 1 A001
Projector 2 A011 If you want to select the next projector, just add “9”
Projector 3 A021
….. A….
projector 6 A051
Selelcting the DMX address
1) Press the UP-DOWN key until you reach the required DMX address. The numbers on the
display will start to flash (but the new DMX address hasn't yet been set).
2) Press ENTER to confirm your selection. The numbers on the display will stop flashing and the
projector is now controlled by the new DMX address.
TIPS: if you keep pushed the UP or DOWN keys, the channels are calculated more quickly and
you get a faster selection.
TITAN SOLO FULL COLOR can be used in three different modes: 6 DMX channels, 9 DMX
channels (default) or CUSTOM DMX channels.
TITAN SOLO RGB and TITAN SOLO WHITE can be used in two different modes: 10 DMX
channels (default) or CUSTOM DMX channels.
If you want to use the TITAN SOLO FULL COLOUR in 6 channels mode, select the 6 CH mode
from the MODE menu and set the following addresses on the mixer: (To be used only with
DTS Wall mounted DMX controller 0514L007)
Projector 1 A001
Projector 2 A009
Projector 3 A017
….. A….
projector 6 A041
If you want to use the TITAN SOLO FULL COLOUR in 9 channels mode, select the 9 CH mode
from the MODE menu and set the following addresses on the mixer:
If you want to use the TITAN SOLO FULL COLOUR in CUSTOM DMX channels mode, select the
CUSTOM mode from the MODE menu and set the parameters for Shutter, Dimmer, Red, Green,
Blue, Ctc, Macro and Function to the desired DMX channels and confirm the settings with DONE
If you want to use the TITAN SOLO RGB / WHITE in 10 channels mode, select the 10 CH mode
from the MODE menu and set the following addresses on the mixer:
If you want to use the TITAN SOLO RGB / WHITE in CUSTOM DMX channels mode, select the
CUSTOM mode from the MODE menu and set the parameters for Shutter, Dimmer, Red, Green,
Blue, (White 1,White 2, White 3), Amber, Ctc, Macro and Function to the desired DMX channels
and confirm the settings with DONE
10 TITAN SOLO

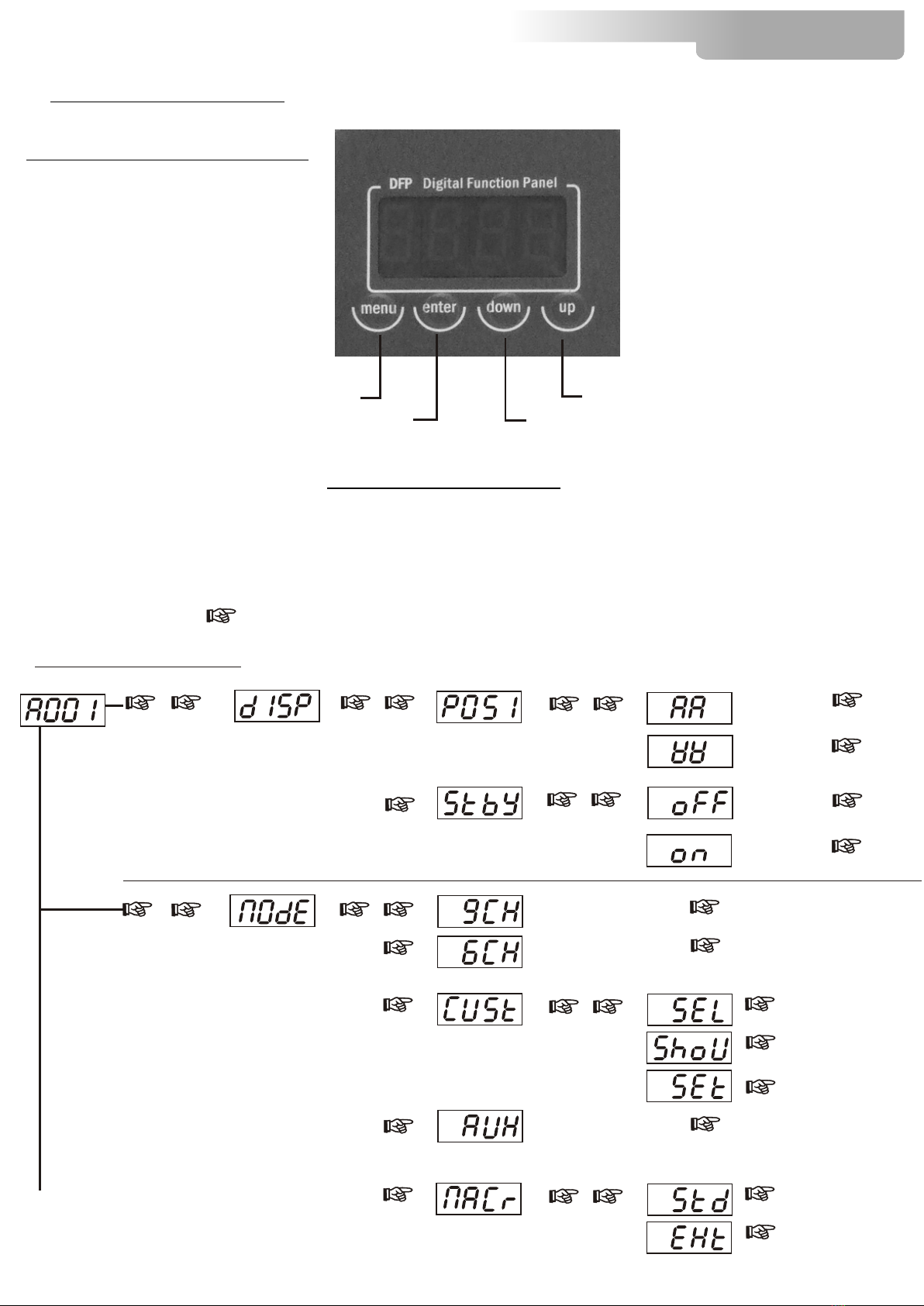

DISPLAY FUNCTIONS
TITAN SOLO FULL COLOUR
ENTER DOWN
UP
MENU
DISPLAY FUNCTIONS
The TITAN SOLO FULL COLOUR display panel shows all the available functions . Using these
functions, it is possible to change some of the parameters and add some functions. Changing the
D.T.S. setting can vary the functions of the unit so that it does not respond to the DMX 512 signal
used to control it. Carefully follow the instructions below before carrying out any variations or
selections.
NOTE: the symbol shows which key has to be pushed to obtain the desired function.
Up-DownMENU ENTER
DMX MODE
To select DMX mode : 9 (default) - 6 -
AUX - CUSTOM
6 CHANNELS
Up-Down
Up-Down
ENTER
ENTER
Up-Down
MENU ENTERUp-Down
REVERSE DISPLAY
Reverses display's reading depending on
the mounting position
(On the ground or suspended). Up-Down
Floor
position
Suspension
position
Up-DownENTER
Up-DownENTER
DISPLAY STAND BY
To turn off the display (after 5 seconds)
Or leave it always on.
Display OFF
Display
always ON
ENTER
ENTER
ENTER
ENTER
Default DMX Mode = 9 CH
Software version 2.10
9 CHANNELS
Up-Down ENTER
AUX MODE Not implemented on
TITAN SOLO
Up-Down Up-DownENTER ENTER
ENTER
ENTER
Custom mode enabled
Show Custom settings
Setting the parameters
on Custom Mode
CUSTOM DMX mode let you set the
parameters for Shutter, Dimmer, Red,
Green, Blue, Ctc, Macro and Function to
the desired DMX channels.
AUX mode let you activate an external
ON -OFF control on IR connector.
(Not implemented on TITAN SOLO)
11 TITAN SOLO
Up-Down Up-DownENTER ENTER
ENTER
Standard mode enabled
(Default)
Show Custom settings
MACRO Function, enable channel
mapping macro rainbow effects
STD (default)

Up-Down
MENU ENTERUp-Down
LED
RGB Min/Max, Smooth and Compression
level values settings
Up-Down
Up-DownENTER
Up-DownENTER
ENTER
ENTER
ENTER
ENTER
Up-Down
Up-DownENTER ENTER
ENTER
RGB MINIMUM VALUES
This menu allow to select the
minimum levels for Red,Green and
blue
RGB MAXIMUM VALUES
This menu allow to select the
maximum levels for Red,Green and
blue
Default = 255
Default = 0
Default = 0
Default = 0
Default = 255
Default = 255
These settings have priority on Master
Dimmer (DMX channel 2)
Up-Down
Up-DownENTER ENTER
Range = Off - 20
Default = 2
SMOOTH VALUE
This menu allow to select the value
of the delay ( in millisecons) for
RGB and Dimmer channels
reaction to DMX or Program
variation.
Off=25 ms delay (Fast response)
20=250 ms delay (Slow response)
Off = 25 ms
Istant responce to DMX variation
20 = 250 ms
Smooth response to DMX variation
Up-Down Up-DownENTER ENTER
Linear = Linear
current output
COMPRESSION
This menu allow to select between
Linear current output or Quadratic
current output for LEDs
Default = Linear
Quadratic =
Linear light
output
ENTER
12 TITAN SOLO
Up-DownMENU ENTER

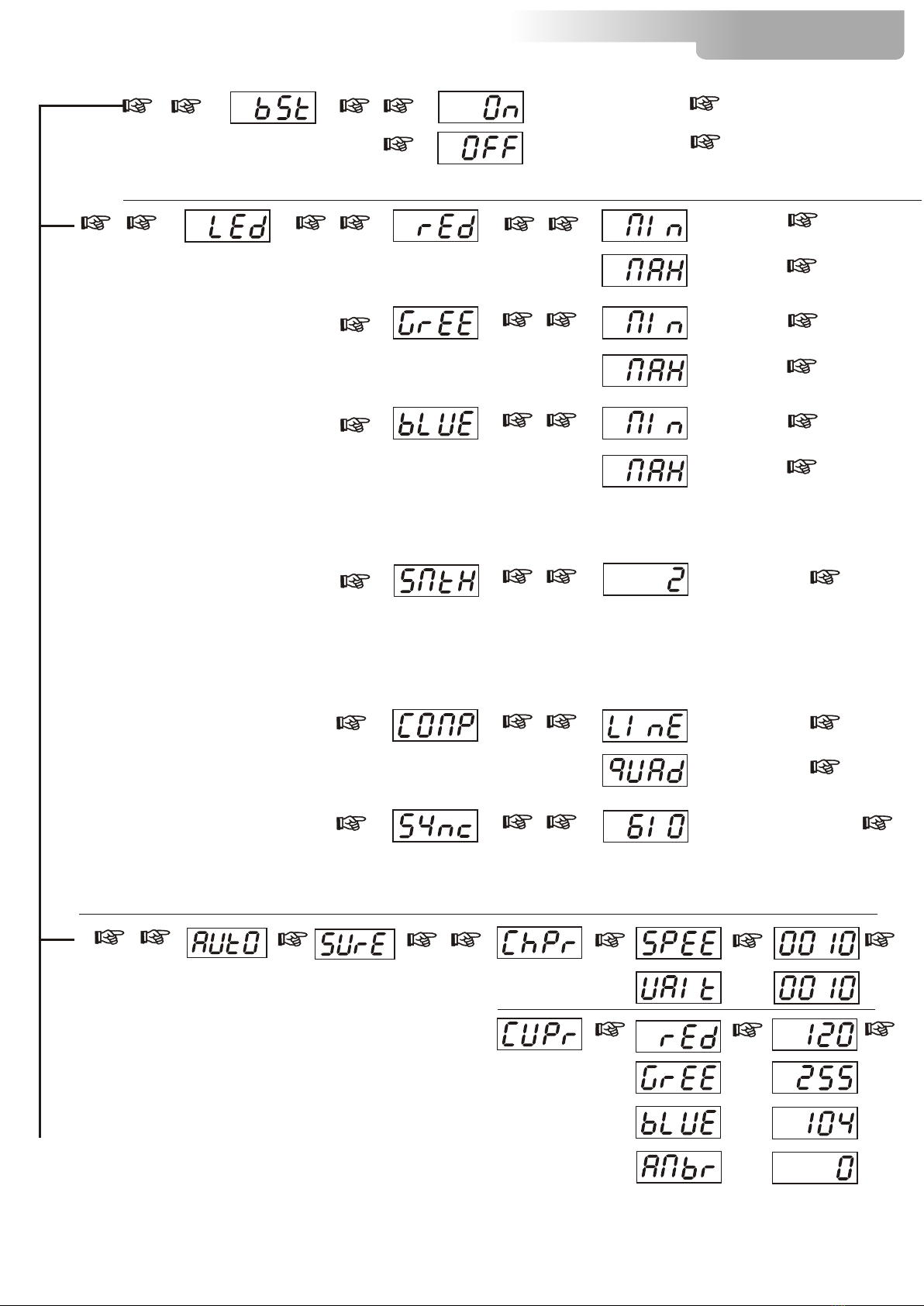

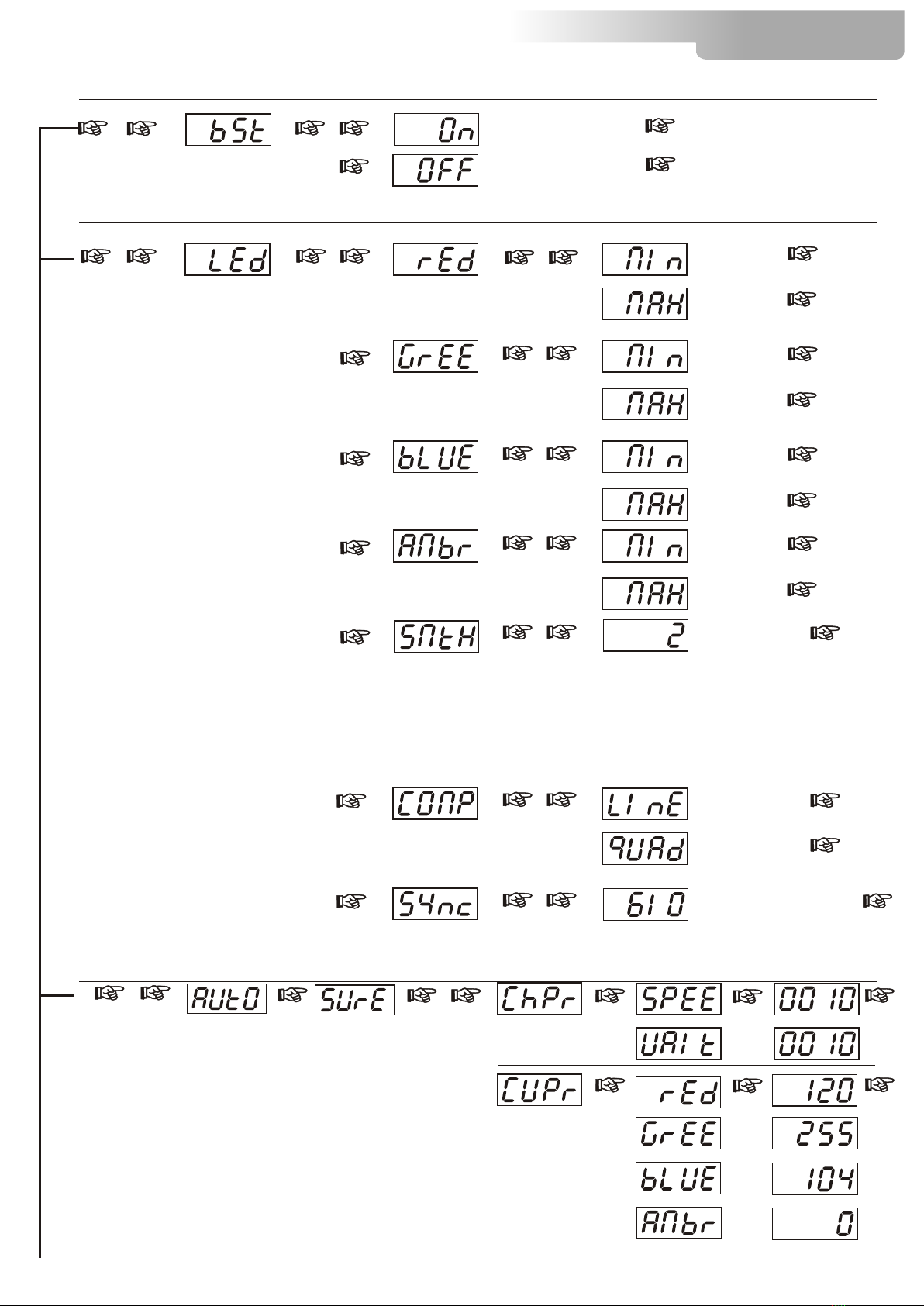

BOOST DRIVING
This menu allow to increase the
LED’s current from 350mA to 500
mA
Boost mode activated
Boost mode deactivated
Up-Down
Up-Down
ENTER
ENTER
Whit BOOST active,the LED’s
current is setted to 500mA
(30%more gain).
Default = Disable
SYNC
This menu allow to adjust the PWM
frequency value (Hz) in order to
reduce flickering in the process of
your camera recordings
Up-Down Up-DownENTER
Range = 610 Hz -10 KHz
Default = 610 Hz ENTER
ENTER
MENU Up-Down Up-DownENTER ENTER
Up-Down
ENTER

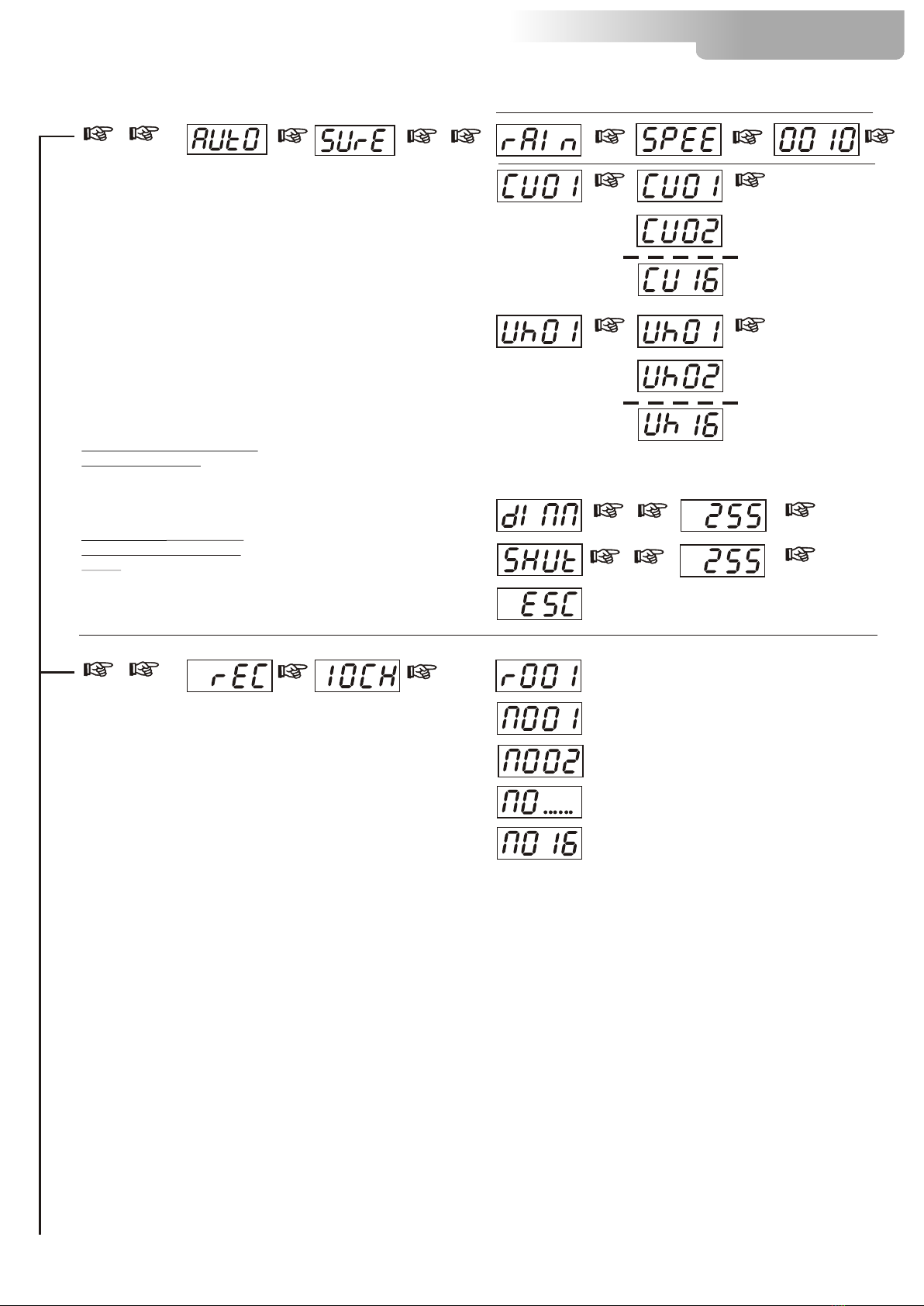

AUTOMATIC MODE
Automatic demo game without
DMX controller
ChPr
Chase with 16 steps previously
created in REC MODE
Speed and Wait time selectable
by user
ENTER
ENTER Up-Down
CUPr
RGB values selectable by user

ENTER
ENTER
MENU Up-Down
DMX Recorder Mode
For the programming of ChPr by using a DMX controller, besides the 9 channels necessary to control the unit a further 3 DMX channels
are needed.
So that in RECORDER mode ( via DMX) the unit will need 12 channels to be correctly programmed.
The three new DMX channels are:
DMX channel 10 = SCENES channel
From 0-10 = no function ( r001)
From 11-255 are displayed the programmable scenes (max 16 scenes from M001 to M0016 )
DMX channel 11 = EDIT channel:
-From 0-19 = no function
-From 20-234 the unit runs the configuration given by the received input DMX values.
With the channel SCENES it is possible to pass from one step to the next while with REC it is possible to record the selected scene.
-From 235-255 the unit runs the configuration given by the received input DMX values closing the sequence as last scene.
With the channel REC it is possible to record the selected scene as last scene.
DMX channel 12 = RECORDING channel
Records the set scene with a variation between 0 to 255 (the display flashes indicating that the scene has been recorded).It is
advised that you keep the REC channel set to 0 and to run through the 255 only once you have decided to save the scene. If ChPr is
not closed, by indicating the last scene ( Edit channel between 235-255), in playback mode all 16 scenes will be played through even
if not programmed
REC MODE
In DMX Recorder Mode,it is
possible to create and store the
scenes of the ChPr by using an
external DMX controller.
The unit must be setted to 9
channels MODE
13 TITAN SOLO
AUTOMATIC MODE
Automatic demo game without
DMX controller
Up-DownENTER
ENTER
MENU Up-Down
WHITE MACROS
16 macros for White color from
2000 to 7200 ° K
Up-DownENTER
Up-DownENTER
ENTER
ENTER
DIMMER
Dimmer level selectable by user
as on DMX channel 2 (Dimmer)
Dimmer level is active for all the
programs and macros
SHUTTER
Shutter level selectable by user
as on DMX channel 1 (Shutter)
Shutter level is active only for
CU01/CU16 and Wh01/Wh16
macros
ESC
Esc from Automatic Mode Menu
ENTER ENTER
Up-Down
ENTER ENTER
ENTER ENTER
Rainbow (rAIn)
Rainbow colours effect.
Speed time selectable by user
CU01-CU16
Color Macros as on DMX channel
8 (Macro)

Up-DownENTER
ENTER
MENU Up-Down ENTER

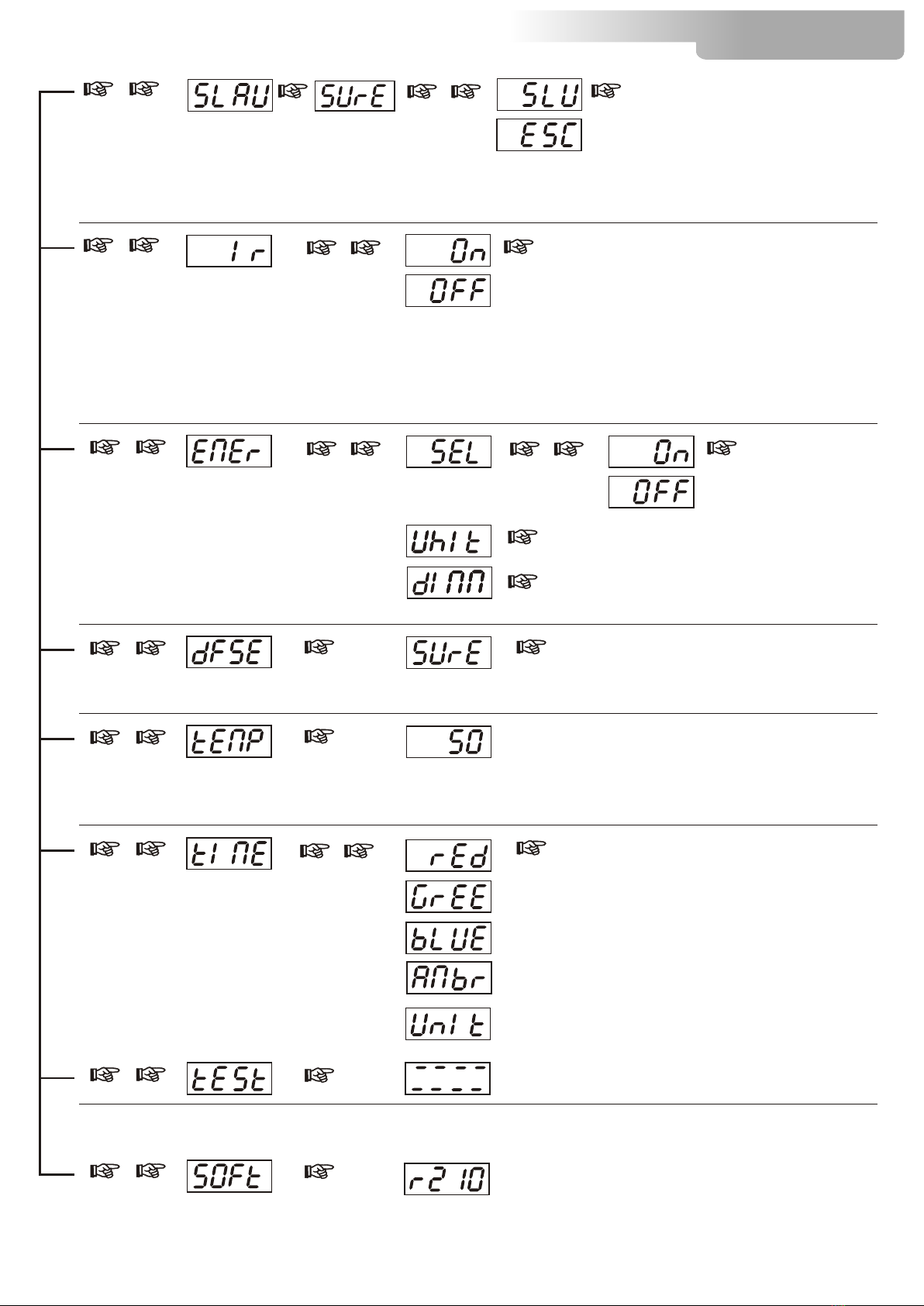

SLAVE MODE
Slave mode for ChPr program.
All slave units will be
synchronised with master unit,
running their own Chpr program.
Up-DownENTER
MENU Up-Down ENTER
INFRARED MODE
Infrared remote control.
By activating Ir MODE, it will be
possible to navigate trought the
unit functions by using the D.T.S.
infrared remote control.
D.T.S. Code :0514L008
(Not implemented on TITAN
SOLO)
NOTE:
External infrared remote sensor
needed.
D.T.S. Code :03.LA.016
(Not implemented on TITAN
SOLO)
ENTER
ENTER
Up-Down
ENTER
ENTER
ENTER
LIFE TIME
This menu show the total UNIT life tine
and the RGB life time
DEFAULT
To restore default settings
Up-Down
Up-Down
Up-Down
MENU
MENU
MENU
ENTER
TEST MODE
RGB colours test with rainbow
Up-Down
MENU
EMERGENCY
Emergency operating mode.
By setting Emergency mode, it
will be possible to select one of
the 16 preprogrammed WHITE
cues that will then run if DMX
signal is missing or not available.
Usefull for Emergency EXIT
ilumination on public areas.
Up-Down
MENU Up-DownENTER Up-DownENTER ENTER
ENTER
Default = OFF
Default = White 1
Default = 255
ENTER
SOFTWARE
Software version
ENTER
TEMPERATURE
Power supply temperature
visualisation (°C)
Up-Down
MENU
14 TITAN SOLO

DISPLAY FUNCTIONS
TITAN SOLO RGBA
TITAN SOLO WHITE
ENTER DOWN
UP
MENU
DISPLAY FUNCTIONS
The TITAN SOLO FULL COLOUR display panel shows all the available functions . Using these
functions, it is possible to change some of the parameters and add some functions. Changing the
D.T.S. setting can vary the functions of the unit so that it does not respond to the DMX 512 signal
used to control it. Carefully follow the instructions below before carrying out any variations or
selections.
NOTE: the symbol shows which key has to be pushed to obtain the desired function.
Up-DownMENU ENTER
DMX MODE
To select DMX mode : 10 (default) - 6 -
AUX - CUSTOM
6 CHANNELS
Up-Down
Up-Down
ENTER
ENTER
Up-Down
MENU ENTERUp-Down
REVERSE DISPLAY
Reverses display's reading depending on
the mounting position
(On the ground or suspended). Up-Down
Floor
position
Suspension
position
Up-DownENTER
Up-DownENTER
DISPLAY STAND BY
To turn off the display (after 5 seconds)
Or leave it always on.
Display OFF
Display
always ON
ENTER
ENTER
ENTER
ENTER
Default DMX Mode = 9 CH
Software version 2.10
10 CHANNELS
Up-Down ENTER
AUX MODE Not implemented on
TITAN SOLO
Up-Down Up-DownENTER ENTER
ENTER
ENTER
Custom mode enabled
Show Custom settings
Setting the parameters
on Custom Mode
CUSTOM DMX mode let you set the
parameters for Shutter, Dimmer, Red,
Green, Blue, Ctc, Macro and Function to
the desired DMX channels.
AUX mode let you activate an external
ON -OFF control on IR connector.
(Not implemented on TITAN SOLO)
15 TITAN SOLO
Up-Down Up-DownENTER ENTER
ENTER
Standard mode enabled
(Default)
Show Custom settings
MACRO Function, enable channel
mapping macro rainbow effects
STD (default)

Up-Down
MENU ENTERUp-Down
LED
RGBA Min/Max, Smooth and Compression
level values settings
Up-Down
Up-DownENTER
Up-DownENTER
ENTER
ENTER
ENTER
ENTER
Up-Down
Up-DownENTER ENTER
ENTER
RGBA MINIMUM VALUES
This menu allow to select the
minimum levels for Red,Green, blue
and Amber
RGBA MAXIMUM VALUES
This menu allow to select the
maximum levels for Red,Green, Blue
and Amber
Default = 255
Default = 0
Default = 0
Default = 0
Default = 255
Default = 255
These settings have
priority on Master
Dimmer (DMX channel 2)
Up-Down
Up-DownENTER ENTER
Range = Off - 20
Default = 2
SMOOTH VALUE
This menu allow to select the value
of the delay ( in millisecons) for
RGB and Dimmer channels
reaction to DMX or Program
variation.
Off=25 ms delay (Fast response)
20=250 ms delay (Slow response)
Off = 25 ms
Istant responce to DMX variation
20 = 250 ms
Smooth response to DMX variation
Up-Down Up-DownENTER ENTER
Linear = Linear
current output
COMPRESSION
This menu allow to select between
Linear current output or Quadratic
current output for LEDs
Default = Linear
Quadratic =
Linear light
output
ENTER
16 TITAN SOLO
Up-DownMENU ENTER
BOOST DRIVING
This menu allow to increase the
LED’s current from 350mA to 500 mA
Boost mode activated
Boost mode deactivated
Up-Down
Up-Down
ENTER
ENTER
Whit BOOST active,the LED’s
current is setted to 500mA
(30%more gain).
Default = Disable
Up-Down
Up-DownENTER ENTER
ENTER
Default = 0
Default = 255
SYNC
This menu allow to adjust the PWM
frequency value (Hz) in order to
reduce flickering in the process of
your camera recordings
Up-Down Up-DownENTER
Range = 610 Hz -10 KHz
Default = 610 Hz ENTER
ENTER
MENU Up-Down Up-DownENTER ENTER
Up-Down
ENTER
AUTOMATIC MODE
Automatic demo game without
DMX controller
ChPr
Chase with 16 steps previously
created in REC MODE
Speed and Wait time selectable
by user
ENTER
ENTER Up-Down
CUPr
RGB values selectable by user

AUTOMATIC MODE
Automatic demo game without
DMX controller
Up-DownENTER
ENTER
MENU Up-Down
WHITE MACROS
16 macros for White color from
2000 to 7200 ° K
Up-DownENTER
Up-DownENTER
ENTER
ENTER
DIMMER
Dimmer level selectable by user
as on DMX channel 2 (Dimmer)
Dimmer level is active for all the
programs and macros
SHUTTER
Shutter level selectable by user
as on DMX channel 1 (Shutter)
Shutter level is active only for
CU01/CU16 and Wh01/Wh16
macros
ESC
Esc from Automatic Mode Menu
ENTER
ENTER
MENU Up-Down
REC MODE
In DMX Recorder Mode,it is
possible to create and store the
scenes of the ChPr by using an
external DMX controller.
The unit must be setted to 10
channels MODE
17 TITAN SOLO
ENTER ENTER
Up-Down
ENTER ENTER
ENTER ENTER
Rainbow (rAIn)
Rainbow colours effect.
Speed time selectable by user
CU01-CU16
Color Macros as on DMX channel
8 (Macro)
DMX Recorder Mode
For the programming of ChPr by using a DMX controller, besides the 10 channels necessary to control the unit a further 3 DMX
channels are needed.
So that in RECORDER mode ( via DMX) the unit will need 13 channels to be correctly programmed.
The three new DMX channels are:
DMX channel 11 = SCENES channel
From 0-10 = no function ( r001)
From 11-255 are displayed the programmable scenes (max 16 scenes from M001 to M0016 )
DMX channel 12 = EDIT channel:
-From 0-19 = no function
-From 20-234 the unit runs the configuration given by the received input DMX values.
With the channel SCENES it is possible to pass from one step to the next while with REC it is possible to record the selected scene.
-From 235-255 the unit runs the configuration given by the received input DMX values closing the sequence as last scene.
With the channel REC it is possible to record the selected scene as last scene.
DMX channel 13 = RECORDING channel
Records the set scene with a variation between 0 to 255 (the display flashes indicating that the scene has been recorded).It is
advised that you keep the REC channel set to 0 and to run through the 255 only once you have decided to save the scene. If ChPr is
not closed, by indicating the last scene ( Edit channel between 235-255), in playback mode all 16 scenes will be played through even
if not programmed

Up-DownENTER
ENTER
MENU Up-Down ENTER
SLAVE MODE
Slave mode for ChPr program.
All slave units will be
synchronised with master unit,
running their own Chpr program.
Up-DownENTER
MENU Up-Down ENTER
INFRARED MODE
Infrared remote control.
By activating Ir MODE, it will be
possible to navigate trought the
unit functions by using the D.T.S.
infrared remote control.
D.T.S. Code :0514L008
(Not implemented on TITAN
SOLO)
NOTE:
External infrared remote sensor
needed.
D.T.S. Code :03.LA.016
(Not implemented on TITAN
SOLO)
ENTER
ENTER
Up-Down
ENTER
ENTER
ENTER
LIFE TIME
This menu show the total UNIT life tine
and the RGBA life time
DEFAULT
To restore default settings
Up-Down
Up-Down
Up-Down
MENU
MENU
MENU
ENTER
TEST MODE
RGB colours test with rainbow
Up-Down
MENU
EMERGENCY
Emergency operating mode.
By setting Emergency mode, it
will be possible to select one of
the 16 preprogrammed WHITE
cues that will then run if DMX
signal is missing or not available.
Usefull for Emergency EXIT
ilumination on public areas.
Up-Down
MENU Up-DownENTER Up-DownENTER ENTER
ENTER
Default = OFF
Default = White 1
Default = 255
ENTER
SOFTWARE
Software version
ENTER
TEMPERATURE
Power supply temperature
visualisation (°C)
Up-Down
MENU
18 TITAN SOLO

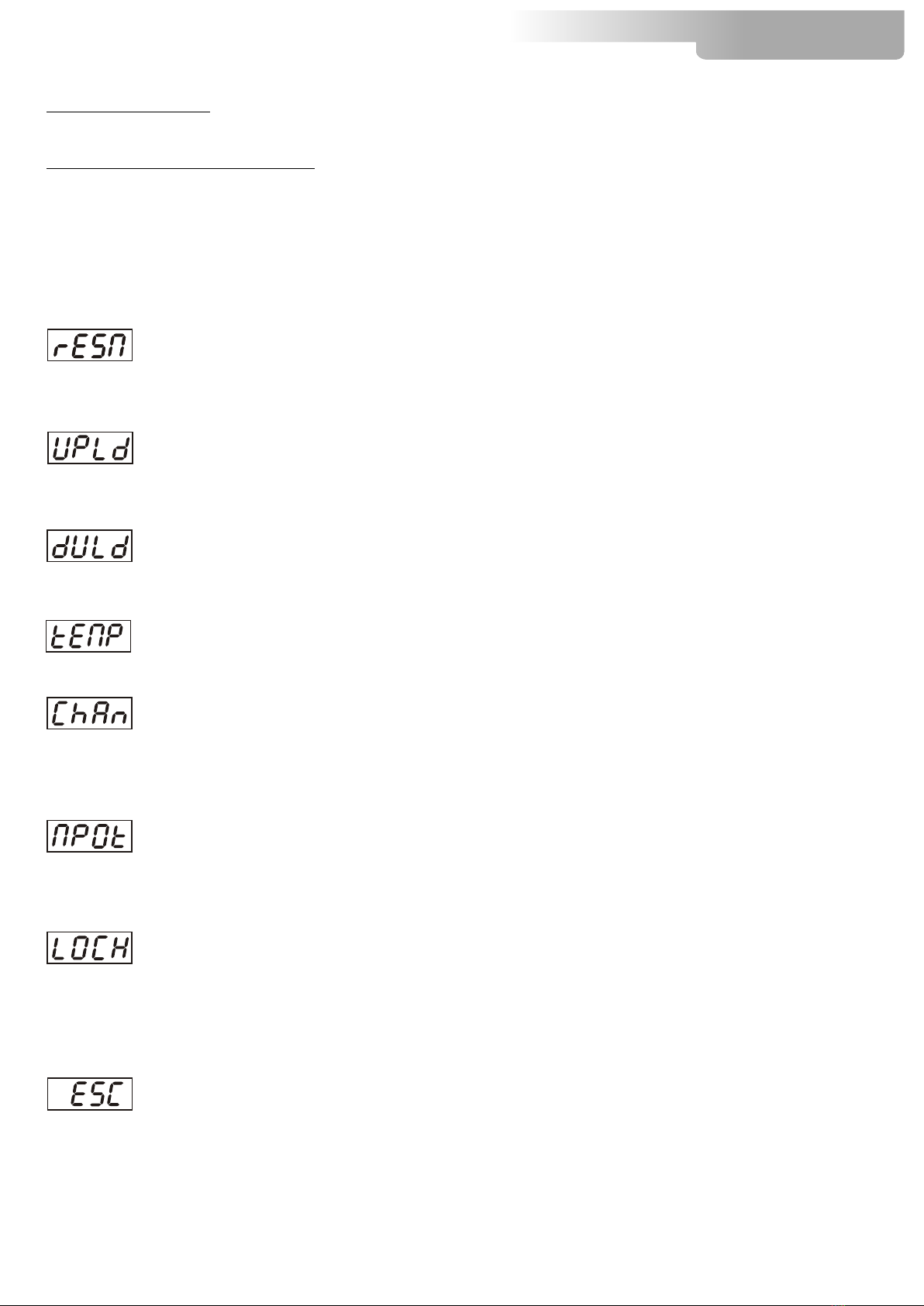

HIDDEN MENU
For technical personnel only
To operate this menu:
-Connect the unit to the main
-While reset is running, press the MENU and ENTER keys at the same time.
Reset EEPROM (Reset all settings)
ATTENTION: by pressing this key you must repeat all previous
calibrations
EXIT
Exit from hidden menu.
UPLOAD
This menu allow to upgrade the unit’s software by computer
DOWNLOAD
This menu allow to save unit’s programs into computer
CHANNELS
This menu allow to set 3 channels or 4 channels LEDs output mode
3 LEDs channels output mode = TITAN SOLO FULL COLOUR
4 LEDs channels output mode = TITAN SOLO RGB / TITAN SOLO WHITE
MAXIMUM LEDs OUTPUT POWER
This menu allow to set the maximum power available on LEDs (1-100 %)
TEMPERATURE
This menu allow to set the maximum operating temperature before LEDs
reduction current control will be activated
19 TITAN SOLO
MAXIMUM LEDs OUTPUT POWER
This menu allow to ativation / deactivation the adjustment lock set.
Entering the code enabling the menu item LOCH(100) after that you can enable
or dasable the adjustment lock

AUTOMATIC OPERATION (AUTO):
TITAN SOLO can work in automatic mode without a DMX controller. First of all connect the projectors
with a DMX cable (picture below). A maximum quantity of 32 slave units can be connected to the same
Master unit.
To activate Auto mode on the first unit, use the menu to run through the different modes until AUTO
appears on the display, and press enter.
Now it is possible to choose between the different pre-programmed games (CUPr-RAIn-CU01/CU16-
Wh01/Wh16) or ChPr which is user programmable through REC mode. To confirm game activation press
ENTER on the selected GAME.
CUPr-RAIn-CU01/CU16-Wh01/Wh16
The first unit that will work as a Master should be placed in Automatic mode (AUTO), the other units
have to be placed in 9 channels DMX mode (MODE 9CH) for TITAN SOLO FULL COLOUR or in 10
channels DMX mode (MODE 10 CH) for TITAN SOLO RGB / WHITE and the DMX address should be set
at A001. For RaIn (rainbow) game it is possible to select the speed for the colour changhing (SPEE).
DIMMER function (in AUTOMATIC MODE) is active for all the programs.
SHUTTER function (in AUTOMATIC MODE) is active only for CU01/CU16 and Wh01/Wh16 macros.
ChPr MASTER/SLAVE
The first unit that will function as a Master must be set to Automatic mode (AUTO), the other units must
be set to Slave mode (SLAV), selectable through the menu. In this way all the Slave units will be
synchronised with the master and running their own ChPr game.
On the master unit it is possible to vary the Speed time (SPEE) for the colour changhing and the Wait
time (UAIt) between the steps.
Speed time and Wait time on the Master, have priority on the slave units.
NB: It is possible to run GA.Pr on the Slave units even though these do not have GA.Pr programmed.
You can do this by setting the units to 9 ch DMX MODE for TITAN SOLO FULL COLOUR or 10 channels
DMX mode for TITAN SOLO RGB / WHITE and selecting DMX address A001.
Rec mode
It is possible to program your own game on the TITAN SOLO that will then run it in AUTO mode (ChPr).
Each unit can have its own programmed game.
In REC mode the unit must be set to 9 channels mode for TITAN SOLO FULL COLOUR and 10 channels
mode for TITAN SOLO RGB / TITAN SOLO WHITE.
To program the ChPr by using a DMX controller, you need 3 more channels in addition to the 9/10
channels necessary to control the unit.
So that in RECORDER mode (via DMX) the unit will need 12/13 DMX channels to be correctly
programmed.
MASTER SLAVE 1 SLAVE 2 SLAVE 3 SLAVE 32
OUT IN OUT IN OUT IN OUT IN
20 TITAN SOLO
