1 DMX Signal Connection
• The unit operates using the digital USITT DMX512 signal.
• Connection between the light controller and the projector, or between projectors, must be carried out using a
two-pair screened ø 0.5 mm cable, and a XLR 5 or 3 pins connector.
• Ensure that the conductors do not touch each other. Do not connect the ground cable to the XLR chassis.
The housing of the plug must be isolated.
• Connect the light controller to the DMX IN panel connector of the projector; to create a link to the next
projector, simply connect the DMX OUT plug of the former to the DMX IN plug of the new fixture in line.
Following this procedure, all the projectors will be cascade connected.
PS. If the display showing the DMX address flashes, then one of the following errors has occurred:
- DMX signal not present
- DMX reception problem
The use of a DMX terminator is recommended.
The DMX terminator is a male XLR 3- or 5-pins connector with a 120 Ωresistor between pin 2 and pin 3.
The DMX terminator must be plugged in into the last unit’s DMX OUT panel connector of the DMX line.
Place a 120 Ωresistor between pin 2 and 3 of a male XRL
connector;
Plug the resistor into the DMX OUT panel connector of the last unit
connected to the DMX line.
1.1 DMX Modes
ALCHEMY 5 can be used in five different DMX modes:
CCT (Default)
Advanced
Basic
Expo
CMY Emulation

RDM – DMX – Manual Ver. 1.08 5 di 58
ALCHEMY 5
e.g., when using the unit in “CCT” (Default) mode (20 DMX channels), set the following addresses on the light
desk:
Projector 1 A001
Projector 2 A021 If you want to select the next projector, just add “20” to the former DMX address
Projector 3 A041
….. A….
Projector 6 A101
1.2 Setting Up the DMX Address
1 Press the UP and DOWN key until you reach the desired DMX address. The numbers on the display will
start flashing (new DMX address hasn't yet been set).
2 Press ENTER to confirm your selection. The numbers on the display will stop flashing; the projector is now
set to the new DMX address.
TIP: if you keep pressed down the UP or DOWN keys, address scrolling will be quicker allowing thus for a
faster selection.
2 Art-Net / sACN Signal Connection
ALCHEMY 5 can be controlled through Art-Net / sACN signals.
Connection between the light controller and the projector must be carried out using a category 5 network cable
and a standard RJ45 connector.
2.1 Direct Ethernet Operation
For direct Ethernet operation, connect the light controller’s Art-Net / s-ACN output signal via Ethernet switch to
each unit’s etherCON RJ45 IN connector.
For each unit, scroll to “NETWORK” menu (refer to the paragraph “Display Function” for further details):
Inside the “INPUT” menu, select “Art-Net” or “sACN” as input control signal.
Inside the “IP ADDRESS MODE” menu, select “Default” or “Static” mode.
Inside the “ETH TO DMX” menu, select ON.
Set the IP address and Net Mask. IP address must be different for each unit on a network.
Set the Art-Net or sACN Universe.

RDM – DMX – Manual Ver. 1.08 6 di 58
ALCHEMY 5
DMX address: 1 DMX address: 21 DMX address: 41
IP address: 002.214.192.007 IP address: 002.214.192.008 IP address: 002.214.192.009
Universe: 1 Universe: 1 Universe: 1
2.2 Ethernet to RDM/DMX Operation
For Ethernet to RDM/DMX operation, connect the light controller’s Art-Net / s-ACN output signal via Ethernet
switch to the etherCON RJ45 input connector of the first unit only.
In this configuration, the first unit works as an Ethernet-to-DMX converter and sends RDM/DMX signal to its
DMX output connector. All the other units must be connected as a DMX chain with standard DMX settings.
Only for the first unit, scroll until reaching “NETWORK” menu (refer to DISPLAY FUNCTIONS for details):
Inside the “INPUT” menu, select “Art-Net” or “sACN” as input control signal.
Inside the “IP ADDRESS MODE” menu, select “Default” or “Static” mode.
Inside the “ETH TO DMX” menu, select ON.
Set the IP address and Net Mask. IP address must be different for each unit on a network.
Set the Art-Net or sACN Universe.
DMX address: 1 DMX address: 21 DMX address: 41
IP address: 002.214.192.007
Universe: 1
DMX address: 1 DMX address: 21 DMX address: 41
IP address: 002.214.192.008
Universe: 2

RDM – DMX – Manual Ver. 1.08 7 di 58
ALCHEMY 5
The use of a DMX terminator is recommended.
Please refer to page 4 for further information DMX terminators.
3 RDM Functions
By using a RDM controller, it is possible to read/set DMX addresses, DMX modes and other parameters.
ALCHEMY 5 accepts the following RDM commands:
RDM Device Model ID: 0x0016
RDM PID DESCRIPTION RDM PID VALUE GET SET
Category - Network Management
DISC_UNIQUE_BRANCH 0x0001
DISC_MUTE 0x0002
DISC_UN_MUTE 0x0003
Category - Status Collection
STATUS_MESSAGES 0x0030 X
STATUS_ID_DESCRIPTION 0x0031 X
Category - RDM Information
SUPPORTED_PARAMETERS 0x0050 X
PARAMETERS_DESCRIPTION 0x0051 X
Category - Product Information
DEVICE_INFO 0x0060 X
DEVICE_MODEL_DESCRIPTION 0x0080 X
MANUFACTURER_LABEL 0x0081 X
DEVICE_LABEL 0x0082 X X
SOFTWARE_VERSION_LABEL 0x00C0 X
Category - DMX512 Setup
DMX_PERSONALITY 0x00E0 X X
DMX_PERSONALITY_DESCRIPTION 0x00E1 X
DMX_START_ADDRESS 0x00F0 X X
Category - Sensors
SENSOR_DEFINITION 0x0200 X
SENSOR_VALUE 0x0201 X X
Category - Power/Lamp Settings
DEVICE_HOURS 0x0400 X
LAMP_HOURS 0x0401 X
Category - Display Settings
DISPLAY_INVERT 0x0500 X X
Category - Configuration
PAN_INVERT 0x0600 X X
TILT_INVERT 0x0601 X X
Category - Control
IDENTIFY_DEVICE 0x1000 X X

RDM – DMX – Manual Ver. 1.08 8 di 58
ALCHEMY 5
RDM PID DESCRIPTION RDM PID VALUE GET SET
Category - Dimmer Settings
CURVE 0x0343 X X
CURVE_DESCRIPTION 0x0344 X
OUTPUT_RESPONSE_TIME 0x0345 X X
OUTPUT_RESPONSE_TIME_DESCRIPTION 0x0346 X
MODULATION_FREQUENCY 0x0347 X X
MODULATION_FREQUENCY_DESCRIPTION 0x0348 X
Category - Custom PID
ETHERNET_TO_DMX 0x8000 X X
INPUT_PRIORITY 0x8001 X X
DISPLAY_STANDBY 0x8002 X X
FURTHER RDM MESSAGES:

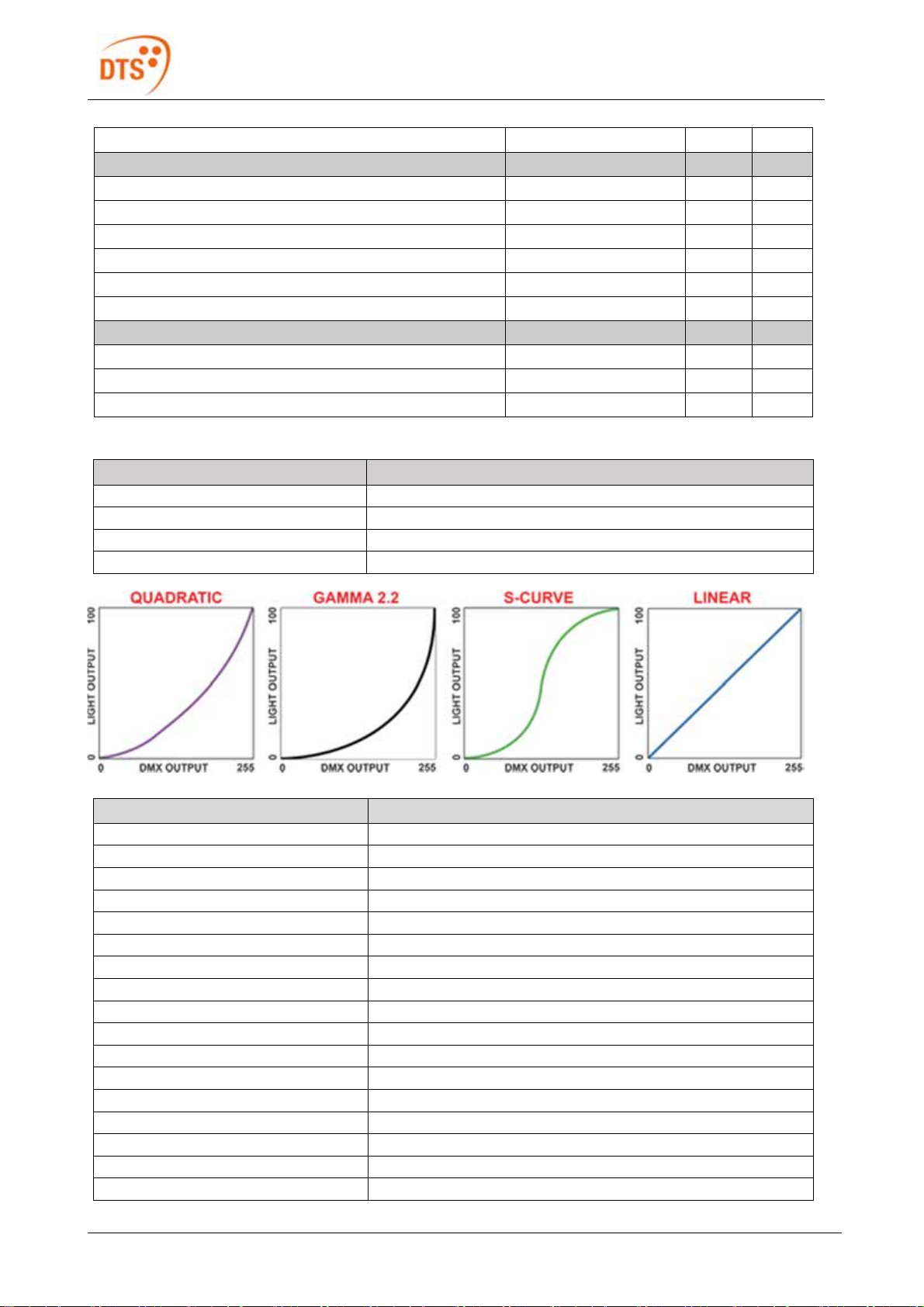

CURVE CURVE DESCRIPTION
1 LINEAR
2 QUADRATIC (default)
3 GAMMA 2.2
4 S-CURVE
OUTPUT RESPONSE TIME OUTPUT_RESPONSE_TIME_DESCRIPTION
1 SMOOTH OFF
2 SMOOTH 1 ( 25 ms)
3 SMOOTH 2 ( 50 ms)
4 SMOOTH 3 ( 75 ms)
5 SMOOTH 4 (100 ms) (default)
6 SMOOTH 5 (125 ms)
7 SMOOTH 6 (150 ms)
8 SMOOTH 7 (175 ms)
9 SMOOTH 8 (200 ms)
10 SMOOTH 9 (225 ms)
11 SMOOTH 10 (250 ms)
12 SMOOTH 11 (275 ms)
13 SMOOTH 12 (300 ms)
14 SMOOTH 13 (325 ms)
15 SMOOTH 14 (350 ms)
16 SMOOTH 15 (375 ms)
17 SMOOTH 16 (400 ms)

RDM – DMX – Manual Ver. 1.08 9 di 58
ALCHEMY 5
OUTPUT RESPONSE TIME OUTPUT_RESPONSE_TIME_DESCRIPTION
18 SMOOTH 17 (425 ms)
19 SMOOTH 18 (450 ms)
20 SMOOTH 19 (475 ms)
21 SMOOTH 20 (500 ms)
FURTHER RDM MESSAGES:
MODULATION FREQUENCY MODULATION FREQUENCY DESCRIPTION
1 610 Hz
2 800 Hz
3 1.000 Hz (default)
4 1.500 Hz
5 2.000 Hz
6 2.500 Hz
7 3.000 Hz
8 3.500 Hz
9 4.000 Hz
10 4.500 Hz
11 5.000 Hz
RDM MANUFACTURER’S SPECIFIC PIDs:
RDM CUSTOM PID DESCRIPTION
0x8000_ETHERNET_TO_DMX Set parameter NETWORK - ETH TO DMX 0 = OFF (default)
1 = ON
0x8001_INPUT_PRIORITY Set parameter NETWORK - PRIORITY 0 = DMX PORT (default)
1 = ETHERNET PORT
0x8002_DISPLAY_STANDBY
Set parameter DISPLAY - STANDBY
0 = DISABLED (default)
1 = ENABLED
2 = FORCED ENABLED
RDM STATUS MESSAGE IDs:
Status Message ID Data Value 1 Data Value 2 Status ID Description
0x8000
ERROR PAN MOTOR/ENCODER
0x8001
ERROR PAN LOCKED
0x8002
ERROR PAN ZERO SENSOR
0x8003
ERROR TILT MOTOR/ENCODER
0x8004
ERROR TILT LOCKED
0x8005
ERROR TILT ZERO SENSOR
0x8006
ERROR DMX ADDRESS
0x8007
ERROR PARAMETERS MEMORY
0x8008
ERROR SUPPLY VOLTS TOO LOW
0x8009
ERROR SUPPLY VOLTS TOO HIGH
0x800A
ERROR BUS ARTNET CARD
0x800B
ERROR BUS LED DRIVER CARD
0x800C card number ERROR BUS MOTORS CARD %d
0x8013
ERROR ZOOM

RDM – DMX – Manual Ver. 1.08 10 di 58
ALCHEMY 5
Status Message ID Data Value 1 Data Value 2 Status ID Description
0x801B
ERROR EFFECTS
0x801C prism number ERROR PRISM %d
0x801D prism number ERROR PRISM %d INDEX
0x801F
ERROR TEMPERATURE LED MODULE
0x8020 sensor number ERROR TEMPERATURE LED DRIVER %d
0x8021 ERROR TEMPERATURE MICRO
0x8022 ERROR RED
0x8023 ERROR GREEN
0x8024 ERROR BLU
0x8025 ERROR AMBER
0x800E ERROR CYAN
0x8026 ERROR LIME
0x8028 1=data not present ERROR COLOUR DATA INTEGRITY CODE %d
(In case of LED Driver PCB replacement,
these RDM Status Message IDs will be shown.)
2=read error
3=incomplete data
4 Updating the Firmware
In order to update to the latest firmware release of the ALCHEMY 5, you will need:
DTS firmware uploader dongle (code 03.LA.206).
“DTS Firmware Upgrade Utility v.2.02” program installed on PC (Windows OS).
Latest firmware release available for the ALCHEMY 5 unit.
Updating to the latest firmware release:
To perform the update, please follow the procedure as described below:
1 Connect the DTS Firmware Uploader Dongle to a spare USB port on the PC.
2 Connect the unit’s DMX IN to the DTS Firmware Uploader Dongle’s DMX OUT with a standard DMX cable
and turn on the fixture.
3 Send the new firmware release into the unit by using “DTS Firmware Upgrade Utility v.2.02” program. At
the end of the procedure, the unit will commence a reset.
For more information, please refer to an authorized DTS service center.

RDM – DMX – Manual Ver. 1.08 11 di 58
ALCHEMY 5
5 Display Functions
The ALCHEMY 5 display panel shows all the available control menus.
By selecting the available functions on these menus, you will be able to change the fixture’s settings and
behavior.
Beware that changing these settings may vary the operating functions of the unit so that it may not respond
correctly to the signal given to it. Carefully read the instructions and tables below before carrying out any
variations or selections.

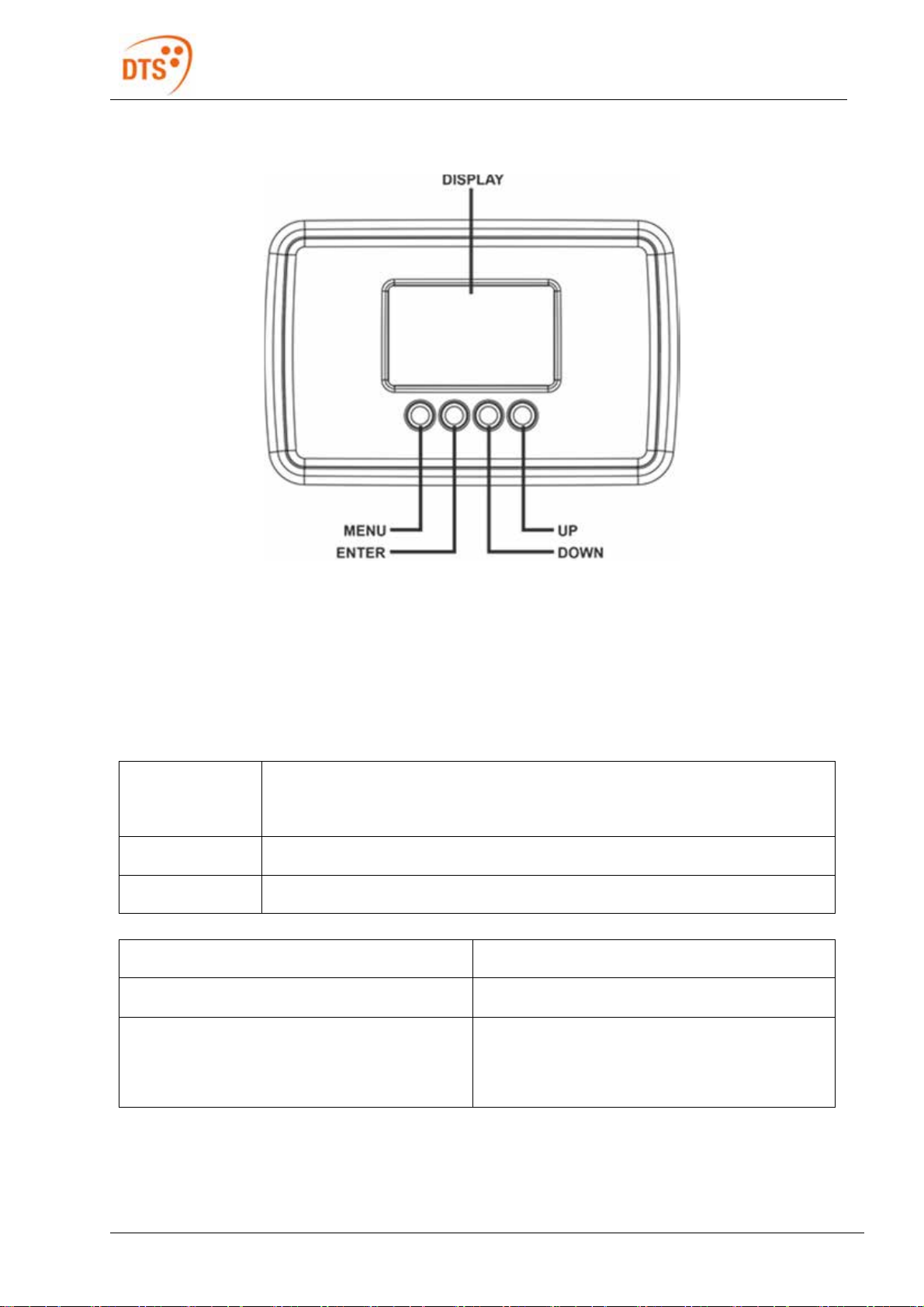

MENU
To access the control menus in the display panel.
To return to the previous level in the menu structure without making a
change.
To exit the menus.
ENTER
To select any required menu.
To confirm any changes.
UP / DOWN
To navigate the menus structure.
To scroll between any value.
Motors Firmware Release
LED FIRMWARE RELEASE 14 1.02
RDM Device Model ID 0x0016
DMX Personality IDs
0x01 “CCT”
0x02 “ADVANCED”
0x03 “BASIC”
0x04 “EXPO”
0x05 “CMY EMULATION"

RDM – DMX – Manual Ver. 1.08 12 di 58
ALCHEMY 5
“Display Key-Lock” Function
This function can be enabled/disabled by contemporary pressing ENTER + DOWN keys for 3 seconds.
“Zero Skip” Function
“Zero skip” function can be activated by contemporary pressing MENU + UP during initial reset.
This function allows to have the display ON and all motors OFF. This can be useful when the unit, while still
being inside the flightcase, needs to be DMX-addressed or when its other parameters need to be set.
MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION
NETWORK
INPUT
DISABLED
Allows to disable Ethernet
operation (Default).
ARTNET
Allows to select Art-Net as input
control signal protocol.
SACN
Allows to select sACN as input
control signal protocol.
IP ADDR MODE DEFAULT
Allows to select the mode to set
the IP address and the Net
Mask.
Fixed IP address with manual
setting of first byte only and
fixed Net Mask (Default).
STATIC
Manual setting of IP address
and Net Mask.
DEFAULT IP IP 2.214.192. 7
MASK 255. 0. 0. 0
Fixed IP address and Net
Mask. It is possible to set only
first byte of the IP address.
IP address must be different
for each unit on a network.
ARTNET UNIV. 00000 - 32767
Allows to set the Art-Net
Universe (range 0÷32767).
SACN
UNIVERSE 00001 - 63999
Allows to set the sACN
Universe (range 1÷63999).

RDM – DMX – Manual Ver. 1.08 13 di 58
ALCHEMY 5
MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION
PRIORITY DMX512
Allows to set the priority
between input control signals
when the unit is connected via
DMX and via ETHERNET at the
same time.
RDM / DMX signal has the
priority on the Art-Net / sACN
signal (Default).
ETHERNET
Art-Net / sACN signal has
the priority on the DMX signal.
ETH TO DMX
OFF
Allows to enable ETHERNET to
RDM/DMX operation.
Default = OFF.
ON
In this configuration the first unit
works as an Ethernet to DMX
converter and sends RDM/DMX
signal to its DMX output
connector.
NO SIGNAL KEEP LAST
Allows to set the desired unit’s
behavior in case Art-Net or
sACN signal is missing or not
available.
Keep last valid Art-Net or
sACN signal (Default).
BLACKOUT
Black-out.
PAN
DIRECTION NORMAL
Allows for selection of the Pan
movement.
Normal or Reverse.
Normal (Default).
REVERSE
TILT
DIRECTION NORMAL
Allows for selection of the Tilt
movement.
Normal or Reverse.
Normal (Default).
REVERSE
ZOOM
DIRECTION NORMAL
Allows for selection of the Zoom
movement.
Normal or Reverse.
Normal (Default).
REVERSE
OPERATING
MODE SILENT
Reduced Pan-Tilt-Zoom-Fans
speed for low noise operation
(Default).
STANDARD
Pan-Tilt-Zoom-Fans standard
speed.
FAN MODE
(FAN MODE
will work
relatively to
OPERATING
MODE)
CONSTANT
Fans speed is constant both
in SILENT or STANDARD
operating mode (Default).
AUTOMATIC
Automatic fans speed.
If LED temperature <40°C:
fans OFF.
If LED temperature >40°C:
If OPERATING MODE =
SILENT, fans speed is
increased within the values
range set in SILENT mode.
If OPERATING MODE =
STANDARD, fans speed is
increased within the values
range set in STANDARD mode.
DISPLAY
FLIP
AUTO
Reverses display's reading
depending on the mounting
position. Automatic, on the
ground or suspended.
Default = AUTO
ON THE GROUND
SUSPENDED
STANDBY
DISABLED
Display stand-by disabled.
(Default)
ENABLED
Display goes OFF after 5
seconds.
FORCED ENABLED Display forced OFF even if
control signal is missing or error
messages are shown.

RDM – DMX – Manual Ver. 1.08 14 di 58
ALCHEMY 5
MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION
CONTRAST 20 - 35
Display contrast regulation
(range 20 ÷ 35).
Default = 25
DMX MODE
Personality
CCT
20 channels
Allows to select CCT mode
(20 DMX channels). Default.
ADVANCED
28 channels
Allows to select ADVANCED
mode (28 DMX channels).
BASIC
23 channels
Allows to select BASIC mode
(23 DMX channels).
EXPO
13 channels
Allows to select EXPO mode
(13 DMX channels).
CMY
EMULATION
23 channels
Allows to select CMY
EMULATION mode (23 DMX
channels).
NO DMX
ACTION
KEEP LAST
DMX
Allows to set the desired unit’s
behavior in case DMX signal is
missing or not available.
Keep last valid DMX signal
(Default).
PROGRAM
1 - 48 1 - 48 48 pre-programmed steps.
Speed time values (range 0.5x -
3x) selectable by user.
Default = 1x
SINGLE CUE
RESTORE DEF. To restore to default parameter
settings.
PAN MSB 0 - 255 Fixed cue with values
selectable by user.
Default = 128
PAN LSB 0 - 255 Default = 128
TILT MSB 0 - 255 Default = 128
TILT LSB 0 - 255 Default = 128
SPEED MOV. 0 - 255 Default = 0
DIMMER MSB 0 - 255 Default = 255
DIMMER LSB 0 - 255 Default = 255
SHUTTER 0 - 255 Default = 15
CCT 0 - 255 Default = 0
GEL LIBRARY 0 - 255 Default = 0
RED 0 - 255 Default = 255
GREEN 0 - 255 Default = 255
BLUE 0 - 255 Default = 255
AMBER 0 - 255 Default = 255
CYAN 0 - 255 Default = 255
LIME 0 - 255 Default = 255
FROST/COL. 0 - 255 Default = 0
BEAM SHAPER 0 - 255 Default = 0
BEAM SHP R-I 0 - 255 Default = 0
ZOOM 0 - 255 Default = 128
BLACKOUT
Black-out.
RESET BY
DMX
ENABLED
Reset via DMX enabled
(Default).
DISABLED
Reset via DMX disabled.
NOW
Instant unit motors reset.
LED SMOOTH OFF - 20
Allows to select the value of
delay (in ms) for DIMMER
channel reaction to DMX
dimming command.
OFF = Instant response.
4 = 100 ms smooth response
(Default).
20 = 500 ms smooth response.
GAMMA CORR. QUAD 2.0 Allows to set quadratic
current output for LED
(Default).

RDM – DMX – Manual Ver. 1.08 15 di 58
ALCHEMY 5
MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION
2.2
Allows to set gamma curve 2.2
current output.
S-CURVE
Allows to set S-curve to
emulates light intensity
characteristics of the tungsten
halogen lamps.
LINE
Allows to set linear light output.
FREQUENCY 610 - 5000 HZ
Allows to adjust the PWM
frequency value (Hz) in order to
reduce flickering in the process
of camera recordings.
Range = 610 Hz – 5 KHz
Default = 1000 Hz
TUNGSTEN
EMU.
DISABLED
Allows to enable Tungsten
Emulation. Variation in the
dimmer intensity will affect CCT
values.
Disabled (Default).
ENABLED
CROSSFADE
INTERMEDIATE
Allows to set Crossfade
Intermediate for ‘GELS X-
FADE’ channel 12 of
“ADVANCED” DMX mode
(Default).
TRANSITION
Allows to set Crossfade
Transition for ‘GELS X-FADE’
channel 12 of “ADVANCED”
DMX mode.
“GAMMA CORR.” graphics:
“CROSSFADE” GRAPHICS:
MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION
SYSTEM INFO
SOFTWARE
ALCHEMY 5
16 SEPT 2020
MOTOR: V.14
LED: V.1.02
Unit model, motors firmware
release date,
Motors board and LED Driver
board firmware release.*
TEMPERATURES
LED: 041°C
DRV-1: 043°C
DRV-2: 044°C
MICRO: 040°C
LED: LED temperature
monitoring.
DRV-1: output 1 and output 2 of
LED Driver board temperature
monitoring.
DRV-2: output 3 and output 4 of
LED Driver board temperature
monitoring.
MICRO: Micro controller
temperature monitoring.

RDM – DMX – Manual Ver. 1.08 16 di 58
ALCHEMY 5
MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION
TIME COUNTERS
UNIT: 0082H
DRIVER: 0080H
RED: 0045H
GREEN: 0068H
BLUE: 0023H
AMBER: 0037H
CYAN: 0067H
LIME: 0058H
Unit, LED Driver board and LED
channels life time.*
ADDRESSES RDM:
0710:00011407 RDM ID.
RESERVED ENTER CODE 0 – 255
(code 100)
PAN LOCK NO Lock the Pan to the desired
value.
NO = Default.
YES
TILT LOCK NO Lock the Tilt to the desired
value.
NO = Default.
YES
PAN FREE NO Remove power to Pan motor.
NO = Default.
YES
TILT FREE NO Remove power to Tilt motor.
NO = Default.
YES
LOCK
DETECTOR
ON
Allows to activate the Lock
detector on Pan and Tilt.
If for any reason there is
something blocking the
movement for Pan&Tilt motors
during the initial reset (example
unit into the flight case and
power connected), it
automatically will stop to reset
Pan&Tilt motors after 5 seconds
from the startup and a warning
message (Pan locked-Tilt
locked) will appear on unit
display.
ON = Default.
OFF
REBOOT
Unit reboot without needing of
turning OFF the unit.
EXIT TO MAIN Exit from Reserved menu.
DEFAULT
To restore factory settings.
MANUAL
CONTR.
RESET HEAD MOTORS To reset head motors only.
PAN TILT To reset Pan and Tilt only.
ALL MOTORS To reset all motors.
RESTORE DEF. To restore parameters default
settings.
PAN MSB 0 - 255 Manual mode with functions
value selectable by user.
Default = 128
PAN LSB 0 - 255 Default = 128
TILT MSB 0 - 255 Default = 128
TILT LSB 0 - 255 Default = 128
SPEED MOV. 0 - 255 Default = 0
DIMMER MSB 0 - 255 Default = 255
DIMMER LSB 0 - 255 Default = 255
SHUTTER 0 - 255 Default = 15
CCT 0 - 255 Default = 0
GEL LIBRARY 0 - 255 Default = 0
RED 0 - 255 Default = 255
GREEN 0 - 255 Default = 255
BLUE 0 - 255 Default = 255
AMBER 0 - 255 Default = 255
CYAN 0 - 255 Default = 255
LIME 0 - 255 Default = 255
FROST/COL. 0 - 255 Default = 0
BEAM SHAPER 0 - 255 Default = 0

RDM – DMX – Manual Ver. 1.08 17 di 58
ALCHEMY 5
MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION
BEAM SHP R-I 0 - 255 Default = 0
ZOOM 0 - 255 Default = 128
* Refer to User Manual for Motors and LED Driver PCBs details.
6 Error Messages
ERROR SHOWN ON DISPLAY APPEARS WHEN
PAN -Pan motor fault
-Pan encoder fault
-Pan motor driver on Pan&Tilt PCB fault
-Wiring connection between Pan encoder and Pan&Tilt PCB fault
PAN LOCKED
-Pan locked
-Pan motor fault
-Pan encoder fault
-Pan motor driver on Pan&Tilt PCB fault
-Wiring connection between Pan encoder and Pan&Tilt PCB fault
TILT -Tilt motor fault
-Tilt encoder fault
-Tilt motor driver on Pan&Tilt PCB fault
-Wiring connection between Tilt encoder and Pan&Tilt PCB fault
TILT LOCKED
-Tilt locked
-Tilt motor fault
-Tilt encoder fault
-Tilt motor driver on Pan&Tilt PCB fault
-Wiring connection between Tilt encoder and Pan&Tilt PCB fault
PAN ZERO SENSOR LINE -Pan magnet missing
-Pan hall sensor PCB fault
-Wiring connection between Pan hall sensor PCB and Pan&Tilt PCB fault
TILT ZERO SENSOR LINE -Tilt magnet missing
-Tilt hall sensor PCB fault
-Wiring connection between Tilt hall sensor PCB and Pan&Tilt PCB fault
TEMP. LED MOD. LED module temperature detected under -10°C or over 80°C.
Unit immediately goes in black-out.
TEMP. LED DRV1 Output from 1 to 4 of LED Driver PCB* temperature detected under -10°C
or over 90°C.
Unit immediately goes in black-out.
TEMP. LED DRV2 Output from 5 to 8 of LED Driver PCB* temperature detected under -10°C
or over 90°C.
Unit immediately goes in black-out.
TEMP. LED MICRO Micro controller on LED Driver PCB* temperature detected under -10°C or
over 80°C.
Unit immediately goes in black-out.
R/G/B/A/C/L OPEN
(not yet implemented) LED channel in open circuit.
Unit immediately goes in black-out.
R/G/B/A/C/L SHORT
(not yet implemented) LED channel in short circuit.
Unit immediately goes in black-out.
SUPPLY VOLTS TOO LOW PCBs input voltage <46,5Vdc.
SUPPLY VOLTS TOO HIGH PCBs input voltage >49,5Vdc.
BUS 5 MOTORS CARD -Pan&Tilt PCB driver fault
-5 Motors PCB driver fault
-5 Motors PCB input voltage missing
-Internal Bus wiring connection fault
BUS LED DRIVER CARD -Pan&Tilt PCB driver fault
-LED Driver PCB driver fault
-LED Driver PCB input voltage missing
-Internal Bus wiring connection fault
BUS ARTNET CARD -Pan&Tilt PCB driver fault
-Art-Net PCB driver fault
-Art-Net PCB input voltage missing
-Wiring connection between Art-Net PCB and Pan&Tilt PCB fault
ZOOM DX
OR RESET LINE 4
-Zoom DX motor fault
-Zoom DX motor driver on 5 Motors PCB fault
-Zoom DX magnet missing
-Zoom DX hall sensor PCB fault
ZOOM SX
OR RESET LINE 3
-Zoom SX motor fault
-Zoom SX motor driver on 5 Motors PCB fault
-Zoom SX magnet missing
-Zoom SX hall sensor PCB fault

RDM – DMX – Manual Ver. 1.08 18 di 58
ALCHEMY 5
ERROR SHOWN ON DISPLAY APPEARS WHEN
EFFECTS
OR RESET LINE 2
-Effects wheel motor fault
-Effects wheel motor driver on 5 Motors PCB fault
-Effects wheel magnet missing
-Effects wheel hall sensor PCB fault
PRISM
OR RESET LINE 1
-Prism motor fault
-Prism motor driver on 5 Motors PCB fault
-Prism magnet missing
-Prism hall sensor PCB fault
PRISM INDEX
OR RESET LINE 5
-Prism Index motor fault
-Prism Index motor driver on 5 Motors PCB fault
-Prism Index magnet missing
-Prism Index hall sensor PCB fault
* Refer to User Manual for Motors and LED Driver PCBs details.
