DELTA 8 R
2

DELTA 8 R
3
INDEX
1- SYMBOLS 4
2- GENERAL WARNING 4
3- GENERAL WARRANTY CONDITION 4
4- TECHNICAL FEATURES 5
5- TECHNICAL SPECIFICATIONS 5
6- ACCESSORIES 7
7- IMPORTANT SAFETY INFORMATION 8
7.1 Fire prevention
7.2 Prevention of electric shock
7.3 Safety
7.4 Level of protection against the penetration of solid and liquid objects
8- VOLTAGE AND FREQUENCY 9
9- INSTALLATION 9
9.1 Safety cable
9.2 Protection against liquids
9.3 Movement
9.4 Risk of fire
9.5 Forced ventilation
9.6 Ambient temperature
10- MAINS CONNECTION 10
10.1 Protection
11- DMX SIGNAL CONNECTION 11
11.1 DMX Addresses
11.2 Selecting the DMX address
12- FIRMWARE UPDATING 12
13- DISPLAY FUNCTIONS 13
15- PERIODIC CLEANING 22
16- PERIODIC CONTROLS 22
17- DMX PROTOCOL 23
18- WIRING DIAGRAMS 27
14- AUTOMATIC OPERATION (AUTO) 21

1- SYMBOLS
Graphic symbols used on this manual
2- GENERAL WARNING
Read the instruction contained in this user manual carefully, as they give important information
regarding safety during installation , use and maintenance.
The device is not for domestic use and must be installed by a qualified electrician or experienced
person.
Always disconnect the device from the mains before replacing the lamp.
The lamp must be replaced if it has been damaged or deformed by prolonged use or overheating.
The device must always be equipped with an efficient ground connection.
3- GENERAL WARRANTY CONDITIONS
The unit is guaranteed for 36 months from the date of purchase against manufacturing material defects.
THIS SYMBOL INDICATES A HOT SURFACE
THIS SYMBOL INDICATES ELECTRIC SHOCK RISK
THIS SYMBOL INDICATES GENERAL RISK
THIS SYMBOL MEANS “DO NOT PLACE THE UNIT ON
INFLAMMABLE SURFACES”
0,5M THIS SYMBOL INDICATES THE MINIMUM DISTANCE TO
BE KEPT BETWEEN THE DEVICE AND THE LIT OBJECT
F
!
DELTA 8 R
4

4- TECHNICAL FEATURES
5- TECHNICAL SPECIFICATIONS
Overview
Applications
DELTA 8 R is ideal in various applications, such as: lighting shopping malls, libraries, museums,
exhibitions, clubs, restaurants, buildings, monuments, as well as special events, fashion displays, indoor
and outdoor.
LED technology
The DELTA 8 R is a self-contained high-output LED moving head projector suitable for lighting and
colouring large surfaces.
The DELTA 8 R provides a powerful colour synthesis engine: * 16 million colours (RGB, FULL COLOUR),
* linear colour temperature (2800°K to 6500°K).
The unit is available with interchangeable lenses sets offering a range of beam angles.
DELTA 8 RGB R: 108 x 1W P4 type RGB LEDs
DELTA 8 FULL COLOUR R: 36 Full Colour LEDs
DELTA 8 WHITE + AMBER R: 108 x 1W P4 type WHITE + AMBER LEDs
Delta 8 RGB R:108 x 1W P4 type RGB LEDs (36 Red, 36 Green, 36 Blue)
Delta 8 White + Amber R:108 x 1W P4 type White + Amber LEDs. (72 White, 36 Amber).
Delta 8 FULL COLOUR R: 36 x 3W P5 II Full colour LEDs
LEDs average lifespan: 100.000 hours
Colour temperature variable on a linear range (2800°K ÷ 6500°K)
No infrared emission; no ultraviolet emission
Optical units
4 interchangeable lenses sets available (Spot, Medium flood, Wide flood, Very wide flood)
User interface
OLED display
Independent operation
Fully programmable via built-in user interface
Master or Slave capability (chains of up to 32 interconnected units)
Remote control
Remotely controlled by cable or wireless (USITT DMX512)
USITT DMX 512 serial digital protocol (reception / transmission)
15 DMX channels
Protection
IP65 protection level
Head movements (horizontal / vertical axes)
Movement of the head on 3 axes: 280° horizontal (1,66 sec.) /180° vertical 1 ( 2,18 sec.) /
135° vertical 2; motorized movement on horizontal and vertical 1 axes
Power supply
Full range AC 90-260V, 50-60Hz power supply
Power consumption Delta 8 RGB R / Delta 8 White + Amber R:
* 90 V - 2,6 A - 240 W
* 120 V - 2 A - 240 W
* 230 V - 1 A - 240 W
* 260 V - 0,9 A - 240 W
DELTA 8 R
5

Power consumption Delta 8 FULL COLOUR R:
* 90 V - 3 A - 270 W
* 120 V - 2,5 A - 270 W
* 230 V - 1,17 A - 270 W
* 260 V - 1 A - 270 W
Movement of the head on 3 axes: 280° horizontal (1,66 sec.) /180° vertical 1 ( 2,18 sec.) /
135° vertical 2; motorized movement on horizontal and vertical 1 axes
Movements (horizontal/pan – vertical/tilt axes)
Thermal
Operating ambient temperature - 10° / + 40°
Finishes
Black or white finish
Certification and Safety
Certification CE;
LED Class
Class 2 LED product
Weight
24 Kg
Dimensions
Unit Dimensions (LxWxH)
430x285x570 mm
Weight:
24 Kg
Packaging Dimensions (LxWxH)
530
Weight:
x 500 x 660 mm
30 Kg
DELTA 8 R
6
430 mm
392 mm
570 mm
285 mm
144 mm
155mm
300 mm

6- ACCESSORIES
Optional (on request)
Lenses sets (black colour assembly)
Delta 8 RGB R / White + Amber R:
Lenses set Spot (cod. 03.LK021) ,Lenses set MEDIUM flood (cod. 03.LK.022), Lenses set WIDE flood
(cod. 03.LK.023), Lenses set VERY WIDE flood (cod. 03.LK.020)
Delta 8 FULL COLOUR R:
Lenses set Spot (cod. 03.LK098) ,Lenses set MEDIUM flood (cod. 03.LK.099), Lenses set WIDE flood
(cod. 03.LK.100), Lenses set VERY WIDE flood (cod. 03.LK.020)
XLR 5 Pins male cable connector (cod. 0508B028)
XLR 5 Pins female cable connector (cod. 0508B027)
As standard
• 2 x “C” Clamp GQUICK with “Fast Lock” connection 1/4 turn (max. load. 80Kg) (cod. 0521A014)
• ABS cover protection for Main AC and DMX cables on the base (cod. 0511C083)
• User’s manual
Flight cases
Flight case for 1 DELTA with no wheels (cod. 0521C029), Standard Flight case with wheels for 2 DELTA
(cod. 0521C030), Professional Flight case with wheels for 2 DELTA (cod. 0521C030.1)
Clamps / safety wires
• “C” Clamp G60 black (max. load 50Kg) (cod. 0521A004)
• “C” Clamp G60 chrome (max. load. 50Kg) (cod. 0521A004.20)
• “C” Clamp GQUICK with “Fast Lock” connection 1/4 turn (max. load. 80Kg) (cod. 0521A014)
• “C” Clamp G100 black / professional (max. load. 200Kg) (cod. 0521A015)
• Omega clamp with “Fast Lock” connection 1/4 turn 1 couple (2 pieces) (Cod. 02K00467)
• Safety wire (3mm x 60 cm), ring spring catch, max. capacity load 60Kg (cod. 0521A010)
Cables / connectors
Wireless DMX
• Wireless DMX Receiver Card with OUTDOOR IP65 omnidirectional 2dBi antenna included
(cod.03.LA.012)
•ANTENNA Outdoor 2dBi Omni-directional, radiation (HxV) 360°x360° (cod. 0508A040)
IR remote control for Delta 8 (cod. 0514L008)
DELTA 8 R
7

7- IMPORTANT SAFETY INFORMATION
7.1 Fire prevention:
-Never locate the fixture on any flammable surface.
-Minimum distance from flammable materials: 1 MT.
-Minimum distance from the closest illuminable surface: 0,5 MT.
-Replace any blown or damaged fuses only with those of identical value. Refer to the wiring diagram if
there is any doubt.
-Connect the projector to mains power via a thermal magnetic circuit breaker.
7.2 Prevention of electric shock:
-High voltage is present inside the unit. Unplug the unit prior to performing any function which involves
touching the inside of the moving head.
-The level of technology inherent in the DELTA 8 R requires the assistance of specialised personnel for all
servicing. Please refer to an authorised DTS service centre.
-A good earth connection is essential for proper functioning of the projector.
-Never connect the unit without proper earth connection.
-The fixture should be located in places with a good air ventilation.
7.3 Safety:
-The projector should always be installed with bolts, clamps and other tools that are capable of
supporting the weight of the unit.
-Always use a second safety cable to sustain the weight of the unit in case of the failure of the main
fixing point.
-The external surface of the unit, at various points, may exceed 70°C.
Never handle the unit until at least 10 minutes have elapsed since the
projector was turned off.
-Never install the fixture in an enclosed area lacking sufficient air flow. The ambient temperature should
not exceed 40°C.
7.4 Level of protection against the penetration of solid and liquid objects:
-The projector is classified as an ordinary appliance and its protection level against the penetration of
solid and liquid objects is IP 65.
0,5M
F
!
!
DELTA 8 R
8

8- VOLTAGE AND FREQUENCY
The DELTA 8 R can operate at 90-260 VOLT 50 or 60 Hz.
9- INSTALLATION
DELTA 8 R may be either floor or ceiling mounted.
For floor mounting installations, the DELTA 8 R is supplied with four rubber mounting feet on the base.
For ceiling mounted installations, we reccomend the use of appropriate clamps to fix the unit to the
mounting surface.
The supporting structure from which the unit is hung should be capable of bearing the weight of the
unit, as should any clamps used to hung it. The structure should also be sufficiently rigid so as not to
move or shake if moving head units are attached to it.
Two 1/4 turn Fast Locks connections placed in the base of the units allow to hang the DELTA 8 R by
using the Fast Lock ‘C’ clamps provided in the box.
.
9.1- Safety cable
We recommend the use of a safety chain/cord connected to the DELTA 8 R and to the suspension truss
in order to avoid the fixture accidentally falling should the main fixing point fail. Make sure that the iron
cable or chain can bear the weight of the entire unit.
You may attach the safety chain/cord to the attachment points (A) located on the base of the fixture, as
shown in the picture below.
9.2- Protection against liquids
The projector contains electric and electronic components which should under no circumstances come
into contact with oil, water or any other liquid. The proper unit functioning would be compromised
should this occur.
!
!
SAFETY CHAIN/CORD
DELTA 8 R
9
LOCK
SAFETY CHAIN/CORD
ATTACHMENT POINT
A

9.3- Movement

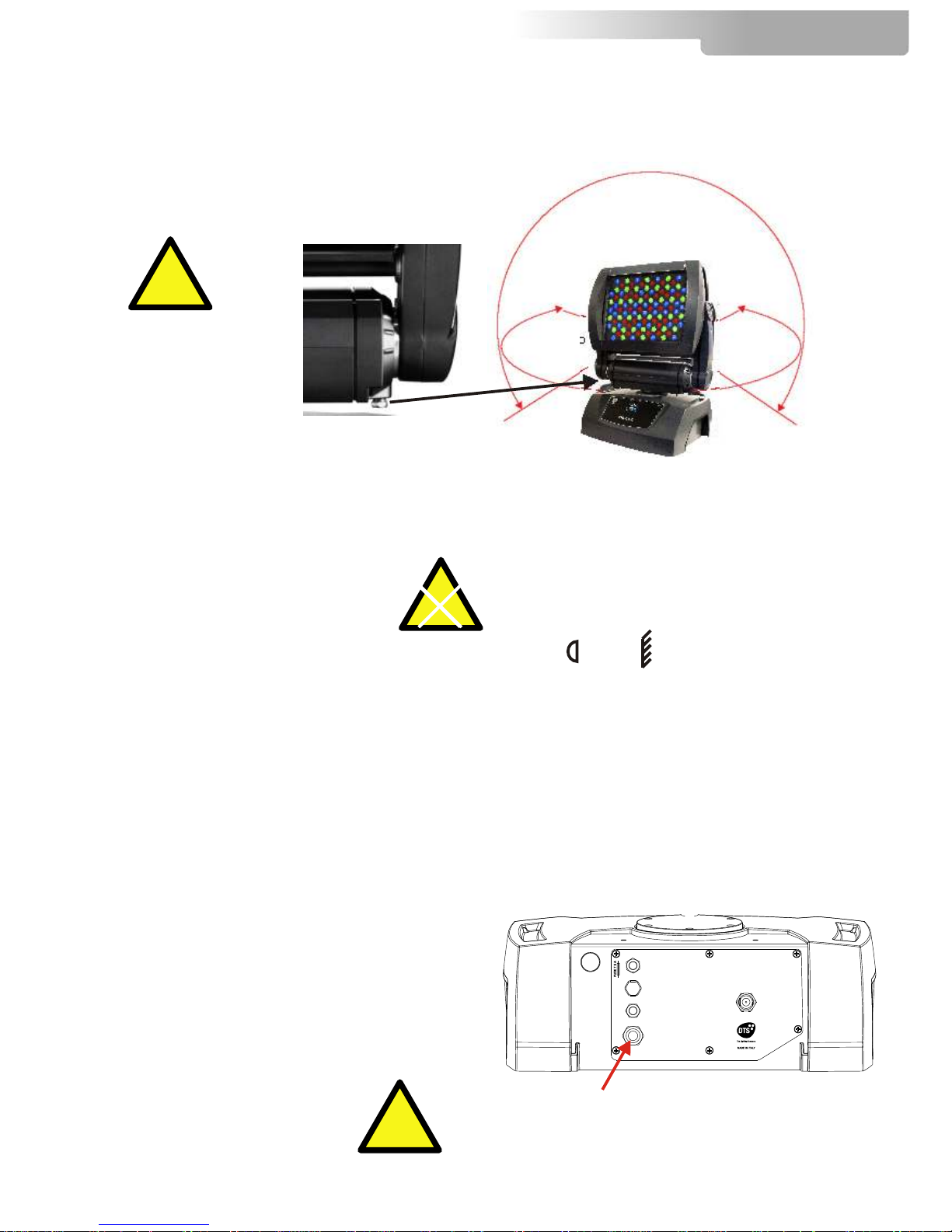

The projector has a maximum movement of 280° for Pan,180° for Tilt 1 and 135° for tilt 2
(7 mechanical steps 22,5° each).
DO NOT place any obstructions in the path of the projector's movement.
9.4- Risk of fire
Each fixture produces heat and must be installed in a well-ventilated place. The minimum recommended
distance from flammable material is 1 MT.
Minimum distance from the object being illuminated is 0,5 MT.
9.5- Forced ventilation
You will note, on inspection, that the unit feature a thermal dissipator on the head. This should, under no
circumstances, be blocked or obstructed whilst the projector is in operation.
Doing so could cause the fixture to seriously overheat thereby compromising its proper operation.
9.6- Ambient temperature
The projector should never be installed in places that lack a constant air flow. The ambient temperature
should NOT exceed 40°C.
10- MAINS CONNECTION
DELTA 8 R operate at 90-260 VOLT 50-60 Hz.
Prior to connecting the unit to your mains supply,
ensure that the model in your possession
correctly matches the mains supply available.
For connection purposes, ensure that your plug
is capable of supporting 1,20 amps at 230V,
Or 3 amps at 90 V.
Strict adherence to regulatory norms
is strongly recommended.
10.1- Protection
The use of a thermal magnetic circuit breaker is recommended for each DELTA 8 R.
A good earth connection is essential for the correct operation of the projector.
0,5M
F
!
DMX OUT
DMX 512
1 GND
2 DATA-
3 DATA + ANTENNA
WIRELESS
DMX
90-260 Vac
50/60 Hz
DMX IN
Mains
90-260V AC 50 / 60Hz
DELTA 8 R
10
Tilt 2 mechanical
regulation TILT1 180°
Motorized
PAN 280°
TILT2 135°
Mechanical
WARNING
Do not place
any object in the path
of the projector’s
movement
!

11- DMX SIGNAL CONNECTION
The unit operates using the digital DMX 512 (1990) signal. Connection between the mixer and the
projector or between projectors must be carried out using a two pair screened ø 0.5 mm cable and a XLR
5 pins connector. Ensure that the conductors do not touch each other. Do not connect the cable ground to
the XLR chassy.
The plug housing must be isolated. Connect the mixer signal to the DMX IN projector plug and connect it
to the next projector by connecting the DMX OUT plug on the first projector to the DMX IN plug of the
second one.
This way, all the projectors are cascade connected.
NB. If the display showing the DMX address flashes, then one of the following errors has occurred:
- DMX signal not present
- DMX address not valid
- DMX reception problem
For Installations where long distance DMX cable connections are needed, we suggest to use a DMX
terminator.
The DMX terminator is a male XLR 3-5 pins connector with a 120 ohm resistor between pin 2 and 3.
The DMX terminator must be plugged into the last unit (DMX out cable connector) of the DMX line.
1
2
3
5
4
OUT
120 ohm
PIN 3
PIN 2
PLACE A 120 OHM RESISTOR BETWEEN PIN 2
AND 3 OF A MALE XRL CONNECTOR AND PLUG IT
INTO THE DMX OUT PANEL CONNECTOR OF THE
LAST UNIT CONNECTED TO THE DMX LINE
5
3
4 2
11=GND
2=DATA-
3=DATA+
DMX OUT
CONTROLLER
STANDARD DMX 512
DELTA 8 R
11

11.1-DMX Addresses
11.2-Selecting the DMX address
1) Press the UP-DOWN key until you reach the required DMX channel. The numbers on the display will
start to flash (but the new DMX address hasn't yet been set).
2) Press ENTER to confirm your selection. The numbers on the display will stop flashing and the
projector is now setted to the new DMX address.
TRICKS:
if you keep pushed the UP or DOWN keys, the channels are calculated more quickly and you get a
faster selection.
DELTA 8 R (all models) have 15 DMX control channels.
Here below are described the DMX channels addressing for the controller:
Projector 1 A001
Projector 2 A016 If you want to select the next projector, just add “15”
Projector 3 A031
….. A….
projector 6 A091
Please refer to an authorised D.T.S. service centre.
D.T.S. Firmware upgrade utility program.
D.T.S. Firmware upgrade utility
12 FIRMWARE UPDATING
Warning:
This procedure require a base knolewge of Windows based computer applications
.
To update the software version of the DELTA 8 R you will need:
D.T.S. RED BOX interface (D.T.S. Code: 03.LA.008).
USB-DMX Driver for the D.T.S. RED BOX interface .
(The driver and the installation procedure are available in our web site www.dts-lighting.it)
Updating the software version.
Please follow the procedure below to perform the update:
1. Install the D.T.S. RED BOX USB-DMX driver on the PC you will use to update the unit software.
2. Connect the D.T.S. RED BOX interface to the PC by using a USB cable.
3. Connect the D.T.S. RED BOX interface to the fixture by using a DMX cable.
4. Download the new software version into the unit by using program.
It will be possible to download the software from the reserved area of D.T.S. web site:
www.dts-lighting.it.
!
DELTA 8 R
12

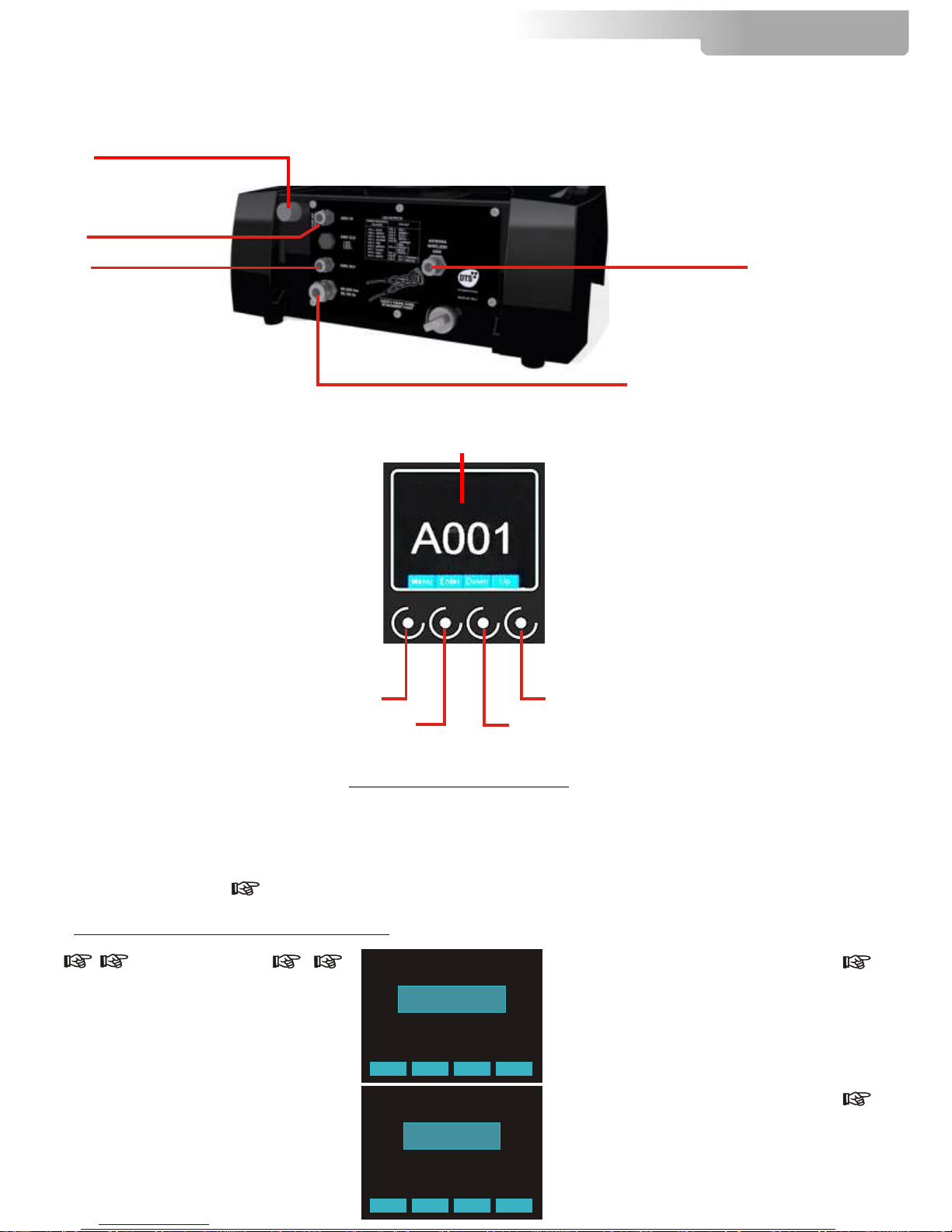

13- DISPLAY FUNCTIONS
DISPLAY FUNCTIONS
The DELTA 8 R display panel shows all the available functions . Using these functions, it is possible
to change some of the parameters and add some functions. Changing the DTS setting can vary
the functions of the unit so that it does not respond to the DMX 512 used to control it. Carefully
follow the instructions below before carrying out any variations or selections.
NOTE: the symbol shows which key has to be pushed to obtain the desired function.
DELTA 8 R
13
MAINS
Electronic Power supply
90-260V AC 50 / 60Hz
External ANTENNA
panel connector
(Wireless DMX)
DMX OUT
DMX IN
Fuse 5A T 5X20
MENU
ENTER DOWN
UP
DISPLAY
Display
Up-Down Up-DownENTER Display Position
ON THE GROUND (Default)
SUSPENDED
ENTER
Menu
DISPLAY POSITION / STAND BY
Display Position:
Reverses display's reading depending on the
mounting position
(On the ground or suspended).
Display Standby:
To turn off the display (after 5 seconds)
Or leave it always on. Display Standby
OFF = Display Standby disabled
(Default)
ON = Display goes OFF after 5
seconds
ENTER
MENU ENTER DOWN UP
AA
DISPLAY
MENU ENTER DOWN UP
OFF
DISPLAY
POSITION
STANDBY
Software version 1.04 (Aug 2 2011)

DELTA 8 R
14
13- DISPLAY FUNCTIONS
DMX Set
Up-Down Up-DownENTER DMX mode
RGB 15 channels (Default)
RGBW 16 channels (Reserved for
future use)
ENTER
Menu
DMX MODE / MACRO
DMX Mode
To select DMX mode :
Macro
Macro Function, enable channel
mapping macro rainbow effects
STD (default)
RGB 15 channels
(Default)
RGBW 16 channels (Reserved for future
use) MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
RGB 15CH
DMX SET
DMX MODE
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
STD
DMX SET
MACRO
MACRO
Standard mode enabled (Default)
Extended mode enabled: Rainbow
effects on MACRO channel
LED
Up-Down Up-DownENTER RED Min default =0
RED Max default = 255 ENTER
Menu
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
0
LED
RED MIN
RGBA MINIMUM VALUES
This menu allow to select the
minimum levels for Red, Green, and
Blue
RGB MAXIMUM VALUES
This menu allow to select the
maximum levels for Red, Green,
and Blue
These settings have priority on
Master Dimmer (DMX channel 7)
SMOOTH VALUE
This menu allow to select the value
of the delay ( in millisecons) for
RGBA and Dimmer channels
reaction to DMX or Program
variation.
4 = 25 ms delay (Fast response)
20 = 250 ms delay (Slow response)
GAMMA CORRECTION
This menu allow to select between
Linear current output or Quadratic
current output for LEDs.
Default = Quadratic
OUTPUT FREQUENCY
This menu allow to adjust the PWM
frequency value (Hz) in order to
reduce flickering in the process of
your camera recordings
BOOST DRIVING
This menu allow to increase the
LED’s current from 350mA to 500
mA
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
0
LED
GREEN MIN
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
0
LED
BLUE MIN
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
0
LED
AMBER MIN
BLUE Min default =0
BLUE Max default = 255
GREEN Min default =0
GREEN Max default = 255
AMBER Min default =0
AMBER Max default = 255
NO FUNCTION ON DELTA 8 R
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
4
LED
SMOOTH
SMOOTH
Range = Off - 20
Default = 4
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
RGBW 16CH
DMX SET
DMX MODE
RGBW 16 channels (Reserved for
future use)
NO FUNCTION ON DELTA 8 R

DELTA 8 R
15
13- DISPLAY FUNCTIONS
LED
Up-Down Up-DownENTER GAMMA CORRECTION
Linear = Linear courrent output
Quadratic = Linear light output
(Default)
ENTER
Menu
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
QUAD
LED
GAMMA CORR.
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
610
LED
OUTPUT FREQ.
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
ON
LED
BOOST
OUTPUT FREQUENCY
Range = 610 Hz -10 KHz
Default = 610 Hz
BOOST
Whit BOOST active,the LED’s current
is set to 500mA (30% more gain).
Default = Enabled
GAMMA CORRECTION
This menu allow to select between
Linear current output or Quadratic
current output for LEDs
Default = Quadratic
OUTPUT FREQUENCY
This menu allow to adjust the PWM
frequency value (Hz) in order to
reduce flickering in the process of
your camera recordings
BOOST DRIVING
This menu allow to select the LED’s
driving current: 350 / 500 mA
AUTO
Up-Down Up-DownENTER
Menu
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
AUTO
SURE?
Menu - NO
Enter - YES
ENTER
AUTOMATIC MODE
Automatic demo game without
DMX controller.
PERSONAL COLOURS
RGB, Dimmer, Shutter, Pan and
Tilt values selectable by user.
FIXED COLOURS
Sixteen Colour Macros as on
“MACRO” channel.
Dimmer, Shutter, Pan and Tilt
values selectable by user.
STEP 01/16
Chase with 16 steps previously
created in REC MODE
Speed time, Wait time, Dimmer,
Pan and Tilt values selectable by
user.
RAINBOW
Rainbow colours effect.
Speed time, Dimmer, Shutter, Pan
and Tilt values selectable by user.
WHITE MACROS
Sixteen macros for White color
from 2800 to 6500 ° K.
Dimmer, Shutter, Pan and Tilt
values selectable by user.
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
01/16
AUTO-PROGRAM
STEP
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
120
AUTO-PERS.COL.
RED
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
0010
AUTO-RAINBOW
SPEE

DELTA 8 R
16
13- DISPLAY FUNCTIONS
AUTOMATIC MODE
Automatic demo game without
DMX controller
AUTO
Up-Down Up-DownENTER
Menu
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
1
AUTO-WHITE
WHITE NO.
20 ch
DMX SET
DMX MODE
1
AUTO-FIXED COL.
COLOR
MENU ENTER DOWN UP MENU ENTER DOWN UP
ENTER
SLAVE
Up-Down Up-DownENTER
Menu
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
128
SLAVE
PAN
ENTER
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
SLAVE
SURE?
Menu - NO
Enter - YES
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
128
SLAVE
TILT
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
0
SLAVE
ZOOM
SLAVE MODE SETTING
This menu allow to set the DELTA
8 R as slave unit.
DMX signal must be present from
MASTER unit (set in AUTO MODE)
in order to ran the units in SLAVE
mode.
By setting all the SLAVE units
connected to the MASTER, to
DMX address 1, them will be
sinchronized with the Master unit
following the chase selected on it,
but running their own Pan&Tilt
position.
The SLAVE unit receive DMX signal
from the MASTER unit.
By setting all the SLAVE units
connected to the MASTER, to DMX
address 1, them will be sinchronized
with the Master unit following the
chase selected on it, but running
their own Pan&Tilt position.
By setting all the units connected to
the MASTER, to DMX address 1,
them will be sinchronized with the
Master unit following the chase
selected on it, including TIME, WAIT,
Pan and Tilt position of the MASTER
unit.
FIXED COLOURS
Sixteen Colour Macros as on
“MACRO” channel.
Dimmer, Shutter, Pan and Tilt
values selectable by user.
WHITE MACROS
Sixteen macros for White color
from 2800 to 6500 ° K.
Dimmer, Shutter, Pan and Tilt
values selectable by user.

DELTA 8 R
17
WIRELESS
Up-Down Up-DownENTER
Menu
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
WIRELESS
UNLINK
20 ch
DMX SET
DMX MODE
OFF
WIRELESS
SELECTION
MENU ENTER DOWN UP MENU ENTER DOWN UP
ENTER
WIRELESS DMX
Wieless DMX enabled / disabled.
By activating WDMX MODE, it will
be possible to control DELTA 8 R
via D.T.S. ANTENNA Wireless DMX
Transmitter (cod. 03.E1271).
WIRELESS DMX system on
DELTA 8 R is available on
request.
20 ch
DMX SET
DMX MODE
ON
WIRELESS
SELECTION
MENU ENTER DOWN UP MENU ENTER DOWN UP
WIRELESS DMX SYSTEM
DISABLED
WIRELESS DMX SYSTEM
ENABLED ENTER
UNLINK = LOG OUT ENTER
Logging on DELTA 8 R (WIRELESS DMX must be enabled on the unit)
To log on the DELTA 8 R in the WIRELESS system simply press and quickly release the function button on the transmitter .
The transmitter will start flashing rapidly red/green scanning for new free receivers / DELTA 8 R units. When a DELTA 8 R logs on to
the transmitter the LINK green light on transmitter starts to flash rapidly.
After approximately 10 seconds the transmitter will jump back to normal mode and continue transmitting data. The DELTA 8 R now
try to synchronize to the transmitter.
When synchronized to the transmitter, 2 different modes are possible:
1. Antenna transmitter has detected and transmits a DMX signal, in this mode a solid green light is seen on the transmitter and solid
display is seen on DELTA 8 R.
2. No DMX signal connected, the Antenna transmitter will flash red/green; display blinking on DELTA 8 R
To log off DELTA 8 R from a transmitter simply select UNLINK function under WIRELESS DMX MENU and press ENTER.
When DELTA 8 R is logged off the display is blinking, meaning its available for log in on a new transmitter.
Logging out a DELTA 8 R
Select UNLINK function under WIRELESS DMX MENU and press ENTER.
When DELTA 8 R is logged off the display is blinking, meaning its available for log in on a new transmitter.
Logging out all DELTA 8 R units linked to a transmitter
Press and hold the function button of the transmitter for about 3 seconds. When the display is blinking on DELTA 8 R, it mean that
the units are logged out.
Transmitter, Status LED
Flashing red/green, no dmx connected.
Solid green, dmx signal detected and transmitted.
Fast flashing red/green, log in mode (every free DELTA 8 R unit, not logged in to any other transmitter, will be logged on)
DELTA 8 R Status
Display blinking, not logged on to a transmitter (free).
Solid display, logged on to a transmitter and receiving dmx data.
NOTE:
needed (cod. 03.LA.012).
External IP65 2dbi
omnidirectional Antenna
needed (cod. 0508A040)
Wireless DMX receiver card
13- DISPLAY FUNCTIONS

DELTA 8 R
18
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
OFF
EMERGENCY
SELECTION
EMERGECY
Up-Down Up-DownENTER
Menu EMERGENCY
ON = Enabled
OFF = Disabled (Default)
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
1
EMERGENCY
WHITE
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
255
EMERGENCY
DIMMER
EMERGENCY
Emergency operating mode.
By setting Emergency mode, it
will be possible to select one of
the 16 preprogrammed WHITE
cues that will then ran if DMX
signal is missing or not available.
Usefull for Emergency EXIT
ilumination on public areas.
Dimmer level, Pan and Tilt
values selectable by user.
WHITE 1-16
Default = WHITE 1
DIMMER
Default = 255
ENTER
13- DISPLAY FUNCTIONS
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
128
EMERGENCY
PAN
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
128
EMERGENCY
TILT
PAN
Default = 128
TILT
Default = 128
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
ON
EMERGENCY
SELECTION
EMERGENCY
Enabled

DELTA 8 R
19
13- DISPLAY FUNCTIONS
DEFAULT SET
Up-Down Up-DownENTER
Menu
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
DEFAULT SET
SURE?
Menu - NO
Enter - YES
DEFAULT SETTINGS
To restore default settings
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
DEFAULT SET ENTER
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
028.7
TEMPER. °C
TEMPER. °C
Up-Down ENTER
Menu
TEMPERATURE
Unit temperature
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
13 Hr - 08 min
TIME
TIME
Up-Down ENTER
Menu
LIFE TIME
This menu show the total UNIT life time
and the RGBA life time UNIT
Up-Down ENTER
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
0 Hr - 08 min
TIME
RED
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
0 Hr - 08 min
TIME
GREEN
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
0 Hr - 08 min
TIME
BLUE
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
0 Hr - 00 min
TIME
AMBER

DELTA 8 R
20
13- DISPLAY FUNCTIONS
SYSTEM
Up-Down ENTER
Menu
PAN INVERTION / TILT INVERTION /
PAN-TILT SPEED / FAN MAX SPEED /
RESET BY DMX / MOTORS FIRMWARE
UPGRADE.
Up-Down ENTER
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
NORM
SYTEM
PAN INVERSION
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
NORM
SYTEM
TILT INVERSION
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
4
SYTEM
PAN-TILT SPEED
MENU ENTER DOWN UP
DMX SET
DMX MODE
MENU ENTER DOWN UP
100%
SYTEM
FAN MAX SPEED
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
ENAB
SYTEM
RESET BY DMX
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
SYTEM
MOTORS
FW UPGRADE
PAN INVERSION
This menu allows to set the Pan
movement.
Normal or Reversed.
TILT INVERTION
This menu allows to set the Pan
movement.
Normal or Reversed.
PAN TILT SPEED
Pan Tilt Speed control (1-4)
PAN INVERTION
Default = NORM
TILT INVERTION
Default = NORM
PAN TILT SPEED CONTROL
Default = 4
FAN MAX SPEED
This menu’ allow to select the
internal fans speed.
FAN MAX SPEED
50% - 100%
Default = 100%
RESET BY DMX
Enable: Motors reset enabled via
DMX (Default).
Disabled: Motors reset disabled via
DMX.
Now: Instant motors reset.
MOTORS FIRMWARE UPGRADE
This menu’ allow to upgrade the
firmware for Pan&Tilt circuit board.
MOTORS FIRMWARE UPGRADE
Pan&Tilt circuit board firmware
upgrade.
RESET BY DMX
This menu’ allow to enable / disable
the Motors reset control (Pan&Tilt
and Zoom) via DMX.
SOFTWARE
Up-Down ENTER
Menu
SOFTWARE
LEDs circuit board software, MOTORS
circuit boards software (Pan&Tilt)
Up-Down ENTER
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
Id 0D1207C1
v1.04 Aug 2 2011
SOFTWARE
LED
LEDs CIRCUIT BOARD SOFTWARE
MOTORS CIRCUIT BOARDS SOFTWARE:
PAN&TILT
MENU ENTER DOWN UP
20 ch
DMX SET
DMX MODE
MENU ENTER DOWN UP
Pan/Tilt v.1.6
SOFTWARE
Motors
