DTS FOS 100 WHITE 36 User manual

GB
User’s Manual rel 1.0
D.T.S. Illuminazione s.r.l. - ITALY
http://www.dts-lighting.it
FOS 100 WHITE 36
FOS 100 WHITE 36
FOS 100 SOLO ON-OFF WHITE 36
Made in Italy
FOS 100 SOLO WHITE 36

Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia
non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo
documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso
scritto della D.T.S .
DTS si riserva il diritto di apportare senza preavviso cambiamenti e modifiche estetiche , funzionali o di
design a ciascun proprio prodotto. D.T.S non assume alcuna responsabilità sull’uso o sull’applicazione dei
prodotti o dei circuiti descritti.
The information contained in this publication has been carefully prepared and checked. However, no
responsibility will be taken for any errors. All rights are reserved and this document cannot be copied,
photocopied or reproduced, in part or completely, without prior written consent from D.T.S.
D.T.S. reserves the right to make any aesthetic, functional or design modifications to any of its products
without prior notice. D.T.S. assumes no responsibility for the use or application of the products or circuits
described herein.
Les informations contenues dans le présent manuel ont été rédigées et contrôlées avec le plus grand
soin. Nous déclinons toutefois toute responsabilité en cas d'éventuelles inexactitudes. Tous droits
réservés. Ce document ne peut être copié, photocopié ou reproduit, dans sa totalité ou partiellement,
sans le consentement préalable de .
se réserve le droit d'apporter toutes modifications et améliorations esthétiques, fonctionnelles ou
de design, sans préavis, à chacun de ses produits. décline toute responsabilité sur l'utilisation ou
sur l'application des produits ou des circuits décrits.
D.T.S
D.T.S.
D.T.S.
Las informaciones contenidas en este documento han sido cuidadosamenteredactadas y
controladas. Con todo, no se asume ninguna responsabilidad por eventuales inexactitudes.
Todos los derechos han sido reservados y este documento no puede ser copiado, fotocopiado
o reproducido, total o parcialmente, sin previa autorizaciónescrita de
se reserva el derecho a aportar sin previo aviso cambios y modificaciones de carácter
estético, funcional o de diseño a cada producto suyo. no se asume responsabilidad de
ningún tipo sobre la utilización o sobre la aplicació
n de los productos o de los circuitos descritos.
D.T.S.
D.T.S.
D.T.S.
FOS 100 WHITE 36
1

1- SYMBOLS
Graphic symbols used on this manual:
2- GENERAL WARNING
Read the instruction contained in this user manual carefully, as they give important information regarding
safety during installation, use and maintenance.
The device is not for domestic use and must be installed by a qualified electrician or experienced person.
The device must always be equipped with an efficient ground connection.
3- GENERAL WARRANTY CONDITIONS
The unit is guaranteed for 36 months from the date of purchase against manufacturing material defects.
THIS SYMBOL INDICATES A HOT SURFACE
THIS SYMBOL INDICATES ELECTRIC SHOCK RISK
THIS SYMBOL INDICATES GENERAL RISK
THIS SYMBOL MEANS YOU CAN PLACE THE UNIT
ON NORMALLY FLAMMABLE SURFACES
THIS SYMBOL INDICATES THE MINIMUM
DISTANCE BETWEEN THE UNIT AND THE
ILLUMINATED OBJECTS
!
LED 0,5 m
THIS SYMBOL INDICATES THE EUROPEAN
COMMUNITY DIRECTIVE 2002/96/EC ON
WASTE ELECTRICAL AND ELECTRONIC
EQUIPMENT (WEEE)
FOS 100 WHITE 36
2

4- TECHNICAL FEATURES
FOS 100 WHITE 36
Construction
FOS 100 WHITE 36 is made on extruded aluminium
Protection
IP 65 protection level
Connection
2 poles cable
Power supply
1050mA or 1400mA Constant current LED PSU
Electronic full-range 90-260 Vac 50-60 Hz
Power consumption
36W Max @ 350mA; 54W Max @ 500mA
Operating ambient temperature
-10° / 40°
Weight
5,5 Kg
Accessories
- 1050mA Constant current LED PSU (D.T.S. Code 0502T046)
- 1400mA Constant current LED PSU (D.T.S. Code 0502T050)
D.T.S. Product codes:
03.LBB012E11WB10 FOS 100 WHITE 36 3000K Narrow lenses Black
03.LBB012E11WB25 FOS 100 WHITE 36 3000K Medium flood lenses Black
03.LBB012E11WB40 FOS 100 WHITE 36 3000K Wide flood lenses Black
03.LBB012E11WBE3 FOS 100 WHITE 36 3000K 15° x 40° lenses Black
03.LBB012E11WB02 FOS 100 WHITE 36 3000K 58° lenses Black
03.LBB012E11WB03 FOS 100 WHITE 36 3000K 77° lenses Black
03.LBB012E11WB14 FOS 100 WHITE 36 3000K ASY Spot lenses Black
03.LBB012E11WB11 FOS 100 WHITE 36 3000K ASY Wash lenses Black
Light source
36 x WHITE LEDs; Colour temperature: 2700K / 3000K / 4000K / 5600K
6500 Lumens; LEDs average lifespan: 70.000 hrs
Optical group
Narrow, Medium, Wide, 15° x 40°, 58°, 77°, ASY Spot, ASY Wash lenses set
FOS 100 WHITE 36
3

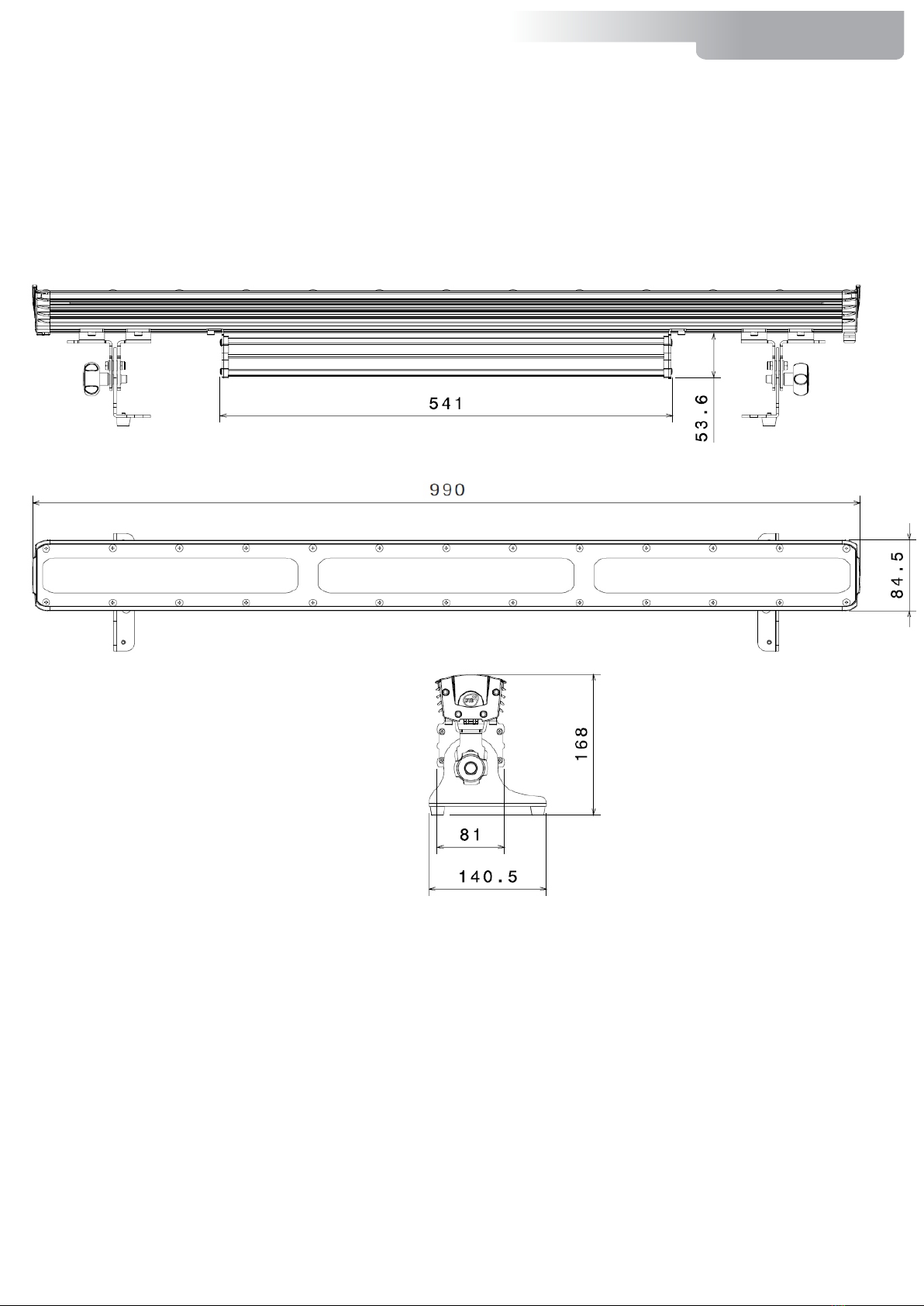

Dimensions
FOS 100 WHITE 36
4

4- TECHNICAL FEATURES
FOS 100 SOLO ON-OFF WHITE 36
Construction
FOS 100 SOLO ON-OFF WHITE 36 is made on extruded aluminium
Protection
IP 65 protection level
Control system
ON-OFF
Connection
Mains AC Power cable
Power supply
Electronic full-range 90-260 Vac 50-60 Hz
Power consumption
54W Max
Operating ambient temperature
-10° / 40°
Weight
6,5 Kg
D.T.S. Product codes:
03.LBB001S11WB10 FOS 100 SOLO ON-OFF WHITE 36 3000K Narrow lenses Black
03.LBB001S11WB25 FOS 100 SOLO ON-OFF WHITE 36 3000K Medium flood lenses Black
03.LBB001S11WB40 FOS 100 SOLO ON-OFF WHITE 36 3000K Wide flood lenses Black
03.LBB001S11WBE3 FOS 100 SOLO ON-OFF WHITE 36 3000K 15° x 40° lenses Black
03.LBB001S11WB02 FOS 100 SOLO ON-OFF WHITE 36 3000K 58° lenses Black
03.LBB001S11WB03 FOS 100 SOLO ON-OFF WHITE 36 3000K 77° lenses Black
03.LBB001S11WB14 FOS 100 SOLO ON-OFF WHITE 36 3000K ASY Spot lenses Black
03.LBB001S11WB11 FOS 100 SOLO ON-OFF WHITE 36 3000K ASY Wash lenses Black
Light source
36 x WHITE LEDs; Colour temperature: 2700K / 3000K / 4000K / 5600K
6500 Lumens; LEDs average lifespan: 70.000 hrs
Optical group
Narrow, Medium, Wide, 15° x 40°, 58°, 77°, ASY Spot, ASY Wash lenses set
FOS 100 WHITE 36
5

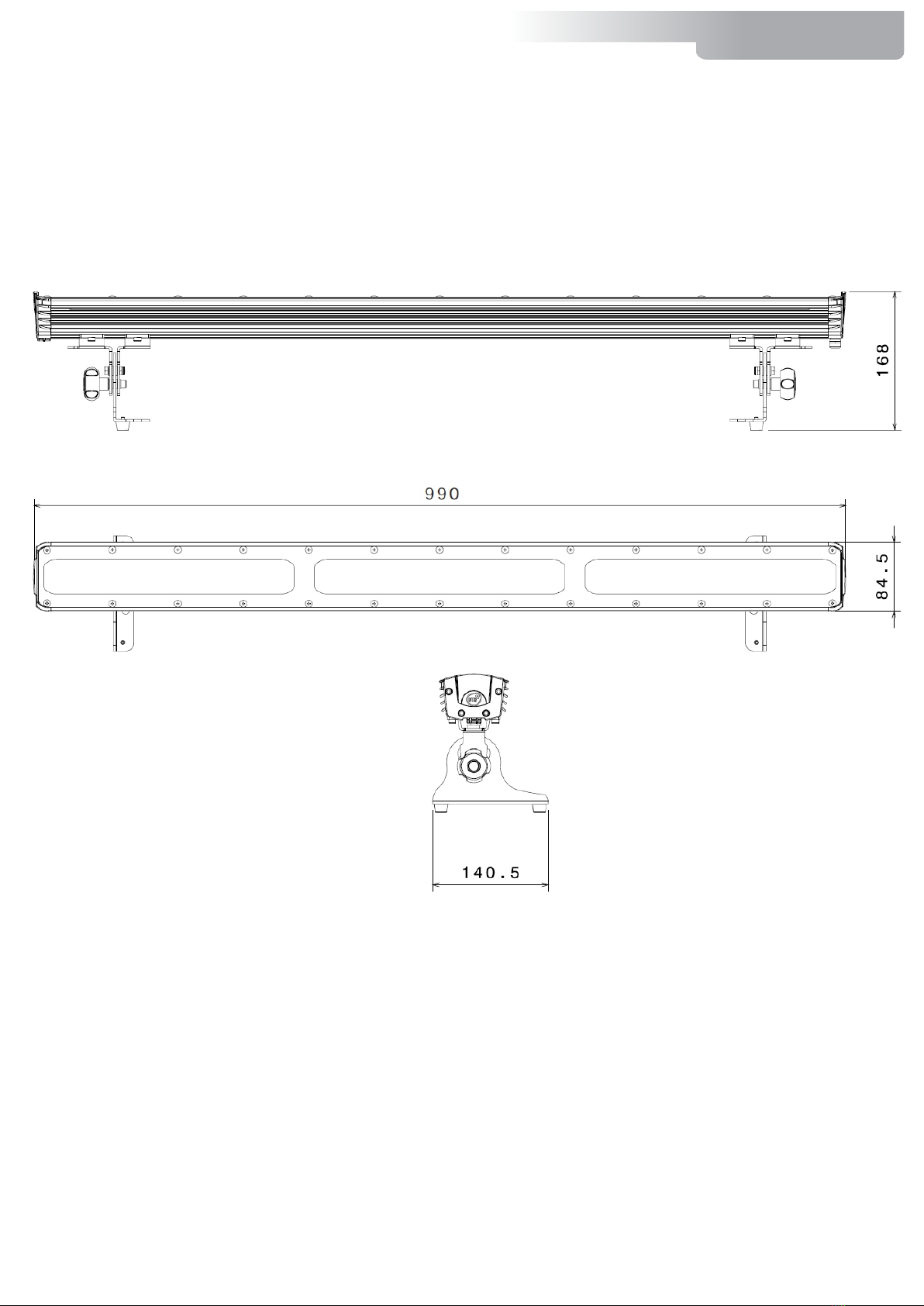

Dimensions
FOS 100 WHITE 36
6

4- TECHNICAL FEATURES
FOS 100 SOLO IP20 WHITE 36 (on request)
Construction
FOS 100 SOLO IP20 WHITE 36 is made on extruded aluminium
Protection
IP 65 (LED bar); IP 20 (Power supply)
Control system
DMX 512
Connection
Power supply: POWERCON Female panel connectors (IN-OUT)
DMX: XLR 5 poles Male/Female panel connectors (IN-OUT)
Power supply
Z10 IP20 LED PSU
Electronic full-range 90-260 Vac 50-60 Hz
Power consumption
54W Max
Operating ambient temperature
-10° / 40°
Weight
7 Kg
Light source
36 x WHITE LEDs; Colour temperature: 2700K / 3000K / 4000K / 5600K
6500 Lumens; LEDs average lifespan: 70.000 hrs
Optical group
Narrow, Medium, Wide, 15° x 40°, 58°, 77°, ASY Spot, ASY Wash lenses set
FOS 100 WHITE 36
7

Dimensions
FOS 100 WHITE 36
8

4- TECHNICAL FEATURES
FOS 100 SOLO IP65 WHITE 36 (on request)
Construction
FOS 100 SOLO IP65 WHITE 36 is made on extruded aluminium
Protection
IP 65 protection level
Control system
DMX 512
Connection
Power supply: 3x1,5 sq mm cable (IN); HARTING Female panel connector (OUT)
DMX: HARTING 4 poles Male/Female panel connectors (IN-OUT)
Power supply
Z10 IP65 LED PSU
Electronic full-range 90-260 Vac 50-60 Hz
Power consumption
54W Max
Operating ambient temperature
-10° / 40°
Weight
7,5 Kg
Light source
36 x WHITE LEDs; Colour temperature: 2700K / 3000K / 4000K / 5600K
6500 Lumens; LEDs average lifespan: 70.000 hrs
Optical group
Narrow, Medium, Wide, 15° x 40°, 58°, 77°, ASY Spot, ASY Wash lenses set
FOS 100 WHITE 36
9

Dimensions
FOS 100 WHITE 36
10

5- IMPORTANT SAFETY INFORMATION
5.1 Fire prevention:
-It is permissible to place the unit on normally flammable surfaces.
Suitable for mounting on normally flammable material surfaces greater than 200°C with some
combustion time lag.
-Minimum distance between the unit and the illuminated objects: 0,5 m.
5.2 Prevention of electric shock:
-High voltage is present inside the unit.
Unplug the unit prior to performing any function which involves touching the inside of the fixture.
-A good earth connection is essential for proper functioning of the unit.
-Never connect the unit without proper earth connection.
-The fixture should be located in places with a good air ventilation.
5.3 Safety:
-The external surface of the unit, at various points, may exceed 50°C.
Never handle the unit until at least 5 minutes have elapsed since the unit was turned off.
-Never install the fixture in an enclosed area lacking sufficient air flow.
The ambient temperature should not exceed 40°C.
5.4 Level of protection against the penetration of solid and liquid objects:
-The projector is classified as an outdoor appliance and its protection level against the penetration of
solid and liquid objects is IP 65.
5.5 Waste Electrical and Electronic Equipment (WEEE) directive:
The LED bar, accessories and packaging should be sorted for environmental-friendly recycling.
For EC countries: according to the European Directive 2002/96/EC for Waste Electrical and Electronic
Equipment and its implementation into national right, luminaires that are no longer usable must be
collected separately and disposed of in an environmentally correct manner.
!
!
LED 0,5 m
FOS 100 WHITE 36
11

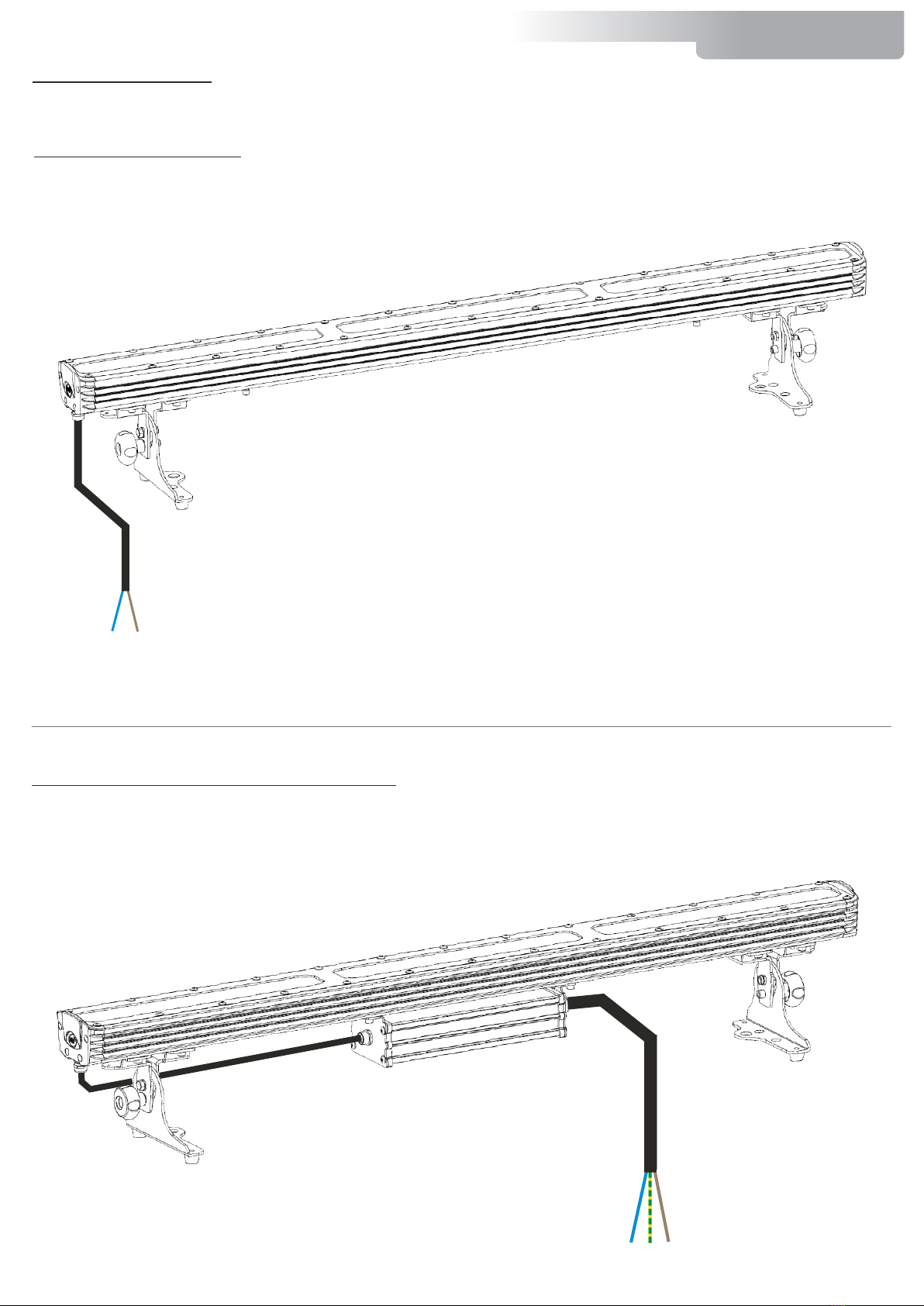

6- CONNECTION
+
(Brown)
-
(Blue)
FOS 100 WHITE 36
FOS 100 WHITE 36 is provided with a 2 poles cable.
FOS 100 SOLO ON-OFF WHITE 36
Brown = L
Blue = N
Yellow/Green = GND
MAINS INPUT
90-260Vac 50-60Hz
FOS 100 SOLO ON-OFF WHITE 36 is provided with a Mains AC Power cable.
FOS 100 WHITE 36
12

6- CONNECTION
FOS 100 SOLO IP20 WHITE 36 (on request)
MAINS INPUT
POWERCON Female
panel connector
MAINS OUTPUT
POWERCON Female
panel connector
DMX IN
XLR 5 poles male
panel connector
DMX OUT
XLR 5 poles female
panel connector
FOS 100 SOLO IP65 WHITE 36 (on request)
LED OUT
MAINS INPUT
3 x 1,5 sq mm cable
with cable gland
MAINS OUTPUT
HARTING Female
panel connector
DMX IN
HARTING 4 poles male
panel connector
DMX OUT
HARTING 4 poles Female
panel connector
FOS 100 WHITE 36
13

7- DMX SIGNAL CONNECTION
FOS 100 SOLO IP20 WHITE 36 (on request)
The unit operates using a digital DMX 512 signal. Connection between the controller and the unit or
between units must be carried out using a two pair screened ø 0.5 mm.
P.S:
If the display showing the DMX address flashes, then one of the following errors has occurred:
- DMX signal not present
- DMX reception problem
For Installations where long distance DMX cable connections are needed, we suggest to use a DMX
terminator.
The DMX terminator is a male XLR 3-5 pins connector with a 120 ohm resistor Between pin 2 and 3.
The DMX terminator must be plugged into the last unit (DMX out panel connector) of the DMX line.
Ensure that the conductors do not touch each other. Do not connect the cable ground to the DMX
connector chassis. The plug housing must be isolated. Connect the mixer signal to the DMX IN
projector plug and connect it to the next projector by connecting the DMX OUT plug on the first unit to
the DMX IN plug of the second one.
In this way, all the projectors are cascade connected.
1
2
3
5
4
OUT
120 ohm
PIN 3
PIN 2
PLACE A 120 OHM RESISTOR BETWEEN PIN 2
AND 3 OF A MALE XRL CONNECTOR AND PLUG IT
INTO THE DMX OUT PANEL CONNECTOR OF THE
LAST UNIT CONNECTED TO THE DMX LINE
FOS 100 WHITE 36
14
DMX OUTDMX OUT
UNIT 2
DMX INDMX IN
DMX OUTDMX OUT
UNIT 1
DMX INDMX IN
5
3
4 2
11=GND
2=DATA-
3=DATA+
CONTROLLER
S T A N D A R D
D M X 5 1 2

7- DMX SIGNAL CONNECTION
FOS 100 SOLO IP65 WHITE 36 (on request)
The unit operates using a digital DMX 512 signal. Connection between the controller and the unit or
between units must be carried out using a two pair screened ø 0.5 mm.
P.S:
If the display showing the DMX address flashes, then one of the following errors has occurred:
- DMX signal not present
- DMX reception problem
For Installations where long distance DMX cable connections are needed, we suggest to use a DMX
terminator.
The DMX terminator is a male DMX cable connector with a 120 ohm resistor Between pin 2 and 3.
The DMX terminator must be plugged into the DMX out panel connector of the last unit connected to
the DMX line.
Ensure that the conductors do not touch each other. Do not connect the cable ground to the DMX
connector chassis. The plug housing must be isolated. Connect the mixer signal to the DMX IN projector
plug and connect it to the next projector by connecting the DMX OUT plug on the first unit to the DMX
IN plug of the second one.
In this way, all the projectors are cascade connected.
PLACE A 120 OHM RESISTOR BETWEEN PIN 2
AND 3 OF A MALE DMX CONNECTOR AND PLUG IT
INTO THE DMX OUT PANEL CONNECTOR OF THE
LAST UNIT CONNECTED TO THE DMX LINE
MALE CABLE
CONNECTOR
DMX
120 OHM
DMX OUTDMX OUT
DMX INDMX IN
DMX OUTDMX OUT
DMX INDMX IN
5
3
4 2
11=GND
2=DATA-
3=DATA+
CONTROLLER
S T A N D A R D
D M X 5 1 2
FOS 100 WHITE 36
15

8- DMX ADDRESS
FOS 100 SOLO IP20 WHITE 36 (on request)
FOS 100 SOLO IP65 WHITE 36 (on request)
Projector 1 A001
Projector 2 A011 If you want to select the next projector, just add “10”
Projector 3 A021
….. A….
projector 6 A051
Selecting the DMX address
1) Press the UP-DOWN key until you reach the required DMX address. The numbers on the
display will start to flash (but the new DMX address hasn't yet been set).
2) Press ENTER to confirm your selection. The numbers on the display will stop flashing and the
projector is now controlled by the new DMX address.
TIPS: if you keep pushed the UP or DOWN keys, the channels are calculated more quickly and
you get a faster selection.
FOS 100 SOLO IP20/IP65 WHITE 36 can be used in 8 different modes: 10 DMX channels mode
(default), 6 DMX channels mode (Shutter + Dimmer + RGBW), 15 DMX channels mode, WALL
mode (6 DMX channels; for use with DTS Wall mounted DMX controller 0514L007), M4CH mode (5
DMX channels; Dimmer + RGBW), RGBW mode (4 channels), 1 DMX channel mode or CUSTOM
DMX mode (not yet implemented).
In order to use the unit in 10 DMX channels mode (default) set the following addresses on the
mixer:
FOS 100 WHITE 36
16

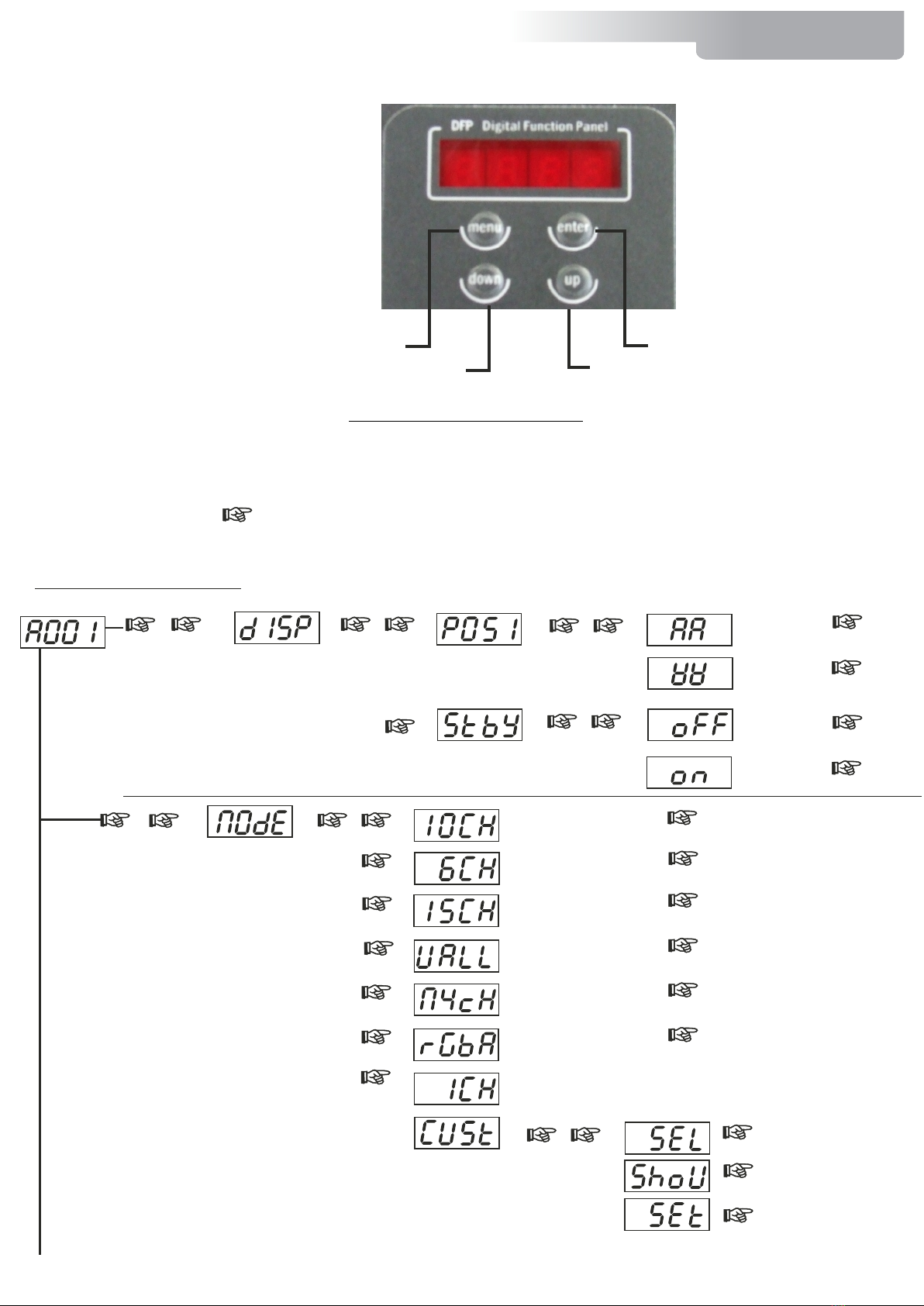

9- DISPLAY FUNCTIONS
DISPLAY FUNCTIONS
The FOS 100 SOLO display panel shows all the available functions . Using these functions, it is
possible to change some of the parameters and add some functions. Changing the D.T.S. setting
can vary the functions of the unit so that it does not respond to the DMX 512 signal used to
control it. Carefully follow the instructions below before carrying out any variations or selections.
NOTE: the symbol shows which key has to be pushed to obtain the desired function.
Software version 5.15
FOS 100 SOLO IP20 WHITE 36
FOS 100 SOLO IP65 WHITE 36
DOWN UP
ENTER
MENU
Up-DownMENU ENTER
DMX MODE
To select DMX mode: 10 DMX channels
mode (default), 6 DMX channels mode
(Shutter + Dimmer + RGBW), 15 DMX
channels mode, WALL mode (6 DMX
channels; for use with DTS Wall
mounted DMX controller 0514L007),
M4CH mode (5 DMX channels; Dimmer
+ RGBW), RGBW mode (4 channels), 1
DMX channel mode. M4CH (5 CHANNELS)
Up-Down
Up-Down
ENTER
ENTER
Up-Down
MENU ENTERUp-Down
REVERSE DISPLAY
Reverses display's reading depending on
the mounting position
(On the ground or suspended). Up-Down
Floor
position
Suspension
position
Up-DownENTER
Up-DownENTER
DISPLAY STAND BY
To turn off the display (after 5 seconds)
or leave it always on.
Display OFF
Display
always ON
ENTER
ENTER
ENTER
ENTER
Default DMX Mode = 10 CH
10 CHANNELS
Up-Down
Up-DownENTER ENTER
ENTER
ENTER
Custom mode enabled
Show Custom settings
Parameters Setting on
Custom Mode
CUSTOM DMX mode (not yet
implemented) lets you set the parameters
for Shutter, Dimmer, Red, Green, Blue,
White, White pre-programmed, CTC,
Macro and Function to the desired DMX
15 CHANNELS
Up-Down ENTER
WALL (6 CHANNELS)
Up-Down ENTER
Up-Down ENTER
6 CHANNELS
RGBA (4 CHANNELS)
Up-Down ENTER
Shutter + Dimmer + RGBW
Dimmer + RGBW
1 CHANNEL
CUSTOM DMX MODE
NOT YET IMPLEMENTED
FOS 100 WHITE 36
17

Up-Down
MENU ENTERUp-Down
LED
RGBW Min/Max, Smooth, Compression,
Sync and Boost level values settings
Up-Down
Up-DownENTER
Up-DownENTER
ENTER
ENTER
ENTER
ENTER
Up-Down Up-DownENTER ENTER
ENTER
RGBW MINIMUM VALUES
This menu allows to select the
minimum levels for Red, Green,
Blue and White
RGBW MAXIMUM VALUES
This menu allows to select the
maximum levels for Red, Green,
Blue and White
Default = 255
Default = 0
Default = 0
Default = 0
Default = 255
Default = 255
These settings have priority
on Master Dimmer channel
Up-Down Up-DownENTER ENTER
Range = Off-20
Default = 4
SMOOTH VALUE
This menu allows to select the
value of the delay (in milliseconds)
for RGBW and Dimmer channels
reaction to DMX or Program
variation.
Off=25 ms delay (Fast response)
20=250 ms delay (Slow response)
Off = 25 ms
Istant responce to DMX variation
20 = 250 ms
Smooth response to DMX variation
Up-Down Up-DownENTER ENTER
Linear = Linear
current output
COMPRESSION
This menu allows to select between
Linear current output or Quadratic
current output for LEDs
Default = Linear
Quadratic =
Linear light
output
ENTER
SYNC
This menu allows to adjust the
PWM frequency value (Hz) in order
to reduce flickering in the process
of your camera recordings
Up-Down Up-DownENTER
Range = 610 Hz -10 KHz
Default = 610 Hz ENTER
Boost mode activated
With BOOST active, the LED’s
current is set to 500 mA (30%
more gain).
Default = Disabled
Up-DownENTER ENTER
BOOST DRIVING
This menu allows to increase the
LED’s current from 350 mA to 500 mA
Boost mode deactivated
Up-Down ENTER
Up-Down
MENU ENTER
Up-Down
Standard mode enabled:
(Default).
Extended mode enabled:
Rainbow effects on MACRO
channel.
ENTER
Up-DownENTER
ENTER
MACRO
MACRO Function, enable channel
mapping macro rainbow effects
STD (default)
Up-Down Up-DownENTER ENTER
ENTER
Default = 0
Default = 255
FOS 100 WHITE 36
18

Up-DownENTER ENTER
WHITE MACROS
16 macros for White color from
2800K to 6500K
Up-DownENTER
Up-DownENTER
ENTER
ENTER
DIMMER
Dimmer level selectable by user
as on DMX channel 2 (Dimmer)
Dimmer level is active for all the
programs and macros
SHUTTER
Shutter level selectable by user
as on DMX channel 1 (Shutter)
Shutter level is active only for
CU01/CU16 and Wh01/Wh16
macros
ESC
Esc from Automatic Mode Menu
ENTER
MENU Up-Down Up-DownENTER ENTER
Up-Down
ENTER
AUTOMATIC MODE
Automatic demo game without
DMX controller
ChPr
Chase with 16 steps previously
created in REC MODE
Speed and Wait time selectable
by user
ENTER
ENTER Up-Down
CUPr
RGB values selectable by user
Rainbow (rAIn)
Rainbow colours effect.
Speed time selectable by user
ENTER ENTER
Up-Down
CU01-CU16
Color Macros as on DMX channel
8 (Macro)
Up-DownENTER ENTER
MENU Up-Down ENTER
ENTER
REC MODE
In DMX Recorder Mode,it is
possible to create and store the
scenes of the ChPr by using an
external DMX controller.
The unit must be set to 10
channels MODE
FOS 100 WHITE 36
19
