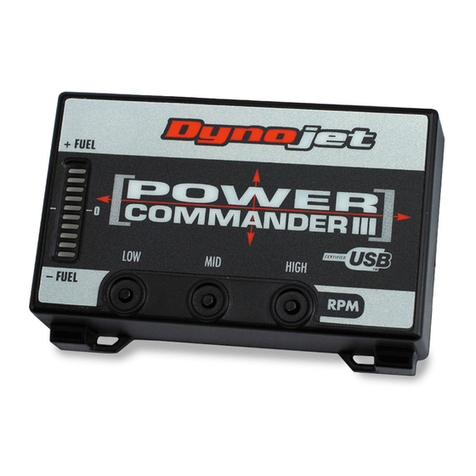

Dynojet Power Commander III User manual

i910-411 www.powercommander.com 2004 Polaris Sportsman 700 PCIII USB - 1
2004 Polaris Sportsman 700
Installation Instructions
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 [phone] www.powercommander.com
Parts List
1Power Commander
1USB Cable
1CD-ROM
1Installation Guide
1Power Adapter
2Power Commander Decals
2 Dynojet Decals
1 Velcro®Strip
1Alcohol Swab
2Zip ties
You can also download the Power
Commander software and latest maps
from our web site at:
www.powercommander.com
The ignition MUST be turned
OFF before installation!
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
Button Adjustment Display
Faceplate Buttons
USB Port
Expansion Port

1Remove the front fender rack.
2Remove the center cover
(Fig. A).
3Remove the right hand side
cover (by the shift lever).
5Lay the PCIII in the vacinity of
the ECU temporarily.
6Plug the black connectors from
the PCIII in-line of the connec-
tors you just unplugged (Fig.C).
i910-411 www.powercommander.com 2004 Polaris Sportsman 700 PCIII USB - 2
4Unplug the two connectors from
the fuel injectors (Fig.B). These
connectors are near the ECU.
One connector has a WHITE
wire and a RED/BLACK wire.
The other connector has a
WHITE/BLACK wire and a
RED/BLACK wire.
Fig. AFig. B
Fig. C
Stock connectors
Remove this cover
Unplug these connectors
PCIII connectors

9Plug the connectors from the
PCIII in-line of the stock harness
(Fig. E).
10 Locate the common ground near
the ECU. Remove the bolt and
feed through the terminal of the
black wire of the PCIII and the
stock terminals. Tighten bolt
(Fig. F).
Fig. E
Fig. F
i910-411 www.powercommander.com 2004 Polaris Sportsman 700 PCIII USB - 3
7Locate the grey 3 pin connector
under the right hand side cover
(Fig. D). Unplug this connector.
8Route the white connectors from
the PCIII between the front
fender and the frame to this con-
nector.
.
Fig. D
Unplug this connector
PCIII connectors
Stock connectors
Ground wire from PCIII
Ground bolt

11 Install the PCIII on top of the
stock ECU (Fig. G) using the
supplied velcro.
Make sure to use the supplied
alcohol swab to clean both sur-
faces before attaching.
12 Zip tie the grey wire from the
PCIII to the frame.
13 Make sure all wires are routed
so that they will not get pinched.
14 Reinstall the side cover, front
cover, and front fender rack.
Fig. G
