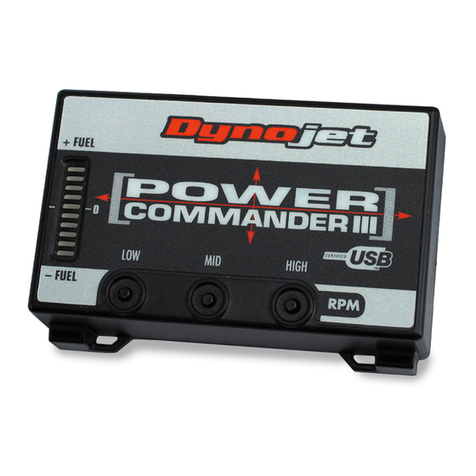

Dynojet Power Commander User manual

i902-411 2000-2003 Aprilia Mille - PCIII USB - 1i902-411 www.powercommander.com
2000-2003 Aprilia Mille
Installation Instructions
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 [phone] www.powercommander.com
Parts List
1Power Commander
1USB Cable
1CD-ROM
1Installation Guide
1Power Adapter
2Power Commander Decals
2 Dynojet Decals
1 Velcro®Strip
1Alcohol Swab
1 Wire tap
You can also download the Power
Commander software and latest maps
from our web site at:
www.powercommander.com
The ignition MUST be turned
OFF before installation!
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
Button Adjustment Display
Faceplate Buttons
USB Port
Expansion Port

2000-2003 Aprilia Mille - PCIII USB - 2i902-411 www.powercommander.com
1Remove the seat.
2Lift up the front of the fuel tank.
3Disconnect the wiring harness
from the injector on the left
hand side of the bike by sqeez-
ing the connector.
4Connect one pair of the leads
from the PCIII in-line of the
stock harness and throttle body
(Fig.A).
5Repeat steps 3-4 for the right
hand side (Fig.B).
6Locate the throttle position sen-
sor on the trottle bodies. Locate
the yellow wire with the brown
tracer coming from the sensor.
Connect the supplied wire tap to
this wire.
7Plug the grey wire from the
PCIII to the wire tap (Fig. C).
Note: It is recommended to use dialec-
tric grease on these connections.
Fig. AFig. B
Fig. C
Loosen these bolts
PCIII connectors
Wire tap
Stock connector
Stock connector
PCIII connectors
Grey wire from PCIII

2000-2003 Aprilia Mille - PCIII USB - 3i902-411 www.powercommander.com
8Attach the ground wire from the
PCIII to the negative side of the
battery (Fig. D).
9Install the PCIII in the rear trunk
area of the bike (Fig. E) using
the supplied velcro. Make sure
to clean both surfaces with alco-
hol first.
Fig. DFig. E
Ground wire from PCIII
