Dynojet POWER VISION 3 User manual

POWER VISION 3
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
98200148.03
1 POWER VISION 3
1 REFLASH HARNESS
1 USB CABLE
2 VELCRO
2 DYNOJET DECAL
PARTS LIST
Installation Guide for: PV3-15-01
Model Coverage:
2004-2011 Dyna Models
2001-2010 Harley Davidson Softail Models
2002-2013 Touring Models
2002-2017 Vrod Models
2007-2013 Sportster 883 Models
2007-2013 Sportster 1200 Models
2009-2012 XR1200

2 HARLEY-DAVIDSON INSTALLATION GUIDE 98200148

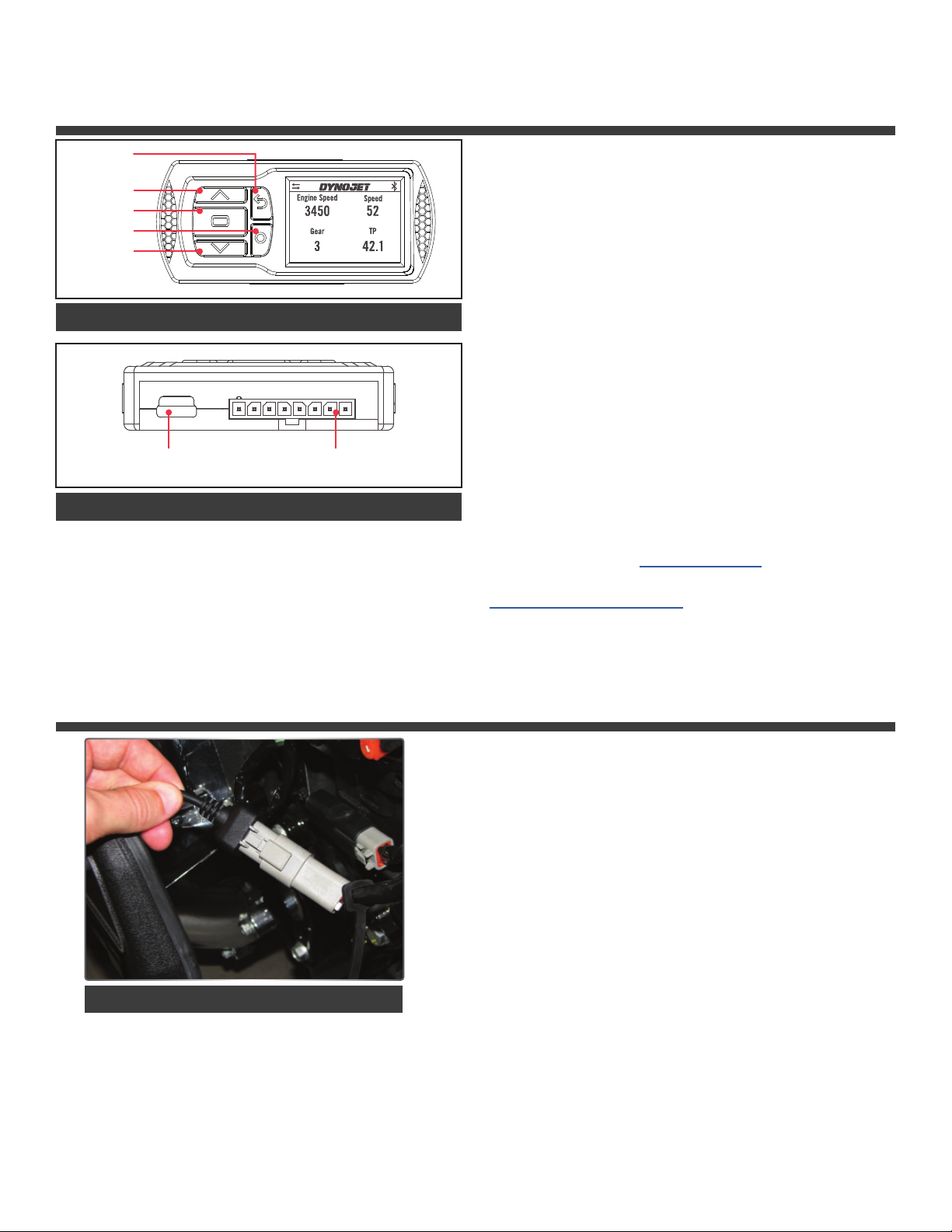

POWER VISION OVERVIEW—SIDE VIEW
Thank you for purchasing the Power Vision from Dynojet
Research. At Dynojet, our mission is to make every ride
the ultimate ride. The Power Vision allows you to tune
your stock ECU to achieve optimal performance from
your vehicle.
The Power Vision is the device to interface between
your computer and the vehicle ECU. Use the buttons
to navigate the device menus, make selections, cycle
through the four full-color available gauge screens, and
log data. Connect to the diagnostic port to flash a tune;
use the USB connection to interface between the Power
Vision and your computer.
Make your Power Vision device yours; display the
channels you want to see with four user-customizable
full-color gauge screens. Make the Power Vision your
window into your vehicle; secure the Power Vision to
your dashboard or handlebars to monitor any desired
set of gauges such as Throttle Position, Engine Speed,
and more. Wideband Air:Fuel Ratio can be added as a
channel to the Power Vision’s monitors by adding the
accessory available at www.dynojet.com.
For state of the art technical support, please visit
www.dynojet.zendesk.com.
SCROLL
USB CABLE PORT
CONNECT TO COMPUTER
DIAGNOSTIC CABLE PORT
CONNECT TO VEHICLE
POWER VISION OVERVIEW—FRONT VIEW
HOME/LOG
SCROLL
ENTER
RETURN
INTRODUCTION
INSTALLING THE POWER VISION
DIAGNOSTIC PORT
This installation was done on a Harley-Davidson Night
Rod. Your bike and set-up may vary.
1 Attach the diagnostic cable to the diagnostic port on the
Power Vision and to the diagnostic port on the vehicle.
Refer to the Diagnostic Port Location on page 3.
Note: The Power Vision may be damaged if installed
improperly. The location of the diagnostic port varies
depending on the model, please refer to a service
manual or contact Dynojet for the exact location.
Use caution as many models use the same style
connector for accessories; your Power Vision MUST be
connected to the diagnostic port.

3

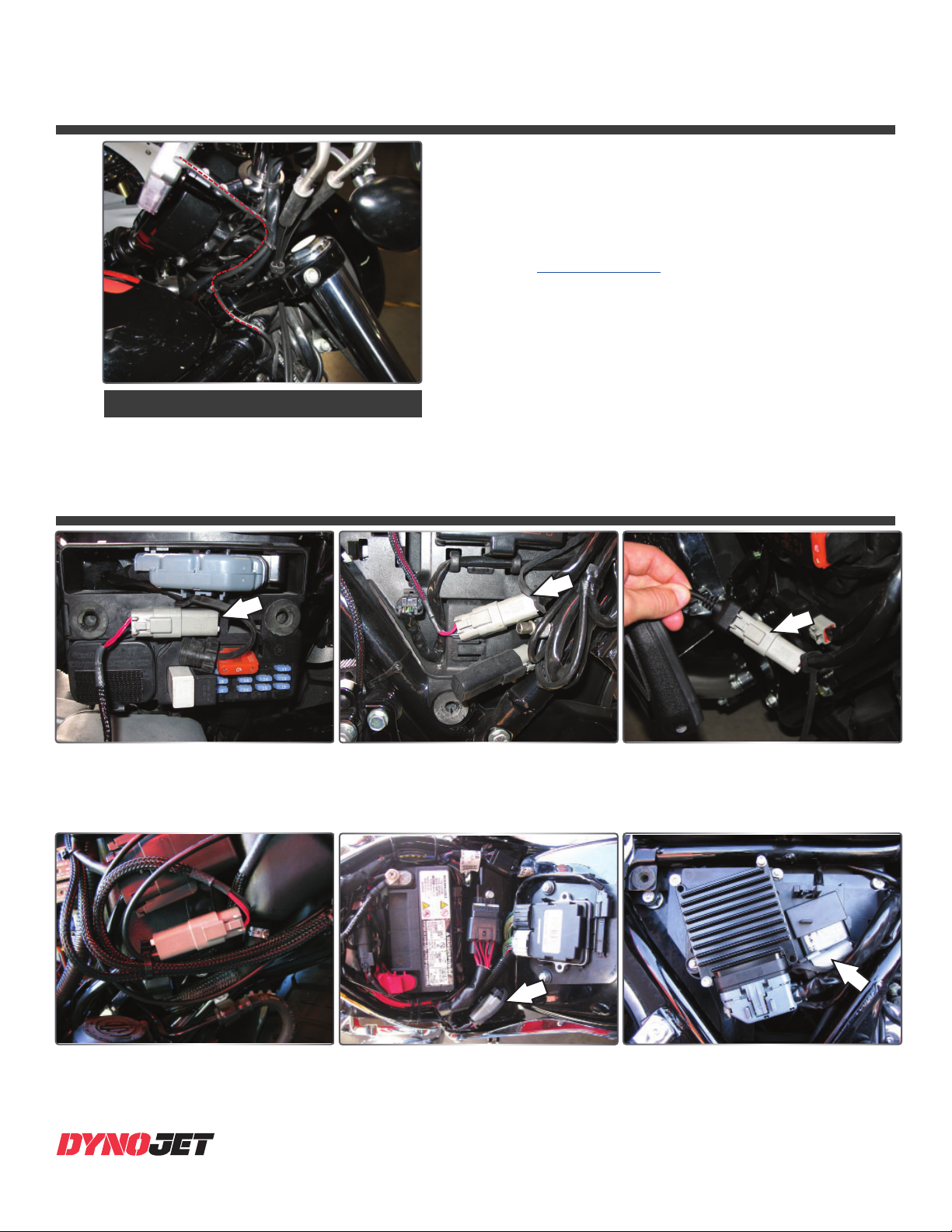

2004-2011 Dyna Models
Diagnostic connector is located behind the Left hand
side cover. Connector is Light Grey in color with black
rubber plug installed.
2007-2013 Sportster Models
(including XR Models)
Diagnostic connector is located behind the Left hand
side cover. Connector is Light Grey in color with black
rubber plug installed.
2008-2013 Touring Models
Diagnostic connector is located behind the left hand
side cover. Connector is Light Grey in color with a black
rubber plug installed.
2001-2010 Softail Models
Diagnostic connector is located under the seat, attached
to the frame by the rear fender. Connector is Light Grey
in color, with black rubber plug installed.
2002-2007 Touring Models
Diagnostic connector is located behind the right hand
side cover. Connector is Light Grey in color with a black
rubber plug installed.
Note: Requires removing the right side saddle bag.
2002-2017 V-Rod Models
Diagnostic connector is located behind the Right Front
frame cover. Connector is Light Grey in color with a black
rubber plug installed.
Note: Tools required to access.
DIAGNOSTIC PORT LOCATION
INSTALLING THE POWER VISION CONTINUED
2 Route the Power Vision cable away from any moving or
hot parts. Dynojet recommends using zip ties to secure
the cable to existing non-moving components.
3 Secure the Power Vision to the vehicle using the supplied
Velcro or mounting hardware. Make sure the Power Vision
will not interfere with the operation of the vehicle.
Visit www.dynojet.com for an array of mounting solutions
for your Power Vision.
Note: The Power Vision does not need to be mounted
to the vehicle, however, the Power Vision provides
a window into your vehicle. Mount the Power Vision
to your handlebars and gain access to customizable
full-color gauge screens, along with data logging and
troubleshooting screens.
ROUTING THE CABLE

4 HARLEY-DAVIDSON INSTALLATION GUIDE 98200148
FLASHING YOUR VEHICLE
The Power Vision must be paired to the connected vehicle ECU
to function properly. Pair to vehicle will only happen at the
start of the first ECU read.
Note: Once paired to the vehicle ECU, the Power Vision will
not work on another vehicle without purchasing a tune
license.
1 From the Main Menu, select Tuning>Flash Tune.
2 Select the tune file (.djt) and press Enter to view the Tune Info.
Note: The Dynojet tune file (.djt) is a tune file which is
different (better than stock performance or the necessary
file when bolting on an exhaust, for example); the stock file
(.stk) is the direct duplicate of what the OEM shipped.
3 Press Enter to accept the tune.
4 Press Enter to begin the flash. Do not turn off the key switch
or disconnect the Power Vision during the flash. Writing to the
ECU should complete within three minutes.
5 After the flash is complete, turn the key off and wait 45 seconds
before turning the key back on to start.
TUNING
FLASH TUNE
AUTOTUNE
MAIN MENU
TUNING
VEHICLE TOOLS
DEVICE TOOLS

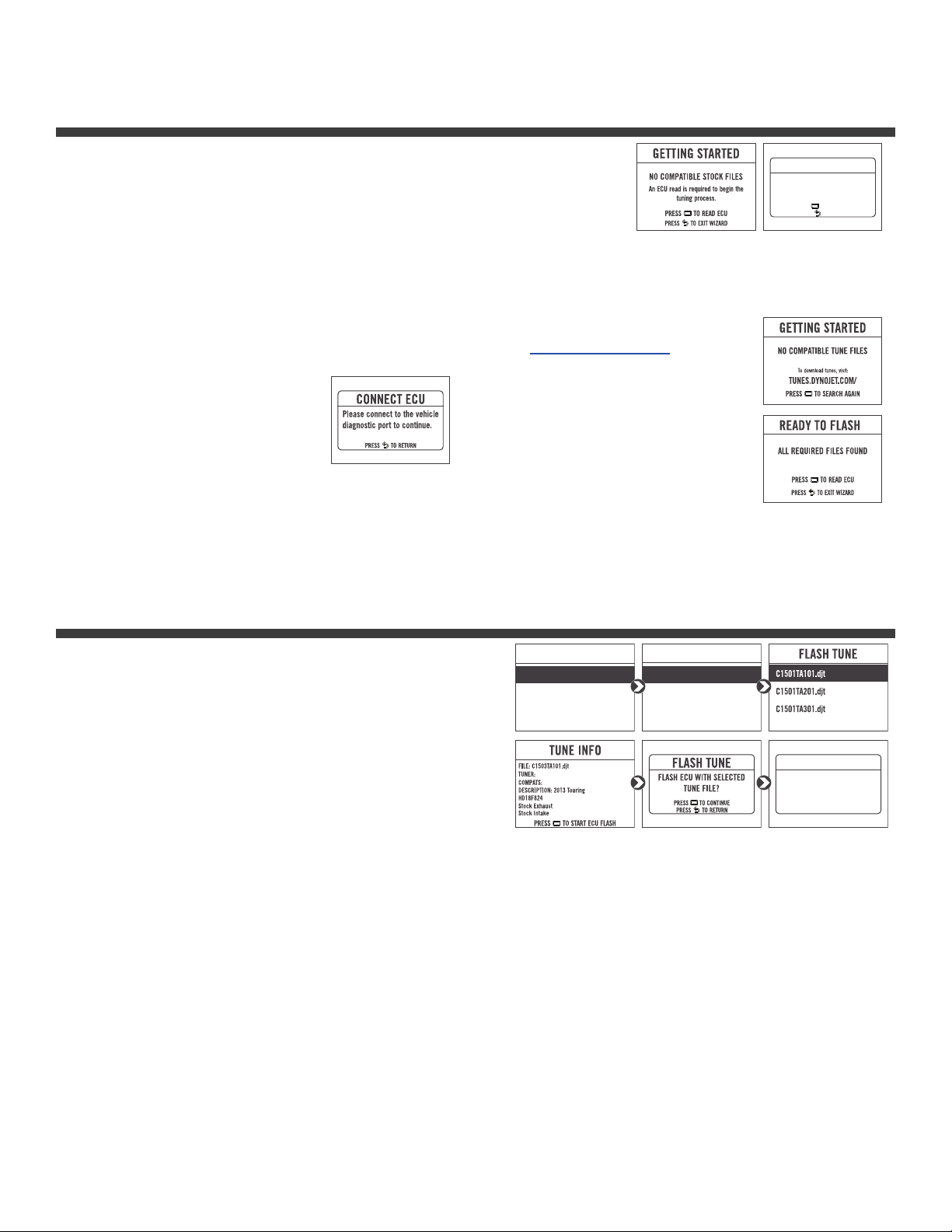

GETTING STARTED
Use the Tune File Wizard to prepare your Power Vision
device with the stock (stk) and tune (djt) files needed to
flash your vehicle.
1 Connect the Power Vision to the vehicle.
2 Turn the key on. The Power Vision will scan for files.
There are three possible file states:
File State 1: No compatible tune or stock files.
File State 2: No compatible tune files.
File State 3: All required files found.
3 Gauges are displayed.
File State 1:
Press the Enter
button for ECU read
to begin the tuning
process.
File State 2:
Go to tunes.dynojet.com/ to
download tune files.
File State 3:
All required files found. The Power
Vision is ready to flash a tune to the
connected vehicle.
Connect the Power Vision to the
vehicle diagnostic port to collect
ECU information. Turn the key on.
READ ECU
AN ECU READ CAN TAKE UP TO
3 MINUTES TO COMPLETE
PRESS TO RETURN
PRESS TO CONTINUE
WRITING TO ECU
WRITE SHOULD COMPLETE
WITHIN 3 MINUTES, PLEASE
WAIT...
This process takes about three minutes.
The Power Vision will pair to the vehicle at the start of
the ECU read.

5

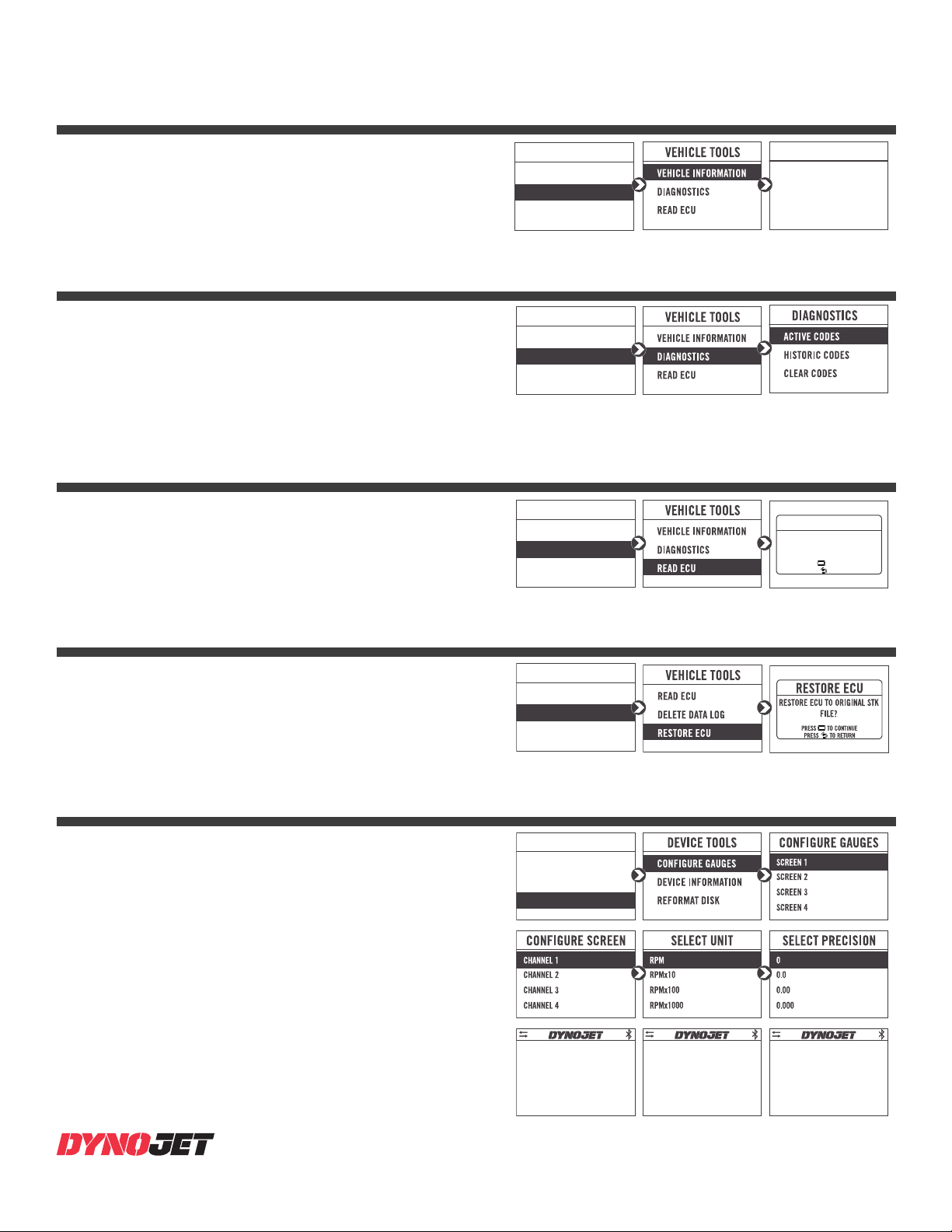

CONFIGURING GAUGES
Make your Power Vision device yours; display the channels
you want to see with four user-customizable full-color gauge
screens. Each gauge screen has one, two, or four configurable
channels. Monitor channels such as Wideband and AFR. Sample
gauges shown here; for a complete list of monitors available,
open the tune file in Power Core or scroll through the gauges on
the device when configuring or selecting channels for the list of
options.
1 From the Main Menu, select Device Tools>Configure Gauges.
2 Select a gauge screen and press Enter.
3 Select a channel and press Enter.
4 Select a channel from the list and press Enter.
5 Select the precision or units for that channel and press Enter.
6 Continue setting up the remaining channels as desired.
7 Continue configuring the remaining gauge screens as desired.
RESTORING THE ECU
This menu allows you to restore the ECU. Use Restore ECU if
the device does not complete the flash or if your vehicle will
not start.
Select Vehicle Tools>Restore ECU.
This menu allows you to read the ECU. This process takes
about three minutes.
Select Vehicle Tools>Read ECU.
READ ECU
AN ECU READ CAN TAKE UP TO
3 MINUTES TO COMPLETE
PRESS TO RETURN
PRESS TO CONTINUE
READING THE ECU
This menu allows you to read and clear diagnostic trouble
codes.
1 To read codes, select Vehicle Tools>Diagnostics>Active
Codes.
2 To clear codes, select Vehicle Tools>Diagnostics>Clear
Codes.
VIEWING THE DIAGNOSTIC CODES
MAIN MENU
TUNING
VEHICLE TOOLS
DEVICE TOOLS
MAIN MENU
TUNING
VEHICLE TOOLS
DEVICE TOOLS
MAIN MENU
TUNING
VEHICLE TOOLS
DEVICE TOOLS
MAIN MENU
TUNING
VEHICLE TOOLS
DEVICE TOOLS
This menu allows you to view the device status (paired/not
paired), VIN #, Model ID, ECU serial number, tune compat, and
checksum compat.
Select Vehicle Tools>Vehicle Information.
VEHICLE INFO
PAIRED VEHICLE: DEVICE NOT PAIRED
VIN: 1HD1GM41X8K326073
MODEL ID: 2007 TOURING
TUNE COMPAT: HD7U176
CSUM COMPAT:
VIEWING THE VEHICLE INFORMATION
MAIN MENU
TUNING
VEHICLE TOOLS
DEVICE TOOLS
52.0
3450
Engine Speed
Speed
342.1
52
3450
Engine Speed
Gear
Speed
TP
3450
Engine Speed

6 HARLEY-DAVIDSON INSTALLATION GUIDE 98200148

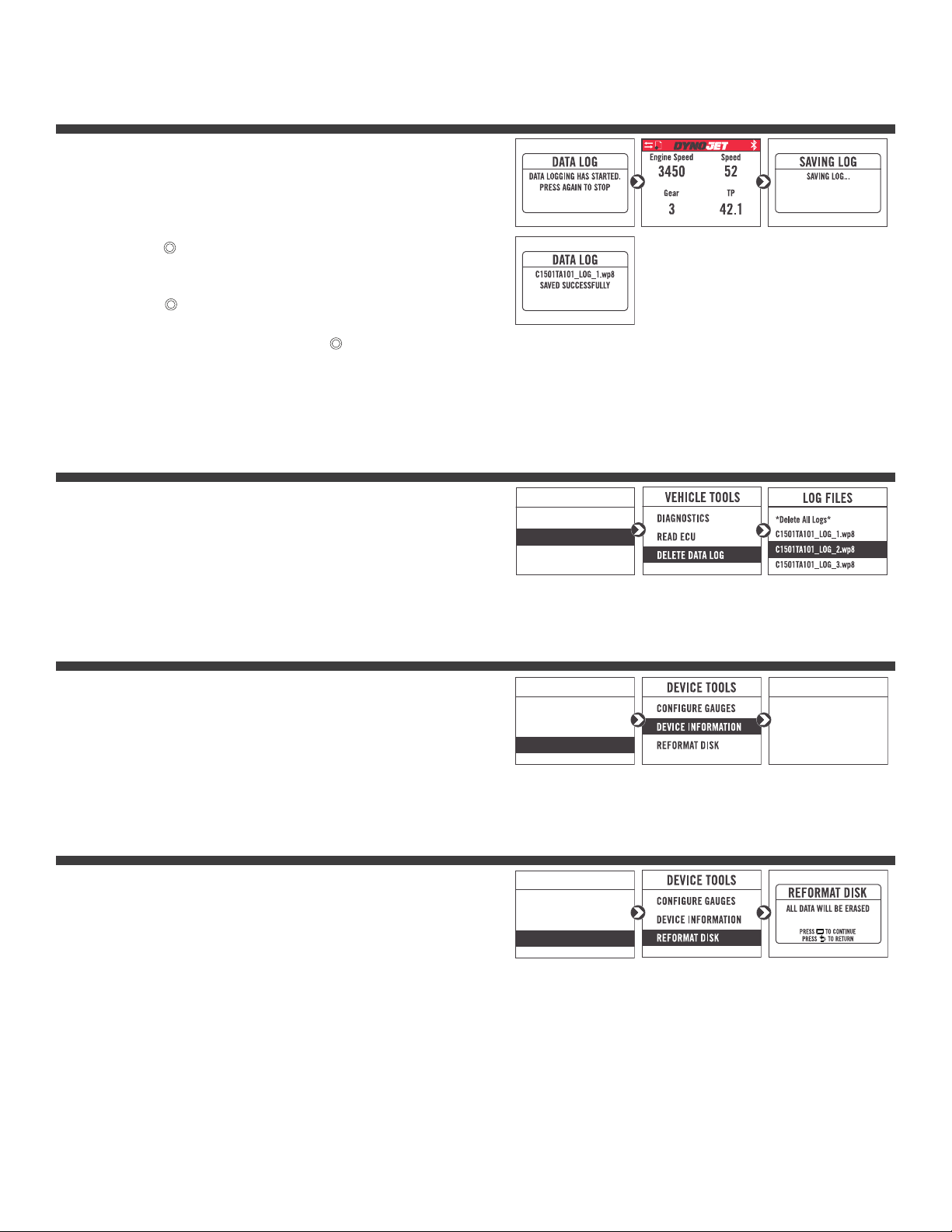

DELETING DATA LOGS
This menu allows you to delete data logs.
1 Select Vehicle Tools>Delete Data Log.
2 Select a specific log to delete or select *Delete All Logs*.
MAIN MENU
TUNING
VEHICLE TOOLS
DEVICE TOOLS
VIEWING THE DEVICE INFORMATION
This menu allows you to view the device firmware version,
serial number, and stock code.
Select Device Tools>Device Information.
DEVICE INFORMATION
DYNOJET POWER VISION
FW VERSION: 3.9.8297.19316
SERIAL NUMBER: PV00032968
STOCK CODE: 76125083
MAIN MENU
TUNING
VEHICLE TOOLS
DEVICE TOOLS
REFORMATTING THE DISK
This menu allows you to reformat the disk and erase all data.
Select Device Tools>Reformat Disk.
MAIN MENU
TUNING
VEHICLE TOOLS
DEVICE TOOLS
LOGGING DATA
The Power Vision is a powerful logging tool to diagnose running issues.
Use the Power Vision to log all vehicle operating data and review the
data in the Power Core software. Troubleshoot an issue such as knock,
speed/RPM limitation, throttle blade closure and more by keeping the
Power Vision mounted to view and record channels.
1 Press the Log button to begin logging. The Power Vision
screen will illuminate a bright red banner across the top when
logging.
2 Press the Log button again to stop logging.
3 Use the Power Core software to view log files.
Snapshot Log: Press and hold the Log button for two
seconds to record the previous two minutes of operating time.

7

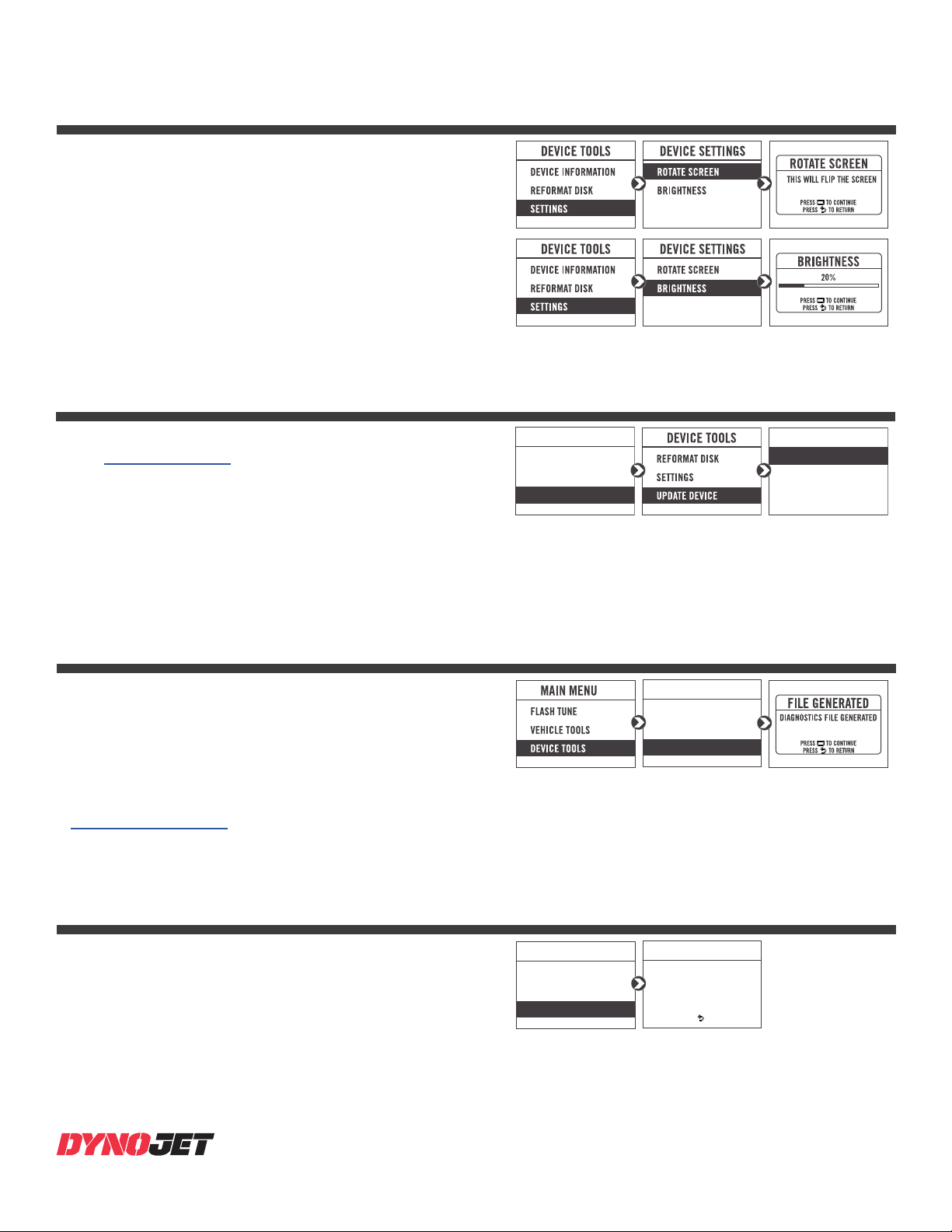

CHANGING THE SETTINGS
This menu allows you to rotate the screen allowing you to
change the orientation of the Power Vision device along with
adjusting the screen brightness. Turn the brightness up and
make your screen pop!
Select Device Tools>Settings>Rotate Screen to flip the
screen.
Select Device Tools>Settings>Brightness to change the
screen brightness.
UPDATING THE DEVICE
UPDATE DEVICE
PV3_3.9.8297.19316.dfu
MAIN MENU
TUNING
VEHICLE TOOLS
DEVICE TOOLS
This menu allows you to update the device with the latest firmware.
1 Go to www.dynojet.com.
2 Fr om the top navigation menu, select Support>Downloads.
3 Click Power Vision 3.
4 Click the Firmware drop-down and download the Power Vision 3
Firmware for Harley-Davidson.
5 Save the file to your device.
6 Select Device Tools>Update Device.
DIAGNOSTIC ENABLE
This menu allows you to create a file containing device
diagnostic information used by Dynojet Tech Support.
1 From the Main Menu, select Device Tools>Diagnostic Enable.
This will turn on diagnostic logging. Logging will continue until
the device is restarted.
2 If requested by Dynojet Tech Support, connect your Power
Vision to a computer and email the diagnostic file to
[e-mail]. Diagnostic log files are placed in the
log files directory.
DEVICE TOOLS
SETTINGS
UPDATE DEVICE
DIAGNOSTIC ENABLE
USB MODE
This menu allows you to connect your Power Vision to your
computer and enables sending and receiving files.
1 Connect the Power Vision to your computer using the included
USB cable. The Power Vision will automatically enter USB Mode.
OR
From the Main Menu, select USB Mode.
2 Transfer the desired files to your computer or to the Power
Vision.
USB MODE
USB FILE TRANSFER ENABLED
PRESS TO EXIT
MAIN MENU
DEVICE TOOLS
HELP
USB MODE

8 HARLEY-DAVIDSON INSTALLATION GUIDE 98200148
USING AUTOTUNE BASIC
TUNING
FLASH TUNE
AUTOTUNE
AUTOTUNE
ENABLE
AT STATUS:NOT ENALBED
DISABLE
APPLY VALUES
MAIN MENU
TUNING
VEHICLE TOOLS
DEVICE TOOLS
Autotune Basic utilized the narrowband O2 sensors on bikes that
have OEM closed loop fuel control. After the data is collected, the
Power Vision can process the data, correct the tune, and then re-
flash the corrected tune into the ECM. Leave the laptop at home, you
now have a full time, professional tuning expert inside your Power
Vision.
1 Connect the Power Vision to the vehicle.
2 Flash the .djt file.
Note: A .djt file created in Power Core 3.0 or later is required
to use Autotune.
3 From the Main Menu, select Tuning>Autotune>Enable>Enable
AT Basic.
Once Autotune is enabled, “AT” will be visible in the top left
corner. Autotune will not turn off until disabled.
AT
342.1
52
3450
Engine Speed
Gear
Speed
TP
AUTOTUNE
ENABLE AT BASIC
AT STATUS:NOT ENALBED
AT :
)
4 Start the vehicle. Autotune will not begin until the vehicle is
warmed up. The Autotune ready icon will appear in the top left
once all conditions are met.
5 Autotune is now active and logging has started. Logging begins
when the vehicle is running.
6 Once complete, turn the vehicle off.
AUTOTUNE
ENABLE
AT STATUS:ENALBED
DISABLE
APPLY VALUES
FLASH COMPLETE
TO VERIFY FLASH TURN KEY
OFF THEN ON
PRESS TO CONTINUE
TUNING
FLASH TUNE
AUTOTUNE
8 From the Main Menu, select Tuning>Autotune>Disable to exit
Autotune. “AT” will be replaced with the double arrow icon to
confirm Autotune is disabled. This tune flash will not contain the
table values required to engage the Autotune session, but only
the fueling values learned during the Autotune process; with the
others restored to normal operating defaults.
AUTOTUNE
ENABLE
AT STATUS:ENALBED
DISABLE
APPLY VALUES
FLASH COMPLETE
TO VERIFY FLASH TURN KEY
OFF THEN ON
PRESS TO CONTINUE
TUNING
FLASH TUNE
AUTOTUNE
AUTOTUNE
APPLY VALUES
AT STATUS:NOT ENALBED
RESET VALUES
SETTINGS
RESET AT VALUES
Success! AT values reset.
TUNING
FLASH TUNE
AUTOTUNE
9 From the Main Menu, select Tuning>Autotune>Reset Values to
reset the Autotune values.
10 From the Main Menu, select Tuning>Autotune>
Settings>Delete All AT Data. Use this to delete all Autotune
data from the Power Vision.
AUTOTUNE
APPLY VALUES
AT STATUS:NOT ENALBED
RESET VALUES
SETTINGS
AUTOTUNE
DELETE ALL AT DATA
AT STATUS:NOT ENALBED
TUNING
FLASH TUNE
AUTOTUNE
DELETE AT DATA
Delete ALL AT session data for
all vehicles?
PRESS TO CONTINUE
PRESS TO RETURN
7 From the Main Menu, select Tuning>Autotune>Apply Values.
Autotune will calculate the corrections and flash the new tune to
the vehicle.
AT AT :)
342.1
52
3450
Engine Speed
Gear
Speed
TP

9
INSTALLING THE POWER CORE SOFTWARE
USING THE POWER VISION UPDATE CLIENT
This stand alone application will launch the Update Client
allowing you to update your Power Vision with the latest
firmware, retrieve additional tunes, or restore the Power Vision to
the original Dynojet factory settings.
1 Connect the Power Vision to your computer using the included
USB cable.
2 Navigate to the POWERVISION drive attached to your computer
and run the Update.exe file.
3 Click Update to load the current firmware. If the Update button is
grayed out, your Power Vision already has the latest firmware.
4 Click Restore to reload all original Dynojet tune and stock files.
5 Click Get Tunes to open the Dynojet Tune Finder. Follow the
instructions to Upload your PV_Info.txt file and retrieve new tunes.
6 Click Manual Firmware Update to navigate to and load a version
of firmware already saved on your computer.
Firmware Version: 3.9.8297.19316 S/N: PV00029757
Help 1.0.3.0
Manual Firmware Update
Restore Get Tunes
Download the Power Core software and take tuning to a whole
new level.
Note: Downloading the Power Core software is optional
and not necessary to use the Power Vision.
1 Go to www.dynojet.com.
2 From the top navigation menu, select Support>Downloads.
3 Click Power Vision 3.
4 Click the Software drop-down and download the Dynojet Power
Core software.
5 Double-click the saved file to begin installation. Follow the on-screen
prompts. Refer to the Power Core Help for more information.
