E-MAG Emmi 20HC User manual

ULTRASONIC – CLEANING EQUIPMENTS
Emmi 20 HC - 60 HC with power regulator
• Power regulator for 3 levels of ultrasonic power
• Easy operation by rotary switches
• Adjustable heating from +35°C to +85°C
• Excellent cleaning efficiency with pure water
• Four standard sizes: 2,0, 3,0, 4,0 and 6,0 liters
• High efficiency
• Inclusive of basket and cover, both out of
stainless steel
• EMAG ultrasonic cleaners are maintenance
free
New: Regulator for Ultrasonic Power
EM/1058/0710©EMAG AG
EMAG AG ist zertifiziert nach
DIN EN ISO 9001:2000 1058
Operating Manual
EMAG AG
Gerauer Str. 34, D-64546 Mörfelden-Walldorf
Tel.: [phone] - 40 67 00
www.emag-germany.de
Date of Sale
Stamp of Seller
Changes reserved
Type / Model
8. WARRANTY
This product is warranted against defects in manufacturing or materials for a period of two year
from the date of purchase. Defects may be corrected by repair, or by replacement of the unit, at
the option of the manufacturer.
This warranty may be voided if the unit is not operated in accordance with the instructions
provided by the manufacturer. The warranty my also be voided by the opening of the unit, and/or
its partial or total assembly, without prior factory authorization.
Any claim made under this clause shall be directed to the seller, and shall be verified by proof of
purchase. The seller will advise the buyer concerning disposition of the unit. The normal
procedure shall be for the manufacturer to issue a warranty claim number, and to authorize return
of the unit to the factory. Buyer shall bear shipping costs.
© Copyright EMAG AG.All rights reserved. Manufactured in the European Community. he content of this Operating
Instruction is subject to the copyright and it must not be copied neither in part nor in total. Changes, reductions,
extentions and amendments of any publication or translation requires the prior written agreement of EMAG AG.
EMAG AG ist zertifiziert nach
DIN EN ISO 9001:2000
Eglisch_mi.indd 1 22.07.2008 14:30:01 Uhr

1. DESCRIPTION
2. TECHNICAL DATA
Characteristics Emmi 20HC Emmi 30HC Emmi 40HC Emmi 60HC
Length (mm) 260 265 325 325
Width (mm) 150 165 180 175
Heigth (mm) 220 240 240 285
Volume (liter) 2,0 3,0 4,0 6,0
Tank dimensions
ca. LxWxH (mm) 230 x 120 x 80 240 x 135 x 100 300 x 155 x 100 300 x 155 x 130
Basket dimensions
ca. LxWxH (mm) 205 x 100 x 60 205 x 110 x 75 265 x 130 x 75 270 x 130 x 95
Width of basket mesh
(mm) 6 x 6 6 x 6 6 x 6 6 x 6
Power Supply (V) 230 V / 50 Hz 230 V / 50 Hz 230 V / 50 Hz 230 v / 50Hz
Protection Class IP 20 IP 20 IP 20 IP 20
Ultrasonic Power max
(W) 150 200 250 450
No. of Ultrasonic
Oscillators 2 (ca. 38kHz) 3 (ca. 38kHz) 4 (ca. 38kHz) 6 (ca. 45kHz)
Technical changes reserved
NEU
2
1
4
3
56
7
8

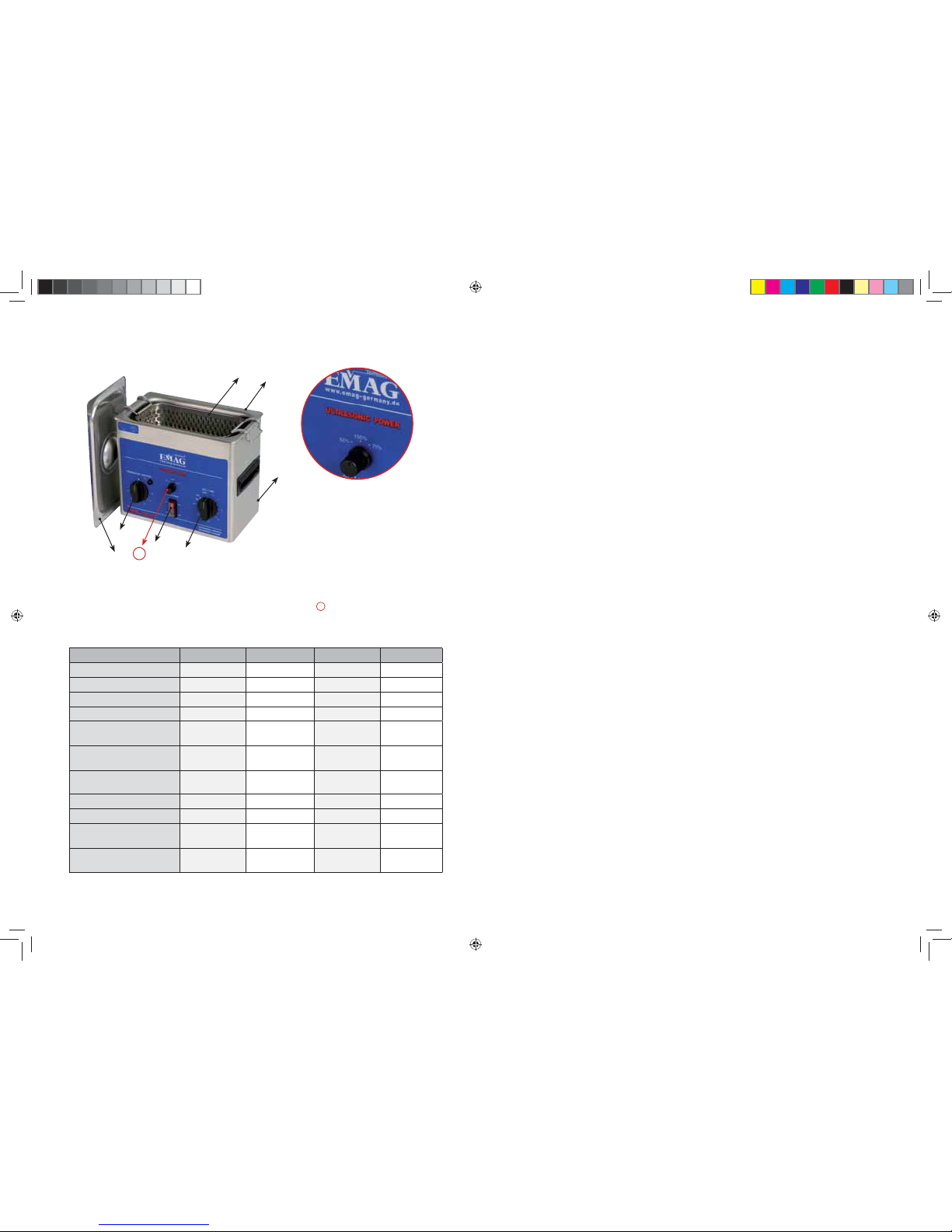

1. Cover – stainless steel
2. Basket – stainless steel
3. Tank – stainless steel
4. Power supply cable
5. ON / OFF
6. Timer switch
7. Temperature switch
. New: Power regulator for 3 levels
of ultrasonic power
8
7. CLEANING ADDERS
For the individual items to be cleaned individual cleaning adders are
available which make cleaning more intensive and efficient. You can
buy these cleaning adders from the source where you have bought your
equipment, or you may buy it under www.emag-germany.de.
We recommend for the individual applications the following highly
concentrated adders:
EM 070 - for dental applications in laboratories, or at home, 1%
EM 080 - looking glasses, jewellery, indian ink pens, ball heads, small
tools and instruments, small precision engineering parts, razor
heads etc. (except contact lenses)
EM 100 - de-oxidation concentrate for silver
EM 200 - Desinfection concentrate for instruments etc., 1%
EM 300 - Super plus - extreme cleaner for difficult cases (i.e. settings,
sockets, shells, weapon parts, brass), 1%
EM 303 - Printed circuit board cleaner
EM 404 - Aluminium and diecast cleaner (carburators, engine blocks,
cylinder heads etc.)
If above adders are used please observe application notes!
If cleaning adders of other manufacturers are used we cannot take any
liability for the cleaned goods or the condition of the tank. For detailed
information you can contact us at any time.
Eglisch_mi.indd 2 22.07.2008 14:30:04 Uhr

3. CONVENTIONAL USE
The equipment may only be used for the purpose as set forth in the
catalogue and in the technical descriptions which means for the
cleaning of goods recommended in this operating manual, and only in
conjunction with external devices and components which are
recommended or approved by EMAG AG.Any other use of the equip-
ment is considered to be non conventional.
In case of non conventional use EMAG AG will not be liable for possible
damages and will not warrant for the correct and functionally work of the
components.
Part of the conventional use is also the observance of all information
given in the operating manual. To this attention is drawn by the sign
on the type plate.
The correct and safe operation of the equipment implies appropriate
transportation, storage, installation and assembly as well as careful
handling and maintenance.
6. EXAMPLES OF GOODS TO BE CLEANED WITH AN
ULTRASONIC BATH
• Looking glasses, glasses frames (please make sure that the
glasses do not have direct contact with the bottom of the tank).
• Gold and silver jewelery, precious stones, emeralds, pearls
• Indian ink pens, drawing equipments and accessories
• Dentures, prosthesis, braces
• Motor parts, printed circuit boards, ink cartridges, motor bike
chaines, tools, carburators etc.
• Precision engineering parts, weapon parts, i.e. cartridges, springs
Eglisch_mi.indd 3 22.07.2008 14:30:04 Uhr

4. NON CONVENTIONAL USE
In case of non conventional use of the equipment danger for life and
limb as well as danger for property may occur. Therefore a non conven-
tional use is prohibited.
In case of non conventional use EMAG AG will not be liable for possible
damages and will not warrant for the correct and functionally work of the
components.
In order to avoid non conventional use of the ultrasonic cleaning equip-
ment the following directions are to be considered:
• The ultrasonic cleaning equipment may only be operated with
the voltage printed on the type plate on the backside of the housing
(shockproof socket).
• No flammable or aggressive chemicals (i.e. acids etc.) must be
used for cleaning of the goods (use glass container EM-50 DG if
needed).
• During cleaning process don `t grab into the cleaning liquid.
• In case of transportation damage, don `t connect the equipment
with main source.
• Don `t clean animals or nails in the ultrasonic bath.
• The ultrasonic cleaning equipment must only be operated with the
correct level of water (approx. 1 cm below upper brim)
• If objects are heavily soiled, place them soiled side down into the
liquid and do not stack them.
• During operation do not stay in vicinity of the equipment (1 m) for
more than 4 hours.
• The equipment must only be operated indoor and within dry
environments.
• It is normal that the upper brims of the tank warm up during
operation.
• Before emptying the tank the power supply must be disconnected.
5. OPERATING INSTRUCTION
The tank is filled with water or a disinfection / cleaning agent and the
power supply cable is connected with main source. After the power
switch is switched ON the cleaning time, the temperature and the
ultrasonic power can be adjusted by using the rotary switches.
If continuous operation is wished, turn the time switch counter-clock-
wise. For reasons of safety, however, we do not recommend permanent
operation. The unit may run dry due to evaporation and thus get
damaged. In no case a permanent operation of max. 4 hours may be
exceeded.
The cleaning time to be set depends on the degree of dirt of the objects
you want to clean.
If the preset cleaning cycle has been finished, the unit automatically
terminates the cleaning process. Another turning of the rotary switches
will put the unit back into operation.
After termination of the cleaning process remove cleaned goods from
the tank and shortly wash them up under running water in order to
remove dirt particles which may still stick to the goods.
After termination of one or more cleaning cycles it is recommended to
empty the tank, to wash up the tank and to dry it with a cloth. Please
make sure that no water can penetrate into the equipment through the
slots in the bottom of the equipment.
Note: Before you empty the tank the power supply must be discon-
nected.
Note: Please, note that when the tank is filled with fresh water -
depending on the degree of hardness of the water - a certain operating
time for the out gazing of the water shall be considered. The best
efficiency is achieved when using out gazed or distilled water.
If no distilled water is available, please operate the equipment filled with
water for approx. 10 minutes before putting goods in for cleaning.
Eglisch_mi.indd 4 22.07.2008 14:30:04 Uhr
