Echo MS-5 User manual

Backpack Sprayer
Operator'sManual
Model MS-5
WARNING DANGER
Readrulesforsafeoperationandinstructionscarefully. ECHOprovidesanOperator's
ManualwithyourBackpackSprayer. Thismanualmustbereadandunderstoodforproper
andsafeoperation.
99922202290
02/04

2
WARNING DANGER
Read rules for safe operation and instructions carefully. ECHO provides an Operator's Manual, which must be read
and understood for proper and safe operation.
INTRODUCTION
Welcome to the ECHO family. This ECHO product was designed and manufactured to provide long life and on-the-job-
dependability. Read and understand this manual before operating the unit. You will find it easy to read and full of helpful
operating tips and SAFETY messages.
THE OPERATORS MANUAL --
contains specifications and information for operation, starting,
stopping, maintenance, storage and assembly specific to this product.
TABLE OF CONTENTS
Introduction ..................................................................................................................................................... 2
- The Operator's Manual.............................................................................................................................. 2
SafeOperation ................................................................................................................................................. 3
Assembly ......................................................................................................................................................... 4
- PumpHandleInstallation.......................................................................................................................... 4
- Shoulder Strap Installation ....................................................................................................................... 4
- LumbarSupport Installation ..................................................................................................................... 5
- SprayExtension ........................................................................................................................................ 5
Operation ......................................................................................................................................................... 6
- PressureChamberReplacement................................................................................................................ 7
Trouble Shooting ............................................................................................................................................. 8
Cleaning and Storage ....................................................................................................................................... 9
ServicingInformation..................................................................................................................................... 12
- Parts........................................................................................................................................................ 12
- Service .................................................................................................................................................... 12
- ECHOConsumerProductSupport.......................................................................................................... 12
- Warranty Card ........................................................................................................................................ 12
- Additional or Replacement Manuals ...................................................................................................... 12
Copyright©2004ByEcho,Incorporated
All Rights Reserved.

BACKPACK SPRAYER
OPERATOR'SMANUAL 3

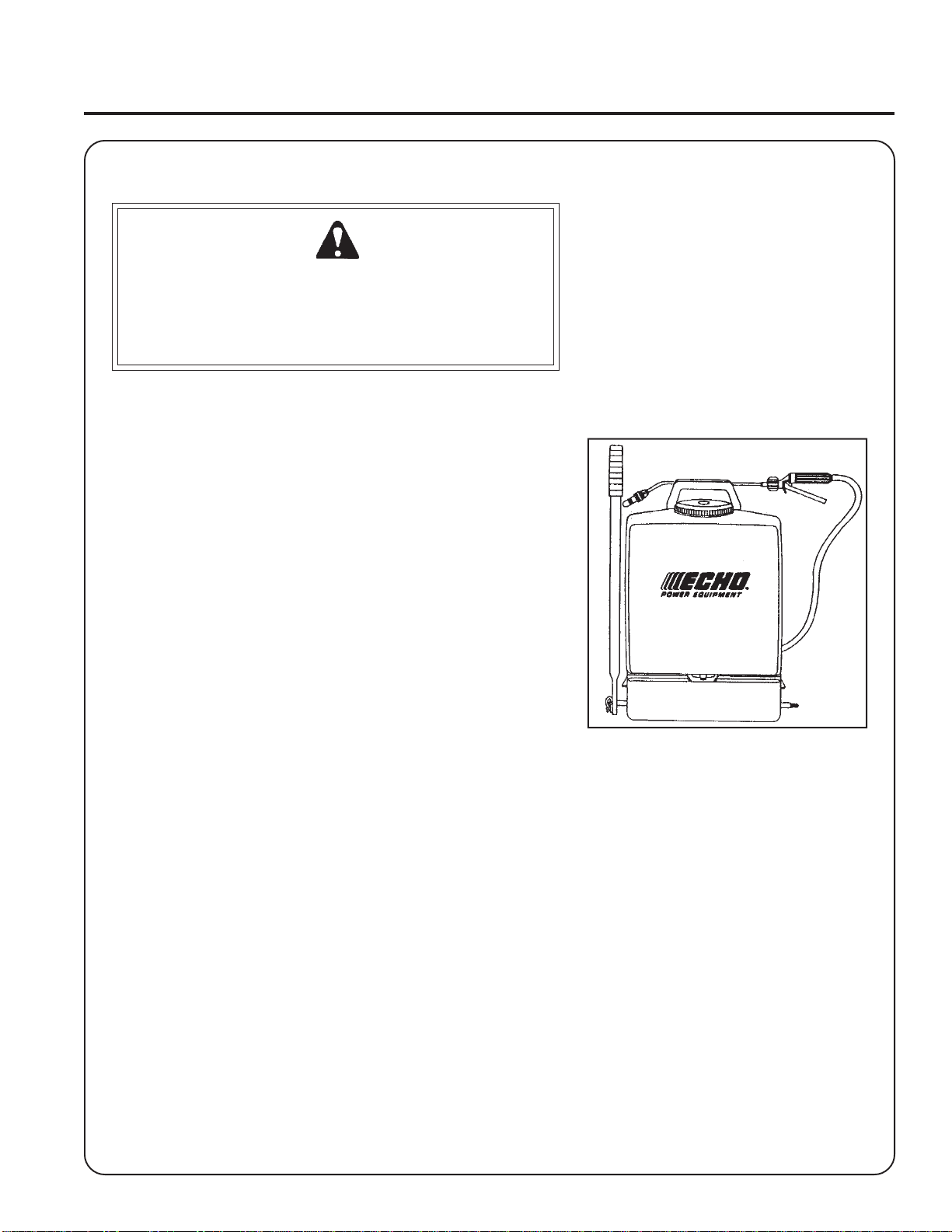

SAFE OPERATION
• DONOTuseflammablematerialsinthissprayer.Materialcouldigniteor explodecausingSERIOUSINJURY.
• DO NOT use caustics or acids. Either can cause corrosion and weaken hose gaskets.
• DO NOT use hot water. Excess heat can weaken plastic and rubber components.
• DO NOT use sprayer if hose is frayed, cracked or shows signs of swelling.
• NEVER stand with face or body over sprayer when pressurizing tank or releasing pressure.
• NEVER point sprayer at face or body.
• NEVER pressurize sprayer using an air compressor or other means. Excessive pressure can cause sprayer to explode. ONLY
PRESSURIZEsprayerusingbuiltinpumpmechanism.
• NEVER spray heated or self heated solutions.
• NEVER spray upwind. Avoid contact with solutions.
• ALWAYS read and understand directions supplied by manufacturer/packager of product to be sprayed.
• ALWAYS wear safety glasses (eye protection) that meet ANSI Z87.1 or CE requirements and protective clothing when
using sprayer.
• ALWAYS use ECHO replacement parts. Use of improper parts may lead to failure and serious injury.
• ALWAYS KEEP SPRAYER AND SPRAY MATERIALS OUT OF REACH OF CHILDREN.
IMPORTANT
DONOT operatewithout liquidin thechemical tank.Damage tothe pumpwill occur.

4
ASSEMBLY
PUMP HANDLE INSTALLATION
1. Fit slot in pump handle over flattened end of drive rod (left or right
side as preferred). Secure with hitch pin. Handle should protrude
toward operator at 90 degree angle.
SHOULDER STRAP INSTALLATION
1. Insert single strap through center hole of carrying handle. Pull strap
over bar.
2. Secure strap through buckle. Adjust as needed.

BACKPACK SPRAYER
OPERATOR'SMANUAL 5

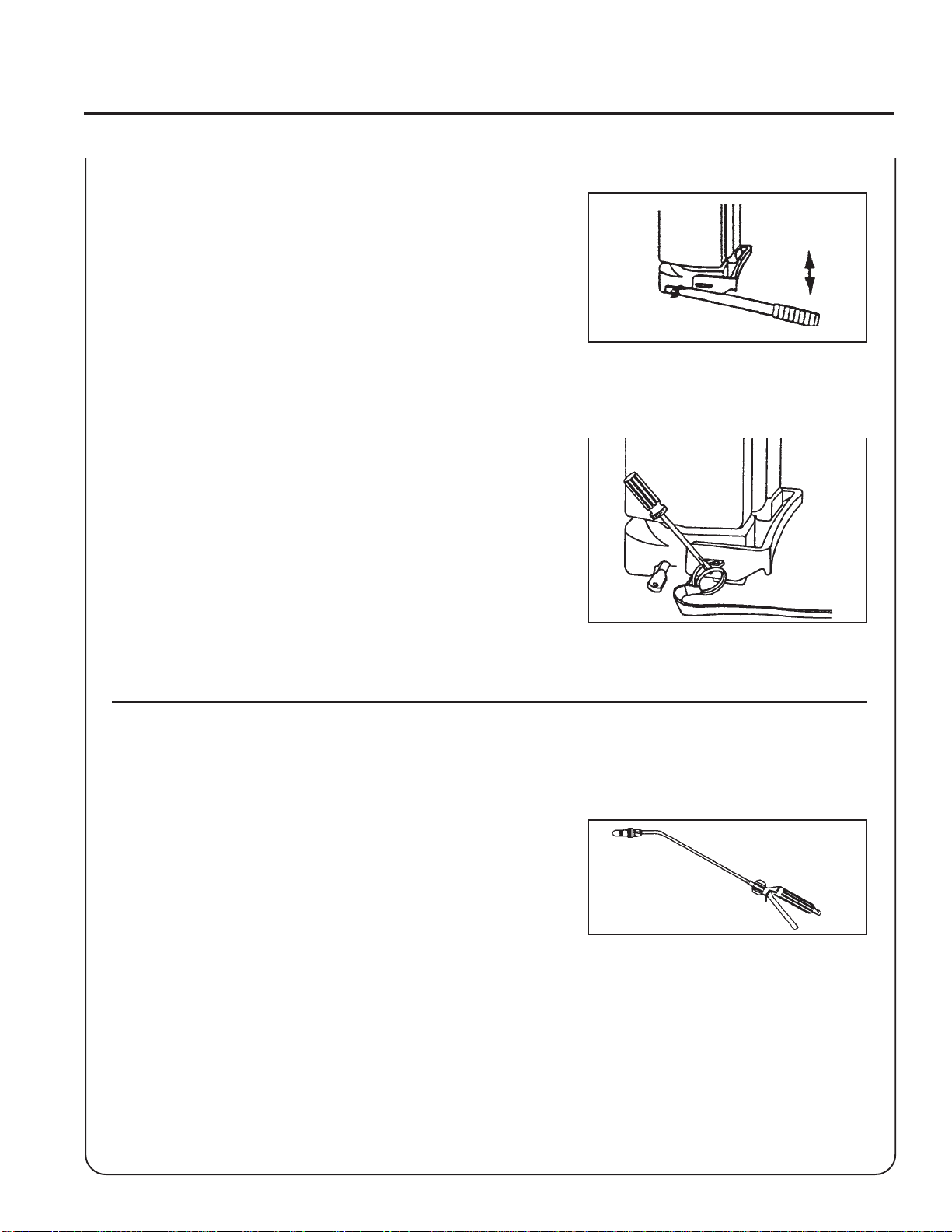

LUMBAR SUPPORT INSTALLATION
1. Fit slots in lumbar support over mount support tabs of sprayer
base. (This must be done prior to installing shoulder strap ring).
2. Use a flat screwdriver to separate shoulder strap ring at end of
strap – insert ring end through hole in mount support tabs on base
of sprayer. Turn ring until completely through hole. Make sure
straps are not twisted. When attaching the waist belt simply snap
hooks into rings of shoulder strap.
SPRAYEXTENSION
Always conduct a test using clean water before mixing chemicals. Spray
extension must be attached to shutoff assembly. Make certain that
valve seat is in place before attaching. Tighten firmly.

6

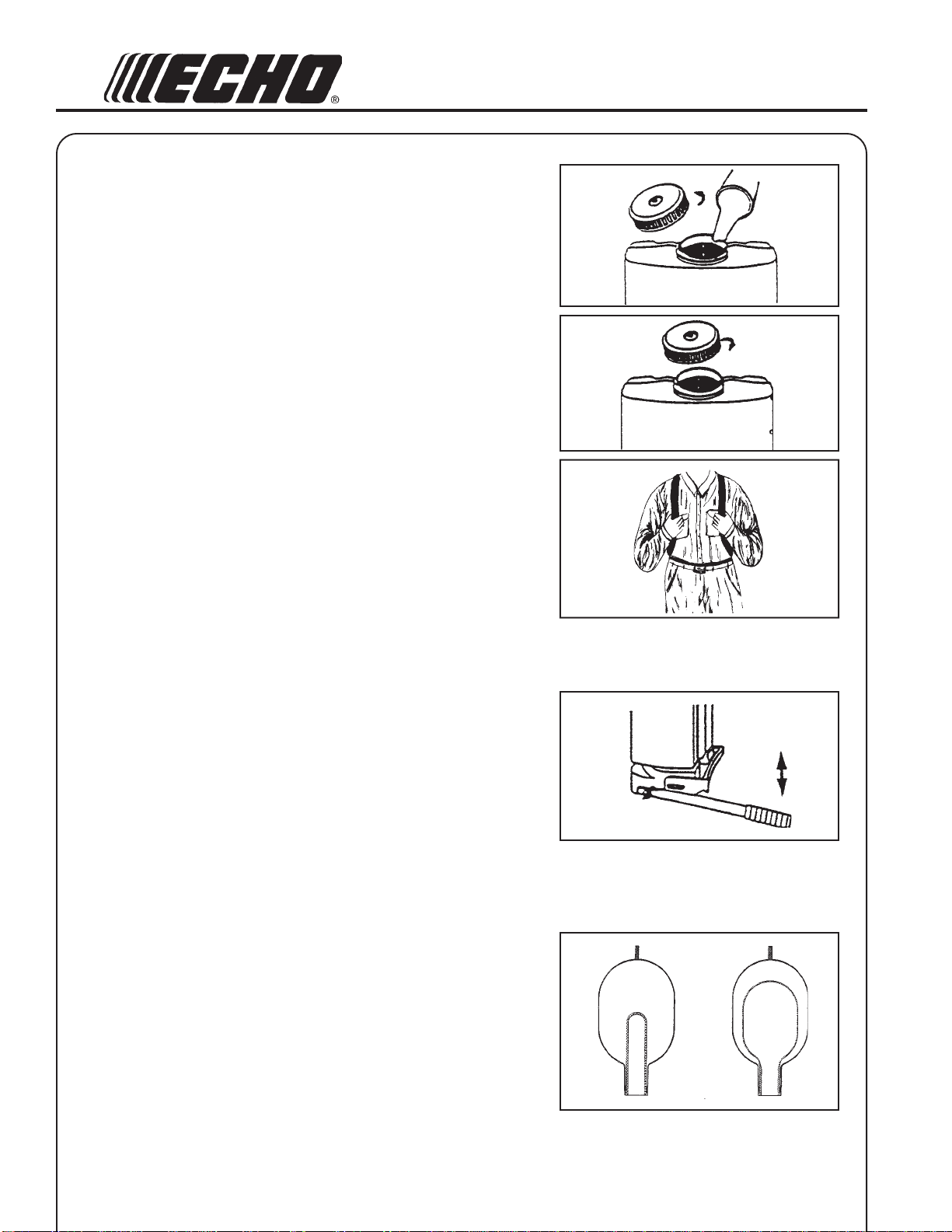

OPERATION
Always conduct a test using clean water before mixing chemicals.
1. Prior to each use of sprayer, check all connections (i.e.: hose,
shutoff handle, extension, etc.) to make certain they are firmly
secured.
2. Lightly lubricate pump rod near the rod seal grommet to seal and
increase the life of rod and grommet.
3. Whenmixingchemicals,followpackagelabelinstructions.Mix
chemicals in a separate container.
4. Make sure shutoff control is in OFF position.
5. Remove filler cap – leave filter screen in place to prevent sediment
and particles from entering the tank. Fill sprayer to desired level.
6. Replace filler cap – make sure cap is tight.
7. Clean spilled material fromsprayerbeforeuse.
8. Mount sprayer on back and adjust shoulder straps and waist belt
tofitcomfortably.
High Pressure Chamber Operation
9. Work pump handle up and down approximately 6-8 times to
pressurize sprayer reservoir. The pump handle will become hard to
move when you reach maximum pressure. To maintain pressure,
pump handle occasionally (approximately every other step while
walking and spraying). If using pressure regulator, adjust to
desired pressure at this time.
10. You are ready to start spraying. Press shutoff lever up and down
for intermittent spraying. Hold lever up and engage lock to provide
continuous spraying. Adjust nozzle for desired spray pattern.
Low Pressure Chamber Operation
11. Pump handle 1~3 times to reach initial operating pressure, then
again as needed. The low pressure bladder maintains constant
pressure and eliminates the need for a pressure regulator. DO NOT
OVERPRESSURIZETHEINTERNALBLADDER.

BACKPACK SPRAYER
OPERATOR'SMANUAL 7
PRESSURE CHAMBER REPLACEMENT
WARNING DANGER
Always depressurize sprayer before changing or cleaning pressure
chamber.
1. Remove high-pressure chamber by turning ¼ turn counter clock-
wise, and pulling straight up.
2. Install low-pressure bladder into low-pressure chamber. A light
lubricant may be used for easier installation.
3. Install low-pressure chamber by aligning tabs (A) on chamber neck
with notches in reservoir. Push down firmly on chamber, and turn
¼ turn clockwise to secure.
A

8
TROUBLE SHOOTING
WARNING DANGER
Before servicing sprayer, make sure pressure has been released (lock shutoff lever in open position).
MELBORPESUACELBISSOPNOITULOS
erusserpdlohrodliubtonlliwreyarpS .degamadronrowpmupnognir”O“)a .kcutsroytridsipmupnikcehcllaB)b
.degamadsiydobpmuP)c .degamadreddalB)d
.gnir”O“ecalpeR)a morfeerfsikcehcllaberusekaM)b .retawnaelchtiwhsulF.snoitcurtsbo .ylbmessadlofinam/pmupecalpeR)c ecnanetniaMeeS(.reddalbecalpeR)d )snoitcurtsnI
knatfomottobmorfspirdroskaelreyarpS dlofinam/pmupfomottobnoteksagpmuP)a .degamadsi .thgittonsidlofinam/pmupgnidlohtuN)b
.degamaderasgnir”O“)c
.teksagecalpeR)a
fo)edistuo(mottobtatunnethgiT)b .reyarps egamadsanethgitrevotonoD:noituaC .ruccodluocsdaerhtot .sgnir”O“ecalpeR)c
.yarpstonlliwreyarpS deggolceraesohroretlif,noisnetxe,elzzoN.strapdeggolcecalperronaelC
regnulperehwylthgilsspirdreyarpS .knatsretnedor .paclaesdoresooL nillitselihwsemitwefatemmorgehtnruT .knateht .temmorgetacirbuL laesdorecalper,stsisrepnoitautisehtfI .temmorg
ottluciffidsitubskroWeldnaHpmuP .nwoddnapuekorts dorrognir”O“notsipyrdronellowS)a .temmorglaes .erusserpmumixamtareddalB)b .htobetacirbulotyllejmuelortepesU)a
.gnipmuppotS)b

BACKPACK SPRAYER
OPERATOR'SMANUAL 9
CLEANING AND STORAGE
WARNING DANGER
This sprayer is operated with liquid under pressure. Failure to
observe safety precautions or follow instructions for operating and
cleaning can cause tank, hose and other parts to be weakened and
orruptureunder pressure. This canresultin SERIOUS INJURY
from high-pressure discharge of liquids or forcible ejection of parts.
1. NEVER storesprayerwith pressure in reservoir.
2. NEVER store sprayer with liquid in tank, reservoir, hose shutoff
handleor extension. Emptyall leftover materialinto proper con-
tainer.
3. NEVERUSEHOTWATERFORCLEANING.Flushouttankwith
cool,clean water. A mild detergent or chemical neutralizing solution
may be used.
4. Empty tank and flush again. This time pump cleaning solution
through sprayer to flush pump, reservoir, shutoff handle and
extension.
5. Empty sprayer and dry completely with clean cloth or by hanging
upside down with filler cap removed.
6. Remove pump handle, rotate ½ turn and install on drive rod to store
handle in upright position.
7. Lubricate all “O” ringsperiodicallyandALWAYSafterextended
storage. Be sure to include piston “O” ring and rod seal.

10
NOTES

BACKPACK SPRAYER
OPERATOR'SMANUAL 11
NOTES

ECHO, INCORPORATED
400 Oakwood Road
Lake Zurich, IL 60047
www.echo-usa.com
SERVICINGINFORMATION
PARTS
GenuineECHOPartsandECHOREPOWER™PartsandAssembliesfor
yourECHOproducts are availableonlyfrom an AuthorizedECHO
Dealer. When you do need to buy parts always have the Model
Number and Serial Number of the unit with you. You can find these
numbers on the engine housing. For future reference, write them in the
space provided below.
Model Number _____________ Serial Number _________
SERVICE
AnAuthorizedECHO Service Dealer must perform Service of this
product during the warranty period. For the name and address of the
AuthorizedECHOServiceDealernearestyou,askyourretailer or call:
1-800-432-ECHO(3246). Dealerinformationisalsoavailableonour
Web Site. When presenting your unit for Warranty service/repairs,
proof of purchase is required.
ECHO CONSUMER PRODUCT SUPPORT
If you require assistance or have questions concerning the application,
operation or maintenance of this product you may call the ECHO
ConsumerProductSupportDepartmentat1-800-673-1558from8:30am
to4:30 pm (Central StandardTime) Monday throughFriday. Before
calling, please know the model and serial number of your unit to help
your Consumer Product Support Representative.
WARRANTYREGISTRATION
You may register your Echo equipment using the warranty registration
card or register on-line at www.echo-usa.com. Registering provides a
direct link between you and Echo if we find it necessary to contact
you.
ADDITIONALOR REPLACEMENT MANUALS
SafetyManualsinEnglish/SpanishorEnglish/Frenchare available, free of charge, from your ECHO dealer or at
www.echo-usa.com.
Operator’sandPartsManualsareavailableby:
• Downloadingfreefromwww.echo-usa.com
• Purchasingfromyour Echo Dealer.
• Manuals are available by sending a written request stating the model number and serial number of your Echo unit,
part number of the manual, your name and address, and mail to the address below.
SafetyVideosare available from yourEcho dealer. A $5.00 shipping charge willbe required for each video.
DEALER?
Call
1-800-432-ECHO
or
www.echo-usa.com
CONSUMER PRODUCT
SUPPORT
1-800-673-1558
8:30 - 4:30 Mon - Fri C.S.T.
