INSTRUCTION MANUAL
Full Motion
TV Wall Mount
Model EGMF1 100% Real folks
Products designed + sold by
real people in Eden Prairie, MN.
THE ECHOGEAR PROMISE:
Rave reviews
40K+ positive product reviews
from happy Amazon customers.
SATISFACTION guaranteeD
Safety-tested, warranty-backed product.
Easy returns + exchanges,
no questions asked.
Responsive support
Likable, US-based product nerds
available 7 days a week.
GET MORE GEAR!
Use code TOUGH15 for 15% o your
next purchase at echogear.com

2
60 lbs.
(27 kg)
If your TV weighs more, this mount is NOT compatible.
Visit echogear.com to find a compatible mount.
Your TV (including accessories)
CANNOT EXCEED 60 lbs.
(27 kg) for this mount.
“You can think about it ...
but doooon’t do it.”
IMPORTANT SAFETY INSTRUCTIONS. READ ENTIRE MANUAL PRIOR TO USE. SAVE These INSTRUCTIONS
Yea, the boring stuff ... but read it, so you don’t jack things up!
Weight Restrictions
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly
or use of this product, contact The Echogear Pros at 1-855-428-2490.
CAUTION: Avoid potential personal injuries and property damage!
►This product is designed for use in wood stud - DO NOT install into drywall alone
►The wall must be capable of supporting five times the weight of the TV and mount combined
►Do not use this product for any purpose not explicitly specified by manufacturer
►Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
CAUTION: DO NOT exceed
the maximum weight indicated. This
mounting system is intended for
use only with the maximum weights
indicated. Use with products
heavier than the maximum weights
indicated may result in collapse
of the mount and its accessories,
causing possible injury.

3
AwlStud Finder
7/32 in.
(5.5 mm)
for wood
Drill Bit Socket Wrench
1/2 in.
(13 mm)
Pencil LevelTape
Measure
Electric Drill
Grab Your Tools
Verify Your Wall Construction
Hex Key
ToyToy SurpriseSurprise
Inside Every Box
4mm
Phillips Screwdriver
"Give it back
to Phil when
you finish"
HK
wood
studs?
Perfect!
Good to Go
Unsure?
Contact The Echogear Pros
at 1-855-428-2490 or
www.echogear.com
?
UUUUHHH ?!?
CAUTION:
DO NOT
install into
drywall alone
... unless you WANT to
watch your TV fall and
crash onto the floor.
FREE

4
Echogear Satisfaction Guarantee:
One More Thing ...
We’re driven to give DIYers an awesome install experience. We stand
behind everything we make because you deserve the best entertainment
experience without sacrificing quality and spending your whole paycheck.
Guess what? We’ll help you through the entire process, too.
Why? Because we like to help and it’s our passion to provide authentic
service. We won’t leave you hanging, no matter what.
Our U.S. based Echogear Pros answer the phone in all days ending in Y.
That means availability to try and stump our expert sta 7 days a week.
Call us if you…
1Have any questions before, during, or after install.
2Need dierent hardware to fit your TV model.
3Just need someone to chat with. We’re here for you.

5
M8 x 25mm M8 x 50mm
M8 x 16mm M8 x 35mm
M6 x 8mm
M4 x 12mm
M6 x 12mm
M4 x 35mm
M4
M6/M8
2.5mm
22mm
M6 x 35mm
5/16 x 2¾ in. 5/16 in.
WARNING: DON'T FEED TO CHILDREN —This product contains small items that could be a choking
hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are
missing or damaged, do not return the damaged item to Amazon; contact Customer Service.
Never use damaged parts!
What’s in the box ... What's in the booooxx
NOTE: Not all hardware included in this kit will be used.
STUFF FOR STEP 1STUFF FOR STEP 1
TV Screws (qty. 4 each)
[Only one size fits your TV]
Washers
(qty. 4 each)
Spacers
[If necessary]
qty.8
qty.4
01 02 03
M4
M6
M6/M8
M4/M6/M8
M4/M6/M8
M8
M4

6
M8 x 25mm M8 x 50mm
M8 x 16mm M8 x 35mm
M6 x 8mm
M4 x 12mm
M6 x 12mm
M4 x 35mm
M4
M6/M8
2.5mm
22mm
M6 x 35mm
5/16 x 2¾ in. 5/16 in.
M8 x 25mm M8 x 50mm
M8 x 16mm M8 x 35mm
M6 x 8mm
M4 x 12mm
M6 x 12mm
M4 x 35mm
M4
M6/M8
2.5mm
22mm
M6 x 35mm
5/16 x 2¾ in. 5/16 in.
More STUFF FOR STEP 1More STUFF FOR STEP 1
STUFF FOR STEP 2STUFF FOR STEP 2
Lag Screw Washer
(For Lag Screw)
Parts for TVs with Large Mounting Hole Patterns:
Extender
Bracket
Screws
Extender
Brackets
Wall Plate / Arm
Face Plate
(attached)
Screws
(attached)
qty.1
04
qty.2
05
qty.2
06
qty.2
08 qty.2
09
qty.8
07
F
S

7
STEP 1 Attachthe TV BRACKET TO YOUR TV
M4
SPACER NEEDED
b
NO SPACER
a
TV Screw Diameter
STEP 1.1
Only one screw size fits your TV.
M6
M8
"Suggested uses for
the extra screws:
board game pieces,
industrial jewelry,
sweet corn holders,
musical instruments–
like maracas or
'monsoon' sticks,
stocking stuers,
currency (not most
countries) ..."
TV Screw Length
STEP 1.2
Long
Screw
Short
Screw
Washer Washer
Spacer
TV Bracket
TV Bracket
EXTRA
SPACE
Flat Back TV
[TV brackets
For 05
/
06
lay flat on your TV]
Flat Back TV
with Extra Space
Needed
[for deep inset holes
or cable interference]
Rounded or
Irregular Back TV
[TV brackets
For 05
/
06
NOT resting flat on your TV]
01 01
02 02
03
For 05
/
06
For 05
/
06
NOTE: If your
TV included inset
spacers or adapters,
use them UNDER
the mount hardware.
Too short
and your TV
takes a ride to
the floor!
Too long
and your TV
is trash brah!
CAUTION: Find that thread
engagement "sweet spot", with your
TV screw/ washer/spacer combination,
AND your TV mount bracket For 05 /
06.

8
cm
inches
xHeight
Width mm mm
Measure TV Hole Pattern
Remove Face Plate FSTEP 1.4STEP 1.3
IMPORTANT: Save screws Sfor use in STEP 3.
W
H
inch dimensions are approximate
inches cm mm
4 10 100
5 ⅛ 13 130
7 ⅞ 20 200
11 ¾ 30 300
13 ¾ 34 340
15 ¾ 40 400
"For those of us
that HATE math"
FS
04
HK

9
400 mm (15 ¾ in.)
340 mm (13 ⅜ in.)
300 mm (11 ¾ in.)
400 mm (15 ¾ in.)
340 mm (13 ⅜ in.)
300 mm (11 ¾ in.)
ASSEEEMMMBLE!
200 mm
(7 ⅞ in.)
130 mm
(5 ⅛ in.)
200 mm (7 ⅞ in.)
130 mm (5 ⅛ in.)
100 mm (4 in.)
100 mm
(4 in.)
Configure TV Bracket to Fit Your TV Hole Pattern
200mm x 200mm
or LESS
MORE than
200mm x 200mm
STEP 1.5
A B
"Nothing to do here ...
move it along ... to STEP 1.6"
F
F
F
qty.8
07
05
05
06
06
HK

10
With SpacerNo Spacer
CAUTION: Ensure the TV bracket is CENTERED
on your TV AND securely fastened in place.
b
Secure the TV Bracket to Your TV
STEP 1.6
a
Stack it up: The spacers stack up
to fit anyone's TV
mounting situation.
F
01
02
01
02
03

11
Max. Drywall:
5/8 in. (16 mm)
Drywall covering the wall must not exceed 5/8 in. (16 mm).
Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm)
actual 1½ x 3½ in. (38 x 89 mm).
STEP 2 Install the Wall Plate
Min. Wood Stud Width:
nominal 2 in. (51 mm)
actual 1 ½in. (38 mm)
Min. Wood Stud Depth:
nominal 4 in. (102 mm)
actual 3 ½in. (89 mm)
CAUTION:
Avoid potential personal injuries and property damage!
Use a stud
finder ...
... and/or verify
the edges with
an awl or a
small drill bit.
X-Ray
Specs
sold
separately
Find a Stud
STEP 2.1
"favorite
pokey device"

12
Mark
STEP 2.2 Drill STEP 2.3
7/32 in.
(5.5 mm)
2¾ in. (6.9 cm)
Bit
Secure Wall Plate
STEP 2.4
CAUTION: Avoid potential personal injury
or property damage! Lag screws 08 MUST
BE firmly tightened to prevent unwanted
movement of the wall plate/arm 04.
04
04
08 09
This
End
UP

13
STEP 3 Let's Hang
HEAVY! You may need assistance with this step.
"Ask that friend of yours that
yammers on about CrossFit"
CAUTION: Avoid potential
personal injury or property damage!
Screws
S
MUST be installed to secure
your TV to wall plate/arm
04
.
S
F
F
04
04
HK

14

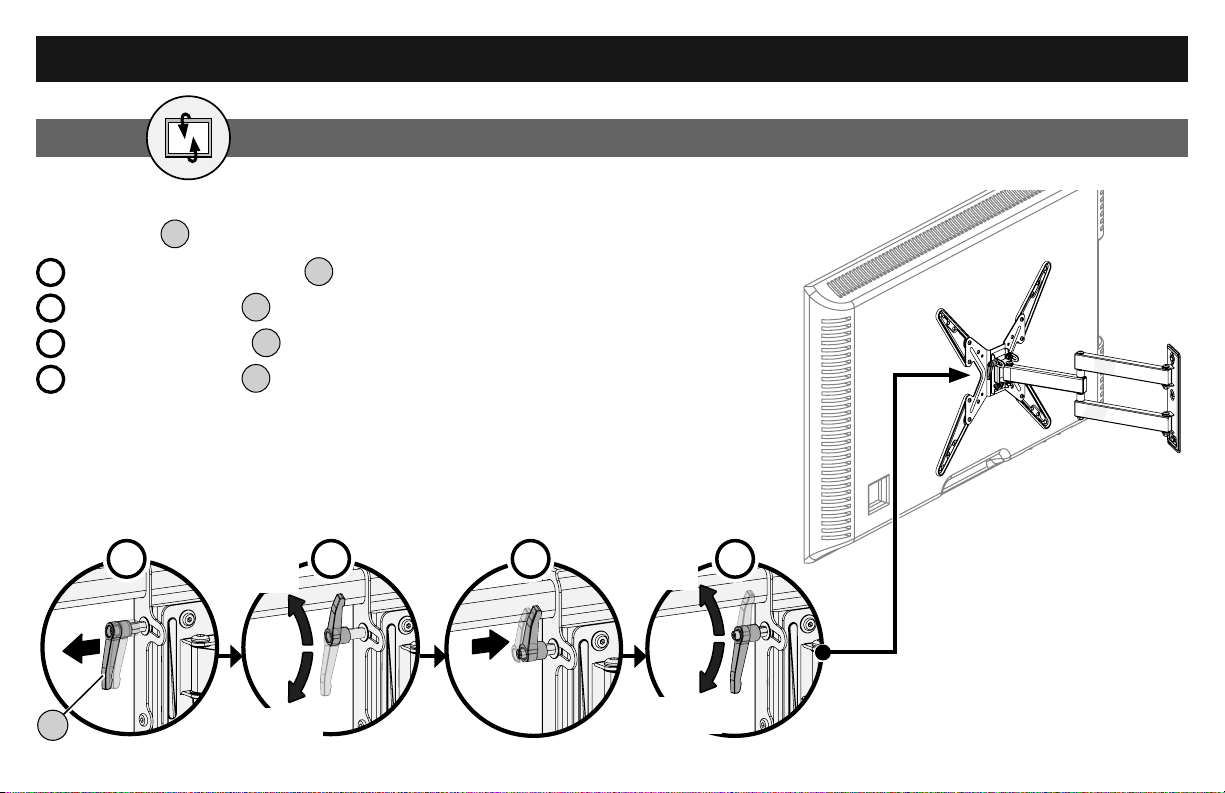

ADJUSTMENTS
Tilt
TO ADJUST THE TILT TENSION, first rotate (tighten or loosen)
the tilt lever Tas far as you can, then:
aPull and hold the lever Toutward,
bRotate the lever Tin the opposite direction,
cRelease the lever Tback into position,
dRotate the lever Tto tighten or loosen.
Repeat as needed.
LOOSEN: to adjust the TV tilt position.
TIGHTEN: to set the TV in place at your desired tilt angle.
a c
b d
TRighty
Tighty
to
TIGHTEN
tension
to LOOSEN
tension
Lefty
Loosey

15

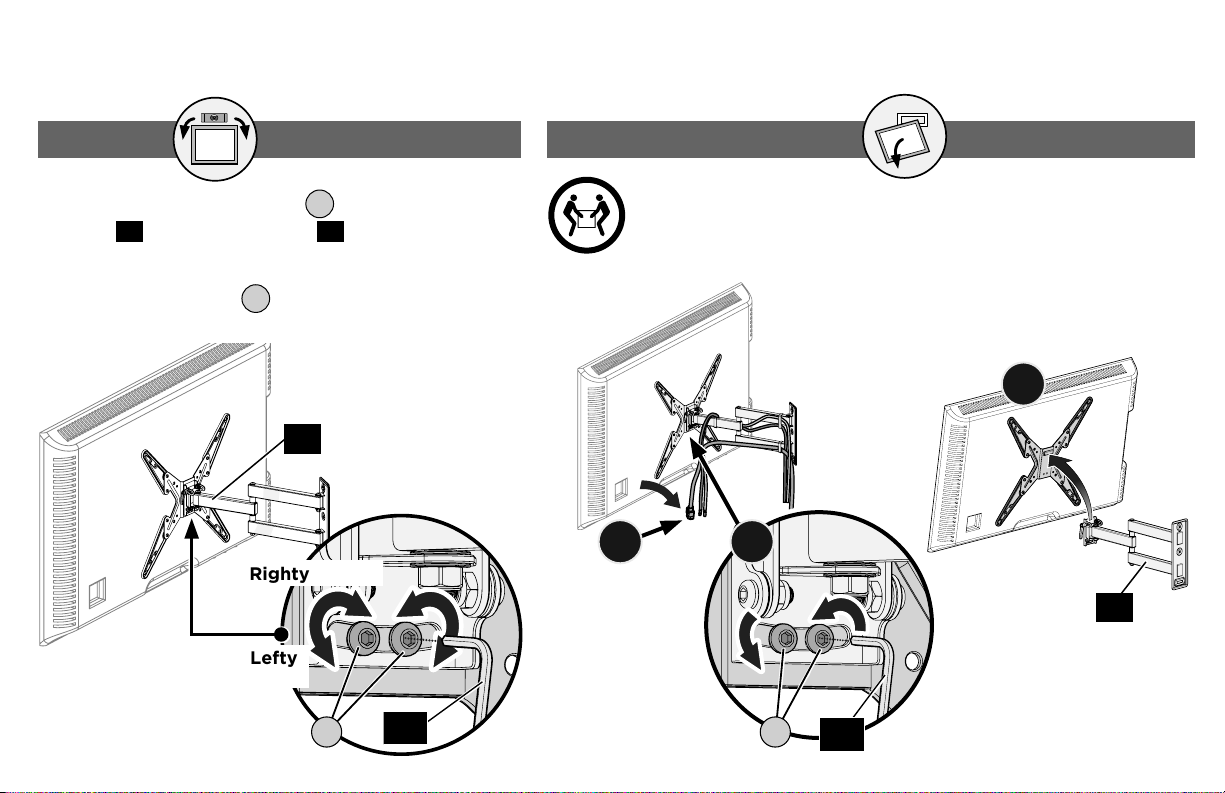

Level
1. Loosen the two screws S on the rear of
arm
04,
using the hex key
HK
.
2. L evel your TV.
3. Retighten screws S to secure in place.
Righty Tighty
Lefty
Loosey
REMOVE YOUR TV
HEAVY! You may need assistance with this step.
"Don't be a hero!"
S
3
2
S
1
04
04
HK
HK

Confuzzled? Contact the ECHOGEAR Pros:
1-855-428-2490 [e-mail] ECHOGEAR.com
