Echogear EGSF1 User manual

EGSF1 INSTRUCTION MANUAL
We’ll Make It Stress-Free
If you have any questions along the way, contact us at
www.echogear.com. We’re ready to help!

2
25 lbs.
(11.3 kg)
CAUTION: IMPORTANT SAFETY INSTRUCTIONS —PLEASE READ ENTIRE MANUAL PRIOR TO USE —SAVE THESE INSTRUCTIONS

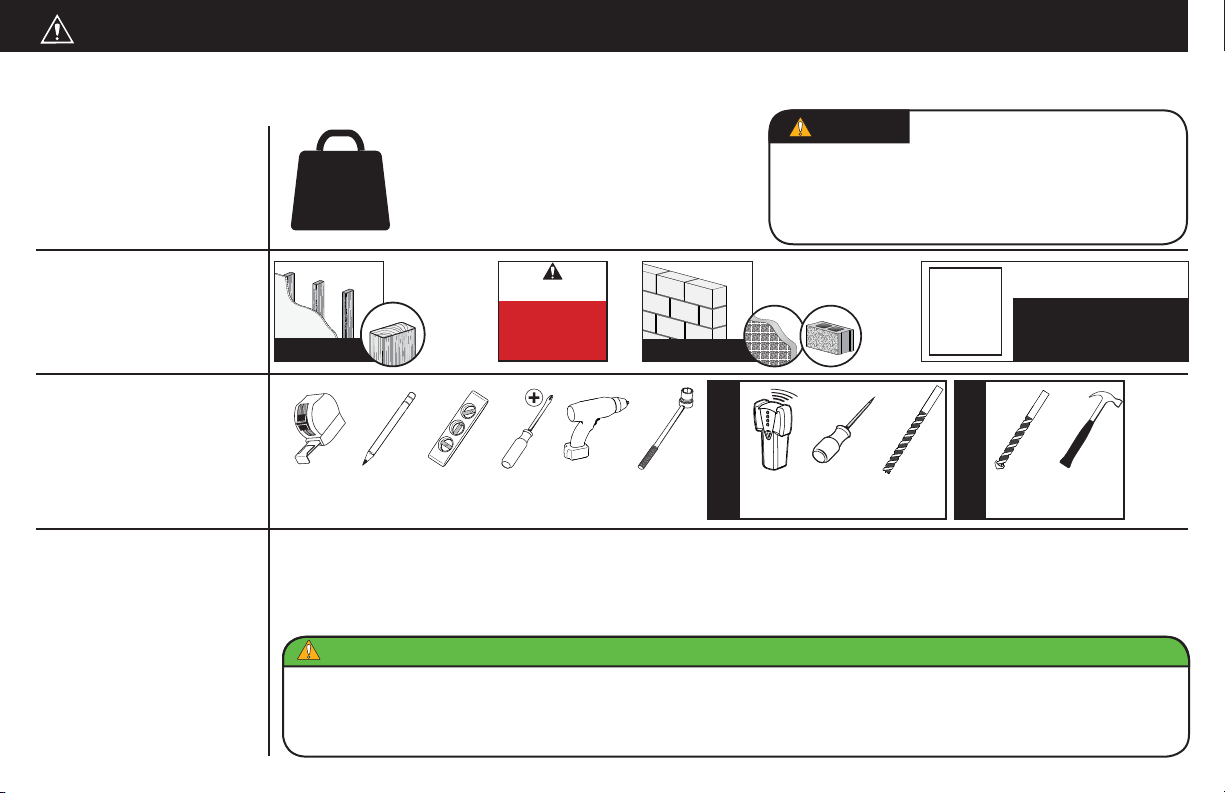

Before getting started, let’s make sure this mount is perfect for you!
Does your TV
(including accessories)
weigh MORE than
25 lbs. (11.3 kg)?
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use
of this product, contact Customer Service at www.echogear.com.
Do you have
all the tools
needed?
1
2
3
4
What is your
wall made of?
Ready to begin?
CAUTION: Avoid potential personal injury or property damage!
Wood Stud Install
Concrete Install
Tape
Measure Pencil Level Screw driver
Electric
Drill
Socket
Wrench
Stud
Finder Awl Wood Drill Bit
Masonry
Drill Bit Hammer
3/8 in.
(10 mm)
1/2 in.
(13 mm) 7/32 in.
(5.5 mm)
Solid concrete or
concrete block?
Perfect!
Drywall with
wood studs?
Perfect!
CAUTION:
DO NOT
install into
drywall alone
Unsure?
Contact customer
service: www.
echogear.com
?
●This product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone
●The wall must be capable of supporting five times the weight of the TV and mount combined
●Do not use this product for any purpose not explicitly specified by manufacturer
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
No?Perfect – you may continue.
Yes?This mount is NOT compatible.
Visit echogear.com to find a compatible
mount.
CAUTION: DO NOT exceed the maximum weight
indicated. This mounting system is intended for use only
with the maximum weights indicated. Use with products
heavier than the maximum weights indicated may result
in collapse of the mount and its accessories, causing
possible injury.

3
3.94in
100mm
7.87in
200mm
7.87in
200mm
.35in
8.8mm
8.15in
207.1mm
2.80in
71mm
6.40in
162.6mm
30deg 30deg
10.47in
265.9mm
16deg DOWN TILT
4deg UP TILT
8.80in
223.6mm
8.80in
223.6mm
10.26in
260.5mm
3.20in
81.4mm
.86in
21.9mm
30° SWIVEL LEFT AND RIGHT WITH AN APPROXIMATE 32" TV
TV INTERFACE
WALL PLATE
FULLY ASSEMBLED MOUNT
TOP VIEW - EXTENDED
TOP VIEW - RETRACTED
SIDE VIEW - EXTENDED
SIDE VIEW - RETRACTED
3-D
Dimensions

4
NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item
to your dealer; contact Customer Service. Never use damaged parts!
M4 x 8mm
M4 x 12mm
M6 x 12mm
M4 x 35mm
M6 x 35mm M4 M6/M8
M8 x 16mm M8 x 35mm
M8 x 20mm
STEP 1 Attach TV Bracket to TV
STEP 1 Parts and Hardware
TV Screws
Washers
Spacers
TV Bracket
Extenders
TV Bracket
TV Bracket Screws
(TV Bracket extenders)
22mm
01 x1
02 x4 03 x8
04 x4 08 x4
09 x4
10 x4
11 x4 12 x4
13 x4
05 x4
06 x4
07 x4

5
01
10.0 cm
7.5 cm
10.0 cm 7.5 cm
1.1 Measure TV hole pattern 1.2 Assemble Your TV Bracket
cm
inches
W
H
A
7.5 x 7.5
10.0 x 10.0
100 mm = 10 cm ≈ 4 in.
130 mm = 13 cm ≈ 5 1/8 in.
200 mm = 20 cm ≈ 7 7/8 in.
300 mm = 30 cm ≈ 11 3/4 in.
340 mm = 34 cm ≈ 13 3/4 in.
400 mm = 40 cm ≈ 15 3/4 in.

6
01
20.0 cm
20.0 cm
20.0 cm 10.0 cm
01
02
02
02
02
02
02
02
02
03
03
20.0 x 20.0
B
20.0 x 10.0
C

7
1.3 Select TV Screws
M4 M6 M8
1.4 Spacers?
abLong Screw
Short Screw
Washer
Washer
Spacer
Bracket
Bracket
S
S
S
S
S
S
S
S
S
S
S
crew

8
Flat Back
Round Back / Extra Space
1.5 Attach TV Bracket
02
01
01
NOTE: For 20.0 x 20.0 cm
or 20.0 x 10.0 cm hole patterns, you
may need to loosen the screws 03
to align the bracket extenders 02 .
After bracket extenders 02 are
secured to the back of your TV, re-
tighten screws 03 .
TV Bracket Configurations Band C
TV Bracket Configuration A
CAUTION: Ensure TV bracket is securely
fastened before moving on to the next step.
04 05 06 07
11 12
13
08 09 10
11 12

9
5/16 x 2¾ in.
5/16 in.
STEP 2 Parts and Hardware
STEP 2 Attach Wall Plate to Wall
Concrete Installation Kit CMK1 (NOT INCLUDED)
5/16 x 2¾ in.
.695 x .350 x .075 in.
.695 x .350 x.075 in.
5/16 x 2¾ in.
Contact Customer Service at www.echogear.com to have these additional pieces shipped directly to you.
Fischer UX 10 x 60R Anchor
x4 x4
x4
Wall Plate Assembly
Lag Screws
Lag Screw Washers
14 x1
15 x2
16 x2
For wood stud installations, follow STEP 2A on PAGE 10
For concrete installations, follow STEP 2B on PAGE 13

10
STEP 2A Wood Stud Option
1 2 3
Max. 5/8 in. (16 mm)
Min. Wood Stud Size:
nominal 2 in. (51 mm)
actual 1 ½ in. (38 mm)
Min. Wood Stud Size:
nominal 4 in. (102 mm)
actual 3 ½ in. (89 mm)

11
14
5
4
2¾ in. (70 mm)
7/32 in.
(5.5 mm)

12
6
Go to STEP 3 on PAGE 15
CAUTION: Avoid potential personal injury or property damage! All lag screws 16 MUST BE firmly tightened to prevent unwanted movement
of the wall plate assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to the next step.
NOTE:If needed, you can make small level adjustments to the
wall plate assembly 14 by loosening the bottom lag screw 16 and
shifting the wall plate assembly 14 until level. Tighten the bottom lag
screw 16 when adjustments are complete.
16 15
14
16
14

13
1
2
14
Concrete Installation Kit CMK1 is not included (see page 9)
Contact Customer Service at www.echogear.com to have the
additional hardware shipped directly to you.
CAUTION: Avoid potential personal injuries and property
damage! Mount the wall plate directly onto the concrete surface.
CAUTION: Never drill into the mortar between blocks.
STEP 2B Solid Concrete or Concrete Block Option
Min.
8 in.
(203 mm)
Min.
16 in.
(406 mm)
Min.
8 in.
(203 mm)
Min.
8 in.
(203 mm)
3/8 in.
(10 mm)
3 in. (76 mm)

14
3 4
CAUTION: Avoid potential personal injury or property damage! All lag screws 16 MUST BE firmly tightened to prevent unwanted movement
of the wall plate assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to the next step.
*Contact Customer Service at www.echogear.com to have the Concrete Installation Kit shipped directly to you.
*
14
16 15

15
STEP 3 Hang TV onto Wall Plate
STEP 3 Parts and Hardware Additional Parts and Hardware
7/32 in.
Securement Washer
Securement Screw
Cable Ties
x1
20
x3
19
18 x1
Tilt Tension Adjustment
Wrench
17 x1

16
HEAVY! You may need assistance with this step.
14
14
17
18
CAUTION: Avoid potential personal injuries and property damage! This securement screw 17 must be installed to secure the TV onto the
wall plate assembly 14 .
1 2 3
14
Top Support

17
Manage Cables
IMPORTANT: Fully extend the arm of wall plate assembly 14 to ensure you have enough slack in the cables for full TV movement.
19
14

18
TV Adjustments
TILT ADJUSTMENT
Your TV should adjust easily when moved,
then stay in place.
If your TV is too loose or too tight, adjust the
tilt tension knob by hand.
NOTE: Once your TV is in place,
tighten the tilt tension knob to prevent
unwanted movement.
LEVEL ADJUSTMENT
To adjust the leveling of your TV, loosen
the securement screw 17 , level your
TV, then tighten securement screw 17 .
IMPORTANT: This securement screw
17 must be installed to secure the TV
onto the wall plate assembly 14 .
Loosen
Tighten
17
Tilt Tension Knob
REMOVING THE TV
To remove your TV from the wall plate
assembly 14 , disconnect all cables and
then reverse the procedures in STEP 3.
14
HEAVY! You may need
assistance with this step.
Loosen
Tighten

19
Features
Fully articulating arm with 3
pivot points creates optimal
viewing positions
TV tilts up or down for the
perfect viewing angle
Level
adjustments
create a
worry-free
installation
Adjustments allow fingertip control
of TV or restriction of TV movement
TV bracket expands
to fit TV hole patterns
from 75 x 75 mm up to
200 x 200 mm
Cable tie hook
holds cables
along mount arm
for a clean look

6901-002641 01
Milestone AV Technologies and its aliated corporations and subsidiaries (collectively, “Milestone”), intend to
make this manual accurate and complete. However, Milestone makes no claim that the information contained
herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in
connection with the installation or use of this product. The information contained in this document is subject
to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed
or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy,
completeness or suciency of the information contained in this document.
©2016 Milestone AV Technologies. All rights reserved. ECHOGEAR is a Milestone brand. ECHOGEAR and the
ECHOGEAR logo are trademarks of Milestone.
Made in China.
Milestone Global Headquarters • 6436 City West Parkway • Eden Prairie, MN 55344 USA
