Emerson Bettis RTS User manual

Installation, Operation and Maintenance Manual
VCIOM-16741-EN Rev. 0
November 2021
Bettis RTS
Extension Board for Modbus RTU

Installation, Operation and Maintenance Manual
VCIOM-16741-EN Rev. 0
This page intentionally left blank
Notes
November 2021

i
Installation, Operation and Maintenance Manual
VCIOM-16741-EN Rev. 0
Table of Contents
November 2021
Table of Contents
Table of Contents
Section 1: Extension Board for Modbus RTU
on RTS Control Unit
1.1 General Information...................................................................................... 1
1.1.1 Communication Settings.................................................................... 1
Section 2: Connection
2.1 Standard Design............................................................................................ 2
2.1.1 Connection Board (Customer End) ..................................................... 2
2.1.2 Connecting to Modbus RTU................................................................ 3
2.2 Explosionproof Design .................................................................................. 4
2.2.1 Design with Binary Inputs and Outputs............................................... 5
2.2.2 Design without Binary Inputs and Outputs ......................................... 5
Section 3: Setup
Setup ..................................................................................................................... 6
Section 4: Specication of Input and Output Data
4.1 Input Data Modules (Master to Slave Communication).................................. 7
4.1.1 Setpoint ............................................................................................. 7
4.1.2 Command .......................................................................................... 8
4.1.3 Command 2 ....................................................................................... 9
4.1.4 Setpoint Revolution Speed ................................................................. 9
4.2 Output Data Modules (Slave to Master Communication)............................. 10
4.2.1 Actual Position Value........................................................................ 10
4.2.2 Status............................................................................................... 11
4.2.3 Actual Torque Value ......................................................................... 11
4.2.4 Actual Speed Value........................................................................... 12
4.2.5 External Actual Value........................................................................ 12
4.2.6 Status 2 ............................................................................................ 12
4.2.7 Status 3 ............................................................................................ 13
4.2.8 Status 4 ............................................................................................ 13

Installation, Operation and Maintenance Manual
VCIOM-16741-EN Rev. 0
Notes
November 2021
This page intentionally left blank

Installation, Operation and Maintenance Manual
VCIOM-16741-EN Rev. 0 November 2021
Extension Board 1
Section 1: Extension Board
Section 1: Extension Board for Modbus RTU
on RTS Control Unit
1.1 General Information
For Bettis RTS actuators, the standardized eldbus interface Modbus RTU is available.
This interface is a product option represented in hardware on the device, thus making it
benecial to advertise intended use upon ordering. Although, enabling Modbus RTU a
posterior is possible, such upgrades should only be performed by authorized Emerson
engineers or specially trained personnel.
Modbus RTU determines technical and functional characteristics of the serial eldbus
system used to connect distributed autonomous devices. Modbus RTU distinguishes
Master- and Slave-Devices and has been designed for data-transmission on eld-level,
hence, the communication of central control units - as SPS or PC - with decentrale
eld-devices over a fast serial connection. Communication functionality is standardized by
the MODBUS Organization (modbus.org).
The physical communication layer is based on a RS-485 interface connected through a
shielded twisted two-wire cable.
Bettis RTS control unit are always slave devices.
1.1.1 Communication Settings
The detection of the settings of the Modbus RTU communication is done automatically in
the Bettis RTS Modbus RTU slave module during communication start-up.
The supported baud rates are:
• 4800 bps
• 7200 bps
• 9600 bps
• 14400 bps
• 19200 bps
• 28800 bps
• 38400 bps
• 57600 bps
• 76800 bps
• 115200 bps
The byte frame has the following bits:
• 1 start bit
• 8 data bits, LSB rst
• 1 parity bit (even, odd or mark)
• 1 stop bit
If mark parity is not supported by the Modbus RTU master, you can use no parity and 2 stop
bits instead.

November 2021
Installation, Operation and Maintenance Manual
VCIOM-16741-EN Rev. 0
Connection
2
Section 2: Connection

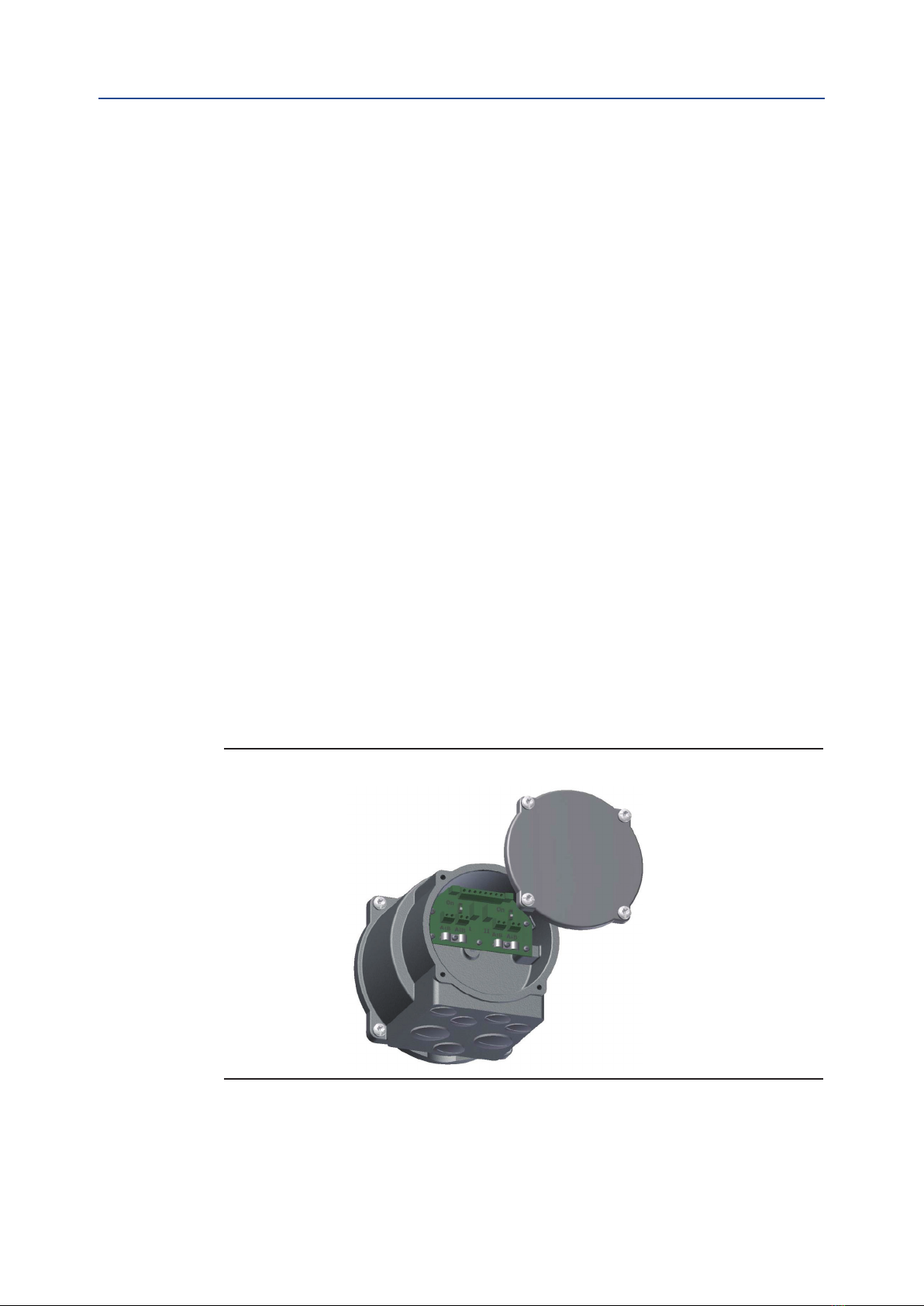

Figure 1 Connection Board
Section 2: Connection
Depedning on the order, here are the following connections possible:
• standard design: connection board
• explosionproof design: terminals
2.1 Standard Design
Connecting the actuator to the eldbus system is accomplished through connecting the
bus cable to the connection print in the connection compartment of the actuator. Thus for
convinience, the Modbus RTU connector is pluggable like every other external connector
for signal or power on our actuators. Disconnecting a device will have no effect on the
communication of other devices in the same strand. Meaning, the network maintains full
functionality if a device is disconnected while the network is in operation. But beware, at
the end of each strand Modbus RTU has to be terminated. This termination can either be
performed by RTS control unit or a separate active bus termination device. Note that the
power for the termination resistors of RTS control unit comes from the actuator. Hence,
disconnecting the terminating RTS control unit renders the bus in this strand inoperational.
Therefore, it is advised to use active bus termination through a dedicated device.
The single-channel version of RTS control unit is connected to Modbus RTU via channel I.
The dual channel version (Option: redundant) is connected via channel I and II.
2.1.1 Connection Board (Customer End)
The connection board is situated in the connection compartment under the topmost cover.

Installation, Operation and Maintenance Manual
VCIOM-16741-EN Rev. 0 November 2021
Connection 3
Section 2: Connection
2.1.2 Connecting to Modbus RTU
Recommended Cable Confectioning
Prior to connection the bus lines are to be confectioned as seen in the Figure 2 below:
Figure 2
The clamps on the connection board are designed for a maximum line cross-section of
1.5 mm2. The line diameter has to be in the range of 5 to 8 mm.
Connecting to a Strand between Devices
Other devices are connected to the bus in front and behind of the new Slave-Device.
Line conguration:
Figure 3
B. Dual ChannelA. Single Channel

November 2021
Installation, Operation and Maintenance Manual
VCIOM-16741-EN Rev. 0
Connection
4
Section 2: Connection
Connecting at the End of a Strand, Bus Termination
There is either no device connected to the bus in front or behind of the new Slave-Device.
Line conguration:
Figure 4
A. Single Channel B. Dual Channel
Bus termination:
Modbus RTU has to be terminated on both ends of every strand. Termination can be
accomplished through the termination resistor implemented in your RTS control unit. Bus
termination is activated when the respective switch on the connection board is switched to
"ON" as seen in Figure 4 (A. Single Channel).
2.2 Explosionproof Design
Normally, in explosionproof design, there is no termination available in the control unit.
That means, the bus termination must be done seperate outside of the control unit.
Optionally, a bus termination in the control unit is possible as well, this must be specied
by the order.
In this case, you can activate the bus termination by connecting the following terminals:
• A with AT and B with BT (single channel version) or
• A1 with A1T, B1 with B1T, A2 with A2T and B2 with B2T (dual channel version)
! WARNING
The shield must be connected to the shielding connection clamp (windowcut), see Figure 5
or Figure 6.

Installation, Operation and Maintenance Manual
VCIOM-16741-EN Rev. 0 November 2021
Connection 5
Section 2: Connection
2.2.1 Design with Binary Inputs and Outputs
2.2.2 Design without Binary Inputs and Outputs
Figure 5
1. Shielding connection clamp
2. Additional frame
3. Metallic cable glands (closed with blind screw connections at delivery) 4xM20x1.5
4. Terminal strip
Figure 6
1. Shielding connection clamp
2. Terminal strip
An additional frame with 4xM20 holes is possible on special request.

November 2021
Installation, Operation and Maintenance Manual
VCIOM-16741-EN Rev. 0
Setup6
Section 3: Setup
Section 3: Setup
If Modbus RTU is activated, the following additional parameters will be visible in the control
menu of your Bettis Electric Actuator. Each device connected to a Modbus RTU-network
has to receive a unique address during setup.
Table 1.
Menu item Sub-item Options Explanation/Comments
P15.1 Modbus Modbus 0: not active Modbus RTU deactivated.
1: activated Modbus RTU activated.
P15.2 Modbus Address
Channel A 0 bis 247 Set the bus address of the rst/primary channel.
P15.3 Modbus Address
Channel B 0 bis 247 Set the bus address of the second/secondary channel (only for option "Modbus RTU redundant").
P15.4 Modbus Watchdogtime 0.0 – 10.0 s
{0.0 s}
Monitoring period of the togglebit. (Bit 7 in Master’s
command). This bit has to toggle in the specied time
or a buswatchdog error is detected. If Watchdogtime
is set to 0.0 s, the watchdog is deactiveted. Toggling
the respective bit can now be ommited.
P15.5 Modbus Setpoint
Source
{0}: Standard Setpoint specied by Modbus RTU (effective only
if positioner is activated).
1: Analog. Setpoint specied by analogue signal (effective only
if positioner is activated).
2: Bus/Analog
Setpoint specied by Modbus RTU. In case of bus
error, setpoint specied by analogue signal (effective
only if positioner is activated).
P15.6 Modbus Status 2 {0} Standard value for Status 2.
1 - 2 Reserved for future use.
P15.7 Modbus Status 3 {0} Standard value for Status 3 (current event).
1 - 2 Reserved for future use.
P15.8 Modbus Status 4 {0} Standard value for Status 4.
1 - 2 Reserved for future use.

Installation, Operation and Maintenance Manual
VCIOM-16741-EN Rev. 0 November 2021
Input and Output Data 7
Section 4: Input and Output Data
Section 4: Specication of Input and
Output Data
General requirement: Depending on the Master it is possible that the Lowbyte (Bit 0 - 7)
and the High byte (Bit 8 - 15) are to be switched. Generally speaking, the mode of
transmission (Big Endian / Little Endian) has to be set in a way that ensures the correct
transmission of the analogue information. Only after this has been accomplished, the binary
data can be transmitted.
4.1 Input Data Modules
(Master to Slave Communication)
Input data can be handled with following Modbus functions:
Table 2.
Function
06 (06 hex) Preset Single Register Writes data to one single register in the slave.
16 (10 hex) Preset Multiple Registers Writes data to multiple consecutively registers in the slave.
03 (03 hex) Read Holding Register Reads back one single register from the slave.
04 (04 hex) Read Input Register Reads back one single register from the slave.
23 (17 hex) Read/Write Multiple Registers
Writes data to multiple consecutively registers in the slave
and reads multiple consecutively registers from the slave.
If the reading and writing addresses the same registers,
a read back of the written data is performed. The write
operation is performed before the read operation.
4.1.1 Setpoint
Register number: 1, address 0000Hex
Data format: 16 bit, only the lowest 10 bit (0 - 1023) are in use.
Other bits are reserved for future use and have to be set to zero.
Table 3.
Value Function Description
0 (0Hex) 0%
512 (200Hex) 50%
1023 (3ffHex) 100%

November 2021
Installation, Operation and Maintenance Manual
VCIOM-16741-EN Rev. 0
Input and Output Data8
Section 4: Input and Output Data
4.1.2 Command
Register number: 2, address 0001Hex
Data format: 16 bit (Biteld)
Table 4.
Bit no. Function Description
Bit = 0 Bit = 1
0OPEN - OPEN in REMOTE mode.
1 CLOSE - CLOSE in REMOTE mode.
2STOP - STOP in REMOTE mode.
3 EMERGENCY-OPEN - EMERGENCY-OPEN in REMOTE and LOCAL mode.
4 EMERGENCY-CLOSE - EMERGENCY-CLOSE in REMOTE and LOCAL mode.
5 BLOCK -
Blocking the actuator in REMOTE and LOCAL mode.
Actuator can neither be controlled through the switch on
the device nor through commands over REMOTE nor
Modbus RTU.
6 POSITIONER OFF - Deactivating the positioner in REMOTE mode.
7 WATCHDOG Togglebit for buswatchdog. Bit has to toggle before specied
time-out or a buswatchdog error will be detected.
8 OPEN-SH - Latched OPEN in REMOTE mode.
Release with STOP.
9 CLOSE-SH - Latched CLOSE in REMOTE mode.
Release with STOP.
10 LOCK-OPEN -
Locks OPEN (in REMOTE and LOCAL mode)
Actuator carries out a latched OPEN command with
highest priority which can only be released with LOCK-OFF,
power-off or mode OFF.
11 LOCK-CLOSE -
Locks CLOSE (in REMOTE and LOCAL mode)
Actuator carries out a latched CLOSE command with
highest priority which can only be released with LOCK-OFF,
power-off or mode OFF.
12 LOCK-OFF - Releases the lock.
13 BLOCK LOCAL - Blocking the actuator in mode LOCAL.
Actuator cannot be moved with selection switch.
14 FAILSAFE - Trigger FAILSAFE-Unit (if available).
15 OVERRIDE - Binary inputs will not be processed.

Installation, Operation and Maintenance Manual
VCIOM-16741-EN Rev. 0 November 2021
Input and Output Data 9
Section 4: Input and Output Data
4.1.3 Command 2
Register number: 3, address 0002Hex
Data format: 16 bit (Biteld)
Table 5.
Bit no. Function Description
Bit = 0 Bit = 1
0 Bus Bit 1 -
These binary outputs can be assigned to the bus.
The assignment can be done arbitrarily, including the
assignment of a single bit to mulitple outputs.
(Available with Firmware 1.323)
1 Bus Bit 2 -
2 Bus Bit 3 -
3 Bus Bit 4 -
4 Bus Bit 5 -
5 Bus Bit 6 -
6 Bus Bit 7 -
7 Bus Bit 8 -
8reserved -
Reserved for future use
9reserved -
10 reserved -
11 reserved -
12 reserved -
13 reserved -
14 reserved -
15 reserved -
4.1.4 Setpoint Revolution Speed
Register number: 4, address 0003Hex
Data format: 16 bit, only the lowest 8 bit (Bit 7: Direction OPEN; Bit 6 - 0 : 0 - 100
corresponding to 0 - 100%) are in use.
Other bits are reserved for future use and have to be set to zero.

November 2021
Installation, Operation and Maintenance Manual
VCIOM-16741-EN Rev. 0
Input and Output Data10
Section 4: Input and Output Data
4.2 Output Data Modules
(Slave to Master Communication)
Output data can be handled with following Modbus functions:
Table 6.
Function
03 (03 hex) Read Holding Register Reads one single register from the slave.
04 (04 hex) Read Input Register Reads one single register from the slave.
23 (17 hex) Read/Write Multiple Registers
Writes data to multiple consecutively registers in the slave
and reads multiple consecutively registers from the slave.
The write operation is performed before the read operation.
4.2.1 Actual Position Value
Register number: 257, address 0100 Hex
Data format: 16 bit, only the lowest 10 bits (0 - 1023) are in use.
Other bits are reserved for future use and have to be set to zero.
Table 7.
Value Function Description
0 (0Hex) 0%
512 (200Hex) 50%
1023 (3ffHex) 100%

Installation, Operation and Maintenance Manual
VCIOM-16741-EN Rev. 0 November 2021
Input and Output Data 11
Section 4: Input and Output Data
4.2.2 Status
Register number: 258, address 0101Hex
Data format: 16 bit (Biteld)
Table 8.
Bit no. Function Description
Bit = 0 Bit = 1
0 READY - Actuator is ready.
1 END POSITION OPEN - End position OPEN reached (under consideration of switch-off
mode (torque or travel dependent)).
2 END POSITION CLOSE - End position CLOSE reached (under consideration switch-off
mode (torque or travel dependent)).
3 TRAVEL OPEN - End travel OPEN reached (under consideration of switch-off
mode (torque or travel dependent)).
4 TRAVEL CLOSE - End travel CLOSE reached (travel dependent).
5 TORQUE OPEN - Power-off torque in opening direction exceeded.
6 TORQUE CLOSE - Power-off torque in closing direction exceeded.
7 MOTORTEMP. Motor temperature sensor signal (overheat).
8 OPENING - Actuator moving in OPEN direction.
9 CLOSING - Actuator moving in CLOSE direction.
10 LOCAL - Switch in LOCAL mode position.
11 REMOTE - Switch in REMOTE mode position.
12 LOCK OPEN - Latched OPEN command with highest priority.
(Refer to Command bit 10 und 12)
13 LOCK CLOSE - Latched CLOSE command with highest priority.
(Refer to Command bit 10 und 12)
14 LIVEBIT 1 Livebit1 toggles with 1 Hz.
15 LIVEBIT 2 Livebit2 is a copy of the watchdog toggle-bit. (Refer to command Bit 7).
4.2.3 Actual Torque Value
Register number: 259, address 0102Hex
Data format: 16 bit, only the lowest 8 bit (Bit 7: Direction OPEN; Bit 6 - 0 : 0 - 100
corresponding to 0 - 100%) are in use.
Other bits are reserved for future use and have to be set to zero.

November 2021
Installation, Operation and Maintenance Manual
VCIOM-16741-EN Rev. 0
Input and Output Data12
Section 4: Input and Output Data
4.2.4 Actual Speed Value
Register number: 260, address 0103Hex
Data format: 16 bit, only the lowest 8 bit (Bit 7: Direction OPEN; Bit 6 - 0 : 0 - 100
corresponding to 0 - 100%) are in use.
Other bits are reserved for future use and have to be set to zero.
4.2.5 External Actual Value
Only with Option PID-Controller
Register number: 261, address 0104Hex
Data format: 16 bit, only the lowest 10 bit (0 - 1023) are in use.
Other bits are reserved for future use and have to be set to zero.
4.2.6 Status 2
Register number: 262, address 0105Hex
Data format: 16 bit (Biteld)
Table 9. Structure
Bit no. Function Description
Bit = 0 Bit = 1
0 Dig. Output 1 -
Corresponding binary output enabled.
1 Dig. Output 2 -
2 Dig. Output 3 -
3 Dig. Output 4 -
4 Dig. Output 5 -
5 Dig. Output 6 -
6 Dig. Output 7 -
7 Dig. Output 8
8 Dig. Input 1 -
Corresponding binary input enabled.
9 Dig. Input 2 -
10 Dig. Input 3 -
11 Dig. Input 4 -
12 Dig. Input 5 -
13 PHASE SEQUENCE - Phase Sequence Error: wrong phase order, phase failure,
total failure, asymmetry.
14 FC ERROR - FC Error: Error in power supply or frequency converter (if present).
15 FAILSAFE ERROR - Failsafe-Unit not ready (if present).
NOTE:
Using parameter P15.6 it is possible to assign alternative output-functions to "Status 2".

Installation, Operation and Maintenance Manual
VCIOM-16741-EN Rev. 0 November 2021
Input and Output Data 13
Section 4: Input and Output Data
4.2.7 Status 3
Register number: 263, address 0106Hex
Data format: 16 bit, error codes
Table 10.
Error Code Corresponds
3 Motor temperature warning.
4 Motor temperature power-off.
5 Phase order error or phase failure.
9 Power supply error or frequency converter error.
11 Failsafe-Unit error (if available).
17 Travel sensor error.
22 Torque sensor error.
NOTE:
Using parameter P15.7 it is possible to assign alternative output-functions to "Status 3".
4.2.8 Status 4
Register number: 264, address 0107Hex
Data format: 16 bit (Biteld)
Reserved for future use.
NOTE:
Using parameter P15.8 it is possible to assign alternative output-functions to "Status 4".

World Area Conguration Centers (WACC) offer sales support, service,
inventory and commissioning to our global customers.
Choose the WACC or sales ofce nearest you:
www.emerson.com/bettis
VCIOM-16741-EN ©2021 Emerson. All rights reserved.
The Emerson logo is a trademark and service mark of Emerson Electric Co.
BettisTM is a mark of one of the Emerson family of companies.
All other marks are property of their respective owners.
The contents of this publication are presented for informational purposes
only, and while every effort has been made to ensure their accuracy,
they are not to be construed as warranties or guarantees, express or
implied, regarding the products or services described herein or their use
or applicability. All sales are governed by our terms and conditions, which
are available upon request. We reserve the right to modify or improve the
designs or specifications of such products at any time without notice.
For complete list of sales and manufacturing sites, please visit
www.emerson.com/actuationtechnologieslocations or contact us at
info.actuationtechnologi[email protected]om
NORTH & SOUTH AMERICA
19200 Northwest Freeway
Houston TX 77065
USA
T [phone]
Av. Hollingsworth
325 Iporanga Sorocaba
SP 18087-105
Brazil
T [phone]
ASIA PACIFIC
No. 9 Gul Road
#01-02 Singapore 629361
T [phone]
No. 1 Lai Yuan Road
Wuqing Development Area
Tianjin 301700
P. R. China
T [phone]
MIDDLE EAST & AFRICA
P. O. Box 17033
Jebel Ali Free Zone
Dubai
T [phone]
P. O. Box 10305
Jubail 31961
Saudi Arabia
T [phone]
24 Angus Crescent
Longmeadow Business Estate East
P.O. Box 6908 Greenstone
1616 Modderfontein Extension 5
South Africa
T [phone]
EUROPE
Holland Fasor 6
Székesfehérvár 8000
Hungary
T [phone]
Strada Biffi 165
29017 Fiorenzuola d’Arda (PC)
Italy
T [phone]
