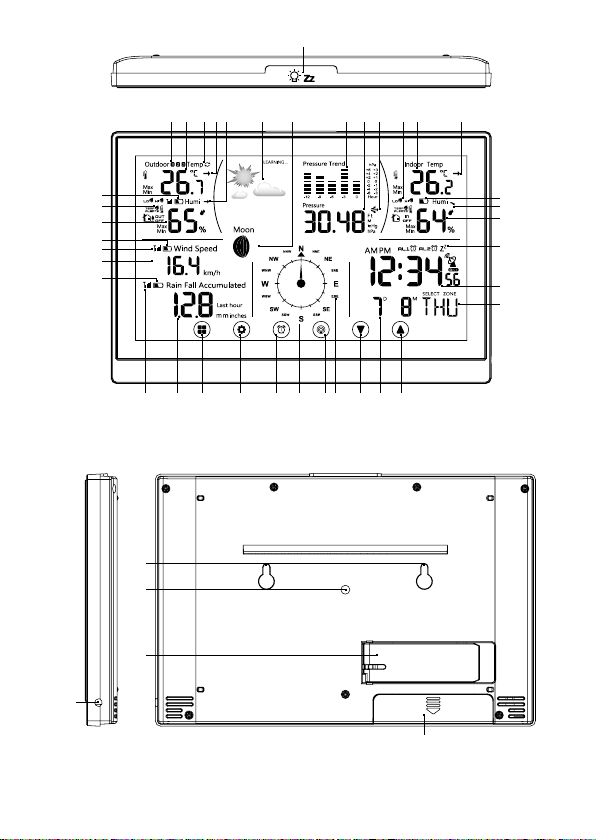

GB | Pro Wireless Weather Station
1 – snooze/light button
2 – number of temperature/humidity and
wind sensor 1/2/3
3 – outdoor temperature
4 – cycling through data from connected
sensors
5 – outdoor temperature trend
6 – outdoor humidity trend
7 – weather forecast
8 – moon phase
9 – pressure history
10 – pressure value
11 – pressure trend
12 – indoor temperature alert
13 – indoor temperature
14 – indoor temperature trend
15 – station batteries low
16 – indoor humidity trend
17 – indoor humidity
18 – alarm no. 1/no. 2
19 – time, DCF signal reception, daylight
savings time (DST)
20 – day of the week
21 – UP button – step forward in settings, mem-
ory of max/min temperature and humidity
22 – date
23 – DOWN button – step back in settings
24 – wind direction indicator
25 – CHANNEL button – searching for sensor
signal/switching through information from
connected sensors
26 – wind direction: S – south, W – west,
N – north, E – east
27 – ALARM button – alarm activation/deac-
tivation
28 – SET button – °C/°F unit of temperature
setting, function settings
29 – MODE button – display mode switching
30 – data from precipitation sensor
31 – signal from precipitation sensor
32 – low batteries in precipitation sensor
33 – wind speed
34 – signal from temperature/humidity and
wind sensor
35 – low batteries in temperature/humidity and
wind sensor
36 – outdoor humidity
37 – outdoor temperature alert
38 – low batteries in temperature/humidity and
wind sensor
39 – power adapter socket
40 – battery compartment
41 – stand
42 – alarm speaker
43 – holes for hanging on a wall
44 – precipitation sensor battery cover
45 – precipitation sensor grille
46 – wind sensor cups
47 – compass
48 – wind direction paddle
49 – temperature/humidity/wind sensor
battery compartment
Buttons: TX – send signal from sensor to station,
1/2/3 – switch sensor channel number,
WAVE – manually activate/deactivate DCF
signal reception
50 – mounting rod (26 mm diameter)
51 – mounting base
Technical specications:
clock controlled by DCF77 radio signal
time format: 12/24 h
indoor temperature: -10°C to +50°C, 0.1°C resolution
outdoor temperature: -30°C to +60°C, 0.1°C resolution
temperature measurement accuracy: ±1°C for 20°C to +24°C range, ±2°C for 0°C to +20°C and
24°C to +40°C range, ±3°C for -20°C to 0°C and 40°C to +50°C range, ±4°C for other ranges.
indoor and outdoor humidity: 1–99 % RH, 1 % resolution
humidity measurement accuracy: 5 %
displayed units of temperature: °C/°F
barometric pressure measurement range: 800 hPa to 1 100 hPa
unit of pressure: hPa/inHg
wind sensor measurement range: 0 to 127.5 km/h
unit of wind speed: km/mph
precipitation sensor measurement range: 0 to 2,999 mm

5
unit of precipitation: mm/inch
radio signal range: to 100 m in open area
number of sensors which can be connected: max. 3 (temperature/humidity/wind sensor), max. 1
(precipitation sensor)
wireless sensor: transmission frequency 433 MHz, 10 mW e.r.p. max.
station power supply: 3× 1.5 V AAA batteries (not included)
adapter AC 230 V/DC 5 V, 300 mA (included)
temperature/humidity/wind sensor power supply: 4× 1.5 V AA (not included)
precipitation sensor power supply: 2× 1.5 V AA (not included)
station dimensions and weight: 17 × 192 × 127 mm, 364 g
temperature/humidity/wind sensor dimensions and weight: 275 × 135 × 310 mm, 377 g (without
batteries)
precipitation sensor dimensions and weight: 100 × 106 × 166 mm, 220 g (without batteries)
Getting Started/Installation
1. Plug the power adapter into the station, then insert batteries rst into the weather station (3× 1.5 V
AAA) and then into: wireless temperature/humidity/wind sensor (4× 1.5 V AAA) and wireless
precipitation sensor. The battery compartment of the precipitation sensor is protected by screws;
use a suitable screwdriver.
2. When inserting the batteries make sure the polarity is correct to avoid damaging the weather
station or sensors. Only use alkaline batteries of the same type; do not use rechargeable batteries.
3. Place all the units next to each other. The weather station will automatically detect the signal from
sensors within 3 minutes. If signal from sensors is not detected, long-press the button on the
weather station to repeat the search and press the TX button on the sensor.
4. To ensure correct measurement, the temperature/humidity/wind sensor and precipitation sensor
must be placed above the ground surface (at least 1.5 m) onto a horizontal surface and outside of
buildings and structures. Both sensors must be rmly screwed on to prevent their damaging. First,
screw the mounting plate onto a level surface, then mount the mounting rod into it. Screw the
temperature/humidity/wind sensor onto the rod. Wind must ow freely around the wind sensor
from all sides. Check that the wind direction indicator and paddles for measuring wind speed can
rotate freely. The north arrow (N) on the built-in compass must point to the real north. Otherwise,
wind direction will always be displayed incorrectly. When choosing a suitable place for mounting
the sensor, check before installation that the main station is within range of the sensors.The range
of the sensors may decrease substantially in areas with large number of obstacles.
5. Do not place the sensors onto metal objects as this will reduce their transmission range.
6. If the low battery icon is displayed, replace batteries in the sensors or weather station.
Changing Channel and Connecting Additional Sensors (Valid for Temperature/
Humidity/Precipitation Sensor)
1. Choose the desired channel 1, 2, or 3 for the sensor by repeatedly pressing the button. Then,
long press the button; the icon will start ashing.
2. Remove the cover from the battery compartment on the rear of the sensor and set the sensor switch
to the desired sensor channel number (1, 2, 3), then insert batteries (4× 1.5 V AA). Data from the
sensor will be loaded within 3 minutes.
3. If sensor signal is not found, remove the batteries and proceed again in accordance with steps 1
and 2 or press the TX button.
Displaying Data from Multiple Sensors, Automatic Cycling through Values from
Connected Sensors
Press the button repeatedly to display data from all connected sensors on the weather station,
one by one.
You can also activate cycling through data from all connected sensors:
1. turning on cycling
Repeatedly press the button until the display shows the icon.
Data from all 3 sensors will be shown automatically and repeatedly one after another.

6
2. turning o cycling
Repeatedly press the button until the icon disappears.
Radio Controlled Clock (DCF77)
The wireless temperature/humidity/wind sensor will automatically start searching for DCF77 (hereinafter
referred to as DCF) signal for 5 minutes after pairing with the weather station; the icon is ashing.
(The DCF sensor is located in the temperature/humidity/wind sensor).
Signal detected – the icon stops ashing and the current time will be displayed with the DCF icon .
Signal not detected – DCF icon will not be displayed. DCF signal will be synchronised daily between
2:00 and 3:00 am.
You can also activate search for DCF signal manually.
Long-press the WAVE button located in the battery compartment of the temperature/humidity/wind
sensor.
The sensor will start searching for DCF signal. To end the search, long-press the WAVE button again.
Note: If the weather station detects DCF signal but the current time on the display is incorrect (e.g. shifted
±1 hour), you must always set the correct time zone for the country where you are using the station, see
Manual Settings.
In standard conditions (at safe distance from sources of interference, such as TV sets or computer
monitors), the reception of time signal takes several minutes. If the weather station does not detect
the signal, follow these steps:
1. Move the weather station to another location and try to detect DCF signal again.
2. Check the distance of the clock from sources of interference (computer monitors or television sets).
It should be at least 1.5 to 2 m during the reception of signal.
3. When receiving DCF signal, do not place the weather station in the proximity of metal doors,
window frames and other metal structures or objects (washing machines, dryers, refrigerators etc.).
4. In reinforced concrete structures (cellars, high-rise buildings etc.), the DCF signal reception is
weaker, depending on the conditions. In extreme cases, place the weather station close to a
window toward the transmitter.
Reception of the DCF 77 radio signal is aected by the following factors:
• thick walls and insulation, basements and cellars,
• inadequate local geographical conditions (these are dicult to assess in advance),
• atmospheric disturbances, thunderstorms, electrical appliances with no interference elimination,
television sets and computers, located near the DCF radio receiver.
Manual Settings
All changes in values are made using buttons and .
After setting the desired value and not pressing any other buttons, the set values will automatically save
and the display will switch to the main screen.
Setting Time, Date and Time Zone
1. Short-press the button
2. Press the button for 3 seconds and use the and buttons to set the following values: time
zone, calendar language (ENG, GER, FRE, ITA, DUT, SPA, DAN), year, date format, month, day, 12/24 h
time format, hour, minute, second.
3. Conrm the set value by pressing the button; holding the arrow keys speeds up settings.
Alarm Settings
2 alarms can be set on the weather station.
1. Short-press the button twice
2. Press the button for 3 seconds and use the arrows to set the alarm hour and minute.
3. Conrm the set value by pressing ; holding the arrow keys speeds up settings.
Alarm Activation/Deactivation/Snooze
Repeatedly pressing the button activates alarm 1 (AL1); alarm 2 (AL2); or both alarms at the same
time (AL1, AL2); or deactivates the alarms.

7
You can postpone (snooze) the alarm by 5 minutes by pressing the button. After pressing, the
icons will start ashing.
Turn o the alarm by pressing . After pressing, the icons will stop ashing and
only will remain on the screen. The alarm will activate again the next day.
Setting Altitude and Atmospheric Pressure
The station shows atmospheric pressure in hPa or inHg and keeps a history of pressure readings for
the last 12 hours.
To achieve more accurate calculation of pressure values, it is advised to manually set the altitude for the
place where the weather station is being used.
1. Short-press the button three times
2. Press the button for 3 seconds and use the arrows to set altitude between -90 m to +1,990 m
(10 m increments).
3. Pressing the button switches between M/hpa and Ft/inHg units.
4. Short-press the button to quit settings.
Setting Unit of Precipitation
1. Press the button ve times, then press the button for 3 seconds.
2. Use the and arrows to set mm or inches as units.
3. Short-press the button to quit settings.
Setting Unit of Wind Speed
1. Press the button six times, then press the button for 3 seconds.
2. Use the and arrows to set km/h or mph as units.
3. Short-press the button to quit settings.
Setting Temperature Limits for Maximum and Minimum Temperature
Temperature limits can be set independently for up to 3 outdoor temperature sensors.
When minimum or maximum temperature limit is activated, the (min) or (max) icon will
appear on the screen and disappear after deactivation.
Temperature limit ranges
Outdoor Indoor
Minimum -30°C to +10°C 0°C to 23°C
Maximum 28°C to +60°C 26°C to 50°C
Resolution 0.5°C 0.5°C
While on the main screen, repeatedly press the button to switch to sensor 1, 2 or 3 and proceed
for each sensor as follows.
1. Short-press the button four times.
2. Press the button for 3 seconds and set the minimum outdoor temperature.
3. Short-press the button and activate (ON)/deactivate (OFF) the outdoor minimum temperature
alert.
4. Short-press the button and set the minimum outdoor temperature.
5. Short-press the button and activate (ON)/deactivate (OFF) the outdoor maximum temperature
alert.
6. Short-press the button and set the minimum indoor temperature.
7. Short-press the button and activate (ON)/deactivate (OFF) the indoor minimum temperature
alert.
8. Short-press the button and set the minimum indoor temperature.
9. Short-press the button and activate (ON)/deactivate (OFF) the indoor maximum temperature
alert.
When the set temperature limit is exceeded, an audio alarm will sound for 1 minute and the value will
begin ashing.

8
Pressing any button on the screen cancels the alert sound, but the symbol of an active alert will continue
ashing. Once temperature drops below the set limit, the symbol on the screen will stop ashing.
Temperature, Humidity and PressureTrends
Rising
Constant
Falling
Moon Phases
12345678
1 – New moon
2 – Waxing crescent
3 – First quarter
4 – Waxing gibbous
5 – Full moon
6 – Waning gibbous
7 – Last quarter
8 – Waning crescent
Note: In the period between 18:00 and 06:00, the moon icon will be surrounded by stars.
Displaying Maximum and Minimum Readings of Temperature/Humidity and Wind
Repeatedly pressing the button will gradually show maximum and minimum measured temperature
and humidity values and maximum wind strength.
The memory of measured values is automatically erased every day at 00:00.
Or long-press the button to erase the memory automatically.
Displaying Measured Values from the Precipitation Sensor
Repeatedly pressing the button will gradually show measured precipitation values in various time
periods.
Accumulated
Today
Last hour
Yesterday
This week
Long-pressing the button erases the measured value.
Station Display Backlight
When powered via adapter:
Permanent backlighting is set automatically.
Repeatedly pressing the SNOOZE/LIGHT button will allow you to set 4 dierent levels of permanent
backlighting (o, maximum, medium, low).
When powered only by 3× 1.5 V AAA batteries:
Display backlighting is o. Pressing the SNOOZE/LIGHT button will turn the display backlight on for
5 seconds, then it turns o again. When the station is only powered by batteries, permanent backlighting
of the display cannot be activated!
Note:
The inserted batteries serve as backup for the measured/set data.
If batteries are not inserted and you unplug the adapter, all data will be erased.
Weather Forecast
The station forecasts weather on the basis of changes in atmospheric pressure for the next 12–24 hours
for an area within the range of 15–20 km.
The accuracy of weather forecast is 70–75 %.The forecast icon is displayed in eld no. 7.
As the weather forecast may not always be 100 % accurate, neither the manufacturer nor the seller can
be held responsible for any loss caused by an incorrect forecast.
After rst setting or after resetting the weather station, a learning mode will be activated, indicated by
LEARNING… appearing on the screen

9
The station will evaluate measured data and continuously increase the accuracy of forecast.
This mode continues for 14 days, then the LEARNING… icon automatically disappears.
Weather Forecast Icons:
Sunny Cloudy Overcast Raining/
snowing Heavy rain/heavy snow
Upkeep and Maintenance
• Read the manual carefully before using this product.
• Do not expose the product to direct sunlight, extreme
• cold and moisture, and sudden changes in temperature as these may compromise detection
accuracy.
• Do not place the product in locations prone to vibration and shocks; these may cause damage.
• Do not expose the product to excessive pressure, impacts, dust, high temperatures or humidity
– these may cause
• malfunction, shorter battery life, damage to batteries and deformation of plastic parts.
• Do not expose the product to rain or moisture, it is not designed for outdoor use.
• Do not place any open ame sources on the product, e.g. a lit candle, etc.
• Do not place the product in places with inadequate air ow.
• Do not tamper with the internal electric circuits of the product. Doing so might damage it and
automatically void the warranty.
• The product should only be repaired by a qualied professional.
• To clean the product, use a slightly moistened soft cloth. Do not use
• solvents or cleaning agents; they could scratch the plastic parts and cause corrosion of the electric
circuits.
• Do not immerse the product in water or other liquids.
• The product must not be exposed to dripping or splashing water.
• In the event of damage or defect on the product, do not perform any repairs by yourself.
• Have it repaired in the shop where you bought it.
• Place the product out of reach of children; it is not a toy.
• Remove at batteries; they could leak and damage the product.
• Use only new batteries of the recommended type and make sure polarity is correct when replacing
them
• Do not throw batteries into a re and do not disassemble or short-circuit them.
• This device is not intended for use by persons (including children) whose physical, sensory or mental
disability or lack of experience and expertise prevents them from safely using the device, unless
they are supervised or instructed in the use of the device by a person responsible for their safety.
Children should be supervised to ensure they do not play with the device.
After use, the device and batteries become hazardous waste – do not throw them into unsorted mu-
nicipal waste but return them to a collection point – e.g. the shop where you purchased the product.
Do not dispose with domestic waste. Use special collection points for sorted waste. Contact local
authorities for information about collection points. If the electronic devices would be disposed
in landll, dangerous substances may reach groundwater and subsequently food chain, where
it could aect human health.
Hereby, EMOS spol. s r. o. declares that the radio equipment type E6016 is in compliance with Directive
2014/53/EU.The full text of the EU declaration of conformity is available at the following internet address:
http://www.emos.eu/download

10
CZ | Pro bezdrátová meteostanice
1 – tlačítko snooze/light
2 – číslo čidla teploty/vlhkosti a větru 1/2/3
3 – venkovní teplota
4 – rotace údajů z připojených čidel
5 – trend venkovní teploty
6 – trend venkovní vlhkosti
7 – předpověď počasí
8 – fáze měsíce
9 – historie tlaku
10 – hodnota tlaku
11 – trend tlaku
12 – teplotní alarm vnitřní teploty
13 – vnitřní teplota
14 – trend vnitřní teploty
15 – vybité baterie ve stanici
16 – trend vnitřní vlhkosti
17 – vnitřní vlhkost
18 – budík č. 1/č. 2
19 – čas, příjem DCF signálu, letní čas (DST)
20 – den v týdnu
21 – tlačítko UP – krok vpřed při nastavení,
paměť Max/Min teploty a vlhkosti
22 – datum
23 – tlačítko DOWN – krok vzad při nastavení
24 – ukazatel směru větru
25 – tlačítko CHANNEL – vyhledání signálu z
čidla/přepínání údajů z připojených čidel
26 – směr větru: S – jih, W – západ, N – sever,
E – východ
27 – tlačítko ALARM – aktivace/deaktivace
budíku
28 – tlačítko SET – nastavení jednotky teploty
°C/°F, nastavení funkcí
29 – tlačítko MODE – přepnutí zobrazeného
režimu
30 – údaje z čidla srážek
31 – signál z čidla srážek
32 – vybité baterie v čidlu srážek
33 – rychlost větru
34 – signál z čidla teploty/vlhkosti a větru
35 – vybité baterie v čidlu teploty/vlhkosti
a větru
36 – venkovní vlhkost
37 – teplotní alarm venkovní teploty
38 – vybité baterie v čidlu teploty/vlhkosti
a větru
39 – vstup pro síťový zdroj
40 – bateriový prostor
41 – stojánek
42 – reproduktor alarmu
43 – otvory pro pověšení na zeď
44 – bateriový kryt čidla srážek
45 – mřížka čidla srážek
46 – misky čidla větru
47 – kompas
48 – lopatka směru větru
49 – bateriový prostor čidla teploty/vlhkosti/
větru
Tlačítka: TX – odeslání signálu z čidla do stanice,
1/2/3 – přepínání čísla kanálu čidla, WAVE
– manuální aktivace/deaktivace příjmu
DCF signálu
50 – montážní tyč (průměr 26 mm)
51 – montážní základna
Technické specikace:
hodiny řízené rádiovým signálem DCF77
formát času: 12/24 h
vnitřní teplota: -10°C až +50°C, rozlišení 0,1°C
venkovní teplota: -30°C až +60°C, rozlišení 0,1°C
přesnost měření teploty: ±1°C pro rozmezí 20°C až +24°C, ±2°C pro rozmezí 0°C až +20°C a 24°C až
+40°C, ±3°C pro rozmezí -20°C až 0°C a 40°C až +50°C, ±4°C pro ostatní rozmezí
vnitřní a venkovní vlhkost: 1–99 % RV, rozlišení 1 %
přesnost měření vlhkosti: 5 %
zobrazení teploty měření: °C/°F
měřicí rozpětí bar. tlaku: 800 hPa až 1 100 hPa
jednotka tlaku: hPa/inHg
měřicí rozpětí čidla větru: 0 až 127,5 km/h
jednotka větru: km/mph
měřicí rozpětí čidla srážek: 0 až 2 999 mm
jednotka srážek: mm/inch
dosah rádiového signálu: až 100 m ve volném prostoru
