Endress+Hauser Cerabar S PMC71 User manual

BA00296P/00/EN/15.14
71270404
valid from Software version:
04.01.zz
Operating Instructions – Description of Instrument Functions
Cerabar S PMC71, PMP71/75
Deltabar S FMD77, FMD78, PMD75
Deltapilot S FMB70
Process pressure / Differential pressure, Flow / Hydrostatic

Cerabar S/Deltabar S/Deltapilot S PROFIBUS PA
2Endress+Hauser

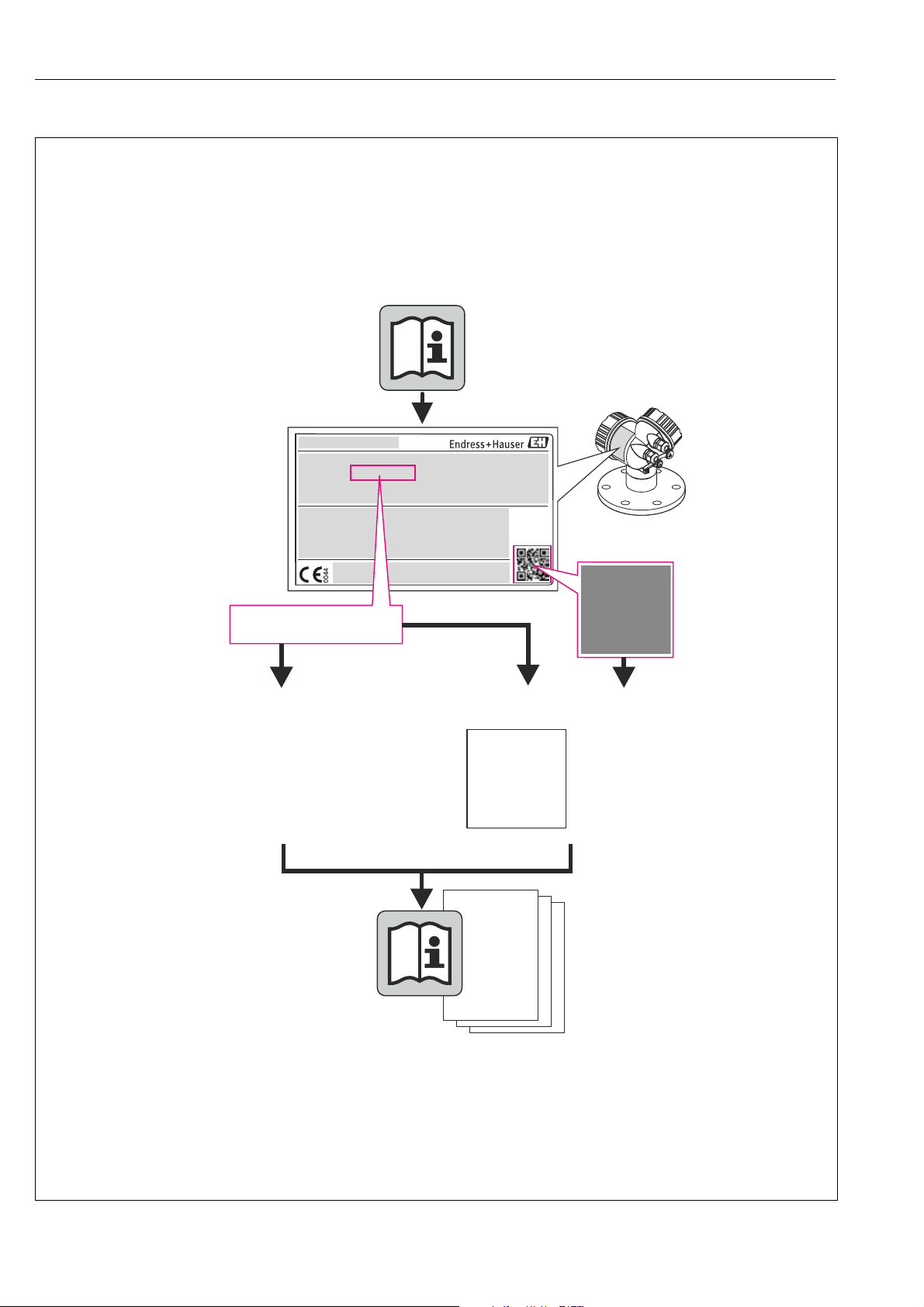

A0023555
TAG No.: XXX000
Ser. No.: X000X000000
Order code 00X00-XXXX0XX0XXX
www.endress.com/deviceviewer Endress+Hauser Operations App
Serial number

Cerabar S/Deltabar S/Deltapilot S PROFIBUS PA Table of contents
Endress+Hauser 3
Table of contents
1 Notes on use . . . . . . . . . . . . . . . . . . . . 4
1.1 Finding parameter description using ID numbers . . . 4
1.2 Finding function group using graphic representation . 4
1.3 Finding parameter description using parameter names
(index) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Finding parameter description using
ID numbers . . . . . . . . . . . . . . . . . . . . . 5
3 Graphic representation of function groups
9
4 Pressure measurement. . . . . . . . . . . . 11
5 Level measurement . . . . . . . . . . . . . . 12
5.1 Overview of level measurement . . . . . . . . . . . . . . . 12
5.2 "Level Easy Pressure" level selection . . . . . . . . . . . 13
5.3 "Level Easy Height" level selection . . . . . . . . . . . . . 17
5.4 "Level Standard" level selection,
"Linear" level type . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.5 "Level standard" level selection,
"Pressure linearized" level type . . . . . . . . . . . . . . . 25
5.6 "Level standard" level selection,
"Height linearized" level type . . . . . . . . . . . . . . . . . 31
6 Flow measurement. . . . . . . . . . . . . . . 38
6.1 Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
6.2 Totalizers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
7 Description of parameters . . . . . . . . . 41
8 Slot/index tables . . . . . . . . . . . . . . . 142
8.1 Slot/index tables . . . . . . . . . . . . . . . . . . . . . . . . . 142
9 Troubleshooting . . . . . . . . . . . . . . . . 148
9.1 Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
9.2 Response of outputs to errors . . . . . . . . . . . . . . . . 156
9.3 Confirming messages . . . . . . . . . . . . . . . . . . . . . . 158
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

Notes on use Cerabar S/Deltabar S/Deltapilot S PROFIBUS PA
4Endress+Hauser
1 Notes on use
Section 7 describes all the parameters in order of how they appear in the menu. Sections 4 to 6
provide typical examples of configuration.
Sections 1.1 to 1.2 describe ways of finding a certain parameter description more easily.
1.1 Finding parameter description using ID numbers
Each parameter is indicated on the onsite display with a unique identification number (ID). Section
2 lists all the parameters in numerical order. The page reference/link takes you to the parameter in
question.
In FieldCare, additional parameters and, to an extent, other parameters are displayed. These
parameters are not listed in Section 2. You can find these parameters using the index. See also
Section 1.3.
1.2 Finding function group using graphic representation
All the function groups are shown in table form in Section 3. The page reference/link takes you to
the function group in question. In Section 7, all the parameters of a function group are compiled in
a table.
1.3 Finding parameter description using parameter names
(index)
The index lists all the parameters in alphabetical order. The page reference/link takes you to the
parameter in question.

Cerabar S/Deltabar S/Deltapilot S PROFIBUS PA Finding parameter description using ID numbers
Endress+Hauser 5
2 Finding parameter description using
ID numbers
ID number Parameter name Description, see page
001 DENSITY UNIT 61 or 94
003 HEIGHT UNIT 61
004 FULL CALIB. – QUICK SETUP 48
004 FULL CALIB. – Level Selection "Level Easy Pressure" 57
004 FULL CALIB. – Level Selection "Level Easy Height" 62
005 FULL PRESSURE 58
006 FULL HEIGHT 63
007 ADJUST DENSITY 61 or 94
008 CALIBRATION MODE – Level Selection "Level Easy Pressure" 57
008 CALIBRATION MODE – Level Selection "Level Easy Height" 61
009 EMPTY HEIGHT 62
010 EMPTY CALIB. – QUICK SETUP 47
010 EMPTY CALIB. – Level Selection "Level Easy Pressure" 57 or 58
010 EMPTY CALIB. – Level Selection "Level Easy Height" 62
011 EMPTY PRESSURE 58
014 DOWNLOAD FUNCT. 118
020 LEVEL SELECTION 43
023 OUTPUT UNIT – Level Selection "Level Easy Pressure" 57
023 OUTPUT UNIT – Level Selection "Level Easy Height" 61
025 PROCESS DENSITY 94
046 ALARM STATUS 120
047 ENTER RESET CODE 118
048 INSERT PIN NO. 118
050 LEVEL BEFORE LIN 114
060 PRESS. ENG. UNIT 53, 56, 60, 64 or 89
075 CUSTOMER UNIT P 53, 56, 60, 65 or 89
079 LANGUAGE 41
247 DAMPING VALUE 45, 48, 50, 54, 58, 63, 74, 78, 87 or 92
250 SENSOR SER. No. 111
264 SOFTWARE VERSION 109
266 HARDWARE REV. 109
272 ADDITIONAL INFO. 109
301 PRESSURE – "Pressure" measuring mode 113
PRESSURE – "Level" measuring mode 113
PRESSURE – "Flow" measuring mode 114
311 MAX. FLOW 49 or 92
313 UNIT VOLUME – "Linear" level type 68 or 72
UNIT VOLUME – "Pressure Linearized" level type 76
UNIT VOLUME – "Height Linearized" level type 81
314 EMPTY CALIB. – QUICK SETUP 47
EMPTY CALIB. – "Linear" level type 70
EMPTY CALIB. – "Height Linearized" level type 84
315 FULL CALIB. – QUICK SETUP 48
FULL CALIB. – "Pressure Linearized" level type 71
FULL CALIB. – "Height Linearized" level type 84
316 ADJUST DENSITY – "Linear" level type 71
ADJUST DENSITY – "Height Linearized" level type 85
ADJUST DENSITY– "Level" extended setup 94
317 CUST. UNIT FACT. P 53, 56, 60, 65 or 89
318 TEMP. ENG. UNIT – "Pressure" measuring mode 93
TEMP. ENG. UNIT – "Level" measuring mode 94
TEMP. ENG. UNIT – "Flow" measuring mode 94
319 CALIB. OFFSET 51
323 SET.L.FL.CUT-OFF 95
329 FACT.U.U.TOTAL.1 103
330 FACT. U. U. TOTAL. 2 104
331 RESET TOTALISER 1 103

Finding parameter description using ID numbers Cerabar S/Deltabar S/Deltapilot S PROFIBUS PA
6Endress+Hauser
ID number Parameter name Description, see page
332 PminALARM WINDOW 122
333 PmaxALARM WINDOW 122
334 Tmin ALARM WINDOW 122
335 Tmax ALARM WINDOW 122
336 ALARM DELAY 121
339 DISPLAY CONTRAST 106
350 DEVICE DESIGN. 109
352 CONFIG RECORDER 109
354 DEVICE SERIAL No. 108
357 PCB TEMPERATURE 109
358 Allowed Min. TEMP 109
359 Allowed Max. TEMP 109
360 MAT. PROC. CONN. + 110
361 MAT. PROC. CONN. - 110
362 SEAL TYPE 110
363 DIP STATUS 109
365 MAT. MEMBRANE 111
366 FILLING FLUID 111
367 SENSOR TEMP. 113 or 115
368 Tmin SENSOR 111
369 Tmax SENSOR 111
370 TANK CONTENT 114
375 SUPPRESSED FLOW 115
378 MEAS. VAL. TREND 113 or 115
380 COUNTER:P > Pmax 115
382 RESET PEAKHOLD 117
383 MAX. MEAS. PRESS. 115
386 ELECTR. SERIAL NO. 108
389 MEASURING MODE 42
392 CALIBRATION MODE – "Linear" level type 70
CALIBRATION MODE – "Height Linearized" level type 84
397 LIN. EDIT MODE 97
398 TOTALIZER 1 UNIT – "Volume p. cond." flow type 102
399 TOTALIZER 2 UNIT – "Volume p. cond." flow type 103
400 NEG. FLOW TOT. 1 103
401 ACK. ALARM MODE 120
404 COUNTER T>Tmax 116
409 OPERATING HOURS 118
413 SIMULATION MODE 119
414 SIM. PRESSURE 119
416 NEG. FLOW TOT. 2 104
419 MENU DESCRIPTOR 105
423 ALTERNATE DATA 105
434 CORRECTED PRESS. – "Pressure" measuring mode 113
CORRECTED PRESS. – "Level" measuring mode 114
CORRECTED PRESS. – "Flow" measuring mode 115
442 LOW FLOW CUT-OFF 95
467 COUNTER:P < Pmin 116
469 MIN. MEAS. PRESS. 116
471 MAX. MEAS. TEMP. 116
472 COUNTER T<Tmin 116
474 MIN. MEAS. TEMP. 116
476 SIM. ERROR NO. 120
480 ALARM DISPL. TIME 121
482 PROC.CONN.TYPE 110
484 PRESS.SENS LOLIM 111
485 PRESS.SENS HILIM 111
487 SENSOR H/WARE REV. 111
488 PCB COUNT:T > Tmax 116
490 PCB MAX. TEMP. 116
492 PCB COUNT:T < Tmin 116
494 PCB MIN. TEMP. 116
500 ACK. ALARM 120
549 MEASURING TABLE (display) 98
549 EDITOR TABLE, LINE-NUMB (enter values) 97

Cerabar S/Deltabar S/Deltapilot S PROFIBUS PA Finding parameter description using ID numbers
Endress+Hauser 7
ID number Parameter name Description, see page
550 EDITOR TABLE, X-VAL. (enter values) 98
551 EDITOR TABLE, Y-VAL. (enter values) 97, 98
563 POS. INPUT VALUE 45, 47 or 51
564 LAST DIAG. CODE 120
570 Pmax PROC. CONN. 110
571 MASS FLOW UNIT 91
581 SENSOR MEAS.TYPE 111
584 SENSOR PRESSURE – "Pressure" measuring mode 113
SENSOR PRESSURE – "Level" measuring mode 114
SENSOR PRESSURE – "Flow" measuring mode 115
591 MINIMUM SPAN 111
595 SELECT ALARM TYPE 121
600 SELECT ALARM TYPE 121
603 RESET ALL ALARMS 121
607 CUST. UNIT FACT. V – "Linear" level type 69 or 72
CUST. UNIT FACT. V – "Pressure Linearized" level type 77
CUST. UNIT FACT. V – "Height Linearized" level type 82
608 CUSTOMER UNIT V – "Linear" level type 68 or 72
CUSTOMER UNIT V – "Pressure Linearized" level type 76
CUSTOMER UNIT V – "Height Linearized" level type 82
609 CUST. UNIT FACT. F 92
610 CUSTOMER UNIT F 91
627 TOT. 1 USER UNIT 103
628 TOT. 2 USER UNIT 104
634 MAX PRESS. FLOW 50 or 92
639 SIM.FLOW VALUE 119
640 FLOW-MEAS. TYPE 90
652 TOTALIZER 1 115
655 TOTAL. 1 OVERFLOW 115
657 TOTALIZER 2 115
658 TOTAL. 2 OVERFLOW 115
660 STD. FLOW UNIT 91
661 NORM FLOW UNIT 90
662 TOTALIZER 1 UNIT – "Mass" flow type 102
663 TOTALIZER 2 UNIT – "Mass" flow type 103
664 TOTALIZER 1 UNIT – "Gas. std. conditions" flow type 102
665 TOTALIZER 2 UNIT – "Gas. std. conditions" flow type 103
666 TOTALIZER 1 UNIT – "Gas. norm conditions" flow type 102
667 TOTALIZER 2 UNIT – "Gas. norm conditions" flow type 103
679 MEASURED VALUE – "Pressure" 112
MEASURED VALUE – "Level" 113
MEASURED VALUE – "Flow" 114
685 POS.ZERO ADJUST 44, 47, 49 or 51
688 MAIN DATA FORMAT 105
703 CUST. UNIT FACT. M – "Linear" level type 70
CUST. UNIT FACT. M – "Pressure Linearized" level type 78
CUST. UNIT FACT. M – "Height Linearized" level type 83
704 CUSTOMER UNIT M – "Linear" level type 69
CUSTOMER UNIT M – "Pressure Linearized" level type 77
CUSTOMER UNIT M – "Height Linearized" level type 83
705 CUST. UNIT FACT. H – "Linear" level type 68 or 73
CUST. UNIT FACT. H – "Height Linearized" level type 81 or 86
706 CUSTOMER UNIT H – "Linear" level type 67 or 73
CUSTOMER UNIT H – "Height Linearized" level type 81 or 85
708 HEIGHT UNIT – "Linear" level type 67 or 73
HEIGHT UNIT – "Height Linearized" level type 80 or 85
709 MASS UNIT – "Linear" level type 69
MASS UNIT – "Pressure Linearized" level type 77
MASS UNIT – "Height Linearized" level type 82
710 EMPTY PRESSURE – "Linear" level type 70
EMPTY PRESSURE – "Height Linearized" level type 84
711 FULL PRESSURE – "Linear" level type 71
FULL PRESSURE – "Height Linearized" level type 84
712 LEVEL MAX. 83
713 TANK CONTENT MAX. 96
714 SIM. LEVEL 119

Finding parameter description using ID numbers Cerabar S/Deltabar S/Deltapilot S PROFIBUS PA
8Endress+Hauser
ID number Parameter name Description, see page
715 SIM. TANK CONT. 120
717 MEASURING TABLE (selection) 98
718 LEVEL MODE 65
755 LEVEL MIN. 83
759 TANK CONTENT MIN. 96
761 HYDR. PRESS MAX. 78
770 EDITOR TABLE (continue entries) 98
775 HYDR. PRESS MIN. 78
804 LIN. MEASURAND 67
805 LINd. MEASURAND 76
806 COMB.MEASURAND 80
808 TABLE SELECTION 97
809 EDITOR TABLE (select table) 97
810 ADJUST DENSITY – "Linear" level type 71
ADJUST DENSITY – "Height Linearized" level type 84
811 PROCESS DENSITY 94
812 DENSITY UNIT – "Linear" level type 71
DENSITY UNIT – "Height Linearized" level type 85
813 100 % POINT – "Linear" level type 74
100 % POINT – "Height Linearized" level type 86
814 ZERO POSITION – "Linear" level type 74
ZERO POSITION – "Height Linearized" level type 86
815 TANK DESCRIPTION 98
831 HistoROM AVAIL. 118
832 HistoROM CONTROL 119
858 TANK VOLUME 72
859 TANK HEIGHT 73
990 IDENT NUMBER SEL 107
991 SET UNIT TO BUS 107
992 AI OUT VALUE 107
993 AI OUT STATUS 107
994 2ND CYCLIC VALUE 107
995 SEL. DISPLAY VAL. 108
996 PA INPUT VALUE 108
998 BUS ADDRESS 108
999 COND.STATUS DIAG 108

Cerabar S/Deltabar S/Deltapilot S PROFIBUS PA Graphic representation of function groups
Endress+Hauser 9
3 Graphic representation of function groups
!Note!
The "Flow" measuring mode is only available for the Deltabar S differential pressure transmitter. The
groups marked with "*" are only displayed for Deltabar S.
1st selection level 2nd selection level 3rd selection level (groups) Function groups Description,
see page
LANGUAGE LANGUAGE (079) 41
MEASURING MODE MEASURING MODE
(389)
42
QUICK SETUP pressure 44
QUICK SETUP level 46
QUICK SETUP
Flow (Deltabar only)
49
MANUFACTURER
VIEW1)
OPERATING MENU SETTINGS (557) POSITION ADJUSTMENT 51
BASIC SETUP Pressure 52
BASIC SETUP Level,
"Level Easy Pressure"
55
BASIC SETUP Level,
"Level Easy Height"
59
BASIC SETUP Level,
"Level Standard"
64
BASIC SETUP Flow * 88
EXTENDED SETUP Pressure 93
EXTENDED SETUP Level 93
EXTENDED SETUP
Flow *
94
LINEARIZATION –
Onsite display
96
LINEARIZATION –
FieldCare
99
TOTALIZER SETUP * 102
DISPLAY (559) 105
TRANSMITTER INFO (560) PA DATA 107
TRANSMITTER DATA 108
PROCESS CONNECTION 110
SENSOR DATA 111
PROCESS INFO (561) PROCESS VALUES pressure 112
PROCESS VALUES level 113
PROCESS VALUES flow * 114
PEAK HOLD INDICATOR 115
OPERATING 118
DIAGNOSTICS SIMULATION MODE 119
MESSAGES 120
USER LIMITS 122
1) Only visible in FieldCare.

Graphic representation of function groups Cerabar S/Deltabar S/Deltapilot S PROFIBUS PA
10 Endress+Hauser
1st selection level 2nd selection level 3rd selection level
(groups)
Function groups Description,
see page
PROFILE VIEW1) PHYSICAL BLOCK PB STANDARD PARAMETER 124
PB PARAMETER 125
TRANSDUCER BLOCK TB STANDARD PARAMETER 134
TB PARAMETER 135
ANALOG INPUT BLOCK AI STANDARD PARAMETER 136
AI PARAMETER 137
1) Only visible in FieldCare.

Cerabar S/Deltabar S/Deltapilot S PROFIBUS PA Pressure measurement
Endress+Hauser 11
4 Pressure measurement
!Note!
• The Cerabar S and the Deltabar S is configured for the pressure measuring mode as standard. The
Deltapilot S is configured for the level measuring mode as standard. The measuring range and the
unit in which the measured value is transmitted, as well as the digital output value of the Analog
Input Block OUT, correspond to the data on the nameplate.
• Please note that in the following instances, the onsite display or the MEASURED VALUE and the
digital output value of the Analog Input Block OUT no longer display the same value:
– If you change the operating mode
– If you change the values for PV SCALE
– If you change the values for OUT SCALE
– If you change the unit
See also parameter description for PV SCALE, OUT SCALE (Page 138) and SET UNIT TO BUS
(Page 107).
• See also Operating Instructions Deltabar S (BA00294P), Section 6.7 "Differential pressure
measurement", Cerabar S (BA00295P), Section 6.6 "Pressure measurement" or Deltapilot S
(BA00356P), Section 6.5 "Pressure measurement".
• For a description of the parameters mentioned, see
– Page 42, Table 2: MEASURING MODE
– Page 51, Table 6: POSITION ADJUSTMENT
– Page 52, Table 7: BASIC SETUP.
• For a description of further relevant parameters, see
– Page 93, Table 15: EXTENDED SETUP
– Page 112, Table 27: PROCESS VALUES.
!Note!
• You can also specify a customer-specific unit. See parameter description for PRESS. ENG. UNIT
(Page 53).
Description
1 Deltabar S: before configuring the device for your
application, the pressure piping must be cleaned and the
device filled with fluid. See Operating Instructions
BA00294P, Section 6.7.
P01-PMD75xxx-19-xx-xx-xx-000
2 Carry out position adjustment if necessary. See Page 51,
Table 6: POSITION ADJUSTMENT
3 If necessary, select the "Pressure" measuring mode via
the MEASURING MODE parameter.
Onsite display:
Menu path: GROUP SELECTION MEASURING
MODE
FieldCare:
Menu path: MEASURING MODE
4 If necessary, scale the OUT value of the Analog Input
Block, see Page 138, parameter descriptions for PV
SCALE and OUT SCALE or set the OUT value to equal
the measured value, see Page 107, parameter description
for SET UNIT TO BUS.
5Result:
The device is ready for pressure measurement.
+–

Level measurement Cerabar S/Deltabar S/Deltapilot S PROFIBUS PA
12 Endress+Hauser
5 Level measurement
5.1 Overview of level measurement
Measuring task LEVEL
SELECTION/
LEVEL MODE
Measured
variable options
Description Comment Measured value display
The measured variable is
in direct proportion to the
measured pressure.
Calibration is performed
by entering two pressure-
level value pairs.
LEVEL SELECTION:
Level Easy Pressure
Via OUTPUT UNIT
parameter: %, level,
volume or mass
units.
– Calibration with
reference pressure –
wet calibration, see
Page 13, Section 5.2.1
– Calibration without
reference pressure – dry
calibration, see Page 15,
Section 5.2.2
– Incorrect entries are
possible
– Customized units are
not possible
The measured value display
and the LEVEL BEFORE
LIN parameter show the
measured value.
The measured variable is
in direct proportion to the
measured pressure.
Calibration is performed
by entering the density
and two height-level value
pairs.
LEVEL SELECTION:
Level Easy Height
Via OUTPUT UNIT
parameter: %, level,
volume or mass
units.
– Calibration with
reference pressure –
wet calibration, see
Page 17, Section 5.3.1
– Calibration without
reference pressure – dry
calibration, see Page 19,
Section 5.3.2
– Incorrect entries are
possible
– Customized units are
not possible
The measured value display
and the LEVEL BEFORE
LIN parameter show the
measured value.
The measured variable is
in direct proportion to the
measured pressure.
LEVEL SELECTION:
Level standard/
LEVEL MODE:
Linear
Via LIN.
MEASURAND
parameter:
– % (level)
– Level
–Volume
–Mass
– Calibration with
reference pressure –
wet calibration, see
Page 21, Section 5.4.1
– Calibration without
reference pressure – dry
calibration, see Page 23,
Section 5.4.2
– Incorrect entries are
rejected by the device
– Customized level,
volume and mass units
are possible
The measured value display
and the LEVEL BEFORE
LIN parameter show the
measured value.
The measured variable is
not in direct proportion to
the measured pressure as,
for example, with
containers with a conical
outlet. A linearization table
must be entered for the
calibration.
LEVEL SELECTION:
Level standard/
LEVEL MODE:
Pressure linearized
Via LINd
MEASURAND
parameter:
– Pressure + %
– Pressure +
Volume
– Pressure + Mass
– Calibration with
reference pressure:
semiautomatic entry of
linearization table, see
Page 25, Section 5.5.1
– Calibration without
reference pressure:
manual entry of
linearization table, see
Page 28, Section 5.5.2
– Incorrect entries are
rejected by the device
– Customized level,
volume and mass units
are possible
The measured value display
and the TANK CONTENT
parameter show the
measured value.
–Twomeasuredvariables
are required or
– The container shape is
given by value pairs,
such as height and
volume.
The 1st measured variable
%-Height or height must
be in direct proportion to
the measured pressure.
The 2nd measured
variable volume, mass or %
must not be in direct
proportion to the
measured pressure. A
linearization table must be
entered for the 2nd
measured variable. The
2nd measured variable is
assigned to the 1st
measured variable by
means of this table.
LEVEL SELECTION:
Level standard/
LEVEL MODE: Height
Linearized
Via COMB.
MEASURAND
parameter:
– Height + Volume
– Height + Mass
– Height + %
– %-Height +
volume
– %-Height + Mass
– %-Height + %
– Calibration with
reference pressure: wet
calibration and
semiautomatic entry of
linearization table, see
Page 31, Section 5.6.1
– Calibration without
reference pressure: dry
calibration and manual
entry of linearization
table, see Page 35,
Section 5.6.2
– Incorrect entries are
rejected by the device
– Customized level,
volume and mass units
are possible
The measured value display
and the TANK CONTENT
parameter show the 2nd
measured value (volume,
mass or %).
The LEVEL BEFORE LIN
parameter displays the 1st
measured value (%-Height
or height).

Cerabar S/Deltabar S/Deltapilot S PROFIBUS PA Level measurement
Endress+Hauser 13

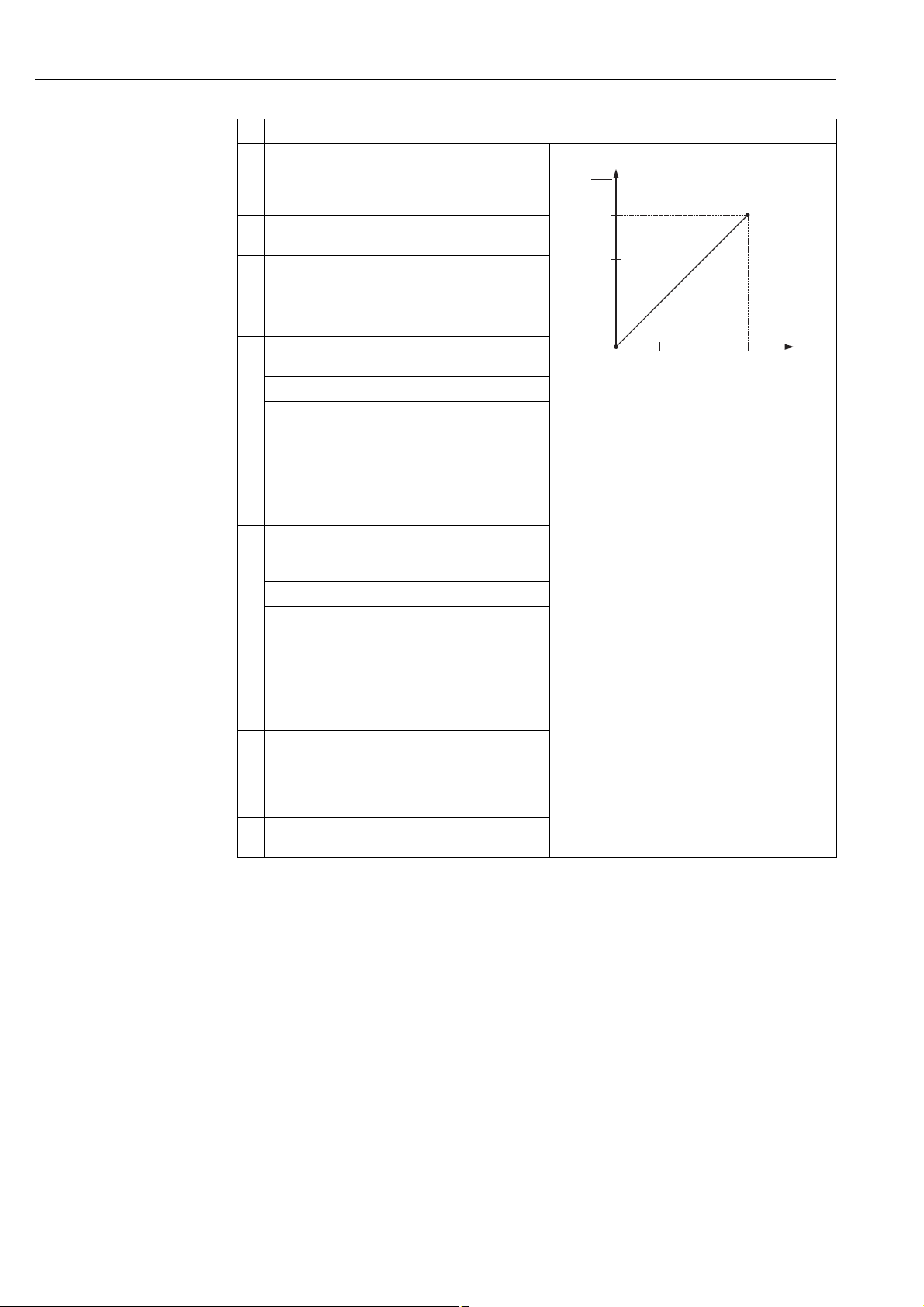

5.2 "Level Easy Pressure" level selection
5.2.1 Calibration with reference pressure – wet calibration
Example:
In this example, the level in a tank should be measured in m. The maximum level is 3 m (9.8 ft).
The pressure range is set to 0 to 300 mbar (4.5 psi).
Prerequisite:
• The measured variable is in direct proportion to the pressure.
• The tank can be filled or emptied.
!Note!
• Please note that in the following instances, the onsite display or the MEASURED VALUE and the
digital output value of the Analog Input Block OUT no longer display the same value:
– If you change the operating mode
– If you change the values for PV SCALE
– If you change the values for OUT SCALE
– If you change the unit
See also parameter description for PV SCALE, OUT SCALE (Page 138) and SET UNIT TO BUS
(Page 107).
• See also Operating Instructions for Deltabar S (BA00294P) or Cerabar S (BA00295P), Section 6.6
"Level measurement" or Deltapilot S (BA00356P), Section 6.5 "Level measurement".
• The values entered for EMPTY CALIB. and FULL CALIB. must have a minimum interval of 1%
for the "Level Easy Pressure" level mode. The value will be rejected with a warning message if the
values are too close together. Further limit values are not checked; i.e. the values entered must
be appropriate for the sensor and the measuring task so that the measuring device can measure
correctly.
• For a description of the parameters mentioned, see
– Page 42, Table 2: MEASURING MODE
– Page 51, Table 6: POSITION ADJUSTMENT
– Page 55, Table 8: LEVEL SELECTION "Level Easy Pressure"
• For a description of further relevant parameters, see
– Page 93, Table 16: EXTENDED SETUP
– Page 113, Table 28: PROCESS VALUES.

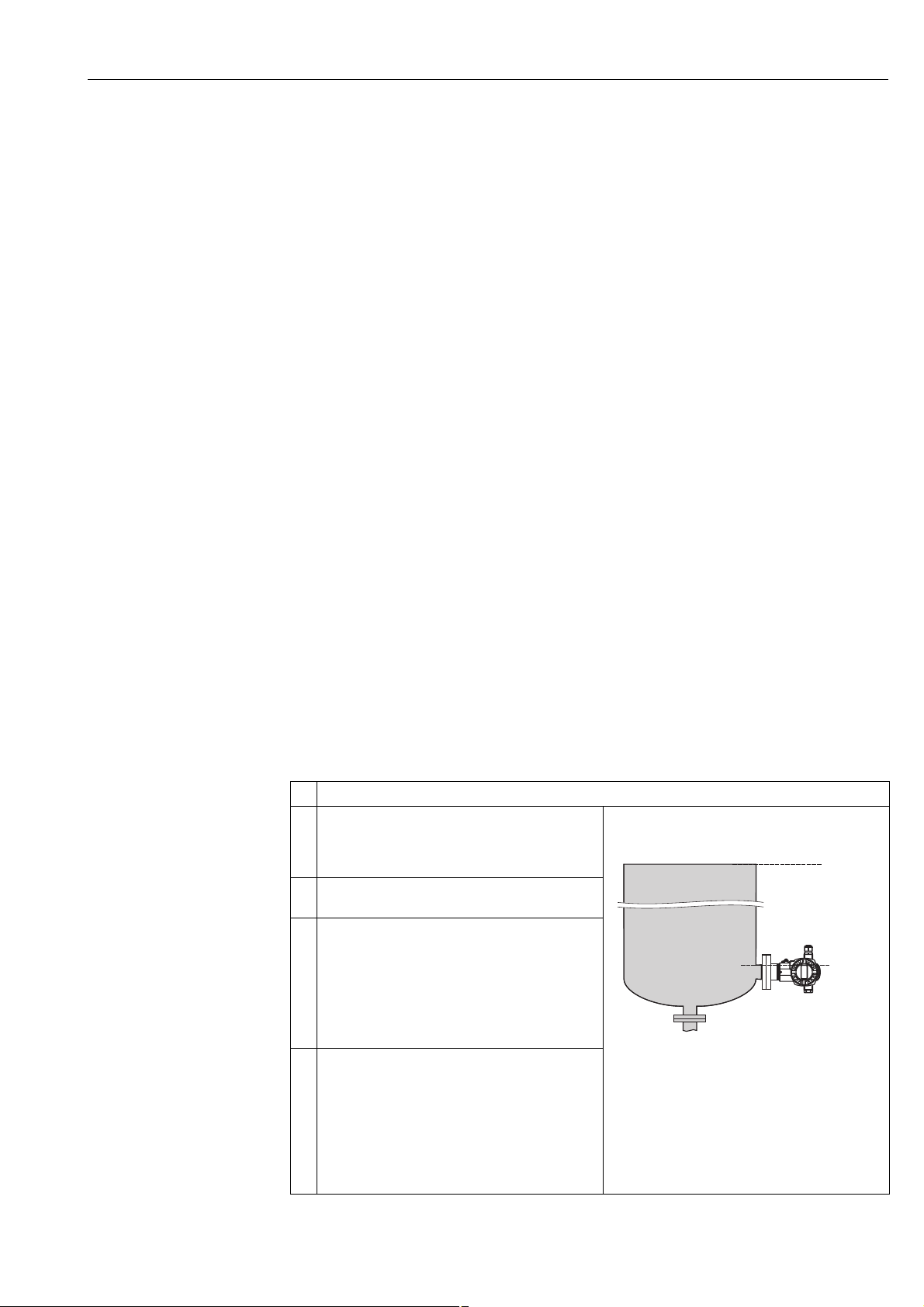

Description
1 Deltabar S: Before you configure the device for your
application, the pressure piping must be cleaned and
filled with medium. See Operating Instructions
BA00294P, Section 6.6.1
P01-PMP75xxx-19-xx-xx-xx-008
Fig. 1: Calibration with reference pressure –
wet calibration
1 See Table, step 9.
2 See Table, step 10.
2 Carry out position adjustment if necessary. See Page 51,
Table 6: POSITION ADJUSTMENT
3 If necessary, select the "Level" measuring mode via the
MEASURING MODE parameter.
Onsite display:
Menu path: GROUP SELECTION MEASURING
MODE
FieldCare:
Menu path: MEASURING MODE
4 If necessary, select "Level Easy Pressure" level mode
using the LEVEL SELECTION parameter.
Onsite display:
Menu path: GROUP SELECTION MEASURING
MODE "Level" LEVEL SELECTION
FieldCare:
Menu path: MEASURING MODE "Level" LEVEL
SELECTION
➀
➁
0 mbar
300 mbar
3 m
0 m

Level measurement Cerabar S/Deltabar S/Deltapilot S PROFIBUS PA
14 Endress+Hauser
!Note!
1. You can also perform calibration with reference pressure by means of the QUICK SETUP
menu. See Page 46 ff, Table 4: QUICK SETUP menu.
2. For this level mode, the measured variables %, level, volume and mass are available.
See also parameter description for OUTPUT UNIT, Page 57.
3. For operation using the onsite display, the parameters EMPTY CALIB. (Page 58) and FULL
CALIB. (Page 58) also show the respective pressure present at the device. For operation
using the FieldCare, the pressure present at the device is displayed in the PROCESS VALUES
group.
5 Onsite display:
Select BASIC SETUP function group. Menu path:
GROUP SELECTION OPERATING MENU 
SETTINGS BASIC SETUP
P01-xxxxxxxx-05-xx-xx-xx-011
Fig. 2: Calibration with reference pressure –
wet calibration
1 See Table, step 9.
2 See Table, step 10.
6 Select a pressure unit via the PRESS. ENG. UNIT
parameter, here mbar for example.
7 Select a level unit via the OUTPUT UNIT parameter,
here m for example.
8 Select the "Wet" option via the CALIBRATION MODE
parameter.
9 Hydrostatic pressure for the lower calibration point is
present at the device, here 0 mbar for example.
Select EMPTY CALIB. parameter.
Enter the level value, here 0 m for example. Confirm the
value to assign the pressure value present to the lower
level value.
!Note!
To accept the displayed value you must first switch to
the editing mode (see the "Editing values" section) and
then press the "E" button to save the value.
10 Hydrostatic pressure for the upper calibration point is
present at the device, here 300 mbar (4.5 psi) for
example.
Select FULL CALIB. parameter.
Enter the level value, here 3 m (9.8 ft) for example.
Confirm the value to assign the pressure value present to
the upper level value.
!Note!
To accept the displayed value you must first switch to
the editing mode (see the "Editing values" section) and
then press the "E" button to save the value.
11 If necessary, scale the OUT value of the Analog Input
Block, see Page 138, parameter descriptions for PV
SCALE and OUT SCALE or set the OUT value to equal
the measured value, see Page 107, parameter description
for SET UNIT TO BUS.
12 Result:
The measuring range is set for 0 to 3 m (9.8 ft).
Description
3
0
h
[m]
0 300 p
[mbar]
➀
➁

Cerabar S/Deltabar S/Deltapilot S PROFIBUS PA Level measurement
Endress+Hauser 15
5.2.2 Calibration without reference pressure – dry calibration
Example:
In this example, the volume in a tank should be measured in liters. The maximum volume of 1000
liters (264 US gal) corresponds to a pressure of 450 mbar (6.75 psi). The minimum volume of 0
liters corresponds to a pressure of 50 mbar (0.75 psi). The device is mounted below the level lower
range value.
Prerequisite:
• The measured variable is in direct proportion to the pressure.
• This is a theoretical calibration i.e. the pressure and volume values for the lower and upper
calibration point must be known.
!Note!
• Please note that in the following instances, the onsite display or the MEASURED VALUE and the
digital output value of the Analog Input Block OUT no longer display the same value:
– If you change the operating mode
– If you change the values for PV SCALE
– If you change the values for OUT SCALE
– If you change the unit
See also parameter description for PV SCALE, OUT SCALE (Page 138) and SET UNIT TO BUS
(Page 107).
• See also Operating Instructions for Deltabar S (BA00294P) or Cerabar S (BA00295P), Section 6.6
"Level measurement" or Deltapilot S (BA00356P), Section 6.5 "Level measurement".
• The values entered for EMPTY CALIB. and FULL CALIB. must have a minimum interval of 1%
for the "Level Easy Pressure" level mode. The value will be rejected with a warning message if the
values are too close together. Further limit values are not checked; i.e. the values entered must
be appropriate for the sensor and the measuring task so that the measuring device can measure
correctly.
• Due to the orientation of the device, there may be a shift in the measured value, i.e. when the
container is empty or partly filled, the MEASURED VALUE parameter does not display zero.
To perform a position adjustment see also Page 51, Table 6: Position adjustment.
• For a description of the parameters mentioned, see
– Page 42, Table 2: MEASURING MODE
– Page 55, Table 8: LEVEL SELECTION "Level Easy Pressure"
• For a description of further relevant parameters, see
– Page 93, Table 16: EXTENDED SETUP
– Page 113, Table 28: PROCESS VALUES.
Description
1 Select the "Level" measuring mode via the MEASURING
MODE parameter.
Onsite display:
Menu path: GROUP SELECTION MEASURING
MODE
FieldCare:
Menu path: MEASURING MODE
P01-PMC71xxx-19-xx-xx-xx-008
Fig. 3: Calibration without reference pressure –
dry calibration
1 See Table, step 10.
2 See Table, step 11.
3 See Table, step 12.
4 See Table, step 13.
2 If necessary, select "Level Easy Pressure" level mode
using the LEVEL SELECTION parameter.
Onsite display:
Menu path: GROUP SELECTION MEASURING
MODE "Level" LEVEL SELECTION
FieldCare:
Menu path: MEASURING MODE "Level" LEVEL
SELECTION
3 Onsite display:
Select BASIC SETUP function group. Menu path:
GROUP SELECTION OPERATING MENU 
SETTINGS BASIC SETUP
1000 l
50mbar
➁
0l
➀
450mbar

Level measurement Cerabar S/Deltabar S/Deltapilot S PROFIBUS PA
16 Endress+Hauser
!Note!
1. For this level mode, the measured variables %, level, volume and mass are available.
See also parameter description for OUTPUT UNIT, Page 57.
4 Select a pressure unit via the PRESS. ENG. UNIT
parameter, here mbar for example.
P01-xxxxxxxx-05-xx-xx-xx-026
Fig. 4: Calibration with reference pressure –
wet calibration
1 See Table, step 7.
2 See Table, step 8.
3 See Table, step 9.
4 See Table, step 10.
5 Select a volume unit via the OUTPUT UNIT parameter,
here l (liters) for example.
6 Select the "Dry" option via the CALIBRATION MODE
parameter.
7 Enter the volume value for the lower calibration point
via the EMPTY CALIB. parameter, here 0 l for example.
8 Enter the pressure value for the lower calibration point
via the EMPTY PRESSURE parameter, here 50 mbar
(0.75 psi) for example.
9 Enter the volume value for the upper calibration point
via the FULL CALIB. parameter, here 1000 l (264 US
gal) for example.
10 Enter the pressure value for the upper calibration point
via the FULL PRESSURE parameter, here 450 mbar
(6.75 psi) for example.
11 If necessary, scale the OUT value of the Analog Input
Block, see Page 138, parameter descriptions for PV
SCALE and OUT SCALE or set the OUT value to equal
the measured value, see Page 107, parameter description
for SET UNIT TO BUS.
12 Result:
The measuring range is set for 0 to 1000 l (264 US gal).
Description
1000
0
V
[l]
50 450 p
[mbar]
➀
➁
➂
➃

Cerabar S/Deltabar S/Deltapilot S PROFIBUS PA Level measurement
Endress+Hauser 17
5.3 "Level Easy Height" level selection
5.3.1 Calibration with reference pressure – wet calibration
Example:
In this example, the volume in a tank should be measured in liters. The maximum volume of
1000 liters (264 US gal) corresponds to a level of 4.5 m (15 ft). The minimum volume of 0 liters
corresponds to a level of 0.5 m (1.6 ft). The device is mounted below the level lower range value.
The density of the fluid is 1 kg/dm3.
Prerequisite:
• The measured variable is in direct proportion to the pressure.
• The tank can be filled or emptied.
!Note!
• Please note that in the following instances, the onsite display or the MEASURED VALUE and the
digital output value of the Analog Input Block OUT no longer display the same value:
– If you change the operating mode
– If you change the values for PV SCALE
– If you change the values for OUT SCALE
– If you change the unit
See also parameter description for PV SCALE, OUT SCALE (Page 138) and SET UNIT TO BUS
(Page 107).
• See also Operating Instructions for Deltabar S (BA00294P) or Cerabar S (BA00295P), Section 6.6
"Level measurement" or Deltapilot S (BA00356P), Section 6.5 "Level measurement".
• The values entered for EMPTY CALIB./FULL CALIB., EMPTY PRESSURE/FULL PRESSURE and
EMPTY HEIGHT/FULL HEIGHT must have a minimum interval of 1% for the "Level Easy
Height" level mode. The value will be rejected with a warning message if the values are too close
together. Further limit values are not checked; i.e. the values entered must be appropriate for the
sensor and the measuring task so that the measuring device can measure correctly.
• For a description of the parameters mentioned, see
– Page 42, Table 2: MEASURING MODE
– Page 51, Table 6: POSITION ADJUSTMENT
– Page 59, Table 9: LEVEL SELECTION "Level Easy Height"
• For a description of further relevant parameters, see
– Page 93, Table 16: EXTENDED SETUP
– Page 113, Table 28: PROCESS VALUES.
Description
1 Deltabar S: Before you configure the device for your
application, the pressure piping must be cleaned and
filled with medium. See Operating Instructions
BA00294P, Section 6.6.1
P01-PMC71xxx-19-xx-xx-xx-009
Fig. 5: Calibration with reference pressure –
wet calibration
1 See Table, steps 10 and 11.
2 See Table, step 12.
3 See Table, step 13.
2 Carry out position adjustment if necessary. See Page 51,
Table 6: POSITION ADJUSTMENT
3 Select the "Level" measuring mode via the MEASURING
MODE parameter.
Onsite display:
Menu path: GROUP SELECTION MEASURING
MODE
FieldCare:
Menu path: MEASURING MODE
1000 l
0.5 m
4.5 m
0l
r=1 kg
dm
3
➁
➀
➂

Level measurement Cerabar S/Deltabar S/Deltapilot S PROFIBUS PA
18 Endress+Hauser
!Note!
1. For this level mode, the measured variables %, level, volume and mass are available.
See also parameter description for OUTPUT UNIT, Page 61.
4 If necessary, select the "Level Easy Height" level mode
using the LEVEL SELECTION parameter.
Onsite display:
Menu path: GROUP SELECTION MEASURING
MODE "Level" LEVEL SELECTION
FieldCare:
Menu path: MEASURING MODE "Level" LEVEL
SELECTION
P01-xxxxxxxx-05-xx-xx-xx-029
P01-xxxxxxxx-05-xx-xx-xx-030
Fig. 6: Calibration with reference pressure –
wet calibration
1 See Table, steps 10 and 11.
2 See Table, step 12.
3 See Table, step 13.
5 Onsite display:
Select BASIC SETUP function group. Menu path:
GROUP SELECTION OPERATING MENU 
SETTINGS BASIC SETUP
6 Select a pressure unit via the PRESS. ENG. UNIT
parameter, here mbar for example.
7 Select a volume unit via the OUTPUT UNIT parameter,
here l (liters) for example.
8 Select a height unit via the HEIGHT UNIT parameter,
here m for example.
9 Select the "Wet" option via the CALIBRATION MODE
parameter.
10 Select a density unit via the DENSITY UNIT parameter,
here g/cm3for example.
11 Enter the density of the fluid using the ADJUST
DENSITY parameter, here 1 g/cm3for example.
12 Enter the volume value for the lower calibration point
via the EMPTY CALIB. parameter, here 0 l for example.
(The currently measured hydrostatic pressure is
displayed as height, here 0.5 m (1.6 ft) for example.)
!Note!
To accept the displayed value you must first switch to
the editing mode (see the "Editing values" section) and
then press the "E" button to save the value.
13 Enter the volume value for the upper calibration point
via the FULL CALIB. parameter, here 1000 l (264 US
gal) for example. (The currently measured hydrostatic
pressure is displayed as height, here 4.5 m (15 ft) for
example.)
!Note!
To accept the displayed value you must first switch to
the editing mode (see the "Editing values" section) and
then press the "E" button to save the value.
14 If necessary, scale the OUT value of the Analog Input
Block, see Page 138, parameter descriptions for PV
SCALE and OUT SCALE or set the OUT value to equal
the measured value, see Page 107, parameter description
for SET UNIT TO BUS.
15 Result:
The measuring range is set for 0 to 1000 l (264 US gal).
Description
4.5
0.5
h
[m]
49 441 p
[mbar]
h = p
r· g
r= 1 g
cm3
➀
1000
0
V
[l]
0.5 4.5
➁
➂
h = p
ρ· g
h
[m]

Cerabar S/Deltabar S/Deltapilot S PROFIBUS PA Level measurement
Endress+Hauser 19
5.3.2 Calibration without reference pressure – dry calibration
Example:
In this example, the volume in a tank should be measured in liters. The maximum volume of
1000 liters (264 US gal) corresponds to a level of 4.5 m (15 ft). The minimum volume of 0 liters
corresponds to a level of 0.5 m (1.6 ft). The device is mounted below the level lower range value.
The density of the fluid is 1 kg/dm3.
Prerequisite:
• The measured variable is in direct proportion to the pressure.
• This is a theoretical calibration i.e. the height and volume values for the lower and upper
calibration point must be known.
!Note!
• Please note that in the following instances, the onsite display or the MEASURED VALUE and the
digital output value of the Analog Input Block OUT no longer display the same value:
– If you change the operating mode
– If you change the values for PV SCALE
– If you change the values for OUT SCALE
– If you change the unit
See also parameter description for PV SCALE, OUT SCALE (Page 138) and SET UNIT TO BUS
(Page 107).
• See also Operating Instructions for Deltabar S (BA00294P) or Cerabar S (BA00295P), Section 6.6
"Level measurement" or Deltapilot S (BA00356P), Section 6.5 "Level measurement".
• The values entered for EMPTY CALIB./FULL CALIB., EMPTY PRESSURE/FULL PRESSURE and
EMPTY HEIGHT/FULL HEIGHT must have a minimum interval of 1% for the "Level Easy
Height" level mode. The value will be rejected with a warning message if the values are too close
together. Further limit values are not checked; i.e. the values entered must be appropriate for the
sensor and the measuring task so that the measuring device can measure correctly.
• Due to the orientation of the device, there may be a shift in the measured value, i.e. when the
container is empty or partly filled, the MEASURED VALUE parameter does not display zero.
To perform a position adjustment see also Page 51, Table 6: Position adjustment.
• For a description of the parameters mentioned, see
– Page 42, Table 2: MEASURING MODE
– Page 59, Table 9: LEVEL SELECTION "Level Easy Height"
• For a description of further relevant parameters, see
– Page 93, Table 16: EXTENDED SETUP
– Page 113, Table 28: PROCESS VALUES.
Description
1 Select the "Level" measuring mode via the MEASURING
MODE parameter.
Onsite display:
Menu path: GROUP SELECTION MEASURING
MODE
FieldCare:
Menu path: MEASURING MODE
P01-PMC71xxx-19-xx-xx-xx-009
Fig. 7: Calibration without reference pressure –
dry calibration
1 See Table, step 11.
2 See Table, steps 13 and 14.
3 See Table, steps 15 and 16.
2 If necessary, select the "Level Easy Height" level mode
using the LEVEL SELECTION parameter.
Onsite display:
Menu path: GROUP SELECTION MEASURING
MODE "Level" LEVEL SELECTION
FieldCare:
Menu path: MEASURING MODE "Level" LEVEL
SELECTION
3 Onsite display:
Select BASIC SETUP function group. Menu path:
GROUP SELECTION OPERATING MENU 
SETTINGS BASIC SETUP
1000 l
0.5 m
4.5 m
0l
r=1 kg
dm
3
➁
➀
➂

Level measurement Cerabar S/Deltabar S/Deltapilot S PROFIBUS PA
20 Endress+Hauser
!Note!
1. For this level mode, the measured variables %, level, volume and mass are available.
See also parameter description for OUTPUT UNIT, Page 61.
4 Select a pressure unit via the PRESS. ENG. UNIT
parameter, here mbar for example.
P01-xxxxxxxx-05-xx-xx-xx-029
P01-xxxxxxxx-05-xx-xx-xx-032
Fig. 8: Calibration with reference pressure –
wet calibration
1 See Table, steps 8 and 9.
2 See Table, step 10.
3 See Table, step 11.
4 See Table, step 12.
5 See Table, step 13.
5 Select a volume unit via the OUTPUT UNIT parameter,
here l (liters) for example.
6 Select a height unit via the HEIGHT UNIT parameter,
here m for example.
7 Select the "Dry" option via the CALIBRATION MODE
parameter.
8 Select a density unit via the DENSITY UNIT parameter,
here kg/dm3for example.
9 Enter the density of the fluid using the ADJUST
DENSITY parameter, here 1 kg/dm3for example.
10 Enter the volume value for the lower calibration point
via the EMPTY CALIB. parameter, here 0 l (liters) for
example.
11 Enter the height value for the lower calibration point via
the EMPTY HEIGHT parameter, here 0.5 mbar (1.6 ft)
for example.
12 Enter the volume value for the upper calibration point
via the FULL CALIB. parameter, here 1000 l (liters) for
example.
13 Enter the height value for the upper calibration point via
the FULL HEIGHT parameter, here 4.5 mbar (15 ft) for
example.
14 If necessary, scale the OUT value of the Analog Input
Block, see Page 138, parameter descriptions for PV
SCALE and OUT SCALE or set the OUT value to equal
the measured value, see Page 107, parameter description
for SET UNIT TO BUS.
15 Result:
The measuring range is set for 0 to 1000 l (liters) (264
US gal).
Description
4.5
0.5
h
[m]
49 441 p
[mbar]
h = p
r· g
r= 1 g
cm3
➀
1000
0
V
[l]
0.5 4.5
➁
➂
h = p
ρ· g
h
[m]
➃
➄
