Endress+Hauser iTEMP TMT162 User manual

BA132R/24/ae/12.06
Device software
01.03.03
Operating instructions
iTEMP®HART®TMT162
Temperature field transmitter
6

TMT162
2Endress+Hauser
Brief overview
Using the following short form instructions you can commission your system easily and swiftly:
Safety message
Instructions and procedures in the operating instructions may require special precautions to ensure
the safety of the personnel performing the operations. Information that potentially raises safety
issues is indicated by safety pictograms and symbols. Please refer to the safety messages before
performing an operation preceded by pictograms and symbols, see chapter 1.5.
Though the information provided herein is believed to be accurate, be advised that the information
contained herein is NOT a guarantee of satisfactory results. Specifically, this information is neither
a warranty nor guarantee, expressed or implied, regarding performance; merchantability, fitness or
other matter with respect to the products; and recommendation for the use of the product / process
information in conflict with any patent. Please note that the manufacturer reserves the right to
change and / or improve the product design and specifications without notice.
#Warning!
Failure to follow these installation guidelines could result in death or serious injury.
– Make sure only qualified personnel perform the installation.
Explosions could result in death or serious injury.
– Do not remove the housing cover in explosive atmospheres when the circuit is live.
– Before connecting a Model 275/375 HART®Communicator in an explosive atmosphere, make
sure the instruments in the loop are installed in accordance with instrinsically safe or non-
incendive field wiring practices.
– Verify that the operating atmosphere of the transmitter is consistent with the appropriate
hazardous locations certifications.
– All housing covers must be fully engaged to meet explosion-proof requirements.
Process leaks could result in death or serious injury.
– Do not remove the thermowell while in operation.
– Install and tighten thermowells and sensors before applying pressure.
Electrical shock could cause death or serious injury.
– Use extreme caution when making contact with the leads and terminals.
Safety notes Page 4
Æ
Installation Page 7
Æ
Wiring Page 10
Æ
Display and operating elements Page 14
Æ
Commissioning Page 20
Quick Setup - fast entry into the unit configuration for standard
measurements

Table of contents TMT162
Endress+Hauser 3
Table of contents
1 Safety notes . . . . . . . . . . . . . . . . . . . . . 4
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Installation, commissioning and operation . . . . . . . . 4
1.3 Operational safety . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.4 Returns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.5 Safety pictograms and symbols . . . . . . . . . . . . . . . . 5
2 Identification . . . . . . . . . . . . . . . . . . . . 6
2.1 Unit identification . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Delivery contents . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 Registered trademarks . . . . . . . . . . . . . . . . . . . . . . 7
3 Installation . . . . . . . . . . . . . . . . . . . . . . 7
3.1 Quick installation guide . . . . . . . . . . . . . . . . . . . . . 7
3.2 Installation conditions . . . . . . . . . . . . . . . . . . . . . . 8
3.3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.4 Installation check . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4 Wiring. . . . . . . . . . . . . . . . . . . . . . . . . 10
4.1 Quick wiring guide . . . . . . . . . . . . . . . . . . . . . . . . 10
4.2 Connecting the sensor . . . . . . . . . . . . . . . . . . . . . 11
4.3 Connecting the measuring unit . . . . . . . . . . . . . . . 11
4.4 Shielding and potential equalization . . . . . . . . . . . 12
4.5 Degree of protection . . . . . . . . . . . . . . . . . . . . . . . 13
4.6 Connection check . . . . . . . . . . . . . . . . . . . . . . . . 13
5 Operation . . . . . . . . . . . . . . . . . . . . . . 14
5.1 Display and operating elements . . . . . . . . . . . . . . 14
5.2 Local operation . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.3 Communication using the HART® protocol . . . . . 16
6 Commissioning. . . . . . . . . . . . . . . . . . 20
6.1 Installation check . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.2 Switch on the device . . . . . . . . . . . . . . . . . . . . . . 20
6.3 Quick Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.4 Device configuration . . . . . . . . . . . . . . . . . . . . . . 21
7 Maintenance. . . . . . . . . . . . . . . . . . . . 32
8 Accessories. . . . . . . . . . . . . . . . . . . . . 32
9 Trouble-shooting . . . . . . . . . . . . . . . . 33
9.1 Trouble-shooting instructions . . . . . . . . . . . . . . . . 33
9.2 Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
9.3 Application errors without messages . . . . . . . . . . . 35
9.4 Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9.5 Returns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
9.6 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
9.7 Software history . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
10 Technical data . . . . . . . . . . . . . . . . . . 42
11 Appendix . . . . . . . . . . . . . . . . . . . . . . 51
11.1 The Callendar - van Dusen Method . . . . . . . . . . . . 51
11.2 Polynomial RTD . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Safety notes TMT162
4Endress+Hauser
1 Safety notes
Safe and secure operation of the field transmitter can only be guaranteed if the operating instructions
and all safety notes are read, understood and followed.
1.1 Designated use
• The unit is a universal, presettable temperature field transmitter for resistance temperature
detectors (RTD), thermocouple (TC) as well as resistance and voltage sensors. The unit is
constructed for mounting in field applications.
• The manufacturer cannot be held responsible for damage caused by misuse of the unit.
• Separate Ex documentation is part of this operating manual, for measurement systems in
hazardous areas. The installation conditions and connection values indicated in these instructions
must be followed!
1.2 Installation, commissioning and operation
The unit is constructed using the most up-to-date production equipment and complies with the
safety requirements of the local guidelines. The temperature transmitter is fully factory tested
according to the specifications indicated on the order. However, if it is installed incorrectly or is
misused, certain application dangers can occur. Installation, wiring and maintenance of the unit
must only be done by trained, skilled personnel who are authorized to do so by the plant operator.
This skilled staff must have read and understood these instructions and must follow them to the
letter. The plant operator must make sure that the measurement system has been correctly wired
to the connection schematics.
Electrical temperature sensors such as RTD's and thermocouples produce low-level signals
proportional to their sensed temperature. The temperature transmitter converts the low-level sensor
signal to a standard 4 to 20 mA DC signal that is relatively insensitive to lead length and electrical
noise. This current signal is then transmitted to the control room via two wires.
The transmitter can be commissioned before or after installation. It may be useful to commission it
on the bench, before installation, to ensure proper operation and to become familiar with its
functionality. Make sure the instruments in the loop are installed in accordance with intrinsically
safe or non-incendive field wiring practices before connecting a HART®communicator in an
explosive atmosphere.
The transmitter electronics module is permanently sealed within the housing, resisting moisture and
corrosive damage. Verify that the operating atmosphere of the transmitter is consistent with the
appropriate hazardous locations certifications.
#Warning!
Electrical shock could cause death or serious injury. If the sensor is installed in a high voltage
environment and a fault or installation error occurs, high voltage may be present on the transmitter
leads and terminals.
Safety Instrumented Systems (SIS)
Third party validated metrics are available for the temperature field transmitter. Testing is done per
IEC 61508 for Safety Instrumented Systems. The safety manual can be separately ordered under
order code: SD005R09EN.
For more details and download see:
www.us.endress.com
Temperature Effects
The transmitter will operate within specifications for ambient temperatures between -40 and
+185 °F (-40 and +85 °C) without display. Heat from the process is transferred from the
thermowell to the transmitter housing. If the expected process temperature is near or beyond

TMT162 Safety notes
Endress+Hauser 5
specification limits, consider the use of additional thermowell lagging, and extension nipple, or a
remote mounting configuration to isolate the transmitter from the process.
1.3 Operational safety
Hazardous areas
When installing the unit in a hazardous area, the national safety requirements must be met. Make
sure that all personnel are trained in these areas. Strict compliance with installation instructions and
ratings as stated in this documentation is mandatory.
The measurement system fulfils the safety requirements according to EN 61010 and the EMC
requirements according to EN 61326 as well as NAMUR NE 21, NE 43 and NE 89
recommendations.
#Warning!
The TMT162 must be powered by a 11 to 40 V DC power supply with a limited power according
to NEC Class 02 (low voltage, low current) limited to 8 A and 150 VA in case of a short circuit.
Technical advancement
The manufacturer reserves the right to modify technical data without prior notice. Your distributor
can supply you with current information and updates to these Operating Instructions.
1.4 Returns
Please follow the Return Authorization Policy.
1.5 Safety pictograms and symbols
Safe and reliable operation of this unit can only be guaranteed if the safety notes and warnings in
these operating instructions are followed. The safety notes in these instructions are highlighted
using the following symbols.
!Note!
This icon indicates activities and actions that, if not followed correctly, could have an indirect
influence on the unit operation or could lead to an unforeseen unit reaction.
"Caution!
This icon indicates activities and actions that, if not followed correctly, could lead to faulty device
operation or even damage to the unit.
#Warning!
This icon indicates activities and actions that, if not followed correctly, could lead to personal injury,
a safety risk or even total damage to the unit.
120
Explosion protected, type examined operating equipment!
If one of these icons is on the device’s nameplate, the device can be used in hazardous areas.
-Hazardous area!
This symbol identifies the hazardous area in the diagrams in these Operating Instructions.
– Devices that are used in hazardous areas or cables for such devices must have the corresponding
type of protection.
.Safe area (non-hazardous areas)!
This symbol identifies the non-hazardous area in the diagrams in these Operating Instructions.
– Devices in non-hazardous areas must also be certified if connection cables run through a
hazardous area.

Identification TMT162
6Endress+Hauser
2 Identification
2.1 Unit identification
2.1.1 Legend plate
CE Mark, declaration of conformity 4
The device is designed to meet state-of-the-art safety requirements, has been tested and left the
factory in a condition in which they are safe to operate. The device complies with the applicable
standards and regulations in accordance with IEC 61010 "Protection Measures for Electrical
Equipment for Measurement, Control, Regulation and Laboratory Procedures" and with the EMC
requirements of IEC 61326. The measuring system described in these Operating Instructions
complies with the statutory requirements of the EC Directives. The manufacturer confirms
successful testing of the device by affixing the CE mark.
UL recognized component to UL 3111-1 â
CSA GP approved
GL German Lloyd marine approval Ó
GL Type Approval for temperature measurements in hazardous locations on GL Classed Vessels,
Marine and Offshore Installations.
2.2 Delivery contents
The scope of delivery of the field transmitter is as follows:
• Temperature field transmitter
•Entryblank
• Mulitlanguage Brief Operating Instructions as hard copy
• Operating instructions on CD-ROM
• Control drawing for use in hazardous areas
!Note!
Please take note of the field transmitter accessories in chapter 8 "Accessories".
Fig. 1: Example: Field transmitter legend plate
1 Order code and series number of the device
2 Protection and approvals
3 Power supply and output signal
4 Ambient temperature; for Ex area,
see Ex-certification or Control Drawing
5 Approvals with symbols

TMT162 Installation
Endress+Hauser 7
2.3 Registered trademarks
•HART
®
Registered trademarks of HART®Communication Foundation, Austin, TX, USA
•Microsoft
®Windows NT®, Windows®2000 and Windows®XP
Registered trademarks of Microsoft Corporation, Redmond, USA
•iTEMP
®and ReadWin®2000
Registered trademarks of Endress+Hauser Wetzer GmbH + Co. KG, Nesselwang, Germany
3 Installation
3.1 Quick installation guide
If the sensor is fixed then the unit can be fitted directly to the sensor. For remote mounting to a wall
or stand pipe, two mounting kits are available (→Fig. 4). The illuminated display can be mounted
in four different positions (→Fig. 2):
Fig. 2: Temperature field transmitter with sensor, 4 display positions, can be plugged-in in 90° steps
Pos. A: Sensor
Pos. 1: Cover clamp
Pos. 2: Housing cover with O-ring
Pos. 3: Display with retainer
Pos. 4: Electronics compartment
1. Remove the cover clamp (Pos. 1).
2. Unscrew the housing cover together with the O-ring (Pos. 2).

Installation TMT162
8Endress+Hauser
3. Remove the display with retainer (Pos. 3) from the electronics compartment (Pos. 4). Adjust
the display with retainer in 90°-stages to the desired position and rearrange it on the particular
slot in the electronics compartment.
4. Screw on the housing cover together with the O-ring. Mount the cover clamp.
3.2 Installation conditions
3.2.1 Dimensions
The dimensions of the device can be found in chapter 10 ''Technical data''.
3.2.2 Installation point
Information on installation conditions, such as ambient temperature, protection
classification, climatic class, etc., can be found in chapter 10 "Technical data".
3.3 Installation
3.3.1 Direct installation to a sensor
If the sensor is fixed to the process installation, the transmitter can be fitted directly to the sensor.
Fig. 3: Installation of the field transmitter directly to a sensor
Pos. 1 Thermowell
Pos. 2 Measuring inset
Pos. 3 Extension nipples and adapters
Pos. 4 Sensor leads
Pos. 5 Field wiring leads
Pos. 6 Field wiring conduit
For installation proceed as follows:
1. Install and tighten thermowell (Pos. 1). Screw the measuring inset (Pos. 2) into the
thermowell.
2. Attach necessary extension nipples and adapters (Pos. 3) to the thermowell. Seal the nipple and
adapter threads with silicone tape.
3. Pull sensor leads (Pos. 4) through the extensions and adapters into the terminal side of the
transmitter housing.
4. Install field wiring conduit (Pos. 6) to the remaining transmitter conduit entry.
5. Pull field wiring leads (Pos. 5) into the terminal side of the transmitter housing.
6. Attach and tighten both transmitter covers. Both transmitter covers must be fully engaged to
meet explosion-proof requirements.

TMT162 Installation
Endress+Hauser 9
3.3.2 Remote installation
a0003586-ae
Fig. 4: Installation of the field transmitter using the mounting kit, see chapter 'Accessories' (dimensions in inches;
mm)
Pos. A, B Mounting with combined wall/pipe mounting kit
Pos. C Mounting with pipe mounting kit 2"/V4A
3.4 Installation check
After installing the device, always run the following final checks:
Device condition and specification Hint
Is the device visibly damaged (visual check)? -
Does the device comply with the measurement point specifications, such as
ambient temperature, measurement range, etc.?
See chapter 10 "Technical data"
Make sure that the transmitter covers are tight. Both transmitter covers must be
fully engaged to meet explosion-proof requirements.
-

Wiring TMT162
10 Endress+Hauser
4 Wiring
"Caution!
When installing Ex-approved devices in a hazardous area, please take special note of the instructions
and connection schematics in the respective Ex documentation added to this operating manual. The
local Endress+Hauser representative is available for assistance if required.
For wiring the device proceed as follows:
1. Open the conduit entry of the device.
2. Feed the leads through the opening in the cable gland or through the conduit entry.
3. Connect the leads as shown in Fig. 5.
4. Ensure the terminal screws are tight. Re-seal the cable gland or conduit by screwing the cover
back on.
5. In order to avoid connection errors, always take note of the hints given in the section
’Connection check’!
4.1 Quick wiring guide

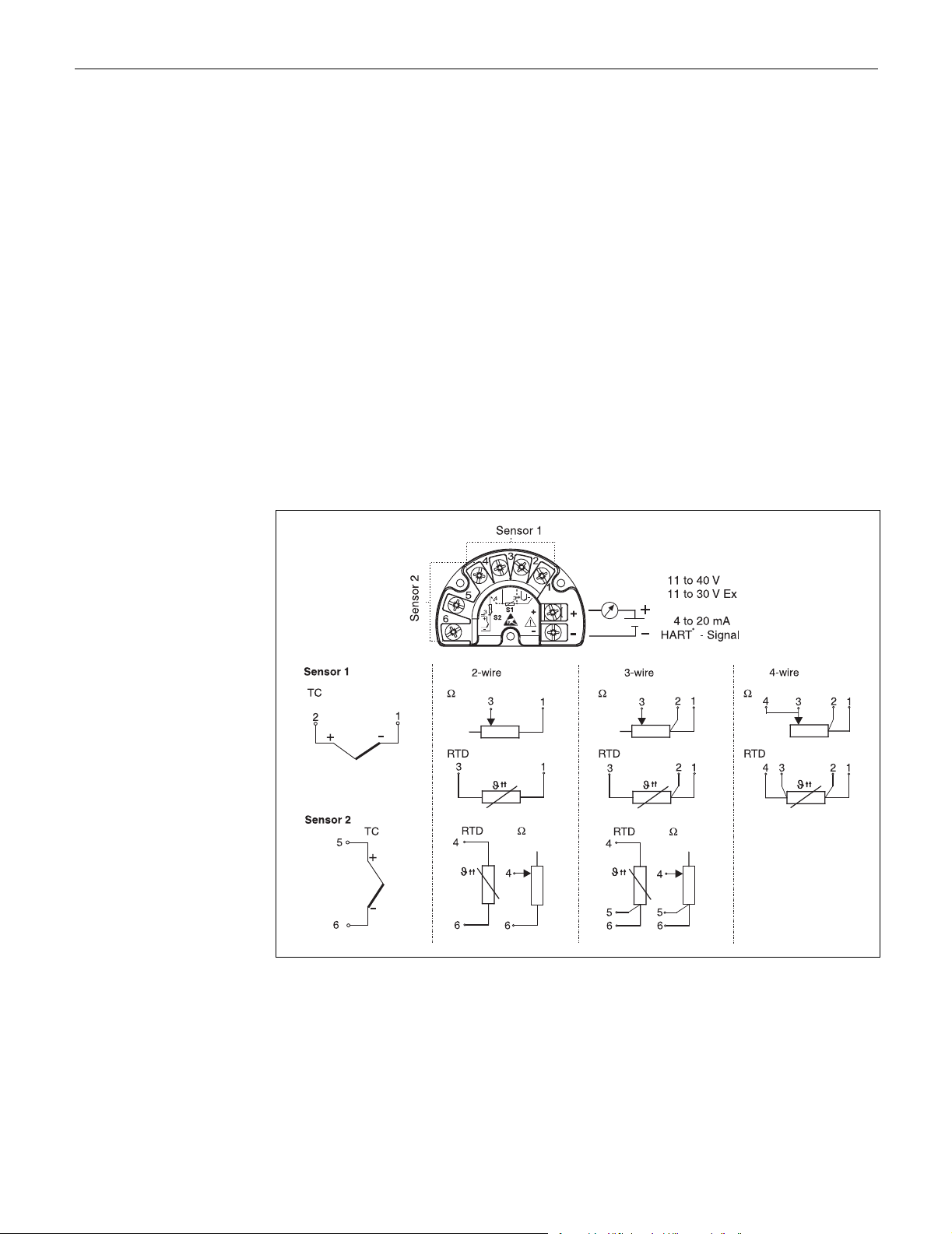

Terminal layout
Fig. 5: Wiring the field transmitter
"Caution!
Protect the terminals from electrostatic discharge. Failure to observe this may result in destruction
of parts of the electronics.

TMT162 Wiring
Endress+Hauser 11
4.2 Connecting the sensor
!Note!
For sensor connection terminal layout please see Fig. 5. On two sensor inputs the following
connection combinations are possible:
There are special cable entries available as accessories when connecting 2 sensors (not for XP
instrumentation). These can be found in chapter 9.4.
"Caution!
When connecting 2 sensors ensure that there is no galvanic connection between the sensors (e.g.
grounded duplex thermocouples). The resulting equalizing currents distort the measurements
considerably. In this situation, the sensors have to be galvanically isolated from one another by
connecting each sensor separately to a field transmitter. The device provides sufficient galvanic
isolation (> 2 kV AC) between the input and output.
4.3 Connecting the measuring unit
"Caution!
• Switch off power supply before installing or connecting the device. Failure to observe this may
result in destruction of parts of the electronics.
• If the device has not been grounded as a result of the housing being installed, grounding it via one
of the ground screws is recommended.
4.3.1 HART® connection
!Note!
If the HART®communication resistance is not built into the power supply, a 250 Ωcommunication
resistor must be fitted into the 2-wire supply lines.
For connection hints, please take special notice of the documentation supplied by the HART®
Communication Foundation, specifically HCF LIT 20: “HART, a technical overview”.
Sensor 1:
RTD 2-wire
Sensor 1:
RTD 3-wire
Sensor 1:
RTD 4-wire
Sensor 1:
TC connection
Sensor 2:
RTD 2-wire Yes Yes No Yes
Sensor 2:
RTD 3-wire Yes Yes No Yes
Sensor 2:
RTD 4-wire No No No No
Sensor 2:
TC connection Yes Yes Yes Yes

Wiring TMT162
12 Endress+Hauser

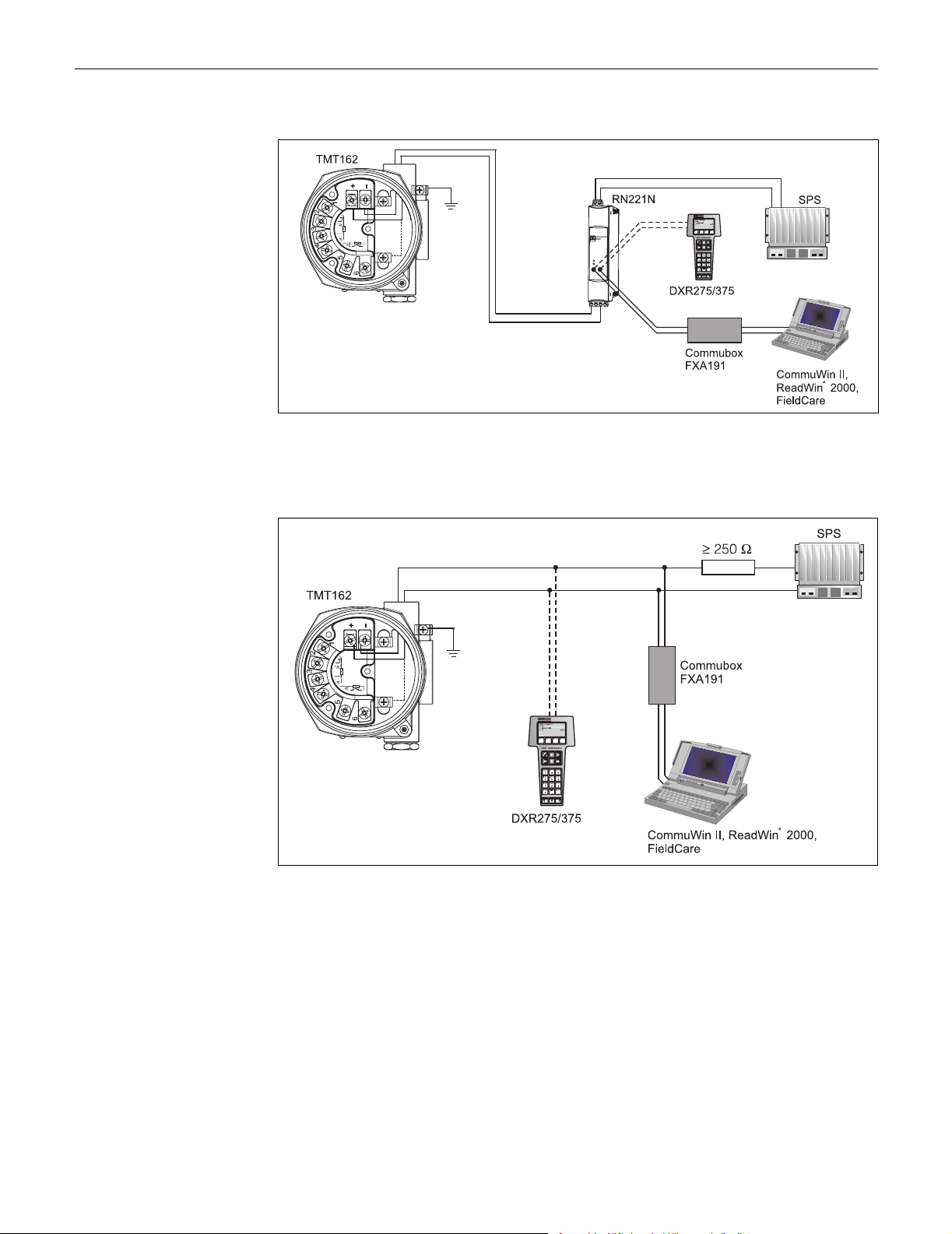

Connection using the Endress+Hauser power supply RN221N
Fig. 6: HART®connection with the Endress+Hauser power supply RN221N
Connection using other power supplies
Fig. 7: HART®connection using other power supplies
4.4 Shielding and potential equalization
Please take note when installing the device:
If screened (shielded) cables are used then the shielding connected to the output (output signal 4 to
20mA) must be at the same potential as the shielding at the sensor connection!
When operating in plants with high electromagnetic fields, it is recommended that all cables be
shielded using a low ohm ground connection. Due to the possible danger of lightning strikes,
shielding is also recommended for cables that are run outside buildings!

TMT162 Wiring
Endress+Hauser 13
4.5 Degree of protection
The device conforms to the requirements to NEMA 4X (IP 67) ingress protection. In order to fulfil
an NEMA 4X (IP 67) degree of protection after installation or service, the following points must be
taken into consideration (also see Fig. 8):
• The housing seals must be clean and undamaged before they are replaced in the sealing rebate. If
they are found to be too dry, they should be cleaned or even replaced.
• All housing screws and covers must be tightened.
• The cables used for connection must be of the correct specified outside diameter (e.g. M20 x 1.5,
cable diameter from 0.315 to 0.47 in; 8 to 12 mm).
• Tighten cable gland or NPT fitting.
• Loop the cable or conduit before placing into the entry ("Water sack"). This means that any
moisture that may form cannot enter the gland. Install the device so that the cable or conduit
entries are not facing upwards.
• Entries not used are to be blanked off using the blanking plates provided.
• The protective cable gland must not be removed from the NPT fitting.
Fig. 8: Connection hints to retain NEMA 4X (IP 67) protection
4.6 Connection check
After the electrical installation of the device, always perform the following final checks:
Device condition and specification Hint
Are the device or the cables damaged (visual check)? -
Electrical connection Hint
Is the cable/conduit installation correctly separated, with no loops or crossovers? -
Are the cables’ load relieved? -
Have the cables been correctly connected? Compare with the
connection schematic on the terminals or see Fig. 5.
See connection schematic on the
housing
Are all terminal screws tightened?
Is the cable or conduit entry sealed?
Is the housing cover screwed tight?
Visual check

Operation TMT162
14 Endress+Hauser
5Operation
5.1 Display and operating elements
5.1.1 Display indication
Fig. 9: LC display in the field transmitter (illuminated, can be plugged-in in 90° steps)
5.1.2 Display icons
°C
°F %
K
10
0
20
30
40 50 60
70
80
90
100
!
Ê
Ë
Ì
Í
Î
Ï
Ð
Pos.
no.
Function Description
1 Bargraph display In 10% steps with overrange and underrange marks. The
bargraph display flashes when an error occurs.
2 Display ’Warning’ This display mode appears when an error occurs or a
warning is given
3 Engineering unit display K, °F, °C or % Engineering unit for the measured value being displayed
4 Measured value display
(0.81" / 20.5 mm character size)
Measured value display. If a warning is present this display
alternates between the measured value and the warning
code. In the event of an error, the error code is dispalyed
instead of the measured value.
5 Status and information display Display of which value is being indicated on the display.
On PV a customer specific text can be entered. On
warning, the display shows the warning code as well as
"WARN". On faults the display shows "ALARM".
6 Display "Communication" The communication icon appears on read or write access
using the HART®protocol
7 Display "Configuration locked" If the software or hardware setup/configuration is locked,
the "Configuration locked" icon appears.

TMT162 Operation
Endress+Hauser 15
5.2 Local operation
5.2.1 Setup of the hardware

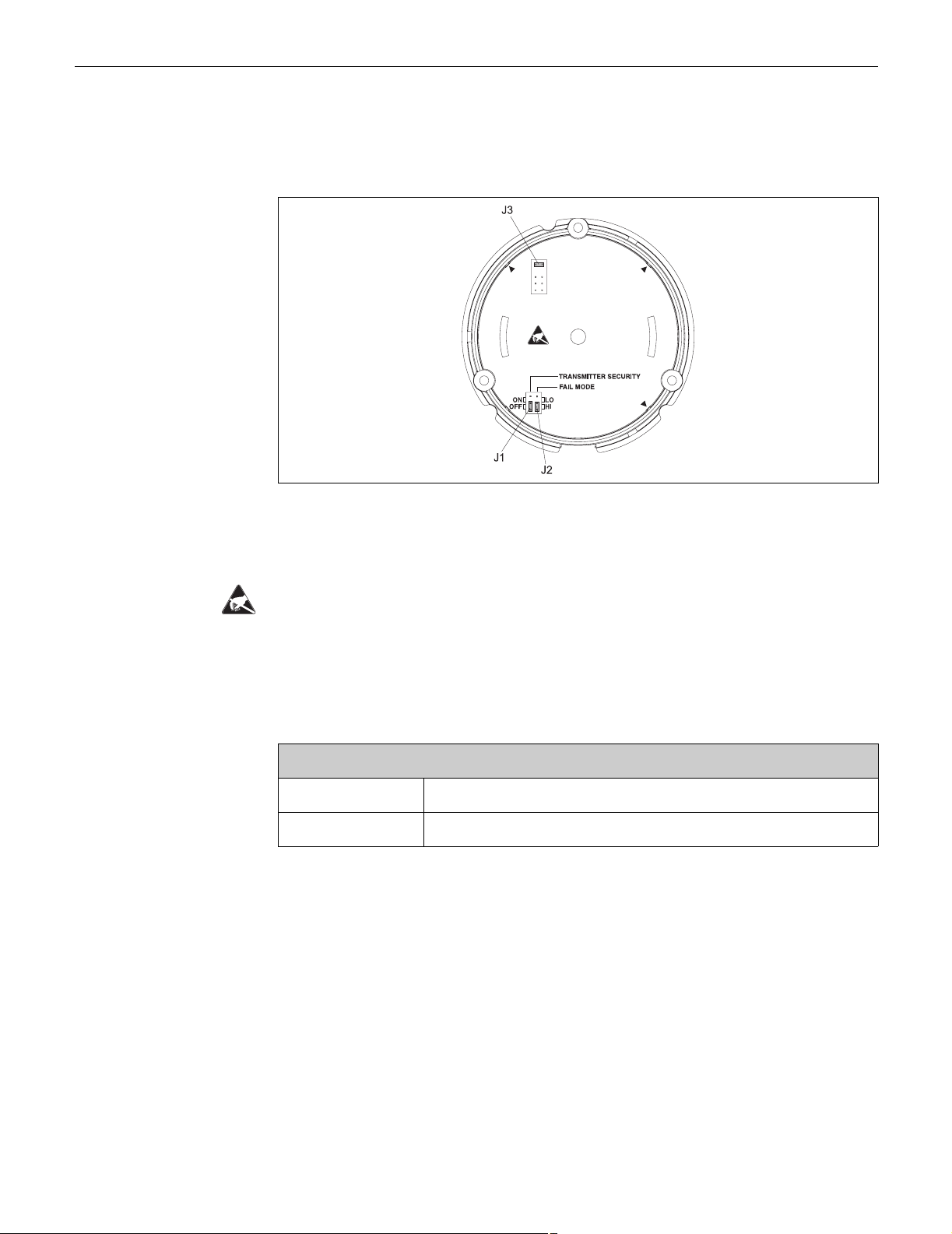

Fig. 10: Hardware setup using jumpers J1, J2 and J3
"Caution!
Protect the terminals from electrostatic discharge. Failure to observe this may result in destruction
of parts of the electronics.
Jumpers J1, J2 and J3 for the hardware setup can be found in the electronic chamber. In order to
set the jumper, open the electronics chamber screwed cover (opposite the connection chamber
cover) and if necessary pull off the display.
Setup or configuration hardware lock using jumper J1
The hardware setup/configuration lock has priority over the software setup.
TRANSMITTER SECURITY
ON Setup/configuration locked
OFF Setup/configuration unlocked

Operation TMT162
16 Endress+Hauser
Setup hardware fault conditioning using jumper J2
The failure mode conditioning setup using the jumper is only active when the microcontroller fails.
!Note!
Please check that the hardware and software failure mode conditioning correspond with each other.
Hardware setup using jumper J3 (only for units without display)
Using jumper 3 the minimum operating voltage can be reduced from 11 V to 8 V.
5.3 Communication using the HART®protocol
The setup and measured value read out of the measuring device is done using the HART®protocol.
The digital communication is done using the 4 to 20 mA current output HART®(see Figs. 5 and 6).
There are a number of possible setup methods available to the user:

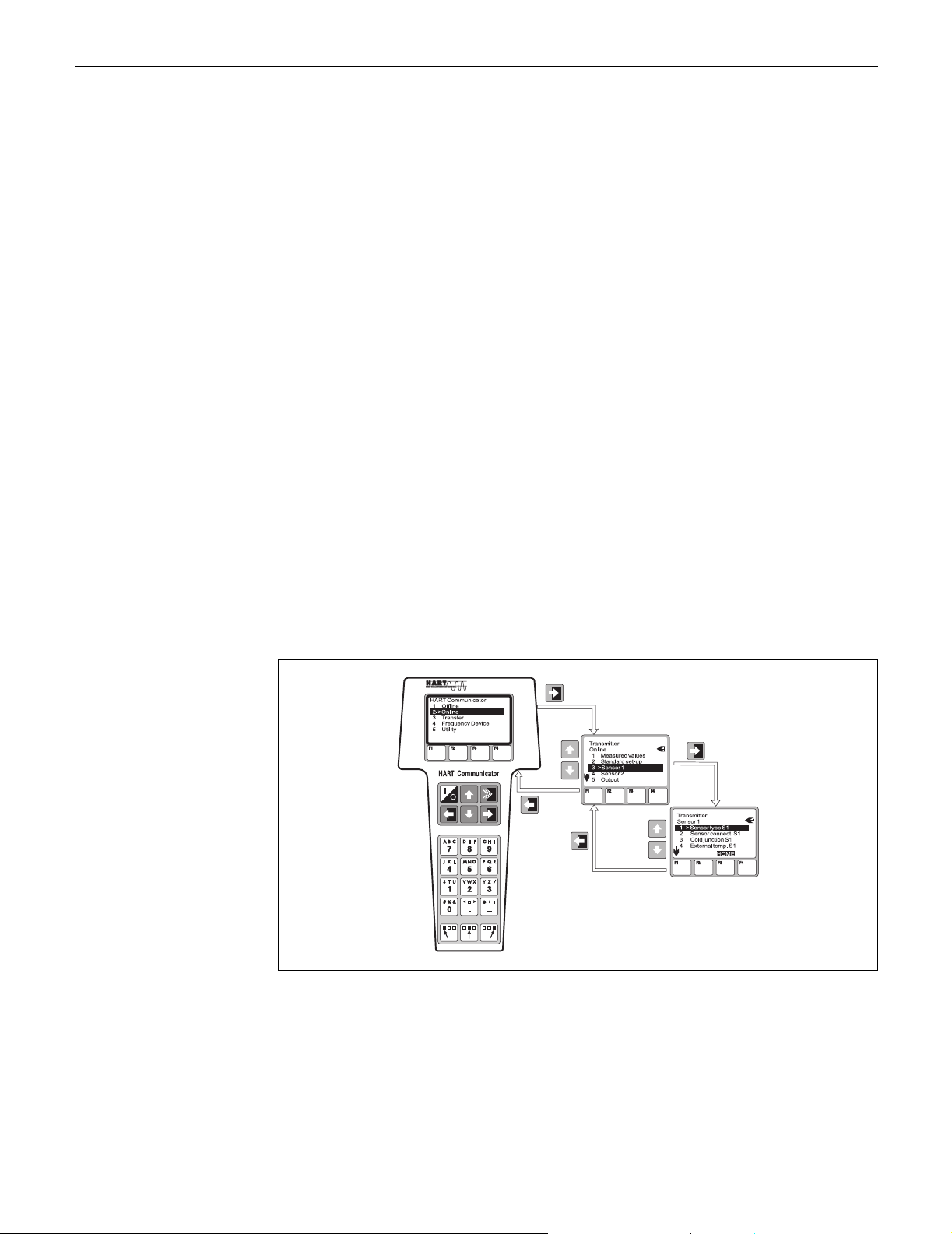

• Operation using the universal handheld module "HART® Communicator DXR275/375".
• Operation using a PC combined with Endress+Hauser operating software, e.g. 'FieldCare' or
'ReadWin®2000' as well as a HART®modem, e.g. 'Commubox FXA191'.
• Operating programs of other manufacturers ('AMS', Fisher Rosemount; 'SIMATIC PDM',
Siemens).
!Note!
If communication errors occur in the Microsoft®Windows NT ®Version 4.0 and Windows®2000
operating systems the following measure is to be taken:
Switch off setting "FIFO active".
In order to do this follow these steps.
1. On Windows NT®Version 4.0:
Select the menu point "COM-Port" following using the menu "START" Æ"SETTINGS" Æ
"SYSTEM CONTROL" Æ"CONNECTIONS". Using the menu string "SETTINGS" Æ
"EXPANDED" switch the command "FIFO active" off. Now restart the PC.
2. For Windows®2000 and Windows®XP (classic category view):
Select "Expanded settings for COM1" using the menu "START" Æ"SETTINGS" Æ"SYSTEM
CONTROL" Æ"SYSTEM" Æ"HARDWARE" Æ"UNIT MANAGER" Æ"CONNECTIONS"
(COM and LPT)’ Æ"COMMUNICATION CONNECTION(COM1)" Æ"CONNECTION
SETTINGS" Æ"EXPANDED". Deactivate the "Use FIFO buffer". Now restart the PC.
FAILURE MODE
LO ≤3.6 mA
HI ≥21.0 mA

TMT162 Operation
Endress+Hauser 17
5.3.1 HART®Communicator DXR275/375
!Note!
With the HART®handheld module, all device functions are selected by means of various menu
levels with the aid of the function matrix (see Fig. 12). All the device functions are explained in
chapter 6.4.1 "Description of Device Functions".
Procedure:
1. Switch on the handheld module:
– Measuring device not yet connected. The HART®main menu appears. This menu level
appears for every HART®programming, i.e. irrespective of the measuring device type.
Information on off-line configuration can be found in the Operating Instructions of the
“Communicator DXR275/375” handheld module.
– Measuring device is already connected. The 1st menu level of the device function matrix
appears directly (see Fig. 11). All the functions accessible under HART®are systematically
arranged in this matrix.
2. Select the function group (e.g. Sensor 1) and then the desired function, e.g. “Sensor type 1”.
3. Enter type or change the setting. Then confirm with the function key F4 “Enter”.
4. “SEND” appears via the function key “F2”. Pressing the F2 key transfers all the values entered
with the handheld module to the device measuring system.
5. With the "F3" function key HOME, you return to the 1st menu level.
!Note!
•WiththeHART
®handheld module, all parameters can be read and programming is disabled.
However, you can enable the HART®function matrix by entering 261 in the SECURITY
LOCKING function. The enable status is retained even after a power failure. Delete the release
(or unlock) code 261 to lock the HART®function matrix again.
• Detailed information can be found in the HART®instruction manual in the handheld module
transport pouch.
Fig. 11: Configuration at the handheld module, using 'Sensor input' as an example

Operation TMT162
18 Endress+Hauser

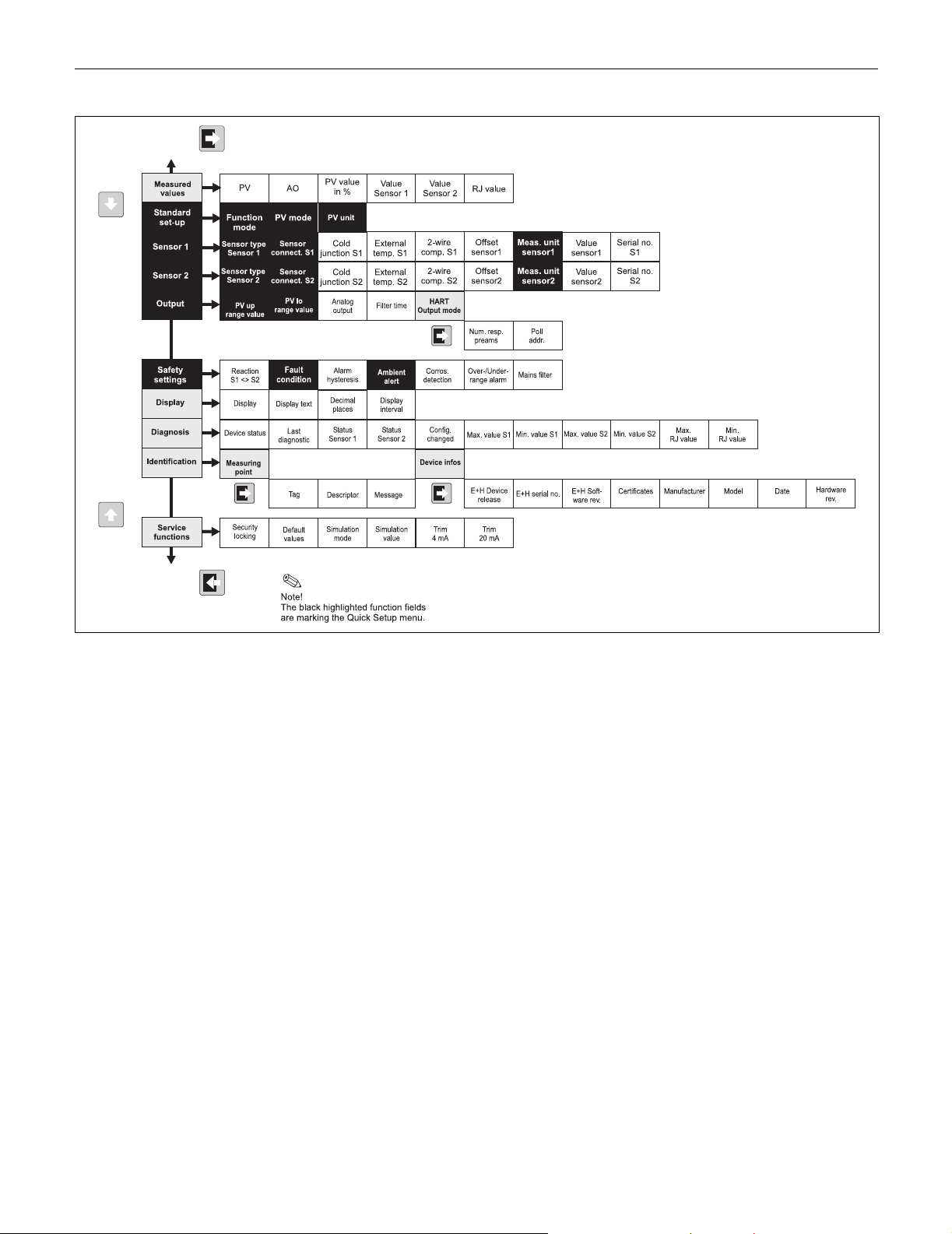

Fig. 12: HART®function matrix
5.3.2 FieldCare
FieldCare is a universally applicable service and configuration software based on FDT/DTM
technology. Connection is established by means of a HART®modem, e.g. Commubox FXA191.
Detailed information is provided in the installation instructions of the FieldCare configuration
software (see chapter 'Documentation'). The DTMs available for the device also allow operation by
means of operating programs of other manufacturers that support FDT/DTM technology.

TMT162 Operation
Endress+Hauser 19
5.3.3 ReadWin®2000
ReadWin®2000 is a universally applicable service and configuration software. Connection is made
using a HART® modem, e.g. Commubox FXA191. The operating software offers the user the
following possibilities:
• Setup device functions
• Measured value visualization
• Device parameter data storage
• Measuring point documentation
"Caution!
The analog output is undefined when downloading the device function parameters from ReadWin®
2000 to the device.
Further in-depth information on operation via ReadWin®2000 can be found in the online
documentation of the software. ReadWin®2000 can be downloaded free of charge from the
following address:
• www.endress.com/Readwin
5.3.4 Command classification in the HART®protocol
The HART®protocol makes it possible for configuration and diagnostic purposes to transmit
measured and device data between the HART®master and the respective field device.
HART®masters such as the handheld module or PC-based operating programs (e.g. FieldCare)
require so-called device description files (DD = device descriptions, DTM), these make it possible
to access all information in a HART®device. Transmission of such information is done exclusively
using "commands".
There are three command classifications:
• Universal commands
Universal commands are supported and used by all HART®devices. Combined are for example
the following functionality:
– Recognizing HART®devices
– Readout of digital measured values
• Common practice commands:
These general commands offer functions that are supported or used by some but not all field
devices.
• Device specific commands
These commands enable access to device specific functions that are not HART®standardized.
Such commands access, among other things, individual field device information.
!Note!
Chapter 6.4.2 contains a list of all HART®commands supported.

Commissioning TMT162
20 Endress+Hauser
6 Commissioning
6.1 Installation check
Before commissioning the measurement point make sure that all final checks have been carried out:
• Checklist “Installation check”
• "Connection check"
6.2 Switch on the device
Once the power has been connected, the field transmitter is operational.
6.3 Quick Setup
Using the Quick Setup the operator is led through all the most important unit functions, which must
be set up for standard measurement operation of the unit.
Standard setup
Available in ReadWin® 2000, HART®handheld module
DXR275/375 (Symbol 7), Commuwin II with Matrix address
ReadWin®
2000
7/FieldCare CW II-Matrix
Function mode + + V1H1
PV mode + + V1H2
PV unit + + V1H3
Sensor 1
Sensor type + + V3H0
Sensor connection + + V3H1
Measuring unit + + V3H6
Sensor 2
Sensor type + + V4H0
Sensor connection + + V4H1
Measuring unit + + V4H6
Output
PV lower range value + + V1H4
PV upper range value + + V1H5
Safety settings
Fault condition + + V1H8
Ambient alert + + V2H2
