Esco 20408 User manual
Equipment Supply Company
Instruction Manual
Pneu-Tek Impact Driven Tire Demounter
ESCO #20408
Copyright © 2017 Equipment Supply Co., All rights reserved
REV.05.17.A
21.800.352.9852 • [email protected] • www.esco.net
Pneu-Tek Impact Driven Tire Demounter Model #20408
WARNING:
THIS PRODUCT, AS WELLAS ALL TIRE TOOLS, SHOULD NEVER
BE USED BY PERSONS UNLESS THEY HAVE BEEN TRAINED
PROPERLYACCORDING TO OSHAREGULATIONS 29CFR
1910.177 ENTITLED “SERVICING SINGLE-PIECE &
MULTIPIECE RIM WHEELS”.
FOR THE SAFE USE OF THIS PRODUCT, PLEASE READ
INSTRUCTIONS. FAILURE TO DO SO CAN LEAD TO A VOID IN
WARRANTY OR SERIOUS INJURY. PLEASE USE THIS TOOLAND
OTHER TIRE SERVICE TOOLS WITH THE UPMOST SAFETY
PRECAUTIONS.
Product Description
The ESCO Model #20408 Pneu-Tek Impact Driven Tire Demounter is a
professionally safe, simple, fast and economical way of demounting a tire.
The Pneu-Tek Impact Driven Tire Demounter works great for Agricultural,
One Piece Grader, Loader, Forestry, and Back Hoe Tires.
Product Specications:
Size:
Length: 43” | 1092 mm
Width: 1 1/2” | 38 mm
Max. Retraction Height: 22” | 559 mm
Handle: 4 1/2” | 114 mm
3
Pneu-Tek Impact Driven Tire Demounter Model #20408
AVAILABLE KITS
#20414 #20415 #20415A
RELATED PRODUCTS
#70100 #20396 #20416 #90518-100-1
#90518-100-KIT #90518-200-1 #90518-200-KIT #90518-200M
#20401 #20402 #20403 #20404
41.800.352.9852 • [email protected] • www.esco.net
Pneu-Tek Impact Driven Tire Demounter Model #20408
INSTRUCTIONS
Step 1: Lubricate & Initial Tool Placement
Generously lubricate both sides of the tire before
demounting. NOTE: We recommend using liquid
lubricant to penetrate between rim and tire bead for
demounting.
Insert the tool between the rim and tire bead by
laying the tool horizontal and using downward
pressure with your foot until the heel of the pulling
foot is below the plain of the rim.
5
Pneu-Tek Impact Driven Tire Demounter Model #20408

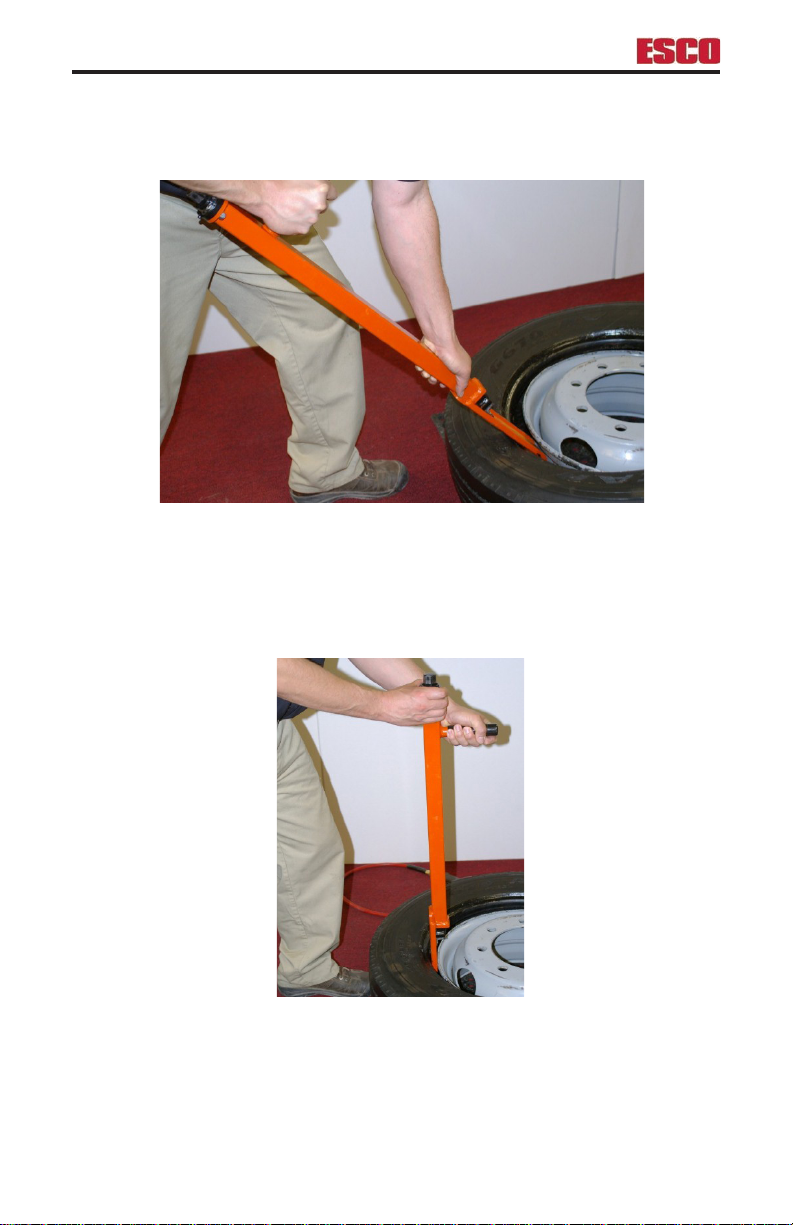

Step 2: First Bead Demount
Begin tool engagement by turning the impact
wrench in a counter clockwise manner. As the
pushing foot begins to meet the rim ensure that the
plastic protective angle properly engages the rim
edge.
Bring tool to an upright position to engage the
puller foot between rim and inside tire bead.
61.800.352.9852 • [email protected] • www.esco.net
Pneu-Tek Impact Driven Tire Demounter Model #20408
Continue to retract the pulling foot with the impact
wrench while bringing the tool towards the wheel
center in a pivoting motion until the 1st bead is
removed. NOTE: Do not force or excessively pry
with the tool. Allow the natural motion of the pulling
foot to remove the tire.
When the rst bead is removed, turn the impact tool
in a clockwise motion too reset the pushing arm.
7
Pneu-Tek Impact Driven Tire Demounter Model #20408
Step 3: Second Bead Demount
Place tool at an approximately 45 degree angle and
insert between 2nd tire bead and rim.
Once inserted between the bead and rim, bring tool
to an upright position and ensure that you have a
secure hold on the 2nd bead with the pulling foot.
81.800.352.9852 • [email protected] • www.esco.net
Pneu-Tek Impact Driven Tire Demounter Model #20408
Step 3: Second Bead Demount (Cont’d)
Begin to extend the push foot with an impact
wrench in a counter clockwise motion. As the
pushing foot begins to meet the rim, ensure that the
plastic protective angle properly engages the rim
edge and allow the natural motion of the tool to rock
backwards.
Continue to extend pushing foot with impact until
tire is free of rim.
9
Pneu-Tek Impact Driven Tire Demounter Model #20408
The Pneu-Tek Impact
Driven Tire Demounter
Model #20408 is also
available in the following kits:
Model #20414 for Small Tires
Model #20415 for Large Tires
Model #20415A for Large Tires
Return tool to original retracted position.
12 1.800.352.9852 • [email protected] • www.esco.net
Pneu-Tek Impact Driven Tire Demounter Model #20408
OTHER PRODUCTS AVAILABLE THROUGH ESCO
Tire Spreaders • Tire Ination Cages • Torque Tools • Tire Inators
Manual & Pneumatic Bead Breakers • Manual Tire Demounting Tools
Bead Holders • Air ination Hoses • Pneumatic Torque • Balancing Beads
Air Hydraulic Bottle Jacks • Cribbing • Jack Support Plates
Wheel Weight Hammers • Valve Stem Pullers • Tire Lube • Wheel Attaching Parts
13
Pneu-Tek Impact Driven Tire Demounter Model #20408
GUARANTEED 1 Day Turnaround Service.
Received by ESCO - Repaired in 24 Hours - Returned to You!
XESCO will pick up product for repair/warranty at your location.
XESCO will guarantee Repair/Service for 30 days.
XESCO has rental tools available
XESCO repairs IMT, FEC, Stellar, Blackhawk, OTC, Power Team, Ame Int., & Enerpac hydraulic
pumps, bead breaker, and cylinders.
XAuthorized ESCO Repair & Warranty Centers Located through the US & Canada. For more informa-
tion contact your ESCO sales representative.
XTechnical Support Over the Phone Available by Calling 1-800-352-9852
Prompt, reliable service after the sale is very important to ESCO. ESCO maintains an
in-house repair facility in Brooksville, Florida. To insure that our customers have as little
down-time as possible, we offer a 1 day turnaround service. Our factory repair service is equipped with all the
tools and machinery needed to repair your equipment quickly and affordably. Our trained technicians are the
best in the industry. Not only do we service our own products, but we also service our competitors’ products.
In addition to ESCO’s 30 years of providing quality repair service, ESCO has reached out and partnered with
more than 50+ hydraulic repair facilities across the US & Canada, to deliver quality repair and timely return of
products. Visit www.esco.net or call 1.800.352.9852 to hear more about the newly added “Authorized ESCO
Warranty & Repair Facilities” across the US.
If you have a bead breaker, ram, or hydraulic pump that needs repair, ESCO xes your
product with factory parts and guarantees the repair. In addition to servicing ESCO brand products, we also re-
pair CP, IMT, Elrick, Branick, Goodyear, FEC, Ame Int., and Haltec lines of hydraulic bead breakers, rams, pumps,
jacks, and many other hydraulic tire service equipment.
“Providing Quality Hydraulic Repair and Technical
Support for All Your Hydraulic Product Needs”
14 1.800.352.9852 • [email protected] • www.esco.net
Pneu-Tek Impact Driven Tire Demounter Model #20408
NOTES
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
________________________________________________
CONTACT INFO:
15270 Flight Path Drive
Brooksville, FL 34604
PH. 352.754.1117
Toll Free. 1.800.352.9852 (US, Canada Only)
Fax: 352.754.4508
ESCO - The Proper Tools to Keep Your Equipment Moving!
Stay Connected with ESCO...
The Proper Tools To
Keep Your Equipment
Scan this Code to Go to
the ESCO website
WWW.ESCO.NET
