ESD CAN - PCC User manual

Attention!
Strictly follow the installation notes!
(See chapt. 2 of the hardware manual).
The order of the individual steps of the hardware installation as specified in the
installation notes must be followed at any rate, because otherwise serious damage can
be caused to PC or laptop, or to the CAN-PCC module!
Especially the low-voltage connector has to be connected to the CAN-PCC module first
and only after that the module is to be connected to the PC/laptop! Otherwise live parts
of the low-voltage connector (+5V between the middle contact) could come into contact
with earthed metal parts of the cases and cause a short circuit!

CAN-PCC Hardware Manual Rev. 1.2
esd gmbh
CAN - PCC
CAN Interface For One Parallel Interface
Hardware Manual

CAN-PCC Hardware Manual Rev. 1.2
N O T E
The information in this document has been carefully checked and is believed to be entirely reliable. esd
makes no warranty of any kind with regard to the material in this document, and assumes no
responsibility for any errors that may appear in this document. esd reserves the right to make changes
without notice to this, or any of its products, to improve reliability, performance or design.
esd assumes no responsibility for the use of any circuitry other than circuitry which is part of a product
of esd gmbh.
esd does not convey to the purchaser of the product described herein any license under the patent rights
of esd gmbh nor the rights of others.
esd electronic system design gmbh
Vahrenwalder Str. 205
D-30165 Hannover
Germany
Phone: [phone]
Fax: [phone]
Email: [email protected]
Internet: http://www.esd-electronics.com

CAN-PCC Hardware Manual Rev. 1.2
Manual File: I:\TEXTE\DOKU\MANUALS\CAN\CENTRONI\CANPP12H.EN6
Date of Print: 12.03.1998
Version Designation of
Board: CANPP-2
Version Designation of
Circuit Diagrams: CANPP02, Rev. 1.1
Changes in the chapters
The changes in the manual listed below affect changes in the hardware, as well as changes in the
description of the facts only.
Chapter Alterations versus manual version 1.1
-First English issue (manual).
Technical details are subject to change without notice.

CAN-PCC Hardware Manual Rev. 1.2
Attention!
Strictly follow the installation notes!
(See chapt. 2 of the hardware manual).
The order of the individual steps of the hardware installation as
specified in the installation notes must be followed at any rate,
becauseotherwise serious damage can be caused to PC or
laptop, or to the CAN-PCC module!
Especially the low-voltage connector has to be connected to
the CAN-PCC module first and only after that the module is to
be connected to the PC/laptop! Otherwise live parts of the low-
voltage connector (+5V between the middle contact) could
come into contact with earthed metal parts of the cases and
cause a short circuit!

Contents Page
CAN-PCC Hardware Manual Rev. 1.2 1
1. Overview ....................................................................3
1.1 Module Description .....................................................3
1.2 Case View ............................................................5
1.3 General Technical Data of the Interface Module ...............................6
1.4 Technical Data of the Miniature Connector-Power Pack ........................7
1.5 CAN- and µController Units ..............................................8
1.6 Software Support .......................................................9
1.7 Order Information .....................................................11
2. Installation Notes ............................................................13
3. Unit Description .............................................................15
3.1 CAN-Interface ........................................................15
3.1.1 Bitrate .......................................................15
3.1.2 Transmit- and Receive Circuit of the CAN Interface (Physical Layer) .....15
3.2 CENTRONICS Interface ................................................16
3.3 Status LED ...........................................................17
4. Appendix ...................................................................19
4.1 Connector Assignment ..................................................19
4.1.1 CENTRONICS Connector P1 .....................................19
4.1.2 CAN Connector P3 (9-pole male DSUB connector) ...................20
4.2 Circuit Diagrams ......................................................21

CAN-PCC Hardware Manual Rev. 1.22

+5 V=
+5 V=
P1
CENTRONICS
D0...D7
CAN to
CENTRONICS
FIFO
D0...D7
CAN
physical
CAN
layer
C
A
N
B
U
S
P3
electrical separation
voltage
control
watch-
dog
256 bytes
RAM
µC
87C592
dig.
IO ports
dig.
IO ports
data
transceiver
25-pole
DSUB connector (male)
multiplexer
control
logic
data D0...D7
control signals
status
local
voltage supply
control
signals
P4
voltage supply
DSUB9
CiA assignment
DC/DC
converter
Overview
CAN-PCC Hardware Manual Rev. 1.2 3
1. Overview
1.1 Module Description
The module offers a bidirectional interface between CENTRONICS and CAN, and therefore an
easy and inexpensive coupling of a PC, laptop, or something similar, to the CAN.
By means of the CAN-PCC module other CAN modules can be controlled or monitored for instance
by a PC.

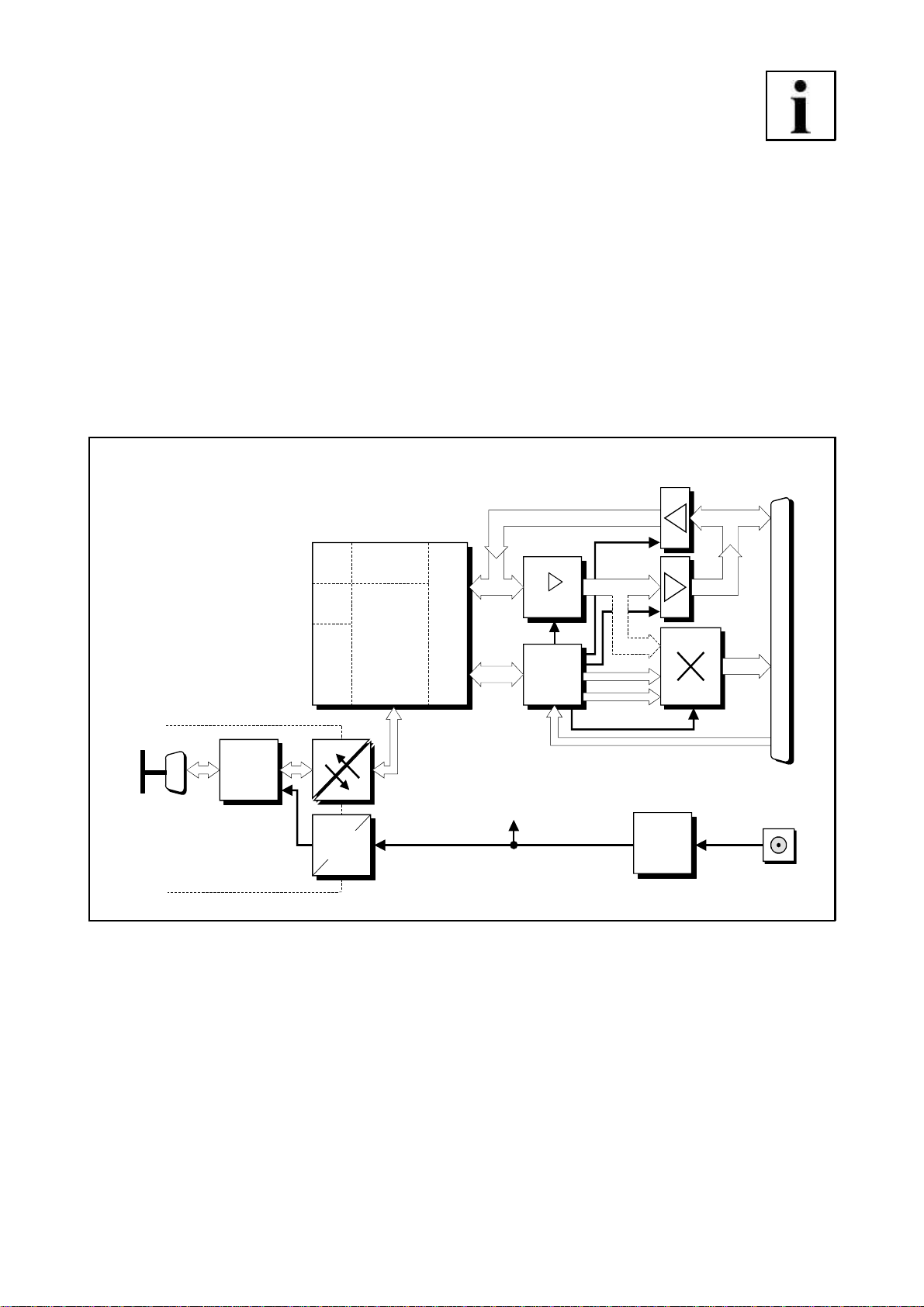

Fig. 1.1.1: Block circuit of the module
The CAN controller is a 87C592, which supports 2048 CAN identifiers. The CAN interface is
electrically separated from the CENTRONICS interface by optocouplers and DC/DC converters.
The voltage supply of the module has to be feeded externally. This can for instance be made via a
keyboard adaptor cable from the PC/laptop or via a miniature connector-power pack. The
permissible input-voltage range can be taken from the technical data on the following pages.

Overview
CAN-PCC Hardware Manual Rev. 1.24
Data is transferred from the CENTRONICS interface to the CAN byte by byte. Data which is
transferred vice versa (CAN to CENTRONICS) can also be transferred byte by byte.
Older PC-CENTRONICS interfaces, however, do not always have a bidirectional data path. The
software contained in the product package recognizes this and then uses the control lines for the
data transfer. In this case four bits each are transferred parallel.
The data transmitted by the CAN is buffered in a (minimum) 512 bytes-sized FIFO so that no data is
lost at larger data rates.
The CENTRONICS is connected by means of a 25-pole male DSUB connector. The CAN is
connected via a 9-pole male DSUB connector.
The complete communication firmware of the module is contained in the product package. The user
interface between PC and CAN is made of libraries which contain commands to parameterize the
module and control the data transfer. Libraries for Windows (.dll), OS/2 and DOS are available. An
installation program makes it easy to take the module into operation and adapt it to the PC.
The layer-7 protocols for CAL, CANopen and SDS are supported by means of various software
packages (optional) for the PC.

15.8
71.5
85.0
54.8
P2 - voltage supply
(female with 1.3 mm stud)
status-LED (green) P3 - CAN
(9-pole DSUB connector)
P1 - CENTRONICS
(25-pole DSUB connector)
inner thread
4-40 UNC
outer thread
4-40 UNC
Overview
CAN-PCC Hardware Manual Rev. 1.2 5
1.2 Case View
Fig. 1.2.1: Dimensions and connector designations of the CAN-PCC module

Overview
CAN-PCC Hardware Manual Rev. 1.26
1.3 General Technical Data of the Interface Module
Temperature range permissible ambient temperature: 0...50 EC
Humidity max. 90%, non-condensing
Supply voltage permissible residual ripple: ÎU < 100 mV ( f < 100 kHz)
input-voltage range: 5.0 V (DC) ... 9 V (DC)
-
power consumption I .150 mA (typical for U = 9 V, 20 EC)
VCC VCC
Connectors P2 (DC-power socket, 1.3 mm stud) - voltage supply
P1 (DSUB25/male) - CENTRONICS
P3 (DSUB9/male) - CAN connection
Dimensions 85.0 mm x 54.8 mm x 15.8 mm
Weight 120 g
Table 1.3.1: General data of the module

Overview
CAN-PCC Hardware Manual Rev. 1.2 7
1.4 Technical Data of the Miniature Connector-Power Pack
The miniature connector-power pack is not contained in the product package.
Temperature range permissible ambient temperature: 0...50 EC
Humidity max. 90%, non-condensing
Mains voltage U= 230 V ±10%
IN
f = 45...60 Hz
Output voltage U= 6 V ±10%
OUT
Connectors 6 V (DC): low-voltage connector 3.5 x 1.3 mm with
230 V (AC): power-pack case
1.5 m cable
Dimensions 68.5 mm x 45.0 mm x 23.0 mm
Table 1.4.1: Technical data of the miniature connector-power pack

Overview
CAN-PCC Hardware Manual Rev. 1.28
1.5 CAN- and µController Units
CAN interface physical layer in accordance with ISO 11898,
Transmission rate programmable from 10 kbit/s to 1 Mbit/s
CAN identifiers the module supports 2048 CAN identifiers
µcontroller 87C592, 16 Mhz
EEPROM memory for CAN parameters
(not yet supported)
LED display green LED for status display of the µcontroller
Electrical separation of
the CAN interface from
the µcontroller units
under German VDE 0110b§8 regulation, isolation group C and
installation into cubicle: 300 VDC / 250 VAC
Table 1.5.1: Technical data of the CAN- and µcontroller units

Overview
CAN-PCC Hardware Manual Rev. 1.2 9
1.6 Software Support
The complete firmware is contained in the product package. The firmware contains the local driver
software which is stored in the EPROM of the CAN controller and a user interface, which can be
found on 3.5" disks as a Microsoft C-Library. This library can be used with WINDOWS -
TM
operating sytems from version 3.0.
The software will be described in a separate manual.

CAN-PCC Hardware Manual Rev. 1.210

CAN-PCC Hardware Manual Rev. 1.2 11
Order Information
1.7 Order Information
Type Properties Order no.
CAN-PCC C.2422.01
CAN-CENTRONICS interface, incl. PC
software
CAN-PCC-ADPT-MDIN C.2422.12
Adaptor cable for voltage tapping from
keyboard cable via MINI-DIN connectors (is
needed for voltage supply via laptop or
notebook)
CAN-PCC-ADPT-DIN keyboard cable via DIN connectors (is needed C.2422.13
Adaptor cable for voltage tapping from
for voltage supply via PC)
CAN-PCC-NT C.2422.14
Miniature connector-power pack with voltage
supply line for CAN-PCC, mains voltage 230 V
(AC)/50 Hz
(alternatively for C.2422.12 or C.2422.13)
CAN-PCC-ME English manual 1*) C.2422.21
1*) If manual and module are ordered together, the manual is included in the module price.
Table 1.7.1: Order Information

CAN-PCC Hardware Manual Rev. 1.212

Installation
CAN-PCC Hardware Manual Rev. 1.2 13
2. Installation Notes
The order for the individual steps of the hardware installation must strictly be followed,
because otherwise serious damage can be caused at PC or laptop or at the CAN-PCC
module!!
For wiring please use only the adaptors and lines provided.
Keep to the following steps to install the module:
1. Switch off the PC or laptop.
2. Connect voltage supply to the CAN-PCC module.
The voltage supply is either connected via an adaptor cable which has to be connected to the
keyboard socket of the PC (9-pole DIN socket) or the keyboard socket of the laptop (5-pole
mini-DIN socket), or via a connector-power pack.
The low-voltage connector must always be plugged into the CAN-PCC module first
and then the module has to be connected to the PC/laptop! Otherwise voltage carrying
parts of the low-voltage connector (+5V in the middle contact) could come into contact with
earthed metal parts of the cases, which would lead to a short circuit!
3. Connect CAN net.
4. Connect CAN-PCC to the desired CENTRONICS port of the PC/laptop.
In order to connect the CENTRONICS connectors securely, the fastening screws have to be
tightened.
5. Switch on PC/laptop.
After the PC/laptop has been switched on, the green status LED of the CAN-PCC module
has to flash. The various flash status are described on page 17.
6. Now the software installation can be started.
The software installation will be described in the software manual.

CAN-PCC Hardware Manual Rev. 1.214

Unit Description
CAN-PCC Hardware Manual Rev. 1.2 15
3. Unit Description
3.1 CAN-Interface
3.1.1 Bitrate
The bitrate can be programmed in ranges from 10 kbit/s to 1.0 Mbit/s. After a RESET the controller
has to be initialized before it can receive or transmit data on the CAN. Further information on this
can be found in the software manual of the module.
3.1.2 Transmit- and Receive Circuit of the CAN Interface (Physical Layer)
The physical interface of the esd-CAN is in accordance with the ISO 11898 norm. The interface is
connected to the busline via a male 9-pole DSUB connector (P3).
The Si9200 or the 82C250 are used as CAN transceivers on the module.
The signals are electrically separated from the CAN by optocouplers.
