PB1651PWM1 Module
User’s Guide

PB1651PWM1 Module2
Copyright
The data in this document may not be altered or amended without special
notification from ETAS GmbH. ETAS GmbH undertakes no further obligation in
relation to this document. The software described in it can only be used if the
customer is in possession of a general license agreement or single license.
Using and copying is only allowed in concurrence with the specifications stip-
ulated in the contract.
Under no circumstances may any part of this document be copied, repro-
duced, transmitted, stored in a retrieval system or translated into another lan-
guage without the express written permission of ETAS GmbH.
© Copyright 2004 - 2007 ETAS GmbH, Stuttgart
The names and designations used in this document are trademarks or brands
belonging to the respective owners.
R1.0.2 EN - 03.2007 TTN F 00K 103 877

Contents 3
Contents
1Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1 Features and Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.2 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2Hardware Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.1 Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.3 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.4 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3Pin Assignment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5ETAS Contact Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Contents4

Introduction 5
1 Introduction
This User's Guide contains the description of the PB1651PWM1 Module.
It consists of the following chapters:
• "Introduction" on page 5
– "Features and Applications" on page 5
– "Block Diagram" on page 7
• "Hardware Features" on page 8
– "Outputs" on page 8
– "Inputs" on page 9
– "Configuration" on page 10
– "LEDs" on page 10
• "Pin Assignment" on page 12
• "Technical Data" on page 14
1.1 Features and Applications
The PB1651PWM1 Module is used to generate and measure PWM and digital
signals. It can be used both with the ES1651 Carrier Board (VMEbus) and with
the ES4350 Carrier Board (VXIbus).
The PB1651PWM1 Module has 24 input channels and 16 output channels
which can all be configured as PWM or digital I/O channels.

Introduction6
The following figure shows the front panel of the PB1651PWM1 Module.
Fig. 1-1 Front Panel of the PB1651PWM1 Module
RDER CH
INPUT 0-23 / OUTPUT 0-15
ETAS
PB1651
PWM1.1

Introduction 7

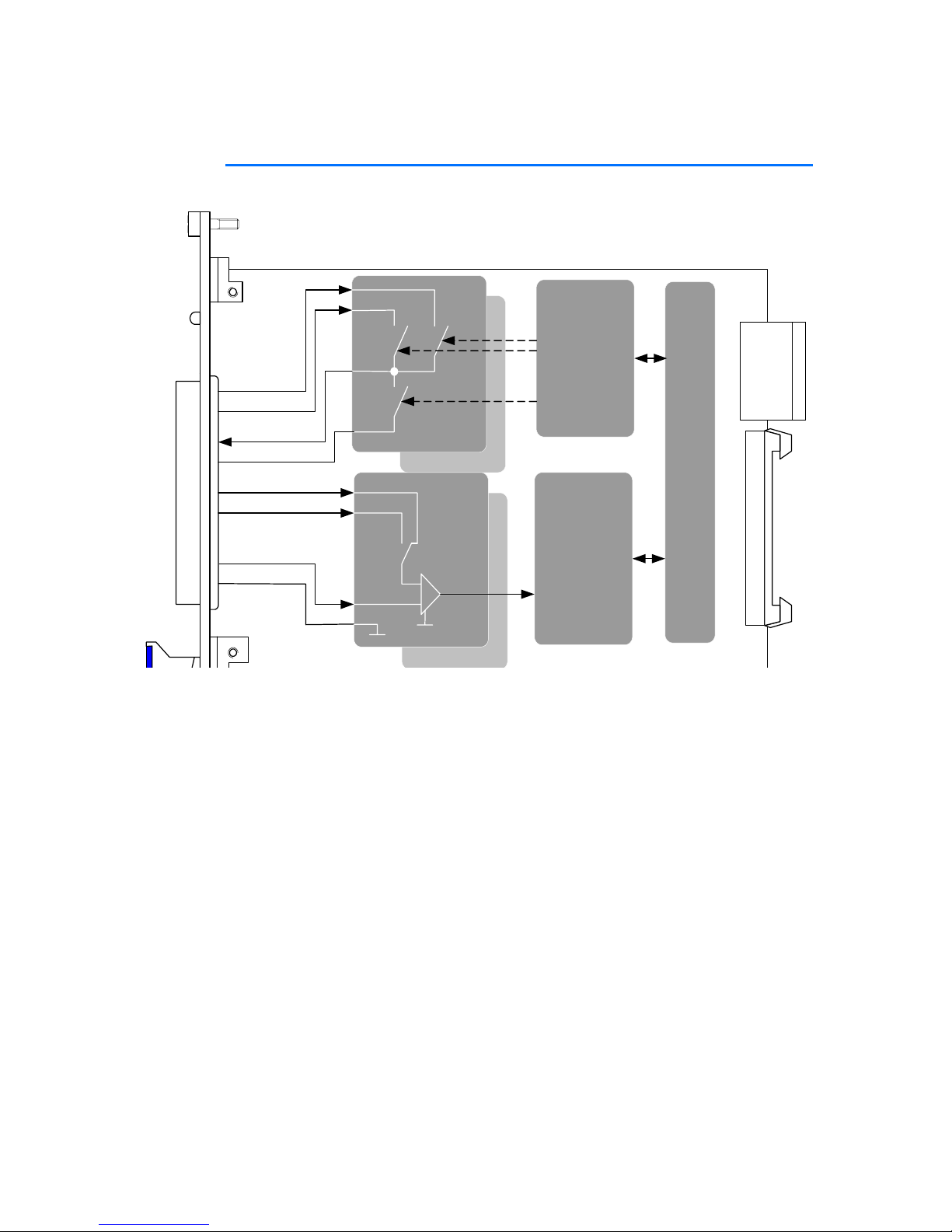

1.2 Block Diagram
The following figure shows the block diagram of the PB1651PWM1 Module.
Fig. 1-2 Block Diagram of the PB1651PWM1 Module
Module Interface
PWM
Generation
Unit
PWM
Measurement
Unit
CH0
CH15
CH23
CH0
In_Ref_1
In_Ref_2
In_CH0
Out_Ref_1
Out_Ref_2
Out_CH0
Out_GND
In_GND

Hardware Features8
2 Hardware Features
This section contains a description of the inputs and outputs of the
PB1651PWM1 Module.
2.1 Outputs
Each of the 16 outputs can be configured either as a TTL, UBatt or Open
Collector output. Each channel has two ”high-side” drivers and one
”low-side” driver (see Fig. 2-1 on page 8).
The outputs have a resolution of 0.02% in the range 0 to 10 kHz and 0.2% in
the range 0 to 100 kHz. The maximum output current per channel is 100 mA
– the outputs are protected against overvoltage to +60 V.
The output voltage level is determined by two external supply voltages to be
specified.

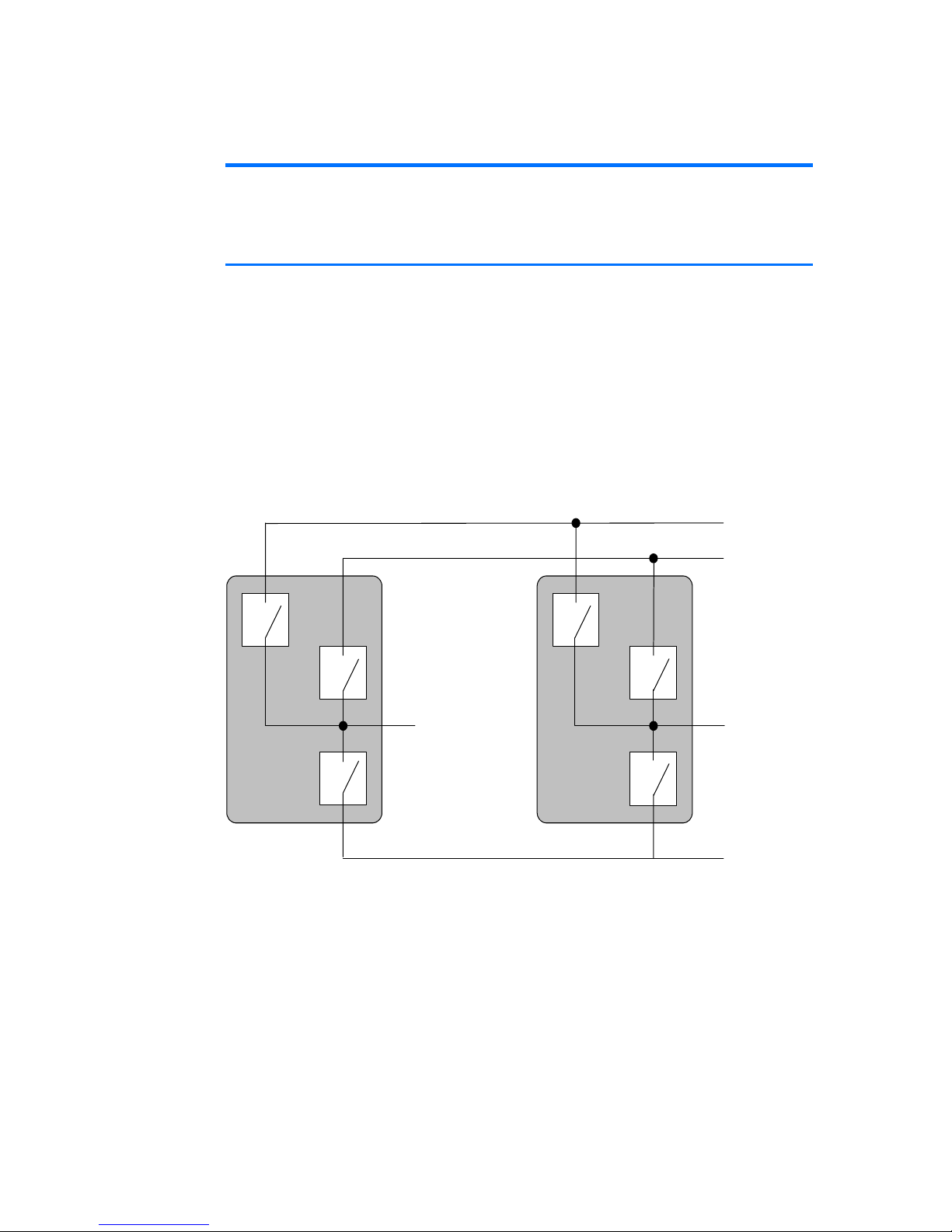

The following figure shows the block diagram of the outputs.
Fig. 2-1 Block Diagram of the Outputs
CH 0 CH 15
Out_GND
Out_CH0 Out_CH15
Out_Ref_1
Out_Ref_2

Hardware Features 9
2.2 Inputs
There are the following measuring modes for the 24 measuring inputs:
• Pulse width measuring
• Additive pulse width measuring
• Pulse and edge counting
• Frequency and cycle time measuring
• Duty cycle measuring
• Level measuring
These measuring procedures are described in the Real-Time Execution
Connector V1.5 User’s Guide.
The input voltages refer to two external reference voltages which are supplied
via the front-facing connector. The threshold voltage for edge detection is
In_Ref_1/2 * 0.5.
The inputs have overvoltage protection to +60 V.

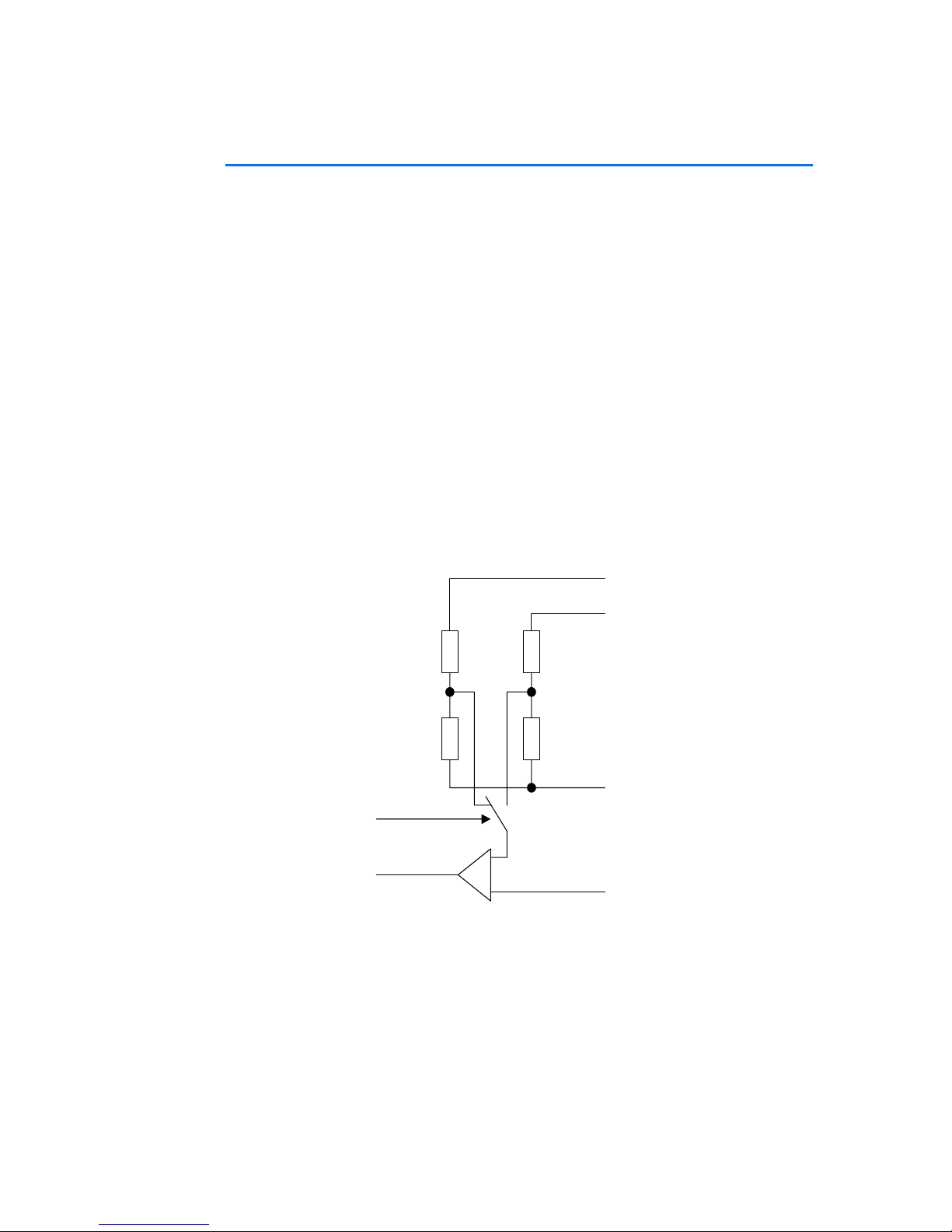

The following figure shows the block diagram of the inputs.
Fig. 2-2 Block Diagram of the Inputs
In_GND
In_Ref_1
In_Ref_2
R R
R R
To Measurement PLD
In_CHx

Hardware Features10
2.3 Configuration
Signal output is configured and controlled by the Real-Time Execution
Connector and LABCAR-OPERATOR. A hardware configuration of the module
is not necessary.
2.4 LEDs
There are 3 LEDs on the front panel of the PB1651PWM1 Module, the
meaning of which is described below.
Fig. 2-3 LEDs on the Front Panel
The LEDs of the PB1651PWM1 Module have the following significance.
Driving the ”CH” LED
The driving source of the ”CH” LED can be configured in the software – one
of the 24 input channels or ”RTIO” can be set as the control source.
If an input channel is set as the driving source, the LED lights up when the
channel level is high and does not light up when the channel level is low. If
”RTIO” is set as the driving source, the LED can be powered on/off by the
simulation model.
The ”LED Driving Source” parameter is described in the Real-Time Execution
Connector V1.5 User’s Guide.
Display of the Version Number of the I/O Modules
When the signal box is powered on, the I/O modules show the version number
via the ”RD” and ”CH” LEDs. The version number consists of three parts (e.g.
2.1.3). First of all, the ”RD” LED flashes twice (”CH” LED off). Then the ”RD”
LED flashes once (”CH” LED lights up). Then the ”RD” LED flashes three times
(”CH” LED off).
LED Color Meaning
ER Red Error
RD Green Ready
CH Green Can be configured using the software (see the
section ”Driving the ”CH” LED” later in this chapter)
Tab. 2-1 Significance of the LEDs
RDER CH

Hardware Features 11
After the version number of the relevant I/O module has been displayed, the
two LEDs, ”RD” and ”CH”, go out and take on the relevant function of the I/O
module used.

Pin Assignment12
3PinAssignment
This section describes the pin assignment of the PB1651PWM1 Module.
The connector for the signal outputs is a DSub62HD connector (female). The
shielding is at front panel and housing potential and thus at protective earth.

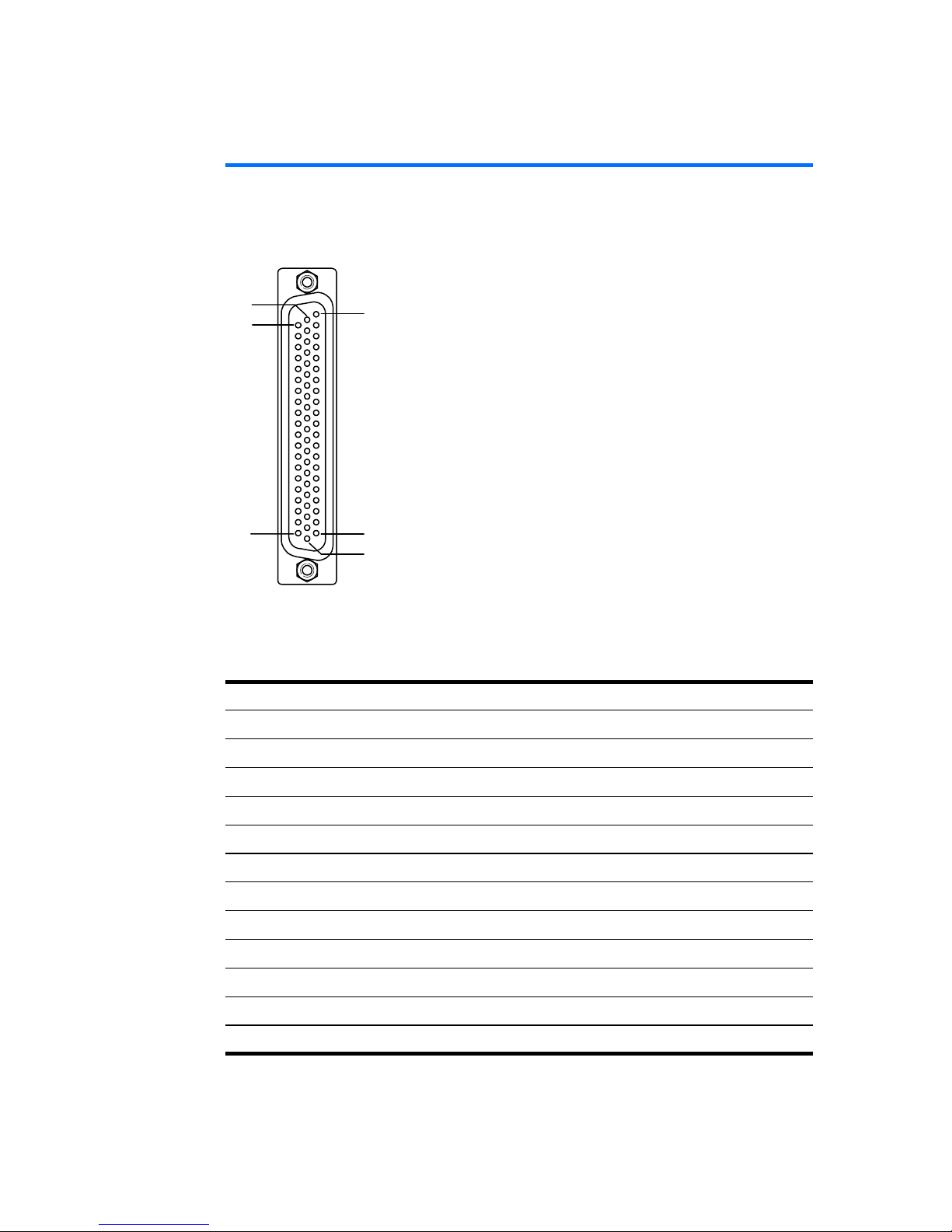

Fig. 3-1 Front-Facing Connector of the PB1651PWM1 Module (View
from the Plug-In Side)
The following table contains the connector pin assignment.
Pin Signal Pin Signal Pin Signal
1 Out_CH0 22 NC 43 In_CH0
2 Out_CH1 23 NC 44 In_CH1
3 Out_CH2 24 In_Ref_1 45 In_CH2
4 Out_CH3 25 In_Ref_1 46 In_CH3
5 Out_CH4 26 Out_Ref_1 47 In_CH4
6 Out_CH5 27 Out_Ref_1 48 In_CH5
7 Out_CH6 28 Out_Ref_2 49 In_CH6
8 Out_CH7 29 Out_Ref_2 50 In_CH7
9 Out_CH8 30 In_Ref_2 51 In_CH8
10 Out_CH9 31 In_Ref_2 52 In_CH9
11 Out_CH10 32 Out_GND 53 In_CH10
12 Out_CH11 33 Out_GND 54 In_CH11
Tab. 3-1 Pin Assignment of the PB1651PWM1 Module
1
21
22
42
43
62

Pin Assignment 13
13 Out_CH12 34 In_GND 55 In_CH12
14 Out_CH13 35 In_GND 56 In_CH13
15 Out_CH14 36 NC 57 In_CH14
16 Out_CH15 37 NC 58 In_CH15
17 NC 38 NC 59 In_CH16
18In_CH20 39NC 60In_CH17
19In_CH21 40NC 61In_CH18
20In_CH22 41NC 62In_CH19
21 In_CH23 42 NC
Pin Signal Pin Signal Pin Signal
Tab. 3-1 Pin Assignment of the PB1651PWM1 Module (cont’d.)

Technical Data14
4TechnicalData
This section contains the technical data of the PB1651PWM1 Module in
tabular form.
Outputs
Number of channels 16
Output voltage Vout referring to Out_GND when
switching output to external reference voltage
U_Out_Ref-1V
...U_Out_Ref
External supply voltages 1 + 2 0 V...+60 V
Output voltage Vout referring to Out_GND when
switching output to Out_GND
Out_GND...
Out_GND + 1 V
Output overvoltage protection +60 V
Output current supplied by external references 1 + 2 0....100 mA
Resistance between GND and Out_GND 1 kΩ...∞
Frequency range 0...100 kHz
Accuracy at 0...10 kHz 0.02%
Accuracy at 0..0.100 kHz 0.2%
Frequency resolution 0.012 Hz
Duty cycle resolution 8 Bit at 100 kHz,
16 Bit at 500 Hz
Clock frequency for PWM generation 20 ns

Technical Data 15
Inputs
Power Supply
Environmental Conditions
Physical Dimensions
Number of channels 24
Input voltage range 0 V...+36 V
Input reference voltage range +5 V...+60 V
Input impedance 1 MΩ, 10 pF
Max. input frequency 100 kHz
Input overvoltage protection ±60 V
Hysteresis of input signals 1...1.5 V
Resistance between GND and In_GND 1 kΩ...∞
Counter width for PWM low/high time measurements 31-bit
Clock frequency for PWM generation 20 ns
Current consumption 0 A @ +2.5 V DC
70 mA @ +3.3 V DC
1.8 A @ +5 V DC
0A@+12VDC
0A@-12VDC
Operating temperature 5 °C to 35 °C (5.00 °C to 35.00 °C)
Relative humidity 0 to 95% (non-condensing)
Printed circuit board (L x W) 145 mm x 100 mm
Front panel Height: 3 U
Width: 4 HP

Technical Data16
