ETAS ES582.1 User manual

www.etas.com
ES582.1
CAN FD Bus Interface USB Module
User’s Guide

Copyright
The data in this document may not be altered or amended without special noti-
fication from ETAS GmbH. ETAS GmbH undertakes no further obligation in
relation to this document. The software described in it can only be used if the
customer is in possession of a general license agreement or single license.
Using and copying is only allowed in concurrence with the specifications
stipulated in the contract.
Under no circumstances may any part of this document be copied, reproduced,
transmitted, stored in a retrieval system or translated into another language
without the express written permission of ETAS GmbH.
© Copyright 2020 ETAS GmbH, Stuttgart
The names and designations used in this document are trademarks or brands
belonging to the respective owners.
ES582.1 - User’s Guide R04 EN - 04.2020

ETAS Contents
Contents
ES582.1 - User’s Guide 3
1 About this Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1 Classification of Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.2 Presentation of Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.3 Typographical Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4 Presentation of Supporting Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.5 Scope of Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.6 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Basic Safety Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 Requirements for Users and Duties for Operators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Intended Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Hardware Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.2 Application Areas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.3 Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.4 Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.4.1 CAN Interfaces (CAN1/CAN2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.4.2 USB Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.5 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.6 Display of Operating State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.7 Update of the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4 Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.1 ES582.1 USB Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.2 Preparing to Install. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.2.1 Checking System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.2.2 CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.2.3 Installation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.3 Installing the USB Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.4 Verifying the Installation of the USB Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.5 Establishing the USB Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.6 Updating the USB Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.7 Uninstalling the USB Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.8 ES582.1 J2534 Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5 Troubleshooting Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.1 Displays of the LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.2 Problems with the ES582.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Contents

ETAS Contents
ES582.1 - User’s Guide 4
6 Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.1 General Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.1.1 Identifications on the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.1.2 Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.1.3 Ambient Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.1.4 Maintenance of the Product. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.1.5 Cleaning the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.2 RoHS Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.3 CE Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6.4 Return and Recycling of the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6.5 Mechanical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.6 System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.6.1 Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.6.2 Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6.7 Electrical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6.7.1 Voltage Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6.7.2 CAN Interface (CAN1 and CAN2)). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6.8 Terminal Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7 Cables and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7.1 Cable CBCF100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7.2 Cable CBAC180 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
7.3 Cable CBH500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
7.4 Cable CBCX130 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
7.5 Adapter CBCX131.1-0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8 Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
8.1 ES582.1 CAN FD Bus Interface USB Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
8.2 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
9 Contact Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

ETAS About this Document
ES582.1 - User’s Guide 5
1 About this Document
1.1 Classification of Safety Messages
The safety messages used here warn of dangers that can lead to personal
injury or damage to property:
1.2 Presentation of Instructions
The target to be achieved is defined in the heading. The necessary steps for his
are in a step-by-step guide:
Target definition
1. Step 1
2. Step 2
3. Step 3
> Result
DANGER
indicates a hazardous situation with a high risk of death or serious injury if
not avoided
WARNING
indicates a hazardous situation of medium risk which could result in death or
serious injury if not avoided.
CAUTION
indicates a hazardous situation of low risk which may result in minor or
moder-ate injury if not avoided.
NOTICE
indicates a situation which may result in damage to property if not avoided.

ETAS About this Document
ES582.1 - User’s Guide 6
1.3 Typographical Conventions
Hardware
1.4 Presentation of Supporting Information
1.5 Scope of Supply
Prior to the initial commissioning of the module, please check whether the
module was delivered with all required components and cables (see chapter
8.1 on page 37).
Additional cables and adapters can be obtained separately from ETAS. A list of
available accessories and their order designation is located in chapter 8.2
on page 37 of this manual or in the ETAS product catalog.
1.6 Additional Information
The configuration instructions for the module under INCA can be found in the
corresponding software documentation.
Bold Menu commands, buttons, labels of the product
Italic Emphasis on content and newly introduced terms
NOTE
Contains additional supporting information.

ETAS Basic Safety Notices
ES582.1 - User’s Guide 7
2 Basic Safety Notices
This chapter contains information about the following topics:
• “General Safety Information” on page 7
• “Requirements for Users and Duties for Operators” on page 7
• “Intended Use” on page 7
2.1 General Safety Information
Please observe the Product Safety Notices ("ETAS Safety Notice") and the fol-
lowing safety notices to avoid health issues or damage to the device.
ETAS GmbH does not assume any liability for damages due to improper use
and non-compliance with the safety precautions.
2.2 Requirements for Users and Duties for Operators
The product may be assembled, operated and maintained only if you have the
necessary qualification and experience for this product. Improper use or use by
a user without sufficient qualification can lead to damages or injuries to one's
health or damages to property.
The safety of systems using the product is the responsibility of the system inte-
grator.
General safety at work
The existing regulations for safety at work and accident prevention must be
followed. All applicable regulations and statutes regarding operation must be
strictly followed when using this product.
2.3 Intended Use
Application area of the product
This product was developed and approved for applications in the automotive
sector. The module is suitable for use in interiors, in the passenger cell or in the
trunk of vehicles. The module is not suitable for installation in the engine com-
partment and similar environments. For use in other application areas, please
contact your ETAS contact partner.
Requirements for the technical state of the product
The product is designed in accordance with state-of-the-art technology and
recognized safety rules. The product may be operated only in a technically flaw-
less condition and according to the intended purpose and with regard to safety
NOTE
Carefully read the documentation (Product Safety Advice and this User's
Guide) that is part of this product before the commissioning.

ETAS Basic Safety Notices
ES582.1 - User’s Guide 8
and dangers as stated in the respective product documentation. If the product
is not used according to its intended purpose, the protection of the product
may be impaired.
Requirements for operation
• Use the product only according to the specifications in the correspond-
ing User's Guide. With any deviating operation, the product safety is no
longer ensured.
• Observe the requirements on the ambient conditions.
• Do not use the product in a wet or damp environment.
• Do not use the product in potentially explosive atmospheres.
Electrical safety and power supply
• Observe the regulations applicable at the operating location concerning
electrical safety as well as the laws and regulations concerning work
safety!
• Connect only current circuits with safety extra-low voltage in accordance
with EN 61140 (degree of protection III) to the connections of the mod-
ule.
• Ensure that the connection and setting values are being followed (see
the information in the chapter "Technical data").
• Do not apply any voltages to the connections of the module that do not
correspond to the specifications of the respective connection.
Power supply
• The power supply of the product is connected via the USB port of a PC or
a drive recorder.
• An external power supply for the module is not required.
• The module must be operated directly on the USB port at a PC, a drive
recorder or an active hub.
• The use of USB cables for extending the connection between module
and PC or drive recorder is not allowed.
• Operating a module on USB 1.0 interfaces is not supported.
De-energizing the module
The module does not have an operating voltage switch. It can be de-energized
as follows:
• Disconnect the cable from the signal inputs of the module
and
– Disconnect the USB connector of the PC
or
– Disconnect the USB connector of the drive recorder module
or
– Switch off the drive recorder module.

ETAS Basic Safety Notices
ES582.1 - User’s Guide 9
Approved cables
• Use exclusively ETAS cables at the connections of the module!
•Adhere to the maximum permissible cable lengths!
• Do not use any damaged cables! Cables may be repaired only by ETAS!
• Never apply force to insert a plug into a socket. Ensure that there is no
contamination in and on the connection, that the plug fits the socket, and
that you correctly aligned the plugs with the connection.
Requirements for the location
• Position the module or the module stack on a smooth, level and solid
underground.
Requirements on the ventilation
• Keep the module away from heat sources and protect it against direct
exposure to the sun.
Transport
Do not transport the modules at the cable of the module or any other cables.
Maintenance
The product is maintenance-free.
Repair
If an ETAS hardware product should require a repair, return the product to
ETAS.
Cleaning the module housing
• Use a dry or lightly moistened, soft, lint-free cloth for cleaning the module
housing.
• Do not user any sprays, solvents or abrasive cleaners which could dam-
age the housing.
• Ensure that no moisture enters the housing. Never spray cleaning agents
directly onto the module.
Opening the module
CAUTION
Damage to the module and loss of properties based on the degree of
protection!
Do not open or change the module housing!
Work on the module housing may only be performed by ETAS.

ETAS Basic Safety Notices
ES582.1 - User’s Guide 10
Potential equalization
CAUTION
Potential equalization in the vehicle is possible via the shield of the
connecting cables of the modules!
Install the modules only at locations with the same electrical potential or iso-
late the modules from the installation location.

ETAS Hardware Description
ES582.1 - User’s Guide 11
3 Hardware Description
This chapter contains information about the following topics:
• “Overview” on page 11
• “Application Areas” on page 12
• “Properties” on page 12
• “Interfaces” on page 13
• “Power Supply” on page 15
• “Display of Operating State” on page 15
• “Update of the Firmware” on page 16
3.1 Overview
The ES582.1 CAN FD Bus Interface USB Module is part of the family of com-
pact ETAS bus interface modules. It is equipped with two CAN/CAN FD inter-
faces for connection to the CAN bus of a vehicle or an ECU as well as with a
USB port for the connection with a PC or a drive recorder.
Fig. 3-1ES582.1
The ES582.1 modules supports CAN FD (CAN Flexible Data Rate) and is suit-
able for numerous applications in the classic CAN as well as in the CAN FD
environment.
In conjunction with the application software INCA and ODX LINK from ETAS,
the ES582.1 enables access to the CAN bus for measurement, calibration and
diagnostics.
With the diagnostics service interface, the ES582.1 can be connected with the
CAN bus of a vehicle.
When validating the vehicle diagnostics, the module can be used together with
ODX LINK, the INCA add-on for ECU diagnostics, as interface for OBD-on-CAN
as well as for reading and deleting diagnostics error codes (DTCs). A separate
diagnostics service tool is not required in these cases.
The ES582.1 module offers an open SAE J2534-compliant pass-thru interface
for the vehicle diagnostics and flash programming.

ETAS Hardware Description
ES582.1 - User’s Guide 12
The module supports all protocols used by INCA, such as CCP, XCP, KWP-on-
CAN and UDS. The protocols CCP and KWP-on-CAN (ISO14230/ISO15765) are
supported only in the classic CAN mode.
The effort for installing and configuring the cost-efficient module is minimal, an
external voltage supply is not needed.
3.2 Application Areas
The ES582.1 can be used for the following tasks:
• Recording and acquiring calibration communication data from ECUs via
the CAN bus interface
• Diagnostics of ECUs via the CAN bus interface and J2534 pass-thru
interface
• Vehicle diagnostics and reprogramming via a J2534 pass-thru interface
using application software from third parties
• Flash programming of ECUs
• Connection of ETAS ES3xx modules as well as third-party modules to an
INCA PC via their CAN interface (e.g. Ipetronik or csm modules)
• Integration of the module in the BUSMASTER open source software or
via EBI-IP in application software from third-party manufacturers
3.3 Properties
The most important properties of the ES582.1 CAN FD Bus Interface USB Mod-
ule at a glance:
• 2 independent CAN/CAN FD interfaces:
– CAN High-Speed operating mode CAN FD operating mode
– CAN protocols CAN V2.0a (standard identifier with 11 bit) and CAN
V2.0b (extended identifier with 29 bit)
– Support of ISO-compliant CAN FD and ISO non-compliant CAN FD
– CAN channels isolated from the USB port
– Multi-client access to the same CAN channel (max. four clients can
access the device; two clients per channel)
• Synchronization of measuring channels with INCA
• DSUB connector according to “CAN in Automation” (CiA)
• Simple and direct connnection to a USB port
• No external voltage supply required
• Completely integrated in INCA, part of the ETAS tool suite
• Immune to ambient conditions (temperature, EMC)
• Automotive-qualified module, suitable for use in the development envi-
ronment and in the passenger compartment of motor vehicles
• High level of mechanical stability and robustness
Additional technical data of ES582.1 is located in chapter 6 on page 26.

ETAS Hardware Description
ES582.1 - User’s Guide 13
3.4 Interfaces
Fig. 3-2ES582.1 Block Diagram
3.4.1 CAN Interfaces (CAN1/CAN2)
CAN FD (CAN Flexible Data Rate) is an improved, downward-compatible CAN
protocol. The main differences to CAN are in the extension of the user data per
message from 8 to 64 bytes, higher transmission rates of up to 8 Mbit/s and
longer checksums, which increase the reliability of the transmission. CAN FD
covers the demand for higher bandwidth for networks in the automotive indus-
try. At the same time, CAN FD nodes can easily be integrated into the existing
CAN infrastructure.
The ES582.1 CAN FD Bus Interface USB Module features the CAN interfaces
CAN1 and CAN2 at the 9-pin socket. The two CAN interfaces are independent
CAN channels with separate CAN controllers. Tye are isolated from the USB
port of the ES582.1.
Operating modes
Each CAN interface can optionally be operated in the CAN high-speed operat-
ing mode or in the CAN FD (CAN Flexible Data Rate) operating mode. The
ES582.1 module supports ISO-compliant CAN FD as well as non-ISO-compliant
CAN FD.
The interfaces CAN1 and CAN2 can be configured independently of each other
in the application software for the following operating modes:
• CAN
• ISO-compliant CAN FD
• Non-ISO-compliant CAN FD
Multi-client support
Each of the CAN channels of the module ES582.1 can support two clients
(application tools) at the same time. On each of the CAN channels, simultane-
ous access, e.g. by an application tool (e.g. INCA) and a diagnostics tool (e.g.
DiagRa) is possible.
Overall, each individual ES582.1 module connected to the PC can operate four
(different) clients or application tools.
NOTE
The two interfaces CAN1 and CAN2 can be used independently of each other
in different operating modes.
bpRUOKN
CAN1
CAN2
CAN FD
Transceiver
CAN / CAN FD
Controller
CAN FD
Transceiver
CAN / CAN FD
Controller
Micr ocont roller
LED
USB Interface
Isolation USB 2.0

ETAS Hardware Description
ES582.1 - User’s Guide 14
Timestamp
The ES582.1 assigns a timestamp to the CAN messages. The measured data
acquired by the ES582.1 module is synchronized by the INCA application soft-
ware with signals of other ECUs and measuring modules at high speed.
Feature
The CAN applications supported by the ES582.1 are located in an overview in
chapter 6.6.2 on page 31.
Bus terminating resistor
The CAN interface requires the use of bus terminating resistors in both operat-
ing modes. According to the CAN specification, one bus terminating resistor
each of 120 ohm is required at the two open ends of the bus. It must be con-
nected to the cable or the plug. ETAS offers cables and terminating resistors of
120 ohm to set up CAN networks.
Some CAN networks are already terminated (e.g. inside a vehicle), so that no
additional termination is required.
Minimum requirements for the CAN connections
At least the following connections are required for a connection to the CAN net-
work:
• Pin 2 CAN Low
• Pin 7 CAN High
• Pin 6 or Pin 3 GND (one of the pins can optionally be connected)
The ground connection (GND) must be identical with the ground connection of
the other CAN nodes on the bus.
Y-cable
A Y-cable (CBCF100, see also 7.1 on page 34) allows access of both CAN inter-
faces to the CAN bus.
3.4.2 USB Port
The module is firmly connected with a cable with USB connector type A for
connection to a USB 2.0 port of a PC or a drive recorder.
NOTE
The module must be operated directly on the USB 2.0 connection of a PC, a
drive recorder or an active hub whose USB interface meets the requirements
listed in the table in chapter 6.6.1 on page 29.
The use of USB cables for extending the connection between ES582.1 and PC
or drive recorder is not allowed.

ETAS Hardware Description
ES582.1 - User’s Guide 15
3.5 Power Supply
The power supply of the ES582.1 module is connected via the USB 2.0 port of
a PC or a drive recorder. An external power supply is not required for the mod-
ule. Notes about the requirements for the USB port of the PC are located in
chapter 6.6.1 on page 29.
3.6 Display of Operating State
Fig. 3-3ES582.1 LEDs
The ES582.1 is equipped with five LEDs to display the operating state of the
module as well as the function of both CAN interfaces CAN1 and CAN2 (see
Fig. 3-3 on page 15):
LED Display Description
CAN1 Flashing yel-
low
Communication at the CAN1 interface
Off Communication at the CAN1 interface inter-
rupted
Red Communication error at the CAN1 interface
BUSY Blue Module is in the boot phase or a firmware
update is being performed. Do not discon-
nect the module from the PC!
Off Normal operation
ON Green Module is switched on
Off Module is switched off
ER Red Booting was not successful or software error
of module.
Restart the module.
Off No error
CAN2 Flashing yel-
low
Communication at the CAN2 interface
Off Communication at the CAN2 interface inter-
rupted
Red Communication error at the CAN2 interface

ETAS Hardware Description
ES582.1 - User’s Guide 16
3.7 Update of the Firmware
The firmware of the ES582.1 can be updated by the user so that future versions
of the module can also be used. The update of the firmware is done with the
help of the ETAS service software "Hardware Service Pack" (HSP) from the con-
nected PC.
NOTE
During an update of the firmware, the USB connection to the PC must not be
disconnected!
While the module is being used by HSP, other clients cannot access the mod-
ule.

ETAS Commissioning
ES582.1 - User’s Guide 17
4 Commissioning
This chapter contains information about the following topics:
• “ES582.1 USB Driver” on page 17
• “Preparing to Install” on page 17
• “Installing the USB Driver” on page 18
• “Verifying the Installation of the USB Driver” on page 20
• “Establishing the USB Connection” on page 21
• “Updating the USB Driver” on page 21
• “Uninstalling the USB Driver” on page 22
• “ES582.1 J2534 Driver” on page 23
• “Establishing the USB Connection” on page 21
4.1 ES582.1 USB Driver
The ES582.1 can be installed under plug & play-compatible operating systems
(Windows 7, Windows 8 and Windows 10). After installing the drivers, the
ES582.1 module can be inserted/removed at any time.
4.2 Preparing to Install
4.2.1 Checking System Requirements
Check whether your PC meets the system requirements (see also 6.6
on page 29). Administrator rights are required for the installation of the USB
driver on the PC. If necessary, contact your system administrator.
4.2.2 CD-ROM
The supplied DVD includes:
• USB driver for the ES582.1 with installation wizard
• Hardware Service Pack (HSP) for updating the firmware
• OSS attributions
• Open source software BUSMASTER
• Documentation: ES582.1 User's Guide (this document)
The application for installing the USB drivers is located on the DVD as the exe-
cutable file autostart.exe.
As an alternative, you can install the driver for the ETAS service software "Hard-
ware Service Pack" (HSP).
NOTE
A specific USB driver must be installed on the PC for operating the ES582.1
module.

ETAS Commissioning
ES582.1 - User’s Guide 18
4.2.3 Installation Procedure
Commissioning the ES582.1 must be done in the following order:
1. Installing the USB drivers (ES582.1 not connected to the PC)
2. Establishing the USB connection
3. Establishing the CAN connection
4.3 Installing the USB Driver
The procedure for installing the ES582.1 USB driver from the DVD or via a net-
work drive is identical.
Installing the USB driver for the ES582.1
1. Insert the DVD into your PC.
2. In the main window of the DVD, select the Drivers option.
The Drivers window opens.
3. Select Install ES582.1 - USB Drivers.
The program for installing the USB driver for the ES582.1
starts.

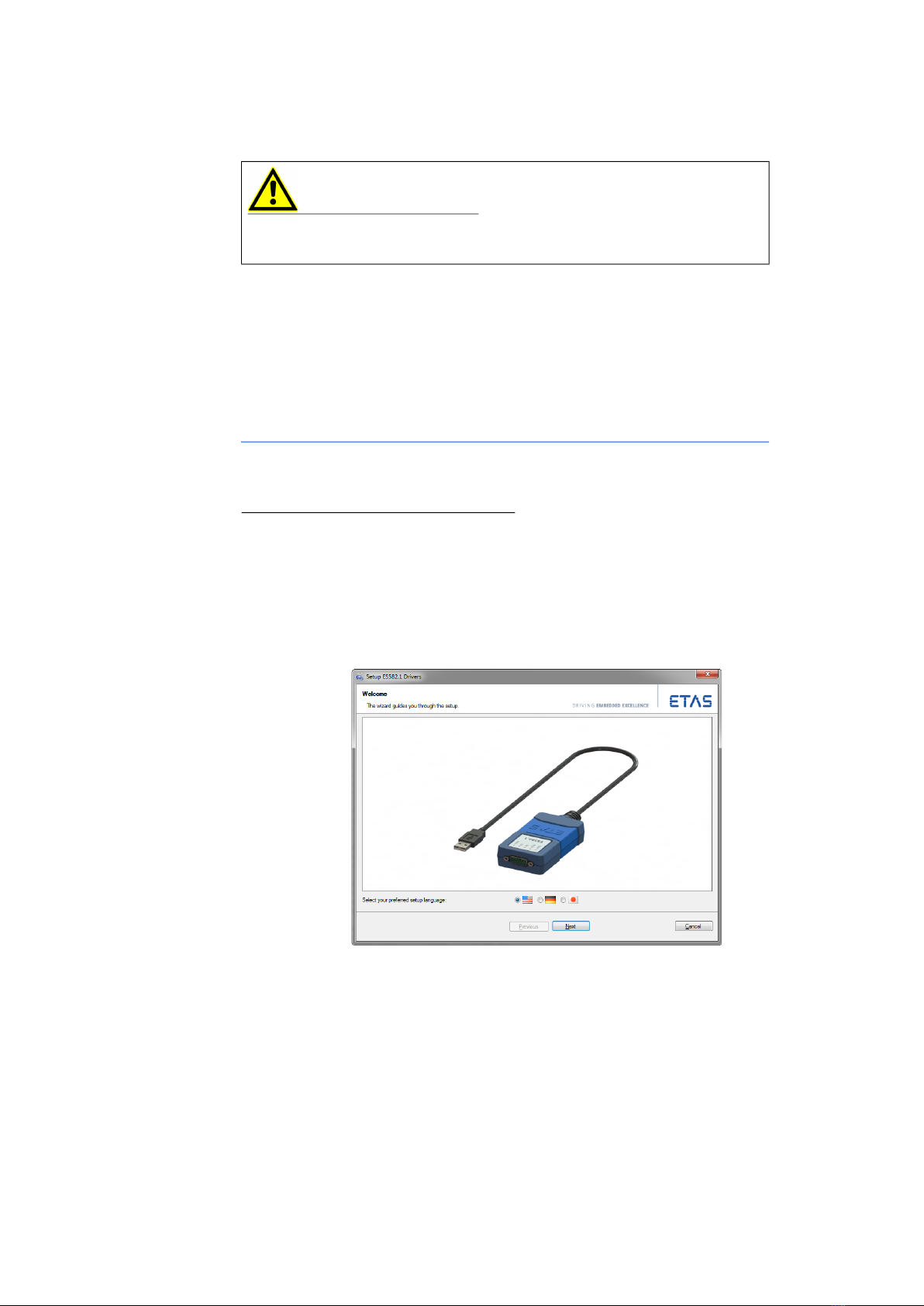

4. Select the desired language for the installation program.
CAUTION
The drivers have to be installed first before you connect the ES582.1 with the
USB port of your computer.

ETAS Commissioning
ES582.1 - User’s Guide 19
5. Click on Next and follow the instructions of the installation pro-
gram.
6. Read and accept the end user license agreement.
7. Click the Continue button.
The installation of the USB driver starts.
8. Wait until the USB driver is installed.
9. Click on Exit.
The installation of the USB driver for the ES582.1 is finished.

ETAS Commissioning
ES582.1 - User’s Guide 20
4.4 Verifying the Installation of the USB Driver
In the Device Manager of Windows, you can check which hardware drivers are
installed and which status they have.
Verifying the installation of the USB driver:
1. Connect the ES582.1 module with the USB port of the PC or
the drive recorder.
2. Select Start  Control Panel  Device Manager.
The Device Manager window opens.
3. Select ETAS Bus Interfaces.
4. Check whether the ES582.1 module not shows the new entry
ES582.1 CAN-USB.
Fig. 4-1Device Manager of Windows
If the ES582.1 USB driver was not correctly installed/uninstalled, and Windows
recognizes the module as connected, a symbol with an exclamation mark is
shown next to the device. Execute the installation program for the driver again
to correct this problem.
