Overview
The ColorSource CYC is an affordable LED fixture that uses the RGBIL
(red, green, blue, indigo, and lime) color system to provide a rich,
bright light.
Note: Features described in this document require the latest
version of software. For information on updating fixture
software, see Update the Fixture Software on page9.

ETC Installation Guide
ColorSource CYC v1.7/v3.1
Safety
For professional use only. Read the entire manual before using this
equipment.
WARNING:
•
Risk of eye injury. Do not stare directly into the light.
•
Do not mount the fixture on or near a flammable
surface.
•
Disconnect the fixture from power and DMX and allow it
to cool before installing accessories or performing any
cleaning and maintenance.
AVERTISSEMENT :
•
Risque de lésion oculaire. Ne fixez pas directement la
lumière.
•
Ne pas installer le projecteur sur ou à côté d’une surface
inflammable.
•
Débranchez le projecteur de son alimentation et du
DMX et laissez-le refroidir avant d’installer des
accessoires ou d’effectuer un nettoyage ou un entretien.
WARNING: RISK OF ELECTRIC SHOCK! The light source in
this luminaire is not user-replaceable, and must be replaced
only by a qualified technician. Contact ETC Customer Support
for assistance.
AVERTISSEMENT : RISQUE DE DÉCHARGE ÉLÉCTRIQUE! La
source lumineuse de ce projecteur n'est pas remplaçable par
l'utilisateur et ne doit être remplacée seulement par un
technicien qualifié. Contactez le service client ETC pour
obtenir de l’assistance.
ColorSource CYC Page 2 of 12 ETC

ETC Installation Guide
ColorSource CYC v1.7/v3.1

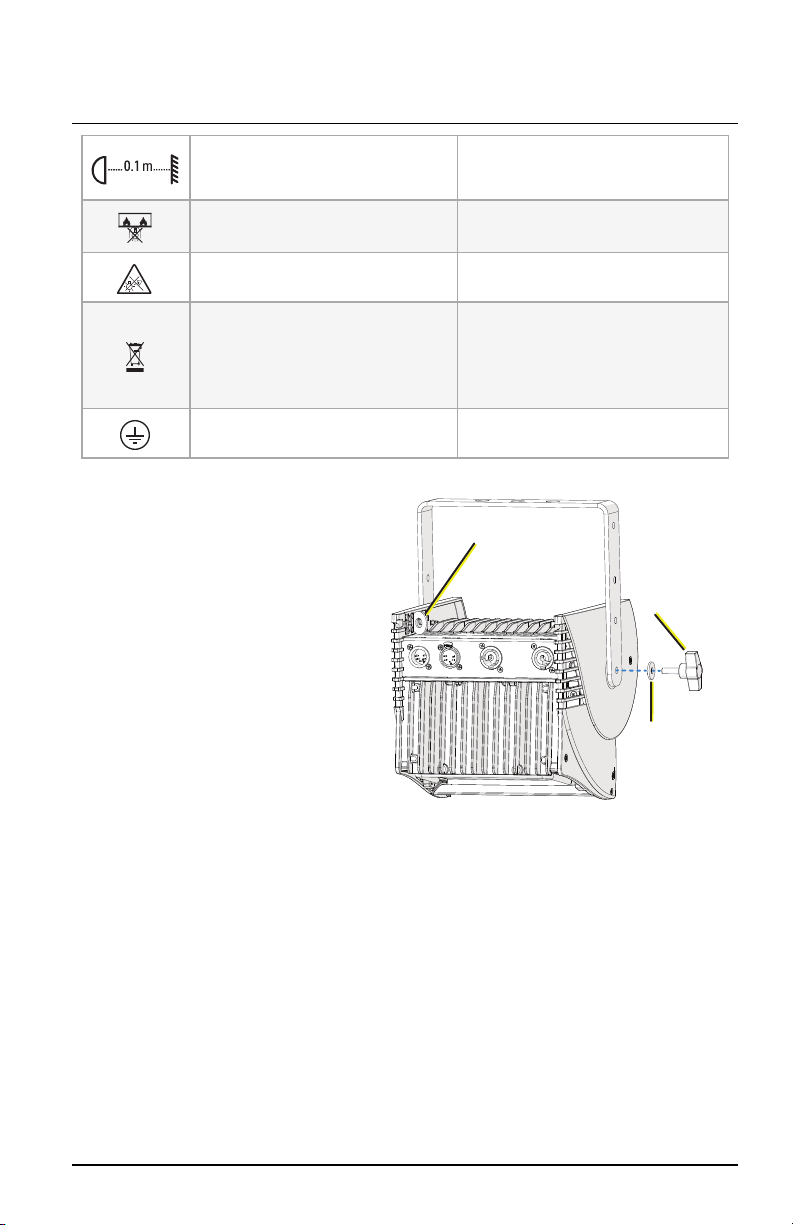

The luminaire must be installed at
least 0.1m (4.0in) away from all
lighted objects.
Le luminaire doit être installé à au
moins 0,1m (4,0po) de tout objet
éclairé.
Do not mount the fixture on or
near a flammable surface.
Ne pas installer le projecteur sur ou
à côté d’une surface inflammable.
Do not stare at the operating light
source.
Ne pas regarder la source de lumière
lorsqu’elle fonctionne.
This product should not be
discarded as unsorted waste but
must be sent to separate collection
facilities for recovery and recycling.
Ce produit ne doit pas être jeté avec
les déchets ménagers mais doit être
déposé dans une collecte de déchets
électroniques ou dans un point de
collecte.
Protective earth (ground) Protection Classe I Mise à la terre
Safety cable
anchor point Yoke
locking
knob
Washer
Installation
Mounting
The ColorSource CYC is
designed for floor
mounting. You can also use
the yoke accessory
(included) for top-hang
pipe mounting with a
clamp. Use the included
yoke locking knobs and
washers (see image at right)
to attach the yoke accessory
to the fixture. Tilt the fixture
so that the base of the
fixture is perpendicular to
the cyclorama. See Adjust
the Tilt on page5 .
Safety Cable
The safety cable (or other approved safety device) must be attached to
the fixture when it is mounted using the optional yoke and C-clamp
(see image above).
ColorSource CYC Page 3 of 12 ETC

ETC Installation Guide
ColorSource CYC v1.7/v3.1
Connectors
•
Power: Two powerCON®connectors for power in and thru
•
Data (DMX512/RDM): Two five-pin XLR connectors OR two
RJ45connectors for data in and thru
Conversion cables are available from ETC. Please contact your ETC
customer service representative and request part number W6538 for
RJ45 to female XLR or part number W6539 for RJ45 to male XLR.
Note: This fixture is not Ethernet/data network compatible.
Note: The ColorSource CYC is not self terminating. You must
terminate the last fixture in line with a 120 Ohm resistor. To
purchase a terminator, please contact ETC customer service and
request part number N4086 (RJ45 terminator) or SGE1507 (XLR
terminator).
Set Up the Fixture
1. Plug the power cord into the powerCON In connector on the rear of
the fixture.
2. Make any power-thru cable connections prior to applying a power
source.
3. Make any DMX connections, and if the fixture is the last in a DMX
line, terminate the fixture. See Connectors above .
4. Position the fixtures appropriately:
•
Setback: Minimum recommended distance from the cyclorama is
2ft (.61m).
•
Spacing: Position the fixtures arrayed with a 1.7-1 spacing for
optimal coverage, with a maximum spacing of 2-1. For example, if
fixtures are 2 ft (.61 m) from the cyclorama, position them a
maximum of 4 ft (1.22 m) apart from each other.
5. Plug the power cord into the power source.
Power Up
Press any button to wake the display. The display shows the DMX
address. See Set the DMXAddress on the facing page .
You can press the Mode button to access the Presets/Sequences menu.
See Play Presets and Sequences on page7 .
ColorSource CYC Page 4 of 12 ETC

ETC Installation Guide
ColorSource CYC v1.7/v3.1
Adjust the Tilt
When pipe-mounting the fixture, tilt the fixture so that the base of the
fixture is perpendicular to the cyclorama.
1. Loosen, but do not remove the yoke locking knobs.
2. Tilt the fixture so that the base of the fixture is perpendicular to the
cyclorama.
3. Tighten the yoke locking knobs.
Spill
control
Adjust the Spill Control
Adjust the angle of the spill
control as needed.
Set the DMXAddress
1. Press any button to wake
the display. The display
shows the DMX address.
2. Use the Up and Down
buttons to select the
DMX address for the
fixture.
You can also use RDM for DMX addressing. See RDM Values on
page11 .
Change the DMXControl Mode
You can set the DMX control mode for the fixture to one of four
available mode options.
1. Press any button to wake the display. The display shows the DMX
address.
2. Press and hold the Mode button for 3 seconds. The display shows
the current DMX control mode.
3. Press the Up button or Down button to change the DMX control
mode.
•
5ch: 5-channel mode (intensity, red, green, blue, and strobe).
This is the default mode.
•
dir: Direct emitter control (intensity, red, green, blue, indigo,
lime, and strobe).
•
1ch: 1-channel mode controls the intensity of preset 1 (defaults
to 3200K White).
•
rgb: RGB mode (red, green, and blue).
4. Press the Mode button to confirm your selection.
The display will automatically return to the DMX address after 10
seconds of inactivity, and edits to the DMX control mode will not be
saved. This cancels unsaved changes.
ColorSource CYC Page 5 of 12 ETC

ETC Installation Guide
ColorSource CYC v1.7/v3.1
Note: Direct mode (dir) on the ColorSource CYC is not a
calibrated mode. As a result, you may see discrepancies in color
between fixtures. ETC recommends operating in one of the
calibrated modes, such as 5-channel mode or RGB mode.
(Calibrated modes make accommodations for the specific LEDs
in the array and produce output that is consistent with other
fixtures. Direct mode bypasses this calibration, and multiple
fixtures may produce slightly different outputs when controlled
as a group.)
DMXControl Channels
DMX
Channel
5ch
(5 channel)
dir
(Direct)
1ch
(1 Channel)
rgb
(RGB)
1 Intensity Intensity Intensity Red
2 Red Red Green
3 Green Green Blue
4 Blue Blue
5 Strobe* Indigo
6 Lime
7 Strobe*
*Use DMX values of 0 or 255 for no strobe. Use values of 1–254 to increase the strobe
rate from 1 per second up to 33 per second.
Data Loss Behavior
When DMX data is lost, the fixture does one of the following actions:
•
If you selected a preset or sequence, that preset or sequence
automatically plays.
•
If no preset or sequence is active in the background, the fixture
goes dark and the DMXstart address flashes on the user interface.
Lock the User Interface
After you have set up the fixture, you can lock the user interface to
prevent additional changes.
1. Press and hold the Up button and Down button simultaneously for
3seconds. The display will show Loc to indicate that the user
interface is locked.
2. To unlock the user interface, press and hold the Up button and
Down button simultaneously for 3 seconds.
ColorSource CYC Page 6 of 12 ETC

ETC Installation Guide
ColorSource CYC v1.7/v3.1
Play Presets and Sequences
The fixture has twelve factory-configured presets and five factory-
configured sequences. When you play a preset or sequence on a fixture:
•
The same preset number or sequence number plays on any
connected fixtures that are not receiving DMX.
•
If you power down the fixture, the preset or sequence resumes
when you power it on again.
You can re-record presets and sequences through an RDM device or
manually on the fixture. See Re-record Presets on the next page .
1. Press the Mode button to activate the Presets/Sequences menu. The
last active preset or sequence plays automatically. (If DMX data is
present, the current preset or sequence plays in the background
and DMX data continues to take priority.)
2. Press the Up button or Down button as needed to scroll through
the available presets and sequences.
3. To stop the selected preset or sequence, press the Mode button a
second time. The display will revert to show the DMX start address.
Pre-configuredPresets
Preset Name
1 3200 K White
2 5600 K White
3 Red
4 Green
5 Blue
6 Cyan
Preset Name
7 Magenta
8 Yellow
9 Orange
10 Light Yellow
11 Light Blue
12 Light Pink
Pre-configuredSequences
Sequence Name
1 Rainbow Fast
2 Rainbow Slow
3 Warm Colors Fast
4 Cool Colors Fast
5 Random
ColorSource CYC Page 7 of 12 ETC

ETC Installation Guide
ColorSource CYC v1.7/v3.1
Re-record Presets
1. Using DMX, set the desired levels for the new preset.
2. Press the Mode button to access the Presets/Sequences menu.
3. Press the Up button or Down button to navigate to the preset
number that you want to re-record.
4. Press and hold the Mode button for 3 seconds to confirm the
preset selection. The user interface will show a 3-second
countdown. The preset number blinks once to confirm that the
preset has been recorded.
Note: When the fixture is in Direct mode (dir) or 1-channel
mode (1ch), you cannot re-record presets.
When you re-record presets with the fixture in RGB mode (rgb),
the intensity is set to full and the strobe is turned off.
See Change the DMXControl Mode on page5.
Adjust the Intensity of Presets
1. Ensure that DMX data is not present.
2. Press the Mode button to access thePresets/Sequences menu, and
then press the Up button or Down button to select the preset that
you want to edit.
3. Press and hold the Mode button for 3 seconds. The display shows
L: followed by either an intensity level from 0–99 or FL for full.
4. Press the Up button or Down button to change the intensity level of
the preset in real time.
5. Press the Mode button to confirm your selection and return to
thePresets/Sequences menu.
The display will automatically return to thePresets/Sequences menu
after 10seconds of inactivity, and edits to the preset intensity will not
be saved.
ColorSource CYC Page 8 of 12 ETC

ETC Installation Guide
ColorSource CYC v1.7/v3.1
Troubleshooting and Maintenance
Update the Fixture Software
ETC recommends using UpdaterAtor software to manage software
updates. For information on UpdaterAtor, see the UpdaterAtor
Software Quick Guide and the UpdaterAtor Software ReleaseNote ,
which you can download from etcconnect.com.
You can push newer software versions from a connected fixture to
selected ColorSource fixtures(see table that follows).
Note: If you have other types of fixtures in your DMX run, you
do not need to disconnect them before pushing the updated
fixture software. The update process will ignore any other fixture
types in the DMXrun.
Note: Not sure what version of fixture software is
installed?The version number appears on the display when the
fixture powers up.
This fixture... ...can push software to these fixtures/releases when connected
CYC Linear PAR Spot Spot jr
≤v1.7 v3.1 ≤v1.7 ≤v1.7 v3.0 ≤v1.7 v3.0 v2.0 v3.0
CYC v1.7 or earlier X X X X
CYC v3.1 X
Linear v1.7 or
earlier X X X X
PAR v1.7 or earlier X X X X
PAR v3.0 X X
Spot v1.7 or earlier X X X X
Spot v3.0 X X
Spot jr v2.0 X
Spot jr v3.0 X
1. Remove power and DMX In from the fixture that is running the
software version that you want to push to other fixtures.
2. Press and hold the Up button and Down button simultaneously
while restoring power.
3. The display shows Udt rdy to indicate the update mode is
selected.
ColorSource CYC Page 9 of 12 ETC

ETC Installation Guide
ColorSource CYC v1.7/v3.1
4. Press the Mode button to start the update process.
•
The display alternates between Udt and the percentage complete
while updating.
•
The display blinks once to indicate that the update is complete.
5. Reconnect DMX In on the fixture.
Restore Factory Defaults
Press and hold the Mode button, Up button, and Down button
simultaneously for 5 seconds. The DMX start address will blink once to
confirm that defaults have been restored.
Error Codes
There are three error codes that may be shown on the user interface.
•
CAL: Screen toggles between CAL and Err to indicate a problem
with the color calibration. The fixture will need to be returned to
the ETC factory; contact your local dealer to set up a repair.
•
OtP: Screen toggles between OtP and Err to indicate that the
fixture has gone into over-temperature protection mode to avoid
damaging the fixture. Once the fixture has self-cooled, the error
will automatically clear. If the error does not clear, contact
ETCTechnical Support (visit etcconnect.com/contactETC).
•
No App: Screen toggles between no and APP to indicate that the
upgraded fixtures have a software issue. Reload software to clear
the error. If the error persists, contact ETC Technical Support (visit
etcconnect.com/contactETC).
Clean the Fixture
If necessary, clean the mirror and diffusion surface with a blast of oil-
free air or wipe with a clean, lint-free cloth. Isopropyl alcohol, distilled
water, or a 50%-50% mixture of each can be used to clean the surface.
Specifications and Reference
For current and complete compliance and specifications, see the
ColorSource CYC datasheet at etcconnect.com.
Environment
The ColorSource CYC operates in ambient temperatures of 0°C–40°C.
The ColorSource CYC is for indoor use only.
•
Maximum recommended ambient operating temperature:
Ta=40°C(104°F)
•
Maximum anticipated external surface temperature at 40°C
ambient: Tmax = 110°C (230°F)
•
External temperatures after 5 minutes of full-brightness operation
at 25°C (77°F) ambient: 49°C (119°F)
•
External Temperature (steady state achieved) at 25°C (77°F): 88°C
(190°F)
ColorSource CYC Page 10 of 12 ETC

ETC Installation Guide
ColorSource CYC v1.7/v3.1
Electrical
•
Operates between 100V and 240VAC at a frequency of 50/60Hz.
•
Maximum power consumption is 160 W.
•
Up to 9 luminaires(15 A max) may be linked via power thru
connector (10 luminaires total per circuit) when used with an
R20Relay Module or Unison Echo Relay Panel. Consult breaker trip
curves when used with other equipment. Requires power from a
non-dimmable source.
•
Inrush:
-
120 V: 39 A (first half-cycle)
-
240 V: 74 A (first half-cycle)
Typical Power Consumption
100 V 120 V 230 V
Power Current Power Current Power Current
Idle 1.66 W 0.04 A 1.38 W 0.04 A 1.18 W 0.05 A
Direct at Full 133.7 W 1.34 A 132.6 W 1.11 A 130.4 W 0.59 A
RDM Values
Parameter Value Description
Manufacturer ID 0x6574 Electronic Theatre Controls
Model ID 0x0215 ColorSource CYC (v1.7) or
ColorSource CYC CPU2 (v3.1)
DMXStart Address 0x00F0 Range = 1–512
DMX Personality 0x00E0
1 = 5 Channel
2 = Direct
3 = 1 Channel
4 = RGB
Output Frequency 0x8123 0 = Standard (1.2 kHz)
1 = High (25 kHz)
ColorSource CYC Page 11 of 12 ETC

ETC Installation Guide
ColorSource CYC v1.7/v3.1
FCC Compliance
ColorSource CYC
(For any FCC matters):
Electronic Theatre Controls, Inc.
3031 Pleasant View Road
Middleton, WI 53562
[phone]
etcconnect.com
This device complies with Part 15 of the FCCRules. Operation is subject
to the following two conditions:(1) this device may not cause harmful
interference, and (2)this device must accept any interference received;
including interference that may cause undesired operation. Visit
etcconnect.com/products for current and complete compliance
information including FCC compliance.
Note: This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to Part 15
of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. Any modifications or changes to this product
not expressly approved by Electronic Theatre Controls, Inc. could
void the user’s authority to operate the product. Operation of
this equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct
the interference at their own expense.
ColorSource CYC Page 12 of 12 ETC
