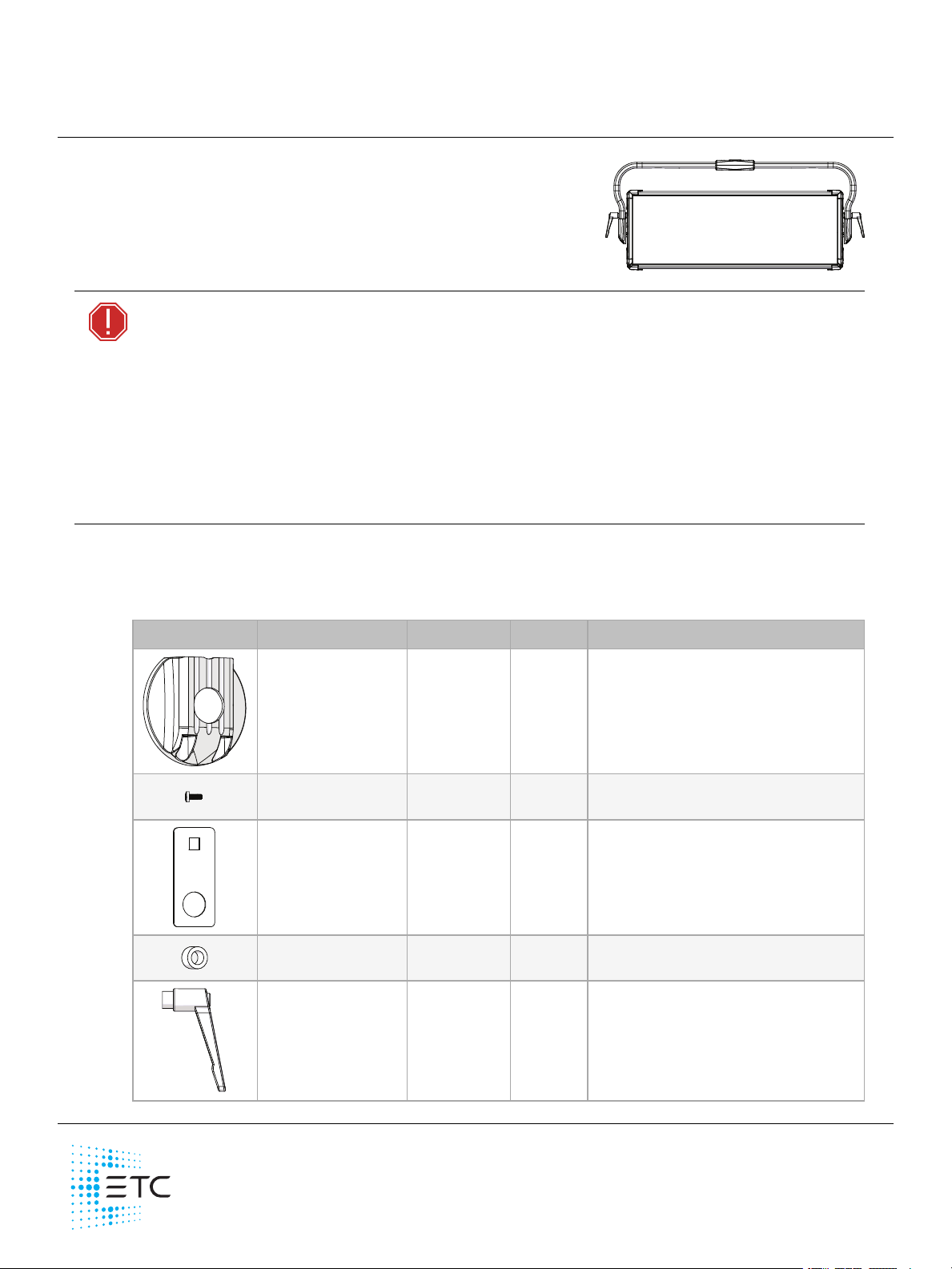

Overview
Install the Yoke using the instructions that follow. Images
show a small (fos4PL8 or fos4PD8) fixture, but the instructions
are the same for all fos/4 Panel models.
WARNING: In addition to primary suspension, attach a safety cable (or other
approved safety device) to the fixture. Safety cables must be rated to support ten
times the fixture weight. Consult local standards to ensure that safety cables
meet all requirements.
Follow all safety precautions described in the fos/4 Panel User Manual , which is
available for download at etcconnect.com.
AVERTISSEMENT : En plus de la suspension principale, fixez une chaîne de
sécurité (ou tout autre dispositif de sécurité homologué) au projecteur. Les
chaînes de sécurité doivent être en mesure de supporter dix fois le poids du
projecteur. Consultez les normes locales pour vous assurer que les câbles de
sécurité respectent toutes les exigences.
What's in the Box
In addition to the yoke, the kit includes the hardware items described below.
Image Name Part Number Quantity Description
Clutch-plate cover 7470A4022 2 fos/4 Panel clutch-plate cover
Clutch-plate cover
bolt HWM1136 4 Bolt M4 x 10 mm
Plate 7471A3063 2 fos/4 Panel pressure plate
Spacer HWM960 2 Spacer 16 mm OD x 10 mm ID x
10mm L
Tilt-lock HWM8014 2 fos/4 Panel tilt-lock

ETC Installation Guide
fos/4 Panel Yoke
fos/4 Panel Yoke Page 2 of 2 ETC
Image Name Part Number Quantity Description
Tilt-lock bolt HWM2344 2 Bolt M8 x 25 mm CARR CL-8.8
Washer (large) HW5126 2 Flat washer 5/16 .375 x .875 x .078
Washer (small) HWM2351 2 M8 washer 8.4 mm ID x 16 mm OD x
1.6mm
Yoke bolt HWM2350 2 Bolt M8 x 25 mm
Position
clutch-plate
cover and
secure with
bolts
Install the Yoke
Tools required:Phillips screwdriver, 13 mm socket wrench
1. Position a clutch-plate cover on one end of the yoke, and use a
Phillips screwdriver to secure it with two clutch-plate cover bolts.
Repeat the process to attach a clutch-plate cover to the other side
of the yoke.
2. Position the fixture facedown on a flat surface.
3. Position the yoke to align with the sides of the fixture.
4.
Tilt-lock
Spacer
Yoke bolt
Washers
Tilt-lock bolt
Plate
Use the yoke hardware to loosely attach
the yoke to one side of the fixture (as
shown in the image at right).
•
Make sure that the plate is captured by
both the tilt-lock bolt and the yoke bolt.
•
Make sure that the head of the tilt-lock
bolt is behind the circular clutch plate on
the fixture (see image below).
Circular clutch plate
(clutch-plate cover
hidden for clarity)
5. Repeat step 4 on the other side of the fixture.
6. Use the 13 mm socket wrench to tighten the yoke bolts, securing the yoke to the fixture.
7. Tighten the tilt-locks to secure the fixture position within the yoke.
