ETC High End Systems SolaPix 19 User manual

High End Systems
SolaPix 19
Automated Luminaire User Manual
Version 1.4.7
Part Number: 2595M1200-1.4.7 Rev: D
Released: 2021-03

To view a list of ETCtrademarks and patents, go to etcconnect.com/ip. All other trademarks, both marked
and not marked, are the property of their respective owners.
You can find complete High End Systems terms and conditions and warranty information at
etcconnect.com/Support/Warranty.aspx.
ETC intends this document, whether printed or electronic, to be provided in its entirety.

Table of Contents
Table of Contents i
Introduction 1
Important Safety Information 1
Help from Technical Services 2
Safety Considerations 3
General Operation and Use Guidelines 5
Fixture Overview 6
Modular Control 7
Install the Fixture 8
Power 11
Input and Power Factor 11
Connector Specification 11
DMX Control 12
DMX Connector Pinout 12
Connect DMXCables to Fixture 12
Terminate DMX 13
Set the DMX Start Address 13
DMX Channels 13
Ethernet Control 14
Connect EthernetCables to a Fixture 14
Set the DMX Start Address 15

Set the Control Source and Universe 15
Configure the Fixture 16

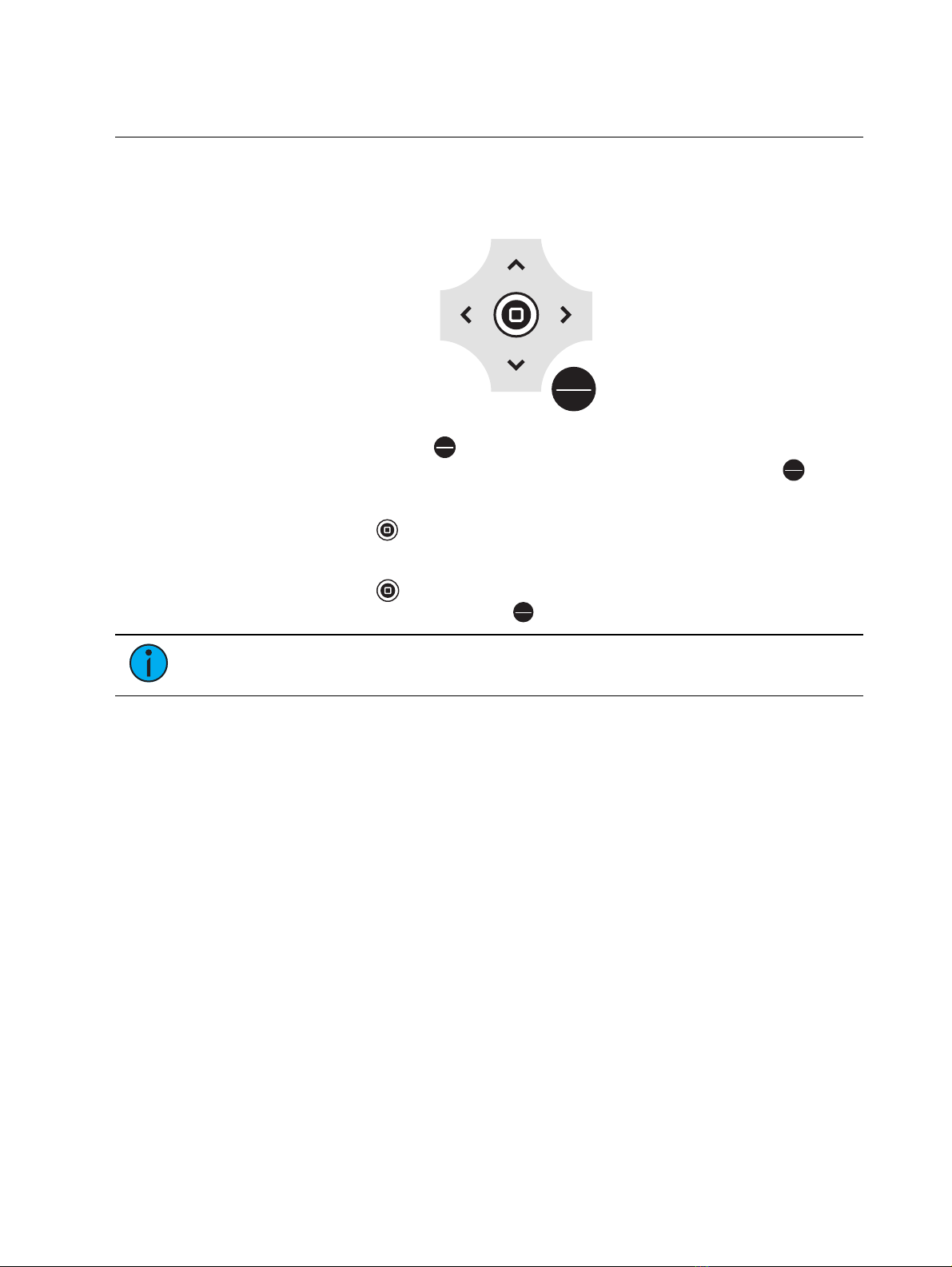

Navigate the User Interface 16
Set Fixture Parameters 17
Address 17
Info Menu 21
Set Menu 23
Test Menu 26
Preset Menu 26
Error Codes 27
Maintenance 28
Clean the Fixture 28
Replace the Fuse 28
Compliance 29
FCC - Part 15 Class A 29
Declarations of Conformity 30
ii SolaPix 19 User Manual

Introduction 1
Introduction
Congratulations on your purchase of the SolaPix 19 automated fixture. This manual provides
important information for the safe installation, configuration, and maintenance of your SolaPix
19 fixture.
Important Safety Information
Please read all instructions prior to assembling, mounting, and operating this equipment.
Continued and safe operation of this fixture is the responsibility of the operator. This manual will
give tips for that continued safe operation. At any time please contact Technical Services for any
safety concerns.
The following international note, caution, and warning symbols appear in margins throughout
this manual to highlight important messages.
Note: Notes are helpful hints and information that is supplemental to the main text.
CAUTION: Hot Surfaces. This statement indicates that while operating,
equipment surfaces may reach very high temperatures. Allow the fixture
to cool before handling or servicing.
CAUTION: A Caution statement indicates situations where there may be
undefined or unwanted consequences of an action, potential for data loss or
an equipment problem.
WARNING: A Warning statement indicates situations where damage may
occur, people may be harmed, or there are serious or dangerous
consequences of an action
WARNING: RISK OF ELECTRIC SHOCK! This warning statement indicates
situations where there is a risk of electric shock.
All ETC High End Systems documents are available for free download from our website:
etcconnect.com/Products/Live-Events.
Please email comments about this manual to: [e-mail].

2 SolaPix 19 User Manual
Help from Technical Services
If you are having difficulties and your problem is not addressed by this document, try the ETC
support website at support.etcconnect.com or the High End Systems product website at
etcconnect.com/Products/Live-Events. If none of these resources are sufficient, contact ETC
Technical Services directly at one of the offices identified below. Emergency service is available
from all offices outside of normal business hours.
When calling for help, take these steps first:
•
Prepare a detailed description of the problem
•
Go near the equipment for troubleshooting
•
Find your notification number if you have called in previously
ETC, Inc.
Americas
Technical Services Department
3031 Pleasant View Road
Middleton, WI 53562
800-775-4382 (USA, toll-free)
[phone]
[e-mail]
ETC GmbH
Germany, Austria, Switzerland,
Eastern Europe, and Russia
Technical Services Department
Ohmstrasse 3
83607 Holzkirchen, Germany
[phone]
[e-mail]
ETC Austin
High End Systems Products
Technical Services Department
2105 Gracy Farms Lane
Austin, TX 78758 USA
800-890-8989 (USA, toll-free)
[phone]
[e-mail]
ETC France
France
Zone Urbaparc -
Bâtiment E
6 Boulevard de la Libération
Saint-Denis, 93200
[phone]
[e-mail]
ETC Ltd
Europe, Middle East, and Africa
Technical Services Department
26-28 Victoria Industrial Estate
Victoria Road,
London W3 6UU England
[phone]
[e-mail]
ETCAsia
Asia
Technical Services Department
Room 1801, 18/F
Tower 1, Phase 1 Enterprise Square
9 Sheung Yuet Road
Kowloon Bay, Kowloon, Hong Kong
[phone]
[e-mail]

Safety Considerations 3
Safety Considerations
To ensure safe operation, follow the safety instructions and warning notes in this user manual.
•
The SolaPix 19 is intended for professional use only. Not for residential use. Read the
entire manual before using this equipment.
•
Contact your ETC authorized dealer or Technical Services before performing any service in
order to maintain warranty coverage.

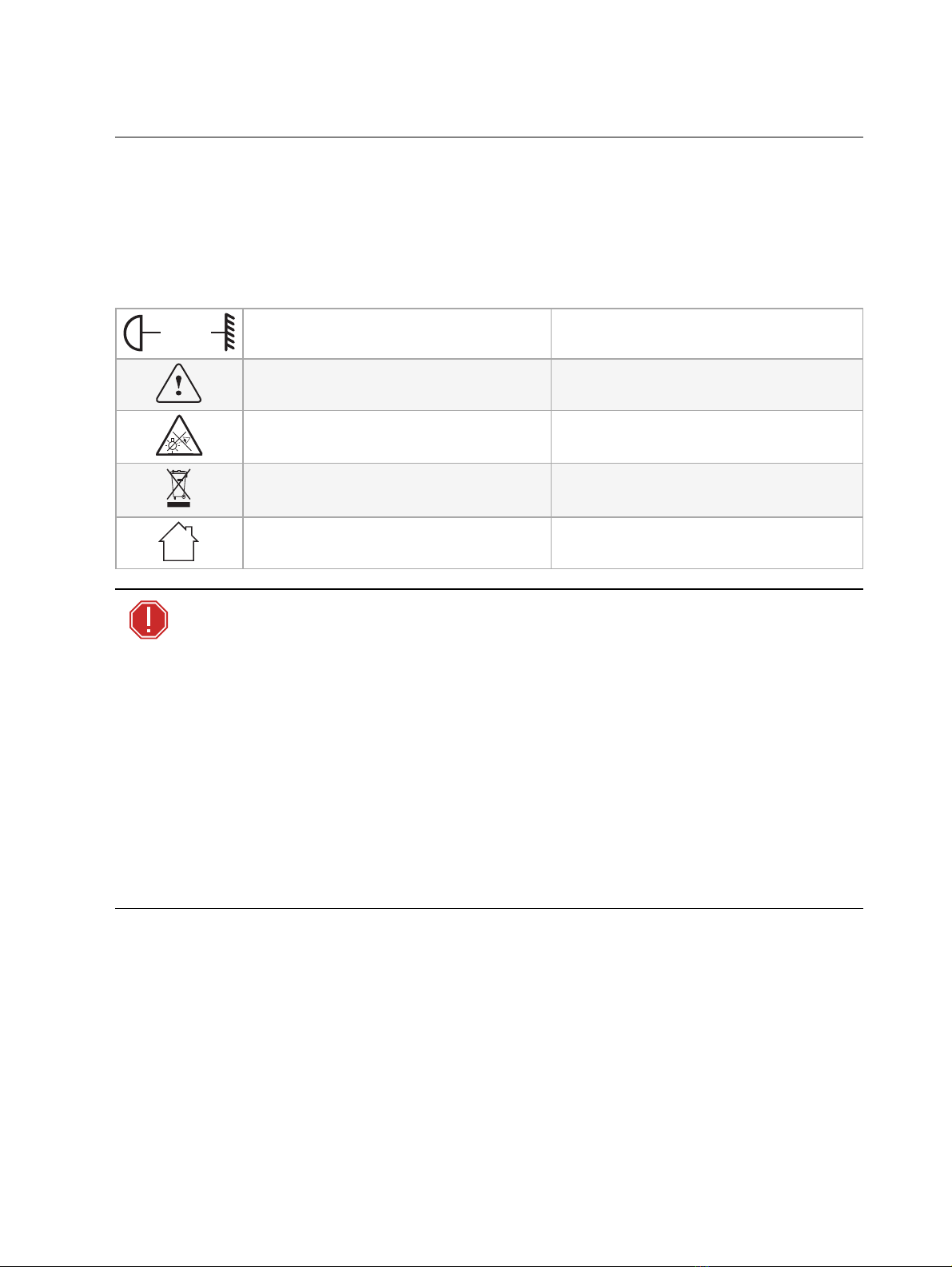

Symbols used on the product label are defined below:
1.0 m
The luminaire must be installed at least 1.0m
(3.28ft) away from all lighted objects.
Le luminaire doit être installé à au moins 1.0m
(3,28pi.) de tout objet éclairé.
General warning Avertissement général
Do not stare at the operating light source. Ne pas regarder la source de lumière lorsqu’elle
fonctionne.
This product should not be discarded as unsorted
waste but must be sent to separate collection
facilities for recovery and recycling.
Ce produit ne doit pas être jeté avec les déchets
ménagers mais doit être déposé dans une collecte de
déchets électroniques ou dans un point de collecte.
Operate indoors only, not where this product
would be exposed to the weather.
Ne fonctionne qu'à l'intérieur, pas là où ce produit
serait exposé aux intempéries.
WARNING: Note the following safety warnings before use:
•
This equipment is designed for operation by qualified personnel only.
•
Replace fuses with the specified type and rating only. See page 28 .
•
Make sure that the available voltage is within the stated range. See
page 11 .
•
Do not use this fixture with a damaged power lead (cord set). If the
lead is damaged, it must be replaced by a qualified technician with an
equivalent type before use. Contact your local authorized dealer for
spare power leads.
•
Do not use this fixture if the lens is damaged. Damaged lenses must be
replaced before use. Contact your local authorized dealer for a
replacement.
•
Do not mount the fixture on or near flammable surfaces.
•
Minimum distance from fixture head to combustible materials: 0.1 m
(4.0 in).
•
Minimum distance to lighted objects:1.0 m (3.28 ft).

4 SolaPix 19 User Manual
AVERTISSEMENT : Pour votre sécurité, lisez les mises en garde et les avis
suivants avant toute utilisation :
•
Cet équipement est conçu pour être utilisé par un personnel qualifié
uniquement.
•
Remplacez les fusibles uniquement par le type et le calibre indiqués.
Voir page 28 .
•
Veillez à ce que la tension disponible soit dans la plage indiquée.Voir
page 11 .
•
N'utilisez pas ce projecteur avec un cordon d'alimentation endommagé
(fils électriques). Si le cordon est endommagé, un technicien qualifié
doit le remplacer par un cordon de type équivalent avant que
l'appareil ne puisse être utilisé. Contactez votre distributeur agréé
local pour obtenir des cordons d'alimentation de rechange.
•
N'utilisez pas cet appareil si la lentille est endommagée. Les lentilles
endommagées doivent être remplacées avant l'utilisation. Contactez
votre revendeur agréé local pour un remplacement.
•
Ne pas installer le projecteur sur ou à côté d’une surface inflammable.
•
Distance minimum entre la tête du luminaire et les matériaux
combustibles : 0.1 m (4.0 in).
•
Distance minimale avec les objets éclairés :1.0 m (3.28 ft).
WARNING: RISK OF ELECTRIC SHOCK!
•
Do not operate this device with the cover open.
•
Disconnect the fixture from power and DMX and allow it to cool before
performing any cleaning and maintenance.
AVERTISSEMENT : RISQUE DE CHOC ÉLÉCTRIQUE!
•
N'utilisez pas cet appareil avec le couvercle ouvert.
•
Débrancher la lampe de son alimentation et du DMX et la laisser
refroidir avant d’effectuer un nettoyage ou un entretien.
RISK GROUP 2: CAUTION. Possibly hazardous optical radiation emitted
from this product. Do not stare at operating lamp. May be harmful to the
eyes.
GROUPE DE RISQUE 2 (RISQUE MODÉRÉ) : ATTENTION. Rayonnement
optique potentiellement dangereux émis par ce produit. Ne regardez pas la
lampe en fonctionnement. Peut être nocif pour les yeux.
CAUTION: Hot Surfaces. Allow the device to cool completely before
handling and servicing.
ATTENTION : Surfaces chaudes. Laissez le luminaire refroidir complètement
avant de le manipuler et de procéder à son entretien.
Note: The light source in this luminaire is not user-replaceable, and must be replaced
only by a qualified technician. Contact ETC Customer Support for assistance.

Safety Considerations 5
General Operation and Use Guidelines
•
This fixture is only allowed to be operated with the maximum alternating current that is
stated in the technical specifications label provided on the fixture.
•
Lighting effects are not designed for permanent operation. Consistent operation breaks
may ensure that the fixture will function for a long time without defects.
•
When choosing the installation location, make sure that the fixture is not exposed to
extreme heat, moisture, or dust.
•
Do not point the lens toward the sun or other bright light source. Doing so could damage
the fixture.
•
If using the supplied Omega brackets with quick-locking thumb screws for fixture hanging,
ensure that the thumb screws have engaged a complete 90-degree positive latch.
•
Operate the fixture only after having familiarized yourself with its functions. Do not permit
persons who are not qualified and familiar with its functions to operate the fixture.
•
Do not modify the fixture. Any modifications will void the warranty.
•
This manual describes the proper installation and operation of this fixture. Using this
fixture in any way other than the intended use may cause damage and void the warranty.
•
When the fixture has been stored or transported in cold temperatures, allow it to warm to
room temperature for a minimum of one hour before applying power. Applying power to a
cold fixture may cause damage to the fixture and void the manufacturer warranty.
•
When you power on the fixture, you may notice smoke or odor. This is normal and should
decrease gradually. If smoke or odor persists, disconnect the fixture from power and
contact your ETC dealer or Technical Services.
•
Please use the original packaging if the fixture is to be transported. ETC will not be
responsible for the fixture if packaging other than manufacturer provided packaging is
used.

6 SolaPix 19 User Manual

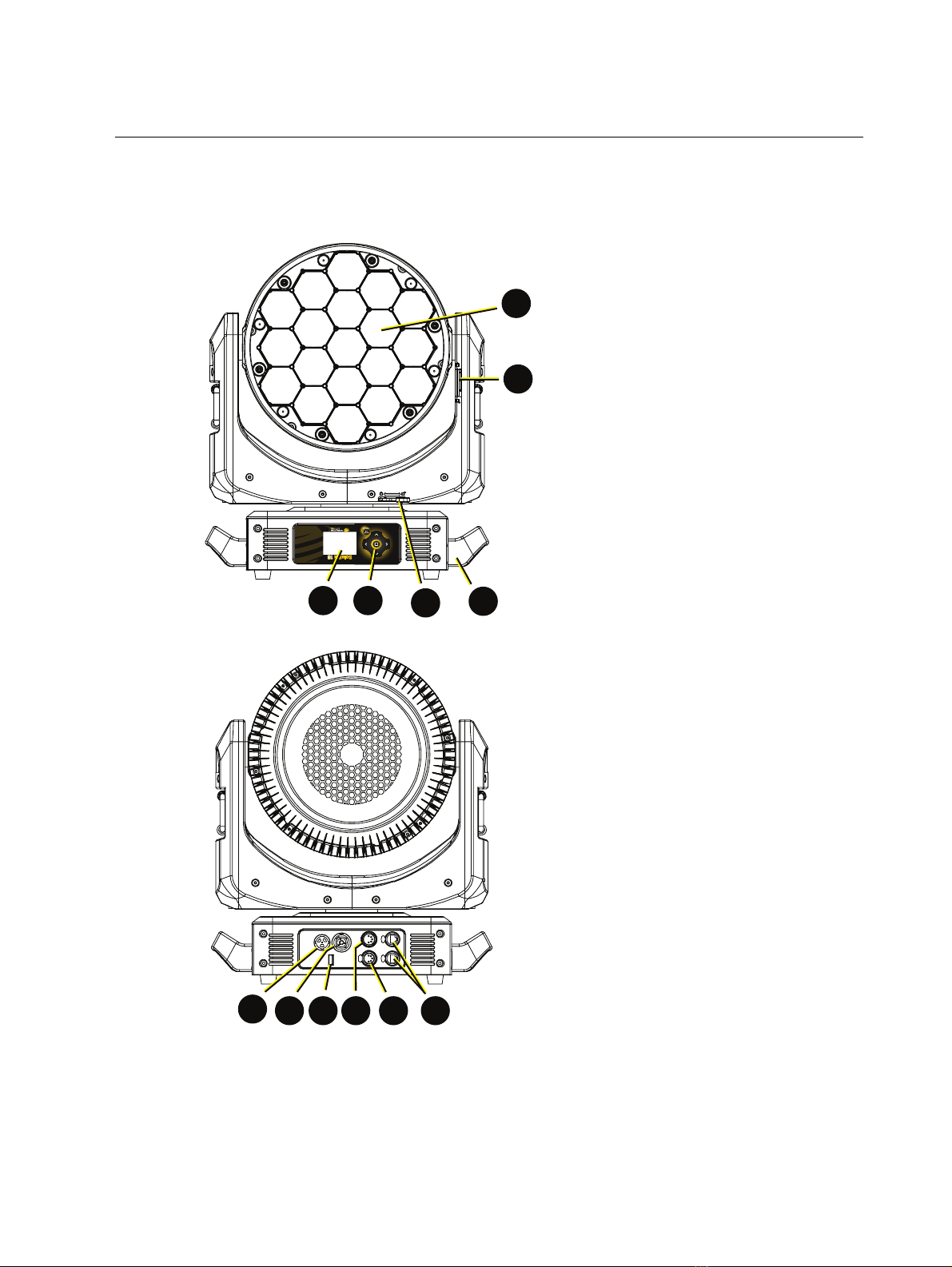

Fixture Overview
For technical specifications of the SolaPix 19 fixture, see the technical data sheet:
etcconnect.com/Products/High-End-Systems/Lighting-Fixtures/SolaPix/Documentation.aspx
2
3456
1
89 10 11 12 7
1: Lens
2: Tilt lock
3: Display
4: Navigation controls
5: Pan lock
6: Handle
7: Power In
8: Power Out
9: USB
10: DMX Thru
11: DMXIn
12: Ethernet ports (x2)

Fixture Overview 7
Modular Control
Note: Some consoles may refer to the Flex effects by the feature name "Macro". For
the purposes of the SolaPix 19 software and user manual, "Flex" and "Macro" are
interchangeable.
The SolaPix 19 fixture has three segments of control (or modules) that essentially give you three
fixtures in one, letting you customize each fixture based on your control needs.
•
The Base module is the master. The settings in this module control the basic functions of
the fixture, which include pan, tilt, zoom, and the control settings for the fixture.
•
The Flex module lets you build and customize animation effects based on a library of
animations.
•
The Pixel module gives you individual control of each pixel.
The Base module is always active. The Flex and Pixel modules can be disabled, or they can be
set to Compound or Independent modes.
In Compound mode, a module automatically addresses itself to the same source as the Base
module and follows immediately after the address of the Base module.
In Independent mode, you address a module individually to any source (DMX or Ethernet),
Address, or Universe that your control setup requires.
Compounding the modules enables several different options:
•
Base + Flex (default)
•
Base + Pixel
•
Base + Flex + Pixel
See Configure the Fixture on page16 for information about configuring the modules.
Because the modules all control the same light sources, you can set the priority of control using
the Module Priority function (channel 12 in the Base module).
See the SolaPix 19 DMX channel map on the ETC website for details:
etcconnect.com/Products/High-End-Systems/Lighting-Fixtures/SolaPix/Documentation.aspx

8 SolaPix 19 User Manual
Install the Fixture
WARNING:
•
NEMA Type 1 enclosure, indoor use, dry locations only. Do not use
outdoors. This fixture is intended for use where humidity does not
exceed 90% (non-condensing).
•
The installation location must support a minimum point load of 10
times the weight of the fixture.
•
The installation must always be secured with a secondary safety
attachment. An appropriate safety cable is supplied.
•
Safety cable attachment must be rated by a safety factor of 10.
•
Use of third party clamps are permitted, but they should comply with,
and be approved by, the Authority Having Jurisdiction (AHJ).
•
A supportive and stable surface must be used when the fixtures are
placed on the feet.
•
The operating temperature range for this fixture is -10°C–45°C (14°F–
113°F). Do not operate the fixture outside of this range.
•
Never stand directly below the installed fixture when mounting,
removing, or servicing the fixture.
•
All safety and technical aspects of fixture installation must be
approved by a qualified personnel before operation.
•
The installation must be regularly inspected by qualified personnel.
•
Overhead rigging must be performed by qualified personnel.
AVERTISSEMENT :
•
Boîtier NEMA de type 1, utilisation en intérieur, emplacements secs
uniquement. Ne l'utilisez pas en extérieur. Ce projecteur est conçu
pour être utilisé dans des environnements où l'humidité ne dépasse pas
90 % (sans condensation).
•
L'emplacement d'installation doit supporter une charge concentrée
minimale de 10 fois le poids de l'appareil.
•
L'installation doit toujours être sécurisée par une fixation de sécurité
auxiliaire. Un câble de sécurité approprié est fourni.
•
La fixation du câble de sécurité doit être classée avec un facteur de
sécurité de 10.
•
Il est permis d'utiliser des pinces provenant de tiers, mais elles doivent
être conformes et approuvées par l'Autorité compétente (AC).
•
Une surface d'appui stable doit être utilisée quand les projecteurs sont
placés sur pieds.
•
La plage de température de fonctionnement de ce projecteur est de
-10°C–45°C (14°F–113°F). Ne faites pas fonctionner le projecteur
audelà de cette plage.
•
Ne vous placez jamais directement sous le projecteur lors du montage,
du démontage ou de son entretien.
•
Tous les aspects techniques et de sécurité de l'installation du
projecteur doivent être approuvés par un personnel qualifié avant qu'il
ne soit utilisé.
•
L'installation doit être régulièrement inspectée par du personnel
qualifié.
•
La fixation en hauteur doit être effectuée par du personnel qualifié.

Install the Fixture 9
CAUTION: Follow all local codes and recommended practices by the
Authority Having Jurisdiction. The installation must only be carried out by
qualified personnel.
ATTENTION : Respectez tous les règlements locaux et toutes les pratiques
recommandées par l'autorité compétente. L'installation doit être effectuée
uniquement par du personnel qualifié.
You can install the fixture in any of the orientations shown below.

10 SolaPix 19 User Manual
12
53

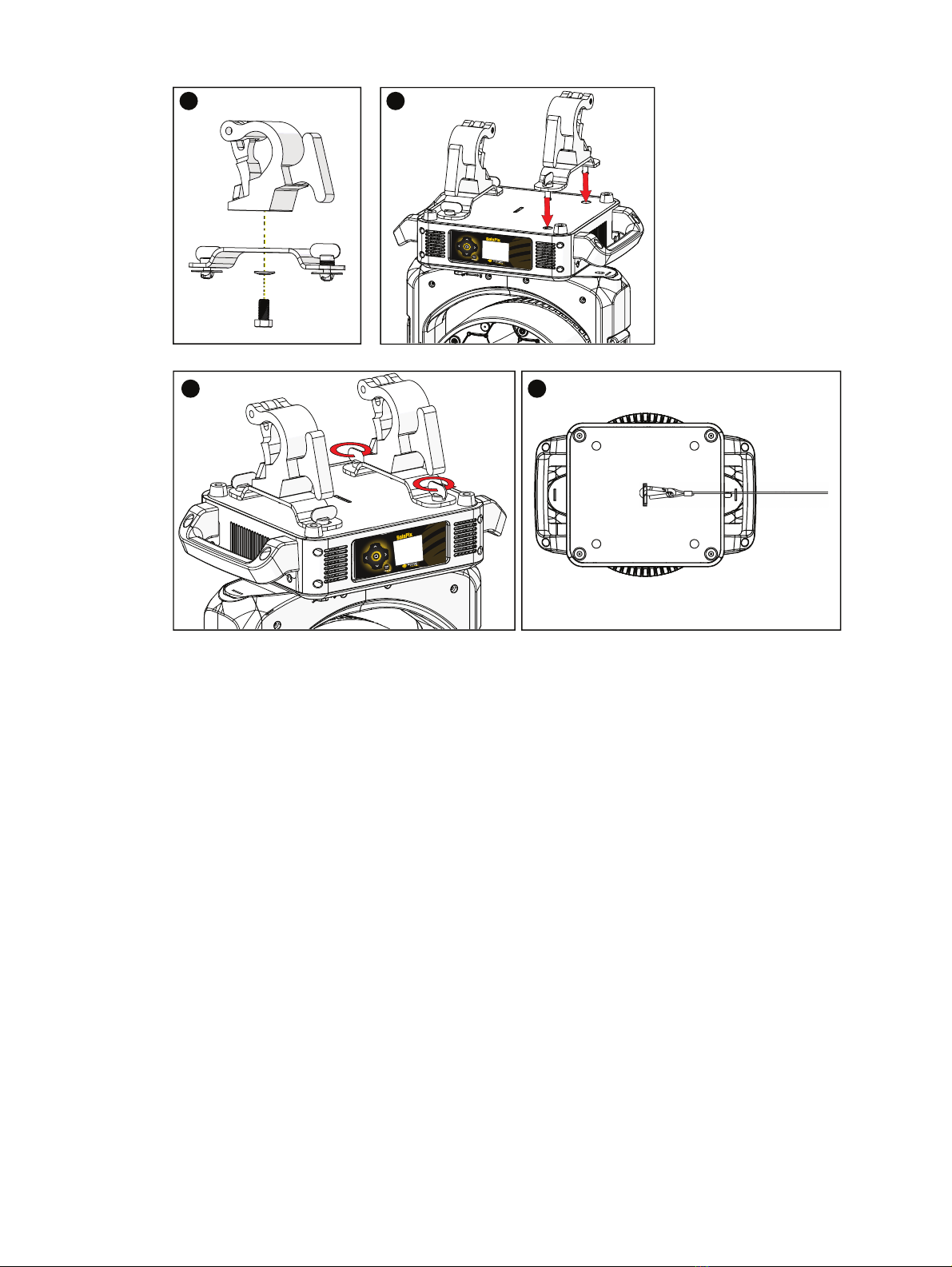

1. Assemble the clamp (provided by others) to the Omega bracket that was provided with
the fixture and secure together using appropriately sized hardware (not provided).
2. Align the assembled Omega bracket and quick-lock fasteners into the respective holes on
the bottom of the fixture upper enclosure.
3. Tighten each of the quick-lock fasteners fully, turning clockwise. You will hear and feel a
click when the fastener is fully secured.
4. Repeat steps 1 through 3 for the second clamp and bracket.
5. Attach the provided safety cable through the attachment point on the bottom of the
fixture upper enclosure and secure to the trussing system or other safe installation point.
Follow local codes and recommended safety standards for securing the fixture to the
installation location.
6. Attach the fixture to the installation location using the installed clamps, using the clamp
manufacturer's instructions for a secure fit. When using an Omega clamp, close the safety
and fully tighten the clamp wing nut until secure.
7. Inspect the installation prior to lifting the fixture overhead.

Power 11
Power
Input and Power Factor
VAC Amps Hz Watts VA PF
100 10.0 50 996 1001 0.99
120 8.1 60 930 965 0.99
200 4.7 50 910 934 0.97
208 4.5 60 928 930 0.97
220 4.3 50 907 938 0.96
240 3.9 60 896 928 0.96
CAUTION: Using this fixture below 100 V on a 15 A breaker may cause the
breaker to trip. Ensure that the circuit can handle the fixture's maximum
potential draw before you connect it.
Connector Specification
WARNING: Risk of Shock and Fire. Assemble a grounding-type attachment
plug with integral cord grip that is within the voltage and amperage rating
of this luminaire.
AVERTISSEMENT : Risque de choc et d'incendie. Assurez-vous d'utiliser
une prise de mise à la terre avec décharge de traction intégrée qui respecte
la tension et l'ampérage de ce luminaire.
A power input cable with powerCON®TRUE1®TOP input to bare ends is provided. The power
input cable is rated for maximum 20A/120VAC and 16A/240VAC. Install a suitable connector
to meet the installation requirements. See the following wire color code chart:
Wire Color Code (EU) Wire Color Code (US Standard) Connection type Terminal
Green/Yellow Green Earth/Ground
Blue White Neutral N
Brown Black Line (Live) L

12 SolaPix 19 User Manual
DMX Control
The SolaPix 19 fixture operates on standard DMX-512 control bus, controlled by a DMX console.
The fixture requires 114 channels of DMX-512.
Attach the fixture to the control bus using a two-core, shielded cable with a 5-pin XLR connector
(Belden 9729 is preferred).
Two XLR termination receptacles are available: one for connection of DMXInput, and one for
DMXThru (used when daisy-chaining to additional fixtures on the DMX control bus).
DMX Connector Pinout
For DMXInput, the DMX cable must have a XLR plug connector on one end of the cable that
connects to the fixture. When daisy-chaining DMX to the next device, prepare a DMX cable with
a XLR socket connector on one end and a XLR plug connector on the other end. Terminate the
cable ends as indicated in the pinout image below.
Connect DMXCables to Fixture
The following instructions are guidelines for connecting DMX to your fixture. Your installation
may vary.
1. Connect the XLR plug connector of a DMX data cable to the DMXThru connector on the
DMX control source.
2. Connect the XLR socket connector of the DMX data cable to the DMX In connector of the
first fixture on the DMX control run.
3. Continue linking the remaining fixtures by connecting a cable from the DMXThru
connector of a fixture to the DMXIn connector of the next fixture on the control run.
Note: A maximum of 32 DMX devices may be connected in any one DMX data run
when installed in a daisy-chain fashion.
DMX-512
(Belden 9729 or equivalent)
terminate DMX
with a 120 Ohm
resistor
DMX-512
control
source

DMX Control 13
Terminate DMX
Use a DMX terminator or install a resistor on the last fixture of the DMXcontrol run to prevent
corruption (data reflection) of the digital control signal by electrical noise.
A DMXterminator is an XLR plug with a 120 Ωresistor connected between pins 2 and 3 that can
be installed into the DMX output receptacle of the last fixture in the DMX control run. This plug
is available and sold separately. Contact your authorized dealer or ETC for ordering information
(etcconnect.com/contactETC/).
Set the DMX Start Address
Give each fixture a unique DMX starting address so that the correct fixture responds to the
control signals. This DMX start address is the channel number from which the fixture starts to
“listen” to the digital control information sent out from the control source.
Modify the fixture DMX start address on the user interface, located on the upper enclosure. See
Address on page17 .
Example: The SolaPix 19 requires up to 114 channels of control depending on the
configuration of the modules. The Base module uses 21 channels. When the Flex
module is set to Compound mode, an additional 17 channels are added. If the Pixel
module is also set to Compound mode, then an additional 76 channels are added,
making 114 channels total.
If you are using the Base and Pixel modules (the Pixel module is set to Compound mode
and the Flex module is disabled) the total channel usage is 97 channels.
DMX Channels
The current DMX channel map for the SolaPix 19 can be found on the ETC website:
etcconnect.com/Products/High-End-Systems/Lighting-Fixtures/SolaPix/Documentation.aspx

14 SolaPix 19 User Manual
Ethernet Control
The SolaPix 19 fixture includes two Ethernet ports that allow sending and receiving of control
signals using the Art-Net protocol or sACN.
Use a Cat5e (or better) cable and terminate to RJ45 connectors following the TIA/EIA 568B
wiring standard.
Connect EthernetCables to a Fixture
The following instructions are guidelines for connecting Ethernet to your fixture. Your
installation may vary.
1. Connect a cable from the Ethernet control source to one of the Ethernet ports on the first
fixture in the Ethernet control run.
2. Connect the first fixture to a second fixture by connecting a cable from the second
Ethernet port on the first fixture to one of the Ethernet ports on the second fixture.
3. Continue linking the remaining fixtures by connecting a cable from Ethernet port to
Ethernet port on the fixtures on the control run.
Note: The Cat5e cable distance should not exceed 100 m (328 ft), and you should not
connect more than 20 fixtures in one Ethernet control run when the fixtures are linked
together.
Ethernet
control
source
Cat5e (or better) Cat5e (or better) Cat5e (or better)

Ethernet Control 15
Set the DMX Start Address
Give each fixture a unique DMX starting address so that the correct fixture responds to the
control signals. This DMX start address is the channel number from which the fixture starts to
“listen” to the digital control information sent out from the control source.
Modify the fixture DMX start address on the user interface, located on the upper enclosure. See
Address on page17 .
Example: The SolaPix 19 requires up to 114 channels of control depending on the
configuration of the modules. The Base module uses 21 channels. When the Flex
module is set to Compound mode, an additional 17 channels are added. If the Pixel
module is also set to Compound mode, then an additional 76 channels are added,
making 114 channels total.
If you are using the Base and Pixel modules (the Pixel module is set to Compound mode
and the Flex module is disabled) the total channel usage is 97 channels.
Set the Control Source and Universe
For Ethernet control, you must configure the control source (Art-Net or sACN) and set a universe
(000-255) for each fixture. See Address on page17 for details.

16 SolaPix 19 User Manual
Configure the Fixture
You can configure SolaPix 19 fixtures through the onboard user interface.
Navigate the User Interface
Mode
Esc.
1. Press the [MODE/ESC] button
Mode
Esc.
to access the main menu. (The display is powered by
battery when the fixture has no power; press and hold the [MODE/ESC] button
Mode
Esc.
for
three seconds to access the main menu.)
2. Browse the menu by pressing the up, down, left, or right navigation buttons.
3. Press the Enter button to select a menu item.
4. Modify the selection by pressing the up, down, left, or right navigation buttons according
to the selection.
5. Press the Enter button to confirm a modified selection.
6. To exit the menu, press the [MODE/ESC]
Mode
Esc.
button.
Note: If you press the Enter button to confirm a selection and push no other buttons,
the user interface returns to the default display after 15 seconds.
